CONTENTS
1. SAFE MARKER HANDLING ......................................................................................1
2. INTRODUCTION ........................................................................................................1
3. GETTING STARTED..................................................................................................2
4. FIRING YOUR MARKER ...........................................................................................3
5. MARKER ADJUSTMENT .........................................................................................4
6. UNLOADING YOUR MARKER..................................................................................5
7. INSTALLING 10RD ASSEMBLY...............................................................................5
8. MAINTENANCE AND LUBRICATION ......................................................................6
9. DISASSEMBLY ........................................................................................................6
10. STORAGE AND TRANSPORATION.........................................................................7
1 1. PARTS LIST & DIAGRAMS ......................................................................................8
12. WARRANTY ............................................................................................................10
Pour obtenir des manuels et des détails sur la garantie,
veuillez consulter :
paintballsolutions.com
Pour obtenir des manuels dans d’autres langues (le cas
échéant), veuillez consulter :
paintballsolutions.com
©2011 Empire Paintball. Le logo Empire et “Battle
Tested” sont des marques commerciales de Empire
Paintball. Tous droits réservés. Brevets en attente de
résolution.
EMPIREPAINTBALL.COM E
E
EMPIREPAINTBALL.COM
EMPIREPAINTBALL.COM 1
1. Safe Marker Handling
IMPORTANT:Never carry your Marker uncased when not on a playing field. The
non-playing public and law enforcement personnel may not be able to distinguish
between a paintball Marker and firearm. For your own safety and to protect the image
of the sport, always carry your Marker in a suitable Marker case or in the box in which
it was shipped.
• TreateveryMarkerasifitwereloaded.
• Neverlookdownthebarrelofapaintballmarker.
• KeeptheMarkerin“SafeMode”untilreadytoshoot.
• Keepyourfingeroffthetriggeruntilreadytoshoot.
• NeverpointtheMarkeratanythingyoudon’twishtoshoot.
• Keepthebarrelblockingdevicein/onthemarker’sbarrelwhennotshooting.
• Alwaysremovepaintballsandtheairsourcebeforedisassembly.
• After removing the air source, point Marker in safe direction and discharge until
Marker is degassed.
• StoretheMarkerunloadedanddegassedinasecureplace.
• Followwarningslistedontheairsourceforhandlingandstorage.
• Donotshootatfragileobjectssuchaswindows.
• Every person within range must wear eye, face, and ear protection designed
specifically to stop paintballs and meeting ASTM standard F1776.
• Alwaysmeasureyourmarker’svelocitybeforeplayingpaintballandnevershootat
velocities in excess of 300 feet-per-second (91.44 meters-per-second).
Read this entire manual before loading, attaching a propellant source, or in any way
attempting to operate the Empire Sniper™ marker.
NOTE: Eye protective devices designed specifically for paintball use must be worn by
the operator and anyone within range.
©Empire Paintball, Inc. No part of this document may be copied or reproduced without
the prior written consent of Empire Paintball.
2. Introduction and Specifications
Congratulations on your selection of the Empire Sniper paintball marker. The Sniper
marker is made to provide you with many years of reliable performance. We are
honoredthatyouhavechosentheSniperasyourmarkerofchoiceandhopeyouenjoy
using this high quality product.
The Sniper is precision engineered from aircraft-grade aluminum, and composite
materials. We expect you to play hard and play frequently and the Sniper was built
with this in mind.
Empire Sniper markers come with a removable Autococker threaded barrel and accept
any CO2 or compressed air tanks with standard threads.
Marker Specifications
Model:................................................................................................................Empire Sniper
Caliber: ................................................................................................................................ .68
Mechanical Action:........................................................................ Pump with Auto-Trigger
Air Source: .......................................................................................Compressed Air or CO2
Main Body Material:................................................................................................Aluminum
Included Items
• 14"Barrelwith3backs(.675”,.680”,and.685”bores)
• 10RoundSpringloadedFeedingSystem
• RemovalVerticalPumpHandle
• 1/16",5/64",3/32",7/64",9/64”,3/16",1/4"AllenWrenches
• SparePartsKit
• BarrelBlockingDevice
• ClampingFeedElbow
• QuickStartManualandCD
EMPIREPAINTBALL.COM
2
3. GETTING STARTED
Safety and safe marker handling are the most important aspects of paintball
sports. Please practice each of the following steps with an unloaded marker before
attempting to operate your marker with an air source and paintballs.
• Do not install an air source or load paintballs into your marker until you have
completely read and understood this manual and feel completely confident with
your ability to handle your marker safely.
• Always use ASTM approved paintball specific eye protection. Always wear eye
protection when handling a paintball marker and in any areas where paintball
markers may be discharged.
• Keepyour finger out ofthe Trigger guard and away from the Trigger; point the
muzzle of the marker in a safe direction at all times. Keep the marker in Safe Mode
and use a barrel blocking device.
• Rememberthattheultimatesafetydeviceisyou,theoperator.
Safety and Safe Mode
The Safety is a small mechanical
push button on the left side of the
marker above the grips. When the
Safety is “OFF”, a red O-ring is visible
on the marker (fig. 3.1). When the
Safety is “ON”, the red O-ring will
be hidden and the marker will not
fire (fig. 3.2).
In this manual, you will see the term
“Safe Mode” used. In “Safe Mode”,
the Safety should be set to “ON”
(red marking on safety will not be
visible) and a barrel blocking device
should be installed. Make sure your
marker is in “Safe Mode” when the marker is not being fired or when indicated to do so.
Barrel Installation
• Makesuremarkerisdegassed,loaderremoved,nopaintballsinthefeedportor
breech and the marker is in “Safe Mode”.
• Slide the longer barrel tip into the desired barrel back, turning the barrel tip
clockwise until it stops (do not over tighten).
• Thebarrelbacksaresized(.675,.680,.685)tomatchthepaintballdiametertoget
the most efficient usage of your Sniper marker.
• Whilepointingmarkerinasafedirection,threadthebarrelintothefrontopeningof
the marker body.
• Turnthebarrelclockwise(whenlookingatthefrontopening)untilitstops(donot
over tighten).
• Installabarrelblockingdevice.Thiscanbeabarrelbagorothersuchdevicethat
prevents the accidental discharge of a paintball.
Loader Installation
• Toinstallaloader,checkthefeedneckandtheloadertomakesuretheyarefree
from debris and obstructions.
• Presstheloaderneckintotheopeningofthefeedneckuntilitstops.
• Aligntheloadersothatthelidispointingtotherearandtheloaderisparallelwith
the marker.
• Clamp the loader in place by tightening the clamp arm; it may be necessary to
adjust the feed neck clamp screw (see below). Do not over tighten the clamp
holding the loader, as this may damage it.
Feed Elbow Clamp Adjustment
Thefeed elbow clamp may needadjustment for different types/brands ofloaders.
Adjustthethumbnutclockwisetoincreasetheclampingforceorcounterclockwise
to decrease the clamping force of the lever. No tools are needed to make any
adjustments.
Before Pressurizing your Marker
Consult the place where you purchased your Empire marker, or a recognized and
competent air smith, for instruction in the safe handling of compressed-air cylinders
SAFE - SAFETY “ON” Fig. 3.2
FIRE - SAFETY “OFF” Fig. 3.1
EMPIREPAINTBALL.COM 3
before purchasing or connecting one to your Empire marker.
• Checktomakesurethatyouandanyonewithinrangearewearingeyeprotection
designed specifically for paintball.
• Doublecheckthatallscrewsaretightenedandnopartsareloosebeforeinstalling
your tank.
• Ensure you have a barrel plug, barrel bag or other specifically designed barrel-
blocking device in place.
• Makesuretherearenopaintballsinthemarker.
• Setmarkerto“SafeMode”.
• Cockthemarkerbymovingthepumphandlebackthenforward.
Pressurizing your Marker
• Whilepointingthemarkerinasafedirection,locatetheASA(AirSourceAdapter).
The Sniper ASA is located on the
bottom of the grip frame.
• Move the On/Off ASA lever to the
forward position.

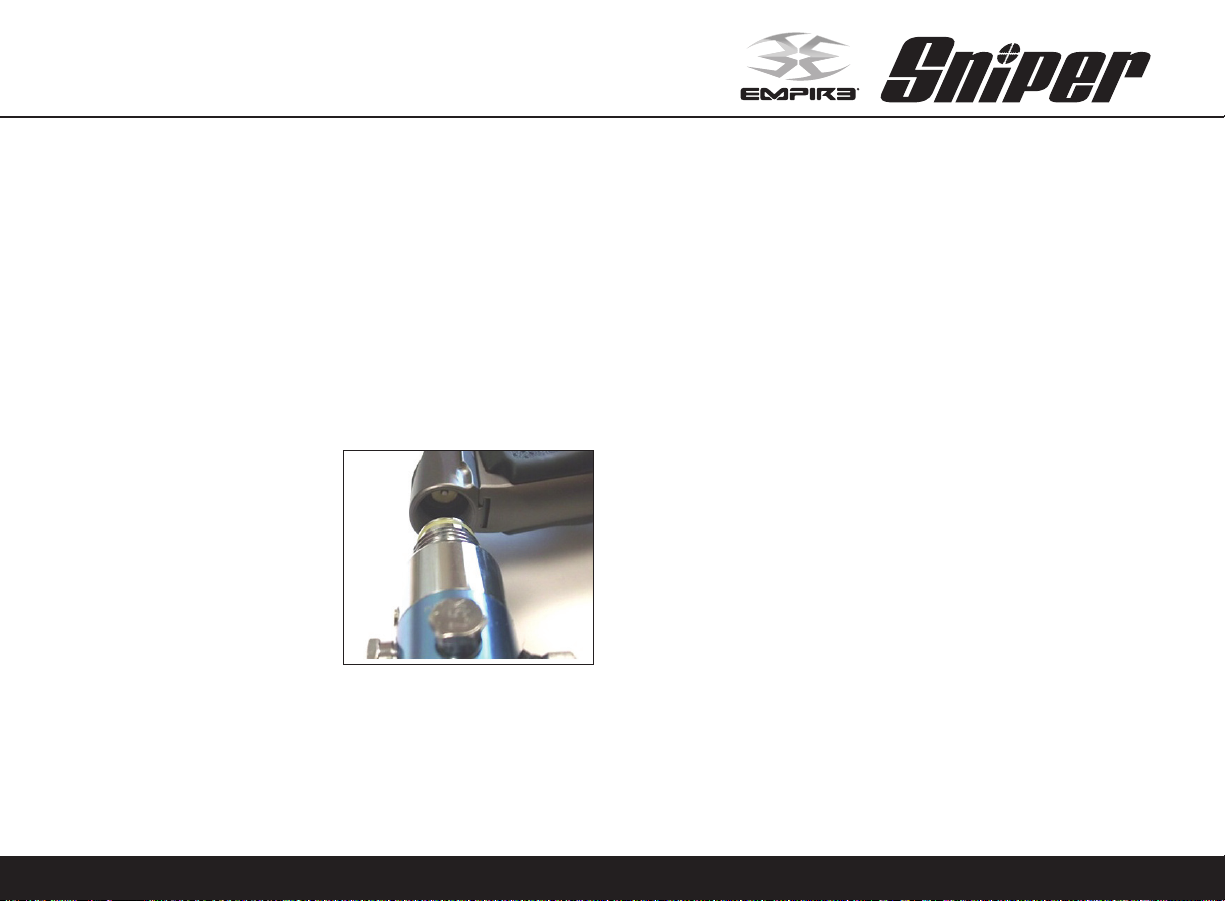

• Insert the threaded end of the air
cylinder into the ASA. (FIG. 3.3)
• Without pushing the cylinder, twist
the cylinder clockwise and allow the
threads to draw the cylinder into the
marker’s ASA until it stops.
• Flip the On/Off lever back. Your
marker is now charged.
WARNING:
• Remembercompressedair,nitrogensystemsandCO2cylinderscanbeextremely
dangerous if misused or improperly handled. Use only cylinders meeting D.O.T. or
regionally defined specifications.
• Never disassemble your tank or tank regulator. Only a qualified and trained
technician should perform work on your tank and tank regulator.
• Neveraddanylubricantsorgreasesintothefilladapteronyourtankregulator
Loading Paintballs
Empire markers use .68 caliber, water-soluble paintballs, readily available at paintball
pro-shops, commercial playing fields, and many sporting goods stores. The paintballs
are feed through the feed elbow into the breech of the marker.
• Makesurethemarkerissetto“SafeMode”,withSafetyONandbarrelblocking
device installed.
• Putonaneyeprotectivedevicedesignedspecificallyforpaintballandmakesure
that anyone within range of the marker does the same.
• LoadqualityEmpire.68caliberpaintballs(leavesomeroomforpaintballstomove
about, inside the loader).
• Yourmarkerisnowloaded.
4. FIRING YOUR MARKER
WARNING: Always keep your marker pointed in a safe direction! Everyone within
firing range should always use paintball approved eye and face protection in the
presence of live paintball markers. Make sure the marker is set to “Safe Mode”, before
following the steps below.
• Cockthemarkerbypullingthepumphandlerearward.
• Installtheaircylinderandpressurizethemarker.
• Putthepaintballsintotheloader.
• Usingthepumphandle,loadapaintballbyslidingthepumpbackthenforward.
• Removethebarrel-blockingdevice.
• Aimthemarkerinasafedirection.
• SettheSafetytothe“Fire”position,SafetyOFF.
• Aimthemarkeratthetarget.
• Placeyourfingeronthetrigger.
• Pullthetriggerwithasmoothsqueezingmotion.
• Oncethemarkerisfired,slidepumphandleback,thenforward,toloadthenext
paintball.
Fig. 3.3
EMPIREPAINTBALL.COM
4
Auto-Trigger
The Empire Sniper paintball marker is equipped with an Auto-Trigger. To use the Auto-
Trigger, hold the Trigger in while pumping the marker. Each time the handle is pumped
a paintball will be fired from the marker.
5. MARKER ADJUSTMENT
Always check the velocity of the marker prior to playing paintball. Different playing
fields may have different maximum velocity limits, check the regulations at your local
field. At no time should your marker shoot at velocities above 300 feet-per-second
(91.44 meters-per-second).
Checking Velocity
• Putonaneyeprotectivedevicedesignedspecificallyforpaintballandmakesure
that anyone within range of the Empire marker does the same.
• Whilepointingthemarkerinasafedirection,removethebarrelblockingdevice.
• PointtheEmpiremarkeroverachronographthatwillmeasurethevelocityofthe
paintballs discharged by the marker.
• Setthemarkerto“Fire”mode,safetyOFF(redvisible).
• Loadapaintballandfirethemarker,checkingthereadingonthechronograph.
Adjusting Velocity
The velocity can be adjusted via the inline regulator pressure and by the rear
adjustmentscrew.Therearadjustmentscrewwillcompressthemainspringmaking
the Hammer hit the valve harder, this will also increase the tension on the pump
stroke. We recommend that you mainly
adjustthevelocityviatheinlineregulator
(see regulator adjustment) and use the
rear adjustment screw to fine tune the
velocity. Turning the input pressure up
too high may result in lower velocity as the
pressure behind the valve will be too high.
• Usetheincluded3/16"Allenwrenchto
turntherearvelocityadjuster(Fig5.1).
• Turningtherearvelocityadjusterinwardorclockwisewillincreasethevelocityand
turning it outward or counterclockwise will decrease the velocity.
• Neverturntherearadjustmentscrewoutpastflushwiththebackofthemarkerbody.
• Alsomatchingyourbarrelbacktothepaintballsyouareusingwillhelpraisevelocity.
Regulator Adjustment
• TheSniperisfactorysetatabout225
psi.Youcanadjusttheinputpressure
by turning the adjustment screw
located on the bottom of the inline
regulator.
• Usetheincluded1/4"Allenwrenchto
adjustthepressure(Fig5.2).
• Turn the wrench inward or clockwise
to decrease the input pressure, and
outward or counterclockwise to increase the input pressure.
• Whenincreasingtheinputpressure,theadjustmentchangewillbevisibleonthe
Pressure Gauge.
• When decreasing the input pressure, the marker will have to be fired to see a
pressure change on the gauge.
Hammer Lug Adjustment
The Hammer Lug controls how far the Trigger must be pulled in order to fire the marker.
IftheHammerLugisadjustedtoohigh,themarkerwillnotcockasitwon’tengagethe
Sear.IftheHammerLugisadjustedtoolow,
the marker will fire too early or not at all.
HammerLugadjustmentiscritical to having
a well tuned marker. We recommend that
the Hammer Lug be set .040"-.050" from
the bottom of the main body. Hammer Lug
adjustment will also affect the Auto-Trigger
activation point.

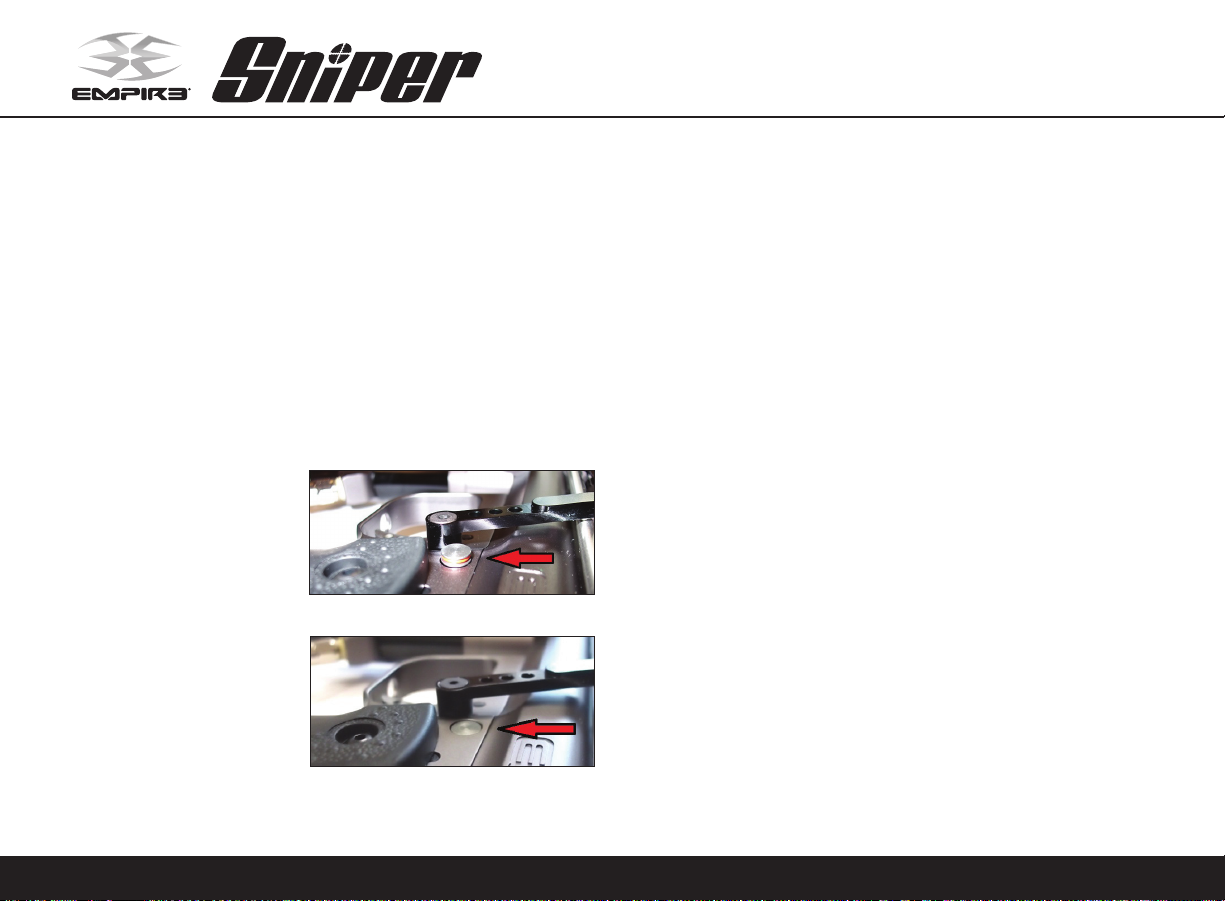

Fig. 5.1
Fig. 5.2
Fig. 5.3
EMPIREPAINTBALL.COM 5
YoucanadjusttheHammerLugpositionusinga1/8"Allenwrench,turningitclockwise
will lower the Hammer Lug and counterclockwise will raise the Hammer Lug (Fig 5.3).
Auto-Trigger Adjustment
The Auto-Trigger allows the user to rapid fire their pump marker. When the Trigger is
held back, each forward pump stroke will fire a paintball.
The Auto-Trigger can be fine tuned by slightly adjusting the Hammer Lug position,
whichadjuststheTriggeractivationpoint.Youshouldadjusttheactivationpointonly
when the marker is degassed and unloaded.
• HoldtheTriggerbackandslidethepumphandleallthewayback.
• ContinuetoholdtheTriggerandbegintoslidethepumphandleforward.Asyou’re
sliding it forward you will hear the Hammer release, this is your current activation point.
• WhilemakingslightadjustmentstotheHammerLug,lookintothemarkersfeedneck
to make sure the Bolt is sealing forward of the feed neck, when the Hammer is released.
Vertical Pump Handle
TheSnipercomesequippedwithaVerticalPumpHandle.Thishandlecanberemoved
ifdesiredbylooseningthetwoscrewsonthebackofthepumphandlewitha5/32“
Allen wrench and then sliding the vertical handle out.
Pump Rod Adjustment
The Pump Rods are factory set so a paintball can freely fall into the breech of the
marker when the pump handle is at its most rearward position. The rearward pump
strokelimitcanbeadjustedbyhowfarthePumpRodsarethreadedintotheBoltSled.
6. UNLOADING YOUR MARKER
Put on an eye protective device designed specifically for paintball and make sure that
anyone within range of your Empire marker does the same.
• Makesurethebarrelblockingdeviceisproperlyinstalledandthemarkerissetto
“Safe Mode”.
• Removetheloaderandallpaintballs.
• WhilepointingtheEmpiremarkerinasafedirection, removethebarrelblocking
device and fire the marker several times to insure there are no balls remaining in the
chamber or the barrel.
• Properlyre-installthebarrelblockingdeviceandsetthemarkerSafetyto“SafeMode”.
Removing Air Cylinder
• Putonaneyeprotectivedevicedesignedspecificallyforpaintballandmakesure
that anyone within range of the Empire marker does the same.
• Makesurethebarrelblockingdeviceisproperlyinstalledonthemarker.
• While pointing the Empire marker in a safe direction, flip the ASA On/Off lever
forward venting the air from the marker. Turn the air cylinder counter-clockwise
until it’s free of the ASA.
• Themarkerisnowreadytobecleanedandputawayforfutureuse.
7. INSTALLING THE 10-ROUND FEED SYSTEM
Included with the Empire Sniper is a 10 round feeding system that replaces the stock
clamping feed neck. If you wish to use the system, the stock feed neck has to be removed
first. It is recommended that you cover your markers body to prevent accidental damage,
justincaseyouweretoslipwiththescrewdriverorsimilartoolwhileremovingthefeedneck.
• Firstremoveallthehardwarefromthefeedneck.
• Then carefully insert a flat head screwdriver into
the slot on the back of he feed neck and slightly
separate the two sides (Fig 7.1).
• Lift the feed neck of the body and re-install the
hardware (so it’s not misplaced).
• Next remove the two screws on the 10rd adapter
andthecoverplateusingthe7/64"Allenwrench.
• Placethe10rdadapteronthemarker
• Installcoverandscrews(Fig7.2).
• Tighten screws until the adapter does not turn
freely.
Fig. 7.1
Fig. 7.2
EMPIREPAINTBALL.COM
6
8. MAINTENCE AND LUBRICATION
Caution: Before attempting to perform any maintenance operations, make sure that all
paintballs and propellant sources have been removed from the marker. Install a barrel
blocking device, marker must be unloaded and degassed before any disassembly or
maintenance.
Once your Empire marker is unloaded and the air cylinder is removed, you can use a damp
cloth to wipe off paint, dirt and debris from the outside of your marker. Once your marker
is clean and dry you can re-oil using a light, premium marker oil. Do not use any petroleum
based or aerosol products on your marker, they can damage your markers O-rings.
Cleaning Barrel /Breech Insert and Breech of Marker
• Pushapaintballswab,liketheEmpireBattleSwab,throughthebarrelandbreech
area to clean them.
• Cleantheoutsideofyourmarkerusingapapertowelorcleanrag,whichcanbe
dampened with warm water.
Lubricating the Bolt /Hammer Assembly
• Seesection8fordisassemblyinstructions.
• WipethepartscleanandinspecttheO-ringsfordamageorwear,replaceifneeded.
• ApplyonedropofpremiummarkeroiltotheO-ringontheBoltandapplyasmall
amount to the outer surface of the Hammer.
9. DISASSEMBLY
CAUTION: Before attempting to perform any maintenance operations, make sure that
all paintballs and air sources have been removed from the marker. Install a barrel blocking
device, marker must be unloaded and degassed before any disassembly or maintenance.
Disassembly Tips
• Makesureyouhaveacleanareatoworkonyourmarker.
• Whenremovingpartsforthefirsttime,dosocarefully,soyoudonotloseany.
• VisitPaintballSolutions.comforadditionalinformation.
Barrel
• TheBarrelisremovedbyturningitcounter-clockwise.
Ball Detent and Covers
• Usinga5/54"Allenwrench,removedtheDetentCoverscrews.
• Liftoffthecoverandremovethedetentsforcleaningorreplacementasneeded.
Bolt
• LiftthequickreleaseBoltPinupandslidetheBoltoutthebackofthebody.
Grips
• Usinga5/64"Allenwrench,removethe4gripscrewsandthenremovethegrips.
Trigger Frame Assembly
• DisconnecttheairhosefromeithertheregulatororASAmacrofitting.
• Usinga9/64"Allenwrench,removethetwoframescrewsfromtheTriggerFrame.
• Removetheframebyslidingitdownward,itmaybenecessarytoslidethepump
handle back slightly to allow the Auto-Trigger arm to disengage from the Pump Rod.
Air Source Adapter (ASA)
• DisconnecttheairhosefromeithertheregulatororASAmacrofitting.
• Removethegrips(seeabove).
• Usinga 3/32"Allenwrench,loosenthe twosetscrewswhicharelocatedinthe
bottom of the frame.
• OnceloosenenoughtheASAwillslideofftheframe.
Pump Plate
• Tokeep the proper pump stroke length,make sure you hold the PumpRods in
position while loosening the Pump Plate screws.
• Todothisplacea5/64"AllenwrenchintothesideofthePumpRodandholdits
positionwhileremovingthePumpPlatescrewswitha7/64"Allenwrench.Repeat
EMPIREPAINTBALL.COM 7
this for each side.
• Whenre-installingthescrewsmakesuretorepeatthesamestepsofholdingthe
Pump Rods.
Pump Handle
• Usinga5/32"Allen wrench, remove the two screws locatedonthebackofthe
Pump Plate.
• SlidethepumphandleoffthepumpguiderodandbecarefulnottolosethePump
Return Spring which is located inside the handle.
Pump Rods and Sled
• Once the Bolt and Pump Plate have been removed, the Pump Rod and Sled
assembly will slide off the back of the marker.
Hammer Assembly (Hammer,MainSpring,andRearAdjuster)
It is recommended that you do not remove the Hammer unless you feel confidant in
setting the Hammer Lug correctly.
• Usinga3/16"Allenwrench,removetheRearAdjusterandMainSpring.
• NextturntheHammerLugcounterclockwisewitha1/8”Allenwrenchuntilitiswithin
the bottom of the Hammer, thus visible thru the slot on the bottom of the body.
• TheHammerwillslideoutthebackofthemarkeriftheHammerLugishighenough
to create clearance.
Inline Regulator Assembly
• TurntheentireInlineRegulatorAssemblycounterclockwisetounscrewitfromthe
VerticalASA.
Pump Guide and Vertical ASA
• Usinga3/16"Allenwrench,turnthePumpGuidecounterclockwisetoremove.
• Oncethe Pump Guide is removed the VerticalASAwill slide off the front of the
marker.
Valve Assembly (Valve,Cupseal,andValveSpring)
• TheValveAssemblyshouldonlyberemovedifmaintenanceisneededlikeanairleak.
• Oncethemarkerisfullydisassembledthevalveassemblycanbeaccessed.
• Removethevalvealignmentscrewfromthebottomofthebodyusingaflathead
screwdriver.
• InsertaPumpRodintothefrontofthebodyandpushthevalveassemblyoutthe
back of the marker.
10. STORAGE AND TRANSPORATION
IMPORTANT: Never carry your Empire marker uncased when not on a playing field.
The non-playing public and law enforcement personnel may not be able to distinguish
between a paintball marker and firearm. For your own safety and to protect the image
of the sport, always carry your Empire marker in a suitable marker case or in the box
in which it was shipped.
When you are finished using your Empire marker it is important that you prepare it
for storage. This will not only serve to increase the life of the marker, but will assure
optimum performance on your next outing.
• TheEmpiremarkermustbeclearofallpaintandairsourceswhennotbeingused.
• Besuretohavemarkerde-cockedandin“SafeMode”whennotinuse.
• Makesureabarrelblockingdeviceisinplace.
• StoreyourEmpiremarkerandpropellantincooldryplace.
• KeepyourEmpiremarkerawayfromunsupervisedchildren.
• YourEmpiremarkermustbefreeofallpaintandnotattachedtoapropellantsource
while being transported to and from the playing field.
• Observeandobeyalllocal,stateandfederallawsconcerningthetransportationof
paintball markers. For information concerning any of the laws in your area, contact
your local law enforcement.
• Always store the marker in a secure location when not in use so as to prevent
access by unauthorized persons.

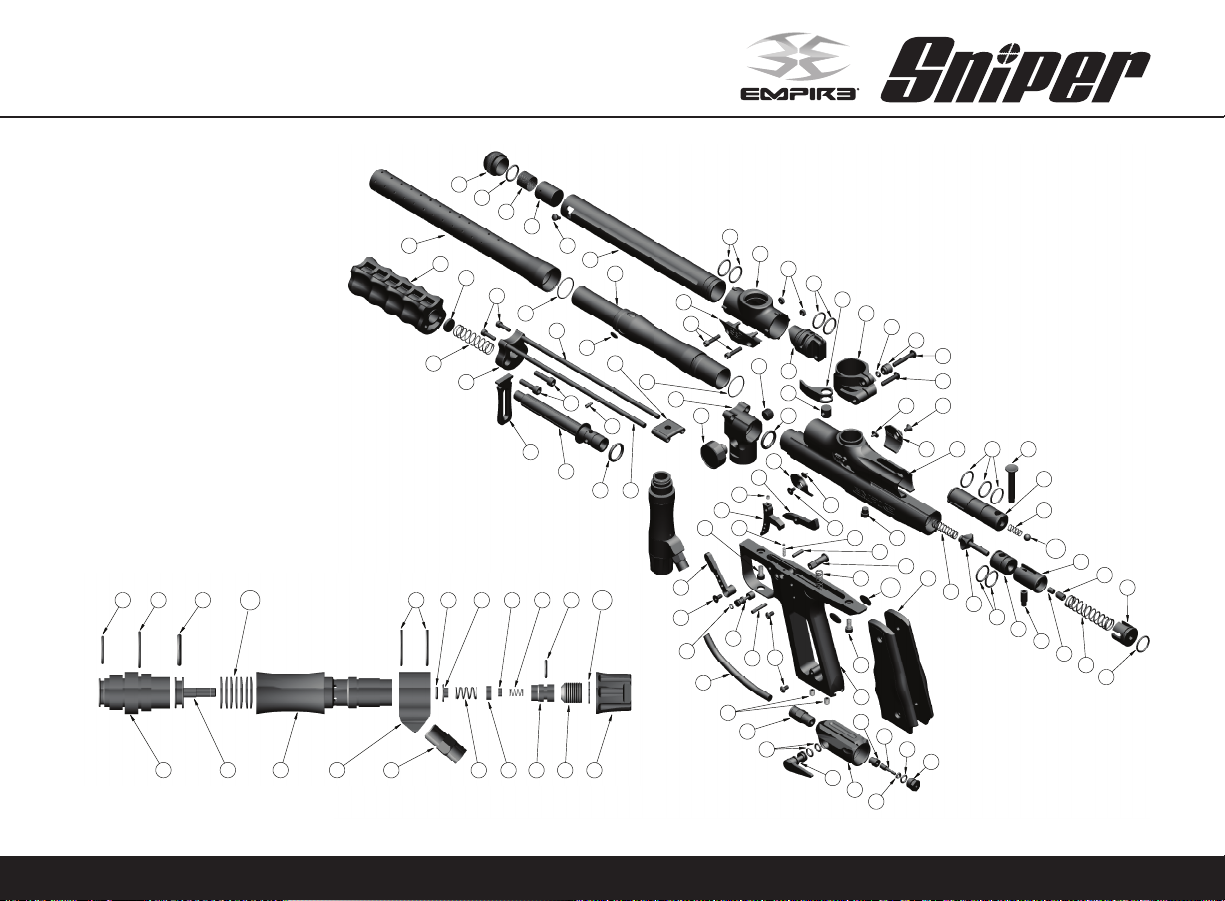

11. DIAGRAMS / PARTS LIST
EMPIREPAINTBALL.COM
8
Diagram # Description SKU# Diagram # Description SKU# Diagram # Description SKU#
1 VALVE 10027
2 VALVE SCREW 10513
3 300 PSI GAUGE 17596
4 GRIP 17959
5 FEED ADAPTER PLUG 17960
6 FEED TUBE BODY 17962
7 FEED TUBE PLUNGER 17963
8 FEED TUBE PLUNGER KNOB 17964
9 FEED TUBE SPRING 17965
10 FEED TUBE CAP 17966
11 BALL DETENT 19275
12 FRAME 72420
13 TRIGGER 72421
14 SEAR 72422
15 SPRING SEAR 72423
16 SAFETY 72424
17 SAFETY SPRING 72425
18 AUTOTRIGGER CAM 72426
19 AUTOTRIGGER ARM 72427
20 SEAR PIN 72428
21 ASA BODY 72429
22 ASA LEVER 72430
23 ASA PIN 72431
24 ASA PLUG 72432
25 ASA GUIDE 72433
26 PUMP ROD 72434
27 PUMP PLATE 72435
28 PUMP GUIDE 72436
29 PUMP ROD PIN 72437
30 PUMP SLIDE 72438
31 PUMP SPRING 72439
32 PUMP BUMPER 72440
33 PUMP HANDLE 72441
34 VERTICAL PUMP HANDLE 72442
35 BOLT 72443
36 BOLT PIN 72444
37 BOLT SPRING 72445
38 HAMMER 72446
39 HAMMER LUG 72447
40 HAMMER RETAINER 72448
41 END CAP 72449
42 HAMMER SPRING 72450
43 VALVE SPRING 72451
44 CUPSEAL 72452
45 BODY 72453
46 VERTICAL ASA 72454
47 DETENT COVER LEFT 72455
48 DETENT COVER RIGHT 72456
49 FEEDNECK BUSHING 72457
50 FEEDNECK 72458
51 FEEDNECK LEVER 72459
52 FEEDNECK THUMB NUT 72460
53 BARREL TIP 14" ALUM 72461
54 BARREL BACK .675 72462
54 BARREL BACK .680 72463
54 BARREL BACK .685 72464
55 BARREL EMPIRE JEWEL 72465
56 FEED TUBE HOUSING 72466
57 FEED TUBE HOUSING SIDE PLATE 72467
58 REGULATOR BODY 72468
59 REGULATOR ADAPTER 72469
60 REGULATOR TOP 72470
61 REGULATOR PISTON 72471
62 REGULATOR RETAINER 72472
63 REGULATOR SEAL ADJUSTER 72473
64 REGULATOR VENT ADJUSTER PISTON 72474
65 REGULATOR ADJUSTER PISTON 72475
66 REGULATOR CAP 72476
67 REGULATOR SPRING 72477
68 REGULATOR ADJUSTER SPRING 72478
69 O RING- 015/70 BUNA 10260
70 O RING- 011/70 URETHANE 10608
71 SCREW FHCS 6-32 X .313 17651
72 SCREW BHCS 6-32 X .250 17653
73 SCREW SHCS 6-32 X .500 17655
74 HEX NUT (6-32 .25 X .092) 17657
75 O RING- 008/70 URETHANE 41015
76 MACROLINE FITTING STRAIGHT 55112
77 O RING- 010/70 BUNA 57608
78 O RING- 015/70 URETHANE 57738
79 O RING- 015/90 URETHANE 75541
80 MACROLINE HOSE 1/4"OD X 90MM 72485
81 1/8 NPT X .300 PLUG FITTING 72486
82 O RING- 1MM X 3MM ID 70 RED BUNA 72487
83 O RING- 1MM X 19.5MM ID 70 BUNA 72488
84 O RING- 006/70 BUNA 72489
85 O RING- 018/70 BUNA 72490
86 O RING- 113/70 BUNA 72491
87 O RING- 113/70 URETHANE 72492
88 SCREW FHCS 6-32 X .250 72493
89 SCREW SHCS 6-32 X .625 72494
90 SCREW SHCS 8-32 X .375 72495
91 SCREW BHCS 8-32 X .750 72496
92 SCREW BHCS 8-32 X 1.000 72497
93 SCREW SHCS 10-24 X .750 72498
94 SCREW SET 6-32 X .125 FLAT POINT 72499
95 SCREW SET 10-32 X .250 72500
96 SCREW SET 1/4-28 X .375 FLAT POINT 72501
97 SCREW SET 1/2-20 X .500 CUP POINT 72502
98 DOWEL PIN .125 DIA X .500 72503
99 BALL BEARING 2.5MM 72504
100 BALL BEARING 1/4" 72505
101 RETAINING RING INT .500 BORE 72506
102 BELLEVILLE WASHER .750 OD .380 ID X .034 72507
103 JEWEL 72508
EMPIREPAINTBALL.COM 9
10
9
7
6
83
46
57
86
56
49
5
51
50
52
92
91
11
36
47
35
2
14
43 41
44
1
38
18
79
42
69
12
90
24
25
21
22
80
16
90
29
17
19
13
94
3
30
28
26
34
93
55
31
27
32
33
53
69
8
69
69
48 45 78
39
40
96
98
73
54
89
26
83
86
71
82 20
95
76 23
77
84
77
4
37
100
84
11
88
99
103
88
72
81
74
15
61
102 75
58 59 67 656376
85
60
878569 62 64
97 66
70 10168
EMPIREPAINTBALL.COM
10
LIMITED LIFETIME WARRANTY
LIMITED LIFETIME WARRANTY INFORMATION
(ORIGINALPURCHASERECEIPTREQUIRED)
Empire Paintball (“Empire”) warrants that this product is free from defects in materials
andworkmanshipforaslongasitisownedbytheoriginalpurchaser,subjecttothetermsandconditions
set forth below. Empire will repair or replace with the same or equivalent model, without charge, any of its
products that have failed in normal use because of a defect in material or workmanship.
Empire is dedicated to providing you with products of the highest quality and the industry’s best product
support available for satisfactory play.
Purchaser should register product to activate warranty. Register your product by:
1. Online at www.paintballsolutions.com
2. Complete the product registration card (if applicable) and mail along with a copy of your
receipt to: Paintball Solutions, 11723 Lime Kiln Rd., Neosho, MO 64850, 800-220-3222.
Canada Contact: 98 Bessemer Ct Unit 4, London ON N6E 1K7, 866-685-0030.
WHAT THIS WARRANTY DOES NOT COVER
This warranty does not cover problems resulting from abuse, the unauthorized modification or alteration of
our product, problems resulting from the addition of aftermarket products and scratches or minor superficial
imperfections. Due to the nature of paintball products it is important that the product be maintained by the user
as indicated in the product manual to remain in good operating condition. Your Limited Lifetime Warranty will be
void if you fail to maintain the product as recommended in the product instruction manual. In addition, certain
parts of a product may be subject to wear through regular usage. Replacement and repair of such parts is
the responsibility of the user throughout the life of the product. These parts are not covered under the Limited
Warranty. Examples of this type of part include (but are not limited to) goggle lens, straps, O-ring seals, cup seals,
springs,balldetents,batteries,hoses,drivebelts,gearsandanypartofaproductsubjecttocontinuousimpact
from paintballs. Hydrotesting of air cylinders is not covered under this warranty.
The Limited Lifetime Warranty also does not cover incidental or consequential damages. This warranty is the sole
written warranty on Empire’s product and limits any implied warranty to the period that the product is owned by
the original purchaser. Some states, provinces and nations do not allow the limitation of implied warranties or of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights which vary from state to state, province to
province, nation to nation.
If you should encounter any problems with your product and you have added aftermarket parts on your product,
please test it with the original stock parts before sending it in. Always unload and remove air supply before
shipping markers. Do not ship your air supply tank if it is not completely empty. Shipping a pressurized air supply
tank is unsafe and unlawful. Remove all batteries from products prior to shipping.
This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. Some states do not allow the exclusion of incidental or consequential damages.
Forwarrantyparts,serviceorinformationcontact:PaintballSolutions•www.paintballsolutions.com
E-mail:[email protected]•Phone:1-800-220-3222•
Canada: 866-685-0030
Patent Pending.
WARNING!
PAINTBALL GUNS AND PAINTBALL GUN ACCESSORIES ARE NOT TOYS!-
Carelessuseormisusemayresultinseriousbodilyinjuryordeath!
- Eye protection designed for paintball must be worn by the user and all persons within range.
- Not for sale to persons under 18 years of age.
- Must be 18 years of age or older to operate or handle any paintball gun and paintball gun accessories without
adult or parental supervision.
- Read and understand all cautions, warnings, and operating manuals before using any paintball gun or
paintball gun accessory.
- Do not aim paintball gun at eyes or head of people or at animals.
- Paintball guns are to be used with Paintballs only.
- Use common sense and have fun.
Any tampering with the unit voids your warranty. There are no consumer serviceable parts inside the unit. The
use of non factory authorized components within this product may cause a critical failure, fire or shock hazard.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY DIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE
PRODUCT OR THE USE OF ANY PRODUCT.
WARNING: This product contains one or more chemicals that are known to the State of California to cause
cancer and birth defects or other reproductive harm. Wash hands after handling. You must be at least 18
years of age to purchase this product. This product may be mistaken for a firearm by law enforcement officers
or others. Altering the color of the product or brandishing the product in public may be considered a crime.
EmpireSniper™InstructionManual,Version1.007/11.
Table of contents
Other Empire Paintball Equipment manuals
