EMPORIA CLASSIC 2G User manual

English
Eveline Pupeter, emporia Telecom
www.emporia.eu
Thank you for purchasing a product emporia!
Please read through the instruction manual before using the phone in operation.
CLASSIC 2G
Simplify your communication.®

› YOUR MOBILE PHONE AT A GLANCE
1Loudspeaker
2 Display (screen)
3 On/O key
4 Handset volume controls &
5 Keypad lock
6 Torch button
7
menu
Menu key
8 Camera button
9 Answer/OK key
• Start or accept a call
• In the menu: Confirm selection
• On standby: Access Call info
10 Arrow keys
• Use these to flick through your Contacts and the menu
• When the phone is on standby, press to access Favorits.
• When the phone is on standby, press to access Contacts.
11 Hang up / Back / Delete key
• When in a call: End
• When in the menu: One step back
• When entering digits or letters: Delete
12 Speed dial keys
13
1
-key (voicemail)
2
1
9
14
13
4 7
5 8
3 6
10
12
11
15
21
17 18
16
20
19
22

ENGLISH–03
14
+
key: Indicates the charge status of the battery by flashing:
• Red flashing: The battery is almost empty
• Green flashing: The battery is charging
• The light is on constantly: The battery has finished charging
15
#
aA1!
key: Blue flashing indicate a missed call.
Goes out once the call info has been accessed.
16 Torch
17 Emergency button
18 Loudspeaker
19 Camera lens and camera light
20 Battery cover (two versions: with and without emergency button)
21 Headset port
22 Port for USB charging cable
›Symbole am Display
Network signal strength
Roaming (abroad)
Battery indicator
Missed call
Call forwarding
New message
Profile: Silent/Sleep mode
Profile: Maximum/Bus
mode
Profile: Meeting/
Theater mode
Alarm clock on
Bluetooth activated
Bluetooth connected

ENGLISH–04
1. GETTING STARTED

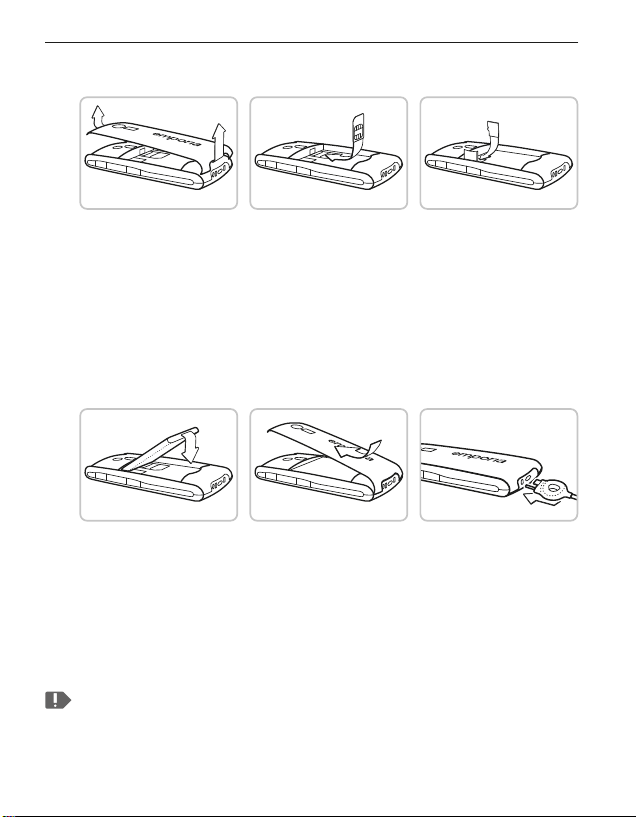

›Inserting a SIM card
• Remove the battery cover (opening in the top left-hand corner)
• Slide the SIM card into the SIM card holder
with the gold contacts facing down.
• Slide your data card into the card holder
with the gold contacts facing down.
›Inserting and charging the battery
• Insert the battery, making sure that the battery contacts touch the
phone's gold contacts.
• Place the battery cover over the battery and press it down until it
clicks into place.
• Plug the charging cable into the USB port on the bottom of the phone.
Attention: Charge the battery for at least four hours before the rst
time you use it. Only use batteries and chargers that are permitted
for use with this specic model.

ENGLISH–05
›Turn phone on or off
• Pressing the key (on the side of the phone) for at least two
seconds switches the phone on resp. off.
›Using a new SIM card for the first time:
Enter the four-digit PIN code (personal identification number)
_Press to confirm the code
The PIN code is a four-digit number that is intended to prevent
somebody else from being able to switch on your mobile phone.
You have a maximum of three attempts to enter the correct
number. If you enter the wrong number three times in a row, you
will only be able to unblock the SIM card with the PUK code. You
will nd the PIN code and PUK code in the documents supplied by
your network operator.
_Select a Language by pressing and _ _Set time
__Set date _ _Select a Text size by pressing and
: You can choose Small or Large _
›Saving energy
If a few seconds pass without the phone receiving any input from
you, the screen will go blank to save energy. In the event of an
incoming call or you pressing any key, the screen will automatically
light up again. If the keypad is set to lock automatically, the phone
will only respond if the green button or the key is pressed.

ENGLISH–06
2. USING THE PHONE
In standby mode the phone is on, but is not running any
applications (calls, SMS messages, etc.).
›Using the menu
Press the
menu
key (on the side of the phone) to open the menu.
• Press and/or to flick through the menu items.
At the top of the screen, the menu item currently highlighted
will be displayed.
• Press to open a menu item.
• Menu items can be selected directly using the digits assigned to
them.
• Options which you can select by pressing or are displayed
at the bottom of the screen.
• To return to standby mode, press several times.
›Dual-function keys
Some keys have additional functions if they are pressed and held
down for a few seconds:
1
key: Listen to your voicemail
+
key: + for country code, e.g. +49 for Germany
#
aA1!
key: Show missed calls
Torch button: Torch on continuously when the phone is on

ENGLISH–07
3. CALLS
›Incoming call
• To answer: Accept the call by pressing .
• To reject: Press .
• To mute the ringtone temporarily:
Press the button (on the side of the phone).
›Ending a call
Press .
›Dialling
Enter the number you want to dial (incl. the area code)
using the keypad. _Start the call by pressing .
›Redialling
When the phone is on standby, press to view your call history.
_Press and to select a number.
_Start the call by pressing .
›Hands-free mode
Press during a call to open the Options and
turn the hands-free function on or off.

ENGLISH–08
4. SMS MESSAGES
›Menu items: Write message, Received, Unsent, Sent,
Delete messages, Templates, Blocked numbers for
messages, Send contact by SMS, SMS in PhoneBK,
Message settings
›Writing a message
menu
_Messages _Write message
Enter text using the keypad.
Each key has several characters assigned to it, which can be selected
by pressing the respective key several times.
(E.g. 2x
4
ghi
, 1x
2
abc
, 3x
5jkl
, 3x
5jkl
and 3x
6
mno
for Hallo)
The symbols available vary according to which language you are using.
›Input method
Press
#
aA1!
to change the input method.
abc _Lower case only
ABC _Upper case only
Abc _Upper and lower case
123 _Digits
›Sending a message
Options _Send to _Enter a number or
open Contacts by pressing Search.
›Receiving a message
Received messages are indicated by an audio signal and
the symbol.
• Press to open a received message immediately.
• To view your message list, select Messages _Received.

ENGLISH–09
5. CAMERA AND PHOTO ALBUM
Your phone has a camera. You will find photos you have taken in the
menu under Photo album.
›Taking a photo
In standby mode, enable the camera by pressing on the side of
the phone.
When the camera is enabled:
• Press to take a photo.
• Press to open Options for the camera.
Available options: Self-timer,Effect,Size, Quality and
Night mode
When the night mode is switched on, the camera light is activated
when shooting.
›Photo album
Your photos will be saved in the Photo album menu.
• Press and/or to flick through the photo album.
• Press to open Options for the selected picture.
Available options: View, Send, Wallpaper, Contact photo,
Rename, Delete, Delete all and Memory
You can connect your phone to a PC using the USB data cable and
transfer your photos.

ENGLISH–10
6. TOOLS
›Menu items: Alarm clock, Birthday reminder, Calender,
Calculator, Camera, Bluetooth, FM Radio
6.1 Bluetooth
This function allows you to use Bluetooth-enabled hands-free
kits wirelessly.
• Bluetooth on/off
• Connect _Search for new devices
Search for devices you want to connect
_Select devices by pressing .
Devices that have been connected before will be recognised and
connected automatically.
• Manage devices _Visibility _On
Make your phone visible so that it can connect to a Bluetooth device.
6.2 FMRadio
›Menu items in Options: Channel list, Manual input,
Auto search, Loudspeaker, Info, Exit
›Station search:
You can set the station with the or key.
You cannot change the volume if you are in an Options menu
item. In this case rst close the Options menu.

ENGLISH–11
7. CONTACTS
›Menu items: Search name, Add contact, Edit contact,
Delete, Send contact by SMS, Copy contact, My number,
Speed dial keys, Emergency numbers , Phone book
settings and SMS in PhoneBK.
›Saving contacts (name and number)
menu
_Contacts _Add contact
_Enter name and number
_Contact photo: Select Yes or No
Save each new entry by pressing .
Always save names and numbers with the international dialling
code, e.g. save +41 for Switzerland, +43 for Austria and +49 for
Germany.
›Searching for contacts:
menu
_Contacts _Search name _
_Press and to flick through the entries or enter the first
few letters of the entry you're looking for using the keypad
(and continue flicking with if necessary).
_Once you've selected an entry, press to start a call.

ENGLISH–12
›Speed dial keys
You can assign speed dial keys to numbers you call often.
• Saving a speed dial key
_Press one of the speed dial keys
_Enter a name and number or
Search for a contact in the phone book.
• Changing or deleting a speed dial key
_Open the menu item Speed dial keys in the Contacts menu.
_Select a speed dial key and change or delete its link to a
particular contact.

ENGLISH–13
8. SETTINGS
›Menu items: Silent/Sleep mode, Sound & alerts,
Handset volume, Handsfree volume, Display & light,
Time & date, Language, Text size, Predictive text input,
Camera settings, Call waiting, Call forward, Suppress
number, Help texts, Auto keylock, Network selection,
Service selection, Favorite key, Voicemail number,
Emergency numbers, Emergency button, Security
settings, Phonebook settings, 0000 to enter Settings,
Master reset
8.1 Sound & alert
You can personalise the settings for tones, signals and vibration or
select a set of predefined settings (profile).
›Menu items: Ringtone, Alarm melody, Ringer volume,
Silent/Sleep mode, Meeting/Theater mode, Maximum/
Bus mode, Increasing ring, Vibra for call, Vibra for alarm
clock, Key tones, Message tone, Vibra for messages,
Handset volume, Handsfree volume, Message volume,
Message melody, Conrmation tone, Emergency tone

ENGLISH–14
›Silent/Sleep mode
Visual notifications only (torch LED flashes, notifications on the
display), no ringtone, no vibration function
›Meeting/Theater mode
Visual notifications (torch LED flashes, notifications on the
display), device vibrates, no ringtone
›Maximum/Bus mode
Key tones, SMS tone and vibration function activated, ringtone
volume is set on maximum
›Key tones
Specify whether or not you would like the phone to make an
audible signal (click, tone, voice announcement or silent)
when a key is pressed.
Activate the voice announcement to have the number buttons read
aloud when pressed.
The voice announcement function will only work if English,
German, Italian or French has been selected as the phone
language.

ENGLISH–15
8.2 Keypad lock
You can protect your phone against accidental pressing of keys with
the key lock.
›Manual key lock
Press the key on the side of the phone for two seconds.
Keypad locked appears on the screen.
The symbol on the screen then shows that the keypad is locked.
›Automatic keypad lock
Open the menu Settings and then the item Auto key lock
and select whether the keypad is to be locked automatically after
15 sec., 30 sec., 1 minute or 5 minutes without use or whether
this function is to be switched off.
›Unlocking the key lock
Press the key for two seconds.
Keypad unlocked appears on the screen.
The phone then responds to every press of a key again.
If the key lock is active, the phone will only respond if the green
button or the key is pressed. If any other key is pressed, the
screen will remain dark to save energy.

ENGLISH–16
8.3 Favorite key
On the button, you can define a function that you want to use
frequently. If you press in standby mode, this function is started
directly.
›Selectable Functions:
Write message, Alarm clock, Calculator, Calendar, Silent/
Sleep mode, Received (messages), FM radio
The favorite key can not be assigned a telephone number, use the
speed dial keys.
8.4 Voicemail number
Enter the number for your voicemail.
You will find this number in the documents supplied by your
network provider.
Press and hold the
1
key to listen to your voicemail.
8.5 Security settings
• PIN: PIN request on/off, change PIN
• Phone code: on/off, change (factory preset code: 1234)
8.6 Master reset
You can restore all the factory settings on your phone
(factory preset code: 1234).

ENGLISH–17
9. EMPORIA EMERGENCY CALL FUNCTION
If you use the battery cover with the integrated emergency button,
you can use the phone's emergency call function.
Read the instructions carefully and set the emergency call function
according to you needs. You can save up to five emergency
numbers (family members, friends and official institutions).
• In an emergency press and hold the emergency button on the back
of the phone. (This works even when the keypad is locked.)
• The five preset numbers will be dialled automatically in the order
you have saved them in. If it is not possible to get through to
anyone on the first number, the second number will automatically
be dialled. If it is not possible to get through to anyone on the
second number, the third number will automatically be dialled, and
so on. (The phone will go through a list of five numbers a maximum
of three times.)
• At the same time as each emergency call, a text message (SMS)
will be sent to the contact, saying: "You are about to receive
an emergency call. An audible warning signal will sound
when you answer the call. Please press the 0 key three
times to establish the connection."
The contact must press the 0 key three times within 60 seconds,
or the call will be disconnected (to prevent your emergency call
going through to a contact's mailbox).

ENGLISH–18
• From the moment you make an emergency call, your emporia
phone will automatically answer any incoming calls for one hour.
To disable this function, press and hold the button for approx.
three seconds or turn your device off completely using the
button and then turn it on again.
• To cancel the emergency call, press and hold .
• During the emergency call, a warning tone will sound continuously,
to alert anyone nearby and the person being called.
• If you do not have any emergency numbers saved, have no credit
on your prepaid phone card or are connected to a foreign network
without permission (e.g. roaming is not activated), 112 will be
dialled when you press the emergency button.
If you want to add the number of an ocial institution such as the
police or re brigade as an emergency number, you must check
that this is okay with the respective institution beforehand. We
do not assume liability for any costs incurred through you calling
such an institution by mistake.

ENGLISH–19
›Adding/editing emergency numbers
menu
_Contacts _Emergency numbers
_Add emergency number
_Select an entry (e.g. EmNo. 1) by pressing
_Select Ok by pressing
_Select Private or Help organisation
_Select a contact
›Activating the emergency button
In the Settings menu
_Emergency button
_On/Off
›Pre alarm
The pre alarm is a warning tone that sounds for ten seconds
and alerts anyone nearby to the emergency call.
After this, the emergency call sequence starts.
In the Settings menu
_Sound & alert
_Pre alarm
_On/Off

ENGLISH–20
10. GUARANTEE AND SERVICE
› GUARANTEE AND SERVICE
Manufacturer: emporia telecom GmbH + CoKG
Industriezeile 36, 4020 Linz, Austria
Importer: Emporia UK and Ireland Limited ·
1st Floor, Building 2 Croxley Business Park, Watford, England
Contact: www.emporiatelecom.co.uk or www.emporiatelecom.ie
Brand name: emporia
Model: emporiaCLASSIC2G(V26-2G)
›Scope of delivery
• Mobile phone: emporiaCLASSIC2G
• Extra battery cover without
anemergency button
• Battery: AK-V99
• USB cabel
• AC adapter: RL-600mA-UK
• Table charging unit: TL-V26
›Support
• Emporia Service Centre
Mon.-Thu. 9:00-4:00 · Fri. 9:00-1:00
[email protected].uk
• UK-Hotline: +44· 1923 · 947778
www.emporiatelecom.co.uk/service
• IE-Hotline: +353· 1 592 6339
www.emporiatelecom.ie/service
›Guarantee
• This guarantee is only valid if original
batteries supplied by emporia have been
used.
• Mobile phone: 12 months
• Battery: 6 months
›Technical details
• Dimensions: 121.6× 57 × 16.5mm
• Weight: 76.0g
• Battery: Li-ion 3.7V, 1100 mAh, 4.07 Wh
(replaceable)
• AC adapter:
input: 100- 240V AC, 50/60 Hz, 0.15A;
output: DC5.0 V, 600 mA
• Table charging unit:
input/output
• Standby time: 280h*
• Talk time: 350min*
(*The battery life can be reduced
depending on network coverage and
active applications.)
• Internal antenna:
SAR body: 0.79W/kg
SAR head: 0.06W/kg
• Operating temperature range:
-10°–40° C
• Hearing Aid Compatible: M4/T4
• Bluetooth
