EMPORIA Talk Comfort User manual

TorchlightON/ OFF button
SMS-/Menu-Button
- Slide up to go to the SMS Menu
- Slide down to come into the Menu
Volume Control &
Control the handset volume
incoming call:
turn ringer o
Alarm clock button
-Up to activate alarm clock
-Down to de-activate alarm clock
1 Controls
Speaker
Display (= Screen)
Arrow Keys
- On standby:
: & :
- In menu and phonebook: scrolling up/down
In standby: Enter phone book contact list
Pick-up/OK/Call list-Key
- Calling: Enter the number, then press
- Answering an incoming call: Press
- In menu: Conrm selection
- On standby: Enter call list (dialled, received, missed)
- Key
- In standby:
Long press: activate/ deactivate silent mode
•LED-Blinking: Charging
•Press twice: + (for international prex, e.g +44 for UK)
- For SMS: Special characters:
( , . ‘ ‘ ? ; : ! “ ’ @ _ ~ & + - ( ) < > { } [ ] % = / \ # * $ § ...)
- Key
On Standby:
- Press and hold to connect with voicemail
(= answering machine)
- For SMS: Space
- Key
- Standby: Press and hold to go to missed call list
- SMS: Switch between capital, small letters & numbers
- LED- Blinking: Missed Call
End/Back/Delete/Menu/ On/O-Key
- In menu: One step back
- Writing numbers or text: Delete
- During a call: Terminate
Dear Customer,
Congratulations on buying this emporia mobile telephone. You have made the right decision.
Content of delivery: Mobile telephone, charging adapter, battery, instructions, table charger.
TALKcomfort
Keylock:
- Slide up to activate Keylock
- Slide down to activate
Keylock
Table charger
This Emporia product is warranted to be free from defects in materials or workmanship for one (1) year from the date of purchase. In
addition, the Emporia batteries used in the product are warranted to be free from defects in materials or workmanship for ninety (90)
days from the date of purchase of the product.Within this period, Emporia will, at its sole option, repair or replace any components that
fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer
shall be responsible for any transportation cost. This warranty does not apply to: (i) cosmetic damage, such as scratches, nicks, and
dents; (ii) consumable parts, such as batteries (other than as expressly set forth herein), unless product damage has occurred due to a
defect in materials or workmanship; (iii) damage caused by accident, abuse, misuse, water, ood, re, or other acts of nature or external
causes; (iv) damage caused by service performed by anyone who is not an authorized service provider of Emporia; or (v) damage to a
product that has been modied or altered without the written permission of Emporia. Further, the battery warranty covers batteries
only if battery capacity falls below 80% of rated capacity or the battery leaks, and this warranty does not cover any battery if (i) the
battery has been charged by a battery charger not specied or approved by Emporia for charging the battery; (ii) any of the seals on
the battery are broken or show evidence of tampering; or (iii) the battery has been used in equipment other than the Emporia product
for which it is specied. In addition, Emporia reserves the right to refuse warranty claims against products or services that are obtained
and/or used in contravention of the laws of any country.
This product is intended to be used only for mobile operation and must not be used for any other purpose.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS, IMPLIED, OR
STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANYWARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
STATUTORY OR OTHERWISE. THIS WARRANTY GIVESYOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL EMPORIA BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, DAMAGES FOR ANY LOSS OF USAGE, DATE OR INCOME, OPERATION OF THE DEVICE IN VIOLATION OF LAW OR OTHERWISE,
WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES
DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SOTHE ABOVE LIMITATIONS MAY NOT APPLY TOYOU.
Emporia retains the exclusive right to repair or replace (with a new or newly-overhauled replacement product) the device or software
or oer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BEYOUR SOLE AND EXCLUSIVE REMEDY FOR ANY
BREACH OF WARRANTY.
To obtain warranty service, contact your local Emporia authorized dealer or call Emporia Product Support for shipping instructions
and a racking number. Securely pack the device and a copy of the original sales receipt, which is required as the proof of purchase
for
warranty repairs. Write the tracking number clearly on the outside of the package. Send the device, freight charges prepaid, to Emporia.
16 LIMITED WARRANTY
17 INTENDED USE
This mobile telephone is robust and intended for mobile use. It is to
be protected from moisture (rain, bathroom...) and impacts. Do not
expose to prolonged direct sunlight.
Misuse as described above can lead to damage of product and is
associated with further hazards such as electrical shock and re. The
entire product should not be altered, rebuilt, nor should the housing
be opened.
The power adaptor is designed for use in household wall outlets to
public electricity grids with 230 volts / 50 Hz (10/16A) voltage.
18 TECHNICAL DATA
dual band GSM 850/1900MHz
size: 114 x 55 x 15,5mm
weight: 80g
battery: Li-Ion 3.7V / 1000mAh
standby: 200 h
talktime: 240 min
http://www.emporiatelecom.com PartNo: 36233-US, AMERICAN, V20mb_201206

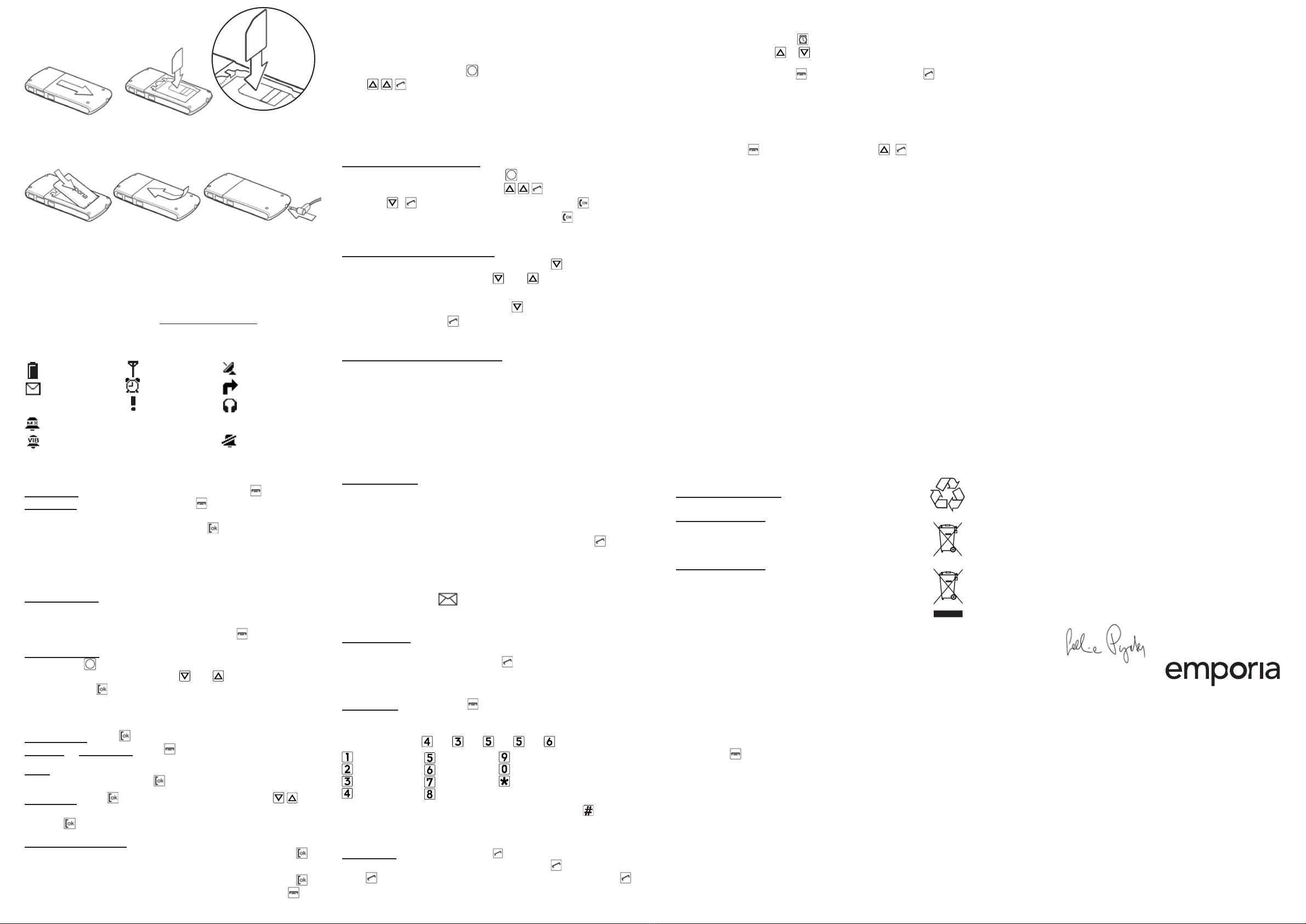

Fig. 1: Remove battery cover (as shown).
Fig. 2: Slide SIM card in with the gold contact facing down.
3 INSERT BATTERY AND CHARGING
Fig 2
Fig 5
Fig 1
Fig 4
• Fig. 3: Insert battery (gold contacts on right front side).
• Fig. 4: Close battery door: slide cover to closed position with a ‘click’.
• Fig. 5: Plug charging cable into the socket on the side of the phone
• Charging: Battery indication bars in upper right corner of the display
are moving and the LED on the upper side of the closed phone is on.
• Full battery: Bars in upper right display corner are solid.
Note: Charge battery for at least 2 hours before rst use!
4 DISPLAY SYMBOLS (SCREEN)
5 FIRST STEPS
Switch on the phone: press power on/off-key for 2 sec.
Switch off by pressing power on/off for 2 seconds again.
When using a new SIM card, enter the 4 digit PIN Code (Personal
Identication Number) and conrm with .
PIN-Code: The PIN-Code is a 4-digit number combination
preventing others from switching on your mobile phone.

• Switch off your PIN-Code: In menu: Settings à Security
Settings àPIN àPIN off.
Standby mode:
In standby mode the phone is turned on, but no active applications
(calling, messaging, etc.) are running. To get into standby mode,
when you are e.g. in the settings menu, press repeatedly.
Entering Menu:
• Slide down
v
v
on right side.
• Scroll through menu points: with and .
• Conrm: with .
Note: due to inactivity phone lights and screen turn off after a
while. To turn on again, press any key.
Pick up call: Press - key.
End call or Reject call: Press - key.
Dial: Enter the telephone number via the keypad (including area
code with 0) - start call with .
Redial list: press - key, scroll through call list with (all
dialled, missed and received calls), select a number and start
call with .
Handsfree Speaking: To talk without holding the phone to your
ear, switch on/off the handsfree function during a call: press
Handsfree.
Note: if you stay at a menu point without confirming ( ),
a help text with explanations pops up. To leave this, press .
11 FREQUENTLY ASKED QUESTIONS

• Screen shows “Insert SIM card! Only emergency call
112“: Check the direction of the SIM card

• A call failed: Check the selected telephone number and
area code again for accuracy (area code entered?).
• The mobile telephone display is blank/black: Telephone
is in energy saving mode (press any key) or it is switched
off (press for 2 seconds to switch on).
• The mobile phone does not react: Remove battery, re-
insert and switch on the device. If there is still no reaction,
refer to the service centre.
• The charging procedure does not begin: This can take
several minutes. If there is no reaction after 10 minutes,
refer phone to service centre.

•
10 DISPOSAL

•
Disposal of packaging: Packaging materials are
recyclable and should enter the recycling process.

•
Disposal of battery: Do not insert battery into
household rubbish for disposal! You are obligated to
return used batteries. These can be handed into local
collection areas or to specialty shops.

•
Disposal of Device: Take care of the environment:
When this product is taken out of service, do not
throw it into the household rubbish, but dispose of it,
where old devices are accepted and brought into an
eco-friendly disposal/recycling procedure.
6 PHONE BOOK
Saving names and numbers (start with international prex)
by entering menu in standby mode (Standby-Mode: chapter
5) with sliding down the
v
v
on the right side of the phone,
then , , à Menu-Points: Search name, Add contact,
Edit contact, Delete contact, Send contact by SMS, Copy
contact, Top 5, Mailbox number, PhoneBook settings,
SMS in PhoneBook.
Storing phone book entries (Name & Number):
Enter menu with sliding down the
v
v
on the right side of the
phone à continue to Phone book: , , à continue to Add
contact: , àEnter number via the keypad, , àEnter
name (See chapter 8 Write SMS for text entry), to Save.
Searching phone book entries:
In standby mode: open the phone book with :

• Scroll through the entries with and . Or:

• Search names: enter the initial letters of the searched name
via the keypad (scroll through with ). When the requested
name is shown, press to start a call.
Add phone book entry via SMS:
In menu phonebook àSMS in PhoneBook turn on/off the
function to receive phonebook entries by SMS message, or
specify that only phone book contacts can send entries to
you. The phone number will be saved automatically in your
phone book when you receive a SMS with the following
content: #name#number# e.g.: #Tom#[phone]#
Top5 Numbers:
The Top5 Numbers are shown on the top of the phonebook. You
can also dial it if you long press the Number of the Top Number.
For example to dial Top1 Number long press Key 1.
Store or change your favorite numbers: Enter menu àPhone
Book àTop 5 àAdd Top5 à select Top1, Top, etc. à (Ok).
Now you can search for a number in phonebook. (Only existing
contacts can be a Top5 entry.) To edit: Top5 à Exchange Top5
à then you can change the Top5-numbers.
7 SMS MESSAGES
SMS (Short Message Service) are written messages with a
maximum of 160 characters.
Receive SMS: A short signal and a registration on the display
inform you about a new, incoming SMS message. Read the
message immediately by pressing or see a list of messages
which have already been received in the menu Messages à
SMS àReceived SMS.
Write SMS: Enter menu: àMessages àSMS àWrite
new SMS: The text entry is done by the keypad.
Each key carries several characters, appearing by multiple
presses. (e.g. 2x , 2x , 3x , 3x , 3x for Hello).
Switch between different entry methods by pressing :
abc:only small; Abc:rst letter big; ABC:only CAPITAL;
123:Numbers
Send SMS: Select Send with 2x and enter number or press
search. You can search from phone book (2x , select contact
with ) or unsaved number list. If number is selected press
to send SMS.
8 Alarm:
Standby mode: slide down to switch Alarm clock on or off
àSet alarm time with & or with the keypad.
If the alarm rings, end with . Use mute function with to
reactivate the alarm after 5 minutes. If you do not press any
key the alarm rings again after 1 minute.
9 OTHER FUNCTIONS IN SETTINGS
Enter menu with à continue to Settings: , à
• Sound & Alert: To choose a phone prole (e.g. Silent) and
congure your personal settings like ringtone and Volumes.

• Call waiting: You can activate/deactivate and check status
to get a notication about an incoming call while having a
phone talk.
• Network settings: Choose automatic (automatic boot in a
network) or manual selection (select a network manually).
• Voicemail number: Change the voicemail number.
• PIN request: Activate, deactivate or change PIN.
• Lock side keys: You can lock side keys like key lock,
volume, power and alarm.
• Help Text: If it’s set to ON there will be a help text for many
options to give you some information what to do with this
option point. The help text will appear after some seconds
(5, 10, 15 or 20).
• Master reset: Reset Settings or Reset all. Reset all will
reset the phone to the factory settings. Reset Settings will
not reset your phonebook, SMS.
2 INSERT SIM CARD
Fig 3

battery
strength

newSMS
ringtoneoff

signalstrength roamingmode
 alarmon calldiversion
 missedcall earphone


BluetoothON Bluetoothheadsetconnected
profile„maximum“ON(ringtonevolumeveryloud)
profile„Meeting“ON

   



battery
strength
newSMS
ringtoneoff

signalstrength roamingmode
 alarmon calldiversion
 missedcall earphone


BluetoothON Bluetoothheadsetconnected
profile„maximum“ON(ringtonevolumeveryloud)

profile„Meeting“ON

   



battery
strength
newSMS
ringtoneoff

signalstrength roamingmode
 
alarmon calldiversion
 
missedcall earphone


BluetoothON Bluetoothheadsetconnected
profile„maximum“ON(ringtonevolumeveryloud)
profile„Meeting“ON

   


battery strength
new SMS
signal strength
alarm on
missed call
roaming mode
call diversion
earphone
prole „maximum“ ON (ringtone volume very loud)
prole „Meeting“ ON
. , ! ? ‘ “ @ : 1
a b c 2 ä æ å à
d e f 3 è è ê
g h i 4 ì í î ï
j k l 5 £
m n o 6 ö ø ó
p q r s 7 ß $
t u v 8 ü ù ú
w x y z 9 ý þ
space; 0
special character: , . ? ; : !
“ ’ @ _ ~ & + - ( ) < > { } [ ] ...

battery
strength
newSMS
ringtoneoff

signalstrength roamingmode
 alarmon calldiversion
 missedcall

earphone


BluetoothON Bluetoothheadsetconnected
profile„maximum“ON(ringtonevolumeveryloud)
profile„Meeting“ON

   


ringtone off

battery
strength
newSMS
ringtoneoff

signalstrength roamingmode
 alarmon calldiversion
 missedcall earphone


BluetoothON Bluetoothheadsetconnected
profile„maximum“ON(ringtonevolumeveryloud)
profile„Meeting“ON

   


12 CAUTION
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2)
This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set
by the Federal Communications Commission of the
U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards that were developed by independent
scientic organizations through periodic and thorough evaluation of scientic studies. The standards include
a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The
exposure of measurement is known as the Specic Absorption Rate, or SAR. The SAR limit set by the FCC
is 1.6W/kg. Transmitting at its highest certied power level in all Your mobile phone is a radio transmitter and
receiver. It is at the highest certied power level, the well below the maximum value. This is power levels so as
to use only the power required to reach the network. In general, the closer you are to a wireless base station
antenna, the available for sale to the public, it must be tested and certied to the FCC that it does not exceed
the limit established by the government adopted requirement for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The FCC
has granted an Equipment Authorization for evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC
ID: ZVP-V20M
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
IC warning
- English:
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
2. Changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
IC: 10262A-V20M
- French:
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage,et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement. »
IC: 10262A-V20M
Signed:
Eveline Pupeter
General Manager
Issue date: 01.02.2012
Area of Issue: Linz/Austria
FCC warning
SAR Value
The maximum value of Head SAR is 1.150 W/kg. The maximum value of Body Worn is 1.200 W/kg which was tested
under the separation distance of 15mm without any accessory.
When using any body worn accessory, please help to make sure it at least 1.5cm clearance between phone and human
body. The body worn accessory should not contain any metal.
