EMPORIA Elegance plus User manual

Eveline Pupeter Albert FellnerManagement
Package content:
Mobile phone Charging cable
(RL-V170UK)
Battery pack
(AK-V36)
User guide
DEAR MOBILE PHONE USER!
Congratulations on your emporiaELEGANCEplus mobile phone!
To get you acquainted with your new mobile phone as quickly
as possible, we have put together all the essential information
on a few pages.
We hope you will have fun with your phone,
and wish you all the best.
EMPORIA Telecom
ELEGANCEplus
ELEGANCEplus

Operator
Di 26.01.2010
WHAT ARE ALL THE KEYS FOR
Emergency button
On/off key
To switch on or off: press and hold for 2 seconds
Volume adjustment
–Change the receiver volume during a call
–If telephone rings:
press to turn off the ringer
(it will ring again for the next call)
Key lock
Prevents accidental keypresses.
–Slide down to lock the keypad,
–slide up to unlock the keypad.
Loudspeaker
Display (=Screen)
End Call/Back/Delete key
–During a call: End call
–In menu: one step back
–When entering numbers or letters: delete
Make or receive a call/OK-key
–Dialling: Insert number and press
–Incoming call: answer
–In menu: select
–In standby mode: Access to call list
(dialled, received, missed)
Arrow keys
–Scroll through Phone book and menus
–In standby mode access My menu with
–In standby mode access Phone book with
Key / Voicemail key
–Press and hold: listen to your voicemail
–When writing (SMS, phone book): insert a space
Star key
–Press and hold: last 10 numbers dialled
–Press twice: +
(for country codes, i.e. +44 for UK)
–Press 3 times: insert a dial pause
–When writing: special symbols (?!‚@-+$€ etc.)
–Flashing red: charging or battery is low
–Lights red: battery is fully charged
Pound key
–Press and hold: List of missed calls
–When writing: Switch from upper to
lower case or numbers
–Flashing blue: missed call
DISPLAY SYMBOL
Battery indicator Missed call Silence/Sleep
New Entry in
call list Call forwarding Meeting/Theatre
Alarm on New SMS Maximum/Bus

5
WHAT ARE ALL THE KEYS FOR
Flashlight key
To switch on/off the flashlight.
CAUTION: Don’t shine the light directly into the
eyes of people or animals!
Bluetooth key
To switch on or off:
press and hold for 3 seconds
Menu key
Bring up the menu.
(SMS, call list, phone book, settings)
Alarm key
– Slide up to turn on.
– Slide up to turn off.
Battery compartment
High performance Li-Ion battery
Signal strength Top 5
The most important numbers at
the beginning of your contact list,
independent of their alphabetical order.
(See section 3.7.6)
Roaming If you are abroad, this
symbol will replace the signal strength
symbol to let you know that it is now
more expensive to make a call.

6
TABLE OF CONTENT
1. Getting started 8
1.1 Inserting the SIM card........................................8
1.2 Inserting the battery.........................................8
1.3 Charging the battery ........................................9
1.3.1 Charging with the desktopcharger (optional).....................9
1.3.2 Charging with the charger cable.................................9
1.4 Turning the mobile phone on or off...........................9
2. Navigating the phone 10
2.1 Using your phone for the first time ..........................11
3. Making a call 12
3.1 Dialling with the keypad ....................................12
3.2 Redial......................................................12
3.3 Call list.....................................................12
3.4 Handsfree..................................................12
3.5 Handsfree with the desktop charger .........................12
3.6 Dialling from the phone book ...............................13
3.7 The Phonebook ............................................13
3.7.1 Save names and numbers ......................................13
3.7.2 Edit names and numbers.......................................13
3.7.3 Dialling from the Phone book ..................................14
3.7.4 Search a Phone book entry.....................................14
3.7.5 Save a Top5: Save the five most important numbers.............14
3.7.6 Call a Top5: Call the five most important numbers...............14
3.7.7 Accessing the Phone book via SMS .............................15
3.7.8 Phonebook settings ...........................................15
4. Informations on the standby screen 16
4.1 Power-saving-mode ........................................16

7
TABLE OF CONTENT
5. SMS - Write text and send it 17
5.1 Entering text with the keypad ...............................17
5.2 Sending SMS ...............................................19
5.3 SMS confirmation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5.4 SMS Service Centre Number.................................19
6. Settings and additional features 20
6.1 Sound and alert settings ....................................20
6.2 My Menu ..................................................20
6.3 De-activating the PIN code prompt ..........................20
6.4 SMS to phonebook .........................................20
6.5 Birthday reminder ..........................................21
6.6 Phonebook settings ........................................21
6.7 Top 5: The most important numbers .........................21
6.8 Voicemail number ..........................................21
6.9 SMS Service Centre Number.................................21
7. Special features 22
7.1 Voice announcement .......................................22
7.2 Alarm clock ................................................22
7.3 FM Radio...................................................23
7.4 Bluetooth™.................................................24
7.5 emporia emergency button .................................25
8. Menu overview 28
9. Appendix 30
Safety instructions, Warranty, Correct usage, Disposal,
Technical product description, EG – Declaration of Conformity

1
2
3
5
4
8

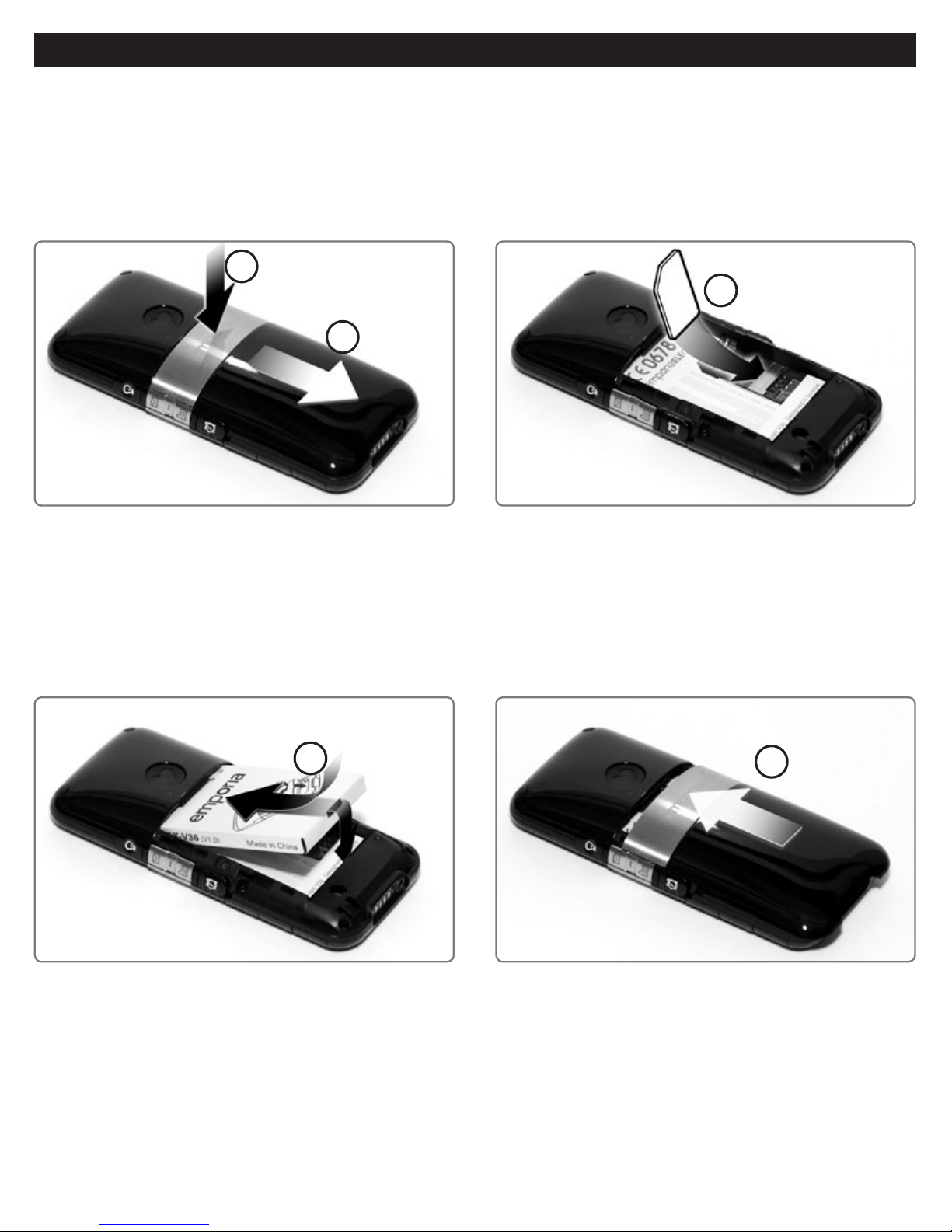

1.1 INSERTING THE SIM CARD
You need a SIM card to use your phone. You got the SIM card from your
network provider.
Insert the SIM card as follows:
1.2 INSERTING THE BATTERY
Remove the battery cover. Insert the SIM card with the gold
chip down and the clipped corner
on the top left.
The battery contacts have to face the
gold coloured contacts of the mobile
phone.
Slide the cover with light pressure
until it snaps into place.
1. GETTING STARTED

9
1.3 CHARGING THE BATTERY
Please note: The battery pack included with your mobile phone should be
charged for at least 4hours before your first call.
1.3.1 Charging with the
desktopcharger (optional)
Insert the plug of the charger cable into
the socket on the rear of the desktop
charger and the power plug into the
power socket.
Finally insert the mobile phone into
the desktop charger.
1.3.2 Charging with the charger
cable
Insert the charging cable into the jack on
the bottom of the phone and plug the
power cord into the power socket.
The battery icon on the display informs
about the loading progress.
Bars in the battery icon fill up = battery is charging;
Bars in the battery icon stop moving = battery is fully charged.
Please note: A large battery symbol is shown briefly at the start of
the charging process.
1.4 TURNING THE MOBILE PHONE ON OR OFF
Press the key on the left of the mobile phone for two seconds, to turn the
mobile phone on or off.

10
–Use the -button on the right of the mobile phone to enter the main
menu.
–Use the two arrow buttons to navigate through the menu.
–To select a menu item, press the -button.
This button is also used to confirm settings, like starting a call or
accepting one.
–To go a step backwards in the menu, press the -button.
–To return to the standby screen, press the -button repeatedly.
Information about the standby mode, see Chapter 4.
Please note: Information about a menu function will be displayed if the
item is highlighted but not selected. To hide the text, press the -button.
2. NAVIGATING THE PHONE

11
2.1 USING YOUR PHONE FOR THE FIRST TIME
1. You will be prompted to set the language:
Choose desired language as described by using the arrow keys
and confirm with .
2. You will be prompted to set the time:
Use the arrow keys or the keypad to set the time and confirm with .
3. You will be prompted to set the date:
Use the arrow keys or the keypad to set the date and confirm with .
Please note: You may change date and time anytime later by choosing
Settings/Time & date in the menu.
Depending on your network operator, you may now be asked to enter a
4-digit PIN code. It can be found in the documents you received from the
network operator: Enter the PIN code and confirm it with .
Please note: In the menu under Settings/ PIN request you can change or turn
off the PIN code. By deactivating the PIN code prompt, your phone will not be
protected against being used by an unauthorised person.

12
3.1 DIALLING WITH THE KEYPAD
Always enter the phone number with area code.
Example: "044789789" Enter number of 789789 with area code 044
–Press the -button to start a call.
–Press the -button to end a call.
When your caller hangs up first, is no need for pressing .
3.2 REDIAL
Press the -button in standby mode (see chapter 4) to redial one of the most
recently called numbers. Use the arrow keys to navigate through the list.
Press the -button to call the selected number.
3.3 CALL LIST
Press the -button in standby mode (see chapter 4) to access the list
of the last dialed, missed and accepted numbers.
Use the arrow keys to navigate through the list.
Press the -button to call the selected number.
3.4 HANDSFREE
To switch during a call to handsfree mode press the - button.
Select Handsfree and confirm with .
3.5 HANDSFREE WITH THE DESKTOP CHARGER
If the phone is in the desktop charger, you can answer an incoming call using
the handsfree button on the desktop charger, or the - button on the phone.
During a conversation with the phone in the desktop charger, the call is
automatically placed on handsfree. Your phone will automatically switch to
handset mode when picked up.
3. MAKING A CALL

13
3.6 DIALLING FROM THE PHONE BOOK
The phonebook allows you to store an alphabetical list of names and
numbers. To bring up the phonebook press the -button in standby mode
(see chapter 4), or select in the menu: Phone book/Search name.
Please note: „Add contact“ see chapter 3.7.1
„Search name“ see chapter 3.7.4
„The five most important numbers“ see chapter 3.7.5
3.7 THE PHONEBOOK
The phonebook allows you to store, modify, and find up to 500 names and
numbers. The entries can be stored on the phone or SIM card.
Please note: the 500 possible entries refer to the phone internal phonebook.
3.7.1 Save names and numbers
1. Open Phone book in the menu.
2. Select Add contact.
3. Enter the number with the keypad and confirm.
4. Enter the name with the keypad and confirm.
Please note: Write text, see chapter 5.
3.7.2 Edit names and numbers
Select an entry in the menu Phone book/Edit contact to edit it.
Use the keypad to edit the contact and confirm to save it.

14
3.7.3 Dialling from the Phone book
Select an entry in the phonebook and press the -button to start the call.
3.7.4 Search a Phone book entry
To search a Phone book entry use Phone book/Search name. Enter the first
few letters of either the first or last name of the contact to start the search.
If a contact cannot be found, Noentry will be displayed.
Please note: For help to enter the initials, see chapter 5.1
3.7.5 Save a Top5: Save the five most important numbers
Go to Phonebook/Top5/Add Top5 to save your five most important numbers on
the numeric keys to .
Choose Top 1 to locate the first desired number from
the phonebook and save it.
Choose Top 2 to locate the second number you want and save, etc…
3.7.6 Call a Top5: Call the five most important numbers
To retrieve a stored Top5 number hold , , , or until the number
is dialled.

15
3.7.7 Accessing the Phone book via SMS
You can receive phonebook entries by SMS message
(eg from family, acquaintances,…),
which are automatically included in your phonebook.
Go to Phone book/SMS in PhoneBk to set this function on or off,
or specify that only stored contacts may send phone book entries to you.
The messages have to be written in the following format:
#Name#Nummer# eg: #Tobias#01509876543#
The phone number is automatically saved in your phone book
when a SMS is received.
3.7.8 Phonebook settings
You will find following options in Phone book/PhoneBk settings:
–Save entry on: Here you specify the location (SIM-Card or Phone).
–Memory in use: Select which phone list displayed in your phonebook
(SIM-Card or Phone).
–Memory status: See how many numbers are already saved.
–Auto store in PhoneBK: Choose whether you want to store the number
of the caller in the phonebook at the end of the call.

Operator
Di 26.01.2010
16
The standby screen shows that the phone is
turned on and ready to use.
You can find some icons on the screen:
:Charging indicator
:Signal strength indicator
:Appears at a missed call.
:Appears when you received a SMS.
:Appears when the alarm is set and turned on.
:Appears when you select the profile Silent/Sleep.
: Appears when you select the profile Meeting/Theatre.
: Appears when you select the profile Maximum/Bus.
:Appears when incoming calls are diverted.
:Appears when Bluetooth™ is turned on.
:Appears when a Bluetooth™ device is paired.
:Appears when FM-Radio is turned on.
4.1 POWER-SAVING-MODE
To save power, the screen switches off after a few seconds when the phone is
not used. To turn on the screen, press any key.
4. INFORMATIONS ON THE STANDBY SCREEN

17
You can use your mobile phone to create and send text messages.
Find further information in SMS Message/Write new SMS.
5.1 ENTERING TEXT WITH THE KEYPAD
You may enter numbers and letters with the keypad.
Every key represents several signs, depending on how often you press the key.
You may delete or change signs in the entered text later on.
–The vertical line „|“ shows your current position.
–You can change your position by using the keys.
–By pressing and holding you jump one line up and down at a time.
Available signs and functions.
D. , ? ! ’ ” @ : 1 Dm n o 6 ö D. , ? ! ’ ” : ; ( ) @ - + $ € £ ¥ # % * & ~ = ¤
and Greek letters
Da b c 2 ä à Dp q r s 7 ß
Dd e f 3 è Dt u v 8 ü DChange between upper and
lower case and keypad
(„Abc“ „ABC“ „123“„abc“)
Dg h i 4 Dw x y z 9
Dj k l 5 DSpace; 0
Selecting a sign.
D1x press = j D1x press = . (period)
D2x press = k D2x press = , (comma)
D3x press = l D3x press = ?
D4x press = 5 D4x press = !
5. SMS  WRITE TEXT AND SEND IT

Select Back
18
Use the key, to Choose from 4 Writing Styles:
¢Abc: Upper and lower case – Upper case only at beginning of sentence
¢abc: Only lower case – all letters are written in lower case
¢ABC: Only upper case – all letters are written in upper case
¢123: Numbers
I Made a Mistake. What Now?
–To delete single signs on the left of the vertical line „|“,
press the key briefly.
–If you press and hold the key for 3 seconds, all signs to
the left of the vertical line „|“ are deleted.
(for instance to remove complete passages of text)
Inserting Special Symbols
Press the key.
To move, as shown,
up with the key,
down with the key,
left with the key, and
right with the key.
Once you have found the desired sign,
press
or
to insert it into the text.

19
5.2 SENDING SMS
After typing the text, press the -button, and select Send or Send to many.
Now enter the number manually, or press the -button to click Search.
Then select the desired list (Phone book or Unsavednumbers) with the -key,
choose the number you want and confirm. The message is being sent to the
selected number.
5.3 SMS CONFIRMATION
To receive a confirmation message when your SMS is delivered,
enable this option under SMS Message/SMS confirmation.
Please note: Some network providers charge for this service.
5.4 SMS SERVICE CENTRE NUMBER
Your network provider’s central number for processing all short messages.
Normally, this number is already saved on your SIM card.
If this is not the case, please contact your network operator.

20
6. SETTINGS AND ADDITIONAL FEATURES
Some of the menu functions you may find useful, are described below.
6.1 SOUND AND ALERT SETTINGS
Settings/Sound&alert allows you to change the settings for the ringer melody,
volume and three predefined modes of ring (Silent/Sleep mode,
Meeting/Theatre mode and Maximum/Busmode).
The time that you set when activating the sets, specifies, when the set will be
disabled.
–Silent/Sleep mode: All acoustic signals of the mobile phone are disabled.
–Meeting/Theatre mode: You will hear a double beep and vibrate instead of a
ringtone.
–Maximum/Busmode: All sounds are set to maximum volume with
simultaneous vibration alarm.
6.2 MY MENU
In menu Settings /My Menu you can select the most important functions for
you (like: Birthday reminder, Calculator, Silent/Sleep,…) to quickly access them
by pressing the button in standby mode.
6.3 DE-ACTIVATING THE PIN CODE PROMPT
See chapter 2.1
6.4 SMS TO PHONEBOOK
See chapter 3.7.7

21
6.5 BIRTHDAY REMINDER
In Settings/Birthday reminder you can save and manage reminders for birthdays.
You can either save a birthday for contacts already in your phonebook
(From Phone book) or enter only the name (Enter name).
A reminder message will appear to alert you of the upcoming event and a
call can be made to that person by pressing if the number is stored in the
phonebook. To cancel the reminder press .
6.6 PHONEBOOK SETTINGS
See chapter 3.7.9
6.7 TOP 5: THE MOST IMPORTANT NUMBERS
See chapter 3.7.5 and 3.7.6
6.8 VOICEMAIL NUMBER
If you press and hold the key for 3 seconds, you will be connected
automatically with your voicemail.
In case this number is not stored in your phone or on your SIM card,
you will be prompted to enter the number.
Your voicemail number should be on the documentation you
received from your network provider.
6.9 SMS SERVICE CENTRE NUMBER
See chapter 5.4

22
7.1 VOICE ANNOUNCEMENT
Your mobile phone is able to support you with acoustic messages.
Numbers: acoustic playback of the pressed numeric keys while typing in
numbers
Time: option to announce the time each hour or at a specific interval of time.
In standby mode the current time is announced when you press .
Infos: spoken notes, eg. Keypad lock, battery empty
Turning Voice announcement on or off
In menu Settings /Voice announcement you can set desired feature
(Numbers, Time, Info) on or off.
7.2 ALARM CLOCK
Slide up the key on thr right side of the phone to enter the alarm clock
menu. Press to edit or activate the a alarm.
7. SPECIAL FEATURES
