EMS FC-171-003 User manual

DO NOT fit the device on an uneven
surface.
Installation must conform to applicable local installation
codes and
should only be installed by a fully trained
competent person.
Ensure that the device is installed as per the site survey.
The use of a non-metallic spacer should be considered if
mounting the device on to a metal surface.
Do NOT Press the Log On button on a pre-programmed device,
as this will cause communication with the Control Panel to be
lost. Should this happen, delete the device from the system
and add it back on.

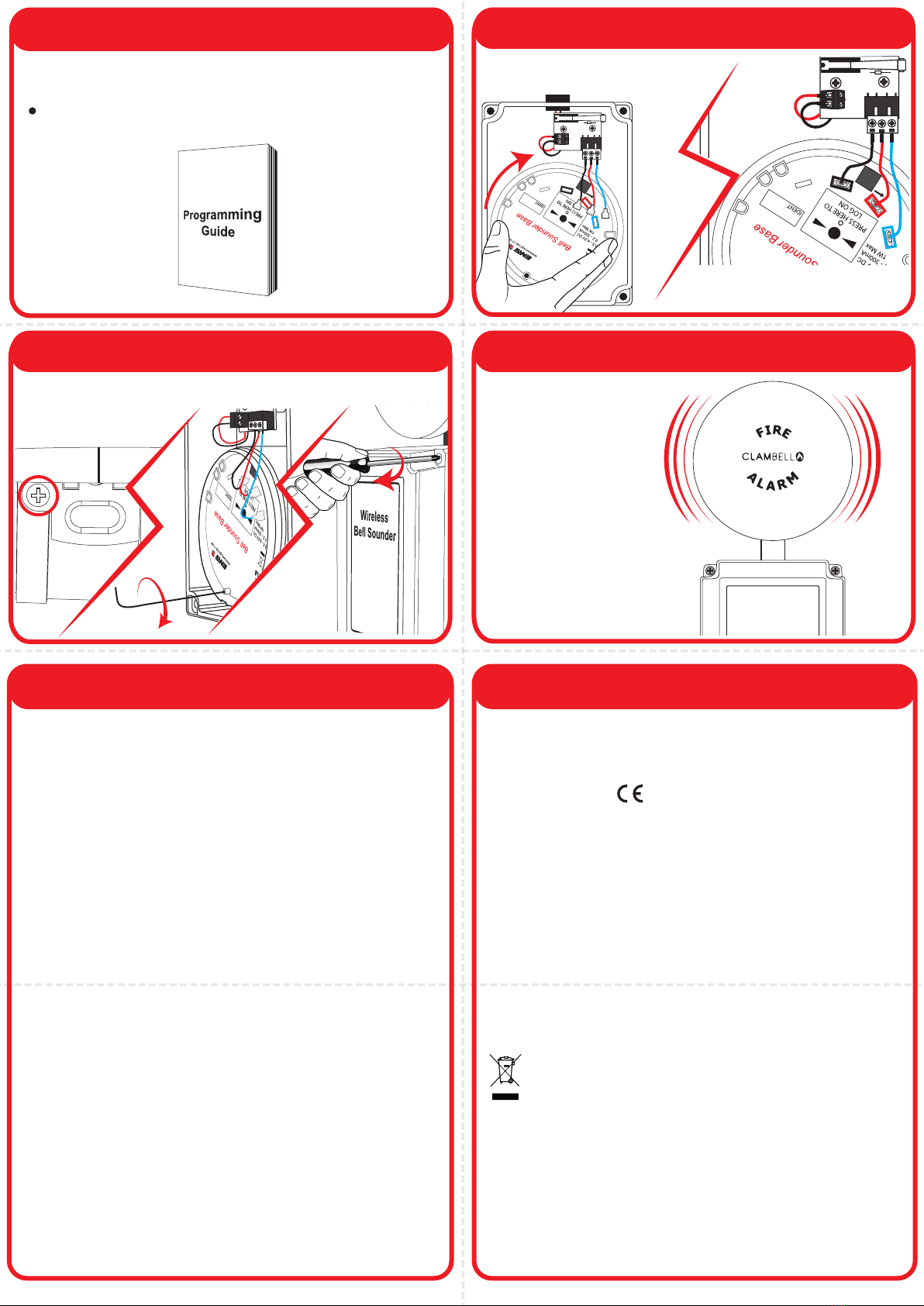

Wireless Bell Sounder
Installation Guide
1 Pre Installation
4 Fix Device To Wall
3 Disassemble Device
2 Components
Part No Product Description
!
1
FC-171-003
FC-174-002
Wireless Bell Sounder Base Only*
Wireless Bell Sounder
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
Whilst using the supplied base
mounting template (MK277):
Use all eight circled mounting
positions.
Use suitable fasteners and fixings.
Ensure the device is fitted in the
orientation shown.
Remove the anti-tamper screw (A),
and press the button (B) to open the
gong’s hinged cover ...
then unscrew the lid fixing
screws to remove the front lid.
4x lid fixing screws
2
67
2
Front lid
34
Gong
56Wireless module
7Battery retaining
plate
Gong anti-tamper screw
1
* Parts 7 and 8 from Components section. See below.
6 Power Device
Remove the wireless module and battery retaining plate. Note:
when removing cables, DO NOT use excessive force.
SIZE C SIZE C SIZE C
SIZE AA
SIZE AA
SIZE AA
device
unpowered
(pins unlinked)
device
powered
(both pins linked)
When fitting / replacing batteries; observe correct polarity,
using only specified batteries.
Connect the power jumper across the PIN header.
5 Unlock Wireless Module
To unlock the wireless module
from the mounting plate,
insert a 1.5mm Allen key into
the allen key slot and turn
anticlockwise as shown
.
3
1.5mm Allen key
4
©2022 EMS Ltd. All rights reserved Page 1 of 2 Mk276 Iss 4 11/01/2022 AJM
Wireless
Bell Sounder
OP1
OP0
AUDIO
DETECT
ENABLE
5
(A)
(B)

Operating Temperature -10°C to 55°C
Storage Temperature 5°C to 30°C
Humidity Up to 95% non-condensing
Supply 3x AA Alkaline (Panasonic LR6AD Powerline
/ Varta 4006 Industrial) 3x C Alkaline
(Panasonic LR14AD Powerline / Varta 4014
Industrial)
CAUTION!
Fitting of an incorrect battery type invalidates the product certification and
may result in poor performance.
Note: when changing batteries, check all connections are re-made correctly
and fully test the device to ensure correct operation.
Operating Voltage 3.5 to 4.5Vdc
Current Consumption 0.2 to 300mA
Max Power Consumption 1W
Sounder Output Up to 95dBA @ 1m
For full sounder output information, refer to the Sounder Data Document (MK309).
IP Rating IP21C
Operating Frequency 868MHz
Output Transmitter Power Auto adjusting 0 - 14 dBm (0 - 25 mW)
Dimensions 152mm (W) 334mm (H) 101mm (D)
Location Type A: For indoor use
2012/19/EU (WEEE directive):
Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union.
For proper recycling, return this product to your local
supplier upon purchase of equivalent new equipment,
or dispose of it at designated collection points. For
more information see www.recyclethis.info
Dispose of your batteries in an environmentally friendly
manner according to your local regulations.
European union
directives
Hereby, EMS declares that the radio equipment type
Wireless Bell Sounder is in compliance with Directive
2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet
address: www.emsgroup.co.uk
Approved to See part listing for associated products:
EN54-3:2001. Incorporating Amendments Nos. 1 and
2. Fire detection and fire alarm systems. Part 3: Fire
alarm devices - Sounders.
EN54-25:2008. Incorporating corrigenda September
2010 and March 2012. Fire detection and fire alarm
systems. Part 25: Components using radio links.
Certification
Certification body
CPR DoP 0359-CPR-00667
0905
EMS Ltd. Technology House, Herne Bay, Kent,
CT6 8JZ, United Kingdom
Manufacturer
Year of
manufacture See devices serial number label
19
10 Test Device
Test the device to
ensure full functionality.
Specification Regulatory Information
7 Configuration
The device’s loop address is configured within the menu structure
of the Radio Hub.
Refer to the programming guide for full programming
information.
OP 1
OP 0
AUDIO
DETECT
ENABLE
OP 1
OP 0
AUDIO
DETECT
ENABLE
8 Refit Wireless Module and Leads
Refit the wireless module in to the
battery retaining plate.
Then connect the leads, ensuring
that they are fitted securely at both
ends and in the correct order.
9 Re-assemble Device
Close the Gong and fit
the anti tamper screw...
and finally,
secure the lid.
lock the wireless
module in to place...
©2022 EMS Ltd. All rights reserved Page 2 of 2 Mk276 Iss 4 11/01/2022 AJM
Wireless
Bell Sounder
