EMS FireCell FC-179-002 User manual

EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8 Z, England
Tel: [phone] Fax: [phone] Email: [e-mail] Website: www.emsgroup.co.uk
FireCell Radio Sounder Weather Resistant Kit Iss 3c
1
FireCell Radio Sounder Weather Resistant Kit
Installation Guide
The FireCell Radio Sounder Weather Resistant Kit (FC-179-002) is designed for use with all
FireCell Radio Sounder and Beacon variants.
Parts Supplied with the FC-179-002 Weather Resistant Kit:
ITEM NO QTY PART DESCRIPTION
1 3 N06-1/2 PAN POZI STAINLESS STEEL SCREW
2 1 PERSPEX MOUNTING PLATE
3 4 FLAT WASHER
4 1 SOUNDER BASE VARIANT (NOT SUPPLIED IN KIT)
5 1 0-RING 120.0 X 2.5mm
6 1 0-RING 95.0 X 1.7mm
7 1 RUBBER PLUG FOR SOUNDER HEAD
8 1 SOUNDER HEAD VARIANT (NOT SUPPLIED IN KIT)

EMS Group Head Office, Technology House, Sea Street, Herne Bay, Kent CT6 8 Z, England
Tel: [phone] Fax: [phone] Email: [e-mail] Website: www.emsgroup.co.uk
FireCell Radio Sounder Weather Resistant Kit Iss 3c
2

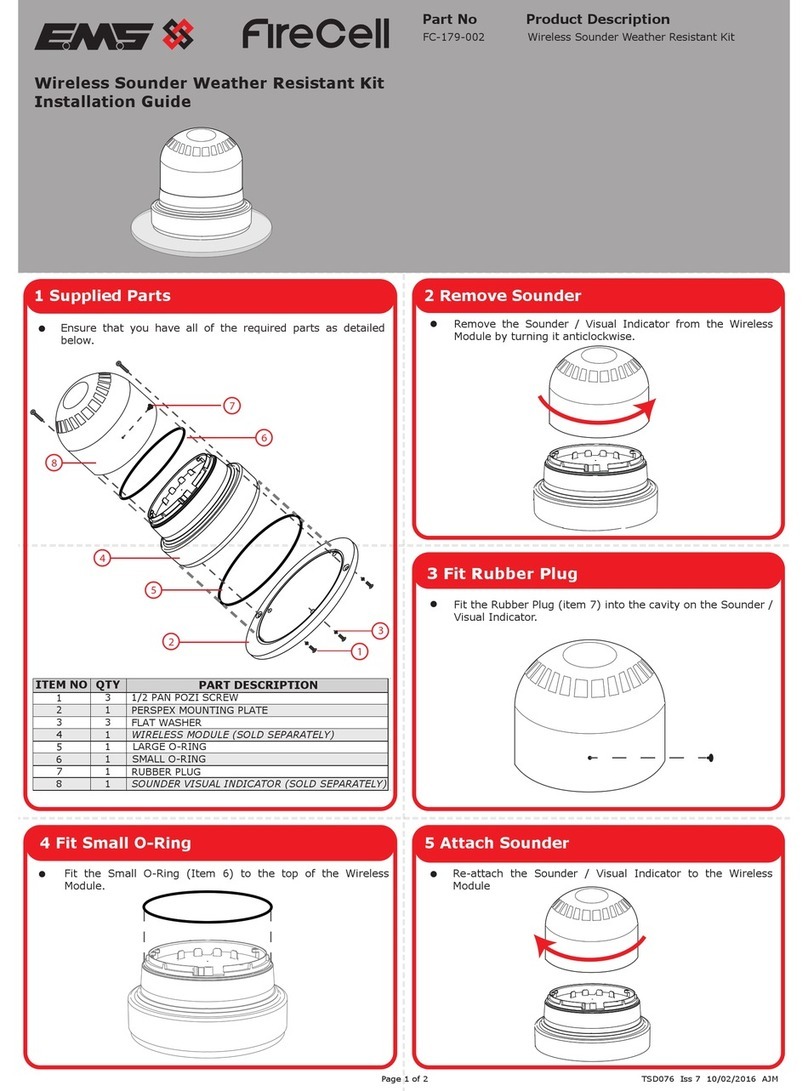

It is re ommended that the Kit is assembled in the following order:
STEP 6 – Fit the Larger O-Ring (item 5)
to the Perspex Mounting Plate
STEP 1 –
Remove the
Sounder Head
STEP 2 – Fit the Rubber Plug (item 7) into the
cavity on the Sounder Head
STEP 7 – Fit the Radio Sounder on to the
Perspex Mounting Plate (Item 2) with the
O-Ring between them.
STEP 3 – Fit the Smaller O-Ring (Item 6) to the
top of the Sounder Base
STEP 8 – The Sounders and plates holes
should align as shown. Secure the Sounder
to the Perspex Mounting Plate using the
washers and screws (items 1 and 3)
STEP 4 - Attach the Sounder Head to the
Sounder Base
STEP 9 – Fix the weather resistant
sounder securely to the wall using suitable
4mm countersunk screws. Note: The
rubber plug should be located at the
bottom of the device
STEP 5 – Remove the Sounders Base and the
three exposed screws
