Endress+Hauser Deltabar FMD71 User manual

Products Solutions Services
Description of Device Parameters
Deltabar FMD71, FMD72
Level measurement with electronic differential pressure
Electronic differential pressure transmitter with ceramic
and metal sensors
GP01013P/00/EN/06.17
71376029
Valid as of version
01.00.00

Deltabar FMD71, FMD72
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Deltabar FMD71, FMD72 Table of contents
Endress+Hauser 3
Table of contents
1 Document information .............. 4
1.1 Document function ..................... 4
1.2 Symbols used .......................... 4
1.3 Documentation ........................ 5
1.4 Terms and abbreviations ................. 7
1.5 Turn down calculation ................... 8
1.6 Registered trademarks ................... 8
2 Operation options .................. 9
2.1 Operation with an operating menu .......... 9
2.2 Structure of the operating menu ............ 9
2.3 Operating options ..................... 10
2.4 Operating the device using onsite display
(optional) ........................... 10
2.5 Operation using Endress+Hauser operating
program ............................ 13
2.6 Direct access to parameters .............. 14
2.7 Locking/unlocking operation ............. 14
2.8 Resetting to factory settings (reset) ........ 15
3 Backing up or duplicating the
device data ........................ 16
4 Overview of the operating menu .... 18
5 Description of Device Parameters ... 23
5.1 Expert ............................. 23
5.2 Expert → System ...................... 23
5.3 Expert → System → Instrument info ........ 24
5.4 Expert → System → Display ............... 26
5.5 Expert → System → Management .......... 29
5.6 Expert → Measurement ................. 29
5.7 Expert → Measurement → Basic setup ....... 30
5.8 Expert → Measurement → Pressure ........ 33
5.9 Expert → Measurement → Level ........... 35
5.10 Expert → Measurement → Linearization ..... 40
5.11 Expert → Measurement → Sens. limit HP .... 43
5.12 Expert → Measurement → Sens. limit LP ..... 44
5.13 Expert → Measurement → Sensor trim HP .... 44
5.14 Expert →Measurement → Sensor trim LP .... 45
5.15 Expert → Measurement → Current output .... 46
5.16 Expert → Communication → HART config .... 51
5.17 Expert → Communication → HART info ...... 52
5.18 Expert → Communication → HART output .... 54
5.19 Expert → Communication → HART input ..... 57
5.20 Expert → Diagnosis .................... 58
5.21 Expert → Diagnosis → Sensor HP .......... 60
5.22 Expert → Diagnosis → Sensor LP ........... 62
5.23 Expert → Diagnosis → Diagnostic list ........ 63
5.24 Expert → Diagnosis → Event logbook ....... 64
5.25 Expert → Diagnosis → Simulation .......... 64
Index .................................. 68

Document information Deltabar FMD71, FMD72
4 Endress+Hauser
1 Document information
1.1 Document function
The document provides a detailed explanation of each individual parameter in the
operating menu. The description is aimed at those who work with the device over the
entire life cycle and perform specific configurations.
1.2 Symbols used
1.2.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Electrical symbols
Symbol Meaning
Direct current
Alternating current
Direct current and alternating current
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a
grounding system.
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other
connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
1.2.3 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.

Deltabar FMD71, FMD72 Document information
Endress+Hauser 5
Symbol Meaning
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
Visual inspection
1.2.4 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3 ... Item numbers A, B, C, ... Views
A-A, B-B, C-C, ... Sections
1.3 Documentation
The document types listed are available:
In the Download Area of the Endress+Hauser Internet site: www.endress.com →
Download
1.3.1 Technical Information (TI): planning aid for your device
TI01033P:
The document contains all the technical data on the device and provides an overview of
the accessories and other products that can be ordered for the device.
1.3.2 Brief Operating Instructions (KA): getting the 1st measured
value quickly
KA01105P:
The Brief Operating Instructions contain all the essential information from incoming
acceptance to initial commissioning.
1.3.3 Operating Instructions (BA): your comprehensive reference
BA01044P:
These Operating Instructions contain all the information that is required in various phases
of the life cycle of the device: from product identification, incoming acceptance and
storage, to mounting, connection, operation and commissioning through to
troubleshooting, maintenance and disposal.
1.3.4 Description of Device Parameters (GP): reference for your
parameters
GP01013P:
The document provides a detailed explanation of each individual parameter in the
operating menu. The description is aimed at those who work with the device over the
entire life cycle and perform specific configurations.

Document information Deltabar FMD71, FMD72
6 Endress+Hauser
1.3.5 Safety Instructions (XA)
Safety Instructions (XA) are supplied with the device depending on the approval. These
instructions are an integral part of the Operating Instructions.
Device Directive Documentation Option 1)
FMD71, FMD72 ATEX II 1/2G Ex ia IIC T6 Ga/Gb XA00619P BA
FMD71, FMD72 ATEX II 1/2G Ex d [ia] IIC T6 Ga/Gb XA00620P BC
FMD71, FMD72 ATEX II 3G Ex nA IIC T6 GC XA00621P BD
FMD71, FMD72 IEC Ex ia IIC T6 Ga/Gb XA00622P IA
FMD71, FMD72 IEC Ex d [ia] IIC T6 Ga/Gb XA00623P IB
FMD71, FMD72 CSA General Purpose - CD
FMD71, FMD72 NEPSI Ex ia IIC T4/T6 Ga/Gb XA01352P NA
FMD71, FMD72 NEPSI Ex d [ia] IIC T4/T6 Ga/Gb XA01353P NB
FMD71, FMD72 INMETRO Ex ia IIC T6...T4 Ga/Gb XA01378P MA
FMD71, FMD72 INMETRO Ex d [ia] IIC T6...T4 Ga/Gb XA01379P MC
FMD71, FMD72 EAC Ga/Gb Ex ia IIC T6...T4 XA01594P GA
FMD71, FMD72 EAC Ga/Gb Ex d [ia] IIC T6...T4 X XA01595P GB
FMD71 FM C/US IS Cl.I Div.1 Gr.A-D, AEx ia, Zone 0,1,2 XA00628P FA
FMD71 FM C/US XP AIS Cl.I Div.1 Gr.A-D, Exd [ia] Zone 0,1,2 XA00629P FB
FMD71 CSA C/US XP Cl.I Div.1 Gr.A-D, Ex d [ia], Zone 0,1,2 XA00631P CB
FMD71 FM C/US NI Cl.I Div.2 Gr.A-D, Zone 2 XA00668P FD
FMD71 CSA C/US NI, Cl.I Div. 2, Gr.A-D Cl.I, Zone 2, IIC XA00670P CC
FMD71 CSA C/US IS Cl.I Div.1 Gr.A-D, Ex ia Zone 0,1,2 XA00630P CA
FMD72 CSA C/US IS Cl.I Div.1 Gr.A-D, Ex ia Zone 0,1,2 XA00626P CA
FMD72 CSA C/US XP Cl.I Div.1 Gr.A-D, Ex d [ia], Zone 0,1,2 XA00627P CB
FMD72 CSA C/US NI, Cl.I Div.2 Gr.A-D, Zone 2 XA00671P CC
FMD72 FM C/US IS Cl.I Div.1 Gr.A-D, AEx ia, Zone 0,1,2 XA00624P FA
FMD72 FM C/US XP AIS Cl.I Div.1 Gr.A-D, Exd [ia] Zone 0,1,2 XA00625P FB
FMD72 FM C/US NI Cl.I Div.2 Gr.A-D, Zone 2 XA00669P FD
1) Product Configurator order code for "Approval"
The nameplate provides information on the Safety Instructions (XA) that are relevant
for the device.

Deltabar FMD71, FMD72 Document information
Endress+Hauser 7
1.4 Terms and abbreviations
URL OPLMWP
LRL
0
p
LRV URV
1
2
3
4
A0029505
Position Term/
abbreviation
Explanation
1 OPL The OPL (over pressure limit = sensor overload limit) for the measuring device
depends on the lowest-rated element, with regard to pressure, of the selected
components, i.e. the process connection has to be taken into consideration in
addition to the measuring cell. Also observe pressure-temperature dependency.
For the relevant standards and additional notes, see the "Pressure specifications"
section .
The OPL may only be applied for a limited period of time.
2 MWP The MWP (maximum working pressure) for the sensors depends on the lowest-
rated element, with regard to pressure, of the selected components, i.e. the
process connection has to be taken into consideration in addition to the
measuring cell. Also observe pressure-temperature dependency. For the
relevant standards and additional notes, see the "Pressure specifications"
section .
The MWP may be applied at the device for an unlimited period.
The MWP can also be found on the nameplate.
3 Maximum sensor
measuring range
Span between LRL and URL
This sensor measuring range is equivalent to the maximum calibratable/
adjustable span.
4 Calibrated/
adjusted span
Span between LRV and URV
Factory setting: 0 to URL
Other calibrated spans can be ordered as customized spans.
p - Pressure
- LRL Lower range limit
- URL Upper range limit
- LRV Lower range value
- URV Upper range value
- TD (Turn down) Turn down
Example - see the following section.

Document information Deltabar FMD71, FMD72
8 Endress+Hauser

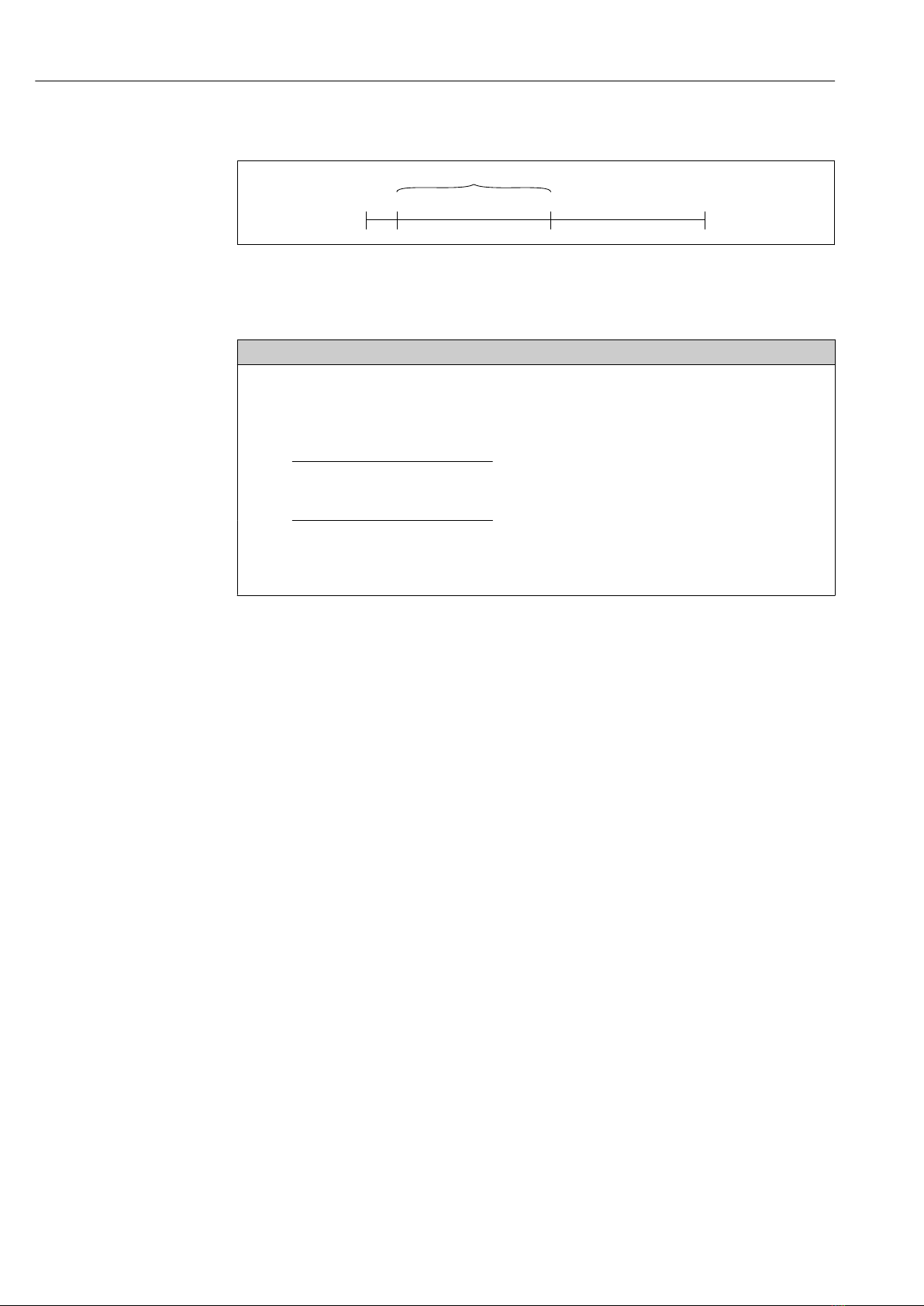

1.5 Turn down calculation
LRV URLURV LRL
1 = 2 3
A0029545
1 Calibrated/adjusted span
2 Zero point-based span
3 URL sensor
Example
• Sensor:10 bar (150 psi)
• Upper range value (URL) = 10 bar (150 psi)
Turn down (TD):
• Calibrated/adjusted span: 0 to 5 bar (0 to 75 psi)
• Lower range value (LRV) = 0 bar (0 psi)
• Upper range value (URV) = 5 bar (75 psi)
TD = URL
|URV - LRV|
TD = 10 bar (150 psi) = 2
|5 bar (75 psi) - 0 bar (0 psi)|
In this example, the TD is 2:1.
This span is based on the zero point.
1.6 Registered trademarks
1.6.1 HART®
Registered trademark of the FieldComm Group, Austin, USA

Deltabar FMD71, FMD72 Operation options
Endress+Hauser 9
2 Operation options
2.1 Operation with an operating menu
2.1.1 Operation concept
Operation with an operating menu is based on an operation concept with "user roles" .
User role Meaning
Operator Operators are responsible for the devices during normal "operation". This is usually limited to
reading process values either directly at the device or in a control room. If the work with the
devices extends beyond value read-off tasks, the tasks involve simple, applicationspecific
functions that are used in operation. Should an error occur, these users simply forward the
information on the errors but do not intervene themselves.
Maintenance Service engineers usually work with the devices in the phases following device commissioning.
They are primarily involved in maintenance and troubleshooting activities for which simple
settings have to be made at the device. Technicians work with the devices over the entire life
cycle of the product. Thus, commissioning and advanced settings and configurations are some of
the tasks they have to carry out.
Expert Experts work with the devices over the entire life cycle of the device, but, at times, have high
device requirements. Individual parameters/functions from the overall functionality of the
devices are required for this purpose time and again. In addition to technical, process-oriented
tasks, experts can also perform administrative tasks (e.g. user administration). "Experts" can
access the entire parameter set.
2.2 Structure of the operating menu
User role Submenu Meaning/use
Operator Language Only consists of the "Language" parameter (000) where the operating language for
the device is specified. The language can always be changed even if the device is
locked.
Operator Display/
operat.
Contains parameters that are needed to configure the measured value display
(selecting the values displayed, display format, display contrast, etc.). With this
submenu, users can change the measured value display without affecting the actual
measurement.
Maintenance Setup Contains all the parameters that are needed to commission measuring operations.
This submenu has the following structure:
•Standard setup parameters
A wide range of parameters, which can be used to configure a typical application,
is available at the start. The measuring mode selected determines which
parameters are available. After making settings for all these parameters, the
measuring operation should be completely configured in the majority of cases.
•"Extended setup" submenu
The "Extended setup" submenu contains additional parameters for more indepth
configuration of the measurement operation to convert the measured value and
to scale the output signal. This menu is split into additional submenus depending
on the measuring mode selected.

Operation options Deltabar FMD71, FMD72
10 Endress+Hauser
User role Submenu Meaning/use
Maintenance Diagnosis Contains all the parameters that are needed to detect and analyze operating errors.
This submenu has the following structure:
•Diagnostic list
Contains up to 10 error messages currently pending.
•Event logbook
Contains the last 10 error messages (no longer pending).
•Instrument info
Contains information on the device identification.
•Measured values
Contains all the current measured values
•Simulation
Is used to simulate pressure, level, current and alarm/warning.
•Reset
•Sensor LP
•Sensor HP
Expert Expert Contains all the parameters of the device (including those in one of the submenus).
The "Expert" submenu is structured by the function blocks of the device. It thus
contains the following submenus:
•System
Contains all the device parameters that neither affect measurement nor
integration into a distributed control system.
•Measurement
Contains all the parameters for configuring the measurement.
•Output
Contains all the parameters for configuring the current output.
•Communication
contains all parameters for configuring the HART interface.
•Diagnosis
Contains all the parameters that are needed to detect and analyze operating
errors.
2.3 Operating options
2.3.1 Local operation
1
A0017650
1 Display and operating module with push buttons. Cover must be opened for operation.
2.4 Operating the device using onsite display (optional)
A 4-line liquid crystal display (LCD) is used for display and operation. The onsite display
shows measured values, dialog text as well as fault and notice messages in plain text,
thereby supporting the user in every stage of operation.
The display can be removed for easy operation.
The device display can be turned in 90° steps.
Depending on the installation position of the device, this makes it easy to operate the
device and read the measured value.

Deltabar FMD71, FMD72 Operation options
Endress+Hauser 11
Functions:
• 8-digit measured value display including sign and decimal point, bargraph for 4 to 20
mA HART as current display.
• Simple and complete menu guidance due to breakdown of parameters into several levels
and groups.
• Each parameter is given a 3-digit ID number for easy navigation.
• Option for configuring the display according to individual requirements and preferences,
such as language, alternating display, display of other measured values such as sensor
temperature, contrast setting.
• Comprehensive diagnostic functions (fault and warning message, peak-hold indicators,
etc.).
• Quick and safe commissioning
2.4.1 Overview
1
E
+
–
3
2
45
A0016498
1 Operating keys
2 Bargraph
3 Symbol
4 Header
5 Parameter ID number
2.4.2 Setting the contrast on the display module
•  and  (press simultaneously): increases the contrast.
•  and  (press simultaneously): decreases the contrast.
2.4.3 Symbols on the onsite display
The following tables show the icons that can be used on the local display. Four symbols
may appear at the same time.
Error symbols
Symbol Meaning
A0012088
Error message "Out of specification"
The device is being operated outside its technical specifications (e.g. during startup or cleaning).
A0012100
Error message "Service mode"
The device is in service mode (e.g. during a simulation).
A0012101
Error message "Maintenance required"
Maintenance is required. The measured value remains valid.
A0012086
Error message "Failure detected"
An operating error has occurred. The measured value is no longer valid.

Operation options Deltabar FMD71, FMD72
12 Endress+Hauser
Display symbols for locking status
Symbol Meaning
A0011978
Lock symbol
The operation of the device is locked. To unlock device, see "Unlocking/locking configuration" section.
Display symbols for communication
Symbol Meaning
A0017652
Communication symbol
Data transfer via communication
2.4.4 Navigation and selection from list
The operating keys are used to navigate through the operating menu and to select an
option from a picklist.
Operating key(s) Meaning
A0017879
• Navigate downwards in the picklist
• Edit the numerical values and characters within a function
A0017880
• Navigate upwards in the picklist
• Edit the numerical values and characters within a function
A0017881
• Confirm entry
• Jump to the next item
• Selection of a menu item and activation of edit mode
A0017879
and
A0017881
Contrast setting of onsite display: darker
A0017880
and
A0017881
Contrast setting of onsite display: brighter
A0017879 and A0017880
ESC functions:
• Exit edit mode for a parameter without saving the changed value.
• You are in a menu at a selection level. Each time you press the keys simultaneously, you
go up a level in the menu.
2.4.5 Navigation examples
Parameters with a picklist
Language 000 Software operation
1  German "English" is set as the menu language (default value).
A  in front of the menu text indicates the option that is currently active.
Spanish
2 German Select the menu language "Spanish" using  or .
 Spanish
3  Spanish Confirm your selection with .
A  in front of the menu text indicates the option that is currently active ("Spanish" is
the language selected).
Use  to exit edit mode for the parameter.
German

Deltabar FMD71, FMD72 Operation options
Endress+Hauser 13
Accepting the pressure present
Example: setting position adjustment.
Menu path: Main menu → Setup → Pos. zero adjust
Pos. zero adjust 007 Software operation
1  Cancel The pressure for position adjustment is present at the device.
Confirm
2 Cancel Use  or  to switch to the "Confirm" option. The active option is highlighted
in black.
 Confirm
3 Adjustment has
been accepted!
Use the key to accept the applied pressure as a position adjustment. The
device confirms the adjustment and goes back to the "Pos. zero adjust"
parameter.
4  Cancel Use  to exit edit mode for the parameter.
Confirm
User-definable parameters
Example: setting parameter "Set URV (014)" from 100 mbar (1.5 psi) to 50 mbar (0.75
psi).
Menu path: Setup → Extended setup → Current output → Set URV
Set URV 014 Software operation
The onsite display shows the parameter to be changed. The "mbar" unit
is defined in another parameter and cannot be changed here.
11 0 0 . 0 0 0 mbar
Press  or  to get to edit mode. The first digit is highlighted in
black.
210 0 . 0 0 0 mbar
Use the  key to change "1" to "5". Press the  key to confirm "5".
Cursor jumps to the next position. Use the  key to confirm (second
position).
350 0 . 0 0 0 mbar
The third digit is highlighted in black and can now be edited.
45 0 0. 0 0 0 mbar
Use the  key to change to the " " symbol. Use  to save the new
value and exit edit mode. See next graphic.
55 0 ¿. 0 0 0 mbar
The new value for the full scale value is 50.0 mbar (0.75 psi). Use  to
exit edit mode for the parameter. Use  or to return to edit mode.
65 0 . 0 0 0 mbar
2.5 Operation using Endress+Hauser operating program
The FieldCare operating program is an Endress+Hauser asset management tool based on
FDT technology. With FieldCare, you can configure all Endress+Hauser devices as well as
devices from other manufacturers that support the FDT standard.
Hardware and software requirements can be found on the Internet:
www.de.endress.com → Search: FieldCare → FieldCare → Technical data.

Operation options Deltabar FMD71, FMD72
14 Endress+Hauser
FieldCare supports the following functions:
• Configuration of transmitters in online/offline mode
• Loading and saving device data (upload/download)
• Documentation of the measuring point
2.6 Direct access to parameters
The parameters can only be accessed directly via the "Expert" user role.
Direct access (119)
Navigation Expert → Direct access
Read permission Operator/Service engineers/Expert
Write permission Expert
Description Enter the direct access code to go directly to a parameter.
User entry Enter the desired parameter code.
Factory setting 0
Note For direct access, it is not necessary to enter leading zeros.
2.7 Locking/unlocking operation
Once you have entered all the parameters, you can lock your entries against unauthorized
and undesired access.
You have the following options for locking/unlocking operation:
• Via the DIP switch on the electronic insert, locally at the device.
• Via the local display (optional)
• Via communication e.g. FieldCare and HART handheld device.
The symbol on the onsite display indicates that operation is locked. Parameters which
refer to how the display appears, e.g. "Language" and "Display contrast", can still be altered.
If operation is locked by means of the DIP switch, you can only unlock operation again
by means of the DIP switch. If operation is locked by means of the onsite display or
remote operation e.g. FieldCare, you can unlock operation either using the onsite
display or remote operation.
The "Operator code" parameter is used to lock/unlock the device.
The parameters can only be accessed directly via the "Expert" user role.
Operator code (021)
Navigation Setup → Extended setup → Operator code
Read permission Operator/Service engineers/Expert
Write permission Operator/Service engineers/Expert

Deltabar FMD71, FMD72 Operation options
Endress+Hauser 15
Description Use this function to enter a code to lock or unlock operation.
User entry •To lock: Enter a number ¹ the release code (value range: 1 to 9999).
• To unlock: Enter the release code.
Factory setting 0
Note The release code is "0" in the order configuration. Another release code can be defined in
the "Code definition" parameter. If the user has forgotten the release code, the release code
can be made visible by entering the number "5864".
The release code is defined in the "Code definition" parameter.
Code definition (023)
Navigation Setup → Extended setup → Code definition
Read permission Operator/Service engineers/Expert
Write permission Operator/Service engineers/Expert
Description Use this function to enter a release code with which the device can be unlocked.
User entry A number from 0 to 9999
Factory setting 0
2.8 Resetting to factory settings (reset)
By entering a certain code, you can completely or partially reset the entries for the
parameters to the factory settings 1). Enter the code via the "Reset" parameter (menu
path: "Diagnosis" → "Reset").
There are various reset codes for the device. The following table illustrates which
parameters are reset by the particular reset codes. To perform a reset, operation must
be unlocked (see "Locking/unlocking operation" section ).→  14
Any customer-specific configuration carried out at the factory is not affected by a
reset (customer-specific configuration remains). If you want to change the customer-
specific configuration carried out at the factory, please contact Endress+Hauser
Service.
1) . The factory setting for the individual parameters is specified in the parameter description

Backing up or duplicating the device data Deltabar FMD71, FMD72
16 Endress+Hauser
Reset code 1) Description and effect
62 PowerUp reset (warm start)
• The device is restarted.
• Data is read back anew from the EEPROM (process is reinitialized).
• Any simulation which may be running is ended.
333 User reset
• This code resets all the parameters apart from:
- Device tag (022)
- Linearization table
- Operating hours (162)
- Event logbook
- Curr. trim 4 mA (135)
- Curr. trim 20 mA (136)
- Lo trim sensor (131)
- Hi trim sensor (132)
- Lo trim sensor (277)
- Hi trim sensor (278)
• Any simulation which may be running is ended.
• The device is restarted.
7864 Total reset
• This code resets all the parameters apart from:
- Operating hours (162)
- Event logbook
- Lo trim sensor (131)
- Hi trim sensor (132)
- Lo trim sensor (277)
- Hi trim sensor (278)
• Any simulation which may be running is ended.
• The device is restarted.
1) To be entered in "System" → "Management" → "Reset" (124)
After a "Total reset" in FieldCare you have to press the "refresh" button in order to
ensure that the measuring units are also reset.
3 Backing up or duplicating the device data
The following options are available to you with an operating tool that is based on FDT
technology (e.g. FieldCare):
• Storage/recovery of configuration data.
• Duplication of device parameters.
• Transfer of all relevant parameters when replacing electronic inserts.
Use the following parameter for this:
Download select. (visible only in FieldCare)
Navigation Expert → System → Management → Download select.
Write permission Operators/Service engineers/Expert
Description Selection of data packages for up/download function in Fieldcare and PDM.
Prerequisite DIP switch set to "SW" and "Damping" set to "on". If you download using the factory setting
"Configuration copy", all parameters required for a measurement will be downloaded. The
functionality of the "Electronics replace" setting is reserved for Endress+Hauser Service and
can be accessed only if the correct device access code is entered.

Deltabar FMD71, FMD72 Backing up or duplicating the device data
Endress+Hauser 17
Options • Configuration copy: This option overwrites general configuration parameters with the
exception of the serial number, order number, calibration, pos. zero adjust, application
and day information.
• Device replacement: This option overwrites general configuration parameters with the
exception of the serial number, order number, calibration and position adjustment.
• Electronics replace: This option overwrites general configuration parameters.
Factory setting Copy configuration

Overview of the operating menu Deltabar FMD71, FMD72
18 Endress+Hauser
4 Overview of the operating menu
The following table lists all of the parameters that can be included in the "Expert"
menu. The page reference indicates where a description of the parameter can be
found in the manual.
Depending on the device version and the parameter configuration, not all submenus
and parameters are available in every device. Information on this can be found in the
parameter description under "Prerequisite".
Direct access Description
Expert Direct access 119 →  23
System Code Definition 023 →  23
Lock Switch (read only) 120 →  23
Operator Code 021 →  24
Instrument info Measuring Point 254 →  24
Device tag 022 →  24
Serial Number (read only) 096 →  25
Firmware Version (read only) 095 →  25
Ext. Order Code (read only) 097 →  25
Order Code (read only) 098 →  25
ENP Version (read only) 099 →  25
Electr. serial no. (read only) 121 →  26
Sens. Ser. No HP (read only) 122 →  26
Sens. Ser. No LP (read only) 274 →  26
Display Language 000 →  26
Display mode 001 →  27
Value 2 display 002 →  27
Value 3 display 288 →  27
Format 1st Value 004 →  28
HART Input Form. 157 →  28
Management Reset 124 →  29
Connect Transm. 286 →  29
Measurement Operating mode 005/182 →  29
Basic setup Pos. Zero Adjust
Calib. Offset
007
008
→  30
→  30
Damping switch (read only) 164 →  31
Damping
Damping (read only)
017
184
→  31
Press. Eng. Unit 125 →  31
Temp. Eng. Unit 126 →  32
Sensor Temp. HP (read only) 110 →  32
Sensor Temp. LP (read only) 283 →  32
Electronics temp. (read only) 128 →  33
Pressure High Press. Side 183 →  33
Set LRV 013 →  33
Set URV 014 →  33
Meas.Diff.Press. (read only) 020 →  34

Deltabar FMD71, FMD72 Overview of the operating menu
Endress+Hauser 19
Direct access Description
Sensor Press. HP (read only) 109 →  34
Sensor Press. LP (read only) 280 →  34
Meas. Press. HP (read only) 281 →  35
Meas. Press. LP (read only) 282 →  35
Corrected Press. (read only) 172 →  35
Level Level Selection 024 →  35
Unit before lin. 025 →  36
Height Unit 026 →  36
Calibration Mode 027 →  37
Empty Calib.
Empty Calib. (read only)
028
011
→  37
Empty Pressure
Empty Pressure (read only)
029
185
→  37
EMPTY HEIGHT
Empty height (read only)
030
186
→  38
Full Calib.
Full Calib. (read only)
031
012
→  38
FULL PRESSURE
Full Pressure (read only)
032
187
→  38
FULL HEIGHT
Full height (read only)
033
188
→  39
Density unit 127 →  39
Adjust Density
Adjust Density (read only)
034
189
→  39
Process Density
Process Density (read only)
035
181
→  40
Level Before Lin. (read only) 019 →  40
Linearization Lin. mode 037 →  40
Unit after lin. 038 →  41
Line-numb: 039 →  41
X-value.: (edit mode)
X-value: (semi-automatic)
X-value: (read only)
040
193
123
→  42
Y-val: (edit mode)
Y-value: (semi-automatic)
Y-value: (read only)
041
041
194
→  42
Edit table 042 →  42
TANK DESCRIPTION 173 →  43
Tank Content (read only) 043 →  43
Sens. limit HP LRL sensor 101 →  43
URL sensor 102 →  43
Sens. limit LP LRL sensor 272 →  44
URL sensor 273 →  44
Sensor trim HP Lo trim measured 129 →  44
Hi trim measured 130 →  44
Lo Trim Sensor 131 →  44
Hi Trim Sensor 132 →  45

Overview of the operating menu Deltabar FMD71, FMD72
20 Endress+Hauser
Direct access Description
Sensor trim LP Lo trim measured 275 →  45
Hi trim measured 276 →  45
Lo Trim Sensor 277 →  45
Hi Trim Sensor 278 →  46
Current output Output current (read only) 054 →  46
Alarm Behav. P 050 →  46
Alarm cur.switch (read only) 165 →  47
Output fail mode
Output fail mode (read only)
190
051
→  47
High alarm curr. 052 →  47
Set Min. Current 053 →  47
Get LRV (only "Pressure") 015 →  48
Set LRV 056
013
166
168
→  33
Get URV (only "Pressure") 016 →  48
Set URV 057
014
067
169
→  33
Start-up current 134 →  49
Curr. Trim 4 mA 135 →  49
Curr. Trim 20 mA 136 →  50
Offset Trim 4 mA 137 →  50
Offset Trim 20 mA 138 →  50
Communication HART config Burst Mode 142 →  51
Burst Option 143 →  51
Current Mode 144 →  51
Bus Address 145 →  52
Preamble Number 146 →  52
HART Info Device ID (read only) 279 →  52
Device Revision (read only) 108 →  53
Manufacturer ID (read only) 103 →  53
Hart Version (read only) 180 →  53
Description 139 →  53
HART Message 140 →  53
HART Date 141 →  54
HART output Primary value is (read only) 147 →  54
Primary value is (read only) 148 →  54
Secondary value is (read only) 149 →  54
Secondary value is (read only) 150 →  55
Third value is (read only) 151 →  55
Third value is (read only) 152 →  56
Fourth value is (read only) 153 →  56
