Brief Operating Instructions
RID14
Fieldbus indicator
with PROFIBUS® PA protocol
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
KA01156K/09/EN/03.22-00
71593374
2022-08-03

RID14
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

RID14 Table of contents
Endress+Hauser 3
Table of contents
1 Document information ............................................................ 4
1.1 Document conventions .................................................................. 4
2 Safety instructions ................................................................ 6
2.1 Requirements for personnel .............................................................. 6
2.2 Designated use ........................................................................ 6
2.3 Workplace safety ...................................................................... 6
2.4 Operational safety ......................................................................6
2.5 Product safety ......................................................................... 7
3 Identification ..................................................................... 7
3.1 Device designation ..................................................................... 7
3.2 Scope of delivery ....................................................................... 8
3.3 Certificates and approvals ................................................................ 8
4 Installation ....................................................................... 8
4.1 Incoming acceptance, transport, storage ..................................................... 8
4.2 Installation conditions ................................................................... 9
4.3 Installation instructions ..................................................................9
4.4 Post-installation check ................................................................. 11
5 Wiring ........................................................................... 11
5.1 Connecting the cable to the field indicator ................................................... 12
5.2 Connection to PROFIBUS® PA ............................................................ 13
5.3 Degree of protection ................................................................... 16
5.4 Post-connection check ..................................................................17
6 Operating the field indicator ..................................................... 17
6.1 Quick operation guide .................................................................. 17
6.2 Display and operating elements ........................................................... 19
6.3 Configuration of the field indicator ........................................................ 20
6.4 Hardware settings ..................................................................... 20
6.5 Device configuration ................................................................... 22

Document information RID14
4 Endress+Hauser
1 Document information
1.1 Document conventions
1.1.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Electrical symbols
Symbol Meaning
A0011197
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011198
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
A0017381
Direct current and alternating current
• A terminal to which alternating voltage or DC voltage is applied.
• A terminal through which alternating current or direct current flows.
A0011200
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
A0011199
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011201
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.
A0012751
ESD - Electrostatic discharge
Protect the terminals against electrostatic discharge. Failure to comply with this instruction can result
in the destruction of parts or malffunction of the electronics.

RID14 Document information
Endress+Hauser 5
1.1.3 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.
Reference to documentation Reference to page
Reference to graphic
,… ,
Series of steps
Result of a step Visual inspection
1.1.4 Symbols in graphics
Symbol Meaning
1, 2, 3,... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
A0013441
Flow direction
-
A0011187
Hazardous area
Indicates a hazardous area.
.
A0011188
Safe area (non-hazardous area)
Indicates a non-hazardous area.
1.1.5 Tool symbols
Symbol Meaning
A0011220
Flat blade screwdriver
A0011221
Allen key

Safety instructions RID14
6 Endress+Hauser
Symbol Meaning
A0011222
Open-ended wrench
A0013442
Torx screwdriver
2 Safety instructions
2.1 Requirements for personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Designated use
• The device is a field indicator designed for connection to a fieldbus.
• The device is designed for installation in the field.
• The manufacturer accepts no liability for damages resulting from incorrect use or use other
than that designated.
• Safe operation is only guaranteed if operators comply strictly with the Operating
Instructions.
• Only operate the device in the designated temperature range.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.

RID14 Identification
Endress+Hauser 7
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
3 Identification
3.1 Device designation
3.1.1 Nameplate
The right device?
Compare the order code on the nameplate of the device to that on the delivery papers.
Made in Germany 2013
D-87484 Nesselwang
Order code: RID14-xxxxxxx
Ser. no.: xxxxxxxxxxx
Ext. ord. cd.: xxxxxxxxxxxxxxxxxx
9 - 32 V
Ta = -40 ...+80°C
FW: XX.XX.XX DevRev: X
4
IP67 NEMA4X
Type 4X
RID14
1
2
3
4
5
6
A0021495
 1 Nameplate of the field indicator (example)
1 Designation, order code and serial number of the device
2 Power supply
3 Ambient temperature range
4 Firmware version and device revision
5 Degree of protection and type of approval
6 Approvals

Installation RID14
8 Endress+Hauser
3.2 Scope of delivery
The scope of delivery of the field indicator comprises:
• Field indicator
• Brief Operating Instructions as hard copy
• ATEX - safety instructions for using a device approved for hazardous areas, optional
• Optional accessories (e.g. pipe mounting bracket), see 'Accessories' section in the Operating
instructions.
3.3 Certificates and approvals
3.3.1 CE mark
The measuring system meets the legal requirements of the applicable EC guidelines. These are
listed in the corresponding EC Declaration of Conformity together with the standards applied.
The manufacturer confirms successful testing of the device by affixing to it the CE mark.
3.3.2 UL approval
UL recognized component (see www.ul.com/database, search for Keyword "E225237")
3.3.3 EAC mark
The product meets the legal requirements of the EEU guidelines. The manufacturer confirms
the successful testing of the product by affixing the EAC mark.
3.3.4 CSA
CSA General Purpose
4 Installation
4.1 Incoming acceptance, transport, storage
The permitted ambient and storage conditions must be observed. The precise specifications
can be found in Section "Technical data" in the Operating Instructions.
4.1.1 Incoming acceptance
On receipt of the goods, check the following points:
• Are the packaging or contents damaged?
• Is anything missing from the delivery? Compare the scope of delivery with the information
you specified in the order. See also section "Scope of delivery" →  8.
4.1.2 Transportation and storage
Note the following points:
• Pack the device so that is protected against impact for storage and transportation. The
original packaging provides optimum protection.
• The permitted storage temperature range is –40 to +80 °C (–40 to +176 °F); it is possible to
store the device in the limit temperature ranges for a limited period (maximum 48 hours).

RID14 Installation
Endress+Hauser 9
4.2 Installation conditions
The process indicator is designed to be used in the field.
The orientation is determined by the readability of the display.
Operational temperature range:
–40 to +80 °C (–40 to +176 °F)
NOTICE
Shorter display operating life at higher temperatures
‣Where possible do not operate the device in the higher temperature range.
The display can react slowly at temperatures < –20 °C (–4 °F).
The readability of the display is no longer guaranteed at temperatures < –30 °C (–22 °F).
4.2.1 Dimensions
132 (5.2)
135 (5.3)
112 (4.4)
166 (6.5)
106 (4.2) 121 (4.8)
121 (4.8)
!6.4
(0.25)
A0011152
 2 Dimension of the filed indicator in mm (in)
4.2.2 Installation location
Information on conditions that must be present at the installation location to mount the
device correctly can be found in Section 'Technical data' in the Operating Instructions. These
include the ambient temperature, degree of protection, climate class etc.
4.3 Installation instructions
The device can be mounted directly on the wall →  10. A mounting bracket is available for
mounting on a pipe →  4,  11.
The backlit display can be mounted in 4 different positions →  10.

Installation RID14
10 Endress+Hauser
4.3.1 Turning the display
Pos. 1
2
3
1
4
1.
2.
90°
90° 90°
Pos. 2 Pos. 3 Pos. 4
3.
A0023724
 3 Field indicator, 4 display positions, can be fitted in 90° stages
The display unit can be turned in 90 ° stages.
1. First remove the cover clamp (1) and the housing cover (2).
2. Then disconnect the display (3) from the electronics unit (4).
3. Turn the display to the desired position and then fit it onto the electronics unit.
4.3.2 Mounting directly on the wall
Proceed as follows to mount the device directly on the wall:
1. Drill 2 holes
2. Fit the device on the wall with 2 screws (⌀5 mm (0.2 in)).
4.3.3 Pipe mounting
The mounting bracket is suitable for pipes with a diameter between 1.5" to 3.3".
The additional mounting plate must be used for pipes with a diameter between 1.5" to 2.2".
The mounting plate is not needed for pipes with a diameter between 2.2" to 3.3".
Proceed as follows to mount the device on a pipe:

RID14 Wiring
Endress+Hauser 11
1
2
3
1.
2.
3.
A0011258
 4 Mounting the field indicator on a pipe with the mounting bracket for pipe diameters 1.5 to 2.2"
1 Mounting plate
2 Mounting bracket
3 2 M6 nuts
4.4 Post-installation check
After installing the device, always run the following final checks:
Device condition and specifications Notes
Is the device damaged? Visual inspection
Is the seal undamaged? Visual inspection
Is the device securely fastened to the wall or the mounting plate? -
Is the front cover fixed tightly? -
Does the device correspond to the measuring point specifications, e.g. ambient
temperature range etc.?
See 'Technical data' section
5 Wiring
LWARNING
Danger of explosion if the device is incorrectly connected in the hazardous area
‣When connecting Ex-certified devices, please take special note of the instructions and
connection schematics in the Ex-specific supplement to these Operating Instructions. If you
have any questions, please do not hesitate to contact your E+H representative.

Wiring RID14
12 Endress+Hauser
NOTICE
Electronics can be destroyed if the unit is connected incorrectly
‣Switch off the power supply before installing or connecting the device. Failure to observe
this may result in the destruction of parts of the electronics.
‣The post connector is only used to connect the display. If other devices are connected, this
can result in the destruction of parts of the electronics.
Devices can be connected to the PROFIBUS® PA in two ways:
• Using a conventional cable gland
• Using the fieldbus connector (optional, available as an accessory)
5.1 Connecting the cable to the field indicator
To wire the field indicator, proceed as follows:
1.
2.
3. 6.
5.
4.
5.
A0012568

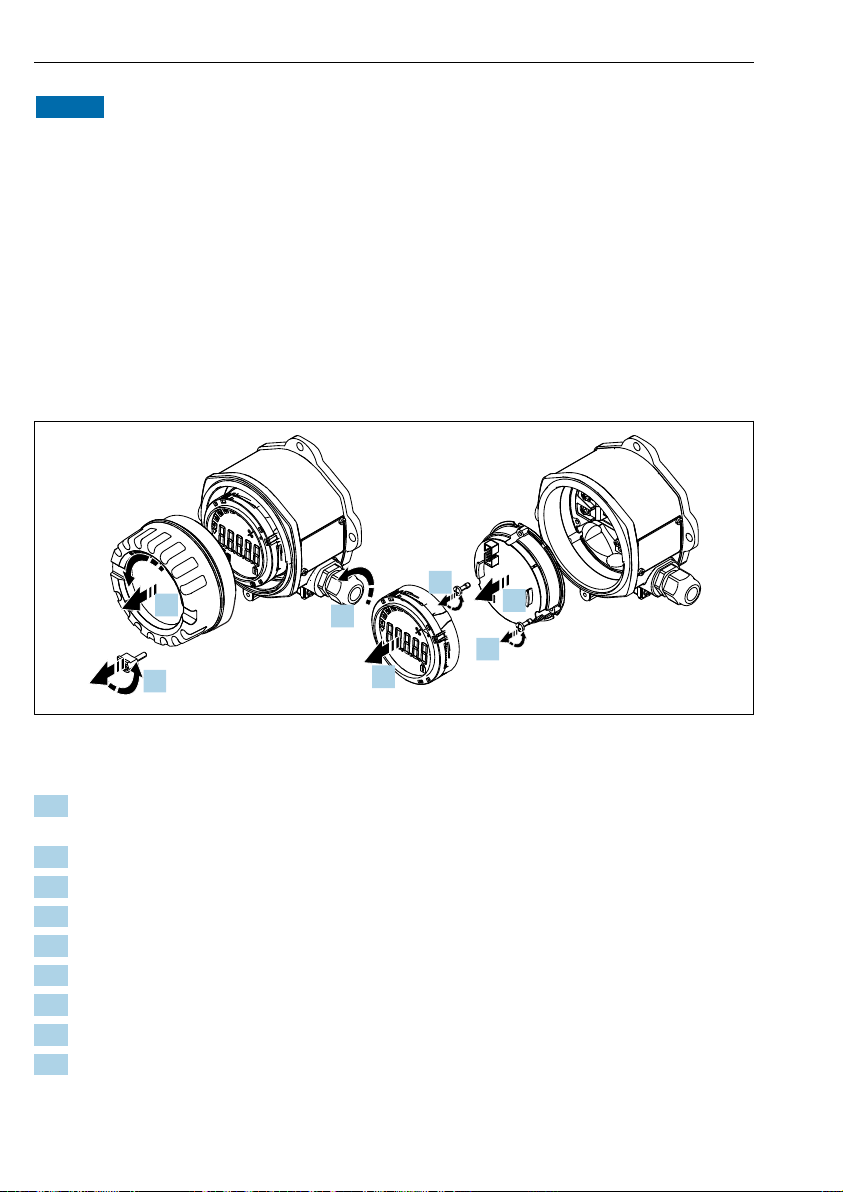

 5 Opening the housing of the field indicator
1. Open the cable gland, or remove the cable gland to use a fieldbus connector (optional
accessory).
2. Remove the cover clamp.
3. Remove the housing cover.
4. Remove the display.
5. Remove the screws from the electronics unit.
6. Remove the electronics unit.
7. Feed the cable through the cable entry, or screw the fieldbus connector into the housing.
8. Connect the cable →  6,  13
9. Reassemble in the reverse order.

RID14 Wiring
Endress+Hauser 13

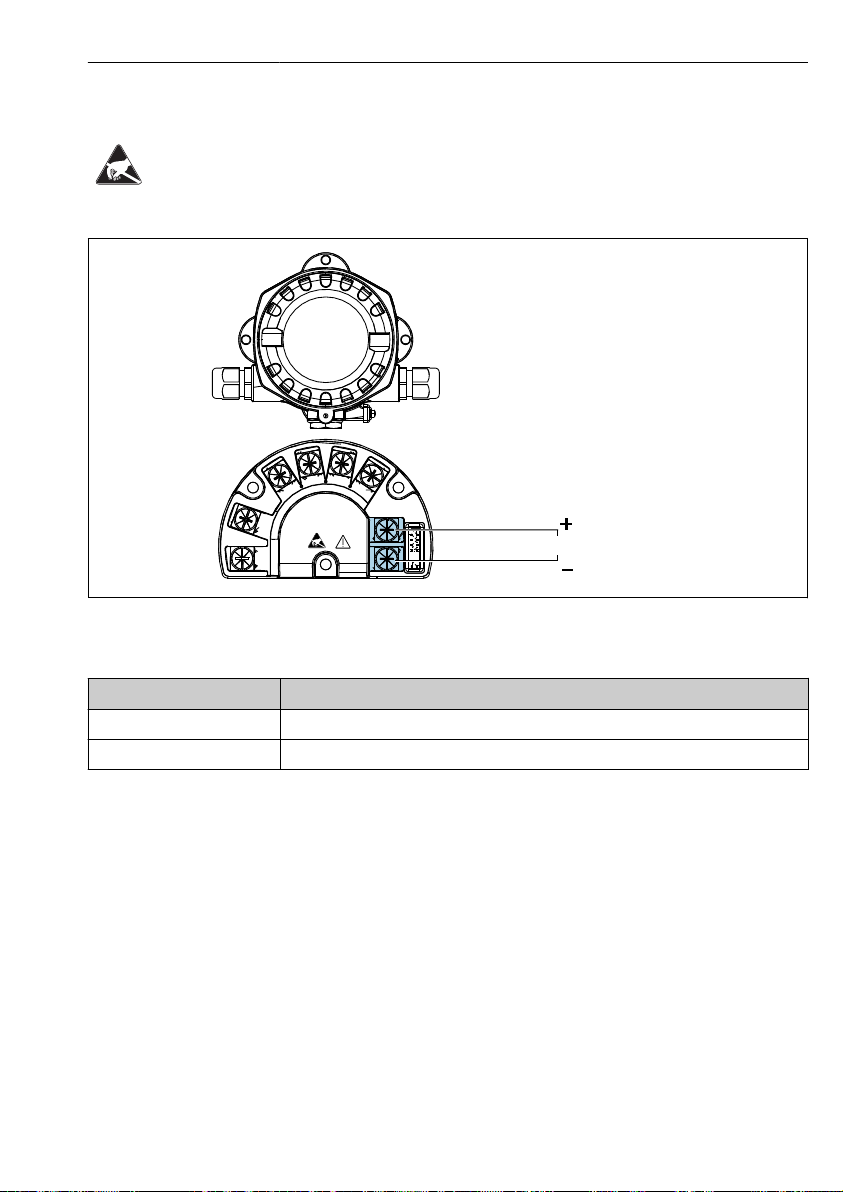

5.1.1 Quick wiring guide
A0012751
ESD - electrostatic discharge
Protect the terminals from electrostatic discharge. Failure to observe this may result in the destruction or
malfunction of parts of the electronics.
PROFIBUS PA
®
-
+
A0021496
 6 Terminal assignment
Terminal Terminal assignment
+ PROFIBUS® PA connection (+)
- PROFIBUS® PA connection (-)
5.2 Connection to PROFIBUS® PA
Devices can be connected to the PROFIBUS® PA in two ways:
• Using a conventional cable gland
• Using the fieldbus connector (optional, available as an accessory)

Wiring RID14
14 Endress+Hauser
NOTICE
The device and fieldbus cable can be damaged by electrical voltage
‣Switch off the power supply before installing or connecting the device.
‣Grounding via one of the grounding screws is recommended.
‣If the shielding of the fieldbus cable is grounded at more than one point in systems without
additional potential equalization, mains-frequency equalizing currents may occur and
cause damage to the cable or shielding. In such cases, the shielding of the fieldbus cable is
to be grounded on one side only, i.e. it must not be connected to the ground terminal of the
housing. The shield that is not connected should be insulated!
We recommend that the fieldbus not be looped using conventional cable glands. If you
replace even just one measuring device at a later date, the bus communication will have
to be interrupted.
5.2.1 Cable gland or entry
Please also follow the general procedure on →  12
1
3
4
2
A0012571
 7 Connection to the PROFIBUS® PA fieldbus line
1 Terminals - fieldbus communication and power supply
2 Inner ground terminal
3 Outer ground terminal
4 Shielded fieldbus cable
• The terminals for the fieldbus connection (1+ and 2-) are independent of polarity.
• Conductor cross-section:
Max. 2.5 mm2 (14 AWG)
• A shielded cable must be used for the connection.

RID14 Wiring
Endress+Hauser 15
5.2.2 Fieldbus connector
Optionally, a fieldbus connector can be screwed into the field housing instead of a cable gland.
Fieldbus connectors can be ordered as accessories from Endress+Hauser (see the 'Accessories'
section in the Operating Instructions).
The connection technology of PROFIBUS® PA allows measuring devices to be connected to the
fieldbus via uniform mechanical connections such as T-boxes, junction boxes etc.
This connection technology using prefabricated distribution modules and plug-in connectors
offers substantial advantages over conventional wiring:
• Field devices can be removed, replaced or added at any time during normal operation.
Communication is not interrupted.
• Installation and maintenance are significantly easier.
• Existing cable infrastructures can be used and expanded instantly, e.g. when constructing
new star distributors using 4-channel or 8-channel distribution modules.
Supply line/T-box shielding
Always use cable glands with good EMC properties, where possible with wrapround cable
shielding (Iris spring). This requires minimum differences in potential, and possibly potential
equalization.
• The shielding of the PA cable may not be interrupted.
• The shielding connection must always be kept as short as possible.
Ideally, cable glands with Iris springs should be used to connect the shielding. The shielding is
connected to the T-box housing by means of the Iris spring located inside the gland. The
shielding braid is located under the Iris spring.
When the armored thread is tightened, the Iris spring is pressed against the shielding, thereby
creating a conductive connection between the shielding and the metal housing.
A junction box or a plug-in connection must be considered part of the shielding (Faraday
shield). This is particularly true for separate boxes if they are connected to a PROFIBUS® PA
device with a plug-in cable. In this case, a metal connector must be used whereby the cable
shielding is connected to the connector housing (e.g. preterminated cables).

Wiring RID14
16 Endress+Hauser
1
2
1.4
1.1
1.2
1.3
1.5
M20x1.5 /
NPT 1/2”
SW/AF 26
D
A0021497
 8 Connector for connection to the PROFIBUS® PA fieldbus
Pin assignment / color codes
1Fieldbus connector D 7/8" plug D M12 plug
2Field indicator 1.1 Brown wire: PA+ (terminal 1) 1.1 Gray wire: shield
1.2 Green/yellow wire: grounding 1.2 Brown wire: PA+ (terminal 1)
1.3 Blue wire: PA- (terminal 2) 1.3 Blue wire: PA- (terminal 2)
1.4 Gray wire: shield 1.4 Green/yellow wire: grounding
1.5 Positioning key 1.5 Positioning key
Connector technical data:
• Degree of protection IP 67 (NEMA 4x)
• Ambient temperature: –40 to +105 °C (–40 to +221 °F)
5.3 Degree of protection
The devices meet the requirements for IP 67 protection. Compliance with the following points
is mandatory to guarantee IP 67 protection following installation or service work:
• The housing seal must be clean and undamaged when inserted into the groove. The seal
should have been cleaned, dried or replaced.
• The connection cables must have the specified outside diameter (e.g. M16 x 1.5, cable
diameter 5 to 10 mm (0.2 to 0.39 in)).
• Replace all unused cable entries with dummy plugs.
• The grommet may not be removed from the cable entry.
• The housing cover and cable entry/entries must be closed tightly.
• Install the device in such a way that the cable entries point downwards.

RID14 Operating the field indicator
Endress+Hauser 17
5.4 Post-connection check
After completing the device's electrical installation, carry out the following checks:
Device condition and specifications Notes
Are the device or cables damaged (visual inspection)? -
Electrical connection Notes
Does the supply voltage match the specifications on the nameplate? 9 to 32 VDC
Do the cables used meet the required specifications? Fieldbus cable, see
Operating Instructions
Are the mounted cables relieved of tension? -
Are the power supply and signal cables connected correctly? →  13
Are all the screw terminals well tightened and have the connections of the push-in
terminals been checked?
-
Are all the cable entries mounted, tightened and leak-tight? Cable run with "water trap"? -
Are all housing covers installed and firmly tightened? -
Are all the connecting components (T-boxes, junction boxes, connectors, etc.) connected
with each other correctly?
-
Has each fieldbus segment been terminated at both ends with a bus terminator? -
Has the max. length of the fieldbus cable been observed in accordance with the fieldbus
specifications?
See the cable specifications
in the Operating
Instructions
Has the max. length of the spurs been observed in accordance with the fieldbus
specifications?
Is the fieldbus cable fully shielded (90%) and correctly grounded?
6 Operating the field indicator
6.1 Quick operation guide
Operators have two options for configuring and commissioning the device:
1. Configuration programs
Device-specific parameters are configured via the E+H Service interface (CDI). A special device
driver (DTM) for an FDT operating program (e.g. DeviceCare, FieldCare) is available for this
purpose →  20.
The DTM file is available for download via: www.endress.com/download → Enter product root
→ Media type "Software" and "Device drivers".
2. Miniature switches (DIP switches) for local configuration

Operating the field indicator RID14
18 Endress+Hauser
You can make the following settings for the fieldbus interface using miniature switches (DIP
switches) on the electronics module →  20:
• Setting to specify whether operation is possible via DIP switches or remotely via the DTM
• Setting for the address of the bus users whose values are to be displayed
• Configuring an offset
1
2
3
A0021500
 9 Hardware setting via DIP switches
1 ON switch position
2 OFF switch position
3 Write protection
Only 2 display values can be configured when operating via the DIP switches.
6.1.1 Listener mode
The field indicator acts solely as a listener, i.e. it does not appear in the bus as an active user
with its own specific address and it also does not increase the traffic in the bus.
The field indicator analyzes the devices active on the bus. Via their addresses these devices
can be assigned to up to 8 channels if DTM operation is used, or up to 2 channels in the case
of operation with DIP switches.
Operation via the PROFIBUS protocol is not possible given the sole listener function of
the indicator!

RID14 Operating the field indicator
Endress+Hauser 19
6.2 Display and operating elements
6.2.1 Display
!
1
2
3
1a
4
5
6
7
1b
A0012574
 10 LC display of the field indicator
1 Bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging
(item 1b)
2 Measured value display, status indication "Bad measured value status"
3 14-segment display for units and messages
4 "Communication" symbol
5 "Parameters cannot be modified" symbol
6 "%" unit
7 "Uncertain measured value status" symbol
The backlit LCD display contains a bargraph (0-100) and arrows to indicate measurements
above or below the measurement range. Analog process values, digital status and failure
codes are displayed in the 7-segment area. Here up to 8 values can be displayed with a
alternating time between 2 and 20 seconds. Plain text can be displayed in the 14-segment
area (text is limited to 16 characters and is scrolled if needed (marquee text)).
The indicator also displays the quality of the measured value. If the status of the displayed
value is 'good' (quality code equal to or above 0x80), no symbol is lit and the indicator remains
in the normal operational state. If the status of the displayed value is 'uncertain' (quality code
between 0x40 and below 0x80), the 'Uncertain measured value status' symbol is lit. If the
status is 'bad' (quality code below 0x40), within the 7-segment area the display will show
"BAD-" and the channel number where the bad value is published. The entered text continues
to be displayed in the 14-segment area and the bar graph is not shown.

Operating the field indicator RID14
20 Endress+Hauser
6.3 Configuration of the field indicator
NOTICE
The device is not explosion-protected when the housing is open
‣The device must be configured outside the hazardous area.
To configure the device via the FieldCare Device Setup software, connect the device to your PC.
For this you will require a special interface adapter, the Commubox FXA291 (see 'Accessories'
section in the Operating Instructions).
The four-pin plug of the interface cable must be inserted into the corresponding socket in the
device. The USB plug must be inserted into a free USB port on the PC.
More information on configuring via the PC configuration software can be found in the
Operating Instructions.
No power should be supplied via the bus if configuring the PROFIBUS PA indicator with
the DTM via the CDI interface!
To ensure a connection to the device can be established, operation must be set to
"Remote" at the DIP switches. Furthermore write protection, which can be enabled and
disabled via the DIP switches, must be disabled so that the parameters of the field
indicator can be modified via the DTM.
The DIP switches are described in the "Operation" section →  20.
6.4 Hardware settings
Hardware write protection can be enabled and disabled via DIP switches inside the field
indicator. When write protection is active, parameters cannot be modified.
The current write protection status is displayed in the WRITE_LOCK parameter.
A0012751
ESD - Electrostatic Discharge
Protect the terminals from electrostatic discharge. Failure to observe this may result in destruction or
malfunction of parts of the electronics.
To set the DIP switches, proceed as follows:
1. Remove the housing cover and remove the display →  5,  12
2. Configure the DIP switches. Switch to ON = function enabled, switch to OFF = function
disabled.
3. Fit the display onto the electronics.
4. Close the housing cover and secure it.
