Endress+Hauser iTEMP TMT82 Technical specifications

Products Solutions Services
Brief operating instructions
iTEMP TMT82
Dual-input temperature transmitter
These instructions are brief operating instructions; they are
not a substitute for the operating instructions pertaining to
the device.
For detailed information, refer to the operating instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/Tablet: Endress+Hauser Operations App
KA01095T/09/EN/16.14
71273629

iTEMP TMT82
2 Endress+Hauser
TAG No.: XXX000
Ser. No.: X000X000000
Order code 00X00-XXXX0XX0XXX
www.endress.com/deviceviewer Endress+Hauser Operations App
Serial number
A0023555

iTEMP TMT82 Table of contents
Endress+Hauser 3
Table of contents
1 Important document information ................................................ 3
1.1 Function of document and how to use ...................................................... 3
1.2 Symbols ............................................................................ 4
1.3 Tool symbols ......................................................................... 5
1.4 Registered trademarks .................................................................. 5
2 Basic safety instructions ......................................................... 5
2.1 Requirements for the personnel ........................................................... 5
2.2 Designated use ....................................................................... 6
2.3 Operational safety ..................................................................... 6
3 Identification .................................................................... 6
3.1 Device designation ..................................................................... 6
3.2 Scope of delivery ...................................................................... 8
3.3 Certificates and approvals ............................................................... 8
4 Installation instructions .......................................................... 9
4.1 Incoming acceptance, transport, storage ..................................................... 9
4.2 Installation conditions ................................................................. 10
4.3 Installation instructions ................................................................ 11
4.4 Post-installation check ................................................................. 15
5 Wiring .......................................................................... 16

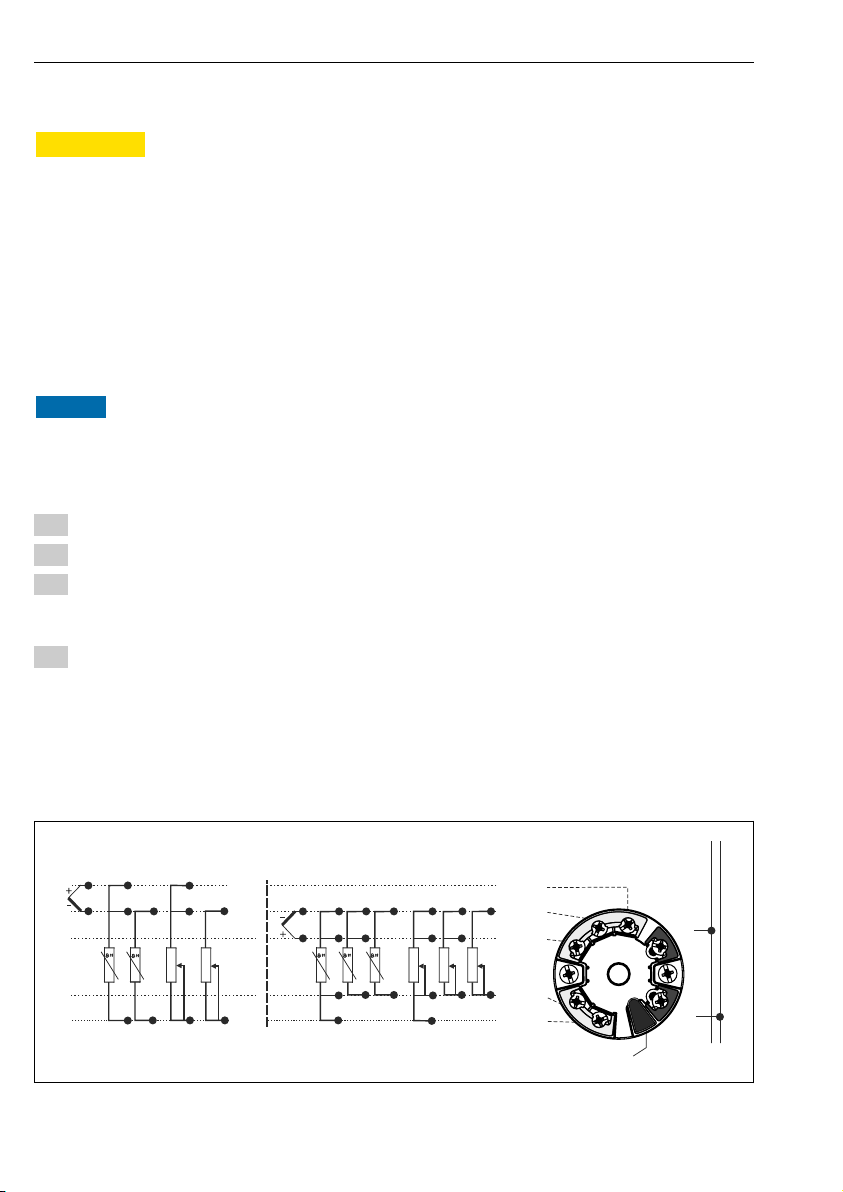

5.1 Quick wiring guide .................................................................... 16
5.2 Connecting the sensor cables ............................................................ 17
5.3 Connecting the power supply and signal cables .............................................. 19
5.4 Shielding and grounding ............................................................... 20
5.5 Post-connection check ................................................................. 21
6 Operating options .............................................................. 22
6.1 Measured value display and operating elements .............................................. 22
6.2 Configuration of transmitter and HART® protocol ............................................. 24
7 Commissioning ................................................................. 25
7.1 Post-installation check ................................................................. 25
7.2 Switching on the transmitter ............................................................ 25
7.3 Enabling configuration ................................................................ 26
1 Important document information
1.1 Function of document and how to use
1.1.1 Document function
These instructions contain all the essential information from incoming acceptance to initial
commissioning.
1.1.2 Safety Instructions (XA)
When using in hazardous areas, compliance with national regulations is mandatory. Separate
Ex-specific documentation is provided for measuring systems that are used in hazardous

Important document information iTEMP TMT82
4 Endress+Hauser
areas. This documentation is an integral part of these Operating Instructions. The installation
specifications, connection data and safety instructions it contains must be strictly observed!
Make sure that you use the right Ex-specific documentation for the right device with approval
for use in hazardous areas! The number of the specific Ex documentation (XA...) is provided
on the nameplate. If the two numbers (on the Ex documentation and the nameplate) are
identical, then you may use this Ex-specific documentation.
1.1.3 Functional safety
Please refer to Safety Manual SD01172T/09 for the use of approved devices in protective
systems according to IEC 61508.
1.2 Symbols
1.2.1 Safety symbols
Symbol Meaning
DANGER
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
CAUTION
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or medium injury.
NOTICE
A0011192-EN
NOTE!
This symbol contains information on procedures and other facts which do not result
in personal injury.
1.2.2 Symbols and notation for certain types of information
Symbol Meaning
A0011193
Tip
Indicates additional information.
A0011194
Reference to documentation
Refers to the corresponding device documentation.
A0011195
Reference to page
Refers to the corresponding page number.
A0011196
Reference to graphic
Refers to the corresponding graphic number and page number.
1., 2., 3. Series of steps

iTEMP TMT82 Basic safety instructions
Endress+Hauser 5
1.3 Tool symbols
Symbol Meaning
A0011220
Flat blade screwdriver
A0011219
Crosstip screwdriver
A0011221
Allen key
A0011222
Open-ended wrench
A0013442
Torx screwdriver
1.4 Registered trademarks
HART®
Registered trademark of the HART® Communication Foundation
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill the
following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the instructions
in the Operating Instructions and supplementary documentation as well as in the
certificates (depending on the application)
‣Following instructions and basic conditions
The operating personnel must fulfill the following requirements:
‣Being instructed and authorized according to the requirements of the task by the facility's
owner-operator
‣Following the instructions in these Operating Instructions

Identification iTEMP TMT82
6 Endress+Hauser
2.2 Designated use
The device is a universal and user-configurable temperature transmitter with either one or
two sensor inputs for a resistance thermometer (RTD), thermocouples (TC), resistance and
voltage transmitters. The head transmitter version of the device is intended for mounting in a
flat-face terminal head as per DIN EN 50446. It is also possible to mount the device on a DIN
rail using the optional DIN rail clip.
The device is also optionally available in a version suitable for DIN rail mounting as per IEC
60715 (TH35).
The manufacturer is not liable for damage caused by improper or non-designated use.
2.3 Operational safety
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the hazardous
area (e.g. explosion protection or safety equipment):
‣Based on the technical data on the nameplate, check whether the ordered device is
permitted for the intended use in the hazardous area. The nameplate can be found on the
side of the transmitter housing.
‣Observe the specifications in the separate supplementary documentation that is an integral
part of these Instructions.
Electromagnetic compatibility
The measuring system complies with the general safety requirements in accordance with EN
61010-1, the EMC requirements of IEC/EN 61326 and NAMUR Recommendation NE 21 and
NE 89.
NOTICE
‣The unit must only be powered by a power supply that operates using an energy-limited
electric circuit that is compliant with IEC 61010-1, "SELV or Class 2 circuit".
3 Identification
3.1 Device designation
The following options are available for identification of the device:
• Nameplate specifications
• Enter the serial number from the nameplate in W@M Device Viewer (www.endress.com/
deviceviewer): All data relating to the device and an overview of the technical
documentation supplied with the device are displayed.

iTEMP TMT82 Identification
Endress+Hauser 7
3.1.1 Nameplate
The right device?
Compare and check the data on the nameplate of the device against the requirements of the
measuring point:
12 3
45
11-42V 012345678910
xx.yy.zz
TMT82- XXXXX/XX
iTEMP®
Made in Germany 2011
D-87484 Nesselwang
Ser.no.:
FW:
Input:
12345678ABCDEFGH
12345678ABCDEFGH
Current consum.: 23,6 mA Dev.Rev: x
Ext. ord. cd.:
XXXXXXXXXXXXX#
II3G Ex nA II T6/T5/T4 Ta= -40 ...+ 55/70/85°C
II3G Ex nL IIC T6/T5/T4 Ta= -40 ... +55/70/85°C
EH 08.001X
Install per XA00102R/09/a3/xx.xx
6
0044
A0014561

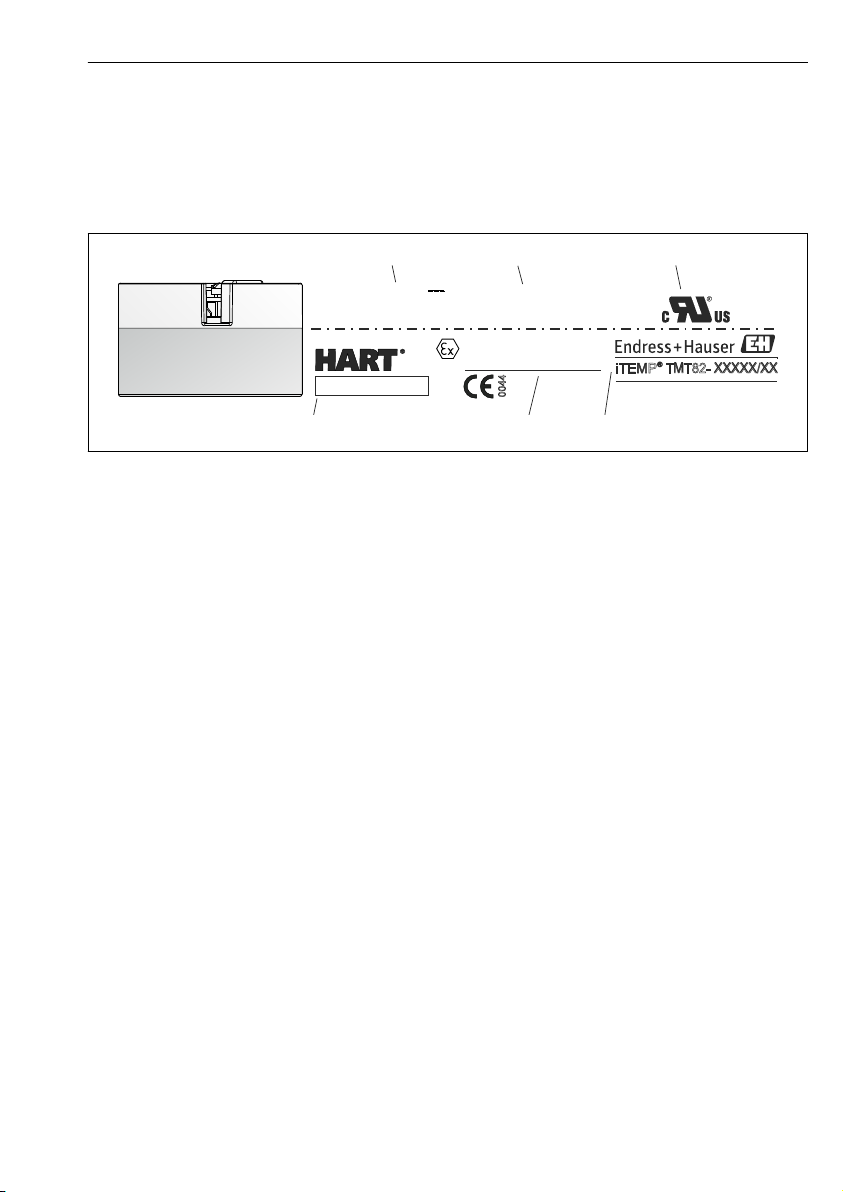

 1 Nameplate of the head transmitter (example, Ex version)
1 Power supply, current consumption and extended order code
2 Serial number, device revision and firmware version
3 Approvals with symbols
4 2 lines for the TAG name
5 Approval in hazardous area with number of the relevant Ex documentation (XA...)
6 Order code and manufacturer ID

Identification iTEMP TMT82
8 Endress+Hauser
1
2
3
4
5
6
0044
iTEMP®TMT82
Made in Germany 2012 D-87484 Nesselwang
TAGXXXXXXXXXXX
TAGXXXXXXXXXXX
FW: XX.XX.XX Dev. Rev.: X
Order code: TMT82-xxx/xx
Ext. ord. cd.: XXXXXXXXXXX
Ser. no.: XXXXXXXXX
Input: 12-42 V
Current cunsum.: 23,0 mA
1
II3G Ex nA II T6/T5/T4 Ta= -40 ...+ 55/70/85°C
II3G Ex nL IIC T6/T5/T4 Ta= -40 ... +55/70/85°C
EH 08.001X
Install per XA0xxxxT/09/a3/xx.xx
7
A0017924
 2 Nameplate of DIN rail transmitter (example, Ex version)
1 Product description and manufacturer ID
2 Order code, extended order code and serial number
3 Power supply and current consumption
4 Approval in hazardous area with number of the relevant Ex documentation (XA...)
5 Firmware version and device version
6 Approval logos
7 2 lines for the TAG name
3.2 Scope of delivery
The scope of delivery of the device comprises:
• Temperature transmitter
• Mounting material (head transmitter)
• Hard copy of multi-language Brief Operating Instructions
• Functional Safety Manual (SIL mode)
•Additional documentation for devices which are suitable for use in hazardous areas (0
1), such as Safety Instructions (XA), Control or Installation Drawings (ZD).
3.3 Certificates and approvals
The device left the factory in a safe operating condition. The device complies with the
standards EN 61 010-1 "Protection Measures for Electrical Equipment for Measurement,
Control, Regulation and Laboratory Procedures" and with the EMC requirements of IEC/EN
61326.
3.3.1 CE mark, Declaration of Conformity
The device therefore meets the legal requirements of the EC guidelines. The manufacturer
confirms that the device is compliant with the relevant guidelines by applying the CE mark.

iTEMP TMT82 Installation instructions
Endress+Hauser 9
3.3.2 HART® protocol certification
The temperature transmitter is registered by HART® Communication. The device meets the
requirements of the HART Communication Protocol Specifications.
3.3.3 Functional safety
The two device versions (head transmitter/DIN rail device) are optionally available for use in
safety systems as per IEC 61508.
• SIL 2: Hardware version
• SIL 3: Software version
4 Installation instructions
4.1 Incoming acceptance, transport, storage
4.1.1 Incoming acceptance
• Is the packaging or content damaged?
• Is the delivery complete? Compare the scope of delivery against the information on your
order form.
4.1.2 Transport and storage
• Pack the device in such a way as to protect it reliably against impact for storage (and
transportation). The original packaging provides optimum protection.
• Permitted storage temperature:
– Head transmitter: –50 to +100 °C (–58 to +212 °F)
– DIN rail transmitter: –40 to +100 °C (–40 to +212 °F)

Installation instructions iTEMP TMT82
10 Endress+Hauser
4.2 Installation conditions
4.2.1 Dimensions
24.1 (0.95)
33 (1.3)
!44 (1.73)
!7 (0.28)
!5 (0.2)
B
C
A
A0007301

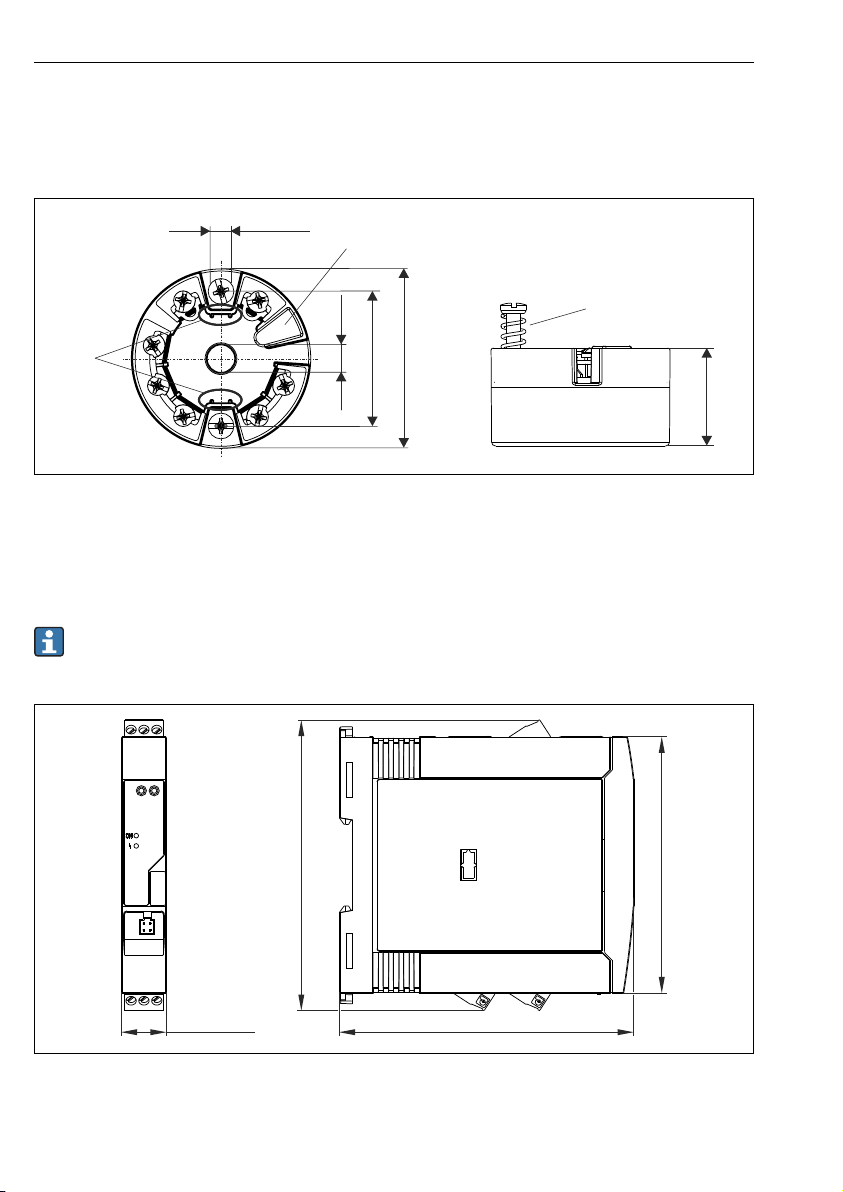

 3 Head transmitter version with screw terminals. Dimensions in mm (in)
A Spring travel L ≥ 5 mm (not for US - M4 securing screws)
B Mounting elements for attachable measured value display
C Interface for contacting measured value display
The same dimensions apply to the version with spring terminals. Exception: Height of
housing H = 28.1 mm (1.11 in).
17.5 (0.69) 114.9 (4.52)
100 (3.94)
112.8 (4.44)
A0017808
 4 DIN rail transmitter version. Dimensions in mm (in)

iTEMP TMT82 Installation instructions
Endress+Hauser 11
4.2.2 Mounting location
• Head transmitter:
– In the terminal head, flat face, as per DIN EN 50446, direct mounting on insert with cable
entry (middle hole 7 mm)
– In the field housing, separated from the process
– With clip on DIN rail as per IEC 60715, TH35
• DIN rail transmitter:
In DIN rail housing on DIN rail as per IEC 60715, TH35
4.2.3 Important ambient conditions
• Ambient temperature: –40 to +85 °C (–40 to 185 °F), for SIL-operation:
–40 to +70 °C (–40 to +158 °F).
• Head transmitter as per climate class C1, DIN rail transmitter as per climate class B2
according to EN 60654-1.
• Condensation as per IEC 60068-2-33 permitted for head transmitter, not permitted for DIN
rail transmitter.
• Maximum relative humidity: 95% according to IEC 60068-2-30
• Degree of protection:
– Head transmitter with screw terminals: IP 00, with spring terminals: IP 30. In the
installed state, it depends on the terminal head or field housing used.
– When installing in field housing TA30x: IP 66/67 (NEMA Type 4x encl.)
– DIN rail device: IP 20
NOTICE
‣When using in the hazardous area, the limit values of the certificates and approvals must
be observed (see Safety Instructions XA or CD).
4.3 Installation instructions
A Phillips head screwdriver is required to mount the head transmitter.
NOTICE
Do not overtighten the mounting screws as this could damage the head transmitter.
‣Maximum torque = 1 Nm (¾ pound-feet).

Installation instructions iTEMP TMT82
12 Endress+Hauser
4.3.1 Mounting the head transmitter
1
2
3
4
5
6
7
9
8
1 2 3 4 5
1234
120 mm
(4.72 in)
120 mm
(4.72 in)
Item A Item B
Item C
A0014269-EN
 5 Head transmitter mounting (three versions)
Procedure for mounting in a terminal head, item A:
1. Open the terminal head cover (8) on the terminal head.
2. Guide the connection wires (4) of the insert (3) through the center hole in the head
transmitter (5).
3. Fit the mounting springs (6) on the mounting screws (7).

iTEMP TMT82 Installation instructions
Endress+Hauser 13
4. Guide the mounting screws (7) through the side boreholes of the head transmitter and
the insert (3). Then fix both mounting screws with the snap rings (2).
5. Then tighten the head transmitter (5) along with the insert (3) in the terminal head.
6. After wiring, close the terminal head cover again (8) tightly.(→  16)
Procedure for mounting in a field housing, item B:
1. Open the cover (1) of the field housing (4).
2. Guide the mounting screws (2) through the lateral bores of the head transmitter (3).
3. Screw the head transmitter to the field housing.
4. After wiring, close the field housing cover (1) again. (→  16)
Procedure for mounting on a DIN rail, item C:
1. Press the DIN rail clip (4) onto the DIN rail (5) until it engages with a click.
2. Fit the mounting springs on the mounting screws (1) and guide the screws through the
side boreholes of the head transmitter (2). Then fix both mounting screws with the snap
rings (3).
3. Screw the head transmitter (2) onto the DIN rail clip (4).
Mounting typical of North America
12 3 4 5
6
5
6
A0008520
 6 Head transmitter mounting
Thermometer design with thermocouples or RTD sensors and head transmitter:
1. Fit the thermowell (1) on the process pipe or the container wall. Secure the thermowell
according to the instructions before the process pressure is applied.
2. Fit the necessary neck tube nipples and adapter (3) on the thermowell.

Installation instructions iTEMP TMT82
14 Endress+Hauser
3. Make sure sealing rings are installed if such rings are needed for harsh environmental
conditions or special regulations.
4. Guide the mounting screws (6) through the lateral bores of the head transmitter (5).
5. Position the head transmitter (5) in the terminal head (4) in such a way that the bus
cable (terminals 1 and 2) point to the cable entry.
6. Using a screwdriver, screw down the head transmitter (5) in the terminal head (4).
7. Guide the connection wires of the insert (3) through the lower cable entry of the
terminal head (4) and through the middle hole in the head transmitter (5). Wire the
connection wires and transmitter with one another .
8. Screw the terminal head (4), with the integrated and wired head transmitter, onto the
ready-mounted nipple and adapter (3).
NOTICE
The terminal head cover must be secured properly to meet the requirements for
explosion protection.
‣After wiring, securely screw the terminal head cover back on.
4.3.2 Mounting the DIN rail transmitter
NOTICE
Wrong orientation
Measurement deviates from the maximum accuracy rating when a thermocouple is connected
and the internal reference junction is used.
‣Mount the device vertically and ensure it is oriented correctly (sensor connection at
bottom / power supply at top)!

iTEMP TMT82 Installation instructions
Endress+Hauser 15
A0017821
 7 Mounting the DIN rail transmitter
1. Slide the upper DIN rail clip upwards and the lower clip downwards until they click into
place.
2. Fit the device on the DIN rail from the front.
3. Slide the two DIN rail clips back together until they click into place.
4.4 Post-installation check
After installing the device, always run the following final checks:
Device condition and specifications Notes
Is the device undamaged (visual inspection)? -
Do the ambient conditions match the device specification (e.g. ambient temperature,
measuring range, etc.)?
(→  10)

Wiring iTEMP TMT82
16 Endress+Hauser
5 Wiring
LCAUTION
‣Switch off power supply before installing or connecting the device. Failure to observe this
may result in destruction of parts of the electronics.
‣When installing Ex-approved devices in a hazardous area please take special note of the
instructions and connection schematics in the respective Ex documentation added to these
Operating Instructions. Your supplier is available for assistance if required.
‣Do not occupy the display connection. An incorrect connection can destroy the electronics.
A Phillips head screwdriver is required to wire the head transmitter with screw terminals.
A flat-bladed screwdriver must be used for the version with spring terminals and for the DIN
rail transmitter.
NOTICE
Do not overtighten the screw terminals, as this could damage the transmitter.
‣Maximum torque = 1 Nm (¾ pound-feet).
For wiring a mounted head transmitter, proceed as follows:
1. Open the cable gland and the housing cover on the terminal head or the field housing.
2. Feed the cables through the opening in the cable gland.
3. Connect the cables as shown in . If the head transmitter is fitted with spring terminals,
pay particular attention to the information in the "Connecting to spring terminals"
section" .
4. Retighten the cable gland and close the housing cover.
In order to avoid connection errors always take note of the hints given in the section
connection check!
5.1 Quick wiring guide
Terminal assignment of head transmitter
-
+
+
1
-
2
7
6
5
4
3
1
2
7
6
5
4
3
Sensor input 2 Sensor input 1 Bus connection
and supply voltage
Display connection
TC, mV
RTD, 4-, 3- and 2-wireΩ:
RTD, 3- and 2-wireΩ:
TC, mV
white
red
red
white
white
red
red
(black)
(yellow)
(black)
A0015015-EN

iTEMP TMT82 Wiring
Endress+Hauser 17
Terminal assignment of DIN rail transmitter
-
+
A
TMT82
ON
6
3
7
4
8
5
1/+ 2/- Test
8
7
6
5
6
4
3
1
2
Sensor input 2 Sensor input 1
Supply voltage
4...20 mA
HART
conn.
®
Test
RTD, 3- and 2-wire:Ω RTD, 4-, 3- and 2-wire:Ω
white
red
red
white
white
red
red
TC, mV
TC, mV
(black)
(yellow)
(black)
A0019071-EN
A To check the output current, an amperemeter (DC measurement) can be connected between the "Test"
and "-" terminals.
To operate the device via the HART® protocol (terminals 1 and 2), a minimum load of 250 Ω is
required in the signal circuit.
NOTICE
‣ ESD - electrostatic discharge. Protect the terminals from electrostatic discharge. Failure
to observe this may result in destruction or malfunction of parts of the electronics.
5.2 Connecting the sensor cables
NOTICE
When connecting 2 sensors ensure that there is no galvanic connection between the
sensors (e.g. caused by sensor elements that are not isolated from the thermowell). The
resulting equalizing currents distort the measurements considerably.
‣The sensors must remain galvanically isolated from one another by connecting each sensor
separately to a transmitter. The transmitter provides sufficient galvanic isolation (> 2 kV
AC) between the input and output.
The following connection combinations are possible when both sensor inputs are assigned:
Sensor input 1
Sensor input 2
RTD or
resistance
transmitter, 2-
wire
RTD or
resistance
transmitter, 3-
wire
RTD or
resistance
transmitter, 4-
wire
Thermocouple
(TC), voltage
transmitter
RTD or resistance
transmitter, 2-wire   - 
RTD or resistance
transmitter, 3-wire   1) - 

Wiring iTEMP TMT82
18 Endress+Hauser
Sensor input 1
RTD or resistance
transmitter, 4-wire - - - -
Thermocouple (TC),
voltage transmitter    
1) Permitted combinations in the SIL mode, see Functional Safety Manual
5.2.1 Connecting to spring terminals
A flat-bladed screwdriver, size 3 mm is required.
A B C D
A0008322
 8 Spring terminal connection
Pos. A, solid wire:
1. Strip wire end. Min. stripping length 10 mm (0.39 in).
2. Insert the wire end into the terminal (A).
3. Pull the wire gently to ensure it is connected correctly. Repeat from step 1 if necessary.
Pos. B, fine-strand wire without ferrule:
1. Strip wire end. Min. stripping length 10 mm (0.39 in).
2. Operate lever opener with tool (B).
3. Insert the wire end into the terminal (B).
4. Release lever opener.
5. Pull the wire gently to ensure it is connected correctly. Repeat from step 1 if necessary.
Pos. C and D, releasing the connection:
1. Operate lever opener with tool (C).

iTEMP TMT82 Wiring
Endress+Hauser 19
2. Remove wire from terminal (D).
3. Release lever opener.
When connecting flexible cables and spring terminals, it is not recommended to use
ferrules.
5.3 Connecting the power supply and signal cables
LCAUTION
‣Switch off power supply before installing or connecting the transmitter. Failure to observe
this may result in destruction of parts of the electronics.
Cable specification
• A normal device cable suffices if only the analog signal is used.
• A shielded cable is recommended for HART® communication. Observe grounding
concept of the plant.
• On the sensor side, shielded cables must be used for the DIN rail transmitter from a
length of 30 m (98.4 ft).
Please also observe the general procedure on (→  16).
*
*
1 2 3
4
2- 1+
2-
1+
*
2- 1+
5
6
7
4
5
7
A0017841
 9 Connecting the signal cables and power supply
1 Head transmitter installed in field housing
2 Head transmitter installed in terminal head
3 DIN rail transmitter mounted on DIN rail
4Terminals for HART® protocol and power supply
5 Internal ground connection
6 External ground connection
7Shielded signal cable (recommended for HART® protocol)

Wiring iTEMP TMT82
20 Endress+Hauser
• The terminals for connecting the signal cable (1+ and 2-) are protected against reverse
polarity.
• Conductor cross-section:
– Max. 2.5 mm2 for screw terminals
– max. 1.5 mm2 for spring terminals. Min. stripping length of wire10 mm (0.39 in).
5.4 Shielding and grounding
Optimum electromagnetic compatibility (EMC) can only be guaranteed if the system
components and, in particular, the lines are shielded and the shield forms as complete a cover
as possible.
HART® communication allows three different types of shielding:
• Shielding at both ends
• Shielding at one end on the feed side with capacitance termination at the field device
• Shielding at one end on the feed side
The best results with regard to EMC are achieved in most cases with one-sided shielding on
the feed side (without capacitance termination at the field device). Operation in the event of
disturbance variables as per NAMUR NE21 is thus guaranteed.
-.
12
3
4
A0014463
 10 Shielding and grounding the signal cable at one end with HART® communication
1 Optional grounding of the field device, isolated from cable shielding.
2 Grounding of the cable shield at one end
3 Supply unit
4Grounding point for HART® communication cable shield
