Brief Operating Instructions
Proline 100
HART
Transmitter with ultrasonic time-of-flight sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Transmitter Brief Operating Instructions
Contain information about the transmitter.
Sensor Brief Operating Instructions →  3
KA01330D/06/EN/01.17
71382751

Proline 100 HART
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Proline 100 HART Brief Operating Instructions for the device
Endress+Hauser 3
Brief Operating Instructions for the device
The device consists of a transmitter and a sensor.
The process of commissioning these two components is described in two separate manuals:
• Sensor Brief Operating Instructions
• Transmitter Brief Operating Instructions
Please refer to both Brief Operating Instructions when commissioning the device as the
contents of the manuals complement one another:
Sensor Brief Operating Instructions
The Sensor Brief Operating Instructions are aimed at specialists with responsibility for
installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
Transmitter Brief Operating Instructions
The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for
commissioning, configuring and parameterizing the measuring device (until the first
measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
Additional device documentation
These Brief Operating Instructions are the Transmitter Brief Operating Instructions.
The "Sensor Brief Operating Instructions" are available via:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Proline 100 HART
4 Endress+Hauser
Table of contents
1 Document information ............................................................ 5
1.1 Symbols used ......................................................................... 5
2 Basic safety instructions .......................................................... 7
2.1 Requirements for the personnel ............................................................ 7
2.2 Designated use ........................................................................ 7
2.3 Workplace safety ...................................................................... 8
2.4 Operational safety ......................................................................8
2.5 Product safety ......................................................................... 8
2.6 IT security ............................................................................ 8
3 Product description ............................................................... 9
4 Installation ....................................................................... 9
4.1 Mounting the measuring device ............................................................9
5 Electrical connection ............................................................ 10
5.1 Connection conditions .................................................................. 10
5.2 Connecting the measuring device ......................................................... 12
5.3 Special connection instructions ........................................................... 14
5.4 Ensuring the degree of protection ......................................................... 15
5.5 Post-connection check ..................................................................16
6 Operation options ............................................................... 16
6.1 Overview of operating options ............................................................ 16
6.2 Structure and function of the operating menu ................................................ 17
6.3 Access to the operating menu via the web browser ............................................. 17
6.4 Access to the operating menu via the operating tool ............................................ 22
7 System integration .............................................................. 23
8 Commissioning .................................................................. 23
8.1 Function check ....................................................................... 23
8.2 Setting the operating language ........................................................... 23
8.3 Configuring the measuring device ......................................................... 23
8.4 Protecting settings from unauthorized access ................................................. 24
9 Diagnostic information .......................................................... 24

Proline 100 HART Document information
Endress+Hauser 5
1 Document information
1.1 Symbols used
1.1.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
1.
,
2.
,
3.
… Series of steps
Result of a step Visual inspection
1.1.3 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is grounded
via a grounding system.

Document information Proline 100 HART
6 Endress+Hauser
Symbol Meaning
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
1.1.4 Tool symbols
Symbol Meaning Symbol Meaning
Torx screwdriver Flat blade screwdriver
Cross-head screwdriver Allen key
Open-ended wrench
1.1.5 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
Flow direction

Proline 100 HART Basic safety instructions
Endress+Hauser 7
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Designated use
Application and media
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or where there is an
increased risk due to process pressure, are labeled accordingly on the nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Keep within the specified pressure and temperature range.
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣Use the measuring device only for media to which the process-wetted materials are
sufficiently resistant.
‣If the measuring device is not operated at atmospheric temperature, compliance with the
relevant basic conditions specified in the associated device documentation is absolutely
essential: "Documentation" section.
‣Protect the measuring device permanently against corrosion from environmental
influences.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
LWARNING
Danger of breakage due to corrosive or abrasive fluids!
‣Verify the compatibility of the process fluid with the sensor material.
‣Ensure the resistance of all fluid-wetted materials in the process.
‣Keep within the specified pressure and temperature range.

Basic safety instructions Proline 100 HART
8 Endress+Hauser
NOTICE
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
Residual risks
LWARNING
The electronics and the medium may cause the surfaces to heat up. This presents a burn
hazard!
‣For elevated fluid temperatures, ensure protection against contact to prevent burns.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.
If working on and with the device with wet hands:
‣Due to the increased risk of electric shock, gloves must be worn.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
2.6 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.

Proline 100 HART Product description
Endress+Hauser 9
3 Product description
The device consists of a transmitter and a sensor.
The device is available as a compact version:
The transmitter and sensor form a mechanical unit.
For detailed information on the product description, see the Operating Instructions for
the device
4 Installation
For detailed information about mounting the sensor, see the Sensor Brief Operating
Instructions →  3
4.1 Mounting the measuring device
4.1.1 Turning the display module
The local display is only available with the following device version:
Order code for "Display; operation", option B: 4-line; illuminated, via communication
The display module can be turned to optimize display readability.
Aluminum housing version
1.
2.
3.
4.
5.
6.
7.
4.
4.
3 mm
A0023192

Electrical connection Proline 100 HART
10 Endress+Hauser
5 Electrical connection
NOTICE
The measuring device does not have an internal circuit breaker.
‣For this reason, assign the measuring device a switch or power-circuit breaker so that the
power supply line can be easily disconnected from the mains.
‣Although the measuring device is equipped with a fuse, additional overcurrent protection
(maximum 16 A) should be integrated into the system installation.
5.1 Connection conditions
5.1.1 Required tools
• For cable entries: Use corresponding tools
• For securing clamp (on aluminum housing): Allen screw3 mm
• For securing screw (for stainless steel housing): open-ended wrench 8 mm
• Wire stripper
• When using stranded cables: crimper for wire end ferrule
5.1.2 Requirements for connecting cable
The connecting cables provided by the customer must fulfill the following requirements.
Electrical safety
In accordance with applicable federal/national regulations.
Permitted temperature range
• The installation guidelines that apply in the country of installation must be observed.
• The cables must be suitable for the minimum and maximum temperatures to be expected.
Power supply cable
Standard installation cable is sufficient.
Signal cable
Current output 4 to 20 mA HART
A shielded cable is recommended. Observe grounding concept of the plant.
Pulse/frequency/switch output
Standard installation cable is sufficient.
Cable diameter
• Cable glands supplied:
M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in)
• Spring terminals:
Wire cross-sections 0.5 to 2.5 mm2 (20 to 14 AWG)

Proline 100 HART Electrical connection
Endress+Hauser 11
5.1.3 Terminal assignment
The terminal assignment for the electrical connection of the device can be found on the
connection nameplate of the electronics module.
Transmitter
Device version with HART communication protocol
L
L
26
27
+
_
24
25
1
2
+
_
+
_1
2
3
A0016888
 1 Terminal assignment 4-20 mA HART with pulse/frequency/switch output
1 Power supply: DC 24 V
2 Output 1 (active): 4-20 mA HART
3 Output 2 (passive: pulse/frequency/switch output
5.1.4 Preparing the measuring device
NOTICE
Insufficient sealing of the housing!
Operational reliability of the measuring device could be compromised.
‣Use suitable cable glands corresponding to the degree of protection.
1. Remove dummy plug if present.
2. If the measuring device is supplied without cable glands:
Provide suitable cable gland for corresponding connecting cable.
3. If the measuring device is supplied with cable glands:
Observe requirements for connecting cables →  10.

Electrical connection Proline 100 HART
12 Endress+Hauser
5.2 Connecting the measuring device
NOTICE
Limitation of electrical safety due to incorrect connection!
‣Have electrical connection work carried out by appropriately trained specialists only.
‣Observe applicable federal/national installation codes and regulations.
‣Comply with local workplace safety regulations.
‣The power unit must be tested to ensure it meets safety requirements (e.g. PELV, SELV).
5.2.1 Connecting the transmitter
1 2
A
A0030221
A Compact, coated aluminum
1 Cable entry for signal transmission
2 Cable entry for supply voltage

Proline 100 HART Electrical connection
Endress+Hauser 13
10 (0.4)
1
3 mm
A0033696
 2 Device version with connection example
1 Cable
Disconnect the local display from the main electronics module: Operating Instructions for
the device .
‣Connect the cable in accordance with the terminal assignment →  11.
5.2.2 Ensuring potential equalization
Prosonic Flow E
Requirements
No special measures for potential equalization are required.

Electrical connection Proline 100 HART
14 Endress+Hauser
5.3 Special connection instructions
5.3.1 Connection examples

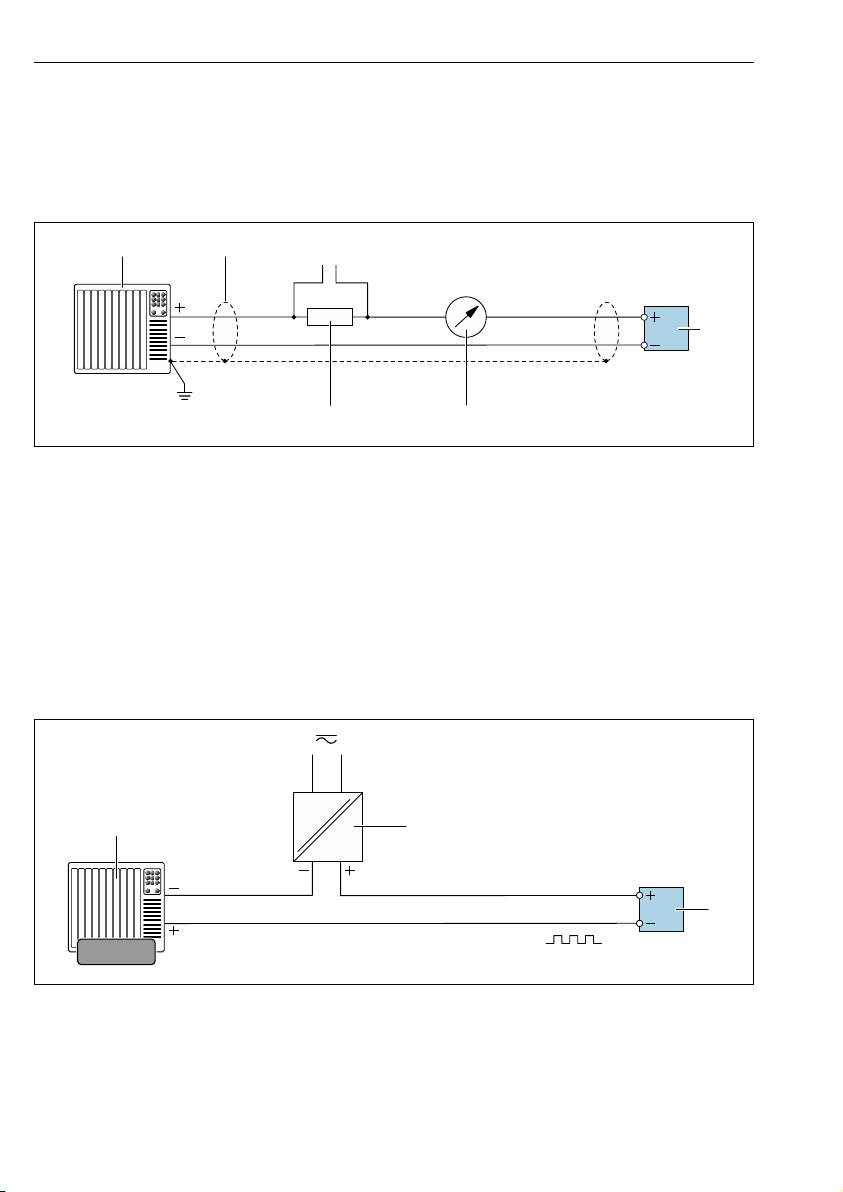

Current output 4 to 20 mA HART
4
4...20 mA
5
2
13
6
A0029055
 3 Connection example for 4 to 20 mA HART current output (active)
1 Automation system with current input (e.g. PLC)
2 Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements;
observe cable specifications
3 Connection for HART operating devices
4 Resistor for HART communication (≥ 250 Ω): observe maximum load
5 Analog display unit: observe maximum load
6 Transmitter
Pulse/frequency output
12
3
12345
A0028761
 4 Connection example for pulse/frequency output (passive)
1 Automation system with pulse/frequency input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values

Proline 100 HART Electrical connection
Endress+Hauser 15
Switch output
12
3
A0028760
 5 Connection example for switch output (passive)
1 Automation system with switch input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values
5.4 Ensuring the degree of protection
The measuring device fulfills all the requirements for the IP66/67 degree of protection, Type
4X enclosure.
To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following steps
after the electrical connection:
1. Check that the housing seals are clean and fitted correctly.
2. Dry, clean or replace the seals if necessary.
3. Tighten all housing screws and screw covers.
4. Firmly tighten the cable glands.
5. To ensure that moisture does not enter the cable entry:
Route the cable so that it loops down before the cable entry ("water trap").

A0029278
6. Insert dummy plugs into unused cable entries.

Operation options Proline 100 HART
16 Endress+Hauser
5.5 Post-connection check
Are cables or the device undamaged (visual inspection)? 
Do the cables used meet the requirements→  10? 
Do the cables have adequate strain relief? 
Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap" →  15? 
Does the supply voltage match the specifications on the transmitter nameplate ? 
Depending on the device version, is the securing clamp or fixing screw firmly tightened? 
6 Operation options
6.1 Overview of operating options
1 2 3 4
A0019598
1 Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, AMS
Device Manager, SIMATIC PDM)
2 Field Xpert SFX350 or SFX370
3 Field Communicator 475
4 Control system (e.g. PLC)

Proline 100 HART Operation options
Endress+Hauser 17
6.2 Structure and function of the operating menu
6.2.1 Structure of the operating menu
!
Expert
Operating menu for experts
Language
Operation
Setup
Diagnostics
Operating menu for operators and maintenances
Operator
Maintenance
task-oriented
function-oriented
Expert
A0014058-EN
 6 Schematic structure of the operating menu
6.2.2 Operating philosophy
The individual parts of the operating menu are assigned to certain user roles (operator,
maintenance etc.). Each user role contains typical tasks within the device lifecycle.
For detailed information on the operating philosophy, see the Operating Instructions for
the device.
6.3 Access to the operating menu via the web browser
6.3.1 Function range
Thanks to the integrated Web server, the device can be operated and configured via a Web
browser and via a service interface (CDI-RJ45) . In addition to the measured values, status
information on the device is also displayed and allows the user to monitor the status of the
device. Furthermore the device data can be managed and the network parameters can be
configured.
For additional information on the Web server, refer to the Special Documentation for the
device

Operation options Proline 100 HART
18 Endress+Hauser
6.3.2 Prerequisites
Computer hardware
Interface The computer must have an RJ45 interface.
Connection Standard Ethernet cable with RJ45 connector.
Screen Recommended size: ≥12" (depends on the screen resolution)
Computer software
Recommended operating systems Microsoft Windows 7 or higher.
Microsoft Windows XP is supported.
Web browsers supported • Microsoft Internet Explorer 8 or higher
• Microsoft Edge
• Mozilla Firefox
• Google Chrome
• Safari
Computer settings
User rights Appropriate user rights (e.g. administrator rights) for TCP/IP and proxy server
settings are necessary (for adjusting the IP address, subnet mask etc.).
Proxy server settings of the Web
browser
The Web browser setting Use a Proxy Server for Your LAN must be deselected .
JavaScript JavaScript must be enabled.
If JavaScript cannot be enabled:
enter http://XXX.XXX.X.XXX/basic.html in the address line of the Web
browser, e.g. http://192.168.1.212/basic.html. A fully functional but
simplified version of the operating menu structure starts in the Web
browser.
Network connections Only the active network connections to the measuring device should be used.
Switch off all other network connections such as WLAN.
In the event of connection problems:

Proline 100 HART Operation options
Endress+Hauser 19
Measuring device: Via CDI-RJ45 service interface
Device CDI-RJ45 service interface
Measuring device The measuring device has an RJ45 interface.
Web server Web server must be enabled; factory setting: ON
IP address Default settings:
• IP address: 192.168.1.212
• Set DIP switch No. 2 = OFF
If the IP address was changed manually or the address assigned via DHCP, the
address can no longer be read from the device. To ensure however that a
connection can still be established with the measuring device, DIP switch no. 2
must be set from OFF → ON and the device restarted. The IP address is now
temporarily 192.168.1.212 once again.
If the original setting is to be restored, DIP switch no. 2 must be set from ON →
OFF and the device restarted.
ON OFF
1 = Write protection
2 = Default Ethernet
network settings
A0035277
6.3.3 Establishing a connection
Via service interface (CDI-RJ45)
Preparing the measuring device
Configuring the Internet protocol of the computer
The following information refers to the default Ethernet settings of the device.
IP address of the device: 192.168.1.212 (factory setting)
1. Switch on the measuring device.
2. Connect to the computer using a cable .
3. If a 2nd network card is not used, close all the applications on the notebook.
 Applications requiring Internet or a network, such as e-mail, SAP applications,
Internet or Windows Explorer.
4. Close any open Internet browsers.
5. Configure the properties of the Internet protocol (TCP/IP) as defined in the table:

Operation options Proline 100 HART
20 Endress+Hauser
IP address 192.168.1.XXX; for XXX all numerical sequences except: 0, 212 and 255 → e.g.
192.168.1.213
Subnet mask 255.255.255.0
Default gateway 192.168.1.212 or leave cells empty
Starting the Web browser
1. Start the Web browser on the computer.
2. Enter the IP address of the Web server in the address line of the Web browser:
192.168.1.212
 The login page appears.
If a login page does not appear, or if the page is incomplete, see the Special
Documentation for the Web server
6.3.4 Logging on
Access code 0000 (factory setting); can be changed by customer
6.3.5 User interface
6
1 2 3 4 5
7
A0032879
1 Picture of device
2 Device name
3 Device tag
4 Status signal
5 Current measured values
6 Navigation area
7 Local display language
