Endress+Hauser cerabar S PMC Series User manual

cerabar S
Pressure Transmitter
Operating Instructions
BA187P/00/en/03.03
Software version 7.1
52016868
4...20 mA
Test
123
Hauser+Endress
The Power of Know How

Short Operating Instructions
– –
++
ZS
Remote operation
via Commuwin II
Local operation
Cerabar S
without/with display
Local operation via keys
Chapter 3.1
set MR
= required MR? Pressure
yes no
Chapter 4
Calibration with
keys
Chapter 6.2
Calibration
with
reference
pressure
Linearisation?
Chapter 6.3
Dry
calibration
Chapter 4
Locking/Unlocking
with keys
Level
or pressure?
Level
no
yes
Table Automatic
Linearisation
Chapter 6.4
Chapter 6.5 - 6.6
Locking and
other settings
Chapter 5.1
Commisioning the
measuring point
Chapter 5.2 - 5.3
Locking and
other settings
Chapter 4
Damping
Damping?
no yes
Short Operating Instructions Cerabar S
2Endress+Hauser

Table of Contents
Software History .......... 4
Notes on Safety ........... 7
1Introduction ............ 9
1.1 Measuring system . . . . . . . . 10
2Installation ............. 11
2.1 Mounting instructions without
diaphragm seal (PMC/PMP 731) . . 11
2.2 Mounting instructions with diaphragm
seal (PMC 631, PMP 635) . . . . . 13
2.3 Mounting accessories . . . . . . 14
2.4 Mounting position . . . . . . . . 15
2.5 Electrical connection . . . . . . . 16
3Operation ............. 18
3.1 On-site operation . . . . . . . . 18
3.2 Operation using the Universal HART
Communicator DXR 271 . . . . . . 19
3.3 Operation with Commulog VU 260 Z . 19
3.4 Operation with Commuwin II . . . . 20
4Local Operation ........... 21
4.1 Commissioning the measuring point . 21
4.2 Damping τ........... 23
4.3 Locking/unlocking operation . . . . 23
5Pressure Measurement ........ 24
5.1 Start-up with the Universal HART
Communicator DXR 271,
Commulog VU 260 Z or Commuwin II 24
5.2 Locking/unlocking operation . . . . 28
5.3 Measuring point information . . . . 29
6Level Measurement ......... 30
6.1 Start-up with the Universal HART
Communicator DXR 275,
Commulog VU 260 Z or Commuwin II 30
6.2 Calibration with reference pressure . 34
6.3 Dry calibration . . . . . . . . . 35
6.4 Linearisation . . . . . . . . . . 36
6.5 Locking/unlocking operation . . . . 39
6.6 Measuring point information . . . . 40
7Diagnosis and Trouble-Shooting .... 41
7.1 Diagnosis of errors and warnings . . 41
7.2 Current simulation . . . . . . . . 44
7.3 Reset . . . . . . . . . . . . . 44
7.4 Editing limits . . . . . . . . . . 46
8Maintenance and Repair ....... 48
8.1 Repair . . . . . . . . . . . . . 48
8.2 Mounting the display . . . . . . . 49
8.3 Exchanging the sensor module and
electronics . . . . . . . . . . . 50
8.4 Recalibration . . . . . . . . . . 51
8.5 Changing the gasket . . . . . . . 52
8.6 Replacement parts . . . . . . . . 52
9Technical Data ........... 54
10 Operating Matrix .......... 59
10.1 Matrix HART Commuwin II
(Software version 7.1) . . . . . . . 59
10.2 Matrix Universal HART Communicator
DXR 275 (Software version 7.1) . . . 60
10.3 Block diagram . . . . . . . . . . 60
10.4 Matrix Commuwin II INTENSOR
(Software version 5.0) . . . . . . . 61
10.5 Description of parameters . . . . . 62
Index ...............67
Cerabar S Table of Contents
Endress+Hauser 3

Software History
HART electronics
(operation using
Universal HART
Communicator DXR 275)
Note!
The entries in brackets indicate the matrix position in Commuwin II.
If you use the DXR 275 handheld terminal, you can access the parameter via Menu, see
Chapter 10.2 HART Matrix.
SW/
BA
Device
and
Software
No.
Device
Revision
DD
Revision
Changes
1.2 6512 1 2 –––––
3.0
from
09.94
6530 2 1 – Operation Mode (V3H0) "Level manual" extended.
New parameters for the "Level manual" mode:
Manual Level, Table Editing (V3H6),
Row No. Table (V3H7),
Input Level (V3H8),
Set Volume (V3H9).
– "Pressure before Bias", "Pressure after Bias" and
"Security Locking" parameters moved from the
Linearisation menu to the Service menu.
– "Set Simulation Current" (V7H1)
Simulation limits extended from 3.8 to 22 mA.
– "MIN Alarm" option for "Set Output Safety" (V0H8)
parameter no longer possible.
– Error and warning list extended.
5.0
from
12.98
6550 5 1 – "MIN Alarm" option for "Set Output Safety" (V0H8)
parameter available again.
– "Set Simulation Current" (V7H1) parameter:
Simulations limits again 3.6 to 22 mA.
7.0
from
10.00
6570 7 1 – Operation Mode (V3H0) "Pressure in %" extended.
– New "Alarm Current Max" (V9H4) parameter.
– Zero correction function:
New parameters for zero correction function,
refer to page 27
Zero Correction (V9H5),
Zero Correction Value (V9H6).
– Editing limits:
Refer to Chapter 7.4
– Download error E116, resettable using Reset 5140.
7.1
from
03.03
6571 7 2 – Parameter names changed
old →new (matrix position in brackets)
Set output safety →Alarm mode (V0H8)
• Min. (–10 %) →Min. alarm
• Max. (+110 %) →Max. alarm
• Continue →Value hold
Min. pressure →Peak hold P Min (V2H3)
Max. pressure →Peak hold P Max (V2H4)
Min. temperature →Peak hold T Min (V2H7)
Max. temperature →Peak hold T Max (V2H8)
Low Sensor Cal →Low Sensor Trim (V7H4)
High Sensor Cal →High Sensor Trim (V7H5)
Set max. current →Max. alarm current (V9H4)
Serial number →HART Serial number (VAH2)
– Calculation of the max. turn down changed.
Now: turn down = nominal value/set span,
previously: measuring range/set span
Note!
Software History Cerabar S
4Endress+Hauser

INTENSOR electronics
(operation using
Commulog VU 260 Z)
Note!
The "Zero Correction", "Editing Limits" and "Alarm Current MAX" functions are not included
in the INTENSOR electronice (software version 5.0).
SW/BA Device
and
Software
No.
VU 260 Z Changes
2.2 5422 1.7 –––––
4.0
from
08.95
6940 1.7 – Operation Mode (V3H0) "Level manual" extended.
New parameters for the "Level manual" mode:
Manual Level, Table Editing (V3H6),
Row No. Table (V3H7),
Input Level (V3H8,)
Set Volume (V3H9).
– "Pressure before Bias", "Pressure after Bias" and
"Security Locking" parameters moved from the
Linearisation menu to the Service menu.
– Error and warning list extended.
– "Set Simulation Current" (V7H1) parameter,
Simulations limits from 3.8 to 22 mA.
– "MIN Alarm" option for "Set Output Safety" (V0H8)
parameter no longer possible.
5.0
from
12.98
6950 1.8 – "MIN Alarm" option for "Set Output Safety"(V0H8) parameter
available again.
– "Set Simulation Current" (V7H1):
Simulation limits again from 3.6 to 22 mA
Note!
Cerabar S Software History
Endress+Hauser 5

6Endress+Hauser

Notes on Safety
Approved usageThe Cerabar S is a pressure transmitter used for measuring gauge or absolute pressure
depending on the version. You can display the measured pressure value as a level value
using the Commuwin II operating and display program or using the handheld operating
terminals for HART or INTENSOR.
Mounting,
commissioning,
operation
The Cerabar S has been designed to operate safely in accordance with current technical,
safety and EU standards. If installed incorrectly or used for applications for which it is
not intended, however, it is possible that application-related dangers may arise, e.g.
product overspill by incorrect installation or adjustment. For this reason, the instrument
must be installed, connected, operated and maintained by personnel that are authorised
by the user of the facility and who are suitably qualified. The manual must have been
read and understood, and the instructions followed. Modifications and repairs to the
device are permissible only when they are expressly approved in the manual. Pay
attention to the technical data on the nameplate.
Explosion hazardous
area
The measuring system used in the explosion hazardous area must comply with all existing
national standards. The instrument can be supplied with the following certificates as listed
in the table. A separate Ex-documentation is enclosed with the device and is an integral
part of this documentation. The installation regulations, connection values and Safety
Instructions listed in this document must be observed. The certificates are designated
by the first letter of the order code on the nameplate (see table below).
•Ensure that technical personnel are adequately trained.
•All measurement and safety regulations which apply to the measuring point are to
be observed.
Code Certificate Explosion protection
R Standard None
C ATEX ATEX II 3 G EEx nA II T5/T6
G ATEX ATEX II 1/2 G EEx ia IIC T4/T6
I ATEX PMP 731/PMP 635: ATEX II 2 G EEx d IIC T5/T6
PMC 731/PMC 631: ATEX II 2 G EEx d [ia] IIC T6
Q FM PMP 731/PMP 635:
FM Explosion proof Class I, II, III Div. 1, Groups A…G
O FM FM IS Class I, II, III, Div. 1, Groups A…G
U CSA PMP 731/PMP 635:
CSA Explosion proof Class I, II, III, Div. 1, Groups B…G
S CSA CSA IS Class I, II, III, Div. 1, Groups A…G
W TIIS TIIS IS Ex ia IIC T4/T6
Certificates for applications in
explosion hazardous areas
ENDRESS+HAUSER
CERABAR S PMC/PMP
Order No. PMC xxx –
Order No. PMP xxx –
Cerabar S Notes on Safety
Endress+Hauser 7

Safety Conventions and Symbols
In order to highlight safety-relevant or alternative operating procedures in the manual,
the following conventions have been used, each indicated by a corresponding icon in
the margin.
Notes on safety
Ignition protection
Electrical symbols
Symbol Meaning
Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned.
Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to
personal injury or incorrect functioning of the instrument.
Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to
personal injury, a safety hazard or destruction of the instrument.
Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion
hazardous area.
Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas.
– Devices located in and wiring entering areas with the designation "explosion hazardous
areas" must conform with the stated type of protection.
Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas.
– Devices located in safe areas still require a certificate if their outputs run into explosion
hazardous areas.
Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be
applied or supplied.
Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by
means of an earth grounding system.
Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to
the equipment.
Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice.
Note!
Caution!
Warning!
Safety Conventions and Symbols Cerabar S
8Endress+Hauser

1 Introduction
ApplicationsThe Cerabar S pressure transmitter measures the pressure of gases, steam/vapour and
liquids and can be used in all areas of chemical and process engineering.
Operating principle
Ceramic sensor
The system pressure acts directly on the
rugged ceramic diaphragm of the pressure
sensor deflecting it by a maximum of 0.025
mm. A pressure-proportional change in the
capacitance is measured by the electrodes
on the ceramic substrate and diaphragm.
The measuring range is determined by the
thickness of the ceramic diaphragm.
Metal sensor
The process pressure deflects the
separating diaphragm with a filling liquid
transmitting the pressure to a resistance
bridge. The bridge output voltage, which is
proportional to pressure, is then measured
and processed.
Level measurement
The hydrostatic pressure of a column of
liquid enables its level to be measured
continuously by a pressure transmitter if the
density ρof the liquid is known.
0 - 10 bar
0 - 10 bar 0 - 10 bar
Version with
thread
PMC 731
PMP 731
Version with
diaphragm seal
for flange mounting
PMP 635
Version with
diaphragm seal
for hygienic applications
PMC 631
BA187Y04
Figure 1.1
Examples of the Cerabar S
pressure transmitter
BA187Y05
Ceramic
support
Electrode
Resistance
bridge
Filling fluid
Diaphragm
Diaphragm
Ceramic
measuring cell
Metallic
measuring cell
Figure 1.2
Ceramic and metallic measuring cell
h = p
hydr
ρ • g
Cerabar S 1 Introduction
Endress+Hauser 9

1.1 Measuring system
The complete measuring system consists of
•Cerabar S pressure transmitter with 4…20 mA signal output
•optional four-character pressure display
•supply voltage for non-hazardous area: 11.5…45 V DC,
EEx ia: 11.5…30 V DC, EEx d and EEx d[ia]: 13…30 V DC, EEx nA: 11.5…36 V DC
For electronic versions with HART or INTENSOR protocol, a digital communication signal
is superimposed on the signal current and is used for remote calibration.
These instruments have additional functions also to measure level.
Operation can be carried out using:
•the Commuwin II operating program
•the universal HART Communicator DXR 275 (HART protocol)
•the Commulog VU 260 Z handheld terminal (INTENSOR protocol)
0 - 10 bar
Cerabar S
with display
4…20 mA
BA187Y06
Supply voltage,
e.g. with
transmitter
power supply
unit RN 221N
Figure 1.3
Cerabar S measurement system
with display
1 Introduction Cerabar S
10 Endress+Hauser

2 Installation
This Section describes:
•the mechanical installation of Cerabar S with and without diaphragm seals
•the electrical connection
2.1 Mounting instructions without diaphragm seal (PMC/PMP 731)
Cerabar S
without diaphragm seal
– PMC 731
– PMP 731
The Cerabar S without diaphragm seal is mounted in the same way as a manometer
(DIN EN 839-2). The use of shut-off valves and pigtails is recommended. Its position
depends upon the application.
•Measurement in gases:
Mount the shut-off valve above the
tapping point so that condensate can
run back into the process.
•Measurement in steam:
Mount with a below the tapping point.
The pigtail reduces the temperature in
front of the diaphragm to almost
ambient temperature. The pigtail must
be filled with fill fluid before start-up.
0 - 10 bar
BA187Y09
Figure 2.1
Mounted on a shut-off valve for
measuring gases
0 - 10 bar
BA187Y10
Figure 2.2
Mounted with U-shaped pigtail
for measuring steam/vapour
0 - 10 bar
BA187Y08
Figure 2.3
Mounted with circular pigtail for
measuring steam/vapour
Cerabar S 2 Installation
Endress+Hauser 11

•Measurement in liquids:
Mount on the shut-off valve below the
tapping point or at the same height.
PVDF adapter For instruments with PVDF adapter, a maximum torque of 7 Nm is permitted. The thread
connection may become loose at high temperatures and pressures. This means that the
integrity of the thread must be checked regularly and may need to be tightened using
the torque given above. Teflon tape is recommended for sealing with the ½ NPT thread.
Mounting the PMP 731 The PMP 731 with metallic sensor is available in the following versions:
•with flush-mounted diaphragm or
•with adapter (screwed on or welded in) and internal diaphragm.
A seal is enclosed appropriate to the material used and version.
Note!
The diaphragm of the Cerabar S must not be pressed in or cleaned with pointed or hard
objects.
0 - 10 bar
BA187Y07
Figure 2.4
Mounted on a shut-off valve for measuring liquids
Note!
14
G½
Ø26
17
14
14
22 2.5
G½
Ø26
27
21
17
Thread adapter
DIN 3852-E-G ½
Material: 1.4435 or
Alloy
G ½ external
Viton seal
Thread adapter
DIN 3852-A-G ½
with 1.4435 only
Threaded hole
DIN 3852-X-G ½
BA187Y70
PTFE seal
Alloy spring
Teflon Teflon back-up ring
Figure 2.5
left:
An elastomer seal
to DIN 3852-E-G ½ is supplied
with the thread adapter
right:
With internal diaphragm and
welded or threaded adapter
Process connection with
flush-mounted diaphragm
version 1F
With internal diaphragm and
threaded adapter
Seal supplied
(with 1.4435 diaphragm only)
Welded
Welded adapter
– Material 1.4435
with 1.4435 diaphragm
– MaterialAlloy
with diaphragm in Alloy
BA187Y71
2 Installation Cerabar S
12 Endress+Hauser

2.2 Mounting instructions with diaphragm seal (PMC 631, PMP 635)
Cerabar S
with diaphragm seal
– PMC 635
– PMP 635
The Cerabar S with diaphragm seal is
screwed in, flanged or clamped,
depending on the type of diaphragm seal.
•The protective cap of the diaphragm
seal should only be removed just before
mounting in order to protect the
diaphragm.
•The membrane of the diaphragm seal of
the Cerabar S must not be pressed in or
cleaned with pointed or hard objects.
•The diaphragm seal and the pressure
sensor together form a closed and
calibrated system which is filled with
filling fluid through a hole in the upper
part. The following rules should be
observed:
–This hole is sealed and not to be
opened.
–The device may only be rotated on
the surface provided on the
diaphragm seal instrument and not on
the housing.
Level measurementFor level measurement the Cerabar S must
always be installed below the lowest
measuring point.
•The instrument should not be installed
within the flow of material, in the outlet
of the tank or at a place in the tank
where pressure pulses from agitator
blades may occur.
•Calibration and function testing are
easier to carry out if the Cerabar S is
mounted downstream from a shut-off
valve.
Mounting with
temperature spacers
The use of temperature spacers is
recommended for continuous extreme
product temperatures.
•Note when mounting that the
temperature spacer increases the
maximum height by 100 mm.
•Due to the hydrostatic column in the
temperature spacer, the increased
height also causes a zero point shift of
approx. 10 mbar.
See Chapter 5.1, pages 26 and 27 for
information concerning position
calibration (display only) or zero-point
correction.
0 - 10 bar
BA187Y16
Figure 2.6
When screwing in the Cerabar S
with diaphragm seals, turn by the
diaphragm seal only, not by the
housing.
0 - 10 bar
BA187Y12
0 - 10 bar
A + 100
100
BA187Y13
Figure 2.7
Information on the maximum
installation height A is given on
pages 57…58
Cerabar S 2 Installation
Endress+Hauser 13

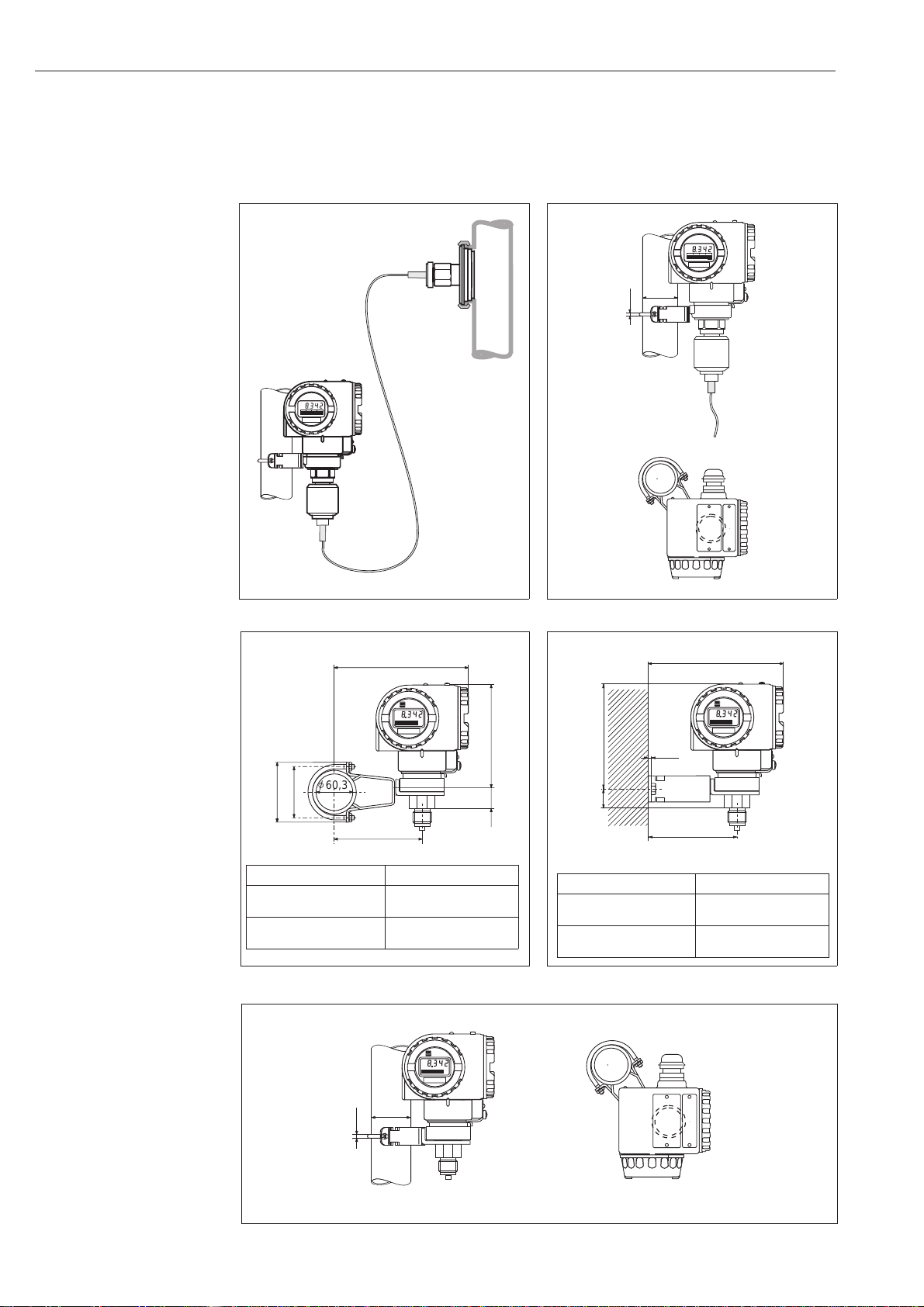

Mounting with capillary
tubing To protect from high temperatures, moisture or vibration, or where the mounting point is
not easily accessible, the housing of the Cerabar S can be mounted with capillary tubing
away from the measuring point.
A bracket for wall or pipe mounting is available.
2.3 Mounting accessories
Wall and pipe mounting
with accessories
0 - 10 bar
Mounting point away from the
measuring point
Measuring point:
•very moist
•hot
•strongly vibrating
•difficult to access
BA187Y14
0 - 10 bar
Ø 60.3
Ø 6
BA187Y15
183
81
A118
70
111
/60,3
0 - 10 bar
PMC 731 A = 19 mm
PMP 731
Flush-mounted diaphragm
A = 14 mm
PMP 731
Internal diaphragm
A = 39 mm
BA187Y18
Figure 2.8
left:
• Mounted with bracket on
horizontal piping
right:
• Mounted with bracket on a wall
118
B
3
94
166
0 - 10 bar
BA187Y17
ø60,3
ø6
0 - 10 bar
BA187Y19
Figure 2.9
Mounted with bracket on vertical
piping
PMC 731 B = 19 mm
PMP 731
Flush-mounted diaphragm
B = 14 mm
PMP 731
Internal diaphragm
B = 39 mm
2 Installation Cerabar S
14 Endress+Hauser

2.4 Mounting position
Positioning the housingAfter the Cerabar S has been mounted, the housing can be positioned so that:
•the terminal connection compartment can be accessed easily,
•the display can be seen optimally,
•the cable entry and cover of the Z/S keys are protected from water.
The housing can turned through 270°:
•to turn the housing undo the screw below the connection compartment,
•turn the housing,
•tighten the screw again.
0 - 10 bar
BA187Y20
loosen
tighten
ZS
BA187Y21
Vertical mounting
Cable points
downwards
Figure 2.10
Mounting of the Cerabar S
• cable points downwards
• The cover for the Z/S keys is on the side of the
instrument
Cerabar S 2 Installation
Endress+Hauser 15

2.5 Electrical connection
Screened twisted pairs are recommended for the instrumentation cable.
Supply voltage:
Non-hazardous area: 11.5…45 V DC
EEx ia: 11.5…30 V DC, EEx d and EEx d[ia]: 13…30 V DC, EEx nA: 11.5…36 V DC
Internal protection circuits protect against reverse polarity, HF interference and
overvoltage peaks.
A test signal can be measured using Terminals 1 and 3 without interupting the process
measurement.
Cable connection •Unscrew the cover of the connection compartment.
•Insert the cable through the cable entry.
•Connect the cable wires as shown in the connection diagram.
•Screw down the cover.
Note!
For devices for use in explosion-hazardous areas, see national regulations and Safety
Instructions (XA…), Installation or Control Drawing.
123
+
Test
0003
4…20 mA
4…20 mA 11.5…45 V DC
EEx ia: 11.5…30 V DC
EEx d: 13…30 V DC
EEx nA: 11.5…36 V DC
BA187Y75
Figure 2.11
Electrical connection of the
Cerabar S
left:
For all versions with 4…20 mA
right:
For versions with flameproof
enclosures
Structure
PM
* ***
–I…
123
+
Test
0003
4…20 mA
EEx d[ia] IIC T6 Control
room
BA187Y23
Field
Internal
connection
– Pole
Terminal 2
is grounded Ground
terminal on
housing
power-
supply
potential
equalisation
Note!
Cerabar S
4…20 mA
Han7D
12
3
8
7
6
54
–
+
123
BU
1
BN GN-YE
23
3
BA187Y76
PE connection
(green-yellow)
– (brown)
+ (blue)
BU: blue
BN: brown
GN-YE: green-yellow
Figure 2.12
Harting plug pin assignment
Structure "Housing"
PM
* ***
– ❑ L…
PM
* ***
– ❑ K…
U[V]
R[Ω]
0
15601560
1000
500
11.5 30 45 20
Standard
U[V]
R[Ω]
0
1560
1000
500
11.5 30 45 20
860
EEx ia IIC T4/T6
U[V]
R[Ω]
0
1560
1000
1140
500
11.5 30 36 45
20
EEx nA
U[V]
R[Ω]
0
1560
1000
790
500
13 30 45
20
EEx d [ia] IIC T6
EEx d IIC T4/T6
BA187Y24
when Imax = 21.5 mA
Figure 2.13
Load diagrams
2 Installation Cerabar S
16 Endress+Hauser

Connecting handheld
terminals
•For protection EEx d do not connect handheld terminals in the explosion hazardous
area.
•Do not replace the battery of the handheld terminal in the explosion hazardous area.
•For the Cerabar S with FM or CSA certificate: Electrical connections as shown in
"Installation Drawing" or "Control Drawing" (enclosed in the packing with the Cerabar
S).
•For correct transmission of the communication signal, a minimum load of 250 Ωmust
be present between the connection points and the power supply.
Connecting the
Commubox FXA 191 for
operating via
Commuwin II
The Commubox FXA 191 connects intrinsically safe Smart transmitters with a HART or
INTENSOR protocol to the RS 232 C serial interface of a personal computer. This enables
the transmitter to be remotely operated with the Endress+Hauser Commuwin II operating
program. The Commubox FXA 191 is designed for use in intrinsically safe signal circuits.
123
+
Tes t
0003
4…20 mA
4...20 mA
min. 250 Ω
IO
FMD230:LIC0001
Online
1>Group S elect
2 PV 20 mbar
HELP
IO
FMD230:LIC0001
Online
1>Group S elect
2 PV 20 mbar
HELP
BA187Y25
any device
Figure 2.14
Handheld terminals can be
connected anywhere along the
4…20 mA cable
4…20 mA
123
+
Test
0003
4…20 mA
PC with Commuwin II
Commubox
FXA 191 minimum load
250 Ω
Cerabar S
BA187Y26
Figure 2.15
The Commubox can be
connected anywhere along the
4…20 mA cable
Cerabar S 2 Installation
Endress+Hauser 17

3 Operation
3.1 On-site operation
Operating elements Four keys, which allow the lower and upper range-values to be set, are available for
on-site operation. The key functions are listed in the table below.
Display module The local display module (optional) has two display modes:
•Display in measurement mode: This is shown as standard
•Display in calibration mode: This is shown after pressing one of the keys +Z, –Z, +S
or –S once. Returns automatically to measurement mode after 2 seconds.
Key functions
+Z increases the lower range-value (zero) by +1 digit *
–Z decreases the lower range-value (zero) by –1 digit *
+S increases the upper range-value (span) by +1 digit *
–S decreases the upper range-value (span) by –1 digit *
Key combinations (Press keys simultaneously)
Keys Function
Calibration
+Z and –Z the acting pressure is taken as lower range-value (4 mA)
+S and –S the acting pressure is taken as upper range-value (20 mA)
Bias pressure
2 times +Z and +S the acting pressure is taken as bias pressure**
1 time +Z and +S the current bias pressure** is shown
2 times –Z and –S the current bias pressure** is deleted
Securing the measuring point by locking/unlocking
+Z and –S Locking the measuring point
–Z and +S Unlocking the measuring point
The procedure for commissioning the measuring point with local operation is described
in Chapter 4.
Table 3.1
Key functions
* Note: Pressing once activates
the display, only by pressing
again does the display begin to
count. When first pressing the
key the values slowly change
and then increase in speed.
** If the display indicates process
pressure zero not as zero after
calibrating lower range-value
(depending on position) you can
correct the display value to zero
by adopting a bias pressure. The
position calibration using a bias
pressure does not affect the
current output.
-0.1...0.3 bar
-0.1...0.3 bar g
-0.1...0.3 bar g
– –
++
ZS
– –
++
ZS
ZS
+Z
-Z
+S
-S
z
➂
➀
➁
➅
➃
➄
Keys for on-site operation
BA187Y27
Display module
➆
Display in
measurement mode
Display in calibration mode
Figure 3.1
User interface of the
Cerabar S, with optional display
module
Display in measurement mode
➀ 4-figure display of
measured value and input
parameters
➁ Bar graph of
measured value
➂ Lower range-value (zero)
➃ Upper range-value (span)
➄ Nominal measuring range
With display in
in calibration mode
➅ Display of the calibration point
(Z=Zero, S=Span)
➆ Set measuring range within
the limits of the measuring cell
3 Operation Cerabar S
18 Endress+Hauser

3.2 Operation using the Universal HART Communicator DXR 271
Connecting the handheld terminal is described in Chapter 2.5, page 17.
The procedure for commissioning the measuring point with the Universal HART
Communicator DXR 275 is described in Chapter 5 "Pressure Measurement" and
Chapter 6 "Level Measurement".
3.3 Operation with Commulog VU 260 Z
Connecting the handheld terminal is described in Chapter 2.5, page 17.
The procedure for commissioning the measuring point with the Commulog VU 260 Z
handheld terminal is described in Chapter 5 "Pressure Measurement" and Chapter 6
"Level Measurement".
LIC103 PMC631
20mbar
MEASUREDVALUE 00
LC display with
– parameter
– VH position
– bar graph
Keys
– "Diagnosis"
– "Home"
– "Entry"
Keys for
selecting the matrix and
entering parameters
BA187Y30
Cerabar S with INTENSOR protocol
is calibrated with the Commulog VU 260 Z
(Version 1.7 and above)
(see also BA 028F).
H
VH
02
12.50
H
BA187Y31
•Select matrix field with,,,
•Call up entry mode with
•Enter parameters with , , , ,
•On error calls up the error message
in plain text
IO
PMC 631:LIC0001
Online
1 >Group Select
2 PV 20 mbar
HELP
LC display
with menu text
Function keys
Keys for
selecting the
menu
Keys for
entering parameters
BA187Y28
When operating with the HART protocol an
interactive menu operation is used derived
from the operating matrix in Commuwin II
(see also the operating manual for the
handheld terminal).
F1 F4F2 F3
PMC 631: LIC0001
Online
2PV 20mbar
HELP
1->Group Select
F1 F4F2 F3
PMC 631: LIC0001
2 Additional Functions
3 Transmitter Info
4 Linearization
5 User Information
Group Select
1->Calibration
HOME
F1 F4F2 F3
PMC 631: LIC0001
3 Transmitter Info
4 Linearization
5 User Information
Group Select
1->Calibration
2 Additional Functions
HOME
BA187Y29
•The menu "Group Select" calls up
the matrix.
•The bar lines display the menu
headings.
•Parameters are set using submenus.
Cerabar S 3 Operation
Endress+Hauser 19

3.4 Operation with Commuwin II
When operating the Commuwin II display and operating program, the Cerabar S is set
and and operated either using:
•Matrix mode or
•Graphic mode.
The appropriate server (e.g. HART or ZA 672) must therefore be activated. A description
of the operating program Commuwin II is to be found in Operating Instructions BA 124F.
Note!
You can obtain the current device description (DD) either from your local
Endress+Hauser Sales Center or via the Internet (http://www.endress.com →Products
→Product Portfolio →Process Solutions →Commuwin II →Updates/Downloads).
Matrix mode
(Menu Device)
You can access the extended functions of the Cerabar S, such as level measurement,
using the "Device/Parameter Matrix" menu.
•Each row is allocated to a particular function.
•Each field sets or displays one parameter.
Enter the setting parameters in the appropriate fields and confirm by pressing ↵.
Graphic mode
(Menu Device)
Commuwin II offers graphic examples of certain configuration procedures which you can
access from the "Device/Graphics" menu. There you can directly modify parameters and
confirm by pressing ↵.
BA187E33
Figure 3.2
Menu "Device/Parameter matrix"
in Commuwin II
BA187E32
Figure 3.3
Menu "Device/Graphics"
in Commuwin II
Note!
3 Operation Cerabar S
20 Endress+Hauser
