Endress+Hauser Proline 500 digital HART Technical specifications

Products Solutions Services
Brief Operating Instructions
Proline 500 – digital
HART
Transmitter with thermal mass flowmeter sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Brief Operating Instructions part 2 of 2: Transmitter
Contain information about the transmitter.
Brief Operating Instructions part 1 of 2: Sensor →  3
KA01446D/06/EN/01.20
71487090
2020-09-17

Proline 500 – digital HART
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Proline 500 – digital HART Brief Operating Instructions for the flowmeter
Endress+Hauser 3
Brief Operating Instructions for the flowmeter

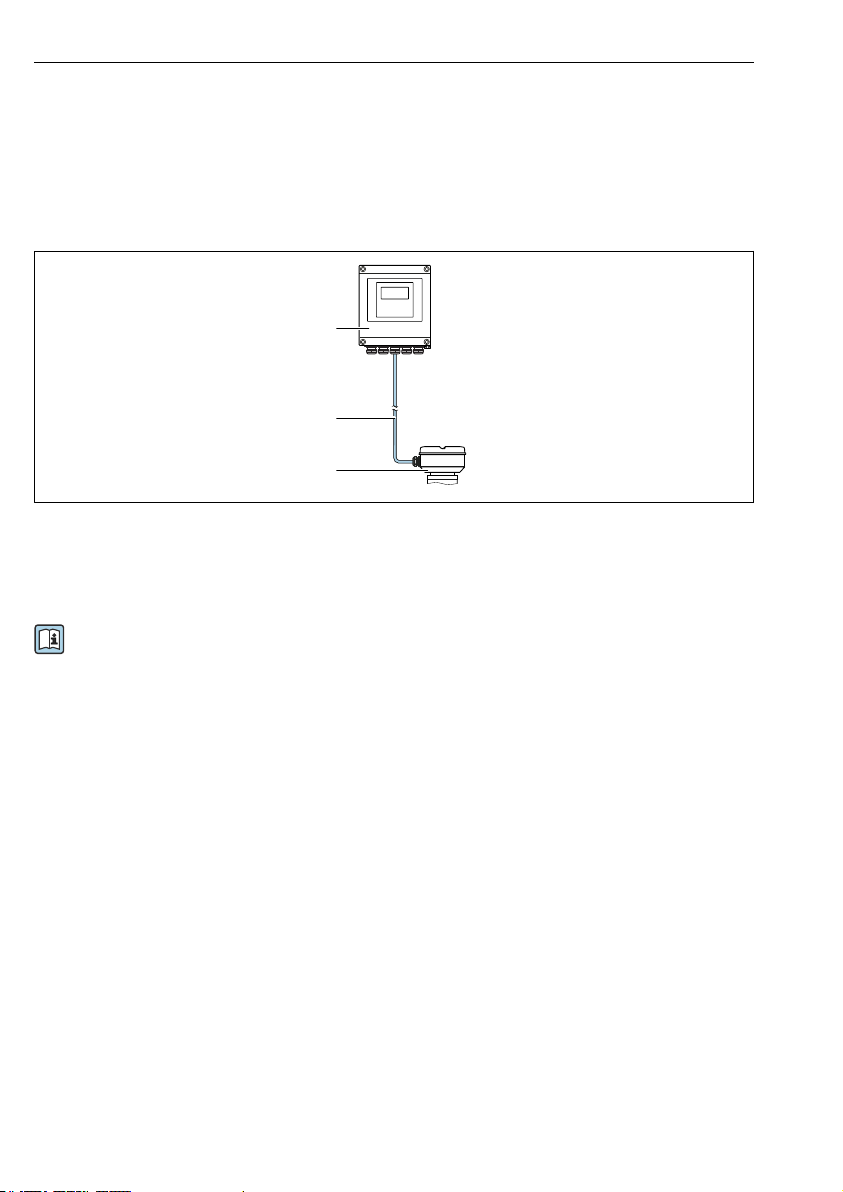

The device consists of a transmitter and a sensor.
The process of commissioning these two components is described in two separate manuals,
that form the Brief Operating Instructions of the flowmeter:
• Brief Operating Instructions part 1: Sensor
• Brief Operating Instructions part 2: Transmitter
Please refer to both Brief Operating Instructions when commissioning the flowmeter as the
contents complement one another:
Brief Operating Instructions part 1: Sensor
The Sensor Brief Operating Instructions are aimed at specialists with responsibility for
installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
Brief Operating Instructions part 2: Transmitter
The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for
commissioning, configuring and parameterizing the measuring device (until the first
measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
Additional device documentation
These Brief Operating Instructions are the Brief Operating Instructions part 2:
Transmitter.

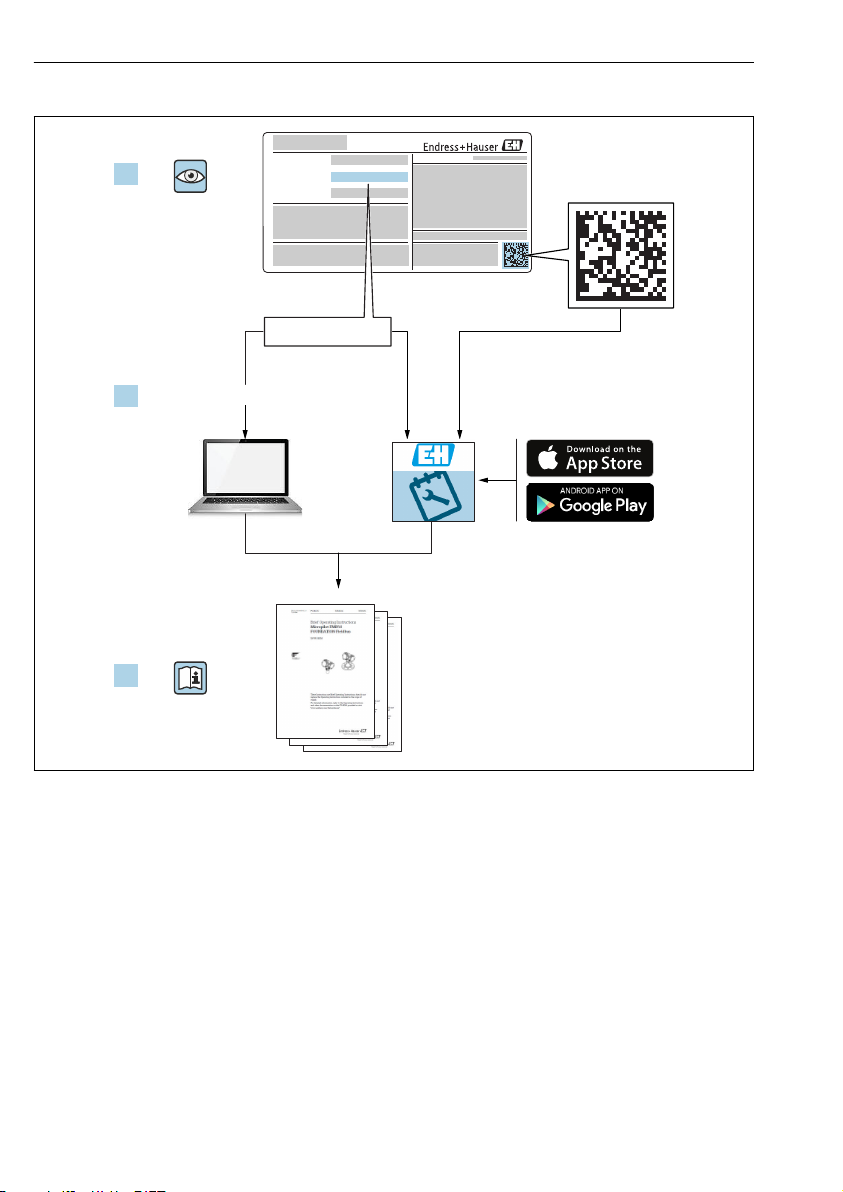

The "Brief Operating Instructions part 1: Sensor" are available via:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Proline 500 – digital HART
4 Endress+Hauser
Table of contents
1 About this document .............................................................. 5
1.1 Symbols used ......................................................................... 5
2 Safety instructions ................................................................ 7
2.1 Requirements for the personnel ............................................................ 7
2.2 Designated use ........................................................................ 7
2.3 Workplace safety ...................................................................... 8
2.4 Operational safety ......................................................................8
2.5 Product safety ......................................................................... 9
2.6 IT security ............................................................................ 9
2.7 Device-specific IT security ................................................................ 9
3 Product description .............................................................. 10
4 Installation ...................................................................... 11

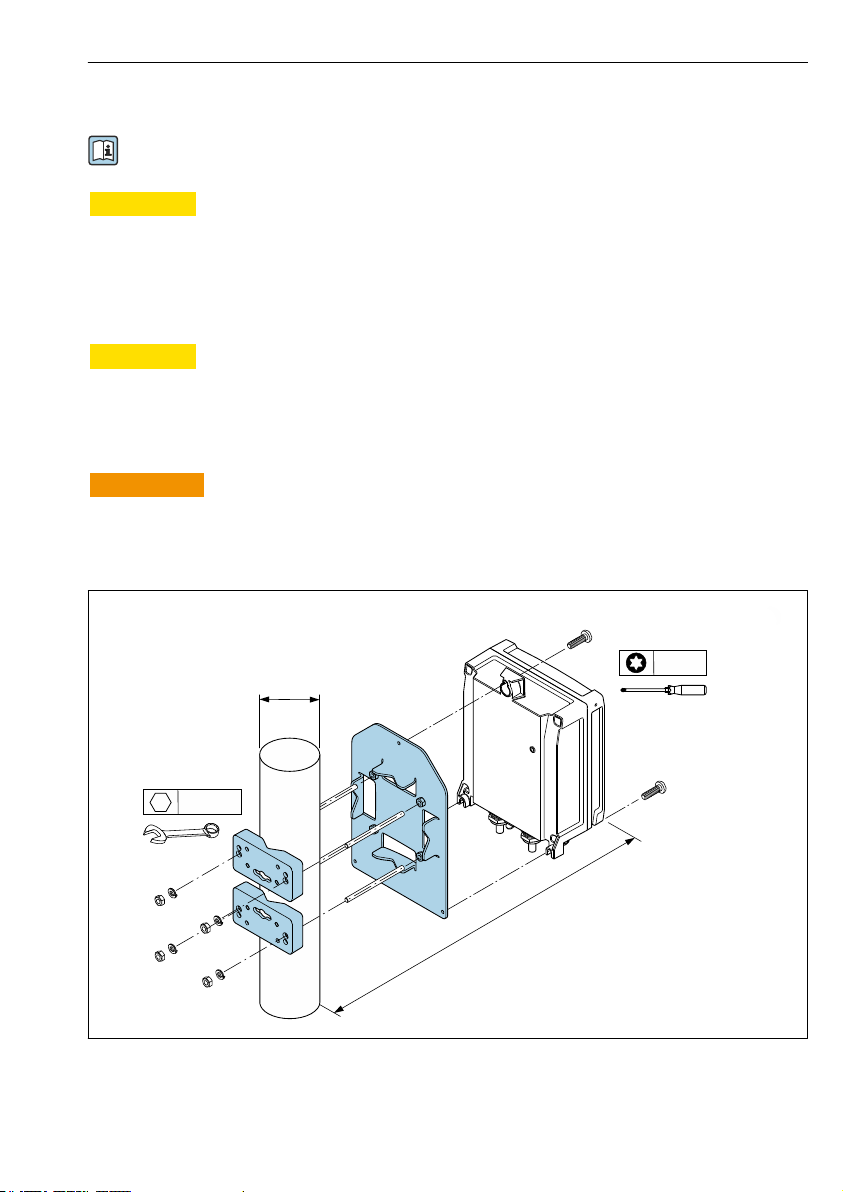

4.1 Post mounting ....................................................................... 11

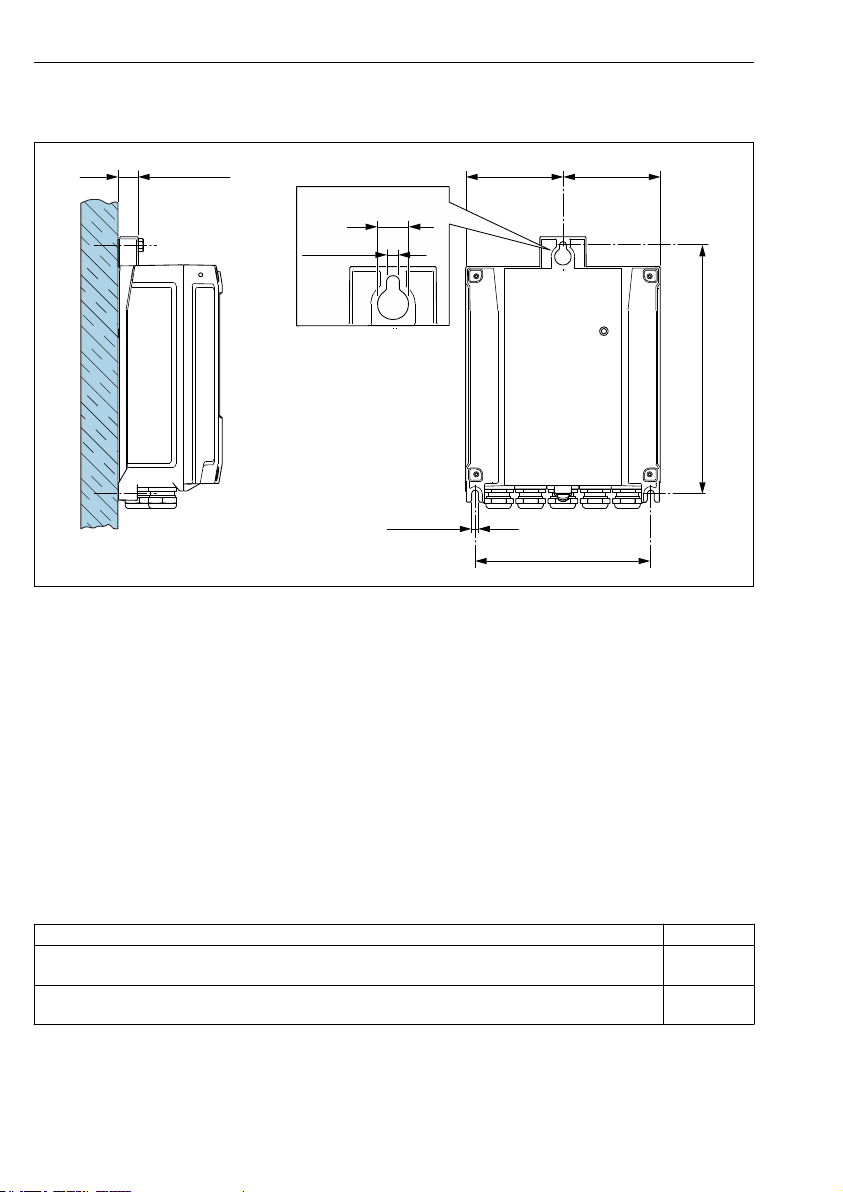

4.2 Wall mounting ....................................................................... 12
4.3 Transmitter post-installation check ........................................................ 12
5 Electrical connection ............................................................ 13
5.1 Electrical safety .......................................................................13
5.2 Connection conditions .................................................................. 13
5.3 Connecting the measuring device ......................................................... 20
5.4 Ensuring potential equalization ........................................................... 25
5.5 Ensuring the degree of protection ......................................................... 25
5.6 Post-connection check ..................................................................26
6 Operation options ............................................................... 27
6.1 Overview of operation options ............................................................ 27
6.2 Structure and function of the operating menu ................................................ 28
6.3 Access to the operating menu via the local display ............................................. 29
6.4 Access to the operating menu via the operating tool ............................................ 32
6.5 Access to the operating menu via the Web server .............................................. 32
7 System integration .............................................................. 32
8 Commissioning .................................................................. 32
8.1 Function check ....................................................................... 32
8.2 Setting the operating language ........................................................... 33
8.3 Configuring the measuring device ......................................................... 33
8.4 Protecting settings from unauthorized access ................................................. 34
9 Diagnostic information .......................................................... 34

Proline 500 – digital HART About this document
Endress+Hauser 5
1 About this document
1.1 Symbols used
1.1.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
1.
,
2.
,
3.
… Series of steps
Result of a step Visual inspection
1.1.3 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is grounded
via a grounding system.

About this document Proline 500 – digital HART
6 Endress+Hauser
Symbol Meaning
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
1.1.4 Communication symbols
Symbol Meaning Symbol Meaning
Wireless Local Area Network
(WLAN)
Communication via a wireless, local
network.
LED
Light emitting diode is off.
LED
Light emitting diode is on.
LED
Light emitting diode is flashing.
1.1.5 Tool symbols
Symbol Meaning Symbol Meaning
Torx screwdriver Flat blade screwdriver
Cross-head screwdriver Allen key
Open-ended wrench
1.1.6 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
Flow direction

Proline 500 – digital HART Safety instructions
Endress+Hauser 7
2 Safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Designated use
Application and media
The measuring device described in this manual is intended only for the flow measurement of
gases.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, or where there is an increased risk due to
process pressure, are labeled accordingly on the nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Keep within the specified pressure and temperature range.
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣Use the measuring device only for media to which the process-wetted materials are
sufficiently resistant.
‣If the ambient temperature of the measuring device is outside the atmospheric
temperature, it is absolutely essential to comply with the relevant basic conditions as
specified in the device documentation.
‣Protect the measuring device permanently against corrosion from environmental
influences.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
LWARNING
Danger of breakage due to corrosive or abrasive fluids and ambient conditions!
‣Verify the compatibility of the process fluid with the sensor material.
‣Ensure the resistance of all fluid-wetted materials in the process.
‣Keep within the specified pressure and temperature range.

Safety instructions Proline 500 – digital HART
8 Endress+Hauser
NOTICE
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
LWARNING
Injury from sensor being ejected!
‣The sensor gland should be opened only when in an unpressurized state.
LWARNING
Risk of injury if the process connection and gland of the sensing element are opened
under pressure.
‣The process connection and sensor gland should be opened only when in an unpressurized
state.
NOTICE
Penetration of dust and moisture when the transmitter housing is opened.
‣Only open the transmitter housing briefly, ensuring that no dust or moisture enters the
housing.
Residual risks
LWARNING
The electronics and the medium may cause the surfaces to heat up. This presents a burn
hazard!
‣For elevated fluid temperatures, ensure protection against contact to prevent burns.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.
If working on and with the device with wet hands:
‣Due to the increased risk of electric shock, gloves must be worn.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.

Proline 500 – digital HART Safety instructions
Endress+Hauser 9
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
2.6 IT security
Our warranty is valid only if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the settings.
IT security measures, which provide additional protection for the device and associated data
transfer, must be implemented by the operators themselves in line with their security
standards.
2.7 Device-specific IT security
The device offers a range of specific functions to support protective measures on the operator's
side. These functions can be configured by the user and guarantee greater in-operation safety
if used correctly.
For detailed information on device-specific IT security, see the Operating Instructions for
the device.
2.7.1 Access via service interface (CDI-RJ45)
The device can be connected to a network via the service interface (CDI-RJ45). Device-specific
functions guarantee the secure operation of the device in a network.
The use of relevant industrial standards and guidelines that have been defined by national
and international safety committees, such as IEC/ISA62443 or the IEEE, is recommended.
This includes organizational security measures such as the assignment of access authorization
as well as technical measures such as network segmentation.

Product description Proline 500 – digital HART
10 Endress+Hauser
3 Product description
The measuring system consists of a Proline 500 - digital transmitter and a Proline t-mass
thermal mass flowmeter sensor.
The transmitter and sensor are mounted in physically separate locations. They are
interconnected by a connecting cable.
2
3
1
1 Transmitter
2 Connecting cable: cable, separate, standard
3 Sensor connection housing with integrated ISEM (intelligent sensor electronics module)
For detailed information on the product description, see the Operating Instructions for
the device

Proline 500 – digital HART Installation
Endress+Hauser 11
4 Installation
For detailed information about mounting the sensor, see the Sensor Brief Operating
Instructions →  3
LCAUTION
Ambient temperature too high!
Danger of electronics overheating and housing deformation.
‣Do not exceed the permitted maximum ambient temperature .
‣If operating outdoors: Avoid direct sunlight and exposure to weathering, particularly in
warm climatic regions.
LCAUTION
Excessive force can damage the housing!
‣Avoid excessive mechanical stress.
4.1 Post mounting
LWARNING
Excessive tightening torque applied to the fixing screws!
Risk of damaging the plastic transmitter.
‣Tighten the fixing screws as per the tightening torque: 2 Nm (1.5 lbf ft)
ø20…70
( 0.79…2.75)ø
~102 (~ 4.0)
4 x SW 10
3 x TX 25
A0029051
 1 Engineering unit mm (in)

Installation Proline 500 – digital HART
12 Endress+Hauser
4.2 Wall mounting
149 (5.85)
211 (8.31)
=
5.8 (0.23)
17 (0.67) =
L
5.8 (0.23)
A0029054
 2 Engineering unit mm (in)
L Depends on order code for "Transmitter housing"
Order code for "Transmitter housing"
• Option A, aluminum coated: L =14 mm (0.55 in)
• Option D, polycarbonate: L = 13 mm (0.51 in)
4.3 Transmitter post-installation check
The post-installation check must always be performed after the following tasks:
Mounting the transmitter housing:
• Post mounting
• Wall mounting
Is the device undamaged (visual inspection)? 
Post mounting:
Have the fixing screws been tightened with the correct tightening torque? 
Wall mounting:
Are the securing screws tightened securely? 

Proline 500 – digital HART Electrical connection
Endress+Hauser 13
5 Electrical connection
NOTICE
The measuring device does not have an internal circuit breaker.
‣For this reason, assign the measuring device a switch or power-circuit breaker so that the
power supply line can be easily disconnected from the mains.
‣Although the measuring device is equipped with a fuse, additional overcurrent protection
(maximum 10 A) should be integrated into the system installation.
5.1 Electrical safety
In accordance with applicable federal/national regulations.
5.2 Connection conditions
5.2.1 Required tools
• For cable entries: Use corresponding tools
• For securing clamp: Allen key 3 mm
• Wire stripper
• When using stranded cables: crimper for wire end ferrule
• For removing cables from terminal: Flat blade screwdriver ≤ 3 mm (0.12 in)
5.2.2 Requirements for connecting cable
The connecting cables provided by the customer must fulfill the following requirements.
Protective grounding cable for the outer ground terminal
Conductor cross-section ≤2.08 mm2 (14 AWG)
Grounding impedance must be less than 2 Ω.
Permitted temperature range
• The installation guidelines that apply in the country of installation must be observed.
• The cables must be suitable for the minimum and maximum temperatures to be expected.
Power supply cable (incl. conductor for the inner ground terminal)
Standard installation cable is sufficient.
Cable diameter
• Cable glands supplied:
M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in)
• Spring-loaded terminals: Suitable for strands and strands with ferrules.
Conductor cross-section 0.2 to 2.5 mm2 (24 to 12 AWG).

Electrical connection Proline 500 – digital HART
14 Endress+Hauser
Signal cable
Current output 4 to 20 mA HART
A shielded cable is recommended. Observe grounding concept of the plant.
Current output 0/4 to 20 mA
Standard installation cable is sufficient.
Pulse/frequency/switch output
Standard installation cable is sufficient.
Double pulse output
Standard installation cable is sufficient.
Relay output
Standard installation cable is sufficient.
Current input 0/4 to 20 mA
Standard installation cable is sufficient.
Status input
Standard installation cable is sufficient.
5.2.3 Choice of connecting cable between the transmitter and sensor
Depends on the type of transmitter and the installation zones

Proline 500 – digital HART Electrical connection
Endress+Hauser 15

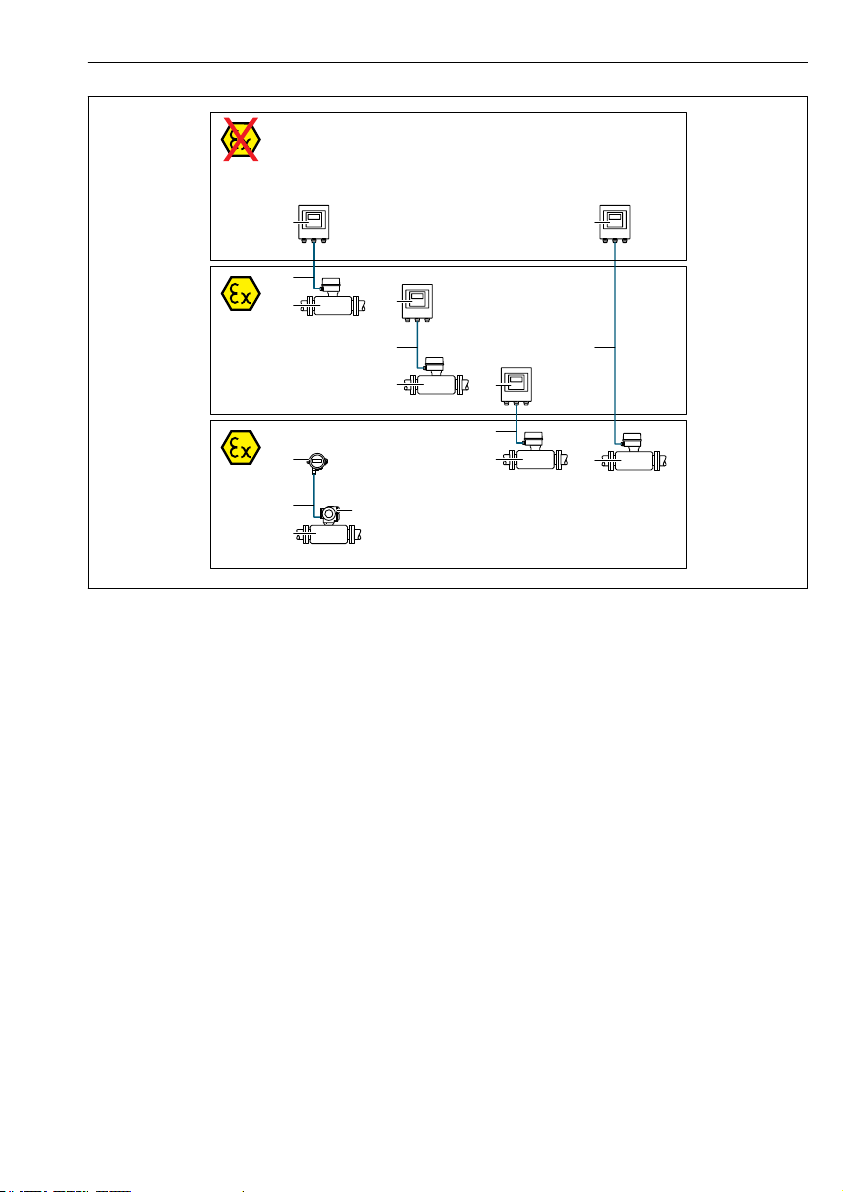

1
2
B
1
2
A
1
2
A
1
2
B
5
6
7
4
2
C3
A0042080

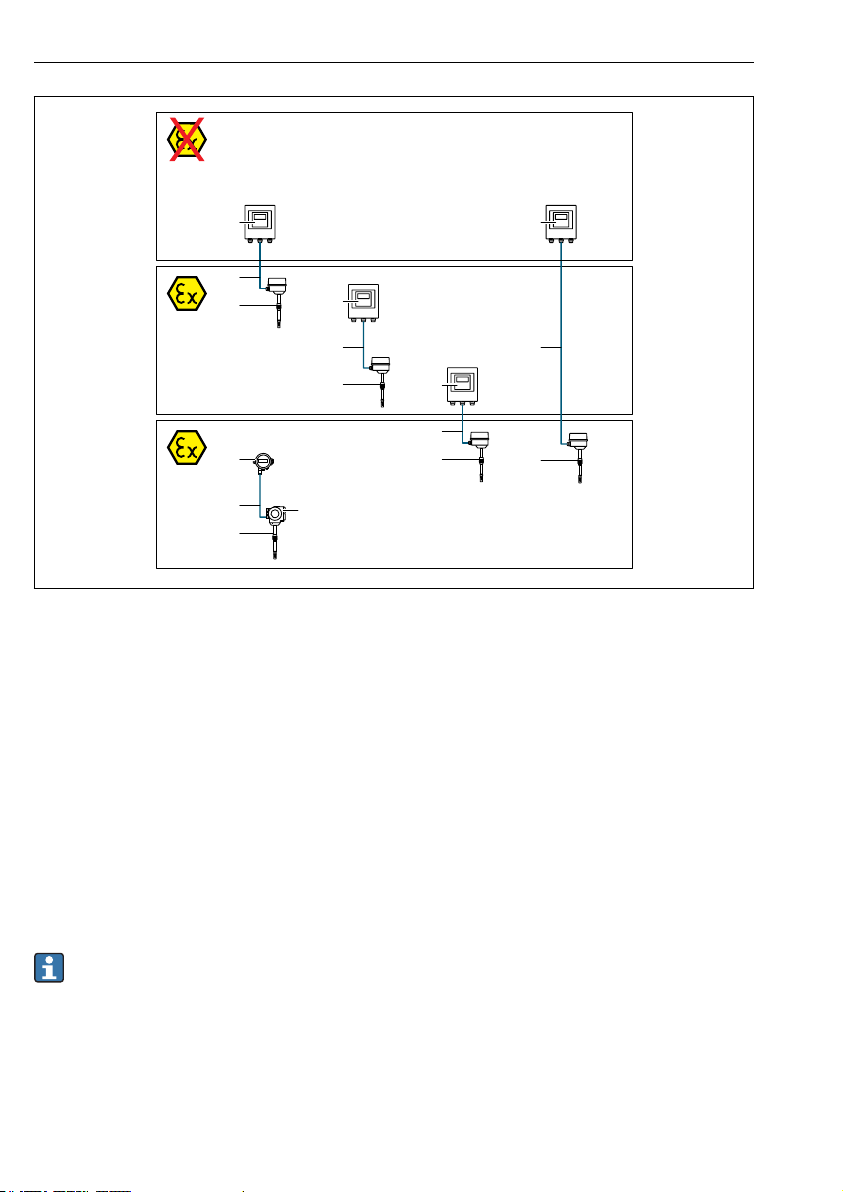

1 Proline 500 – digital transmitter
2 Sensor t-mass
3 Proline 300 transmitter
4 Remote display (DKX001)
5 Non-hazardous area
6 Hazardous area: Zone 2; Class I, Division 2
7 Hazardous area: Zone 1; Class I, Division 1
A Standard cable to 500 – digital transmitter
Transmitter installed in the non-hazardous area or hazardous area: Zone 2; Class I, Division 2 / sensor
installed in the hazardous area: Zone 2; Class I, Division 2
B Standard cable to 500 – digital transmitter →  17
Transmitter installed in the hazardous area: Zone 2; Class I, Division 2 / sensor installed in the
hazardous area: Zone 1; Class I, Division 1
C Standard cable to remote display
Transmitter 300 and remote display installed in the hazardous area: Zone 1; Class I, Division 1

Electrical connection Proline 500 – digital HART
16 Endress+Hauser
1
2
B
1
2
A
1
2
A
1
2
B
5
6
7
4
2
C3
A0042081
1 Proline 500 – digital transmitter
2 Sensor t-mass
3 Proline 300 transmitter
4 Remote display (DKX001)
5 Non-hazardous area
6 Hazardous area: Zone 2; Class I, Division 2
7 Hazardous area: Zone 1; Class I, Division 1
A Standard cable to 500 – digital transmitter
Transmitter installed in the non-hazardous area or hazardous area: Zone 2; Class I, Division 2 / sensor
installed in the hazardous area: Zone 2; Class I, Division 2
B Standard cable to 500 – digital transmitter →  17
Transmitter installed in the hazardous area: Zone 2; Class I, Division 2 / sensor installed in the
hazardous area: Zone 1; Class I, Division 1
C Standard cable to remote display
Transmitter 300 and remote display installed in the hazardous area: Zone 1; Class I, Division 1
For applications with operation in Zone 1; Class 1, Division 1, we recommend the use of
the compact version with the remote display. In this case, the display of the Proline 300
transmitter is a blind version without local operation.
A: Connecting cable between sensor and transmitter: Proline 500 – digital
Standard cable
A standard cable with the following specifications can be used as the connecting cable.

Proline 500 – digital HART Electrical connection
Endress+Hauser 17
Design 4 cores (2 pairs); uninsulated stranded CU wires; pair-stranded with common shield
Shielding Tin-plated copper-braid, optical cover ≥ 85 %
Loop resistance Power supply line (+, –): maximum 10 Ω
Cable length Maximum 300 m (1 000 ft), see the following table.
Cross-section Cable length [max.]
0.34 mm2 (AWG 22) 80 m (270 ft)
0.50 mm2 (AWG 20) 120 m (400 ft)
0.75 mm2 (AWG 18) 180 m (600 ft)
1.00 mm2 (AWG 17) 240 m (800 ft)
1.50 mm2 (AWG 15) 300 m (1 000 ft)
Optionally available connecting cable
Design 2 × 2 × 0.34 mm2 (AWG 22) PVC cable 1) with common shield (2 pairs, uninsulated
stranded CU wires; pair-stranded)
Flame resistance According to DIN EN 60332-1-2
Oil-resistance According to DIN EN 60811-2-1
Shielding Tin-plated copper-braid, optical cover ≥ 85 %
Operating temperature When mounted in a fixed position: –50 to +105 °C (–58 to +221 °F); when cable can
move freely: –25 to +105 °C (–13 to +221 °F)
Available cable length Fixed: 20 m (65 ft); variable: up to maximum 50 m (164 ft)
1) UV radiation can impair the cable outer sheath. Protect the cable from direct sunshine where possible.
B: Connecting cable between sensor and transmitter: Proline 500 - digital
Standard cable
A standard cable with the following specifications can be used as the connecting cable.
Design 4, 6, 8 cores (2, 3, 4 pairs); uninsulated stranded CU wires; pair-stranded with
common shield
Shielding Tin-plated copper-braid, optical cover ≥ 85 %
Capacitance C Maximum 760 nF IIC, maximum 4.2 µF IIB
Inductance L Maximum 26 µH IIC, maximum 104 µH IIB
Inductance/resistance ratio
(L/R)
Maximum 8.9 µH/Ω IIC, maximum 35.6 µH/Ω IIB (e.g. in accordance with IEC
60079-25)
Loop resistance Power supply line (+, –): maximum 5 Ω
Cable length Maximum 100 m (330 ft), see the following table.

Electrical connection Proline 500 – digital HART
18 Endress+Hauser

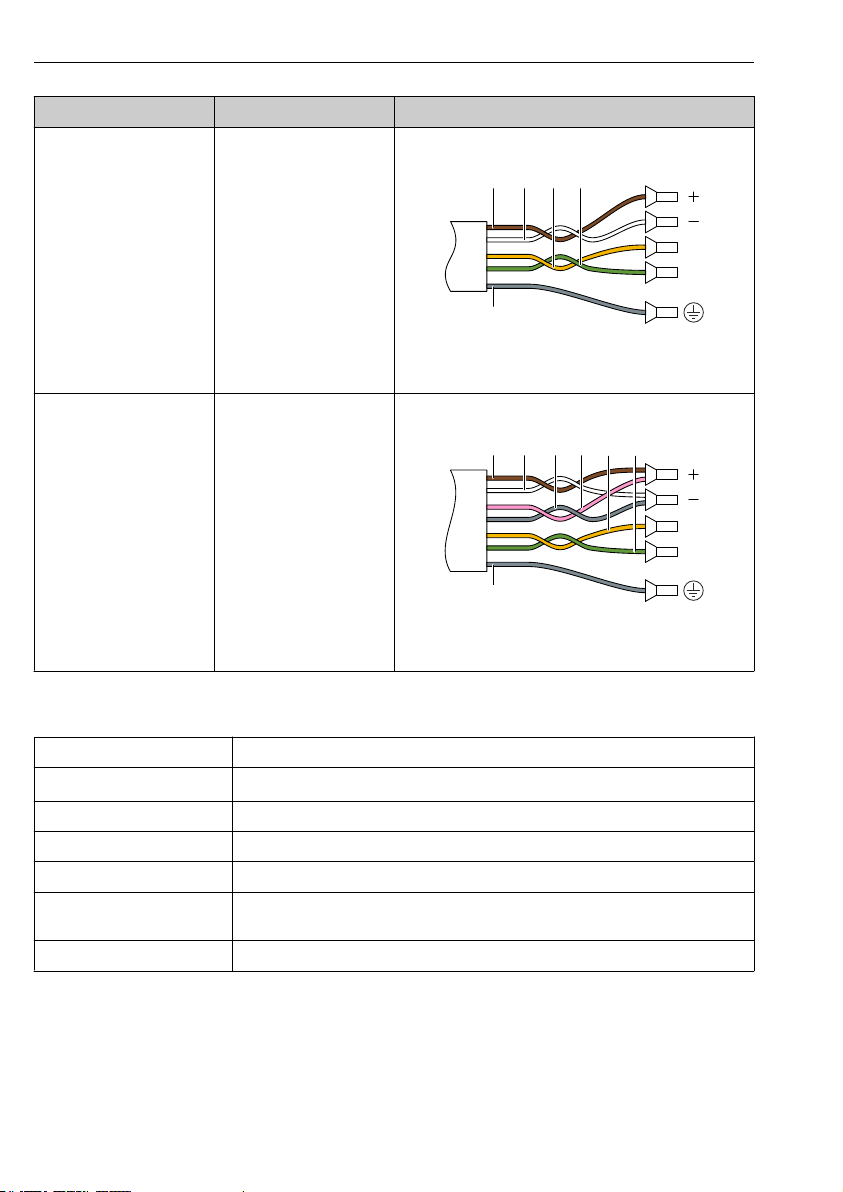

Cross-section Cable length [max.] Termination
2 x 2 x 0.50 mm2
(AWG 20)
50 m (165 ft) 2 x 2 x 0.50 mm2 (AWG 20)
A
B
GY
BN WT YE GN
• +, – = 0.5 mm2
• A, B = 0.5 mm2
3 x 2 x 0.50 mm2
(AWG 20)
100 m (330 ft) 3 x 2 x 0.50 mm2 (AWG 20)
A
B
GY
BN YE GN
WT GY PK
• +, – = 1.0 mm2
• A, B = 0.5 mm2
Optionally available connecting cable
Connecting cable for Zone 1; Class I, Division 1
Standard cable 2 × 2 × 0.5 mm2 (AWG 20) PVC cable 1) with common shield (2 pairs, pair-stranded)
Flame resistance According to DIN EN 60332-1-2
Oil-resistance According to DIN EN 60811-2-1
Shielding Tin-plated copper-braid, optical cover ≥ 85 %
Operating temperature When mounted in a fixed position: –50 to +105 °C (–58 to +221 °F); when cable can
move freely: –25 to +105 °C (–13 to +221 °F)
Available cable length Fixed: 20 m (65 ft); variable: up to maximum 50 m (165 ft)
1) UV radiation can impair the cable outer sheath. Protect the cable from direct sunshine where possible.

Proline 500 – digital HART Electrical connection
Endress+Hauser 19
5.2.4 Terminal assignment
Transmitter: supply voltage, input/outputs
The terminal assignment of the inputs and outputs depends on the individual order version of
the device. The device-specific terminal assignment is documented on an adhesive label in the
terminal cover.
Supply voltage Input/output
1
Input/output
2
Input/output
3
Input/output
4
1 (+) 2 (–) 26 (+) 27 (–) 24 (+) 25 (–) 22 (+) 23 (–) 20 (+) 21 (–)
Device-specific terminal assignment: adhesive label in terminal cover.

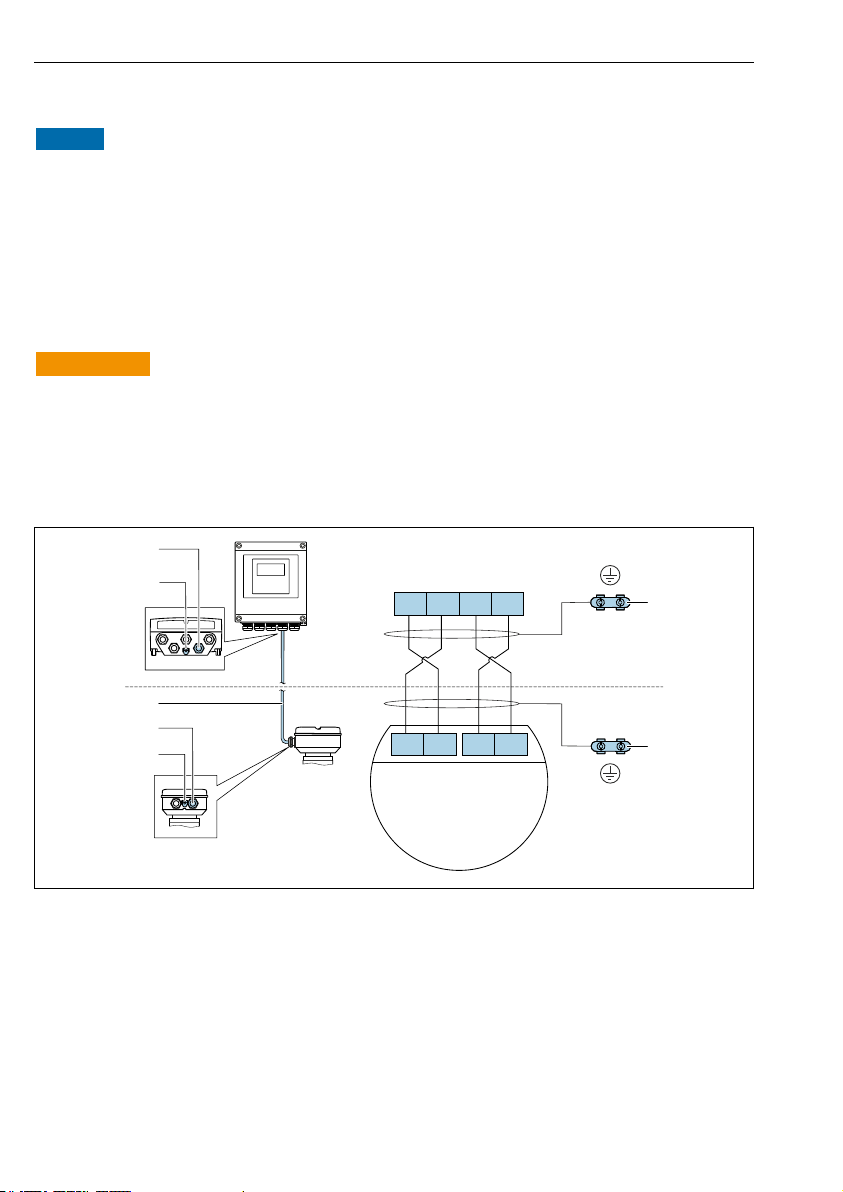

Transmitter and sensor connection housing: connecting cable
The sensor and transmitter, which are mounted in separate locations, are interconnected by a
connecting cable. The cable is connected via the sensor connection housing and the
transmitter housing.
Terminal assignment and connection of the connecting cable →  20.
5.2.5 Preparing the measuring device
Carry out the steps in the following order:
1. Mount the sensor and transmitter.
2. Connection housing, sensor: Connect connecting cable.
3. Transmitter: Connect connecting cable.
4. Transmitter: Connect signal cable and cable for supply voltage.
NOTICE
Insufficient sealing of the housing!
Operational reliability of the measuring device could be compromised.
‣Use suitable cable glands corresponding to the degree of protection.
1. Remove dummy plug if present.
2. If the measuring device is supplied without cable glands:
Provide suitable cable gland for corresponding connecting cable.
3. If the measuring device is supplied with cable glands:
Observe requirements for connecting cables →  13.

Electrical connection Proline 500 – digital HART
20 Endress+Hauser
5.3 Connecting the measuring device
NOTICE
Limitation of electrical safety due to incorrect connection!
‣Have electrical connection work carried out by appropriately trained specialists only.
‣Observe applicable federal/national installation codes and regulations.
‣Comply with local workplace safety regulations.
‣Always connect the protective ground cable  before connecting additional cables.
‣For use in potentially explosive atmospheres, observe the information in the device-specific
Ex documentation.
5.3.1 Attaching the connecting cable
LWARNING
Risk of damaging the electronic components!
‣Connect the sensor and transmitter to the same potential equalization.
‣Only connect the sensor to a transmitter with the same serial number.
‣Ground the connection housing of the sensor via the external screw terminal.
Connecting cable terminal assignment
+ – AB
61 62 63 64
2
1
4
3
5
662 61 64 63
–+AB
4
A0028198
1 Cable entry for cable on transmitter housing
2 Protective earth (PE)
3 Connecting cable ISEM communication
4 Grounding via ground connection; on device plug versions grounding is through the plug itself
5 Cable entry for cable or connection of device plug on sensor connection housing
6 Protective earth (PE)
