Enelion Stilo User manual

Stilo
Assembly manual
Enelion Sp. z o.o.
inf[email protected]

Copyright, Enelion Sp. z o. o.
The manual may change as the product develops.
The information provided may not be correct. All rights reserved.
Revision: V 3.3
Number of pages: 21
Released: March 8, 2021
1

Stilo - Assembly manual 3 - 2021
Contents
1 Important information 4
1.1 General Provisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 General information 5
2.1 Opening and closing of Enelion Stilo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Design recommendations for the installation 7
3.1 Recommended power connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Recommended communication network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Location selection criteria . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Assembly 9
4.1 Preparing the installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Selection of bolts and anchors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.3 Cableroutes............................................... 10
4.4 Mounting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Connection 12
5.1 Power connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1.1 Standard power connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2 Connection of communication wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3 EnelionChain .............................................. 14
5.4 Internet connections via Ethernet interface in LAN network . . . . . . . . . . . . . . . . . . . . . . 15
6 Maintenance 17
6.1 Cleaning................................................. 17
7 Technical data 18
7.1 EnelionStilo............................................... 18
2 Contents

Stilo - Assembly manual 3 - 2021
Before the installation, make sure that the module packages contain all the elements. Current version of the
operation manual can be accessed at http://enelion.com/en/help/.
See the contents of the manual before initiating any activities related to the installation or the activation of the
charger.
3 Contents

Stilo - Assembly manual 3 - 2021
1. Important information
1.1. General Provisions
Installation and servicing of the device must be per-
formed by qualified and authorized persons, and re-
pairs may only be carried out by the manufacturer or
entities authorized by the manufacturer.
Tampering with the mechanical, electrical and elec-
tronic components and the device software is forbid-
den and shall result in the nullification of the warranty.
The exceptions include operations described herein
and those agreed in writing with the manufacturer.
The manufacturer is not responsible for damage to
property resulting from the forbidden interference in the
product.
The electrical installation to be used by the device dur-
ing its operation must meet the conditions described
in the installation manual. The manufacturer is not re-
sponsible for incorrect assembly and/or protection of
the electrical installation to which the device is con-
nected.
The manufacturer is not responsible for the malfunction
of the electrical installation to which the device is con-
nected.
The electrical installation to be used by the device dur-
ing its operation must comply with the legal standards
in force in the place of assembly and the operation of
the device. The manufacturer is not liable for any dam-
age caused by an electrical installation that does not
meet legal standards.
The device does not have a built-in switch. The de-
vice activates when the supply voltage is applied. The
power supply cut off function must be provided by the
appropriate electrical installation devices described in
the assembly manual. Except in emergencies, the de-
vice must not be turned off during the charging process.
It is forbidden to supply the power to the device when
the device casing remains open.
The use of a mechanically damaged charger or a
charger that indicates a critical error is forbidden.
It is forbidden to place in the charger socket any objects
not intended for this purpose. A working power cable
with a cross-section appropriate for the power supplied
to the device and appropriate for the type of electric
vehicle, terminated with a functional plug type 2 in ac-
cordance with EC 62196-2 is the only object that may
be plugged in the charger socket.
It is forbidden to use any extensions of the charging ca-
ble.
The manufacturer is not responsible for loss of health
or life by any persons resulting from failure to comply
with the above-mentioned recommendations.
The data plate on the device is an integral part of the
device and its removal or damage shall result in the nul-
lification of the warranty.
1.2. Safety instructions
Outdoor installation should not be carried out during
precipitation or strong wind, if there is a risk that wa-
ter or dirt may get into the device.
All operations described in this manual should be per-
formed only having made sure that there is no voltage
in the power cable.
4 Important information

Stilo - Assembly manual 3 - 2021
2. General information
Stilo is a charging station intended for electric road
passenger vehicles. It is made of an aluminum cas-
ing, closed with a top lid made of polymer material. It
is equipped with an RFID reader, LED signaling and
a charging cable of 4,7 m meters ended with a TYPE
2 plug. Additional accessories can be installed. The
range of functions of the device can be extended by
adding such accessories as Enelion Bridge, Enelion
RCM B protection. Some parameters and functions can
be changed by reprogramming the device with the use
of the attached RFID card. Enelion Stilo is available in
two colors: black and silver.
Fig. 1: Enelion Stilo.
All Enelion charging stations are compatible with the
original Enelion Chain communication protocol, which
enables operation in the local network of chargers. This
enables the Enelion DLB function to be activated for dy-
namic load balancing, thus reducing the number of de-
vices that require an Internet connection and optimizing
the use of power in charging vehicles.
All Enelion devices can be fitted with Enelion Bridge
(an add-on to be purchased separately). It equips the
devices with Smart functions and facilitates their con-
nection to a remote management system (OCPP 1.6
compliant) via the Internet.
INFO
For more information, see the “User Guide”. It
contains detailed information about the func-
tionality and use of the device.
2.1. Opening and closing of Enelion Stilo.
INFO
The anti-theft torx T25 bit – included with the
charger – is needed to open (or close) Enelion
Stilo.
INFO
Closing of the device is performed by repeating
the steps in the reverse order.
INFO
The operations described below are identical for
the device already mounted on the wall. Please
note that the device must be opened at least
once before the installation to allow access to
the mounting holes on its back and to connect
the power cable.
1. Locate the device closing bolt and remove it, us-
ing the torx T25 bit (included) and a screw driver.
5 General information

Stilo - Assembly manual 3 - 2021

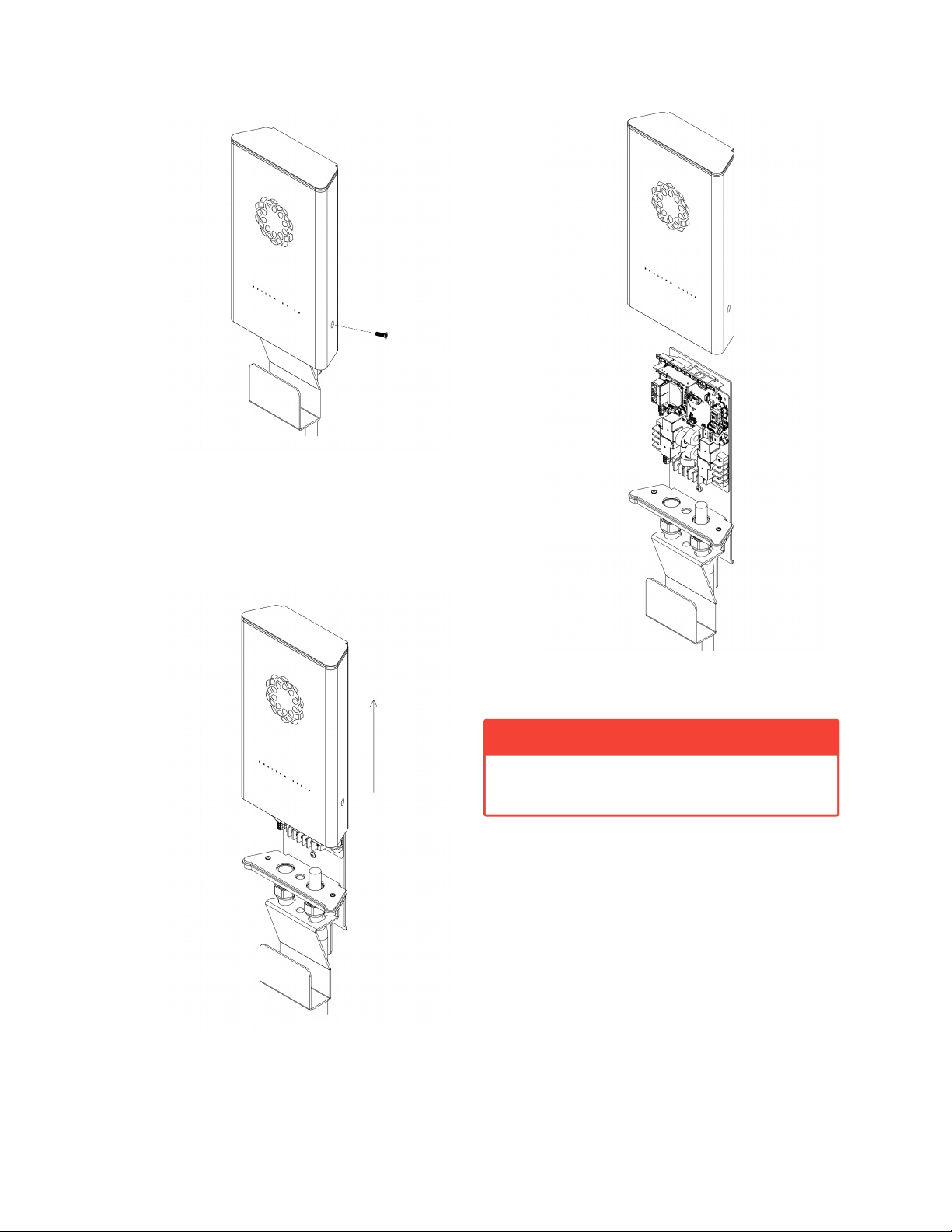

Fig. 2: Location of Enelion Stilo closing bolt.
2. Hold the casing and slide it up the guiding
grooves to remove it.
Fig. 3: Removing Enelion Stilo casing.
3. Store the casing in a safe place.
Fig. 4: Fully open Enelion Stilo.
oWARNING
Be careful not to crimple the signal tape while
fitting the front panel.
6 General information

Stilo - Assembly manual 3 - 2021
3. Design recommendations for the installation
3.1. Recommended power connection
Enelion charging stations are adapted to five-wire
power supply from TN-S type and TT type grid. It is
possible to apply three-wire power supply from TN-S
type grid.
oWARNING
Connection possibilities have been described in
“User manual”, in the Device configuration sec-
tion.
Enelion charging terminal must be powered from the
electrical switchboard. The board must have the re-
quired protections in the form of an overcurrent circuit
breaker with B or C characteristics and rated current
of 32 A or lower, appropriate to the device version. To
be compliant with the PN-EN IEC 61851-1: 2019-10
standard, each charging point must also be protected
against type A or B residual current. This requirement
must be met by one of the below:
1. installation of a type B residual current device
(RCD B 30 mA/40 A) or RCD EV (30 mA/40 A) in
the switchboard,
2. installation of a type A residual current device
(RCD A 30 mA/40 A) in the switchboard with the
application of Enelion RCM B – type B Residual
Current Monitor, attached to the charging termi-
nal.
The final selection of the safety devices belongs to an
authorized designer or a qualified electrician.
HINT
The above requirements result in the neces-
sity to use independent cables for multi-socket
devices: Wallbox Duo Power and Wallbox
Adspace.
INFO
Wallbox Duo multi-socket device allows one to
power the charging sockets only in 1-phase
mode. Therefore, it should be powered with one
four-wire cable.
The cross-section of the power supply cables must be
selected by an authorized electrician, depending on the
distance from the switchboard and other conditions per-
tinent to the location. To obtain the maximum charging
power in wall-mounted devices, the use of cables with a
conductor cross-section not greater than 6 mm2is rec-
ommended. The maximum cross-section of the power
supply cable to be assembled in connection terminals
is 16 mm2. The diameter of the power supply cable
with insulation must not exceed 16 mm2.
Cables running underground must be installed in accor-
dance with the binding building regulations. For conve-
nient installation, flexible power cables, stranded type,
terminated with clamping sleeves are recommended
oWARNING
To supply the voltage to the installed and con-
nected charging station, first switch on the RCD
protection, and next the overcurrent switch.
For installation, about 50 cm of power cable re-
serve from the expected installation position is recom-
mended.
HINT
For Wallbox Adspace devices, a reserve of
about 110 cm of the cable supplying power to
the left socket is recommended.
3.2. Recommended communication net-
work
Enelion devices support the Enelion Chain communica-
tion interface. For its implementation, a wired connec-
tion between the devices is required using an Ethernet
CAT 5 or CAT 6 cable.
For installation, leave about 50 cm of communication
cables from the expected installation position.
The network works in a serial topology where:
• the number of Enelion charging points does not
exceed 100 devices,
• the total length of the communication cable con-
necting the devices does not exceed 500 m.
7 Design recommendations for the installation

Stilo - Assembly manual 3 - 2021
Fig. 5: Enelion Chain network topology.
Enelion devices equipped with the Enelion Bridge mod-
ule can use the Internet connection via the Ethernet in-
terface in the LAN network. In order to utilize this func-
tion, run the Ethernet CAT 6 cable to the device in which
the use of this option is expected.
INFO
Devices equipped with Enelion Bridge can also
use WiFi and GSM interfaces to ensure the In-
ternet connection, but they do not have require-
ments related to cable installation.
3.3. Location selection criteria
Wall-mounted Enelion devices may be installed both in-
ternally or externally.
The device has been designed to be installed near
parking spaces for electric vehicles. When used in the
vehicle collision hazard zone, the structure should be
secured with appropriate fenders painted in yellow and
black stripes (warning about the gauge).
Bear in mind that the national regulations may define
the space for the installation. The device should not be
located in a place of high exposure to sunlight, which
could cause overheating. Do not install the device near
heat sources or in small, closed spaces (e.g. in a box).
It is forbidden to install a power cord that does not com-
ply with the guidelines in section 3.1 Recommended
power connection. It is forbidden to install the device
in potentially explosive environment.
Local regulations for electrical installations, fire preven-
tion measures and accident prevention must be taken
into account, and escape routes at the installation site
must be provided.
It is forbidden to install the device in a location where
falling objects may damage the charger.
Before installation, make sure that the mounting space
for the device is sufficient.
Wallbox family devices should have at least:
1. 10 cm clearance on each side of the unit.
Stilo family devices should have at least:
1. 10 cm clearance on the right side of the unit.
2. 50 cm clearance above the top edge of the de-
vice.
3. 100 cm clearance below the bottom edge of the
device.
oWARNING
The manufacturer accepts no responsibility for
any damage resulting from failure to comply
with the above-mentioned recommendations.
8 Design recommendations for the installation

Stilo - Assembly manual 3 - 2021
4. Assembly
oWARNING
Before commencing the installation, switch off
the power supplied to the cables.
4.1. Preparing the installation
1. Place the packaged Enelion Stilo horizontally, in
accordance with the markings on the packaging.
Cut the package open along the indicated line.
Take the device out of the cardboard box, remove
the foam protection and put the device in the cor-
rect horizontal position.
2. The foam protection contains useful accessories
required for the mounting of the device. Be-
fore recycling the packaging, collect those acces-
sories that include:
• anti-theft torx T25 bit,
• RFID configuration card.
3. Open Enelion Stilo in accordance with the in-
struction included in section 2.1 Opening and
closing of Enelion Stilo.
4. Remove the bolts fixing the hook for the charging
cable.
Fig. 6: Removing the charging cable hold.
5. Remove the bolt fixing the wall anchor.
Fig. 7: Removing the anchor bolt.
6. Separate the wall anchor from the device by dis-
tancing both parts from each other.
Fig. 8: Removing the device from the wall anchor.
4.2. Selection of bolts and anchors
Enelion Stilo is mounted on vertical surface using bolts.
The device has four mounting openings.
9 Assembly
