Enelion LUMINA User manual

Installation
guide
ENELION LUMINA
3 in 1 modular structure — build and upgrade your dreamed solution using the same base module.
Quick installation — get your EV charger ready to work online in no more than 15 minutes of the
installation process.
Video tutorial

Dear
Partner,
Congratulations on your purchase of the ENELION LUMINA
charger and thank you for your trust.
Up-to-date manuals for users
and installers always available at:
https://enelion.com/support-lumina/
Please read this manual before installation
or prior to the station being commisioned.

3
Table of content
Introduction
ENELION LUMINA product family 5
Tools necessary for installation 6
Safety screws 7
Features 8
Technical specications 9
Safety
Safety instructions 11
Before the installation
Planning the installation 12
Installation
Schemat wariantów podłączenia 16
Schematy poglądowe modułów 17
Preparation 17
Installation of backplate 18
Electrical connection 18
Alternative method for the insertion power cables 20
M20 gland adapter 21
How to prepare
the device
for installation
ENELION LUMINA socket 13
ENELION LUMINA socket premium 14
ENELION LUMINA cable premium 15

4
Table of content
30
31
Practical details
Customer service
Daily use and operation
How do I charge? 28
Interface LED 29
Maintenance 29
Cleaning 29
27
Additional information
for the UK market
Step by step 22
Start-up and conguration of the station 26

5
ENELION LUMINA
products family
ENELION
LUMINA
CABLE
PREMIUM
ENELION
LUMINA
SOCKET
PREMIUM
ENELION
LUMINA
SOCKET
CLOSED
OPENED
ENELION
LUMINA
BACKPLATE

6
Additional tools
necessary for installation
x6 x6
max. 5 mm
5 mm
PH2 + PH3
PZ1 + PZ2 + PZ3
T10 + T15 + T20

7
Safety screws
If the station is provided with safety screws, they are installed in the rear part to prevent unauthorised
persons from removing the head.
If you ordered the bit
needed to remove the
screws is included in the
cardboard box together
with the station.
i
!
UK market only

8
Features
LED INTERFACE
ROOM FOR OPTIONAL
BACKUP POWER SUPPLY
ROOM FOR OPTIONAL
230 V CEE 7/3 SOCKET
SOCKET TYPE 2
RFID CARD READER
ROOM FOR OPTIONAL
CERTIFIED ENERGY METER
WI-FI
LT E

9
Technical specications
Housing Polycarbonate, Anodised aluminum*
Ingress protection rate IP54
Impact protection IK10
Flammability class UL94-V0
Charging connector type ENELION LUMINA Socket – Type 2 socket,
ENELION LUMINA Cable Premium – Type 2 connector with 5.2 m cord
Residual current protection Embedded residual current monitor - Enelion RCMB 6 mA DC
Energy metering Integrated 3-phase energy meter > 99% accuracy
Certied electricity meter (MID) Impulse* – possible to install inside the housing
User interface
• multi-color LED strip EVC status indication;
dedicated app connecting station via Wi-Fi AP 2.4 GHz
• b/g /n
Online communication unit
• integrated LTE/4G modem
• Wi-Fi 2.4 GHz b/g/n – direct access point to the station with an option to
hide the AP and connect the station to local Wi-Fi network
OCPP communication protocol compliance with OCPP 1.6 J protocol
Minimal signal quality requirements • Wi-Fi: -60 dBm
• GSM: -85 dBm
Authorization • built-in RFID/NFC reader – Mifare Classic/Free mode
• dedicated app connected via Wi-Fi AP 2.4 GHz b/g/n
Current/Charging power • up to 7.4 kW at 32 A 1-phase
• up to 22 kW at 32 A 3-phase (TN system)
Charging voltage 3 x 400 V AC/230 V AC (±10%)

10
Supply voltage 3 x 400 V AC/230 V AC (±10 %) (TN/IT)
Possibility of connecting the cable from the top, bottom and the back of the station
Other features
• conguration with no additional tools
• remotely controlled schuko outlet (max 2000 W/10 A)*
• temperature and humidity monitoring inside device
• remote start/stop, delayed start and end of charging
Operating temperature
From -30°C to +55°C
Maximum altitude for installation 2000 m
Height 390 mm
Depth 133 mm
Width 155 mm
Weight 3 kg/4.2 kg (depending on device version)
Compliance
2014/53/EU (RED); 2011/65/EU (RoHS), 2014/30/EU (EMC) ; 2014/35/EU (LVD);
UK SI 2016 No. 1101; UK SI 2016 No. 1091; UK SI 2017 No. 1206; UK SI 2012
No. 3032
The following BSI and ETSI standards and technical specications have
been applied:
ETSI EN 300 328 V2.2.2:2020-03; EN 62196-2:2017-06; EN IEC 61851-
1:2019-10; EN IEC 61851-21-2:2021-09; EN 62196-1:2015-05; ETSI EN 301
511 V12.5.1:2017-10 ETSI EN 300 330 V2.1.1:2017-08; ETSI EN 301 489-1
V2.2.3:2020-07; ETSI EN 301 489-17 V3.2.4:2021-05
* option

11
Safety instructions
Please read this manual before attempting to
install or commission the charger.
Safety instructions for installation:
• Do not carry out outdoor installation during
precipitation or strong winds if there is a risk
that water or debris may enter the device.
• Carry out all operations described in this
manual after ensuring that there is no voltage
in the power cord.
• This product may only be installed, repaired or
serviced by an authorised electrician.
• All local, regional and national electrical
installation regulations must be observed.
• Installation must not be carried out near
explosive atmospheres or in areas where there
is a risk of running water.
• Risk to life from high electrical voltages.
• The product must be permanently installed in
its nal location.
• The product must be installed on a wall or
structure with sufcient load bearing capacity.
• The clamps on the rear panel are live when the
power circuit is closed and must never come
into direct contact with anything other than
the ENELION LUMINA plug-in electronics.
• ENELION LUMINA’s network SSID and
password are required for installation and
conguration; they can be found on the back
of the charging head.
Safety instructions for use
• Never use or touch the device if it is damaged
or not functioning properly.
• Always perform the recommended
maintenance, installation and any repair
work by an authorised service centre and in
accordance with local requirements.
• Do not use water to extinguish a re.
• Never clean the station with high pressure or
running water.
• Do not immerse the station in water or other
liquids.
• Never touch the contacts of the Type 2
socket/plug and never insert foreign objects
into it.
• Never use the charging cable if it is damaged
or if the connector is wet or dirty.
• Do not use extension cables or adapters in
connection with the station.
• If the light bar on the device lights up red, an
error has occurred.
• The charging cable can only be disconnected
from the station by pulling on the plug handle,
not on the cable.
• Make sure that the charging cable does not
cause a tripping or running over hazard.
• Even though the station is designed to
withstand normal weather conditions, it
is recommended to protect it from direct
sunlight or exposure to extreme weather
conditions.
• Do not use the station near strong
electromagnetic elds or in the immediate
vicinity of radio transmitters.

12
of the wire type terminated with collets are
recommended.
• A residual current monitor (RCM) can be
integrated into the ENELION LUMINA charger.
This will switch off the current to the electric
vehicle if: a residual current of 4–6 mA DC
occurs. The RCM is reset by disconnecting the
charging cable and reconnecting it.
The table above shows what charging power
you can expect from your installation.
The table is for information purposes only.
Before the
installation
• This product may only be installed, repaired
or serviced by an authorised electrician.
All local, regional and national electrical
installation regulations must be observed.It
is recommended to consider future charging
needs before installation.
• The power supply to the Enelion charging
terminal must be provided from an electrical
switchgear. The switchgear must have the
required protection in the form of a type B or C
overcurrent circuit breaker and a current rating
of 32 A or less, suitable for the conguration of
the device. To declare compliance with EN IEC
61851-1:2019-10, each charging point must also
be individually protected against Type A and
Type B residual current. This requirement must
be fullled by one of the following:
1. installation of a type B residual current
device (RCDB 30 mA/40 A) or RCD EV
(30 mA/40 A) in the switchgear,
2. installation of a residual current device type
A (RCDA 30 mA/40 A) in the switchgear
using the Enelion RCMB – Residual Current
Monitor type B provided on the charging
terminal.
• The nal selection of the protective equipment
must be made by an authorised designer or
qualied electrician.
• For maximum charging power, it is
recommended to use cables with a conductor
cross-section not exceeding 6 mm2. This
is also the maximum diameter that can be
installed in the connection terminals. For
convenient installation, exible power cords
Load Charging power
Charging
current
(A)
1 phase
(kW)
3 phase
(kW)
61.4 4.1
81.6 5.5
10 2.3 6.9
13 3.0 9
16 3.7 11
20 4.6 13.8
25 5.8 1 7. 3
32 7.4 22

13
01 Undo two long bolts and two screws at the
bottom (1). Repeat with two screws at the
top (2)
How to prepare
the device
for installation
02 Slide out the head module and remove
the housing cover
03 Unscrew the xing screws and remove
the transparent cover
ENELION LUMINA SOCKET
1
1
2
2

14
01 Undo two long bolts at the bottom (1)
and two screws at the top (2)
02 Slide out the head module
ENELION LUMINA SOCKET PREMIUM
2
1
2
03 Unscrew the xing screws and remove
the transparent cover
1

15
1
01 Dismantle the cable holder (1). Undo two
long bolts at the bottom (2) and two
screws (3) at the top
ENELION LUMINA PREMIUM CABLE
03 Unscrew the xing screws and remove
the transparent cover
3
1
2
02 Slide out the head module
2
3

16
Installation
Do not carry out outdoor installation during rain
or strong winds if there is a risk that water or
debris may enter the device.
All of the operations described in this manual
should be carried out after making sure that there
is no voltage in the power cord.
This product may only be installed, repaired
or serviced by an authorised electrician. All
local, regional and national electrical installation
regulations must be observed.
In addition to the steps described on the
following pages, we recommend watching the
installation videos.
https://enelion.com/support-lumina/
Video tutorial

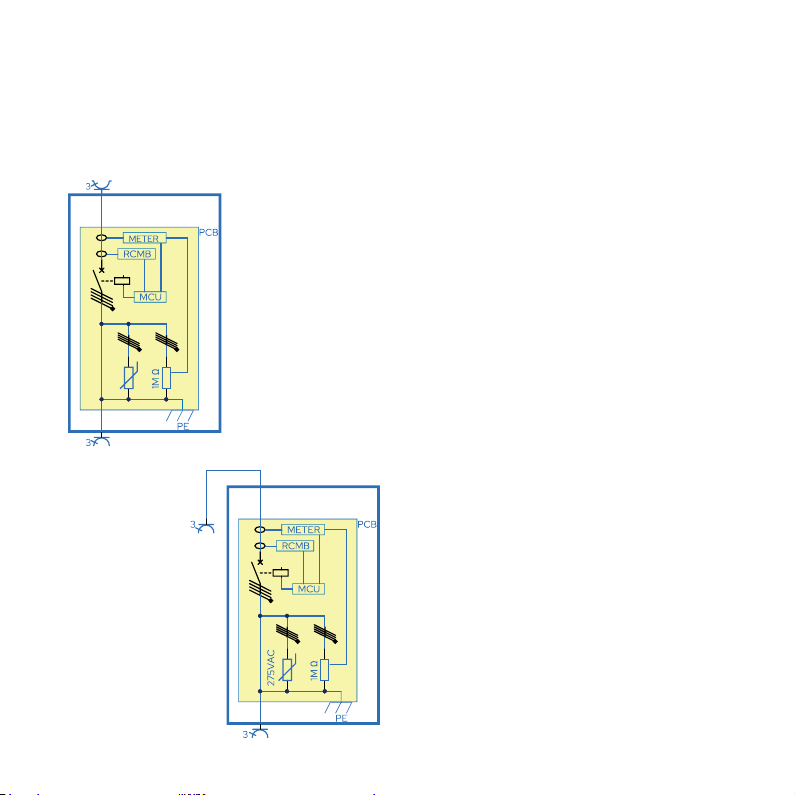

Diagrams
of connection
variants
01
Enelion
LUMINA
Backplate
Enalion
LUMINA
Backplate
32 A/6 kA
30 mA/40 A 30 mA/40 A
Output
connector
Cable line
Main
switchboard
Billing meter
Terminal
block
Output
connector
Terminal
block

17
Preparation
03
In the box with the ENELION LUMINA charger,
you will nd an assembly template to help you
choose the installation location and prepare the
installation holes.
We recommend that you position the station
so that the top edge of the charging station is
approximately 130 cm from the oor.
The electrical cable can be connected to the
station from above, from below and directly from
behind the station at the gland marked on the
template.
The design of the station allows both wall
and pole installation (additional installation
components required – sold separately). We
suggest that there is local Wi-Fi network coverage
at the station installation site and/or LTE mobile
network coverage if the station is to be used
online.
02 Overview
diagrams
of modules
Charging module
Type 2 socket
with RCMB 6 mA DC
Charging module
Type 2 socket
with RCMB 6mA DC
Type 2
socket
Input connector
Input connector
5x6 mm2
H07V2 Ð K 105
0C 1000 V
275 V AC
H07Bz5-F5G 6,0 mm2+ 1x0,75 mm2450/750 V

18
1. Connect the electrical cable.
2. Hang the mounting plate according to the
template.
3. Secure electric cable in the gland.
04 Electrical
connection
Installation of
mounting plate 05
!
Turn off the power before installation.
For maximum charging power, it is recommended
to use cables with a conductor cross-section
not exceeding 6 mm2. This is also the maximum
diameter that can be installed in the connection
terminals. For convenient installation, exible
power cords of the wire type terminated with
collets are recommended.
Installation of the cables in the station cable
terminals does not require any special tools.

19
After preparing the installation, close the
transparent cover.
!
It is recommended to use the existing colour
code used in the wiring. Depending on the
standard in your country, the cable colours
may differ from those shown.
!
Before switching on the power, make sure
that the cables are connected correctly. Test
this by pulling on each wire.

20
06 Alternative
method
for the insertion of
power cables
If it is not feasible to insert the power cables in
the standard way, an alternative method can be
applied.
In the lower part of the rear housing of the station
(if it is not equipped with the optional 230 V
socket), there is a hole for an M25 cable gland
with a blanking plug.
If necessary, the installer can remove the blanking
plug and insert the removed cable gland from the
standard installation variant in its place.
In order to maintain the warranty, the
previously removed plug must be installed in
place of the originally installed cable gland.
!
Other manuals for LUMINA
4
Table of contents
Other Enelion Batteries Charger manuals

Enelion
Enelion LUMINA User manual

Enelion
Enelion Vertica User manual

Enelion
Enelion Wallbox User manual

Enelion
Enelion Stilo User manual

Enelion
Enelion Vertica User manual

Enelion
Enelion LUMINA User manual

Enelion
Enelion Vertica User manual

Enelion
Enelion Vertica User manual

Enelion
Enelion Wallbox Easy User manual

Enelion
Enelion Wallbox User manual
