Enelion LUMINA User manual

Installation
guide
ENELION LUMINA
3 in 1 modular structure — build and upgrade your dreamed solution using the same base module.
Quick installation — get your EV charger ready to work online in no more than 15 minutes of the
installation process.
Video tutorial

Dear
Partner,
Congratulations on your purchase of the Enelion charger
and thank you for your trust.
Up-to-date manuals for users
and installers always available at:
https://enelion.com/support-lumina/
Please read this manual before installation
or prior to the station being commisioned.

Table of content
Introduction 6
Additional tools necessary for installation 6
Optional safety screws 7
Features 8
Technical specications 9
Safety instructions 11
Before the installation 13
How to prepare the device
for installation 14
ENELION LUMINA SOCKET 14
ENELION LUMINA SOCKET PREMIUM 15
ENELION LUMINA PREMIUM CABLE 16
Installation 17

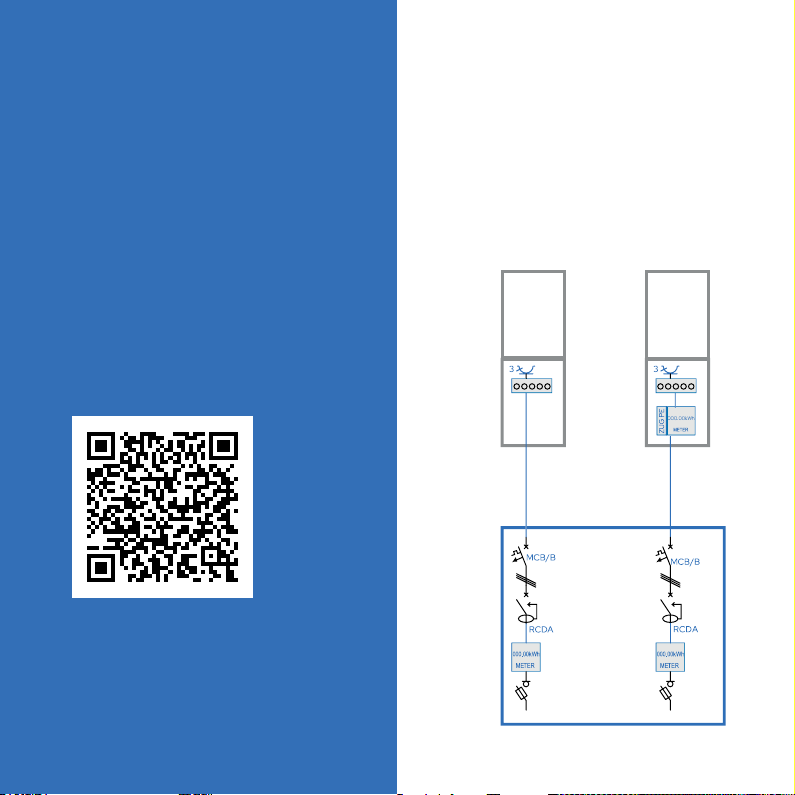

Diagrams of connection variants 17
Overview diagrams of modules 18
Preparation 18

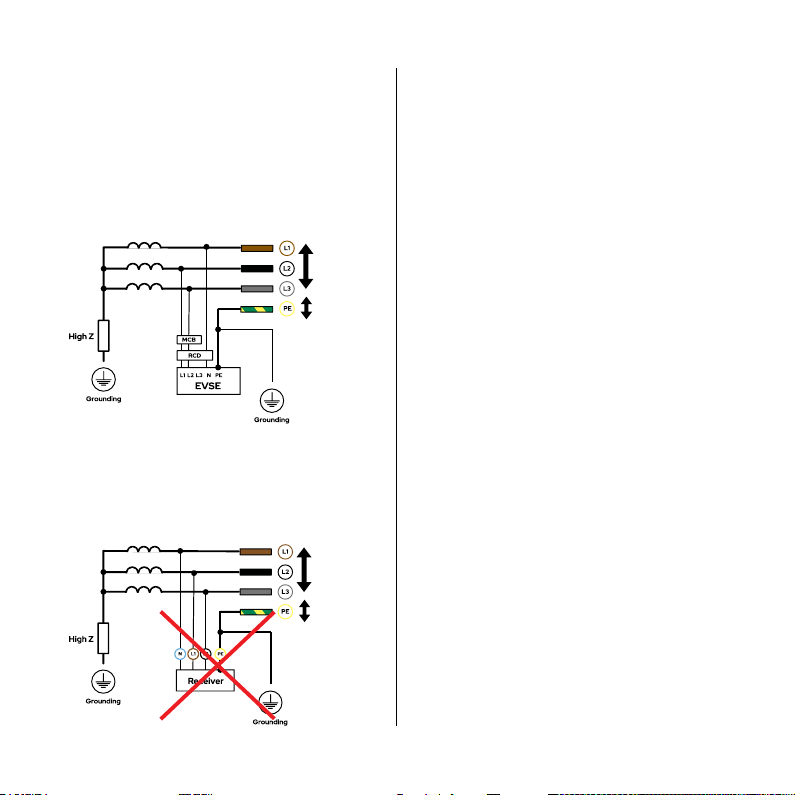

Power Supply Network Systems 18
Installation of mounting plate 21
Electrical connection 21
Alternative method for the insertion of power cables 23
M20 gland adapter 24

Table of contentTable of content
Measuring a 230 V socket. 25
Ethernet connection. 27
Wired communication in ENELION LUMINA. 27
Step by step 29
Start-up and conguration of the station 33
Additional information for
the UK market 34
Pen Fault Detection 34
Daily use and operation 35
How do I charge? 35
Interface LED 36
Maintenance 36
Cleaning 36
Practical details 37
Customer service 39

5
ENELION LUMINA
products family
ENELION
LUMINA
CABLE
PREMIUM
ENELION
LUMINA
SOCKET
PREMIUM
ENELION
LUMINA
SOCKET
CLOSED
OPENED
ENELION
LUMINA
BACKPLATE

6
Additional tools necessary
for installation
x6 x6
max. 5 mm
5 mm
PH2 + PH3
PZ1 + PZ2 + PZ3
T10 + T15 + T20
Introduction

7
Optional safety screws
Each charger kit includes safety screws (additionally secured with a pin to prevent unauthorized access)
that can replace the standard screws attaching the top part of the head to the back, if needed.
The appropriate bit is optionally available as an accessory
or can be purchased separately (size T10H x 25 mm).
If you need the appropriate
bit, you can order it from
us under the index AKC-
BIT-010.
i

8
Features
LED INTERFACE
ROOM FOR OPTIONAL
ETHERNET MODULE
ROOM FOR OPTIONAL
230 V CEE 7/3 SOCKET
SOCKET TYPE 2
RFID CARD READER
ROOM FOR OPTIONAL
CERTIFIED ENERGY METER
WI-FI
LT E

9
Technical specications
Housing Polycarbonate, anodised aluminium, powder coating*
Ingress protection rate IP54
Impact protection IK10
Flammability class UL94-V0
Charging connector type Enelion LUMINA Socket – Type 2 socket,
Enelion LUMINA Cable Premium – Type 2 connector with 5.2 m cord
Residual current protection Embedded residual current monitor - Enelion RCMB 6 mA DC
Energy metering Integrated 3-phase energy meter > 99% accuracy
Certied electricity meter (MID) Impulse* – possible to install inside the housing
User interface • Multi-colour LED strip EVC status indication;
• Dedicated app
Online communication unit
• Integrated LTE/4G modem
• Wi-Fi 2.4 GHz b/g/n – direct access point to the station with an option to
hide the AP and connect the station to local Wi-Fi network
OCPP communication protocol compliance with OCPP 1.6 J protocol
Minimal signal quality requirements • Wi-Fi: -60 dBm
• GSM: -85 dBm
Authorization • Built-in RFID/NFC reader – Mifare Classic/Free mode
• Dedicated app
Current/Charging power • Up to 7.4 kW at 32 A 1-phase
• Up to 22 kW at 32 A 3-phase (TN system)
Charging voltage 3 x 400 V AC/230 V AC (±10%)

10
Supply voltage 3 x 400 V AC/230 V AC (±10 %) (TN/IT)
Possibility of connecting the cable from the top, bottom and the back of the station
Other features
• Conguration with no additional tools
• Remotely controlled 230V socket (max. 2000W/10A)*
• Temperature and humidity monitoring inside device
• Remote start/stop, delayed start and end of charging
Operating temperature
From -30°C to +55°C
Maximum altitude for installation 2000 m
Height 390 mm
Depth 133 mm
Width 155 mm
Weight 3.3-8.9 kg (depending on device version)
Compliance
2014/53/EU (RED); 2011/65/EU (RoHS), 2014/30/EU (EMC) ; 2014/35/EU (LVD);
UK SI 2016 No. 1101; UK SI 2016 No. 1091; UK SI 2017 No. 1206; UK SI 2012
No. 3032
The following BSI and ETSI standards and technical specications have
been applied:
ETSI EN 300 328 V2.2.2:2020-03; EN 62196-2:2017-06; EN IEC 61851-
1:2019-10; EN IEC 61851-21-2:2021-09; EN 62196-1:2015-05; ETSI EN 301
511 V12.5.1:2017-10 ETSI EN 300 330 V2.1.1:2017-08; ETSI EN 301 489-1
V2.2.3:2020-07; ETSI EN 301 489-17 V3.2.4:2021-05
* Option

11
Safety instructions
The Enelion charger (hereinafter referred to as
the device, charger, or charging terminal) is a
charging station designed for electric vehicle
charging within the meaning of the ‘Act on
Electromobility and Alternative Fuels’ dated
January 11, 2018, in paragraphs 5, 12, 13, and 27 of
Article 2 of the aforementioned act.
The installation and servicing of the device
must be carried out by qualied and authorized
individuals, and repairs may only be performed
by the manufacturer or entities authorized by the
manufacturer. During the warranty period, only
authorized service centers and the manufacturer
are allowed to perform warranty repairs.
Interference with mechanical, electrical, and
electronic components, as well as the device’s
software, is strictly prohibited and may void the
warranty. Exceptions are actions described in
the following instruction manual or those agreed
upon in writing with the manufacturer.
The manufacturer is not responsible for property
damage resulting from prohibited interference
with the product.
The electrical installation to be used during device
operation must meet the conditions described
in the installation manual. The manufacturer is
not responsible for incorrect execution and/or
protection of the electrical installation to which
the device is connected.
The manufacturer is not responsible for the
improper functioning of the electrical installation
to which the device is connected.
The electrical installation to be used during
device operation must comply with the legal
standards applicable at the installation and
operation location of the device.
The manufacturer is not responsible for damages
caused by an electrical installation that does not
comply with legal standards.
The device does not have a built-in power switch.
The device is activated when the power supply
voltage is applied. Power disconnection must be
ensured by appropriate devices in the electrical
installation described in the installation manual.
Except in emergency situations, the device
should not be switched off during the charging
process.
It is prohibited to power on the device when the
device housing is open.
It is prohibited to use a charger that is
mechanically damaged or indicates a critical error.
Objects not intended for this purpose must
not be placed in the charger socket. The only
object intended for insertion into the charger
socket is a functional power cable with the
appropriate power and type for the electric
vehicle, terminated with a functional type 2 plug
according to EC 621962.
The use of extension cords, adapters, and
charging cable extensions is prohibited.
The manufacturer is not responsible for loss of
health or life resulting from non-compliance with
the above recommendations.

12
During the warranty period, the manufacturer
allows the purchase of support packages for the
device (extended warranty/service) subject to a
qualifying review before purchasing the package.
Details can be obtained from the Enelion sales
department.
The charging station does not support ventilation
functions.

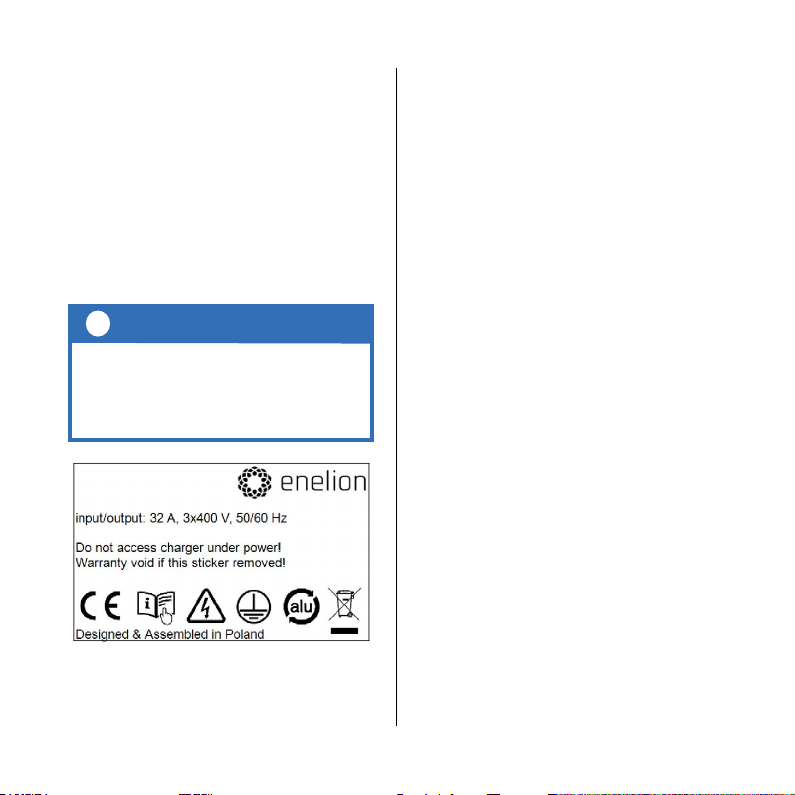

The nameplate present on the device is an
integral part of it and must not be removed or
damaged, as this may result in the loss of the
manufacturer’s warranty.
Three self-adhesive labels with information
about the current value have been included
in the set. Please select the appropriate one
according to the specications and afx it next
to the nameplate.
i

13
of the wire type terminated with collets are
recommended.
• A residual current monitor (RCM) can be
integrated into the Enelion LUMINA charger.
This will switch off the current to the electric
vehicle if: a residual current of 4–6 mA DC
occurs. The RCM is reset by disconnecting the
charging cable and reconnecting it.
The table above shows what charging power
you can expect from your installation.
The table is for information purposes only.
Before the
installation
• This product may only be installed, repaired
or serviced by an authorized electrician.
All local, regional and national electrical
installation regulations must be observed. It
is recommended to consider future charging
needs before installation.
• The power supply to the Enelion charging
terminal must be provided from an electrical
switchgear. The switchgear must have the
required protection in the form of a type B or C
over current circuit breaker and a current rating
of 32 A or less, suitable for the conguration of
the device. To declare compliance with EN IEC
61851-1:2019-10, each charging point must also
be individually protected against Type A and
Type B residual current. This requirement must
be fullled by one of the following:
1. Installation of a type B residual current
device (RCD B 30 mA/40 A) or RCD EV
(30 mA/40 A) in the switchgear,
2. Installation of a residual current device type
A (RCD A 30 mA/40 A) in the switchgear
using the Enelion RCMB – Residual Current
Monitor type B provided on the charging
terminal.
• The nal selection of the protective equipment
must be made by an authorized designer or
qualied electrician.
• For maximum charging power, it is
recommended to use cables with a conductor
cross-section not exceeding 6 mm2. This
is also the maximum diameter that can be
installed in the connection terminals. For
convenient installation, exible power cords
Load Charging power
Charging
current
(A)
1 phase
(kW)
3 phase
(kW)
61.4 4.1
81.6 5.5
10 2.3 6.9
13 3.0 9
16 3.7 11
20 4.6 13.8
25 5.8 1 7. 3
32 7.4 22

14

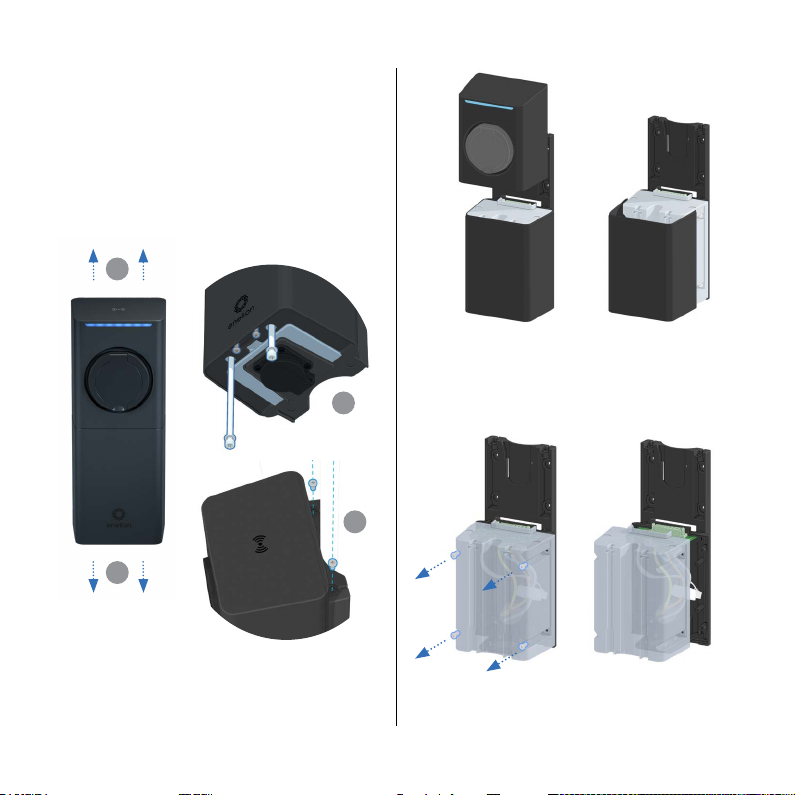

01 Undo two long bolts and two screws at the bottom (1). Repeat with two screws at the
top (2)
How to prepare
the device for
installation
02 Slide out the head module and remove the housing cover
03 Unscrew the xing screws and remove
the transparent cover
ENELION LUMINA SOCKET
1
1
2
2

15

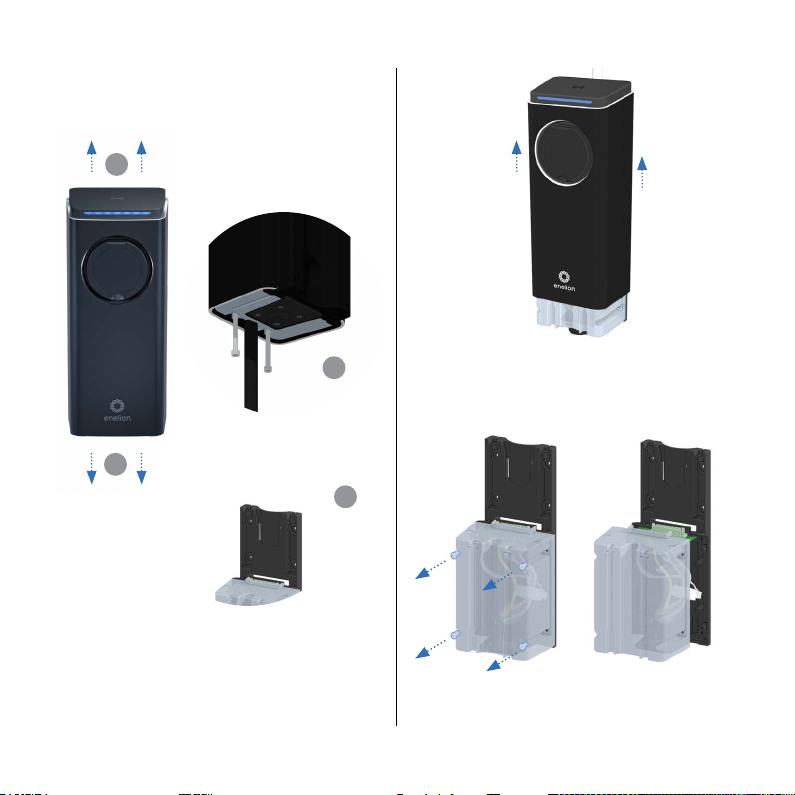

01 Undo two long bolts at the bottom (1) and two screws at the top (2)
02 Slide out the head module
ENELION LUMINA SOCKET PREMIUM
2
1
2
03 Unscrew the xing screws and remove
the transparent cover
1

16
1

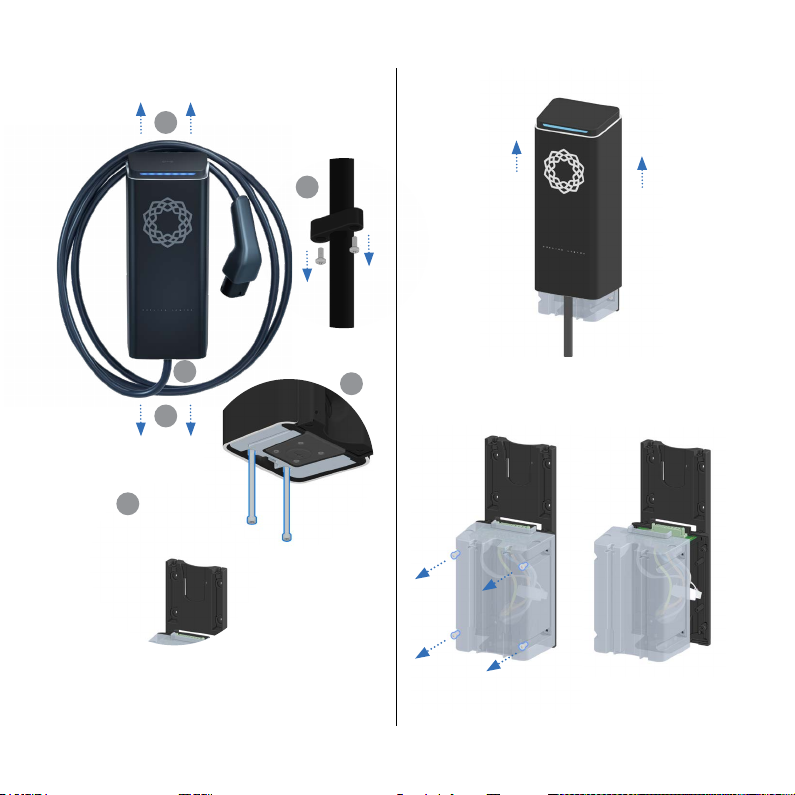

01 Dismantle the cable holder (1). Undo two long bolts at the bottom (2) and two
screws (3) at the top
ENELION LUMINA PREMIUM CABLE
03 Unscrew the xing screws and remove
the transparent cover
3
1
2
02 Slide out the head module
2
3

17
Do not carry out outdoor installation during rain
or strong winds if there is a risk that water or
debris may enter the device.
All of the operations described in this manual
should be carried out after making sure that there
is no voltage in the power cord.
This product may only be installed, repaired
or serviced by an authorized electrician. All
local, regional and national electrical installation
regulations must be observed.
In addition to the steps described on the
following pages, we recommend watching the
installation videos.
https://enelion.com/support-lumina/
Video tutorial
01
Enelion
LUMINA
Backplate
Enalion
LUMINA
Backplate
32 A/6 kA
30 mA/40 A 30 mA/40 A
Output
connector
Cable line
Main
switchboard
Billing meter
Terminal
block
Output
connector
Terminal
block
Installation Diagrams of
connection
variants

18
Preparation
03
In the box with the Enelion LUMINA charger,
you will nd an assembly template to help you
choose the installation location and prepare the
installation holes.
We recommend that you position the station
so that the top edge of the charging station is
approximately 130 cm from the oor.
The electrical cable can be connected to the
station from above, from below and directly from
behind the station at the gland marked on the
template.
The design of the station allows both wall
and pole installation (additional installation
components required – sold separately). We
suggest that there is local Wi-Fi network coverage
at the station installation site and/or LTE mobile
network coverage if the station is to be used
online.
02 Overview
diagrams of
modules
03.1 Power Supply
Network Systems
Enelion charging stations are designed for ve-
wire power supply. In a TN-S 230/400V network,
this is the standard option.
Charging module
Type 2 socket
with RCMB 6 mA DC
Charging module
Type 2 socket
with RCMB 6mA DC
Type 2
socket
Input connector
In
p
ut connector
5x6 mm2
H0 5
0C 1000 V
275 V AC
H07Bz5-F5G 6,0 mm2+ 1x0,75 mm2450/750 V

19
It is possible to power the station from other
network systems described below:
In the TN-C system conguration, you should
separate the PEN conductor into N and PE as
shown in the diagram below.
In the case of an IT network with 120/230 V, as
found in Norway, the connection appears as
follows.

20
It should be noted that one of the phases serves
as the Neutral conductor, which is important
during the installation of RCD (Residual Current
Device). In such a network, it is not possible to
charge in three phases; only some vehicles will be
able to charge in two phases.
It is not possible to power the station from an IT
network with 230/400V.
Other, more complex power systems require
technical consultation before purchase.
IT 120/230 V
Generator or transformer
IT 400/230 V NOT ALLOWED!!!
Generator or transformer
Phase-Phase
400 V
Phase-Phase
230 V
Phase-PE
230 V
Phase-PE
120 V
