Energetic Lighting E4FMR Series User manual

1
CCT & Wattage Selectable
RoundFlushmount
Ceiling Fixture
Installation Instructions
Model # E4FMR series
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-492-6566.
Item Number Purchase Date
ATTACH YOUR RECEIPT HERE
www.energeticlighting.com

NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on. The
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
32

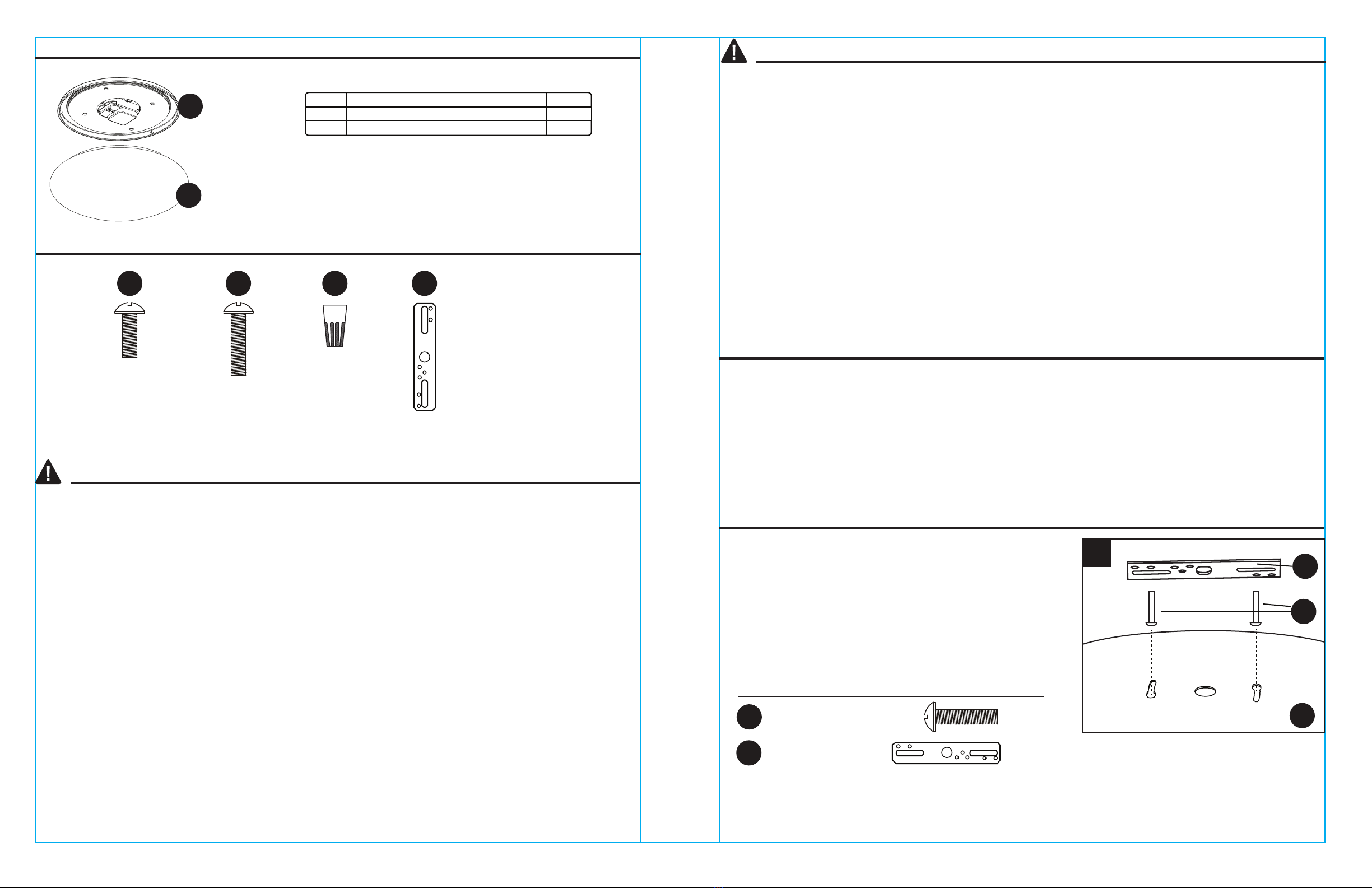

PACKAGE CONTENTS SAFETY INFORMATION
•
-
-
-
-
HARDWARE CONTENTS (shown actual size)
BB
Long Screw
Qty. 2
AA
Short Screw
Qty. 2
CC
Wire Nut
Qty. 3
DD
Crossbar
(Not to scale)
Qty. 1
Please read and understand this entire manual before attempting to assemble, operate or
install the product. Failure to do so could lead to electric shock, fire or other injuries that
could be hazardous or even fatal.
Be sure the electricity to the wires you are working on is shut off. Either remove the fuse or
turn off the circuit breaker.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CAUTION:
The fixture body is one piece. Do not disassemble it.
This fixture is dimmable with most phase-cut triac dimmer switches, for the latest
compatibility list, please visit www.energeticlighting.com.
NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 15 minutes
Tools Required for Assembly (not included): Phillips Screwdriver
SAFETY INFORMATION
•
•
•
•
•
INSTALLATION INSTRUCTIONS
PREPARATION
Hardware Used
1. Align two of the threaded holes on crossbar (DD) over
one set of keyhole slots on the fixture pan (A). From
the inside of fixture pan (A), insert long screws (BB)
into aligned holes, leaving about 1 in. of space
between the screw heads and crossbar (DD).
Note: Do not install fixture pan (A) yet.
A
BB
1DD
Long Screw x 2
Crossbar x 1
BB
DD
www.energeticlighting.com www.energeticlighting.com
Part Item Name Qty.
A
B
Fixture Pan
Diuser
1
1
A
B

4 5
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
DD
2. Attach crossbar (DD) to outlet box (not included)
using short screws (AA).
2
AA
CC
3. Connect the fixture wires to the supply wires -- black
to black, white to white, and green to copper/bare.
WARNING: If there is no ground supply wire, stop
installation and consult a qualified
electrician.
Once wire connections are made, secure each with a
wire nut (CC).
3
A
4. Lift fixture pan (A) up toward ceiling and carefully tuck
wires into outlet box. Align keyholes on fixture pan
(A) with long screws (BB), then twist fixture pan (A)
until the long screws (BB) engage the narrow end of
the keyholes. Tighten long screws (BB) to secure.
4
DD
Hardware Used
AA Short Screw x 2
Hardware Used
Wire Nut x 3
CC
www.energeticlighting.com www.energeticlighting.com
A
6. Align the tabs on fixture pan (A) with the
channels on diffuser (B), then insert
diffuser (B) into fixture pan (A).
Carefullly twist the diffuser (B) clockwise
until secure.
CAUTION: Make sure the upper lip of
diffuser (B) is secured completely by the
tabs on fixture pan (A). If not, the
diffuser (B) could potentially fall and
break.
6
5. This fixture allows the correlated color temperature
(CCT) of the LEDs to be adjusted from warm white
(3000K) to cool white (5000K) as desired. The
wattage can also be adjusted to a lower level if a fixed
lower light level is desired for fixture location. Before
proceeding to the next step, the CCT switch and
Wattage switch should be set to the desired positions
by moving the toggle switch through the range of
detents or clicks and following the position markings
next to each switch.
5
CCT select switch
Wattage select
switch
A
BB
B

6
This fixture is warranted to perform free from defects for five(5) years. If it fails to do so, you may
return it with proof of purchase to 13445 12th St., Chino, CA 91710 for replacement.
WARRANTY
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fixture does not light.
Circuit breaker trips when
light is turned on.
1. Power is off.
2. Incorrect wire connection.
3. Defective wall switch.
Crossed wires or power wire is
grounded out.
1. Check circuit breaker or wall
switch.
2. Check wire splices.
3. Replace switch.
Verify wires are correctly con-
nected.
CARE AND MAINTENANCE
Clean with a mild, non-abrasive glass cleaner and soft cloth. Do NOT use solvents or clean-
ers containing abrasive agents. When cleaning the fixture, make sure the power is turned
off, and any liquid spray should be applied to the cleaning cloth and not sprayed directly onto
the fixture itself.
Printed in China
