EnGenius EAP300 User manual

1
High Output Power
802.11 b/g/n Multi-function Access Point
EAP300
802.11 N Multi-Function Access Point
V1.0

1
Table of Contents
1Introduction ....................................................................................................................................................................... 4
1.1 Features and Benefits .....................................................................................................................................................................................4
1.2 Package Contents ............................................................................................................................................................................................5
1.3 System Requirements.....................................................................................................................................................................................6
1.4 Applications .......................................................................................................................................................................................................6
2Before you Begin............................................................................................................................................................... 8
2.1 Considerations for Wireless Installation ..................................................................................................................................................8
2.2 Computer Settings (Windows XP/Windows 7)......................................................................................................................................9
2.3 Apple Mac X OS............................................................................................................................................................................................. 12
2.4 Hardware Installation................................................................................................................................................................................... 13
3Configuring Your Access Point ...................................................................................................................................... 14
3.1 Default Settings ............................................................................................................................................................................................. 14
3.2 Web Configuration....................................................................................................................................................................................... 15
4System .............................................................................................................................................................................. 18
4.1 Operation Mode............................................................................................................................................................................................ 18
4.2 Status................................................................................................................................................................................................................. 20
4.3 DHCP ................................................................................................................................................................................................................. 22
4.4 Schedule........................................................................................................................................................................................................... 24
4.5 Event Log ......................................................................................................................................................................................................... 26
4.6 Monitor............................................................................................................................................................................................................. 27
5Wireless ............................................................................................................................................................................ 28
5.1 Status................................................................................................................................................................................................................. 28
5.2 Basic ................................................................................................................................................................................................................... 29

2
5.3 Advanced ......................................................................................................................................................................................................... 31
5.4 Security ............................................................................................................................................................................................................. 35
5.5 Filter ................................................................................................................................................................................................................... 41
5.6 WPS (Wi-Fi Protected Setup).................................................................................................................................................................... 43
5.7 Client List.......................................................................................................................................................................................................... 45
5.8 VLAN.................................................................................................................................................................................................................. 46
6Network............................................................................................................................................................................ 47
6.1 Status................................................................................................................................................................................................................. 47
6.2 LAN..................................................................................................................................................................................................................... 48
6.3 Spanning Tree ................................................................................................................................................................................................ 50
7Management.................................................................................................................................................................... 51
7.1 Admin................................................................................................................................................................................................................ 51
7.2 SNMP................................................................................................................................................................................................................. 52
7.3 Firmware Upgrade........................................................................................................................................................................................ 54
7.4 Configure ......................................................................................................................................................................................................... 57
7.5 Reset .................................................................................................................................................................................................................. 58
8Tools.................................................................................................................................................................................. 59
8.1 Time Setting.................................................................................................................................................................................................... 59
8.2 Diagnosis.......................................................................................................................................................................................................... 60
8.3 LED Control ..................................................................................................................................................................................................... 61
9Logout .............................................................................................................................................................................. 62
Appendix A – FCC Interference Statement .......................................................................................................................... 63

3
Revision History
Version
Date
Notes
1.0
Sep. 12, 2011
First Release

4
1Introduction
The EAP300 is a multi-functioned 802.11b/g/n product with 3 major functions. It is designed to operate in every
working environment for enterprises.
The EAP300 is a Wireless Network device that delivers up to 6x faster speeds and 7x extended coverage than 802.11b/g
devices. The EAP300 supports use in the home network with superior throughput, performance, and unparalleled
wireless range.
To protect data during wireless transmissions, the EAP300 encrypts all wireless transmissions through WEP data
encryption and supports WPA/WPA2 encryption. Its MAC address filter allows users to select stations to access the
network. The EAP300 is an ideal product to ensure network safety for both home and enterprise environments.
1.1 Features and Benefits
Features
Benefits
High Speed Data Rate Up to 300Mbps Capable of handling heavy data payloads such as HD multimedia
streaming.
10/100 Fast Ethernet Supports up to 100Mbps networking speed.
IEEE 802.11n draft Compliant and backward
compatible with 802.11b/g
Fully compatible with IEEE 802.11b/g/n devices.
Multi-Functional Allows users to select AP, WDS AP, or WDS Bridge mode in various
applications.
Point-to-Point or Point-to-Multipoint
Wireless Connectivity
Allows transfer of data from building to building.

5
Support Multiple SSID (up to 4) in AP mode Allows clients to access different networks through a single access
point and assign different policies and functions for each SSID
through the built in software.
WPA/WPA1/IEEE 802.1x support Powerful data security.
MAC Address filtering (AP mode) Ensures secure network connections.
User isolation support (AP mode) Protects the private network between client users.
Power-over-Ethernet (IEEE802.3af) Flexible Access Point locations and saving cost.
Save User Settings Firmware upgrade does not delete user settings.
SNMP Remote Configuration Management Allows remote connection to configure or manage the EAP300
easily.
QoS (WMM) support Enhanced user performance and density.
1.2 Package Contents
The EAP300 package contains the following items (all items must be in package to issue a refund):
•EAP300
•12V/1A 100V~240V Power Adapter
•RJ-45 Ethernet LAN Cable
•CD-ROM with User Manual
•Quick Guide

6
1.3 System Requirements
The following are the minimum system requirements in order configure the device.
•Computer with an Ethernet interface or Wireless Network.
•Windows, Mac OS, or Linux based operating systems.
•Web-Browsing Application (example: Internet Explorer, FireFox, Safari, or other similar software)
1.4 Applications
Access Point products are easy to install and highly efficient. The following list describes some of the many applications
made possible through the power and flexibility of the use of Wireless Access Points:
a) Difficult-to-Wire Environments
There are many situations where wires cannot be laid easily. Historic buildings, older buildings, multiple
buildings, and/or open areas make the installation of a Wired LAN impossible, impractical, and/or expensive.
b) Temporary Workgroups
Consider situations in open areas such as parks, athletic arenas, exhibition centers, temporary offices, and
construction sites where one wants a temporary Wireless LAN established and easily removed.
c) The Ability to Access Real-Time Information
Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while
dealing with patients, serving customers, and/or processing information.
d) Frequently changed environments
Show rooms, meeting rooms, retail stores, and manufacturing sites where the network connection needs to
frequently be taken down.

7
e) Small Office and Home Office (SOHO) Networks
SOHO users need a cost-effective, easy and quick installation of a small network.
f) Wireless Extensions to Ethernet networks
Network managers in dynamic environments can minimize the overhead caused by moves, extensions to
networks, and other changes with wireless LANs.
g) Wired LAN backup
Network managers implement wireless LANs to provide backup for mission-critical applications running on
wired networks.
h) Training/Educational facilities
Training sites at corporations and students at universities use wireless connectivity to ease access to
information, information exchanges, and learning.

8
2Before you Begin
This section will guide you through the installation process. Placement of the ENGENIUS EAP300 is very important to
maximize the EAP300’s performance. Avoid placing the EAP300 in an enclosed space such as a closet, cabinet, or
wardrobe.
2.1 Considerations for Wireless Installation
The operating distance of all wireless devices cannot be pre-determined due to a number of unknown obstacles in the
environment that the device is deployed in. These could be the number, thickness, and location of walls, ceilings, or
other objects that the wireless signals must pass through. Here are some key guidelines to ensure that you have the
most optimal wireless range.
•Keep the number of walls and/or ceilings between the EAP300 and other network devices to a minimum. Each wall
and/or ceiling can reduce the signal strength, resulting in lower signal strength.
•Building materials makes a difference. A solid metal door and/or aluminum stubs may have a significant negative effect
on the signal strength of the EAP300. Locate your wireless devices carefully so the signal can pass through a drywall
and/or open doorways. Materials such as glass, steel, metal, concrete, water (example: fish tanks), mirrors, file cabinets,
and/or brick can also lower your wireless signal strength.
•Interferences can also come from other electrical devices and/or appliances that generate RF noise. The most usual
types are microwaves and cordless phones.

9
2.2 Computer Settings (Windows XP/Windows Vista/Windows 7)
In order to use the EAP300, you must first configure the TCP/IPv4 connection of your computer system.

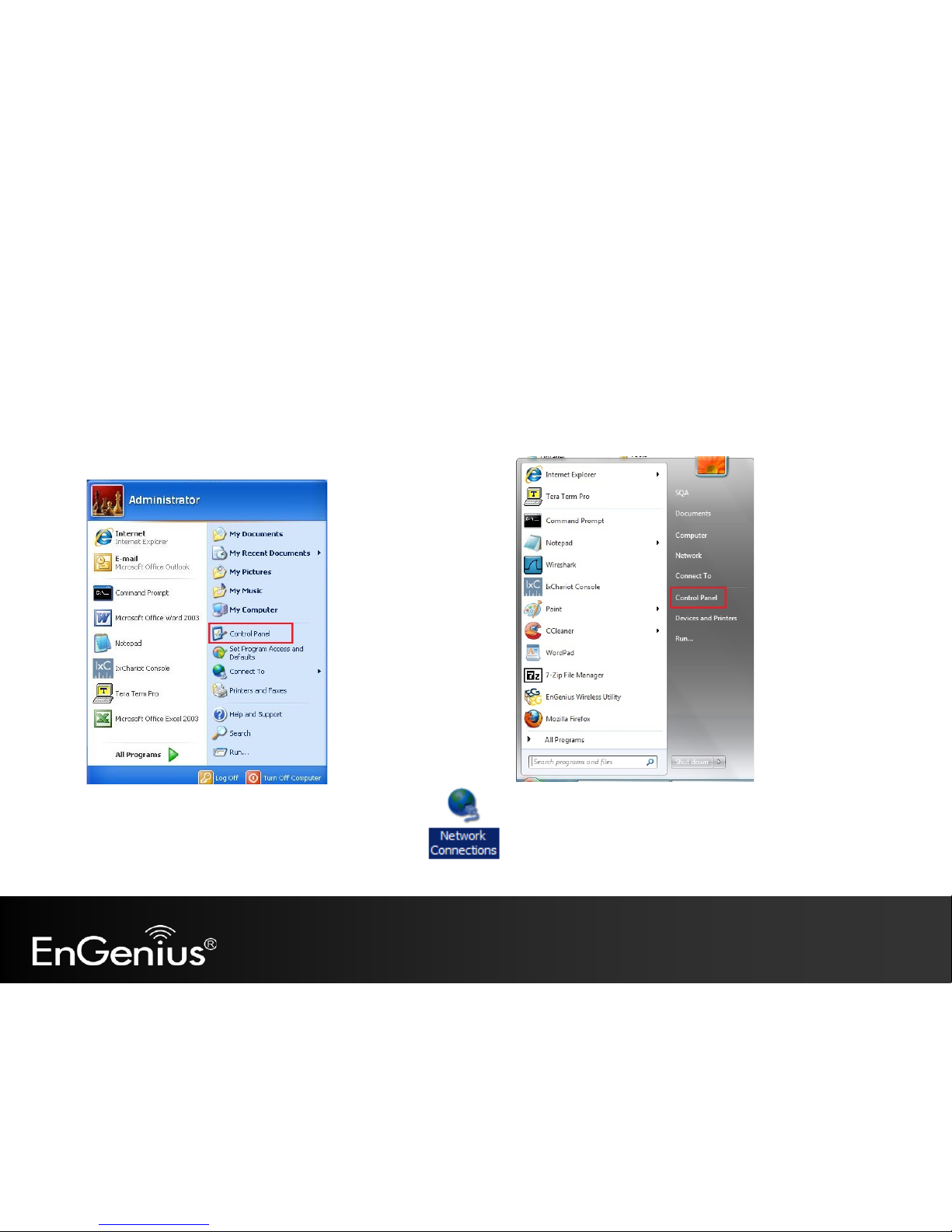

•Click Start button and select Control Panel.
Windows XP Windows Vista/Windows 7

10

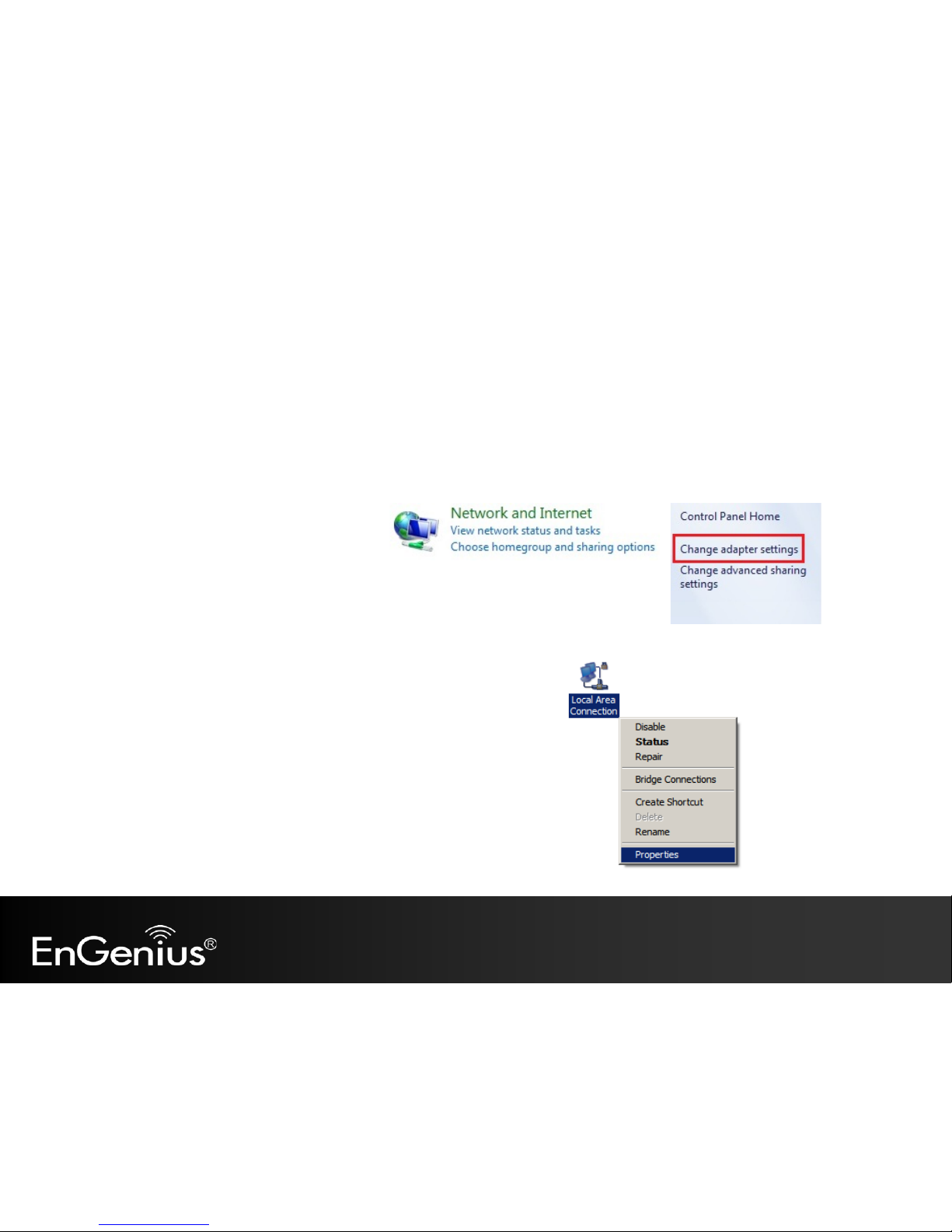

•In Windows XP, click Network Connections
•In Windows 7, click View Network Status and Tasks in the Network and Internet section, then select Change
Adapter Settings
•Right click on Local Area Connection and select Properties

11

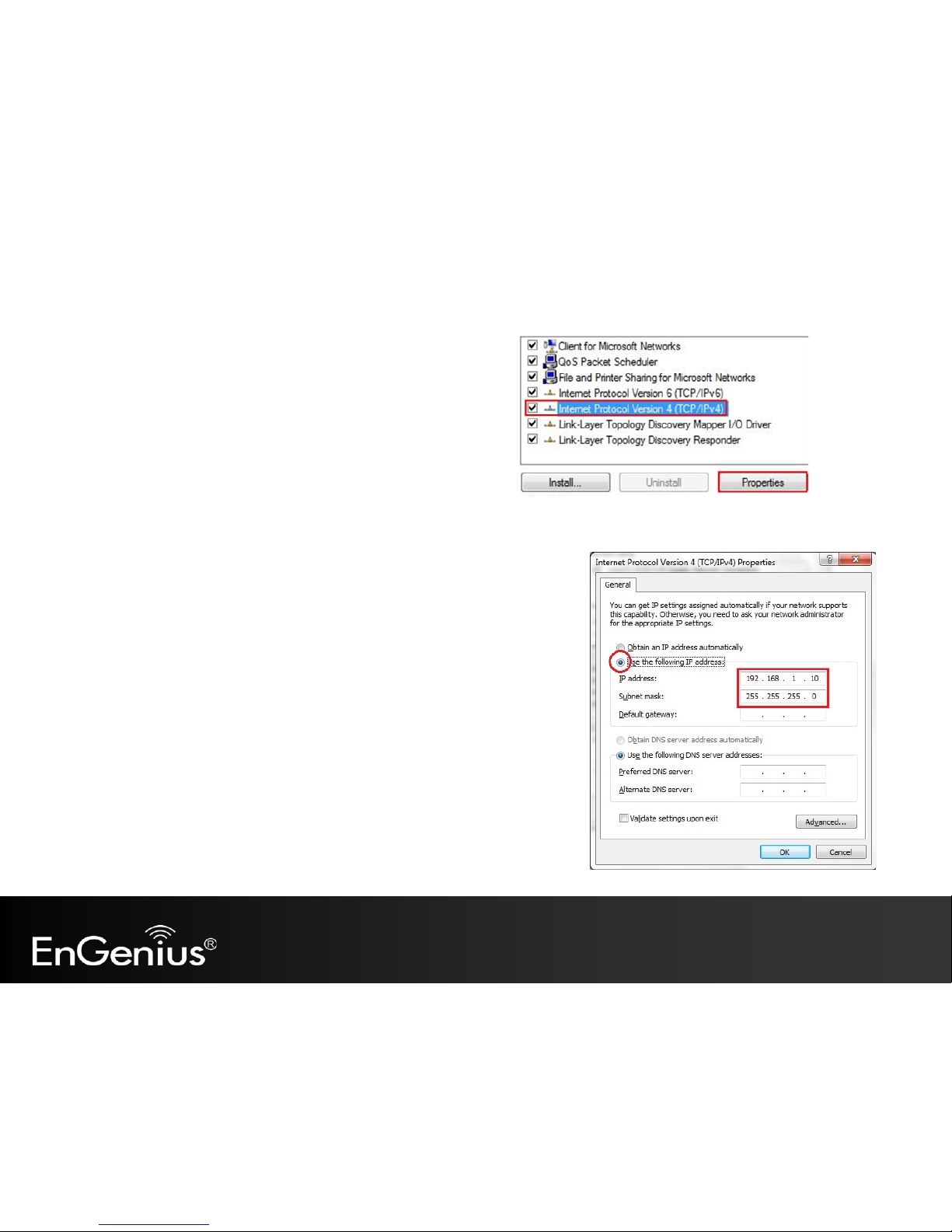

•Highlight Internet Protocol Version 4 (TCP/IPv4)and select
Properties
•Select Use the following IP address and enter IP address and subnet
mask then press OK.
Note: Ensure that the IP address and subnet mask are on the same
subnet as the device.
For example: Device IP address: 192.168.1.1
PC IP address: 192.168.1.2 - 192.168.1.999
PC subnet mask: 255.255.255.0

12

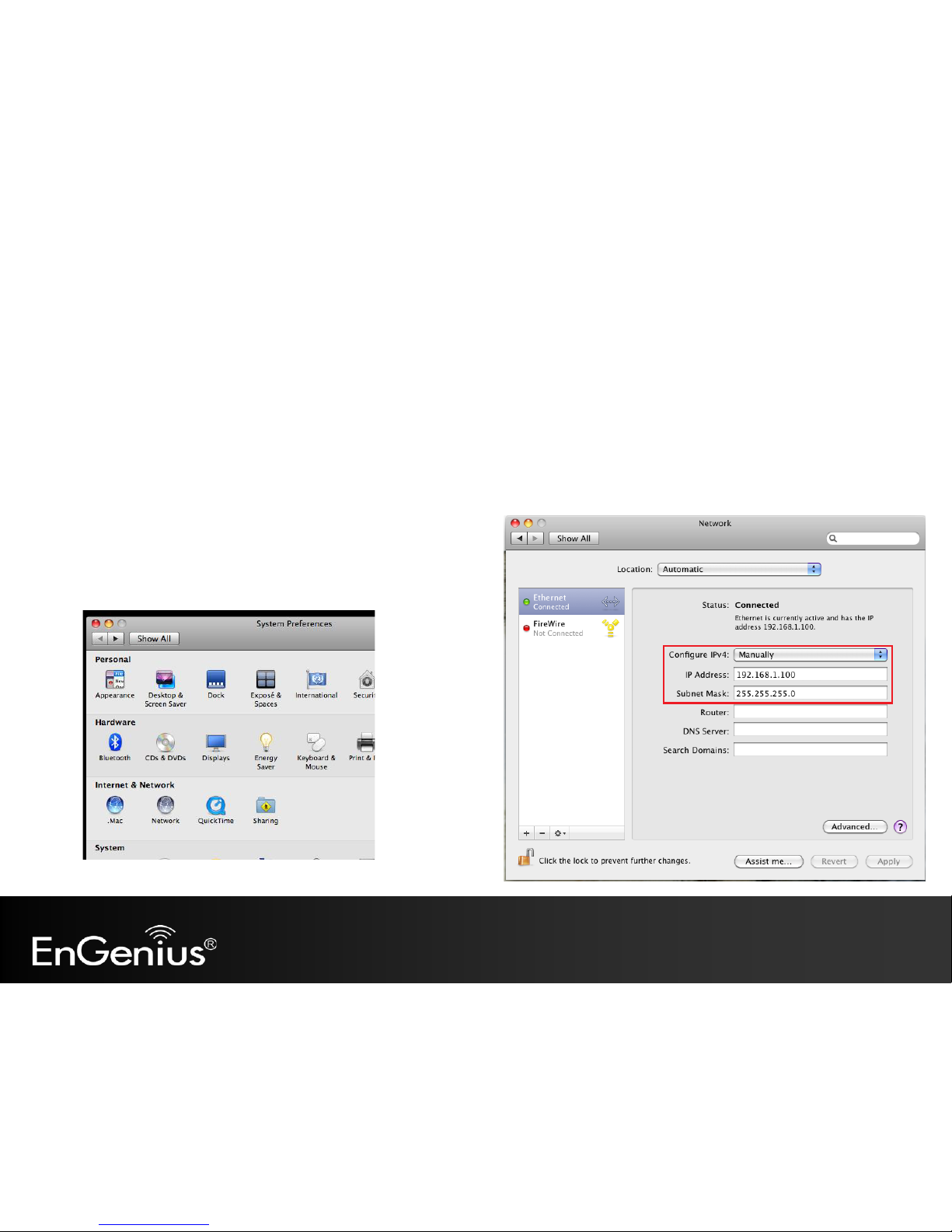

2.3 Apple Mac X OS
•Open the System Preferences (can be opened in the Applications folder or selecting it in the Apple Menu)
•Select Network in the Internet & Network section
•Highlight Ethernet
•In Configure IPv4, select Manually
•Enter IP address and subnet mask then press OK.
Note: Ensure that the IP address and subnet mask are on the same subnet as the device.
For example: Device IP address: 192.168.1.1
PC IP address: 192.168.1.2 - 192.168.1.999
PC subnet mask: 255.255.255.0
•Click Apply when done.

13
2.4 Hardware Installation
1) Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more information, verify with our
computer user manual.
2) Connect one end of the Category 5 Ethernet cable into RJ-45 port of the EAP300 and the other end to the RJ-45
port on the computer that will use the EAP300. Ensure that the cable is securely connected to both the EAP300 and
the Computer.
3) Connect the Power Adaptor DC Inlet to the DC-IN port of the EAP300 and the Power Adaptor to the electrical out.
Once both connections are secure, verify the following:
a) Ensure that the Power light is on (it will be blue).
b) Ensure that the Wireless light is on (it will be blue).
c) Ensure that the LAN (Computer/EAP300 Connection) light is on (it will be blue).
d) Once all three lights are on, proceed to setting up the computer.

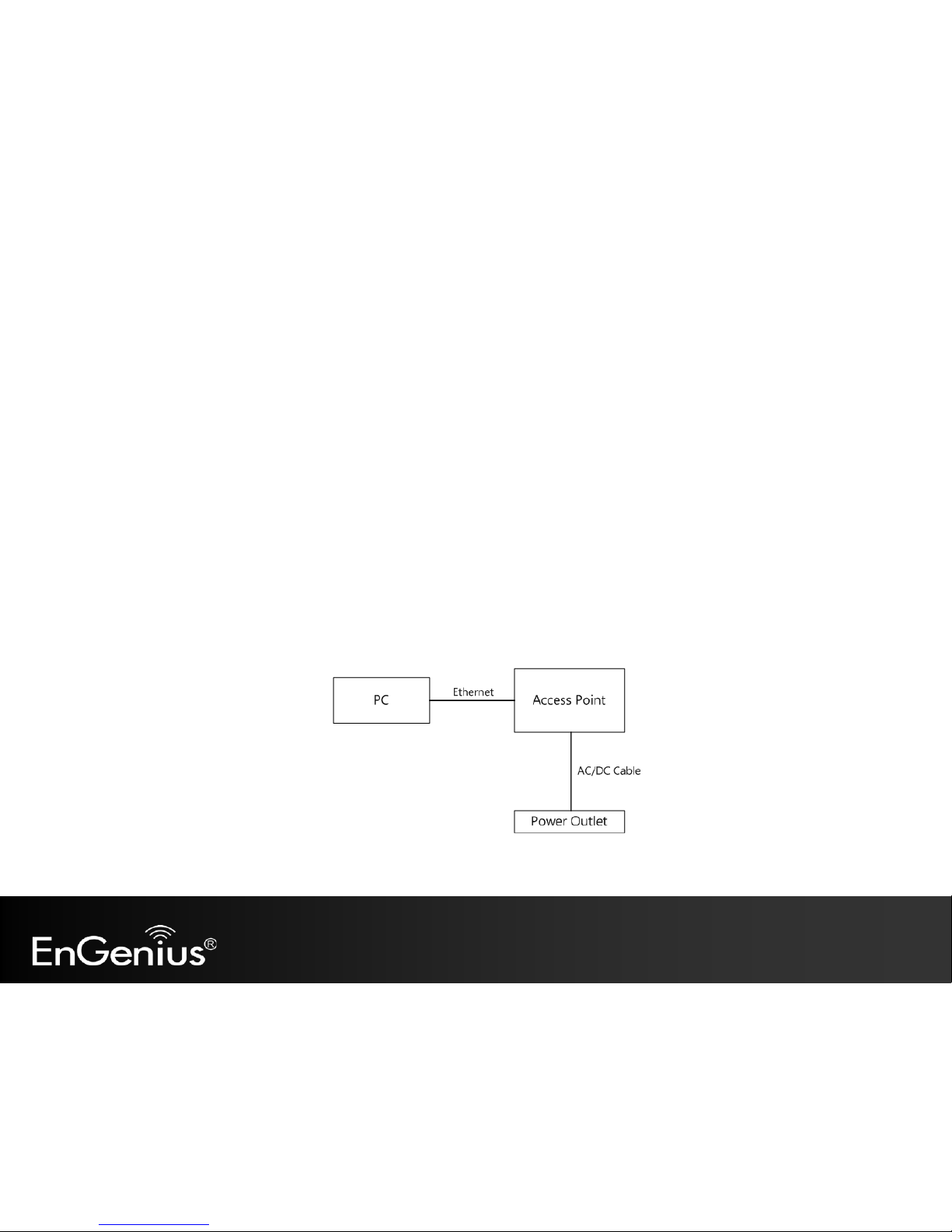

This diagram depicts the hardware configuration.

14
3Configuring Your Access Point
This section will show you how to configure the device using the web-based configuration interface.
3.1 Default Settings
Please use your Ethernet port or wireless network adapter to connect the Access Point.
Default Settings
IP Address
192.168.1.1
Username / Password
admin / admin
Operation Mode
Access Point
Wireless SSID
EnGeniusxxxxxx
Wireless Security
None
Note: xxxxxx represented in the wireless SSID above is the last 6 characters of your device MAC Address. This can be found on the device body
label and is unique for each device.

15
3.2 Web Configuration

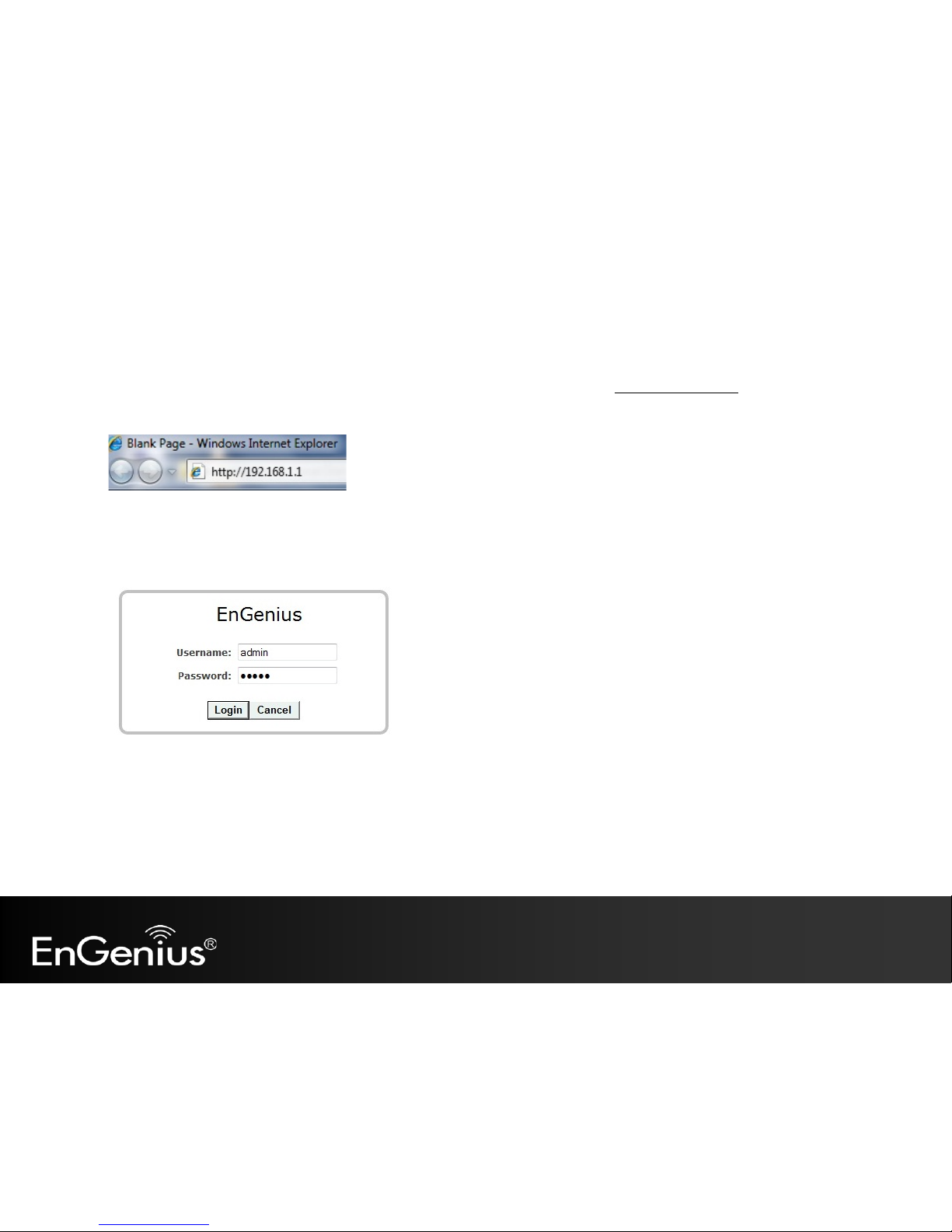

•Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address: http://192.168.1.1
Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.
•The default username and password are admin. Once you have entered the correct username and password, click the
Login button to open the web-base configuration page.

16

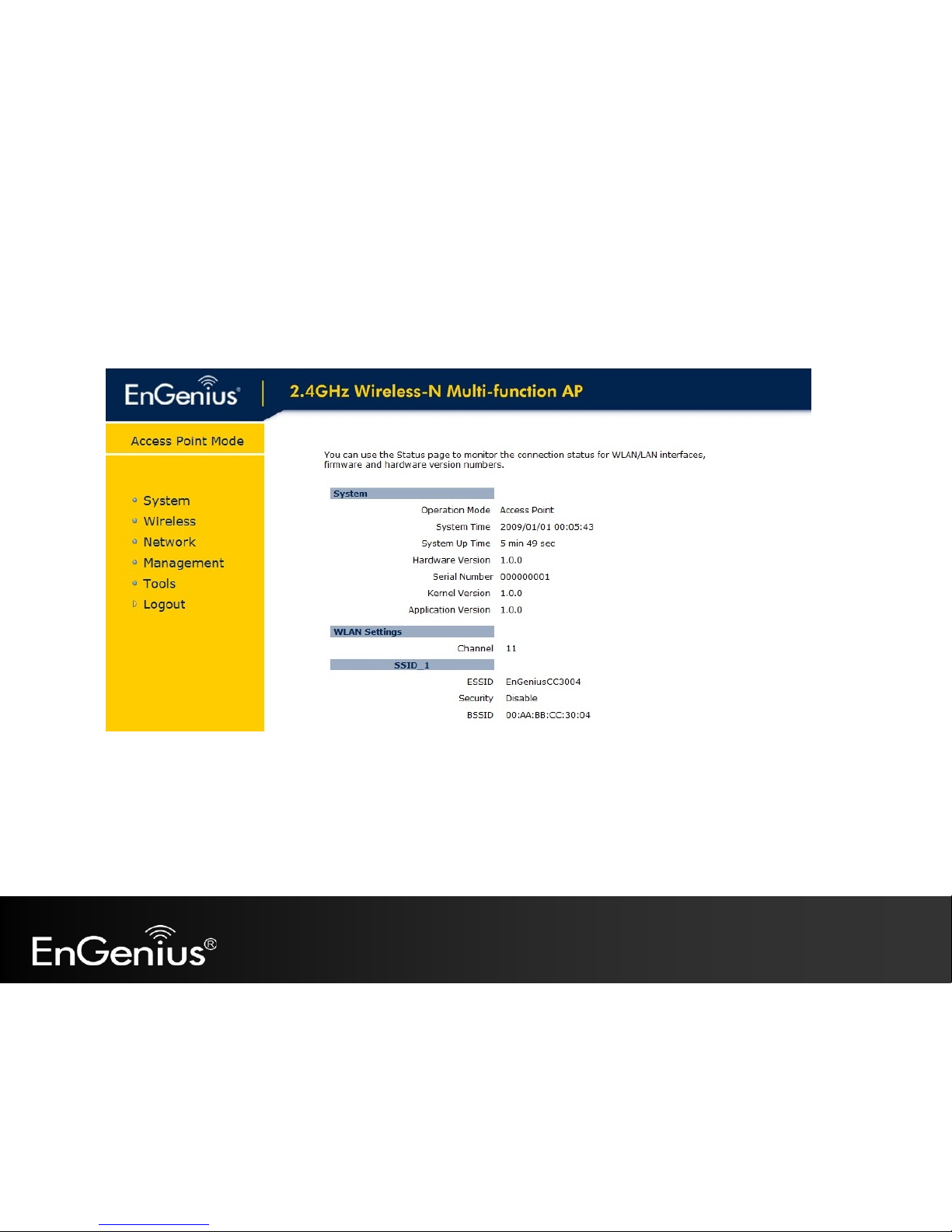

•If successful, you will see the EAP300 User Menu

17
•The navigation drop-down menu on left is divided into seven main sections:
1. System: This menu includes the Operation Mode, Status, DHCP, Schedule, Event Log, and Monitor.
2. Wireless: This menu includes Status, Basic, Advanced, Security, Filter, Client List, and VLAN.
3. Network: This menu includes Status, LAN, and Spanning Tree.
4. Management: This menu includes the Admin,SNMP, Firmware, Configure, and Reset.
5. Tools: This menu includes Time Zone, Diagnostics, and LED Control.
6. Logout: Used to logout of the EAP300 User Interface. To login, user must open a new browser window.

18
4System

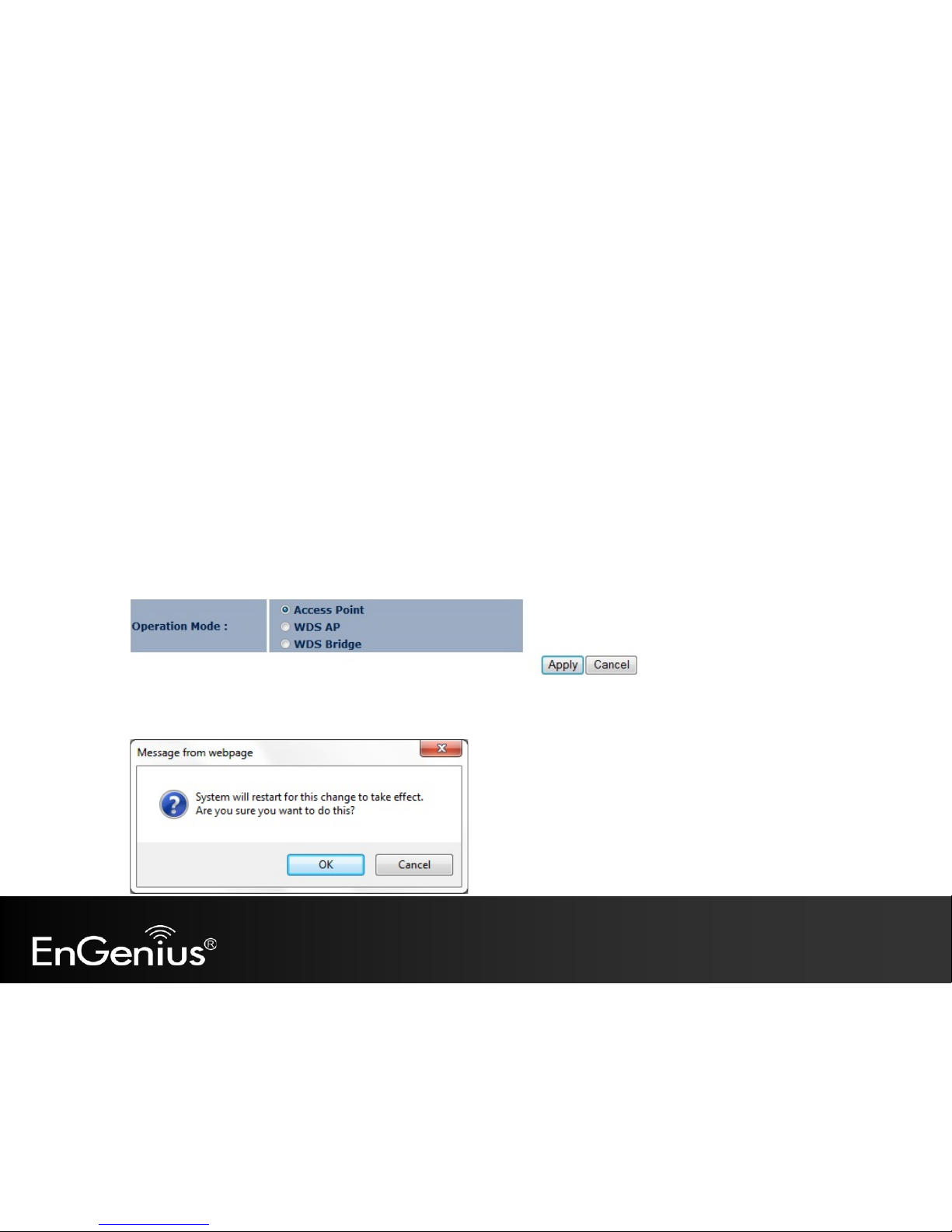

4.1 Operation Mode
Each operating mode offers different features. In order to switch the operating mode, select it from the Operation
Mode from the System Menu. There are three operation modes: Access Point, WDS AP, and WDS Bridge.
•Access Point: Allow devices to connect to the EAP300 through a simple wireless connection.
•WDS AP (Wireless Distribution Systems Access Point): Interconnect access points to allow wireless communication
wireless devices and access points among them.
•WDS Bridge (Wireless Distribution Systems Bridge): Interconnect access points to allow communication between
access points only.
A dialog box will appear to notify you that the system will restart in order for the changes to take effect. Click on the
OK button to continue.

19

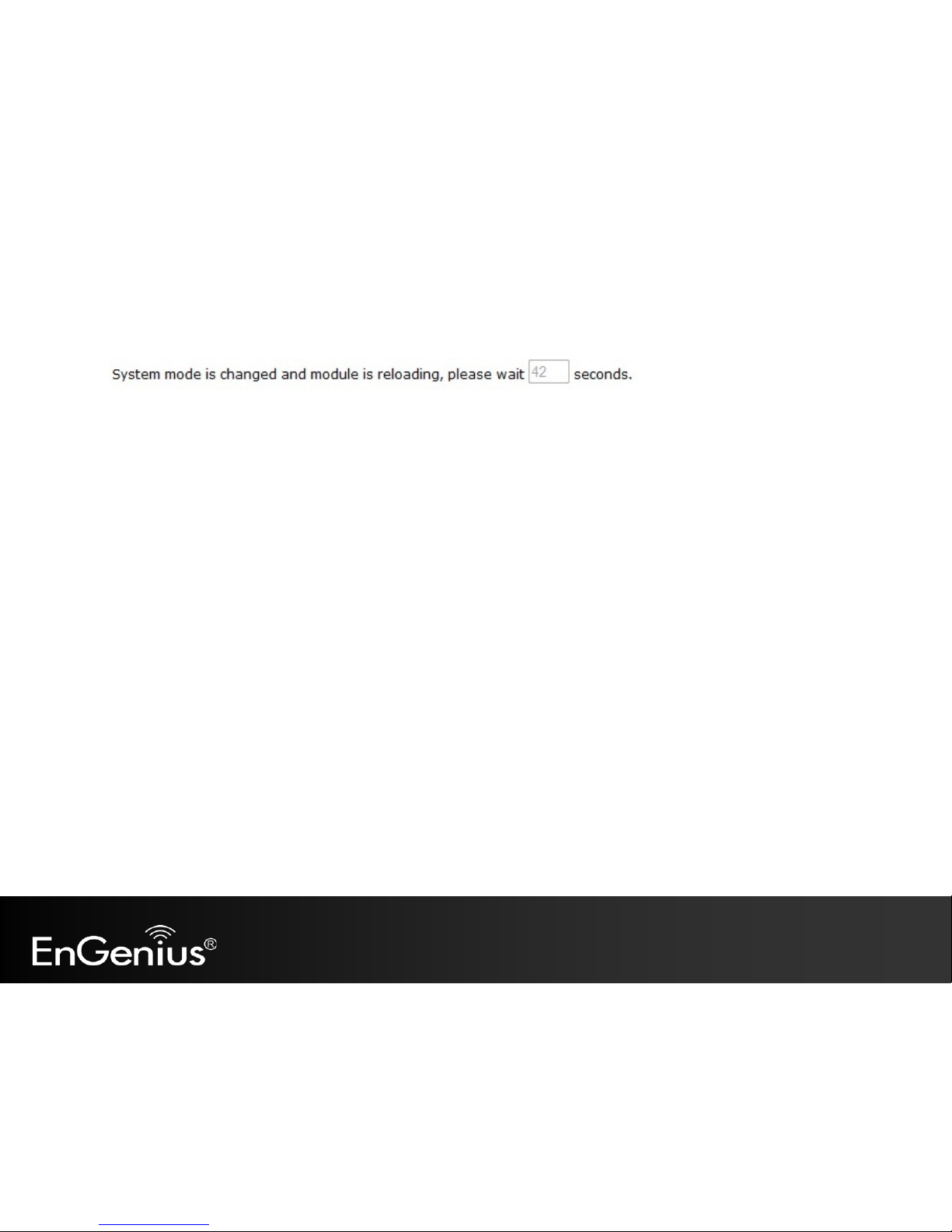

The EAP300 will display how much time it will take to restart the device in the new operating mode as shown below.
