Eonon D2203D User manual

D2203D
SELSEL SRCSRC BND/BND/
MIC
MUTE
-
+
D2203D
Menu Disp Audio Video SYS Exit

Thank you for buying this product, please read through these operating instructions,
so you will know how to operate your model properly. After you have finished reading
the instructions, put them away in a safe place for future reference .
NOTE: Due to the continuous product improvement, specifications and design are
subject to change without prior notice.
CONTENTS
IMPORTANT: Please adjust screen to make the touching effect function best when
you initiate the unit for the first time.
For the details, please refer to the operation at Page 14.
PRECAUTIONS
FRONT PANEL
BASIC OPERATION
REMOTE CONTROL
RADIO OPERATION
SYSTEM SETUP
CABLE CONNECTION
ACCESSORIES
INSTALLATION
TROUBLE SHOOTING
SPECIFICATION
MP3 OPERATION
TOUCHING CONTROL OPERATION
BLUETOOTH OPERATION
TV OPERATION
2
4
19
15
20
DVD/VCD/CD OPERATION 27
30
37
39
42
41
41
35
6
23
26
1

1. Be sure to connect the color coded leads according to the diagram. Incorrect connec-
tions may cause the unit to malfunction or damage the vehicles electrical system.
2. Be sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect
the left and right channel speaker cables each other or to the vehicle body.
3.Make sure all the connections are completely correct before turning on your unit.
4. When replacing the fuse(s), the replacement must be of the same amperage as shown
on the fuse holder.
5. Do not block vents or radiator panels. Heat may be caused inside and some accident
may be resulted by fire.
6 After completing the installation and beginning to play the unit (including replacing the
battery),please press RESET button on the front panel with pointed object (such as ball-
point pen) to set the unit to initial status.
7.Keep hands, finger, or any other object away from the back of the front panel or gaps of
the base top (shown as picture) when closing or opening to avoid damage or injury.
PRECAUTIONS
Replacing the Fuse
Make sure the amperage matches the specified value when replacing the fuses. If the
fuse is blown, check the power connection and replace with a new one. If the same
problem occurs, it would be subjected to the malfunction in-house.In such cases, please
consult the nearest service dealer.
WARNING:
Never use the fuse with the rated amperage more than that supplied to your unit, other -
wise the unit will be damaged .
2

This unit can play the following discs only:
F
PRECAUTIONS
*Do not attempt to modify the unit, modifying the unit may cause an accident.
*Stop the vehicle before carrying out any operation that could interfere with your driving.
*Do not work in extremely high or low temperature. Be sure the temperature inside the
vehicle is between +60 C and -10 C before turning on your unit .
*To enjoy optimum sound and images while playing, handle the discs as follows:
Handle the disc by its edge to keep the disc clean, and do not touch the surface.
Do not use your CDs with paste residue or ink attached.
Do not use CDs with labels or stickers attached, which may leave a sticky residue
while beginning to peel off. (Shown as the picture)
Clean the discs with an optional cleaning cloth. Wipe each disc from the center out.
(Shown as the picture)
Type of disc
12cm
VIDEO
DVD
Label on the disc Recorded material Size of disc
Sound and moving
pictures
VCD
MP3
12cm
CD 12cm
NOTE: The unit is compatible with VCD1.0/2.0/3.0 version and DVCD disc.
12cm
Sound and moving
pictures
Sound only
Sound only
TM
3

FRONT PANEL
4
123456710
13
14
8 9
MUTEMUTE
SRCSRC
BAND/BAND/
SELSEL
11
12
MICMIC

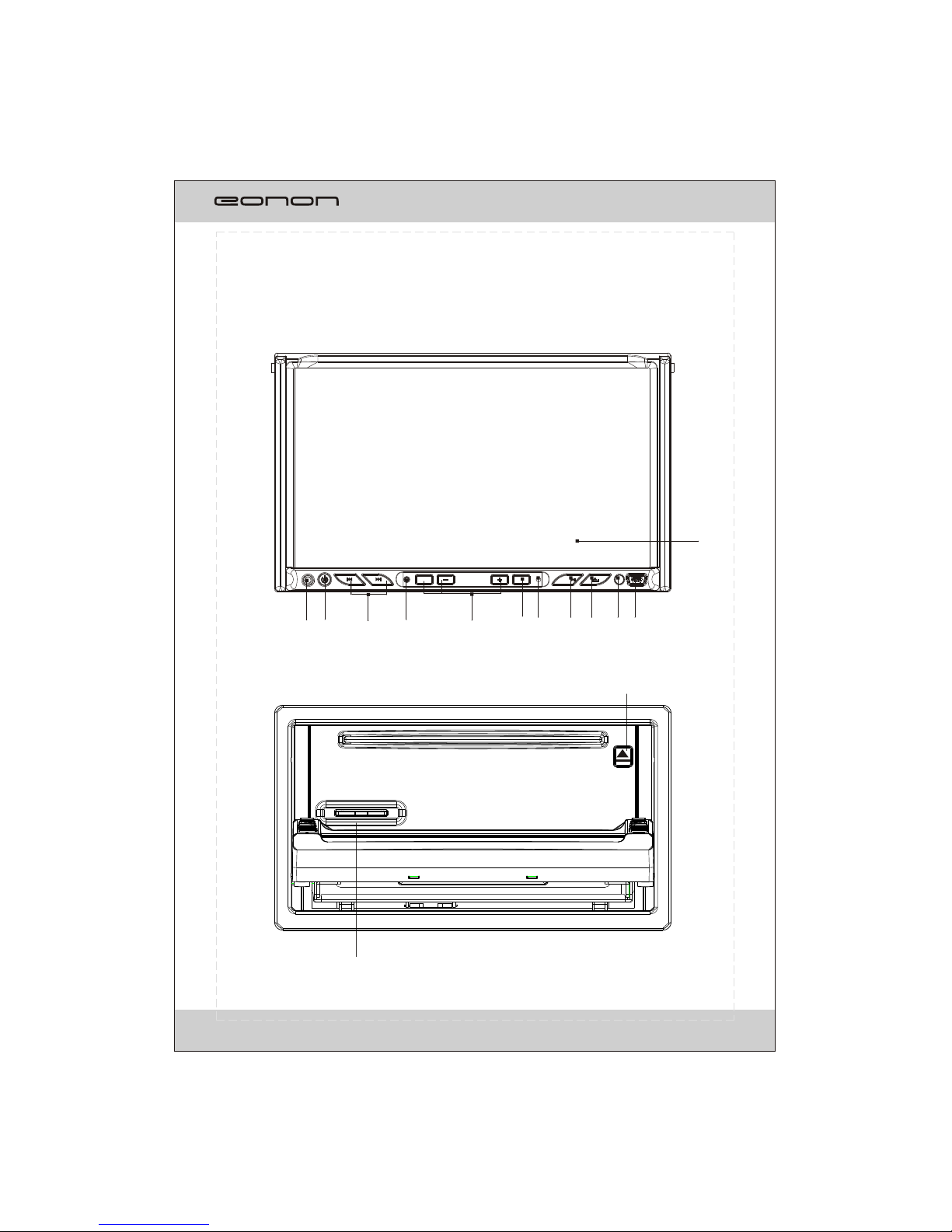

FRONT PANEL
1.AUX IN
Connect the audio cable to the unit then you can enjoy the music.
2. PWR/MUTE
Press the button to turn on the unit and press and hold the button to turn off the unit.
In power on, press to shut off the sound output and press it again to resume previous sound.
3. >>I/I<<
In radio mode, press to manual seek a station. Long press to automatic seek a station.
In playback mode, long press to select fast forward or fast backward. Press to select last
or next track(chapter)
4. RESET
5. SEL +/-
Press + button to increase the volume level and press - button to decrease the volume level.
, then press +/- to adjust each item.
6.SRC
ress the button repeatedly to switch sources.
7.MIC
8.BAND/ >II
In radio mode, press the button to select among three FM and two MW bands.
9.
.
Press to eject a disc.

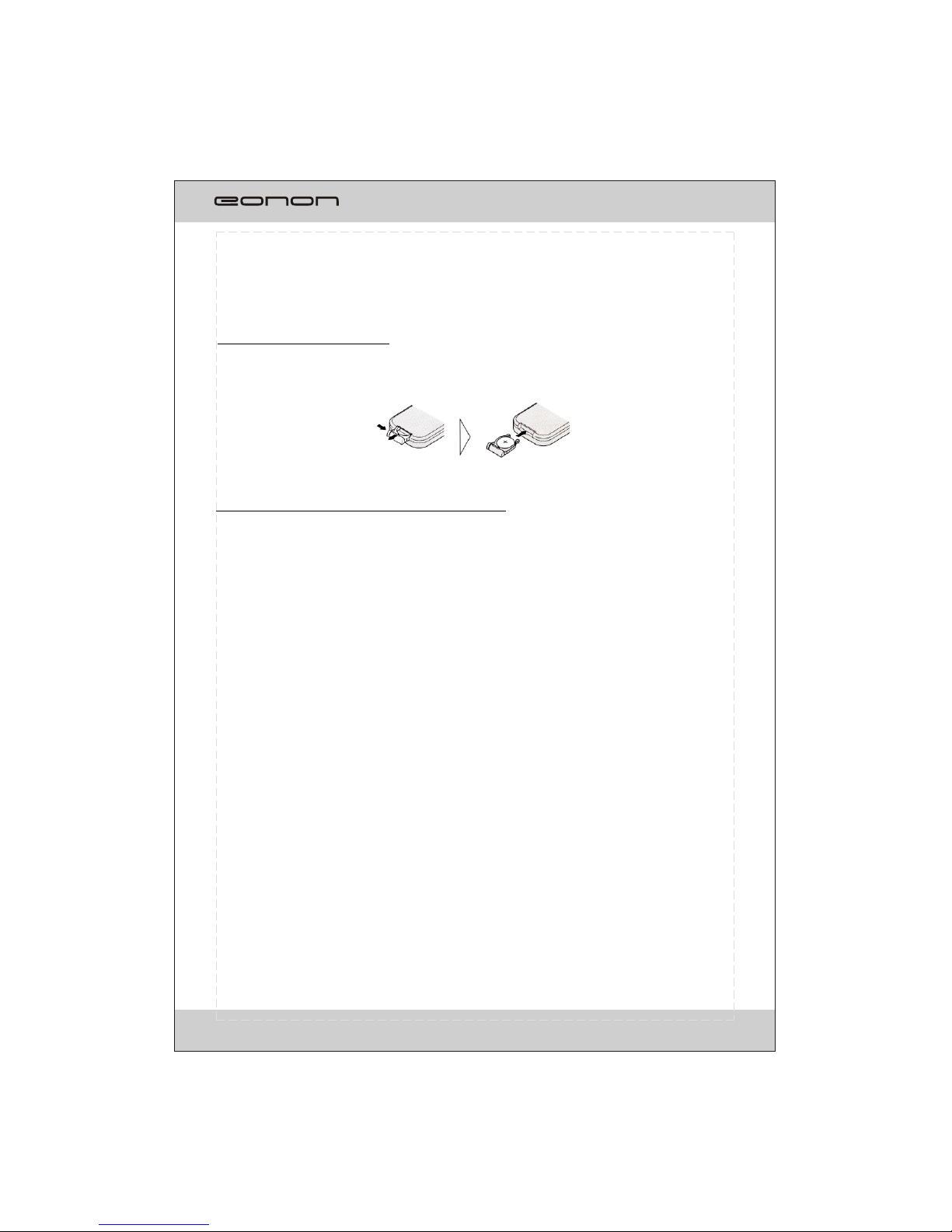

14. SD slot
Insert the SD card, the unit will play the items automatically.
Note:
Once the SD card could not eject auto-matically after pressing, just take it out manually.
Press the button to select one of the control items: L-front/ R-front/L-rear/R-rear/Subwoof
/Bass/Middle/Treble/Angle/Volume
In play mode, press this button to pause or resume playback.
Press to open/close the front panel. During opening the front panel, you can press
the button to set the panel angle.
10. IR WINDOW
11 USB SLOT
12.TFT DISPLAY
13.
P
5

MENU SYSTEM
The users can perform operation by touching screen directly.

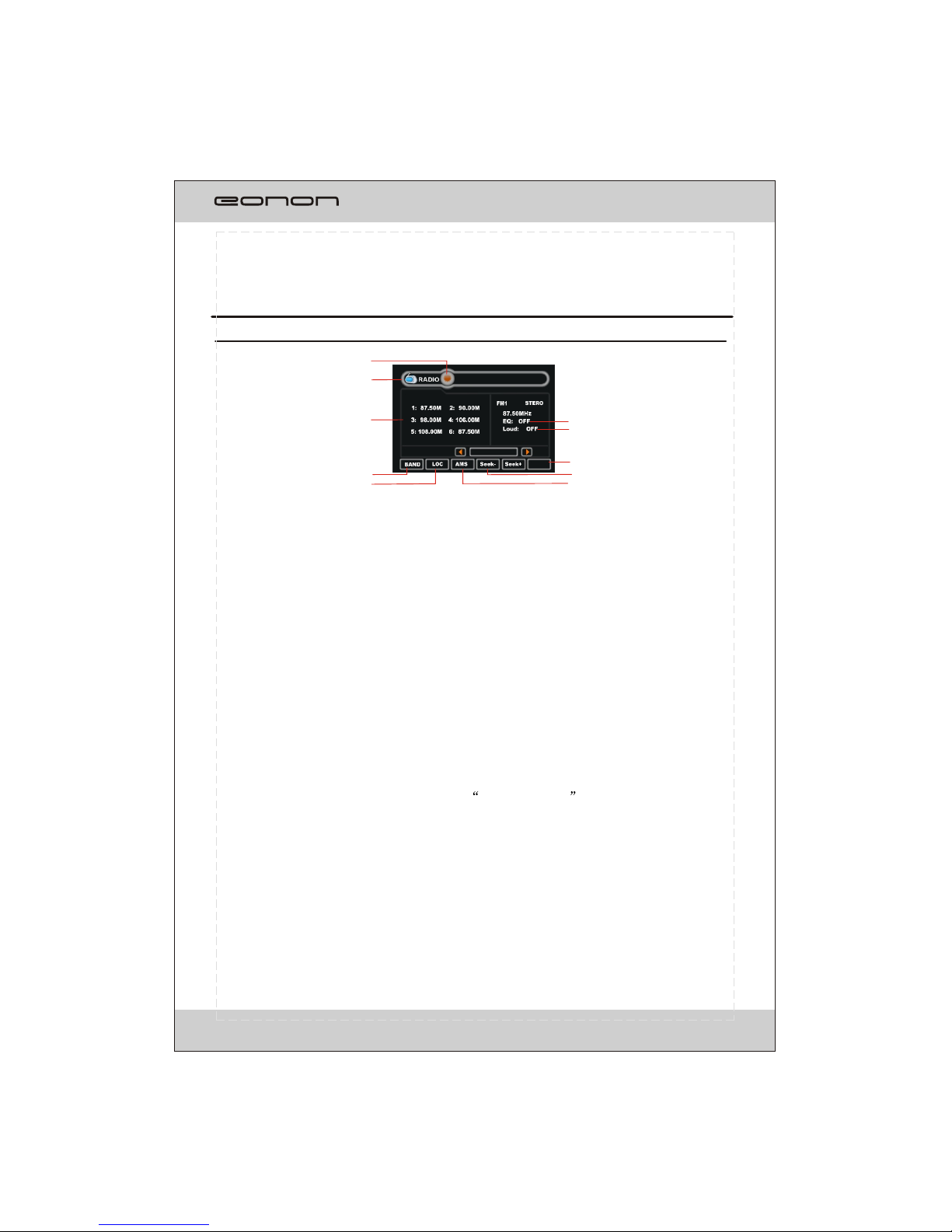

Radio Operation
1. HALF LIGHT MODE
Turn on /off the backlight.
(The function can be used to change the screen brightness while traveling at night)
2. SOURCE
To display the SOURCE screen
3.Station preset button
To display the preset station list
(touch one of the station preset button to recall the radio which stored on the position;
long touch to save the current frequency into the station)
4.BAND
To switch bands.
5.LOC
To select strong or weak stations reception
6.EQ
To select a preset equalizer mode.
7.LOUD
To switch LOUD control function on/off
8.PAGE 1
To switch to RDS operation page.(Refer to RDS Opetation for detail)
9.SEEK-/SEEK+
To seek a station automatically.
To seek a station manually(long touch).
10.AMS
To browse preset stations.
To search and store stations automatically(long touch).
Page1
1
6
7
4
5
9
10
8
3
2
6

EON:OFF REG:OFF
PTY:NONE
RT:
PS:
PTY:
87.50MHz
TA AF PTY Page2
Seek- Seek+
1
2
3
4
5
RDS Operation
1.TA
To turn on /off TA function
2.AF
To turn on /off AF function
3.PTY
To switch RDS program type
4.Page2
To switch to radio operation page.
5.SEEK-/SEEK+
To seek a station automatically.
To seek a station manually(long touch).
EON(Enhanced Other Networks)
ON: Active the EON function, the receiver automatically tunes in the station that broadcasts
the traffic information when it occurs. After broadcasted ,the unit will automatically return
to the original source play except the traffic information broadcasting.
OFF: De-active the EON function
REG(Regional)
ON: Active the REG function, the unit automatically keeps receiving the related RDS
station.
OFF: Deactive the REG function
In DVD mode, the touching screen displays as following after touching at random position.
Multi-- Player Operation
7
PLAY PAUSE STOP PREV NEXT MENU
4
1
2 5
3

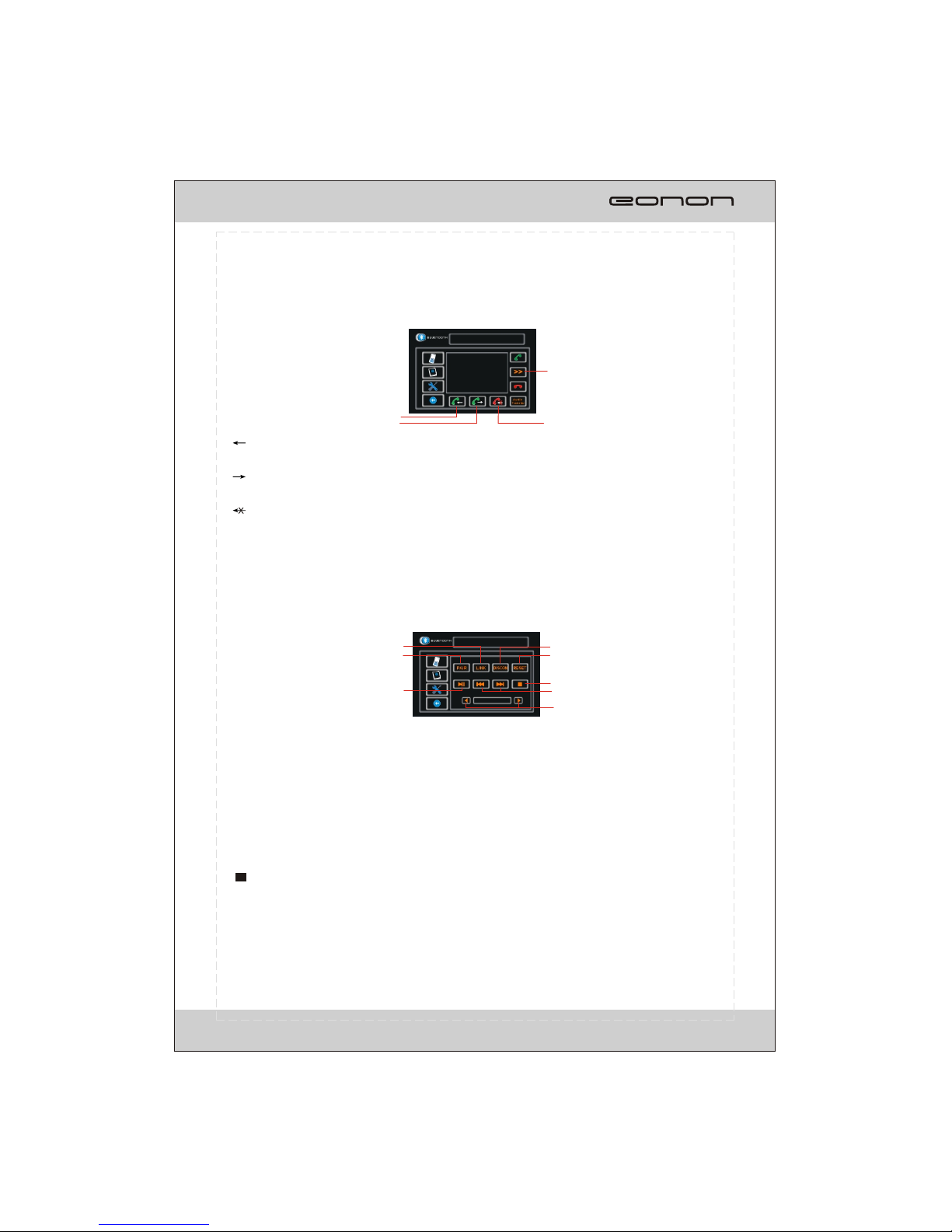

Bluetooth Operation
Hands-free phone Operation
1
2
3
4
6
7
8
9
5
1. MENU
To display the Bluetooth main screen.
2. PHONE BOOK
To display the phone book screen.
3. SETUP
To display the Bluetooth s tup screen.
4. SOURCE
To display the source selection screen.
5.dial number list
6. DIALLING
To dial a call.
7. CLEAR
To clear the inputted telephone number.
8. HANGING
To hang up a call.
9. AUDIO TRANSFER
To transfer calling audio output mode.
e
1.PLAY
To start the playback.
2.PAUSE
To pause the playback.
3.STOP
To stop playing, touch twice to stop
5.PREV/NEXT
To select previous/next chapter or track.
completely.
4.MENU
To display the DVD SETUP screen.
7
NOTE:Touching the left middle position twice to display the TITLE MENU selection screen,
touching the right middle position twice to display the ROOT MENU selection screen, touching
the right top position to display the number keyboard. You can select chapter(track) by
pressing the touchable screen or the RC.
8
