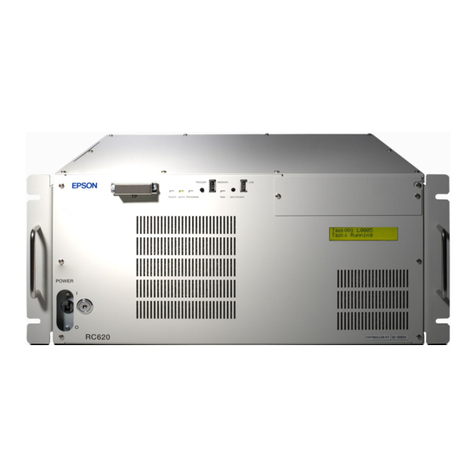

Epson RC620 Series User manual

Copyright ©2010 SEIKO EPSON CORPORATION. All rights reserved. EM107B2068F
RC620 Vision Guide 6.0 USB License Key Mounting Procedure
1. USB Bracket Appearance
Use the bracket to mount the USB license key to RC620 controller.
USB connector (Connect USB license key here.)
USB cable (Connect to CPU board.)
USB license key securing part
(Holds key with attached wire tie.)
2. Securing USB License Key
Connect the USB license key to the USB connector.
Firmly secure the USB license key to the bracket using the attached wire tie.
USB license key
Secure USB license key to bracket
using wire tie

RC620 Vision Guide 6.0 USB License Key Mounting Procedure
2/2
3. Mounting USB bracket to RC620 Controller
Remove the RC620 top cover.
Secure the USB bracket in the RC620 PCI slot (outmost slot) using a screw.
Connect the USB cable to the CPU board.
Connect USB cable to CPU board
Secure USB bracket to PCI slot (outmost)
CPU Board
Connect USB cable here on CPU board
