Epson ELPIUO3 User manual

Interactive Unit
User's Guide

Important Safety Instructions
•Make sure you read the Quick Setup Guide and follow the instructions in this document to install the Interactive Unit.
•Keep the Quick Setup Guide for future reference.
Explanation of Symbols
Warning
This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
Caution
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Installation Precautions
Warning
•Attachment to the projector should be performed by qualified technicians using only approved mounting equipment.
•Follow the instructions in the Quick Setup Guide when installing the Interactive Unit. Incomplete or incorrect installation could cause the product to fall and cause
personal injury or property damage.
•If you apply adhesives to prevent the screws from loosening, or if you use lubricants or oils on the wall plate, the housing may crack and cause the product or the
projector to fall, resulting in personal injury or property damage.
•Confirm on a regular basis that the screws have not become loose. If you find any loose screws, tighten them firmly. Otherwise, the product or wall plate may fall and
cause personal injury or property damage.
•Handle the USB cable carefully to avoid fire or electric shock. Observe the following precautions when handling:
- Do not handle the cable with wet hands.
- Do not use a cable that is damaged or modified.
- Do not pull the cable with too much force when routing it or connecting it to a computer.
•Do not apply excessive force to this product when adjusting the projector. Otherwise, the product may cause personal injury.
Caution
Do not install the product in a location where there is excessive humidity or dust, near cooking or heating appliances, or in a location exposed to smoke or steam. Fire or
electric shock may result.

Usage Precautions
Warning
•Water infiltration or deterioration and breakage of the product housing could result in electric shock.
•Never open any covers on the product except as specifically explained in this User's Guide. Never attempt to disassemble or modify the product (including consumables).
Refer all repairs to qualified service personnel. Electrical voltages inside the product can cause severe injury.
•Disconnect the USB cable and refer all repairs to qualified service personnel under the following conditions:
- If smoke, strange odors or strange noises come from the product.
- If liquid or foreign objects get inside the product.
- If the product has been dropped or the housing has been damaged.
Continuing to use the product under these conditions may result in fire or electric shock.
Caution
•Use a dry cloth for cleaning (or, for stubborn dirt or stains, a damp cloth that has been wrung dry). Do not use liquid, aerosol cleaners, or solvents such as alcohol,
thinner, or benzine.
•Do not put anything that exceeds the weight of two Easy Interactive Pens in the pen tray.

Battery Precautions
Warning
•If liquid leaking from the batteries gets into your eyes, do not rub your eyes. Wash them immediately with clean water and consult a doctor.
•If liquid from the battery enters your mouth, rinse immediately with plenty of water and consult a doctor.
•If liquid from the battery comes in contact with your skin or clothes, wash immediately with water. Battery liquid may cause skin damage.
•Do not leave the batteries or the Easy Interactive Pen inside a vehicle with the windows closed, in places where they will be exposed to direct sunlight, or in places that
may become extremely hot. Thermal deformation or technical malfunction may occur, which could result in fire.
•Keep batteries out of the reach of children. Batteries are choking hazards and are very dangerous if swallowed.
•Insert batteries so that the polarities (+ and -) are correctly aligned, to avoid leakage, overheating, or explosion.
•Do not mix old and new batteries, or batteries of different types. Doing so may cause leakage, overheating, or explosion.
•Replace batteries as soon as they run out. If a dead battery is left inside the pen for long periods, gas emitted from the battery may cause leakage, overheating, explosion,
or damage to the device.
•Remove the batteries if you will not be using the pens for a long period of time.
Infrared Precautions
Caution
Because this product uses infrared communication, it could interfere with infrared communication from other product(s). If this does happen, move the other product(s) out
of the detection area.

Important Safety Instructions ........................ 2
Introduction
ProductFeatures ........................................... 8
PartsLocation .............................................. 9
InteractiveUnit................................................9
EasyInteractivePen.............................................9
PenTray....................................................10
Getting Started
Installing the Software ..................................... 12
InstallingthePenBatteries ................................. 13
ConnectingtheCables ..................................... 14
Using the Easy Interactive Pen
Calibrating ................................................ 16
CheckingtheConnectionStatus...................................16
PerformingCalibration..........................................16
UsingthePenasaMouse ................................... 18
TabletFunction ............................................ 19
SystemRequirements..........................................19
CheckingAvailability...........................................19
Solving Problems
Problems and Solutions .................................... 21
EasyInteractivePenProblems.....................................21
CalibrationProblems...........................................21
TabletFunctionProblems........................................21
WheretoGetHelp ......................................... 22
Notices
Specifications ............................................. 24
General....................................................24
Dimensions.................................................24
Electrical...................................................24
Environmental............................................... 24
EasyInteractivePen............................................ 24
SystemRequirements..........................................25
FCC Compliance Statement . . . . . ............................ 26
ForUnitedStatesUsers.........................................26
WARNING ...................................................26
ForCanadianUsers............................................26
DeclarationofConformity .................................. 27
CopyrightNotice .......................................... 28
Trademarks .................................................28
Contents
6

Introduction
The Interactive Unit is a wall-mounted receiver that works with your projector to turn virtually any surface into an interactive whiteboard. You can use it with
your projector and whiteboard. The Interactive Unit includes all the hardware and software you need to create interactive presentations using your computer
and installed projector.

By using the Interactive Unit, you can use your existing projector as an
electronic blackboard. When used in combination with your projector, the
following functions become available.
•Electronic Blackboard Function
When projecting a computer screen from the projector, you can use the
Easy Interactive Pen as a mouse. By giving the presenter the ability to
perform computer operations on the projected image, lessons or
presentations can be moved along smoothly.
•Drawing Function
If you installed the optional Easy Interactive Tools, you can use the Easy
Interactive Pen to write or draw on the projected image. You can also
save what you wrote to your computer.
a
You can download Easy Interactive Tools from the Epson website at
http://www.epson.com.
Product Features
8

Interactive Unit
Name Function
AEasy Interactive
Function receiver
Receives signals from the Easy Interactive Pen.
BUSB cover Covers the USB cable connection.
Easy Interactive Pen
Name Function
ABattery indicator light When you press the button, the light turns green if there is
any remaining battery power.
If it does not turn green, replace the batteries. sp.13
BButton Functions as the right button of a mouse.
CCord attachment slot You can attach a commercially available cord or strap.
Parts Location
9

Pen Tray
Name Function
AFixing points Attach the pen tray to a whiteboard or wall.
BSecurity hole Pass a commercially available lock through here.
a
It is recommended that the pen tray be tightened with two
commercially available M5 bolts.
Parts Location
10

Getting Started
Before you can use this product, you need to install the software and prepare the necessary devices.

Install the software necessary to use this product on your computer.
a
Insert the CD labeled "Epson Projector Software for Easy Interactive
Function" in your computer.
Windows
If you see the AutoPlay screen, click Run EIDriverVxxx_Setup.exe.
If you see a User Account Control screen, click Continue or Yes.
Mac OS X
Double-click EIDriverVxxx_Setup in the Epson window.
b
Select your language.
c
Follow the on-screen instructions to install the software.
d

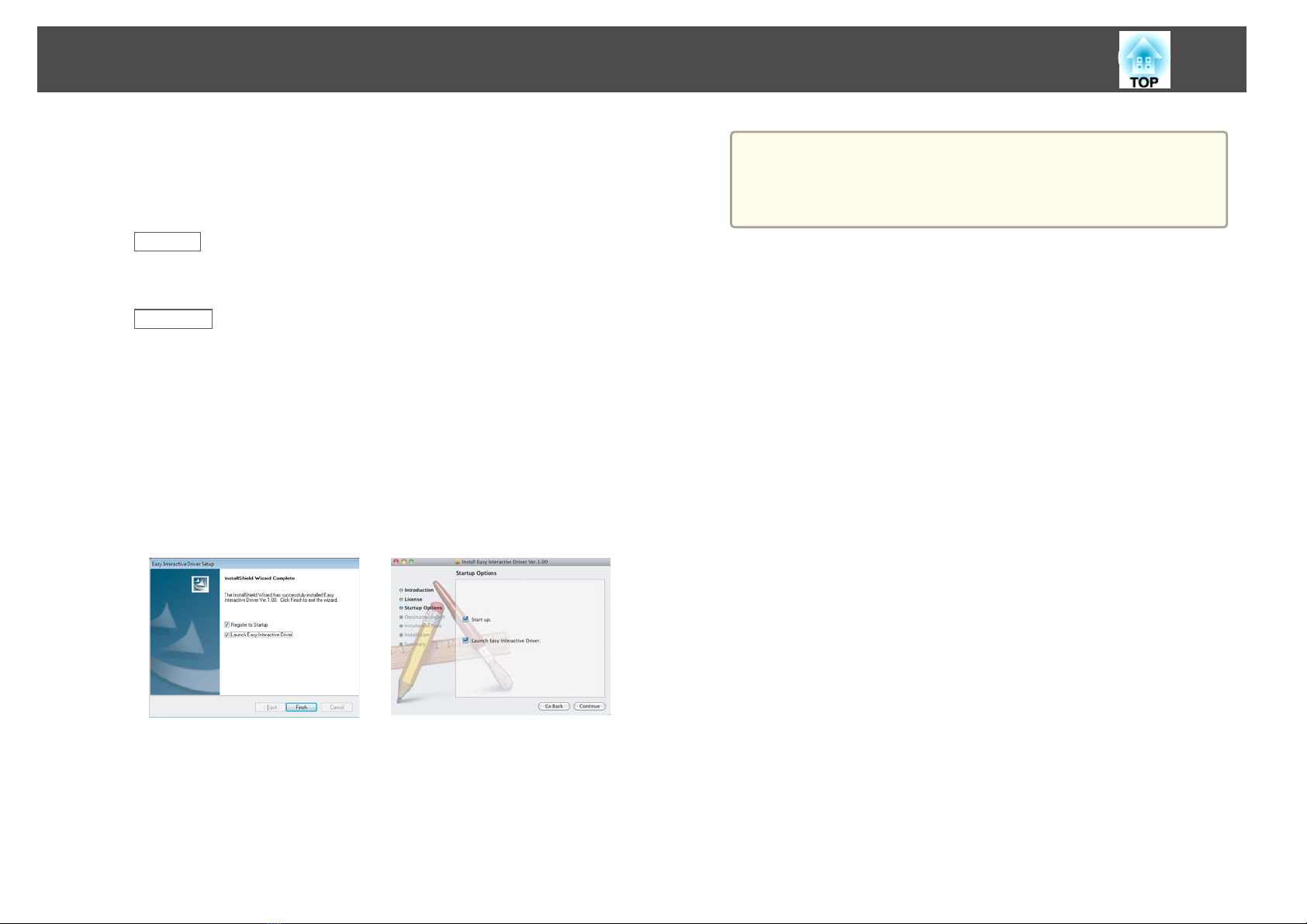

When you see one of the following screens, select Register to
Startup (Windows) or Start up (Mac OS X) and Launch Easy
Interactive Driver.
Windows Mac OS X
e
Click Finish (Windows) or Continue (Mac OS X).
f
Follow the on-screen instructions to finish installing the software
and start Easy Interactive Driver.
a
You can use the interactive whiteboard function by installing
the optional Easy Interactive Tools. You can download Easy
Interactive Tools from the Epson website at http://
www.epson.com.
Installing the Software
12

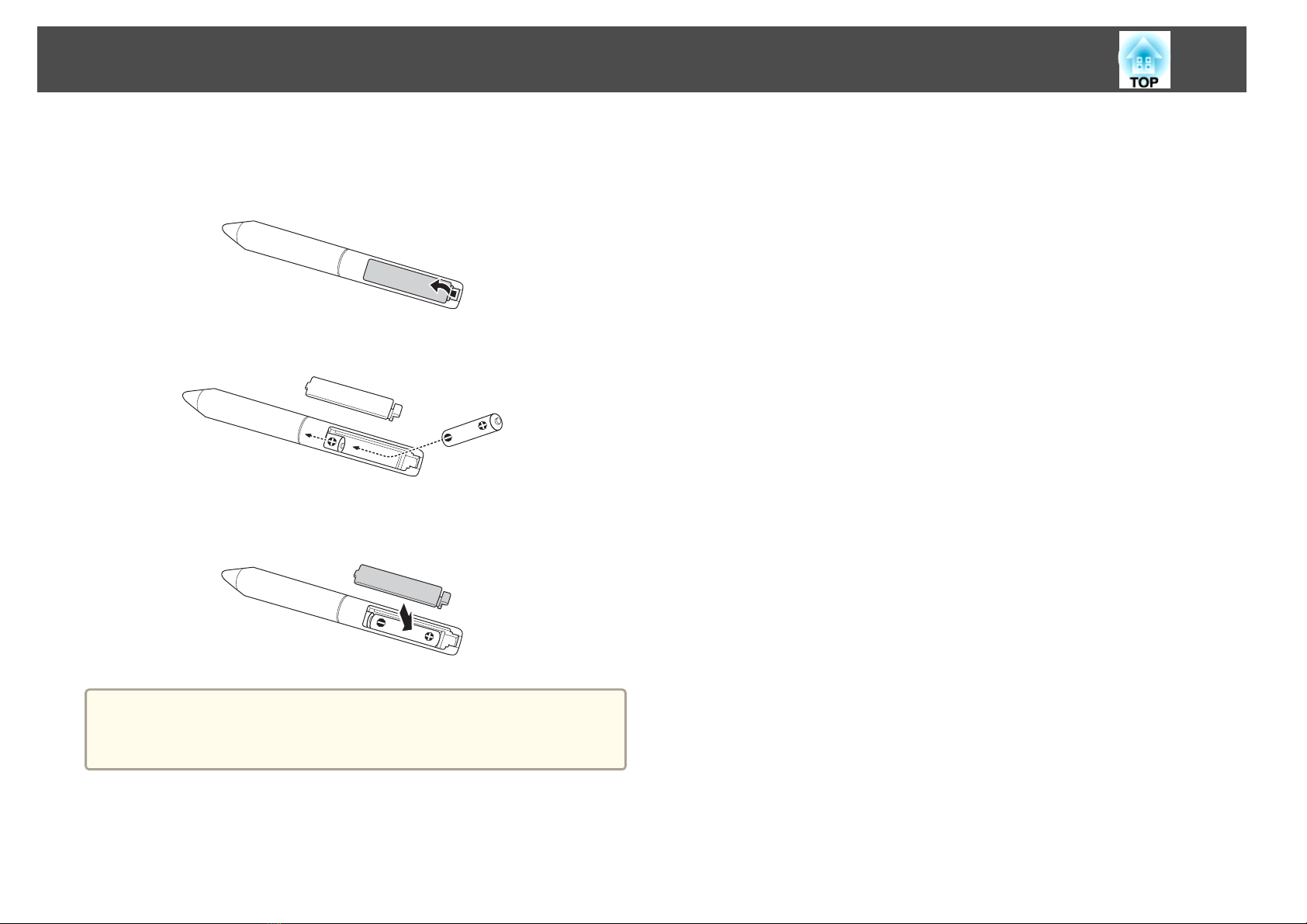

Before you can use the pen, you need to install the batteries.
a
Press in the tab on the battery cover as you lift the cover off.
b
Install two batteries, inserting the + and - ends as shown.
c
Replace the battery cover and press it down until it clicks into
place.
a
•To check the batteries, press the button on the pen. If the battery
indicator is green, the batteries have enough power. sp.9
•When replacing the batteries, use two alkaline AAA batteries.
Installing the Pen Batteries
13

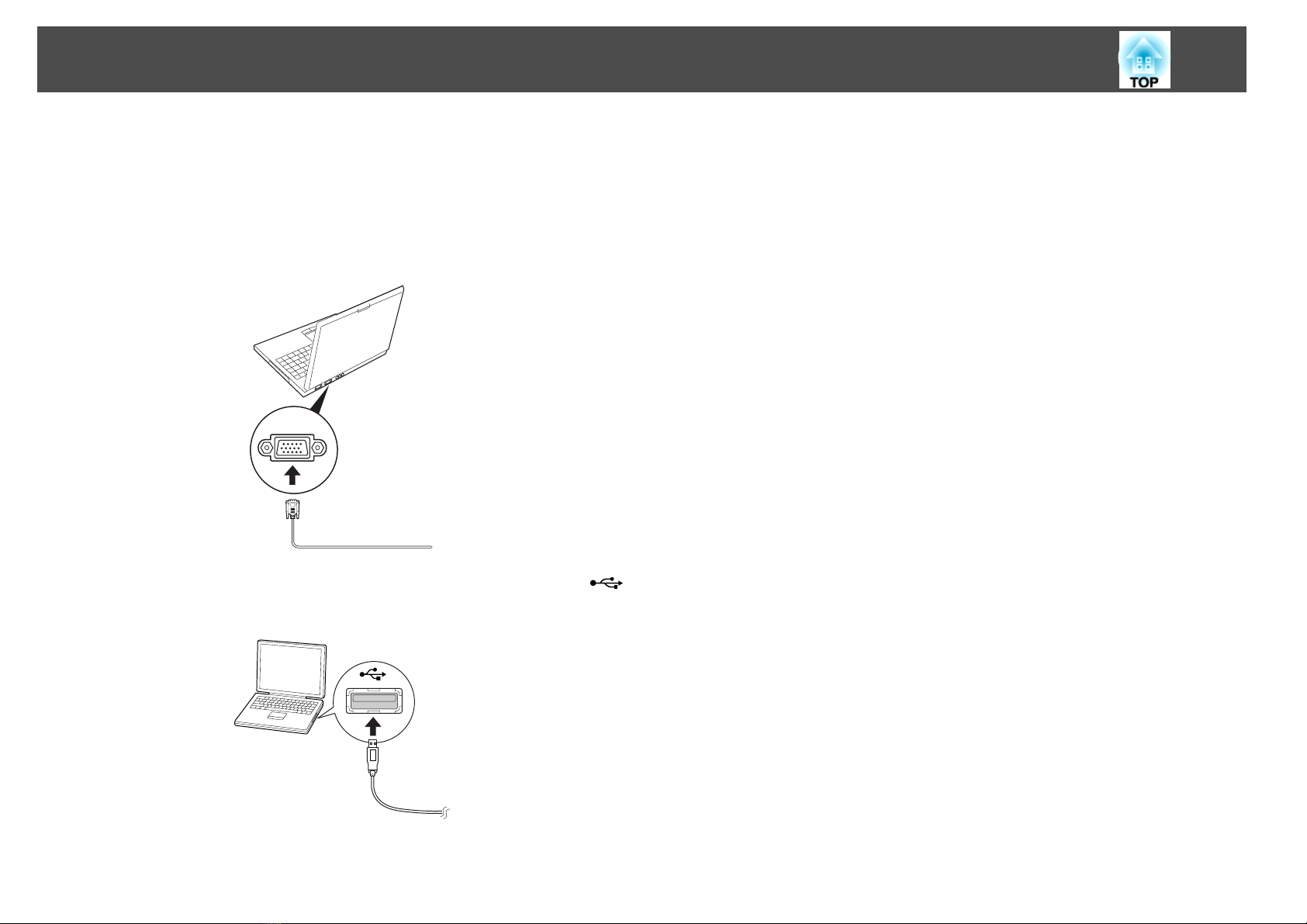

Connect the Interactive Unit, the computer, and the projector.
a
Check that the projector and the computer are both on.
b
Connect the projector's VGA computer cable to the computer's
monitor out port.
c
Connect the Interactive Unit's USB cable to the computer's
USB port.
Connecting the Cables
14

Using the Easy Interactive Pen
The Easy Interactive Pen included with your Interactive Unit turns almost any wall or board into an interactive whiteboard. This chapter tells you how to
calibrate your system and use the pens.

Calibration sets up the connection between your computer and the Easy
Interactive Pen. This simple process ensures that your computer can
accurately detect the position of the pen on the projection surface.
You need to calibrate before using the pen for the first time, or if you
change the resolution on your computer or connect a different computer.
You can use either pen for calibration.
Checking the Connection Status
Before you can calibrate, you need to make sure the Easy Interactive Driver
is activated on your computer. Make sure the pen icon is displayed in
the system tray on your taskbar (Windows) or in the Dock (Mac OS X). It
may take a minute for the icon to appear after you turn on the computer
and projector.
•If the pen icon is displayed
Easy Interactive Driver is activated. You can now perform calibration.
•If a red ^is displayed on the pen icon
The computer and Interactive Unit are not connected correctly. Try
disconnecting and reconnecting the USB cable.
•If the pen icon is not displayed
Perform the following operation.
Windows
Select or Start > All Programs or Programs > Epson Projector > Easy
Interactive Driver.
Mac OS X
Open the Applications folder, and then select the Easy Interactive Driver
icon.
If you need more help, sp.21.
a
Select Exit from the pen icon on the taskbar to remove it from the
taskbar.

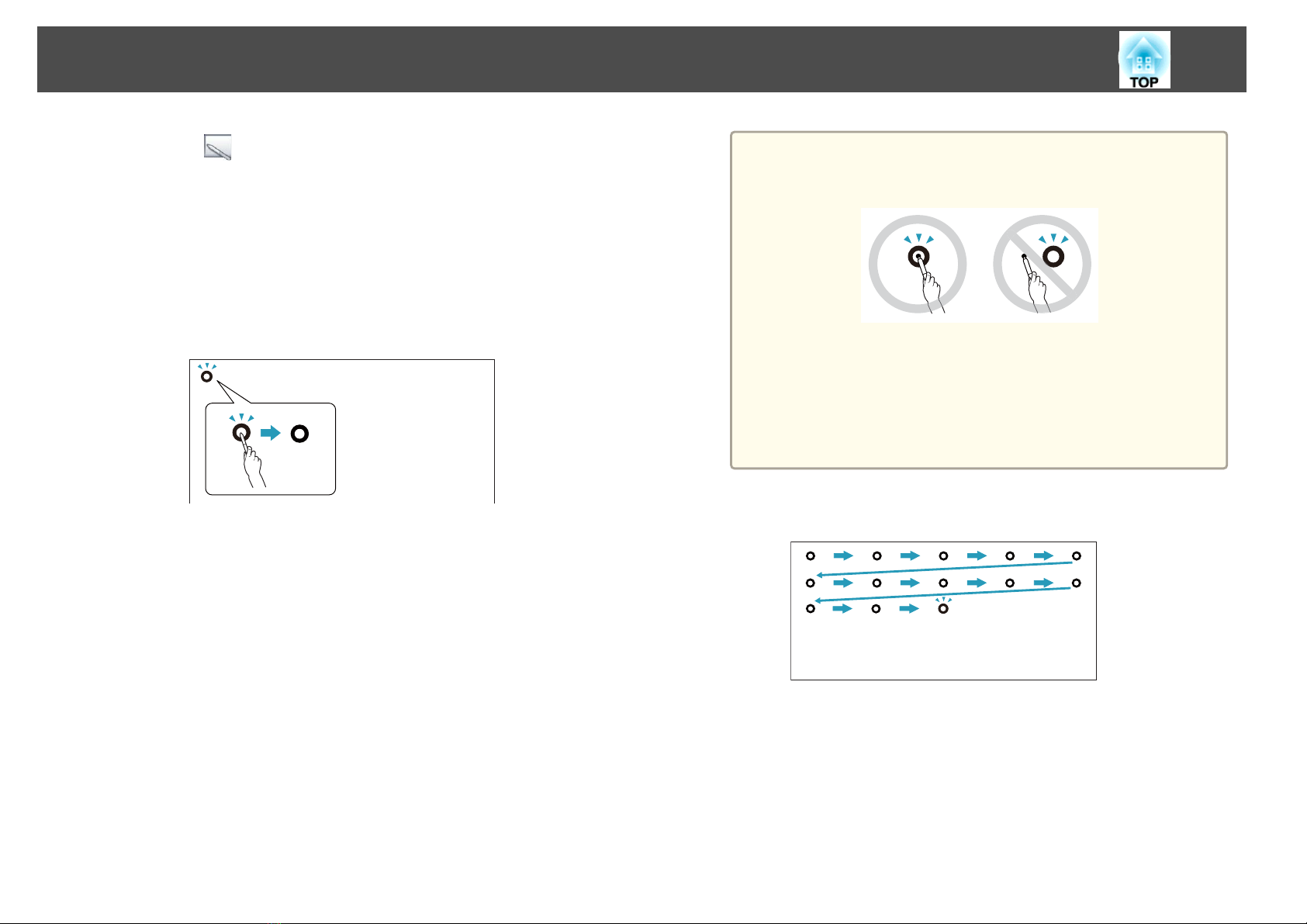

Performing Calibration
Two types of calibration are available:
•Normal, which is faster and appropriate for most situations (25
calibration points)
•Advanced, which is recommended when you are projecting very detailed
images and need higher accuracy (49 calibration points)
You may need to recalibrate if you change the projector's aspect ratio or if
you change the following settings: Auto Setup, Resolution, Tracking, Sync.,
Position, Aspect, Keystone, or Zoom.
a
To start calibration, do one of the following.
Windows
Click the pen icon in the system tray on your taskbar (lower
right corner of your screen), then select Calibrate (Normal) or
Calibrate (Advanced).
Mac OS X
Calibrating
16

Click the pen icon in the Dock, select Calibrate from the menu
bar, then select Calibrate (Normal) or Calibrate (Advanced).
b
After you read the message about calibration, click OK.
A flashing circle is displayed in the upper left corner of your
projected image.
c
Touch the center of the circle with the tip of the pen.
The circle stops flashing. You see another circle on the right.
d
Touch the center of the circle again, then repeat. When you get to
the end of the row, the next circle appears at the left edge of a
new row.
a
•For the most accurate calibration, make sure you hold the pen
at an angle to the projection surface and touch the center of
the circle.
•Make sure you are not blocking the signal between the pen
and the interactive receiver.
•Do not press the button on the pen while calibrating.
•If you make a mistake or want to stop calibrating, press [Esc]
on your computer keyboard. Then restart the calibration
process as described above.
e
Continue until all of the circles stop flashing.
Calibrating
17

The Easy Interactive Driver allows you to use the pen as a mouse. If you
installed interactive whiteboard software, you can also use the pens to write
or draw on the projected image.
You can use the interactive whiteboard function by installing the optional
Easy Interactive Tools. You can download Easy Interactive Tools from the
Epson website at http://www.epson.com.
Follow these tips to use the pen as a mouse:
•For best performance, hold the pen at a slight angle (like a normal
pen), rather than perpendicular to the board.
•To left-click, tap on the board.
•To double-click, tap twice.
•To right-click, tap while pressing the button on the pen.
•To click and drag, tap and drag with the pen.
Using the Pen as a Mouse
18

If you have installed Easy Interactive Driver, the tablet function in
Windows Vista or Windows 7 is enabled. If Office 2003/2007/2010 is
installed on your computer, you can use the ink function in Office by using
the Easy Interactive Pen as a mouse.
System Requirements
OS The following 32 bit operating systems:
Windows Vista
*
Windows Vista Service Pack 1 or later
*
Windows 7
The following 64 bit operating systems:
Windows 7
*
Except for the Starter Edition.
Checking Availability
When Easy Interactive Driver is installed, check that the tablet function is
enabled.
Windows 7
Click Control Panel - System and Security and then System.
If Pen and Single Touch Input Available is displayed in Pen and Touch,
the tablet function is available.
Windows Vista
Click Control Panel and then System.
If Available is displayed in Tablet PC functionality, the tablet function is
available.
Tablet Function
19

Solving Problems
If you have a problem with your product, you can check the following section for troubleshooting information.
