Ercol Monza 4060 User manual

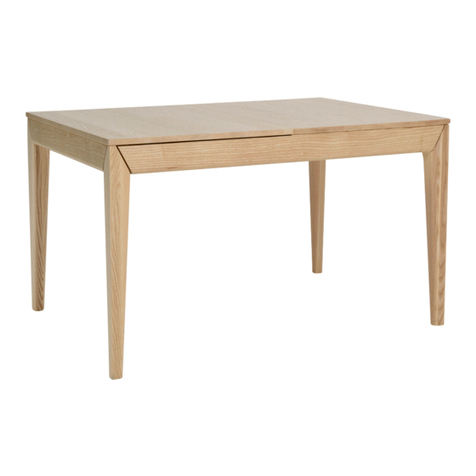

4060 Monza Small Extending Dining Table
Thank you for purchasing this Monza Dining Table. Please read the instructions carefully before use to ensure safe
and satisfactory operation of this product.
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
This item is HEAVY
Please check the pack contents before attempting to assemble this product. A full checklist of components
is given in this leaflet. If any components are missing, please contact the retailer from whom you bought
this product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 30 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
Ref: 00329/4060

Fittings and parts checklist
Table legs
Allen Key
x 1
x 4
x 1
A
B
Bolt x 8
Locking washer x 8
Flat washer x 8
C
D
E
F
Table top

1.
Step by step assembly instructions
Two people are needed to carefully turn the table top over and to place it face down onto a smooth
soft surface such as carpet. Place a leg in a corner of the table top and matching the holes, secure the
bolts and washers (locking washer first) into the legs through the holes into the rail of the table top.
When ALL bolts and washers are in place, finger tighten. Repeat with the three other legs and fully
tighten.
C
D
E
F
C
D
E
F
ylluferacnosreprehtonafodiaehthtiwy)vaehyrevsielbatsihte take care (saelp,sgelehtinglbmessaretfA.2
lift the table and turn it over. Taking care not to turn the table over on two legs as this may
cause damage.

PLEASE K EEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com
3. Grasp the corners of one side of the table top and pull outwards. Then lift and fold out the extension leaf
from the table, making sure the holes of the leaf align with the pins of the table top. Then push it back
together and secure using the two metal clips underneath the table.
Do the reverse to store the leaf.
Note the extension leaf should be stored FACE UPWARDS on the frame underneath the table.
