Thank you for purchasing the Ergonomic Products C1A1 30” Resupply Cabinet.
Years of research by dentists, engineers, and designers have made this a uniquely eective
product in the industry. We stand behind our equipment, and genuinely believe it to be the
best available on the market.
Should you have any questions regarding the product’s installation or use, please don’t
hesitate to call our customer service specialists at 1-866-ERGO-4-US. We may also be reached
via email at [e-mail].
We hope that you enjoy the benefits and quality of your new equipment and look forward to
assisting you with your future needs as your practice continues to grow!
—The Ergonomic Products Team
QUESTIONS?
Call our Customer Service Specialists at:
1-866-ERGO-4-US
CONTENTS:

950-084 C1A1 manual Eergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 3
30” Resupply Cabinet
with Pulldown
Model C1A1
1. Inspect shipping container for visible damage upon arrival. If transit damage is found, contact Ergonomic
Products immediately (this will expedite the corrective process).
2. Use safe lifting procedures to free the product from the container, and remove all packing material and
accessory boxes from shipping container.
3. Lay individual components on clean surface to avoid scratching, and inspect contents. If damage is found,
contact Ergonomic Products immediately.
Long Phillips Head Screwdriver
#8 Countersink Drill Bit
Electric Screw Driver
Construction Level
1 – REQUIRED TOOLS / UNPACKING AND INSPECTING
REQUIRED
TOOLS:
#8 2-1/2” wood screws for wood blocking.
#8 2-1/2” flat head self drill screws for
sheet metal blocking.

950-084 C1A1 manual Eergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 4
30” Resupply Cabinet
with Pulldown
Model C1A1

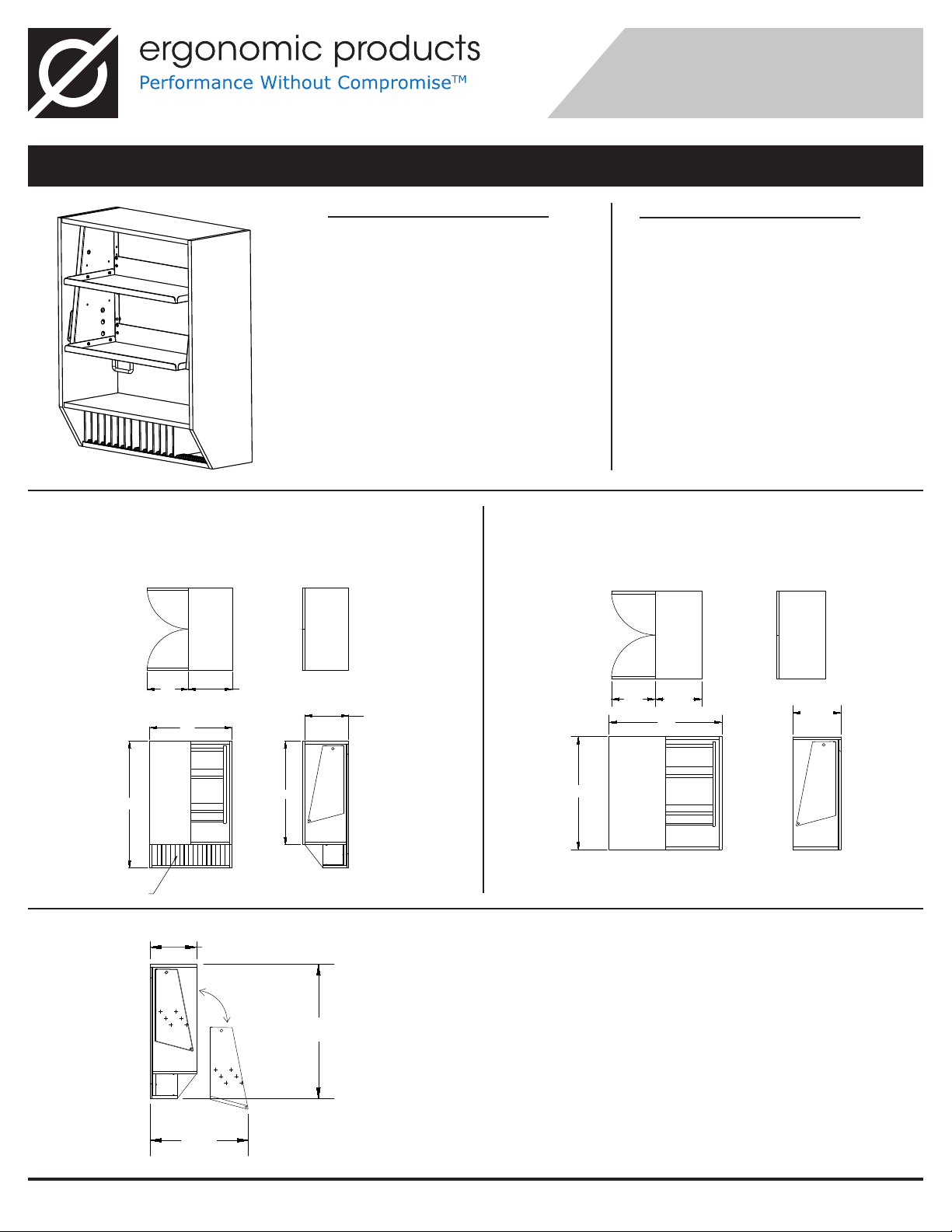

2 – SPECIFICATIONS AND OPTIONS
USE & FEATURES
- Hydraulic pull-down shelving provides
easy access to materials.
- Maximizes use of vertical storage space
wiithout sacricing safety.
- Open shelving allows visual inventory
know at a glance, what you have and
where it is.
- Partition storage under unit allows for
quick and customizable arrangement of
materials.
-Hygiene version with doors available.
Note: this will eliminate the open
partitioned under-storage.
OPTIONAL FEATURES
Tilt Bins - Choose between 5, 6, or 9 slot
tilt bins.
Cabinet doors - This option is inteneded to
be used in Hygiene rooms.
FRONT VIEW HORIZONTAL
SECTION VIEW
30"
36 3/4"
REMOVABLE
DIVIDERS
32mm O.C.
30"
(ONE DOOR REMOVED
FOR CLARITY)
TOP VIEW
DOORS CLOSED
TOP VIEW
DOORS OPEN
15" 12 3/4"
12 3/4"
RESUPPLY CABINET
DIMENSIONS
FRONT VIEW HORIZONTAL
SECTION VIEW
30"
12 3/4"
TOP VIEW
DOORS CLOSED
TOP VIEW
DOORS OPEN
15" 12 3/4"
(ONE DOOR REMOVED
FOR CLARITY)
30"
HYGIENE CABINET
DIMENSIONS
27"
12 3/4"
36 3/4"
PULLDOWN DIMENSIONS AND SPECS
- For ease of pulldown use, make sure the
unit does not surpass 35lbs of weight or
17lbs per shelf.

950-084 C1A1 manual Eergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 5
30” Resupply Cabinet
with Pulldown
Model C1A1
3 – FRAMING
During the framing process, a 2”x 6” or equivalent cabinet blocking should be installed at 54” above the finished
floor and again at 90 3/4” above the finished floor. This will provide necessary support for your Resupply
Cabinet.

950-084 C1A1 manual Eergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 6
30” Resupply Cabinet
with Pulldown
Model C1A1
1. Position the bottom of the Resupply Cabinet 54” above the finished floor where indicated on the elevation.
This height is required for proper use of the pull-down fixture.
2. Make sure unit is level.
3. Using six #10x2-½” screws, secure the Resupply Cabinet into the cabinet blocking through the cleats of the
cabinet as shown in Fig. 3.1. Use three screws along the top and three along the bottom.
4 – INSTALLATION
Fig. 3.1
6 SCREWS AS REQ'D

950-084 C1A1 manual Eergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 7
30” Resupply Cabinet
with Pulldown
Model C1A1
4 – INSTALLATION cont’d
1. Remove tilt bins from frame
2. Using supplied screws (four (4) #6 x 5/8” philips-head screw), attach tilt bin frame to the bottom of cabinet into
the pre-drilled holes, using a philips head screw driver.
3. Replace tilt bins into frame.
Tilt Bin
Bottom of cab with
4 pre drilled holes.

950-084 C1A1 manual Eergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 8
30” Resupply Cabinet
with Pulldown
Model C1A1
Although it is our recommendation to install the Resupply Cabinet using the cabinet blockings, it is
possible to install the cabinet without them.
1. Position the bottom of the Resupply Cabinet 54” above the finished floor centering the cabinet
horizontally over two (2) studs. This may not allow for proper spacing.
2. Make sure the unit is level.
3. Secure the Resupply Cabinet using six (6) #10 x 2-½” screws into the studs with three (3) screws
spaced evenly down the left side and three (3) screws spaced evenly down the right side.
4 – INSTALLATION cont’d
INSTALLATION OF RESUPPLY CABINET WITHOUT CABINET BLOCKING:
