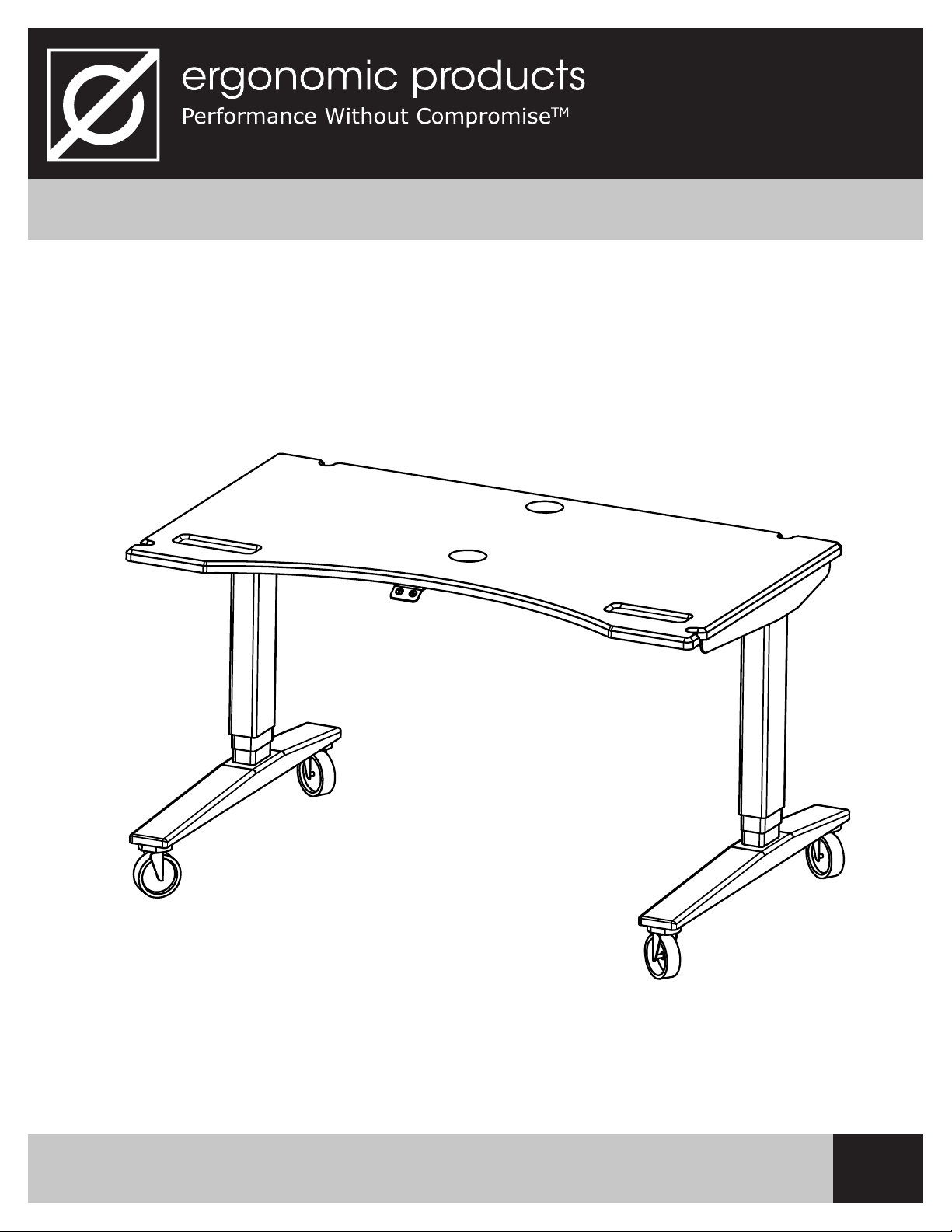

Ergonomic products R3A1 User manual

INSTALLATION AND OPERATIONS MANUAL
Product ID: R3A1
950-112 Manual version: A

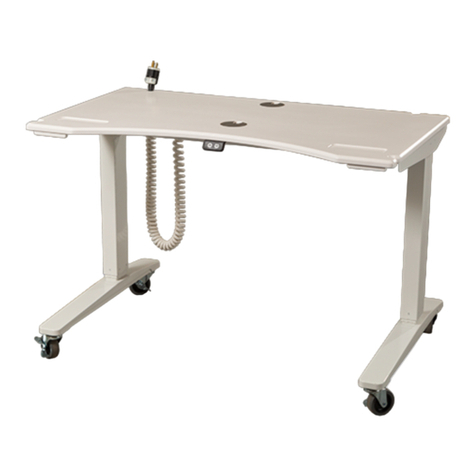

R3A1: Surgical Table

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 2
Surgical Table
Model: R3A1
Thank you for purchasing the Ergonomic Products R3A1 Surgical Table.
Years of research by dentists, engineers, and designers have made this a uniquely eective
product in the industry. We stand behind our equipment, and genuinely believe it to be the
best available on the market.
Should you have any questions regarding the product’s installation or use, please don’t
hesitate to call our customer service specialists at 1-866-ERGO-4-US. We may also be reached
via email at [e-mail].
We hope that you enjoy the benefits and quality of your new equipment and look forward to
assisting you with your future needs as your practice continues to grow!
—The Ergonomic Products Team
1. Required tools / Unpacking and Inspecting..................................3
2. Specifications...............................................................................4
3. Installation Prep...................................................................................5
4. Leg Installation.....................................................................................7
5. Electrical Connections.......................................................................11
6. Replacing The Cover..........................................................................13
7. Setup Complete...................................................................................14
8. Using the Uplift Desk Keypad.......................................................15
9. Warranty Information.........................................................................16
QUESTIONS?
Call our Customer Service Specialists at:
1-866-ERGO-4-US
CONTENTS:

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 3
Surgical Table
Model: R3A1
1. Inspect shipping container for visible damage upon arrival. If transit damage is found, contact Ergonomic
Products immediately (this will expedite the corrective process).
2. Use safe lifting procedures to free the product from the container, and remove all packing material and
accessory boxes from shipping container.
3. Lay individual components on clean surface to avoid scratching, and inspect contents. If damage is found,
contact Ergonomic Products immediately.
4mm Hex Wrench (supplied)
Extended Wrench Handle (supplied)
1 – REQUIRED TOOLS / UNPACKING AND INSPECTING
REQUIRED
TOOLS:

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 4
Surgical Table
Model: R3A1

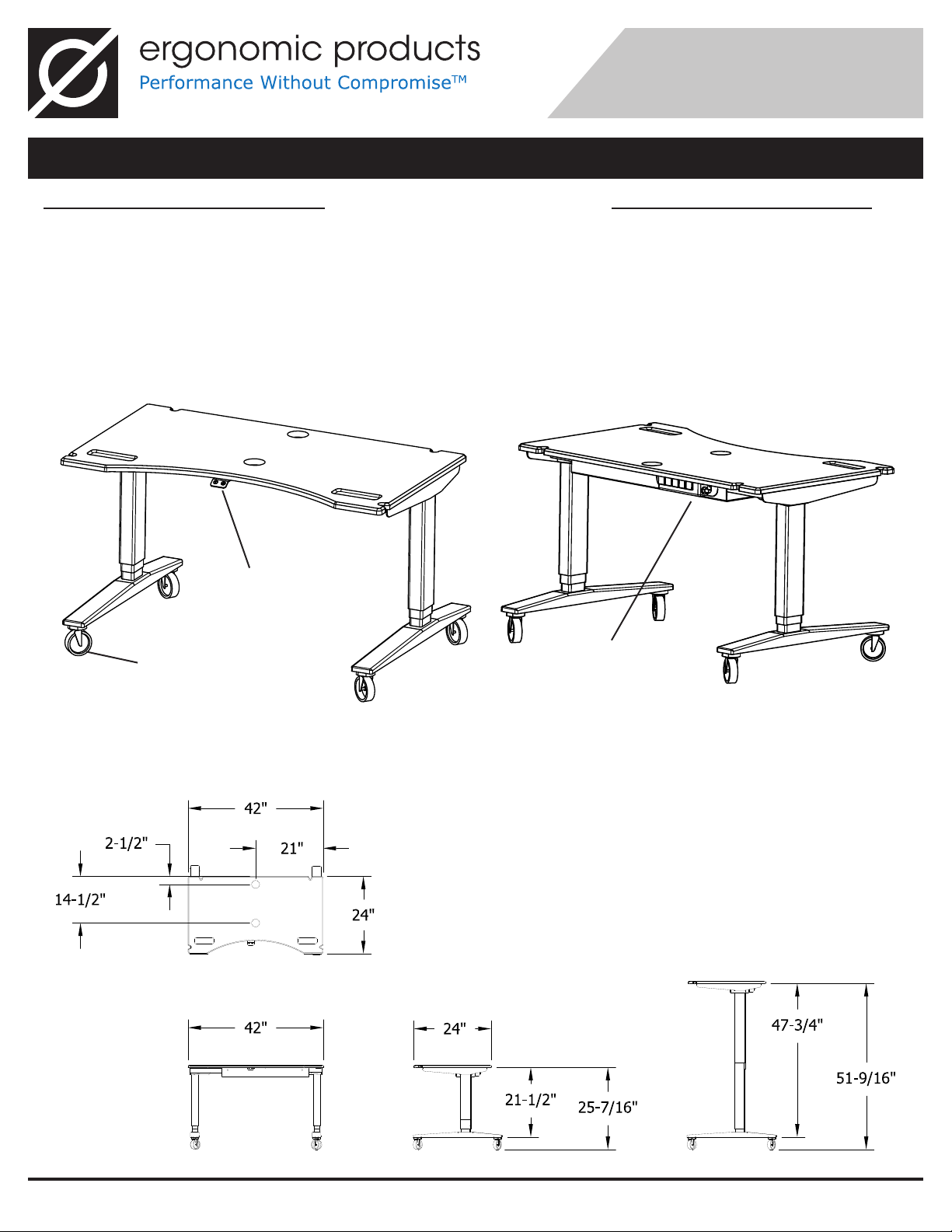

2 – SPECIFICATIONS
SURGICAL TABLE USE & FEATURES
- 4 Tool Holders
- 2 Recessed burr dedents
- 2 Wireway Holes w\ covers
- Arched table front for easy access to the
patient
- 4 Rubber 3” Caster wheels
- 1 Power Strip
UPLIFT DESK SPECIFICATIONS
- Height Range 21.5” - 47.75”
- Travel Speed 1.57”/second
- Noise Level 50 dB
- Lifting Capacity 355 lbs
- Current 4 Amps max (during movement)
- Voltage Input 100-120Vac, 50/60Hz, 400w max
Rubber
Casters
Power Strip
Up/Down
Controller

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 5
Surgical Table
Model: R3A1
1. “Box #1” contains the “Surgical Table” and the “Tools and Hardware” box. Remove and discard the Foam
Bars,Remove the Tools and Hardware Box and set aside.
2. “Box #2” contains the Legs, remove and discard the Foam Bars. Remove each leg and set aside for assembly.
3 – INSTALLATION PREP
3. Open the Tools and Hardware Box and set aside the (8) - M6 Machine Screws, the (1) 4mm Hex Wrench with
Extended Handle, (2) leg screw guides A and B, (1) 4mm ball end hex shaft with knob, (2) cord grommets.
Box #1 - table top
Remove Tools and Hardware
Box #2 - Legs
Remove 3 Foam Bars

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 6
Surgical Table
Model: R3A1
4. With a partner, lay the table upside down on a protected surface as to not damage the top working surface.
This exposes the frame and the electronics cover.
3 – INSTALLATION PREP CONT’D
Front View
Back View
5. Remove plastic cover by slightly spreading long wall and pivot cover away to clear the black pins (Fig 5.1).
Once clear, repeat on opposite side. With cover removed, it will reveal the electronic components (Fig 5.2).
Fig 5.1 Fig 5.2
Black Pin

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 7
Surgical Table
Model: R3A1
6. When installing the leg, please note the orientation should be as shown with the long extended foot (Fig 6.1)
pointing towards the table front (Fig 6.2). Install the leg between the rails as shown in (Fig 6.3).
4 – LEG INSTALLATION
Fig 6.1
Fig 6.2
Fig 6.3

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 8
Surgical Table
Model: R3A1
7. Insert screw guide “A” into access hole adjacent to yellow dot (Fig 7.1). Line up points of “A” on dot guide.
Remove one screw from bag. Using the 4mm ball hex shaft driver, attach screw to ball end of tool (Fig 7.2). Place
screw into guide, turn tool clockwise until finger tight (Fig 7.3). Slide guide out with tool (Fig 7.4) repeat operation
on opposite side of leg.
4 – LEG INSTALLATION CONT’D
Fig 7.1 Fig 7.2
Fig 7.3 Fig 7.4

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 9
Surgical Table
Model: R3A1
8. Insert “B”screw guide adjacent to GREEN B dot (Fig 8.1), Insert screw guide “B” into access hole adjacent to
green B dot. Remove one screw from bag Using the 4 mm ball hex shaft driver (Fig 8.2), Attach screw to ball end
of tool. Place screw into guide(Fig 8.3), Turn tool clockwise until finger tight. Slide guide out with tool (Fig 8.4)
4 – LEG INSTALLATION CONT’D
Fig 8.1 Fig 8.2
Fig 8.3 Fig 8.4

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 10
Surgical Table
Model: R3A1
8a. Using 4mm right angle hex driver with extended handle (Fig 8.5), Tighten the 4 screws down firmly (yellow
and green dots) (Fig 8.6). Repeat procedure for “Front 2” leg on opposite side of table.
4 – LEG INSTALLATION CONT’D
Fig 8.5 Fig 8.6

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 11
Surgical Table
Model: R3A1
9. Once both legs are installed each leg has an electrical connector. The 6-pin male connector needs to be
plugged into the 6-pin female connector on one end of the leg (Fig 9.1 & 9.2). Tuck and secure wires as shown in
(Fig 9.3).
5 – ELECTRICAL CONNECTIONS
Fig 9.3
Fig 9.2Fig 9.1

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 12
Surgical Table
Model: R3A1
10. On the opposite leg the 6-pin male connector plugs into the female 6-pin connector on the power box (Fig
10.1) Tuck and secure wires as shown in (Fig 10.2)
5 – ELECTRICAL CONNECTIONS CONT’D
Fig 10.2
Fig 10.1

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 13
Surgical Table
Model: R3A1

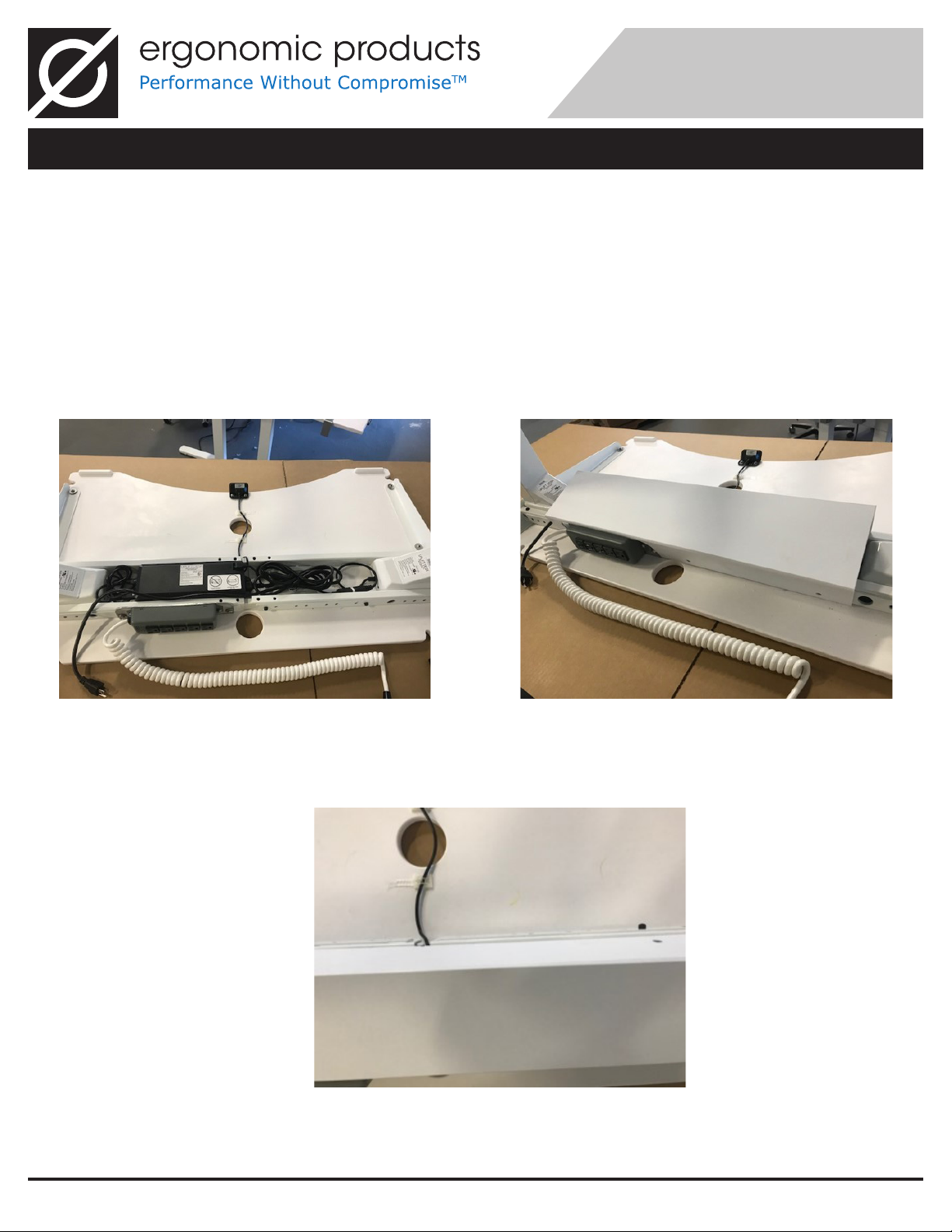

11. With the legs secured and the electrical connections made, leave the tail of black power cord out as
shown in (Fig 11.1). Replace the plastic cover by starting on the power brick side, align the cover side holes
to the black pins on the frame (Fig 11.2). Spread the cover apart and pivot to the opposite side and align to
black pins making sure front wire goes through grommet hole (Fig 11.3).
6 – REPLACING THE COVER
Fig 11.2
Fig 11.1
Fig 11.3

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 14
Surgical Table
Model: R3A1

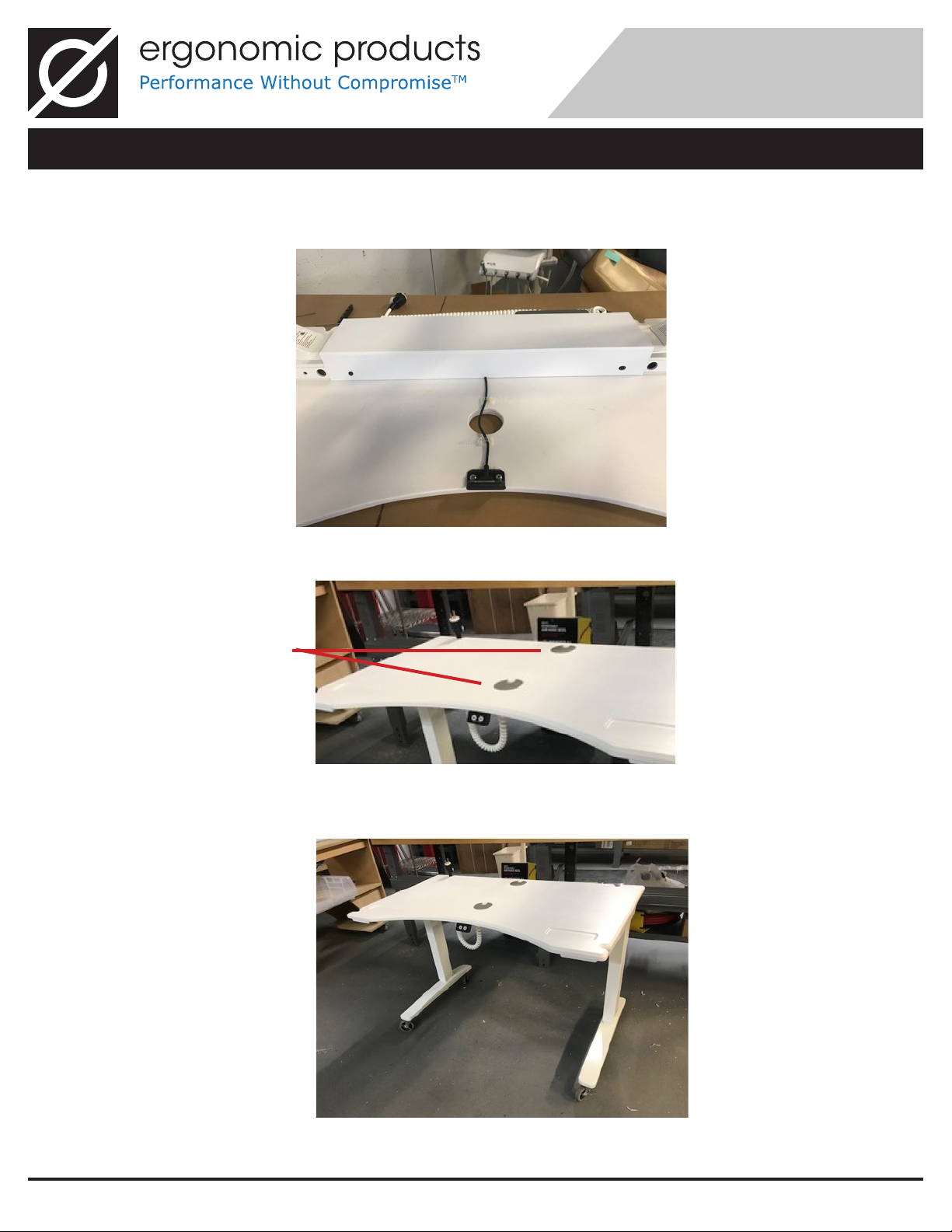

12. With the cover on securely (Fig 12.1), flip table over onto casters with the help of a partner. Insert the cord
grommets (Fig 12.2). Your Surgical Table is complete (Fig 12.3).
7 – SETUP COMPLETE
Fig 12.1
Fig 12.2
Fig 12.3
Insert Cord Grommets

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 15
Surgical Table
Model: R3A1

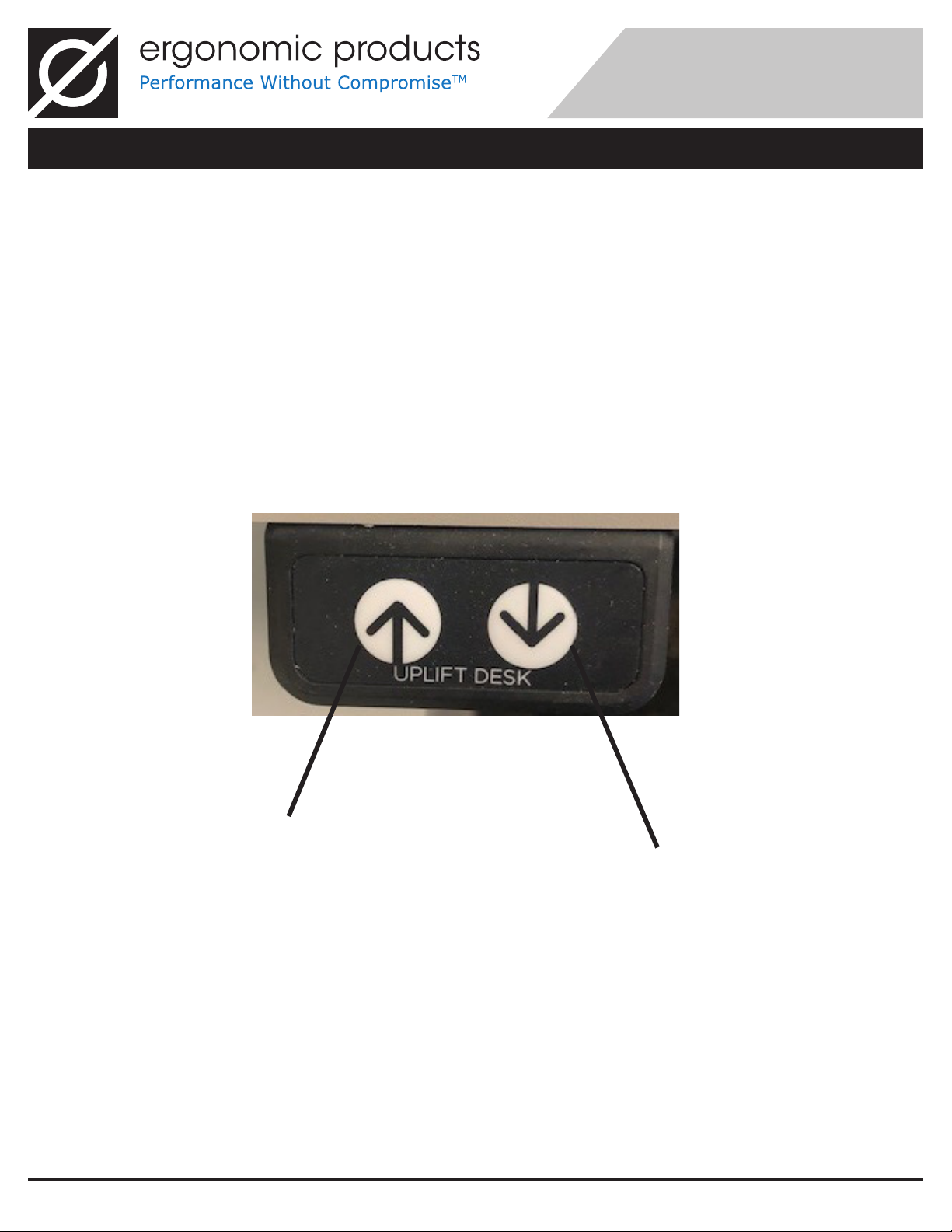

8 – USING THE UPLIFT DESK KEYPAD
13. Check your desk’s surroundings to make sure there will be no obstacles in the desk’s path and that
all cords are long enough to accommodate the motion of your desk. Plug your desk into a 120V outlet.
Before using your desk, you’ll need to sync all the components by using the reset procedure.
Initial Desk Reset Procedure:
Press and hold the DOWN button for 10 seconds, then release the button. Press and hold the DOWN button
again, the desk will lower a little, then rise a little, and then stop. Release the button. Your desk is now ready
to use!
UP DOWN

950-112 manual ver A
ergonomic products • 198 Airport Rd • Fall River, MA 02720 • 866-374-6487
PAGE 16
Surgical Table
Model: R3A1
9 – WARRANTY INFORMATION
Ergonomic Products oers the following warranty on our products:
• 5-year limited warranty on all Corian® surfaces*
• 3-year warranty on all RapidCarts®**
• 5-year warranty on all EP 3 Series® Patient Chairs***
• 3-year warranty on all Workstations®
• 3-year warranty on all EP Lighting****
• 3-year warranty on STS Manifold and Sliding Track Assembly
• 1-year warranty on all cabinetry, laminates and components
• 1-year warranty on all storage tubs and bins
• 3rd party components carry the original manufacturer’s warranty:
– 1-year warranty on scalers
– 1-year warranty on cure lights
– 1-year warranty on Ultraleather upholstery
– 1-year warranty on BienAir Electric Motors
– 1-year warranty on STS Articulating Arm and Motor
* Limited to manufacturer’s defects only
** Excludes powder-coated RapidCarts® tops (1 year warranty)
*** Excludes upholstery (1 year warranty)
**** Excludes bulbs
Discontinued parts or components cannot be serviced once the warranty has expired. Additional 3rd-party
sources may be available.
We promise to oer you prompt, inexpensive repairs. Products under warranty will be fixed as quickly as
possible and service will be done on-site if possible. If a product must be returned to our technical center, it will
be returned to you without additional shipping charges. If the time needed to repair it will aect your practice
schedule, we will try to provide a loaner so as to not interrupt your service to your patients. In an emergency, our
Doctor Delivery Power Channels® will ship overnight.
Should your oce damage the equipment, due to improper use or inadequate installation or maintenance, we’ll
still make sure to fix your problem promptly. The warranty will not apply. There is no warranty for fabric damaged
by infection control products.
We promise to keep working to inspire you with our products and services. We want to hear from you, and help
you to continue to improve your practice.
Sincerely,
The Sta at Ergonomic Products, Inc.
