ESI 3V-LX-C4848-30 Series User manual

ASSEMBLY AND OPERATION
VICTORY-LX
Model 3V-LX-C4848-24-___
Model 3V-LX-C4848-30-___
Model 3V-LX-C4836-24-___
Model 3V-LX-C4836-30-___
Model 3V-LX-C3636-24-___
Model 3V-LX-C3636-30-___
___ = SLV, BLK or WHT
3 LEG ELECTRIC TABLE BASE
3V-LX Rev A 7/17

1
VICTORY-LX 3 LEG ELECTRIC TABLE BASE PARTS AND TOOLS
PLEASE REVIEW these instructions before beginning the assembly procedures. Check that all the parts shown
below were provided with your order. Contact your supplier if any materials are missing. Do not discard the
your satisfaction.
ADDITIONAL TOOLS REQUIRED
•
• Power Drill (wood screws only)
Phillips screwdriver
NOTE: The Victory 3 Leg Electric Table Base can be used with 90° or 120° work surfaces. Assembly is the
same except for the attachment to the center leg brackets. On the following pages, the illustrations show
90° tables; 120° tables are illustrated only to show the difference in attachment to the center leg brackets.
CAUTION: Always check that screws
used to attach components to the
work surface are not too long for the
thickness of the surface.
Work
Surface

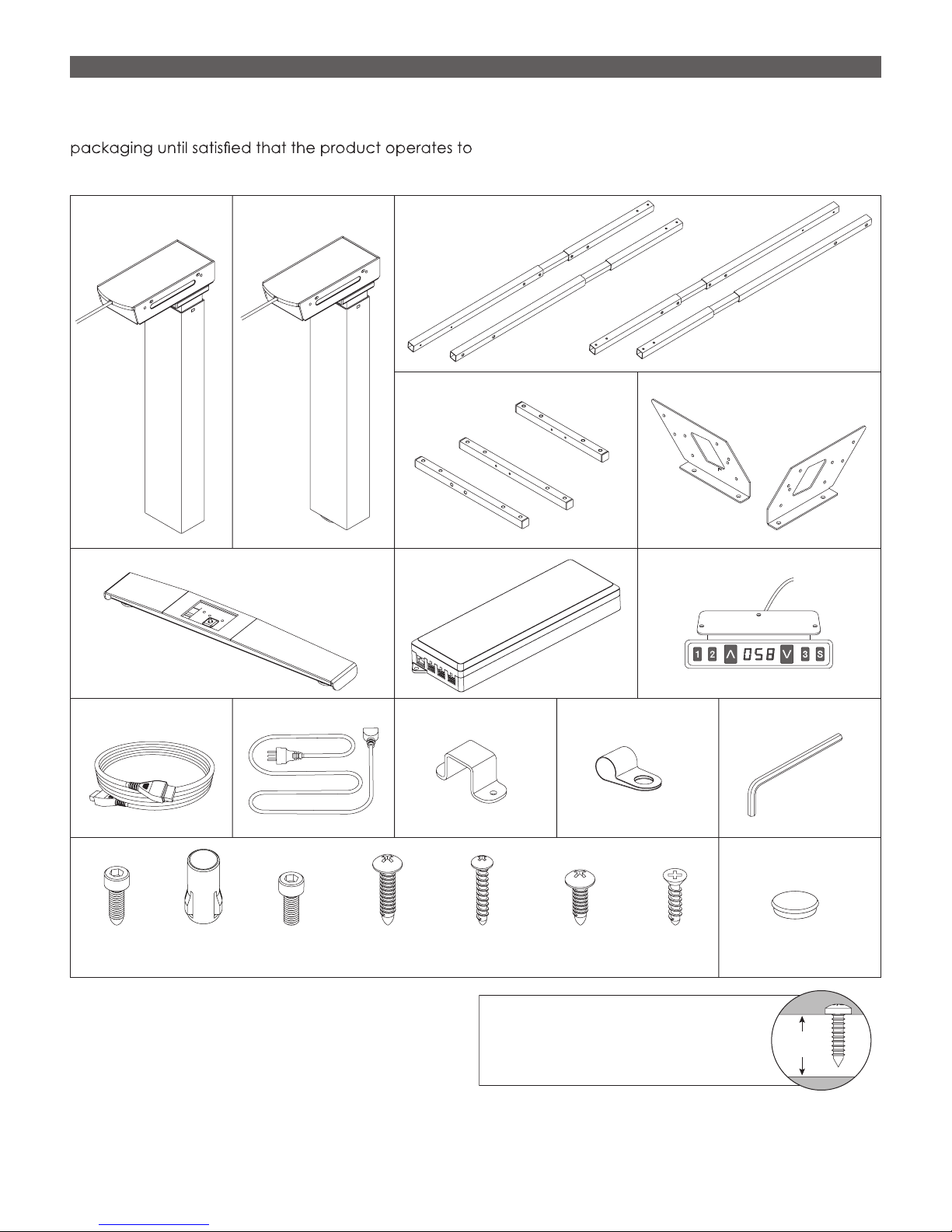

PARTS PROVIDED
Fasteners
Motor Cable (3) Power Cable (1)
Hole Cover (26)
Left
Left
Glide
Left
Right
Right
Short
Short
Long
Long
Right
Center
M6x18 (14)
Socket Cap
Round Point
Top Supports (3)
U-Bracket (8) Cord Clip (12) 5mm Allen Key (1)
Center Leg Brackets (2)
Side Legs with
Motor (2)
Center Leg with
Motor (1)
Cross Channels (4)
CAUTION: Hand-tighten screws only.
Digital Keypad (1)Control Unit (1)Feet (2)
Guides (8) M5x15 (2)
Round Head
M3x20 (3)
Round Head
M6x20 (28)
Round Head
M3.5x16 (12)
Flat Head
M6x15 (12)
Socket Cap

2
ASSEMBLY VICTORY-LX 3 LEG ELECTRIC TABLE BASE
STEP 1
Place the table top facing down on a soft clean surface.

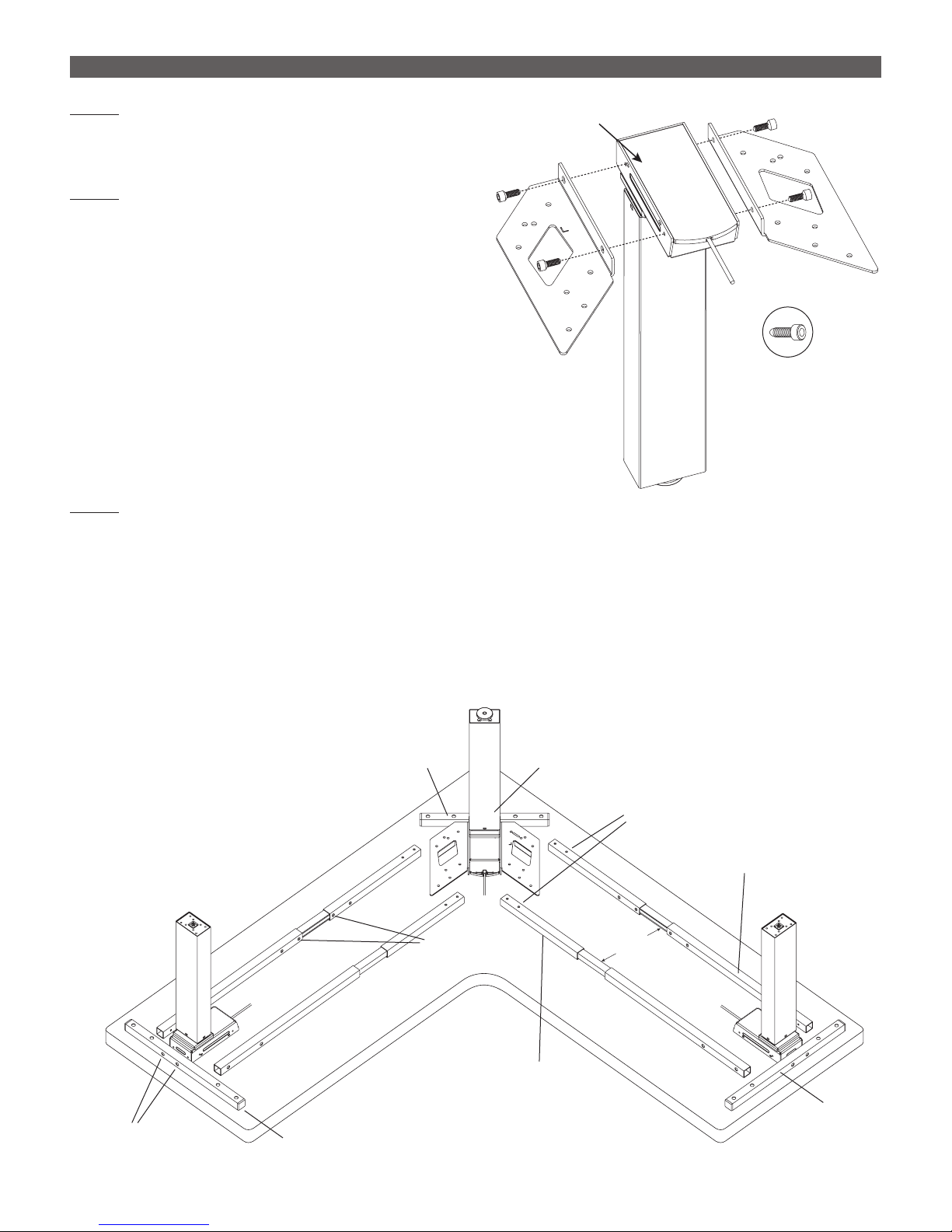

STEP 2
Attach the center leg brackets to the center leg (the
leg with the glide on the end opposite the motor).
• Lay the center leg on the work surface with the
motor pointing up.
• Using the 5mm Allen key and four M6x18 socket cap
screws (with round tip), attach the brackets to the
motor, as shown.
STEP 3
Arrange the side legs, center leg, cross channels and top supports as shown below.
• Positioning does not need to be exact at this time.
• The longer cross channels are toward the rear of the table.
• The longer sections of the cross channels are toward the sides.
• The set screws on the cross channels face inward, toward each other.
• Holes on the sides of the outer top supports are offset to the rear.
Center Leg Column
with Brackets
Leg ColumnLeg Column
Left Top
Support
Center Top
Support
Right Top
Support
Shorter
Cross Channel
Set Screws
Face Inward
Front
Rear
Large Holes
Face Outward,
Offset Toward Rear
Small Top Holes for
Center Bracket
Attachment
M6x18
Round Point
Motor
Inner
Cross
Channels
Longer
Cross Channel

3
VICTORY-LX 3 LEG ELECTRIC TABLE BASE ASSEMBLY

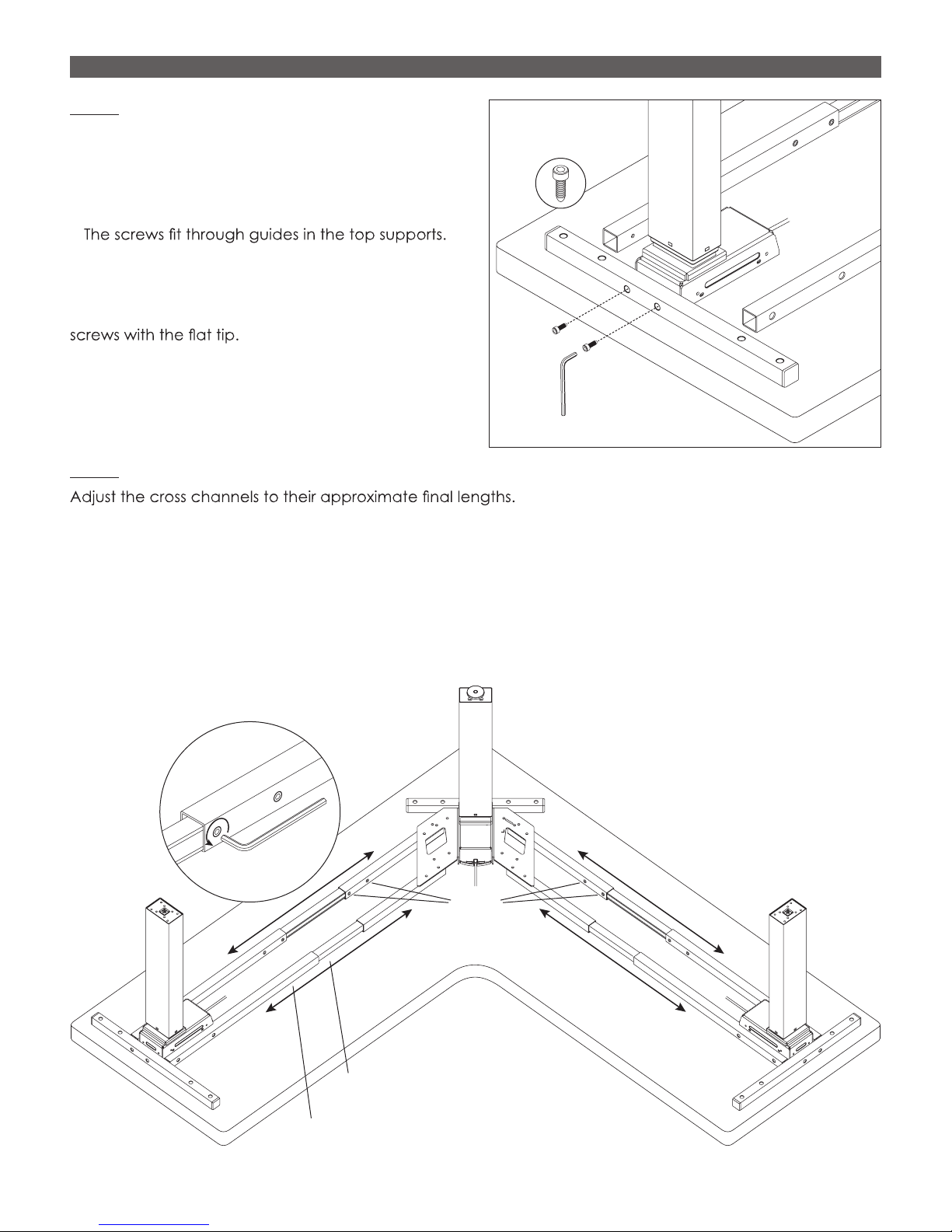

STEP 4
Use the 5mm Allen key to attach the three top
supports to the leg columns.
• Use two M6x18 socket head screws (with round
point tip) per top support.
•
• Be sure the short side of the outer top supports is
toward the rear of the work surface.
IMPORTANT: Do not use the M6x15 socket head
STEP 5
• Use the 5mm Allen key to loosen all 16 set screws on the inward side of the cross channels.
• Position the outer leg columns and top supports so that the outer top supports are approximately 1"
(25mm) from the ends of the table and the center leg top support is centered on the
angle of the table.
• Expand the cross channels to the outer top supports and under the center leg brackets.
• Center the inner cross channel within the outer cross channels.
Loosen
Set Screws
Expand
Cross
Channels
5mm
Allen Key
Loosen
Set Screws
M6x18
Round Point
5mm
Allen Key
Inner Cross Channels
Outer Cross Channels

4
ASSEMBLY VICTORY-LX 3 LEG ELECTRIC TABLE BASE

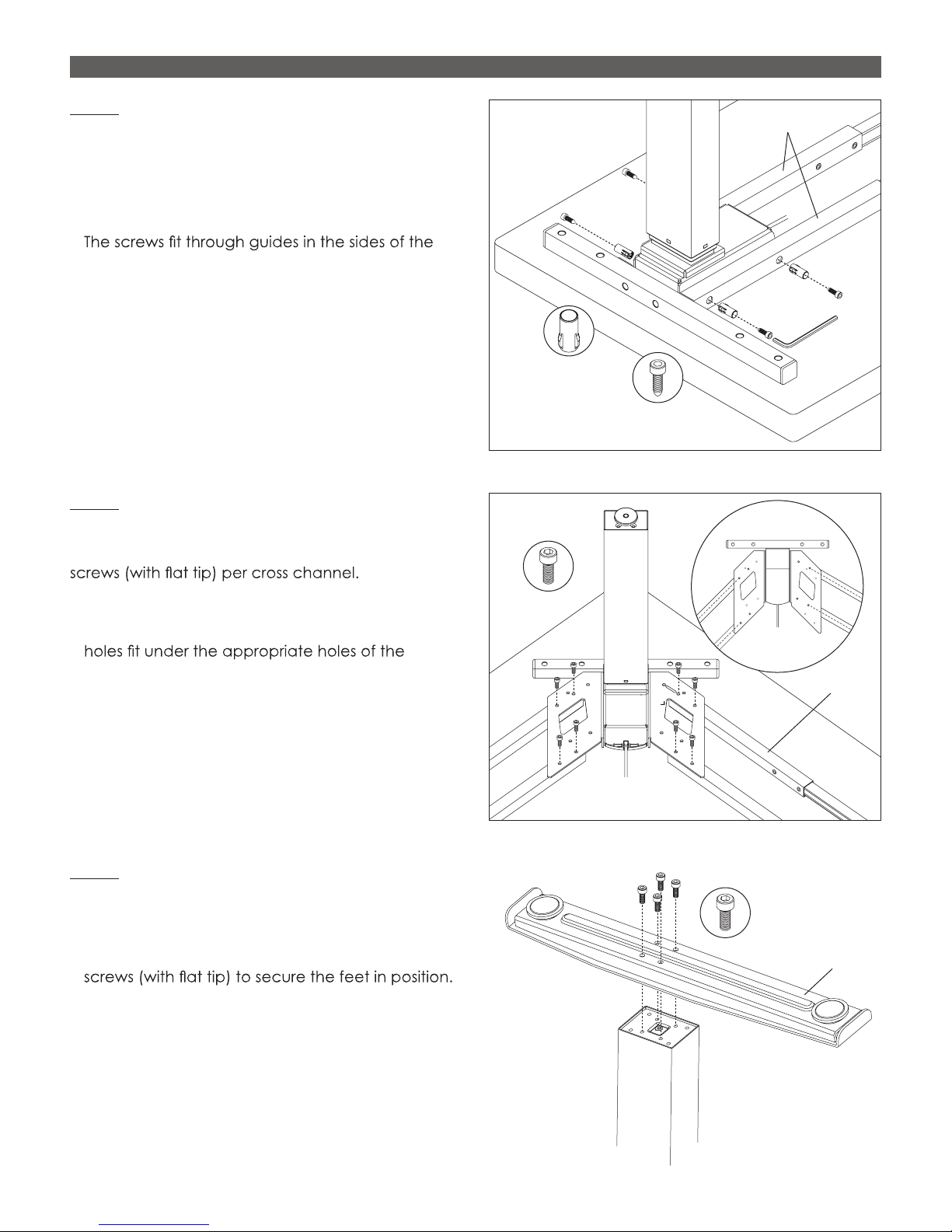

STEP 6
Attach the cross outer channels to the outer leg
columns with four M6x18 socket head screws per leg.
• Use a 5mm Allen key.
STEP 7
Attach the other end of the cross channels to the
center leg brackets with two M6x15 socket cap
• Adjust the cross channels so that their two end
brackets (see illustration).
• Use a 5mm Allen key to secure the screws.
STEP 8
Attach the feet to the outer leg columns.
• Place the square opening on the foot over the leg.
•
• The shorter side of the foot should be positioned to
the rear of the table.
Use the 5mm Allen key and M6x15 socket head
M6x18
Round Point
5mm
Allen Key
Outer
Cross Channels
90° 120°
M6x15
M6x15
Rear
Front
Outer
Cross Channel
Foot
Longer
Side
Shorter
Side
• Place the guides into the cross channels.
• Place the guides into the cross channels.
•
cross channel.
Guides

5
VICTORY-LX 3 LEG ELECTRIC TABLE BASE ASSEMBLY
STEP 9
Adjust the position of the frame before attaching it to the table.
• Check that the top supports on each side are approximately 1" (25mm) from the ends of the table.
• The rear of the feet should align with the rear of the table. With feet for a 24" deep table, the rear cross
channels will be 6½" from the rear of the table. With feet for a 30" deep table, the rear cross channels will
be 9½" from the rear of the table.
STEP 10
Attach all three top supports to the table.
• Use the M6x20 Phillips round head screws (12 total
required).
•
supports.
STEP 11
Use the 5mm Allen key to tighten the set screws (16
total) in all four cross channels.
Align Rear of Feet
with Rear of Table
1"
120°
90°
6½" with 24" Table
9½" with 30" Table
5mm
Allen Key
Tighten All
16 Set Screws
M6x20
Top Supports

6
ASSEMBLY VICTORY-LX 3 LEG ELECTRIC TABLE BASE
STEP 12
Attach the cross channels to the table.
• Position one U-bracket over each section of cross
channel, between the set screws, as shown (four
brackets total).
• Use the remaining M6x20 Phillips round head
screws (16 total) to fasten the U-brackets to the
work surface.
STEP 14
Attach the control unit using the two M5-15 Phillips
round head screws.
• Position the control unit near the back of the
table, on the same side as the digital keypad.
• Be sure that the cable from the keypad can reach
the control unit, and the motor cables can
extend from the control unit to all three motors.
M6x20
M5x15
Control
Unit
STEP 13
Attach the digital keypad using the three M3-20
Phillips round head screws.
• Position the digital keypad on the left or right side
of the table, according to user preference.
•
the table and expand to make flush. This will
prevent overhang and collision with the keypad.
Mount the keypad 1 / ”from the front edge of
116
Digital
Keypad
M3x20
1 / ”
116
MOUNT
FROM EDGE

7
VICTORY-LX 3 LEG ELECTRIC TABLE BASE ASSEMBLY
STEP 15
Make connections to the control unit and motors.
• Connect the cable from the digital keypad into
the control unit.
• Connect the motor cables from the control unit
to each of the three motors on the table legs.
• Connect the power cord to the control unit.
• Plug the power cord into an AC outlet.
CAUTION: Do not operate the table until after
initializing the system. See following step.
STEP 16
Initialize the system before testing operation.
IMPORTANT: The initialization procedure below
must be completed before operating the table.
• Press and hold the UP and DOWN buttons
simultaneously for more than 3 seconds.
— The legs will begin to move down at half
speed of normal operation.
• Continue to press the UP and DOWN buttons.
— The legs will move down to the lowest position, then rebound 1
/16" to 3/16" (2mm to 5mm) and stop.
• Release the UP and DOWN buttons at the same time. This completes the initialization procedure.
STEP 14
Test operation.
• Press the UP and DOWN buttons individually to test operation. End your test with the legs lowered
and unplug the power cord.
• If there are problems with operation, check that all cable and cord connections are secure. If problems
continue, call ESI Customer Service.
STEP 17
Use the cord clips to secure the cables and cords in position.
• Cables must not interfere with table operation.
• Cables must not interfere with the user.
•
clips to the table.
Note: Until the table is turned
upright, the DOWN button points
up and the UP button points down.
Press and Hold
UP and DOWN Buttons
Cord Clip
M3.5x16
Digital
Keypad
Cable
Powe
r
Cord
Motor
Cables

8
ASSEMBLY VICTORY-LX 3 LEG ELECTRIC TABLE BASE
Hole Cover
STEP 18
If desired, snap hole covers over all screw holes with
guides (26 total).
STEP 19
IMPORTANT: There must be 1" (25mm) of clearance on all sides of the work surface (and other moving parts)
to ensure free, unobstructed movement.
• Adjust the leveling glides on the feet to level the work
surface, if necessary.
• Plug the power cord into an AC outlet.
• See the following pages for operating
procedures.

9
VICTORY-LX 3 LEG ELECTRIC TABLE BASE OPERATION
GENERAL OPERATION
Move the table up or down by pressing UP or DOWN until
the work surface reaches the desired height.
The table will continue to move up or down until you release the
button or until the maximum or minimum height is reached.
MEMORY STOP POSITIONS
• Raise or lower the table to the position you want to save.
— The display on the digital keypad shows the work surface
height.
• Press the Sbutton. Then press the desired memory button — 1,
2or 3— within the next 3 seconds.
— Position 1, 2or 3is now saved.
To move the work surface to a memory stop position:
• Press and hold the desired memory button, 1, 2or 3.
— The work surface will move to the saved position and then
stop.
LOWER STOP POSITION
This feature can be used to set the minimum height of the table.
• Raise or lower the table to the desired minimum height.
• Press and hold S, then press and hold 1. Continue to press both
buttons for about 3 seconds.
— The letter “L” appears on the display. This means the
minimum height of the table is locked at its current position.
• Release both buttons.
To erase the lower stop position:
• Press and hold S, then press and hold 2. Continue to press both
buttons for about 3 seconds.
— The letter “C” appears on the display, indicating the lower
stop position has been erased.
• Release both buttons.
CAUTION: The initialization procedure
must be completed before operating the
table. See Step 16 on page 8.
If there is a memory stop position
lower than the lower stop position,
the memory stop will be erased..
Table movement stops when you
release the UP or DOWN button.
If you release the memory button
before the saved position is reached,
table movement will stop.

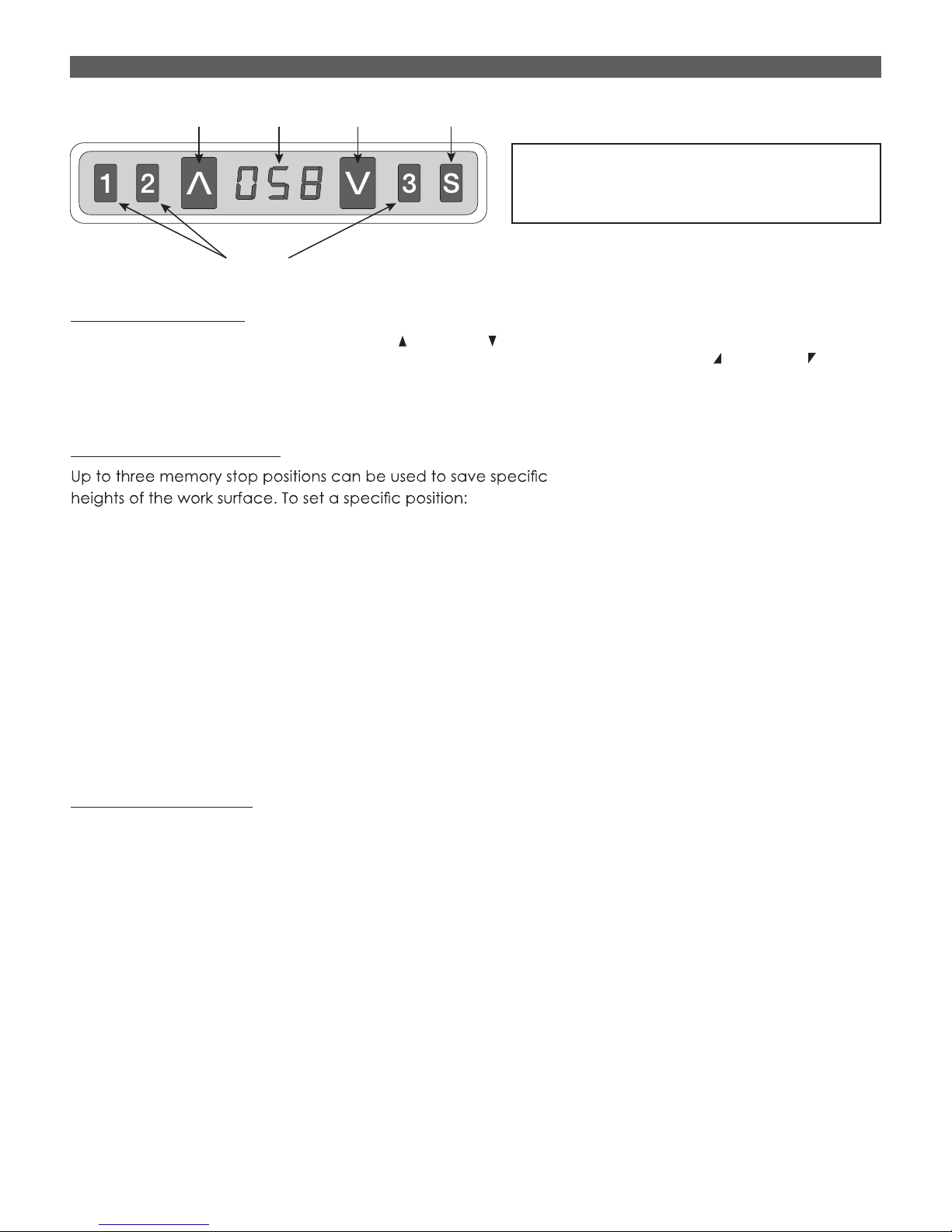

Memory
Buttons
UP
Button
DOWN
Button
“SET”
Button
Digital
Display

10
OPERATION VICTORY-LX 3 LEG ELECTRIC TABLE BASE
CHANGING THE HEIGHT DISPLAY UNITS
This function allows you to change the display units from
centimeters to inches or the other way around.
• Press and hold S, then press and hold the DOWN button.
Continue to press both buttons for about 3 seconds.
— The height information will change between centimeters
and inches.
• Release both buttons.
RESET THE CONTROL UNIT TO FACTORY SETTINGS
To reset the control unit to factory settings, re-initialize the table.
• Press and hold the UP and DOWN buttons simultaneously
for more than 3 seconds.
— The legs will begin to move down at half speed of normal
operation.
• Continue to press the UP and DOWN buttons.
— The legs will move down to the lowest position, then
rebound 1
/16" to 3/16" (2mm to 5mm) and stop.
• Release the UP and DOWN buttons at the same time. This
completes the initialization procedure.
If one or more motors are changed
in a system, the control unit must be
reset to factory settings.
ADUSTING THE DIGITAL KEYPAD READOUT
This function allows you to change the readout of the digital display.
• Verify the display unit format (inches or mm), set the table to any height, measure the actual height, and
write down the number (inches or mm).
• Press and hold the Sbutton. Then press and hold the button for about 3 seconds until the first number on
the digital display flashes.
• Release the buttons then press or to change the first number you measured.
• Press the S button agin. The 2nd number on the digital display flashes.
• Press or to change the 2nd number you measured.
• Press the S button again. The 3rd number on the digital display flashes.
• Press or to change the 3rd number you measured.
• Press the S button to complete the operation.

800.833.3746 esiergo.com
© 2017 ESI Ergonomic Solutions. All rights reserved. 3V-LX Rev A 7/17
