ESI ALL-FLEX FLEX2-SLV-V3 Installation instructions

ASSEMBLY AND OPERATION
ALL-FLEX™Model FLEX2-SLV-V3
Model FLEX2-BLK
Model FLEX2-WHT
ELECTRIC TABLE BASE
FLEX2 V3 Rev 01 7 /17
-V3
-V3

2
ALL-FLEX™ELECTRIC TABLE BASE PARTS AND TOOLS
PLEASE REVIEW these instructions before beginning the assembly procedures. Check that all the parts shown
below were provided with your order. Contact your supplier if any materials are missing. Do not discard the
your satisfaction.

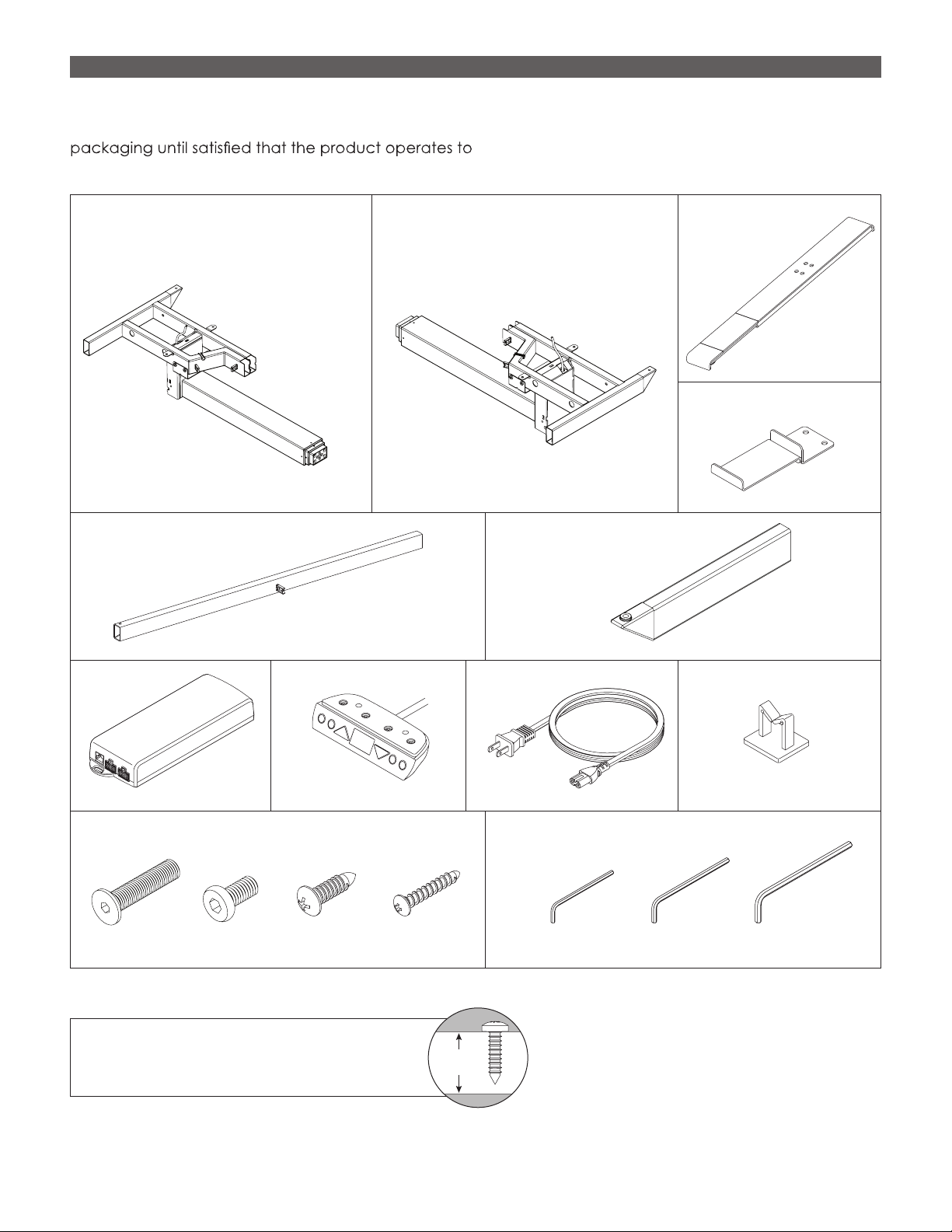

PARTS AND TOOLS PROVIDED
Leg hinged to
Frame(R)(1)
Leg hinged to
Frame(L)(1)
Digital Keypad (1)Control Unit (1) Cable Clip (4)Power Cable (1)
Adjustable Feet (2)
CAUTION:
Hand-tighten screws only. Do not use power tools.
Control Unit Bracket (1)
Fasteners Allen Keys (3)
CAUTION: Always check that screws used to
attach components to the work surface are
not too long for the thickness of the surface.
Work
Surface
ADDITIONAL TOOLS REQUIRED
• Phillips screwdriver
Cross Channel (1) Top Supports (2)
4mm 5mm3mm
Ø5x18(10) Ø4x23 (2)
M6x15 (10)M10x45 (8)

E-1
F-1

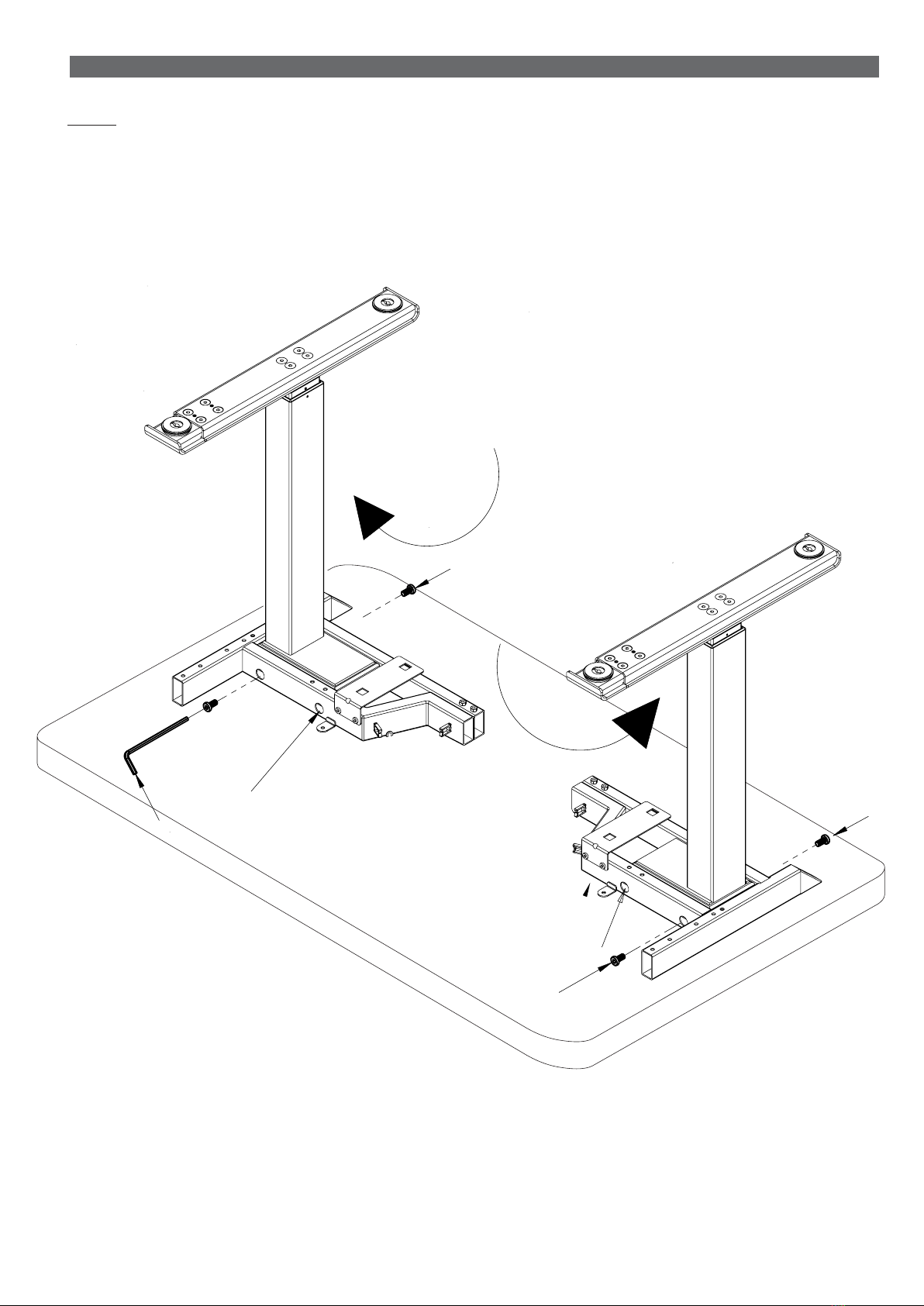

STEP 1
3
ASSEMBLY ALL-FLEX™ELECTRIC TABLE BASE
After turning the legs straight, use the 4mm Allen Key to fasten the M6x15 screws to the posts.
•
Use the 4mm Allen Key to secure the screws within E-1 and F-1.
•

Top Support (L)
Top Support (R)
(Pre-installed)
4
Install
Machine
Screws
Tighten
Set Screws
Center

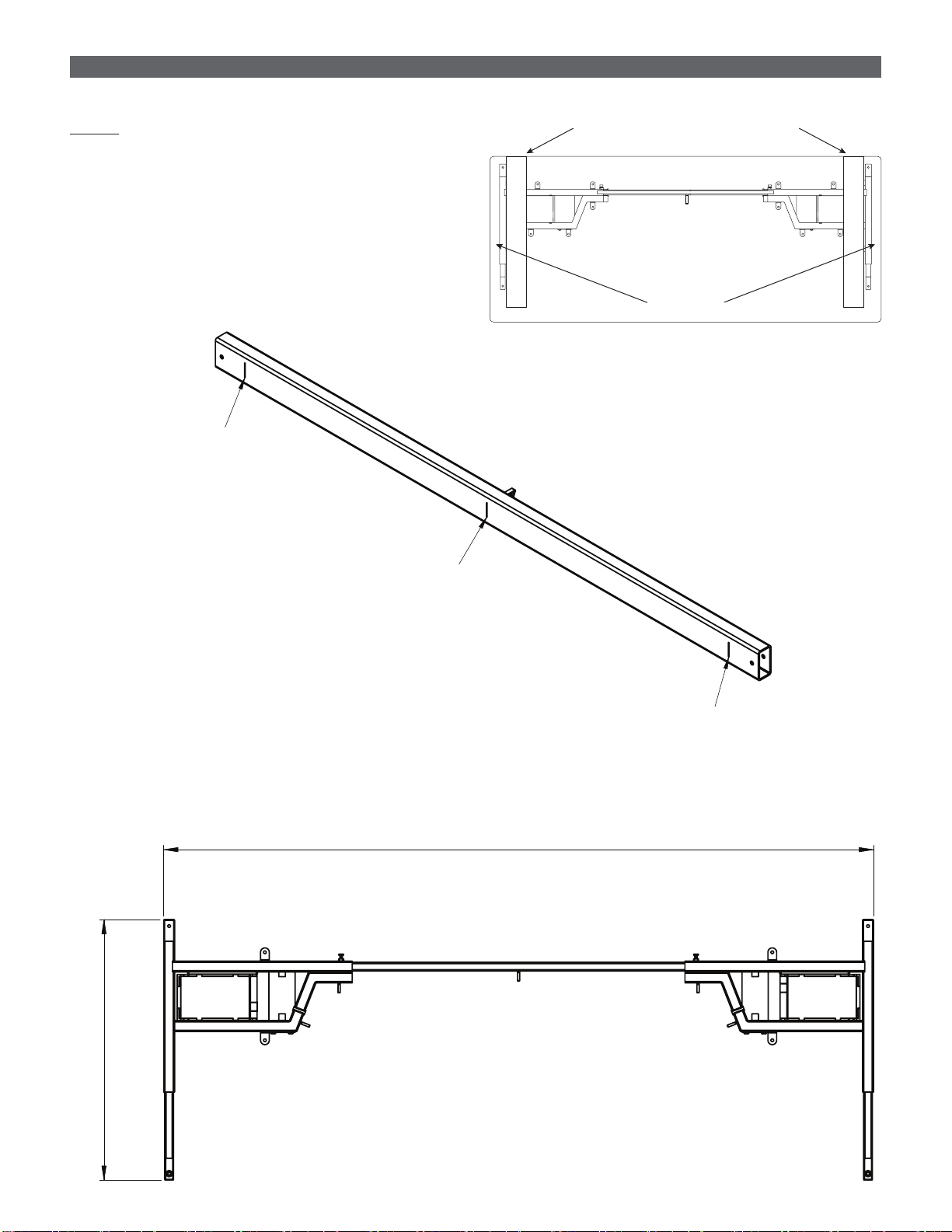

STEP 2
ASSEMBLYALL-FLEX™ELECTRIC TABLE BASE
Place the cross channel into the hinged posts and extend the frame to the full width of the table, allowing
a minimum space of 1" (25mm) on each side.
Place the Top Supports into the frame and secure
the remaining M6x15 screws.
•
STEP 3
Cross Channel
•
Center the frame on the worksurface and
use the 4mm Allen key to fasten the M6x15 screws into place.
The frame can be expanded from 34" (86cm) wide to 64" (163cm) wide. The inner channel includes guides to
assist in setting the desired width.
•
•
•
1" Minimum Space
Each Side
Expands from
34" to 64"
Tighten the two set screws. The tab on the inner channel should be approximately centered.

Align Rear of Feet with Rear of Table
1" Minimum
STEP 4
Adjust the position of the frame before screwing
it to the work surface.
• Align the rear of the feet with the rear of the table.
• Expand the frame, if necessary, and center it from
side to side. See Steps 9 and 10.
• Expand the top supports, if necessary. See Step 11.
5
ALL-FLEX™ELECTRIC TABLE BASEASSEMBLY
MAX
MAX
Middle line
Attention：Please make sure not to pull out the bar over Max. mark.
MAX：64"
MIN：34"
MAX：23.5"
MIN：19.5"

6
ALL-FLEX™ELECTRIC TABLE BASE ASSEMBLY
STEP 5
Change the length of the adjustable feet, if necessary.
• The length of the feet may be either 22" (55.9cm) or 28" (71.2cm). The feet are shipped in the 28" length.
They should be changed to the shorter length if the work surface depth is less than 28".
•
four screws, as shown.
• Slide the feet to the 22" length and reinstall the four screws with the 5mm Allen key.
• Store unused adjustment plates in the brackets attached to the frame.
MAX：28"
MIN：22"
Adjustable
Length
Unsfasten the phillips screws in order to remove the cover plate.
Before adjusting the feet,
first unfasten these screw
with the 3mm Allen Key.
M10x45
STEP 6
Attach a foot to each of the legs.
• Use four M10x45 screws per foot.
• Tighten the screws with an 5mm Allen key.
5mm Allen key
4mm Allen key

7
Remove
Screws 19¼"
Expand
23½"
Install
Screws
STEP 7
If the table depth is 30" (76cm) or more, expand the top supports on each side.
• Remove the two machine screws from the top support using the 4mm Allen key.
• Slide the top supports to the longer length, as shown below.
• Re-install the machine screws in the forward two holes of the top support.

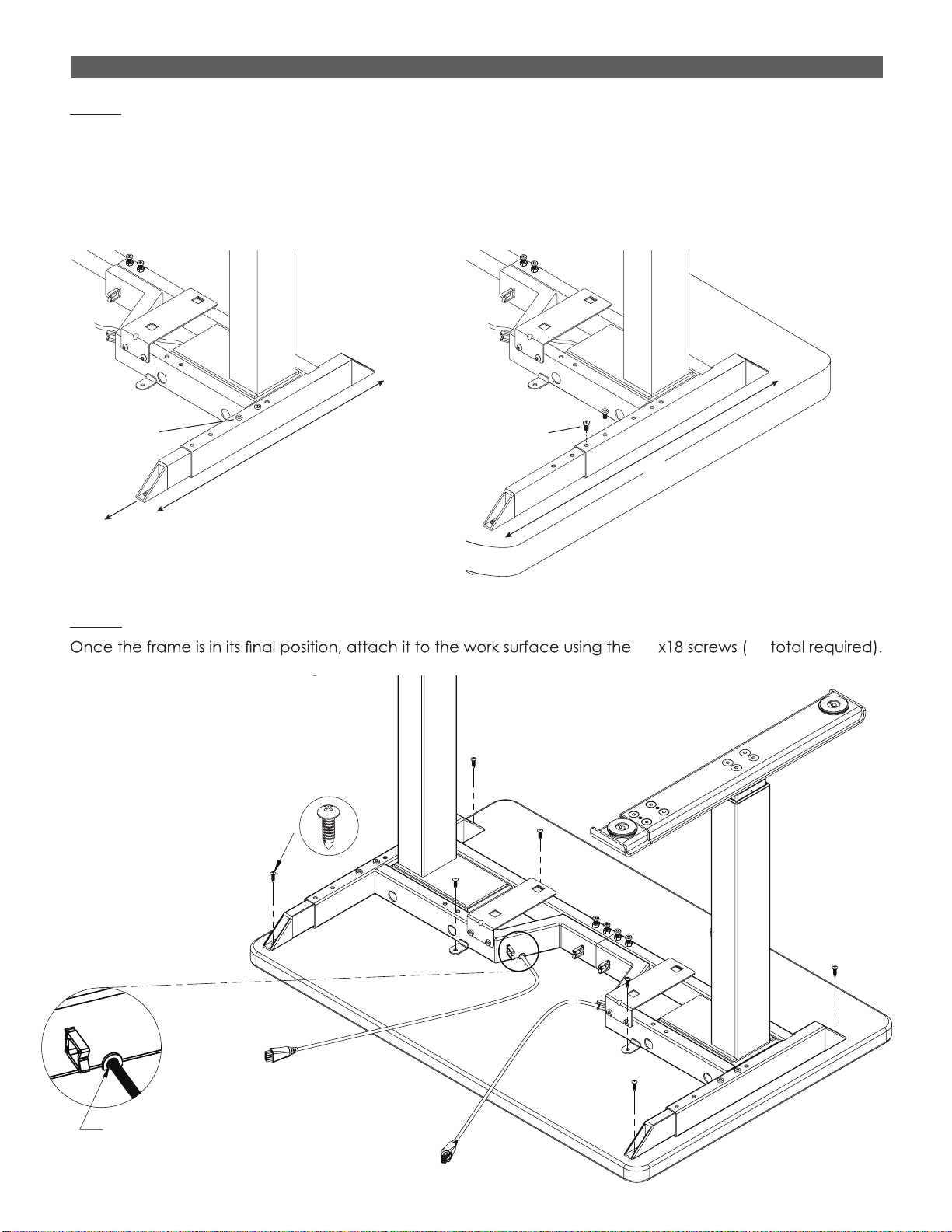

STEP 8
• Attach the screws through the
mounting tabs on the frame, the
mounting tabs on the inner piece
of the cross channel, and the holes
at the ends of the top supports.
• Use a Phillips screwdriver.
Ø5 10
ALL-FLEX™ELECTRIC TABLE BASEASSEMBLY
Wires for motors come out here.
Ø 5x18

8
STEP 9
Attach the control unit bracket to the frame and
the control unit to the work surface.
• Secure the control unit bracket to the frame using
two M6x15 screws and a 4mm Allen key.
• The bracket may be attached on either side of
the frame. (Note that the digital keypad will be
attached on the same side.)
• Attach the control unit under the bracket using
Ø5x18 wood screws. The motor cable and
keypad ports should face the center of the table,
as shown.
• Allow 2¼" (57mm) between the back of the
control unit and the top support to allow room for
power cord attachment.
STEP 10
Attach the digital keypad at the front edge of the
work surface.
• Use the two Ø4x23 wood screws.
• Attach the keypad on the same side as the
control unit.
STEP 11
Make connections to the control unit.
• Connect the cable from the digital keypad.
• Connect the motor cables from the motors.
• Connect the power cord to the control unit.
• Plug the power cord into an AC outlet.
CAUTION: Do not operate the table until after
“zero setting” the system. See following step.
ALL-FLEX™ELECTRIC TABLE BASE
Ø5x18
Control
Unit
Bracket
2¼"
M6x15
Ø4x23
Digital
Keypad
Motor
Cables
Keypad
Cable
Control
Unit
Power
Cable
ASSEMBLY

9
STEP 12
“Zero set” the system before testing operation. (Note that with the table and keypad upside-down, the
UP and DOWN buttons face their opposite directions.)
• Press and hold the UP and DOWN buttons at
the same time. Continue to hold the buttons. The
legs will lower until they reach their bottom point.
• Release the buttons once the system beeps. If it
does not beep, continue to hold the buttons for
3 seconds after the legs reach the lowest point. The
system is now “zero set.”
• Press the UP and DOWN buttons to test operation. End your test with the legs lowered and unplug the
power cord.
• If there are problems with operation, check that all cable and cord connections are secure. If problems
continue, call ESI Customer Service.
STEP 13
Use the pre-installed cable clips plus the additional ones provided to secure the cables in position.
• Cables must not interfere with table operation.
• Cables must not interfere with the user.
ASSEMBLY
Digital Keypad
Work Surface
Press and Hold Both Buttons
ALL-FLEX™ELECTRIC TABLE BASE
Cable Clip

10
STEP 14
IMPORTANT: There must be 1" (25mm) of clearance on all sides of the work surface (and other moving parts)
to ensure free, unobstructed movement.
• Adjust the leveling glides on the feet to level the work surface, if necessary.
• Plug the power cord into an AC outlet.
• See the following page for
operating procedures.
ASSEMBLYALL-FLEX™ELECTRIC TABLE BASE

11

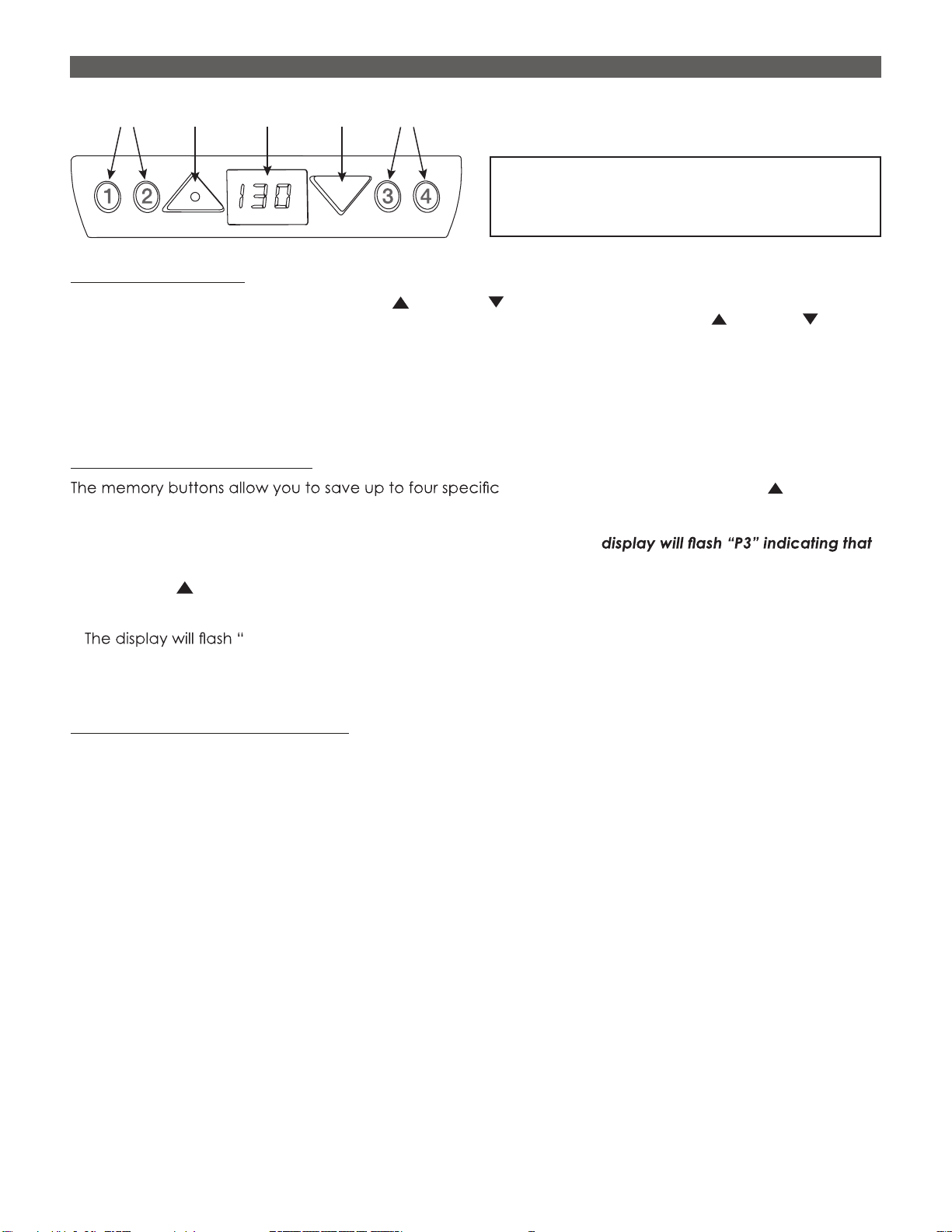

ALL-FLEX™ELECTRIC TABLE BASE
GENERAL OPERATION
Move the table up or down by pressing UP or DOWN until
the work surface reaches the desired height.
The table will continue to move up or down until you release the
button or until the maximum or minimum height is reached.
IMPORTANT: Be sure there are no obstructions to table
movement along its full range of travel.
SETTING A MEMORY POSITION
positions of the work surface. To set a memory position:
• Adjust the work surface to the position you want to save. (The
display on the control pad shows the work surface height.)
• Press the UP button and one of the memory buttons at the
same time for 3 to 5 seconds.
• P” and the number of the memory
button.
• Repeat for the other memory buttons, if desired.
MOVING TO A MEMORY POSITION
• Press and hold the desired memory button.
• The work surface will move to the preset position.
CAUTION: The “zero setting” procedure
must be completed before operating the
table. See Step 16 on page 8.
Example: Press the UP button and
memory button number 3 at the
same time for 3 to 5 seconds. The
the current table position has been
saved in memory.
Continue to press the memory button
until table movement stops.
Table movement stops when you
release the UP or DOWN button.
Memory
Buttons
Table
Height
UP
Button
Memory
Buttons
DOWN
Button
OPERATION

800.833.3746 esiergo.com
© 2017 ESI Ergonomic Solutions. All rights reserved. FLEX2 V3 Rev 01 7/17

ASSEMBLY AND OPERATION
ALL-FLEX™Model FLEX3-SLV-V1
Model FLEX3-BLK-V1
Model FLEX3-WHT-V1
3 LEG ELECTRIC TABLE BASE
FLEX3-V1 Rev B 11/17

2
ALL-FLEX™3 LEG ELECTRIC TABLE BASE PARTS AND TOOLS
PLEASE REVIEW these instructions before beginning the assembly procedures. Check that all the parts shown
below were provided with your order. Contact your supplier if any materials are missing. Do not discard the
packaging until content that the product operates to your satisfaction.
ADDITIONAL TOOLS REQUIRED
• #2 Phillips drill bit
• Power Driver
PARTS AND TOOLS PROVIDED
Leg Hinged to Frame (2)
Left
Left
Right
Right
Cross Channel (2)Side Leg Top Support (2) Control Unit Bracket (1)
Adjustable Feet (2)
Digital Keypad (1)Control Unit (1) Cable Clip (4)Power Cable (1)
Center Leg (1)
Center Leg Top Support (2)
Fasteners
3mm 5mm4mm
M5x18 (18) M4x23 (2)
M6x15 (14)M10x45 (8)
Allen Keys (1 each))
NOTE: This install requires a power tool or
cordless drill. Except for the hex head
screws, this is not a hand tool install.
CAUTION: Always check that screws used to
attach components to the worksurface are
not too long for the thickness of the surface.
Work
Surface

3
ASSEMBLY ALL-FLEX™3 LEG ELECTRIC TABLE BASE
STEP 1
With the worksurface facing down on a soft, clean surface, arrange the leg columns and center leg top
supports as shown.
• Unfold the hinged side legs and place them motor-side down at the ends of the worksurface.
• Place the center leg motor side down near the 90° or 120° angle of the table.
• The mounting tabs on the leg columns and top supports must be face down so that they are against the
worksurface.
STEP 2
Lock the side leg columns in the upright position.
• Use the 4mm Allen key to install M6x15 hex head
screws into the frame and motor.
Leg Column
with Frame
(Right)
Center Leg
Top Support
(Right)
Mounting Tabs
Center Leg
Center Leg
Top Support
(Left)
Leg Column
with Frame
(Left)
4mm
Allen Key
M6x15

4
ALL-FLEX™3 LEG ELECTRIC TABLE BASE ASSEMBLY

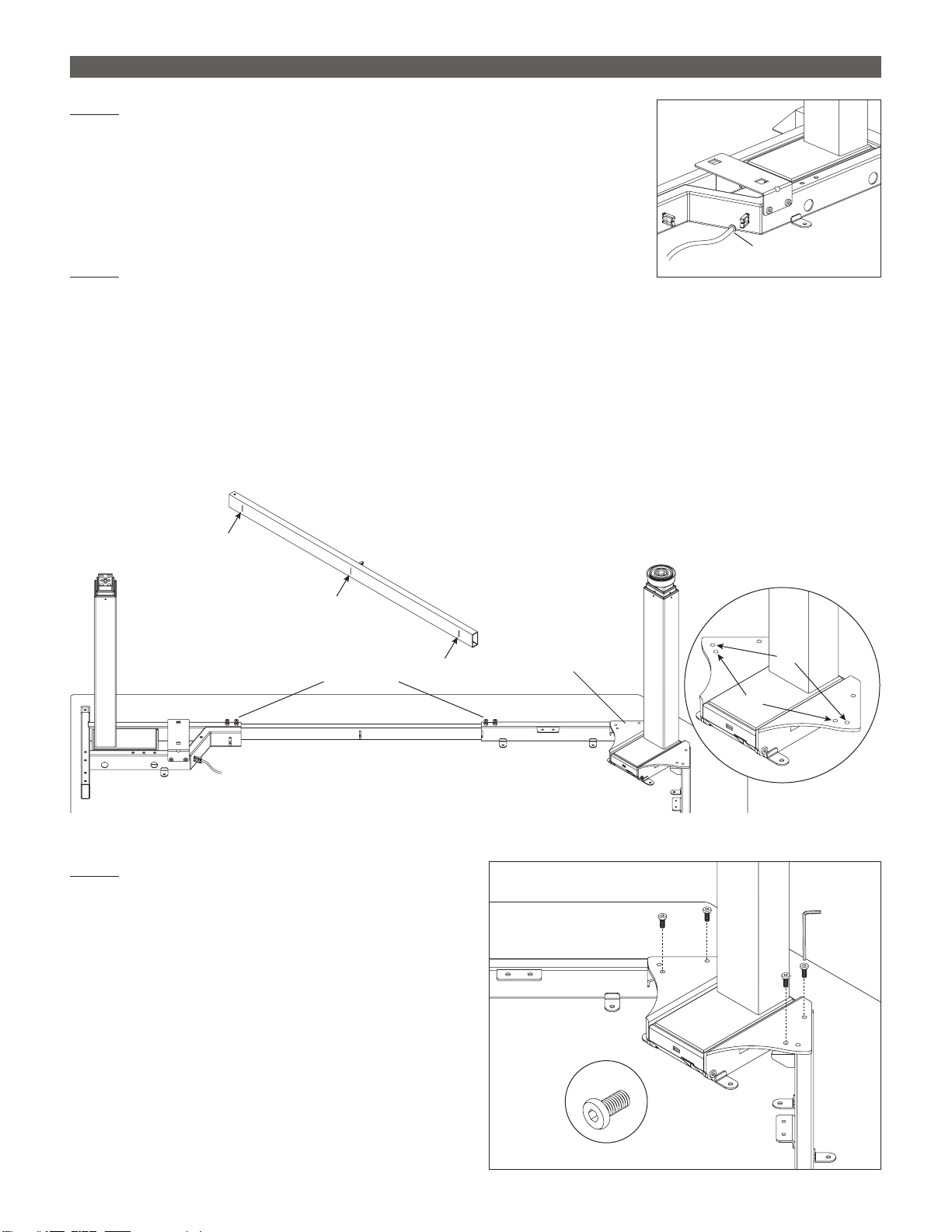

STEP 3
Route the side column motor cables under the notch on the angled
portion of each frame.
STEP 4
Install the cross channels.
• Insert each cross channel into the frame and center leg top support.
— Thecrosschanneltsintotherearopeningontheframe,underthesetscrews.
• Slide the top supports under the center leg brackets. Align the holes on the top supports with the 90° or
120° holes in the brackets. See the illustration below.
• Position each cross channel so that its center line is centered between the frame and the top support.
• The MAX lines must not extend beyond the frame and top support.
STEP 5
Attach the top supports to the center leg brackets.
• Use the 4mm Allen key and four M6x15 hex head
screws.
• Use the inner hole on the bracket for 90° tables
and the outer hole for 120° tables.
Cross Channel
Set Screws
Center Leg
Bracket
Frame Top Support
90°
120°
Center Line
Cross Channel
Rear
MAX
MAX
Top Support
Top
Support
M6x15
4mm
Allen
Key
Route Cable
Under Notch

5
ASSEMBLY ALL-FLEX™3 LEG ELECTRIC TABLE BASE

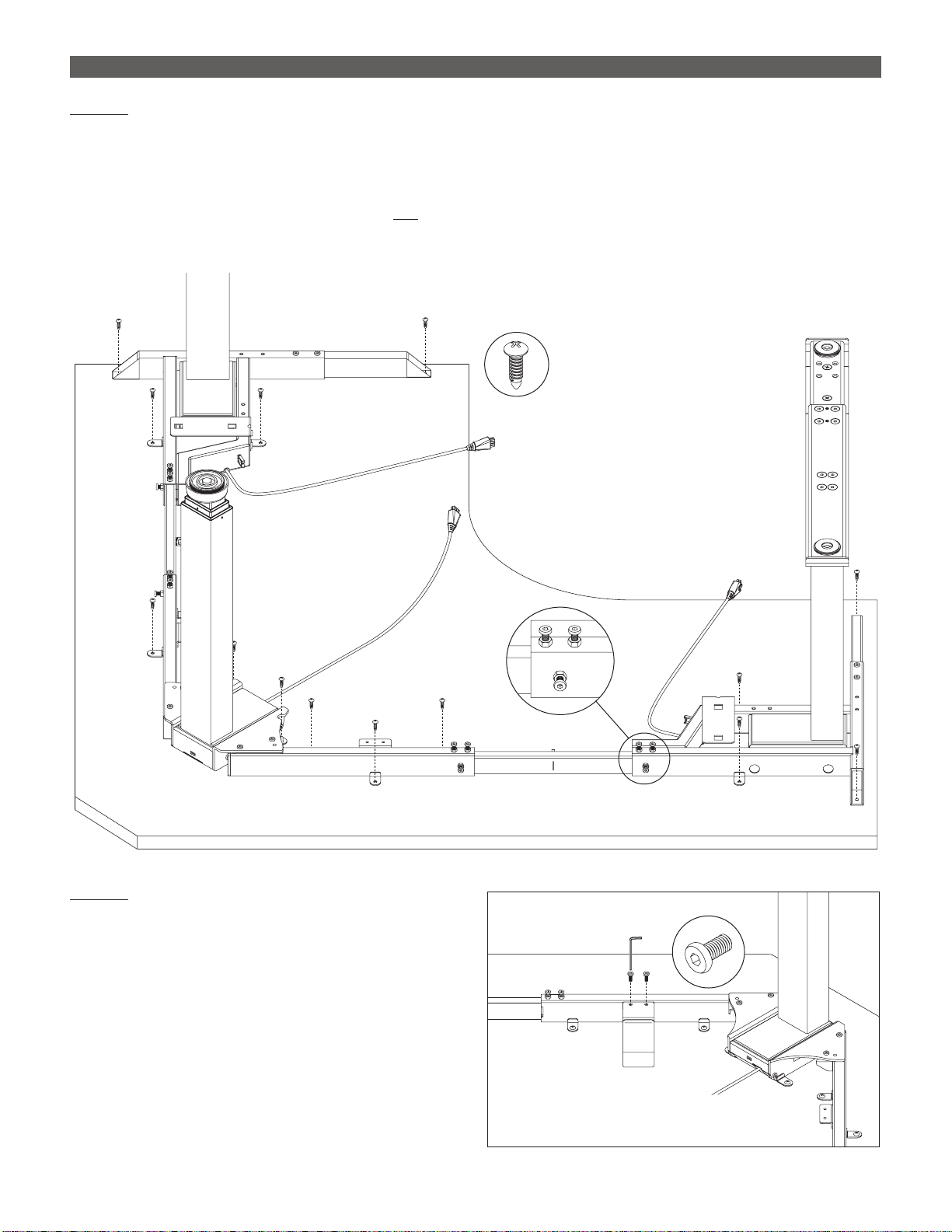

STEP 6
Attach the two-piece side top supports. One piece is attached to the frame; the other piece is separate.
• Insert the separate piece of the top support into the top support attached to the frame.
• Align the holes on the inserted piece with the rear set of two holes on the integral top support if the table
depth is less than 30" (76cm). Align the holes with the front set if the table depth is 30" or more.
STEP 7
Change the length of the adjustable feet, if necessary.
• The length of the feet may be either 22" (55.9cm) or 28"
(71.2cm). The feet are shipped in the 28" length. They
should be changed to the shorter length if the
worksurface depth is less than 28".
• To change the length to 22":
A. Remove the two plastic Phillips screws holding
the adjustment plate in place.
B. Use the 5mm Allen key to remove the four hex
head screws.
C. Use the 3mm Allen key to loosen the two set
screws.
D. Slide the feet to the 22" length. Reinstall the four
hex head screws and tighten the set screws.
• Store unused adjustment plates in the brackets
attached to the frame, securing them with the two
plastic Phillips screws.
30" Table
Use Front Set of Holes
Two-Piece
Top Channel
4mm
Allen Key
24" Table
Use Rear Set of Holes
22"
Adjustable
Length
28"
5mm
Allen Key
3mm
Allen Key
Set
Screws
A
B
C
D
Store
Adjustment
Plates

6
ALL-FLEX™3 LEG ELECTRIC TABLE BASE ASSEMBLY
STEP 8
Attach a foot to each of the legs.
• Use four M10x45 screws per foot.
• Tighten the screws with an 5mm Allen key.
STEP 9
Adjust the position of the frame before attaching it to the worksurface.
• Align the rear of the feet with the rear of the table.
• Center the center leg on the 90° or 120° angle.
• Check that the top supports on each side are approximately 1" (25mm) from the ends of the table.
• The rear of the feet should align with the rear of the table. With that alignment, the center leg top
supports will be 6½" from the rear of the table.
• Check that each cross channel’s center line is centered between the frame and top support, and that
the MAX lines do not extend beyond the frame and top support.
M10x45
5mm Allen Key
Align Rear of Feet
with Rear of Table
1"
120°
90°
6½"
6½"
1" 1"

7
ASSEMBLY ALL-FLEX™3 LEG ELECTRIC TABLE BASE
STEP 10
Oncetheframeisinitsnalposition,attachittotheworksurfaceusingtheM5x18screws(16totalrequired).
• Attach the screws through the mounting tabs on the frame, center leg column, and center leg top
supports, as well as the holes at the ends of the side column top supports.
• Use a power drill with #2 Phillips bit. This is not a hand tool install.
• After attaching the frame, tighten all 12 set screws, as shown below.
STEP 11
Attach the control unit bracket to one of the center
leg top suports.
• Secure the control unit bracket to the frame using
two M6x15 screws and the 4mm Allen key.
• The bracket may be attached on either side of
the center column. (Note that the digital keypad
will be attached on the same side.)
Tighten All 12
Set Screws
M5x18
4mm Allen Key
Control Unit
Bracket
M6x15

8
ALL-FLEX™3 LEG ELECTRIC TABLE BASE ASSEMBLY
STEP 12
Attach the control unit to the worksurface.
• Slide the control unit under the bracket and
attach it using M5x18 wood screws. The motor
cable and keypad ports should face away from
the center column.
• Allow at least 2¼” (57mm) between the back of
the control unit and the center column assembly
to allow room for power cord attachment.
STEP 13
Attachthedigitalkeypadushwiththefrontedge
of the worksurface.
• Use the two M4x23 wood screws.
• Attach the keypad on the same side as the
control unit.
STEP 14
Make connections to the control unit.
• Connect the cable from the digital keypad.
• Connect the motor cables from the three motors.
• Connect the power cord to the control unit.
• Plug the power cord into an AC outlet.
CAUTION: Do not operate the table until after
“zero setting” the system. See the following step.
Control Unit
M5x18
M4x23
Digital Keypad
flush with the
worksurface edge
Motor
Cables
Digital
Keypad
Cable Control
Unit
Power
Cable
