ESI Trada 2-Leg User manual

Assembly instructions

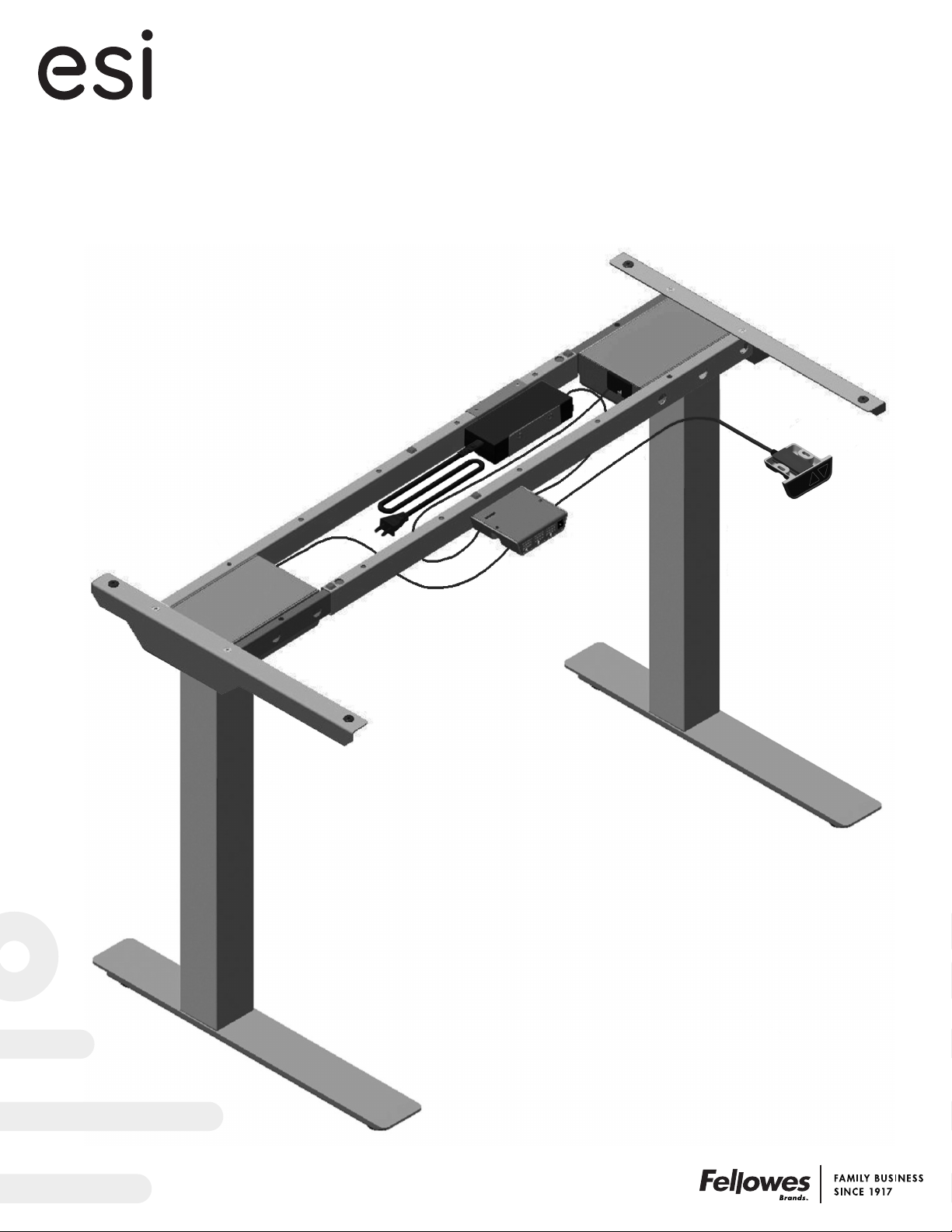

Trada™ 2-Leg
Model # 2TD-C48-24-___
Model # 2TD-C48-30-___
___ = SLV, BLK or WHT
Electric height adjustable table base

Page 2
Please review these instructions before beginning the installation. Use the illustrations below to check that all components needed for your installation
were provided with your order. Do not discard the packaging until the product works to your satisfaction.
Components and tools
A. crossbars (2)
B. legs with motor and cable (2)
C. feet (2)
D. universal side brackets (2)
E. power supply holder (1)
F. power supply (1)
G. power cord (1)
H. handset (1)
I. control unit (1)
J. round rubber bumpers (10)
K. square rubber bumpers (2)
L. 3mm Allen key
used for set screws
M. 5mm Allen key
used for M8x16 socket screws
N. M8x16 flat head socket screws (8)
attach crossbars to motors
O. M8x16 round head socket screws (4)
attach feet to legs
P.
1
/ 4 –20x
5
/ 8 " Phillips flat head screws (4)
attach side brackets to crossbars
Q. #10x1" self-tapping Phillips pan head screws (4)
attach side brackets to worksurface
R. #10x2½" self-tapping Phillips pan head screws (10)
attach crossbars to worksurface
S. #6x
5
/ 8 " Phillips self-tapping round head screws (10)
attach handset, control unit, and cord clips to
worksurface
T. cord clips (6)
Trada 2-leg Components and tools
Caution
• Do not use impact drivers or other high-torque equipment. Use power drill
on self-tapping wood screws only.
• Always check that screws used to attach components to the worksurface
are not too long for the thickness of the table. The provided screws require
a minimum table thickness of 1.0".
table
thickness
Additional tools required
• Power drill with Phillips #2 bit for self-tapping wood screws only
• #3 Phillips screwdriver
A
A
B
B
C
C
D
D
E
F
G
H
I
J
K
L
M
NOP
QRS
T
E

Page 3
5mm Allen key
M8x16
flat head socket screw
no objects through
middle holes
rear
crossbars
Trada 2-leg Assembly
Step #1: attach legs to crossbars
• Position the two legs and crossbars as shown.
— Position the exposed inner channel of the crossbars against the front of the right motor housing and against the rear of the left
motor housing.
• Using the 4mm Allen key, attach the crossbars to the motor housing with the M8x16 flat head socket screws (8 screws total).
— Tighten all screws securely.
CAUTION: Do not insert any object through the middle holes on the housing. Doing so can damage electronic components.
Step #2: attach feet to legs
• Using the 4mm Allen key, attach the feet to the legs with the M8x16 round head socket
screws.
— Be sure the short end of each foot is toward the rear.
CAUTION: Do not interchange the flat head socket screws in step #1 with the round
head socket screws in step #2.
M8x16
round head socket screw
5mm Allen key
short end
toward rear

Page 4
Step #3: attach universal side brackets to crossbars
• Turn the table upright so that it rests on the two feet.
• Using a #3 Phillips screwdriver, attach the universal side brackets to the crossbars with the
1
/ 4 –20x
5
/ 8 flat head screws.
— Be sure the short end of each side bracket is toward the rear.
Trada 2-leg Assembly
1
/ 4 –20x
5
/ 8
Phillips flat head
universal side bracket
universal
side
bracket
short end
toward rear

Page 5
square bumper
round bumper
Step #4: adhere bumpers onto crossbars
Rubber bumpers help protect against worksurface damage and ensure smooth up-down operation. The bumpers are self-adhesive. Simply peel the
backing and press the bumpers into position.
• Adhere one round rubber bumper midway between the motor housings on each crossbar.
— Do not place a round bumper onto the exposed inner channel next to the motor housings.
• Adhere the remaining round bumpers next to each hole that could be utilized for attaching
the worksurface to the frame.
• Adhere one square rubber bumper next to the end through-hole on each inner channel.
Trada 2-leg Assembly

Page 6
Trada 2-leg Assembly
Step #5: position assembled frame on underside of worksurface
With the table top facing down on a soft, clean surface, turn the assembled frame upside-down
and center it on the underside of the worksurface.
• Use a 3mm Allen key to loosen the set screw on each crossbar near the end where the exposed channel begins.
• Expand the crossbars as necessary to position the side brackets 1.0" from the left and right edges
of the worksurface.
— Be careful not to dislodge any of the rubber bumpers when expanding the crossbars.
• Tighten the set screws to securely hold the side-to-side width of the crossbars.
Step #6: hook power supply holder under rear crossbar
• Raise the rear crossbar just enough to hook the holder for the power suppy in the desired position.
— Position the holder so that the power supply will be located between the two crossbars.
— Position the holder so it does not cover any of the through-holes used to attach the crossbars to the worksurface.
— Be sure the holder does not cover any of the rubber bumpers.
1.0"
1.0"
power supply
holder
expand crossbars
as necessary
loosen
3mm Allen key
tighten
set screws

Page 7
Trada 2-leg Assembly
Step #8: screw crossbars to worksurface
• Screw the crossbars to the table using from two to five #10x2½" wood screws per crossbar.
— Use all available crossbar-to-worksurface holes. The number of these holes depends on how much the
crossbars were expanded in step #5. In the example below, two screws per crossbar are used.
Step #7: screw side brackets to worksurface
• Align the rear of the feet with the rear edge of the table
• Double-check that the frame is centered side-to-side.
• Screw the side brackets to the table using two #10x1" wood screws per bracket.
#10x1"
Phillips pan head
align rear of foot
with rear of table
#10x2½"
Phillips pan head

Page 8
Trada 2-leg Assembly

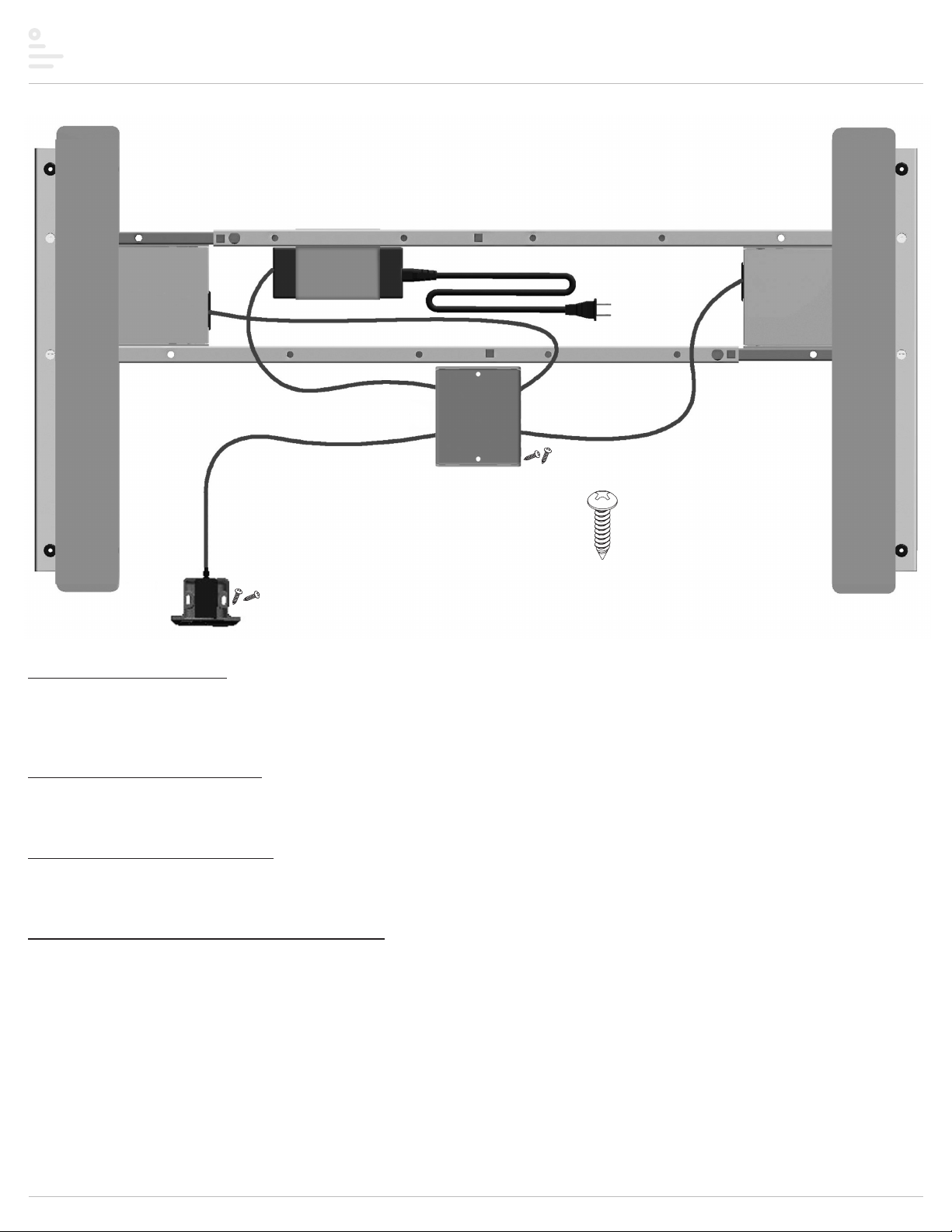

Step #9: attach handset
• Position the handset on either side of the table (user preference). NOTE: With the table face-down, the left side will be the right side when the table is turned upright.
• Position the handset so that the controls are flush with the front edge of the table.
• Attach the handset using two #6x
5
/ 8 " Phillips round head screws.
Step #10: attach control unit
• Position the control unit in front of the front crossbar, approximately centered on the worksurface from side-to-side.
• Attach the control unit using the two #6x
5
/ 8 "Phillips round head screws.
Step #11: attach power supply
• Fit the power supply into the power supply holder.
• When the table is turned upright, the power cord end should be the end closest to the nearest AC outlet.
Step #12: make cable and cord connections
• Connect the cable from the handset to the control unit.
• Connect the motor cables from the legs to the control unit.
• Connect the cable from the power supply to the control unit.
• Connect the power cord to the power supply.
• Plug the power cord into an AC outlet. Be sure the cord will be able to reach the outlet when the table is raised to its highest position.
CAUTION: Do not operate the table until after initializing the system. See the following step.
handset
control unit
handset cable
#6x
5
/ 8 "
Phillips round head
motor cable
power supply
cable
power
supply power supply
holder
motor cable
power cord

Page 9
Trada 2-leg Assembly
Step #13: initialize the table and test operation
• Press the DOWN tbutton to move the legs to their lowest position. This initializes
the table and makes it ready for operation.
• Test operation by pressing the UP s and DOWN tbuttons individually to move the
legs to their fully extended and fully compressed positions.
— End your test with the legs lowered.
— Unplug the power cord.
• If there is a problem with operation, check that all cable and cord connections are
secure. Check to be sure the AC outlet has power. If problems continue, call ESI
Customer Service: 800.833.3746.
NOTICE: With the table upside-down, the DOWN tbutton points up and the
UP sbutton points down.
Step #14: use cord clips to secure cables and cords
CAUTION: The cables and cords must not dangle under the table where they may present
a hazard to the user or may accidentally be pulled from their connections.
• Place the cord clips onto the cables and cords.
• Use the #6x
5
/ 8 " Phillips round head screws to fasten the cord clips to the table.
Step #15: turn the table upright
• With the assistance of a helper, turn the table upright and place it in its final position. IMPORTANT: There must be 1.0" (25mm) of clearance on all sides of the
worksurface (and other moving parts) to ensure free, unobstructed movement.
• If necessary, adjust the leveling glides on the feet to level the worksurface.
• Plug the power cord into an AC outlet.
• Press the DOWN tbutton to move the table to its lowest position. IMPORTANT: Be sure there are no obstacles under the table that would prevent it from reaching its
lowest position.
• See the following pages for operating procedures.
NOTICE: Whenever the unit is unplugged or the power is cut, the table must be re-initialized by pressing the DOWN tbutton to move the table to its
lowest position.
WARNING: Lifting hazard. Single person lift could cause injury. Use assistance when moving or lifting.
DOWN t
button
UP s
button
(handset is upside-down)
press DOWN tbutton
to lower legs
cord clip
#6x
5
/ 8 "
Phillips
round head

Page 10
Trada 2-leg Operation
DOWN t
button
UP s
button
general operation
• Move the table by pressing the UP sbutton to raise it and the DOWN t
button to lower it.
• The table will continue to move up or down until you release the button,
until the maximum or minimum height is reached, or until a memory stop is
reached.
Table movement stops when you release the button.
NOTE: The table must stop prior to reversing directions.
memory stop positions
Upper and lower memory stop positions can be used to save specific
heights of the worksurface. To set a specific position:
• Raise or lower the table to the first position you want to save.
• Press the UP sand DOWN tbuttons simultaneously, and release.
• Repeat three times, waiting ½ to 1 second between each pressing.
• Then press the UP sbutton to set the upper limit or the DOWN tbutton
to set the lower limit.
• Repeat to set the second limit.
After setting each limit, the table will do a gentle rise to confirm the setting.
To move the worksurface to a memory stop position:
• Press the UP sor DOWN tbutton until the table stops. Release the button.
— If you continue to press the UP sor DOWN tbutton for five seconds
after the table stops, the table will continue to move up or down.
If you release the memory button before the saved position is reached, table
movement will stop.
To delete the memory stop positions:
• Perform a manual reset by pressing the UP sand DOWN tbuttons
simultaneously for seven seconds.
• Then press the DOWN tbutton to move the table to its lowest level.
+
wait ½ to 1 second
+
wait ½ to 1 second
+
wait ½ to 1 second, then: or
upper
limit
lower
limit
press both buttons
for seven seconds
then press DOWN t
to lower table all the way

LIMITED WARRANTY
ESI warrants this product to be free from defects in manufacturing for a period of 15 years on structural parts and 7 years on electrical parts from the date of original purchase. This warranty
extends only to the original purchaser, and does not apply if the product has been damaged or fails to function properly as a result of misuse, abuse, modification, alteration, or improper cleaning or
maintenance. This warranty does not apply to damage in shipment caused by carriers, damage caused during installation, normal wear and tear, or excessive use (meaning consistent use in excess
of an eight hour shift). ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL RETAIL
PURCHASE. ESI’s sole obligation under this warranty or any implied warranty, and the purchaser’s sole remedy, is limited to the repair or replacement, at ESI’s option, of the product or any defective
part. Costs (such as installation or express shipping) incurred due to replacement of products are not covered under warranty. IN NO EVENT SHALL FELLOWES, ITS AFFILIATES, SUBSIDIARIES, RELATED
ENTITIES OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES.
To make a warranty claim, contact ESI at 800-833-3746 or customerser[email protected]om. You must provide proof of purchase, such as the original purchase order number.
The duration, terms and conditions of this warranty are valid worldwide, except where dierent limitations, restrictions or conditions may be required by local law.
VLX3 Rev A 12/2019© 2019 Fellowes, Inc.
Trada™ 2-Leg
Electric height adjustable table base
Please contact Customer Service with any questions or
comments at 800.833.3746 or visit our website at esiergo.com
