esotec Power Trio Duo Color User manual

Instruction manual
Solarspot Power Trio Duo Color
1. Introduction
Dear customer, we thank you for purchasing the Solar Globelight.
With this Solar Light you have purchased a product that complies with the
latest and most up-to-date technology.
This product complies with the European and National
Standards. The relevant certificates of conformity are
deposited with the manufacturer.
To preserve this standard and in order to maintain safety you must adhere
to the use instructions!
2. Security Instructions
In the event of any problems arising or damage occur-
ring from not following these instructions, the warranty
is deemed cancelled. The manufacturer will not be held
responsible for any claims or damages arising from the
misuse of this product.
- For safety reasons and in order to maintain standards (CE) you are pro-
hibited from altering or changing any component in the product.
- Please follow the instructions very carefully.
- For commercial applications due care and attention must be paid to the
Health and Safety Standards in your jurisdiction.
3. Function and intended use
The solar spot light is designed for year-round outdoor operation. They are
made of high-quality materials and thus guarantee a long function over
many years.
The solar module must be set up shadow-free to the sun. It can be moun-
ted with a ground spike or via a mounting bracket with screws. A south,
east or west side is recommended. Shady north sides are not suitable for
solar lights.
The built-in batteries are charged by the solar module installed in the upper
part. The solar module consists of high-quality crystalline solar cells and is
laminated absolutely weatherproof behind glass.
The spots are connected to the solar module via a cable with a plug
connection. They are plugged into the ground via a ground spike.
A warm white and cold white LED are installed in each spot as light sour-
ces. The switch on the back of the solar module can be used to choose
between warm white or cold white. All spots always shine with the same
light colour. The spotlight must not be immersed in water!
The light switches on automatically in darkness. After 6 hours of lighting,
the brightness is automatically reduced to approx. 30%. The light then
switches off automatically at dawn.
The product can be used outdoors throughout the year. The solar module
must be kept free of snow.
Note: During longer periods without sunlight, the battery is insufficient-
ly charged by the sunlight and the lamp does not work in the evening.
However, this does not mean that the solar light is defective. Wait for the
next sunny days and the lamp will work again accordingly.
The battery should be changed every 3-4 years on average!

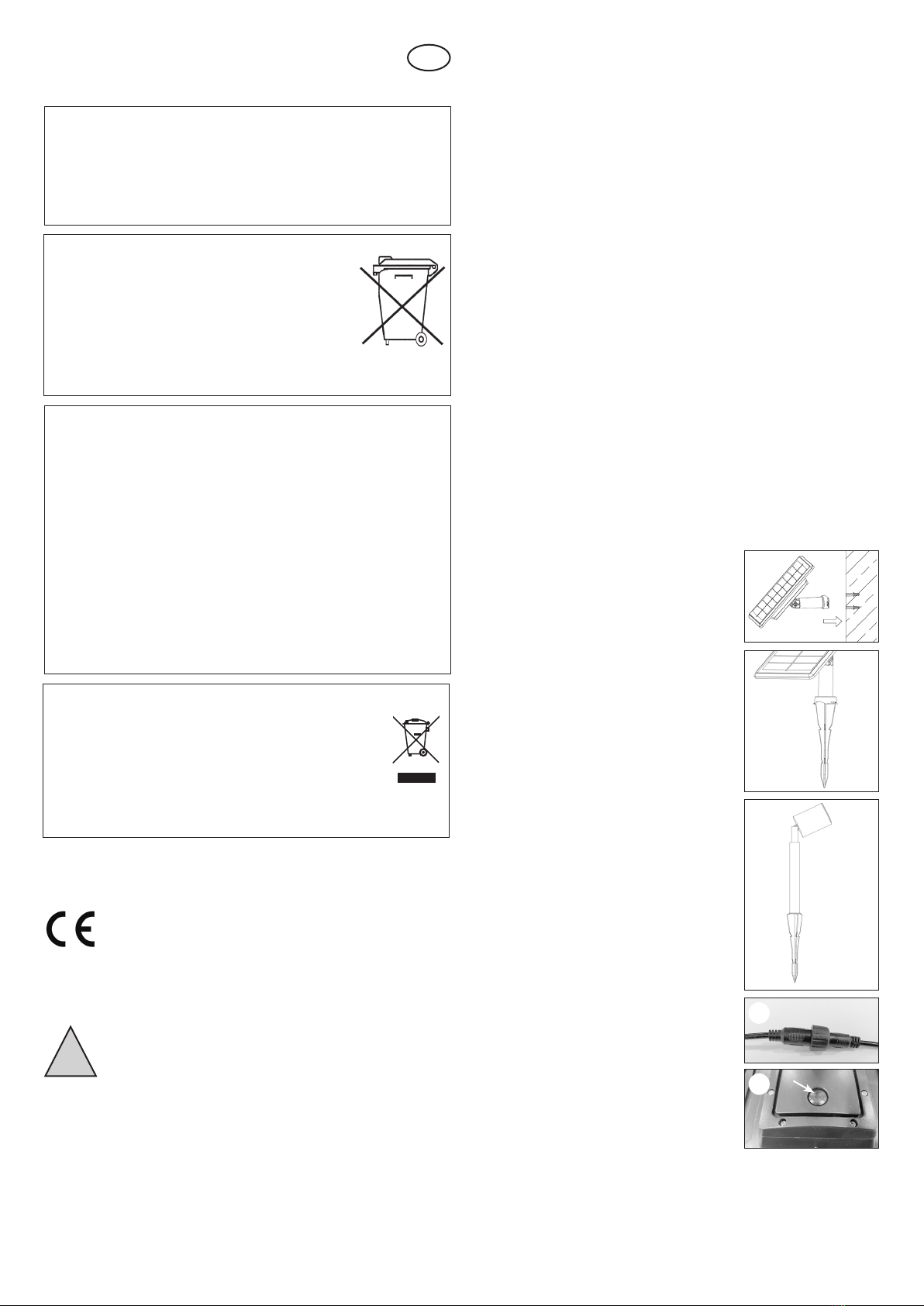

4. Commissioning
1. Carefully remove the parts from the packa-
ging.
2. Determine the mounting location of the solar
module and the spotlights within reach of
the cables. The solar module can either be
screwed to the wall using screws (Fig. 1) or
plugged into the ground using a ground spike
(Fig. 2). The solar module must be mounted
in a sunny, shadow-free location. The spots
are screwed to the stainless steel tubes and
plugged into the ground with the earth spikes
(Fig. 3).
3. After installation, connect the cable of the
solar module and the spotlight with each
other. Then secure the plug connection addi-
tionally with the union nut (Fig. 4)!
4. The light colours (warm white or cold white)
can be changed by repeatedly pressing the
on/off switch (Fig. 5). This setting is made at
night or when the solar module is darkened.
Function: At nightfall the spotlights light up
for 6 hours with their full luminosity. After this
time, the luminosity is reduced to 30%.
Note: The batteries are also charged in the
„OFF“ position!
Note: The duration of the light depends
strongly on the intensity and duration of
sunlight during the day. In the winter months
you should generally reckon with less light
duration. If the lamp does not yet light up on
the first evening, please wait for a sunny day.
Note: The cover of the solar module is made
of glass. There is a risk of injury in the event
of breakage!
GB
!
Battery take-back
- Batteries must not be discarded into domestic waste.
- The consumer is legally required to return batteries
after use, e.g. to public collecting centers or to battery
distributors.
- Contaminant-containing batteries are labeled with the
sign “crossed-out trashcan“ and one of the chemical
symbols. Used batteries should be disposed environ-
mentally friendly and should not be discarded into
domestic waste. Your dealer is legally required to take
back old batteries.
Li-Ion
Customer support:
If you have problems or questions regarding this product, simply contact us!
esotec GmbH, Industriegebiet Weberschlag 9, D-92729 Weiherhammer
By phone: [phone]
By e-mail for ordering spare parts: [email protected]
By e-mail for questions about the product: [email protected]
Product: Manufacturer Item No.: 102705
Rechargeable battery notes
- Rechargeable batteries should not be played with by children. Never
leave rechargeable batteries lying around; they could be swallowed
by children or pets.
- Rechargeable batteries must never be short-circuited, disassembled
or thrown into fire. This leads to a danger of explosion!
- Leaking or damaged rechargeable batteries can cause chemical
burns when they come into contact with skin. For this reason, please
make use of suitable protective gloves.
- Rechargeable batteries should only be replaced by structurally iden-
tical rechargeable batteries from the same manufacturer. Normal
batteries must not be used since these are not rechargeable.
- Make sure the rechargeable batteries are inserted with the correct
polarity.
- For long periods of time of non-use (for example, storage), remove
the inserted rechargeable batteries to avoid damages via the leaking
rechargeable batteries.
Disposal:
Dear customer,
please cooperate in avoiding waste. When you intend to dis-
pose of the product in future, please consider that it contains
valuable raw materials suited for recycling.
Therefore, do not dispose it of with domestic waste but bring
it to a collection point for the recycling of waste electrical and
electronic equipment.
Thank you very much for your cooperation!
4.
2.
1.
3.
5.

7. Technical data
• Light source: 2 LEDs each spotlight
• Light colours: Warm white (3000 K)
Cold white: (6000 K)
• Light intensity: 50 lm/ spotlight
• Lighting duration: max. 12 hours with fully charged battery
• Replacement battery: 2 pcs. Li-ion 3.7 V/ 2000 mAh (type 18650)
• esotec spare part no.: 901045
• Protection class: IP 54
• Protection class: III
All spare parts can be found at www.esotec.de
Copyright esotec GmbH, Änderungen vorbehalten!
5. Changing the battery
On average, the batteries in the solar module must be replaced every 3-4
years by new batteries of the same type and design. Here 2 Li-Ion batte-
ries with 3.7 V/ 2000 mAh are used. You receive the spare accumulators
with your dealer or with the manufacturer under www.esotec.de
Please proceed as follows when exchanging the batteries:
1. Press the „ON/OFF“-switch at the back of the solar module firmly in
(picture 5) and switch off the lamp.
2. Release the plug connection between the solar module and the LED
spotlight.
3. Loosen the screws of the cover on the
back of the solar module (picture 6) and
remove the cover.
Note: This battery compartment can
hold up to 3 batteries. In this version,
however, only 2 batteries are used. One
battery compartment remains empty!
4. Remove the two batteries carefully from
the battery compartment (picture 7) and
insert 2 new batteries of the same const-
ruction into the battery compartment with
the correct polarity (battery type used:
Li-Ion 3.7 V/ 2000 mAh).
6. Now put the lamp back into operation in
reverse order.
Note: Used batteries or accumulators must be disposed of in an
environmentally friendly manner and should not be disposed of with
household waste. Your dealer is legally obliged to take back the old
batteries.
6. Malfunctions
Lamp does not switch on at night!
Remedy: Is the switch at the rear of the solar module switched on?
Remedy: Battery in the lamp has reached the end of its service life?
As a rule, the batteries must be replaced with identical types every 3-4
years!
Remedy: Is the solar module illuminated by extraneous light (e.g. spot-
light)? Position the solar module in a darker place!
