ESX VN830 SK-OC3 User manual

VN830 SK-OC3
V1. 0
OWNER‘S
MANUAL

2
Compatibility (Status June 2017)
Škoda Octavia III (Type 5E, 2012 - Late 2016)
Note: Not compatible with vehicles that are equipped with the original active sound system. Other accessories may be necessary for original 6.5”
radios or restrictions. In certain vehicle-specific special equipment editions, the compatibility of some functions can not be guaranteed.
INTRODUCTION
Always follow the instructions in this manual before using the device. Please keep this manual easily accessible in the
vehicle for future reference.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries. iPod and iPhone are trademarks of Apple Inc.. The Bluetooth word
mark is registered trademark owned by Bluetooth SIG, Inc. Other trademarks, trade names or brands are the property of their respective owners.
Features
• iGo Primo, 3D navigation software with TMC on 8GB SD card, 46 countries including Turkey with Points of Interests display and search function,
3D building views, TTS voice output, warnings, over 25 system and prompt languages Latest Map Guarantee (30 days) after activation via
www.naviextras.com.
• High-resolution 20.3 cm (8“) LCD touchscreen display with 800 x 480 pixels
• Advanced i30 operating system based on Microsoft Windows CE 6
• MTK Dual Core Cortex A9+A11 800 MHz CPU, 256MB DDR3 RAM, 256MB NAND Flash RAM
• Audio amplifier with 4 x 50 Watts max.
• Pre-amplifier outputs Subwoofer/Center/2 x Front/2 x Rear
• DSP-Audioprocessor with 10-Band-Equalizer and 5.1 Surround-Sound
• Bluetooth™ hands free, phone book synchronization and A2DP audio streaming
• Media playback (MP3/WMA/MPEG4/MPEG1/2/WMV/AVI/DivX/FLAC etc.), supports FullHD 1080p (1920 x 1080) playback
• Quick-Boot (approx. 10 seconds)
• Support ACC Logic: the device can be operated up to 30 minutes without ignition
• Radio AM/FM with RDS function (supports Europe, North America, Asia)
• E-LINK mirror function with compatible Android smart phones
• Quick Charge USB function with up to 2.1A charge current
• Voice control (except navigation)
• Custom design function (wallpaper, startup logo, menu), several design themes (skins) for customizing the user interface
• Individually adjustable pre-channel volume for each application
• File manager with an open file structure, photo slide show
• MicroSD card slot and USB port with copy function
• Integration of external applications (Compatible with Windows CE 6)
• Date/time function, 12/24 hrs. display, automatic adjustment via GPS signal
• 3 x Audio/Video output
• 2 x Audio/Video input
• Front and rear camera inputs
• Internal and external microphone, as well as support of the original hands-free microphone *
• Supports original factory AUX-In and USB-Port*/**
• Supports original multi-function steering wheel
• Supports 2D-/3D navigation maps with TMCpro function
• Supports external TV or radio receivers (DVB-T, DAB, etc.)
• Supports iPod / iPhone™ with ID3 tag display via USB (compatible with iPhone 5/6/7), with media library, cover display and ID3 Tag display
• Supports original rear view camera incl. guiding lines*
• Supports original multi-function display (MFA)-, optical parking system (OPS)- and A/C display (Climatronic)*
• Vehicle settings such as illumination, A/C profile, central locking system, windshield wipers, parking assistant and tire pressure monitoring system
can be adjusted or controlled by the device.
* Depending on vehicle
** If necessary, further accessories are required
IMPORTANT NOTE FOR YOUR VEHICLE‘S SERVICE STATION
After installation of the ESX Naviceiver inside the vehicle, the device is not recognized as the original radio and
causes an error message in the fault memory of the vehicle (depending on the vehicle, for example „Infotainment
CAN, no communication“). This error message is normal in connection with our ESX device and can not be deleted.

3
INDEX
Safety Information...................................................................................................................................4
Basic functions........................................................................................................................................6
Operating elements .................................................................................................................................................................6
Main menu..............................................................................................................................................................................7
Navigation...............................................................................................................................................................................8
Multimedia player....................................................................................................................................................................9
Radio.....................................................................................................................................................................................11
Car Information .....................................................................................................................................................................14
Bluetooth™...........................................................................................................................................................................16
LinkPod .................................................................................................................................................................................19
Applications ..........................................................................................................................................................................20
– Vehicle Setting....................................................................................................................................................................21
– Climate ..............................................................................................................................................................................22
– AV/TV .................................................................................................................................................................................23
– Quick Charge .....................................................................................................................................................................23
– A2DP..................................................................................................................................................................................24
– Files ...................................................................................................................................................................................25
– E-Link ................................................................................................................................................................................27
– Option ................................................................................................................................................................................29
– Audio..................................................................................................................................................................................35
Custom settings.....................................................................................................................................38
Menu assignments ................................................................................................................................................................38
Wallpaper..............................................................................................................................................................................39
Start logo ..............................................................................................................................................................................40
Weiterführende Funktionen...................................................................................................................41
IInfrared remote control.........................................................................................................................................................41
Multifunction steering wheel..................................................................................................................................................42
Multifunction display .............................................................................................................................................................42
Limited media playback.........................................................................................................................................................42
Optional rearview camera......................................................................................................................................................43
Optical parking system (OPS).................................................................................................................................................43
Troubleshooting .....................................................................................................................................46
General notes.........................................................................................................................................50

4
SAFETY INFORMATION
• In general, the assembly and installation of the device must be performed by a trained and technically skilled
specialists, as the installation and connection of the device requires complex knowledge.
• This device is only suitable for the operation in a vehicle with an on-board voltage of 12 volts, negative
ground.
• Improper installation or use may void the warranty.
• Note any time the traffic regulations of the country in which the device is operated.
• Please ensure, that with the engine turned off the vehicle‘s battery does not discharge fully. The device is
another electrical consumer which must be operated with the engine running, other-wise the vehicle‘s bat-
tery will be discharged and the vehicle can not be started.
• Set the volume of the device only as loud, that you are still be able to hear warning signals (e.g. police sirens)
and traffic noise inside the vehicle.
• Operate the device as driver only if it‘s absolutely necessary and in the driving safety is not compromised.
The same stands for looking at the screen. If necessary, better park your vehicle at a safe and appropriate
location.
• The traffic rules of the EU prohibit to view moving pictures or movies while driving, if the screen of the
device is installed within sight of the driver, as he may be distracted. View the screen as driver only for the
navigation function, and then only briefly that you will not be distracted. Note at any time the local traffic
regulations. In an accident, regress claims could be made by the car insurance company.
• This device is not a substitute for your personal judgment or perception. All suggested routes from the
navigation system should never be taken as a reason to disregard the local traffic rules. Your personal as-
sessment of traffic or your knowledge of safe driving practices is paramount. Always match your driving
with the current traffic situation.
• Do not follow the suggested routes, if the navigation system instructs you to take an unsafe or illegal way,
puts you in an unsafe situation, or directs you into an area which you consider unsafe.
• If problems occur while driving, park the vehicle in a safe and appropriate place to continue before you
operate.

5
SAFETY INFORMATION
This symbol indicates important information and instructions in this manual, which
serve to improve traffic safety and operability of the device.
• The device supports only DVD/CD standard disk size of diameter with 12 cm. Do not attempt to insert disks
with a different size or any other object into the disk slot. Be sure to load only one disk at the same time.
• Please use only the included original accessories. Ensure a sufficient mounting of the device by using the
included installation accessories, as in the event of an accident enormous accelerations may occur. Poorly
installed devices and equipment in accidents could represent a severe risk to the driver and the other pas-
sengers of the vehicle.
• Note under all circumstances the regulations and advice of the vehicle manufacturer and do not make any
modifications to the vehicle, which could interfere with safe driving. Please treat all parts of the device and
the components of your vehicle always with caution.
• Please avoid short circuits and make sure that no metal objects can get inside the device. Also make sure
that all connections are properly connected and avoid the interchanging of the polarity of all connections.
Complete the installation only while the ignition is turned off.
• In the event of a defect or malfunction, do not attempt to repair it by yourself or open the device, this is
dangerous and could cause injury or damage to the equipment or vehicle.A repair should be done by trained
and authorized personnel only. The device uses a Class 1 laser to read the disk. Eye contact with a laser is
very dangerous to the human eye.
• If you connect an external device, you should first read the instruction manual of the external device and
make sure that it is compatible. Avoid connecting an incompatible external device.
• If you install external applications onto the operating system of the device or operate files, make sure that
they are „virus free“ and compatible with Windows CE 6. Otherwise there is a risk that the operating system
no longer works properly and must be reinstalled.
• Do not damage or scratch the screen with sharp objects. Do not operate the screen with hard objects.
• Please refer the notes in chapter GENERAL NOTES on page 50

6
OPERATING ELEMENTS
2
6
10
4
8
1
5
9
11
3
7
1. Open the main menu.
2. Open the phone mode.
3. Skip to the next track/title/station/chapter.
4. Open the radio mode (short push) or open the
DAB+ radio (push and hold, if connected).
5. Skip to the previous track/title/station/chapter.
6. Open the navigation system.
7. Activation of the voice control (short push) or to
activate or deactivate the mute function
(push and hold)
8. MicroSD card slot and reset button.
9. Mute (short push) or the device switches to
stand-by (push and hold - no audio, display
darkens, running navigation stops, Bluetooth
connection interrupts).
Volume controller (rotate).
Controller knob for selecting or switching
in the user menus.
Push knob to open the audio settings.
10. Internal Bluetooth microphone
BASIC FUNCTIONS

7

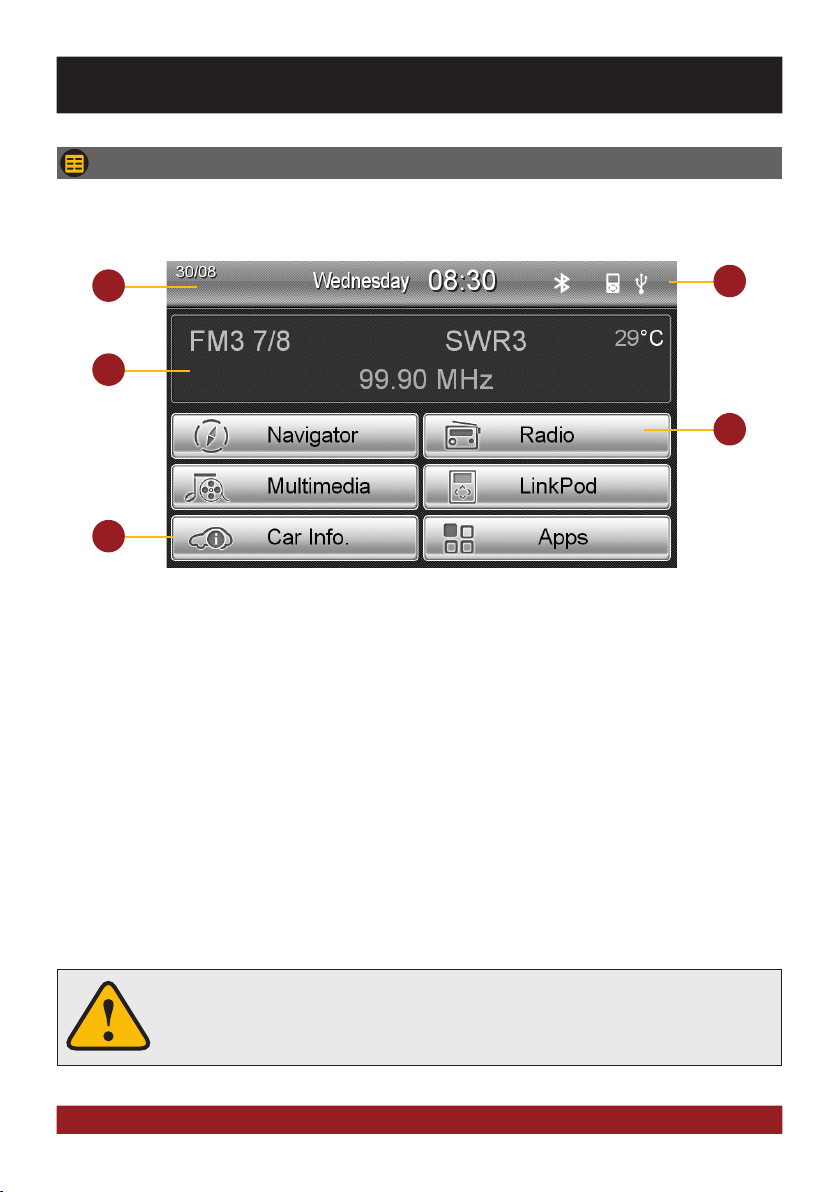

MAIN MENU
After power on, the device starts with the main menu. By pressing the „MENU“ button on the device,
you can always get to the main menu too.
5
Basically, the device can operate several applications simultaneously. But if too
many extensive applications running at the same time, it can slow the operation
(not responding to your input) or even crash the system.
4
3
1
1. Depending on the selected design theme (Skin), the current date and time will be displayed here.
2. Here the information about the current playback will be displayed, such as radio stations (RDS name)
and frequency or title/artist for MP3s or iPod® playback. Go directly to the active application by tapping
this area. Alternatively, the currently air-conditioning settings can be displayed when using the skin
„Skoda clima“ (depending on model).
3. The three function icons are (depending on the skin) is highlighted in white and thus activated when the
corresponding function is in use, such as „Bluetooth connection“, „iPod connection“ or „USB connec-
tion“.
4. The main menu displays five to eight key panels, which open the selected application or lead to the
regarding sub menu.
In chapter „CUSTOM SETTINGS“, section „Menu assignments“ (Pg. 39) shows how to customize and
arrange the key panels.
2
BASIC FUNCTIONS

8
Please refer to the separate manual for the navigation software.
The unit receives GPS satellite signals automatically. In poor weather conditions or
for example while passing a tunnel, these signals may be disturbed. This could lead
to a malfunction of the GPS positioning.
Tap on „System“.
Tap on „Browse“.
Tap on „Option“.
The device provides the ability to use any navigation software (Windows CE 6.0 compatible). Patch the naviga-
tion software (on MicroSD card) with the device as follows:
Tap on „SD“ and then select the software on
the MicroSD card with a double click. This
navigation software is starting as soon as
you tap on „Navigation“ in the main or push
the „NAVI“ buttons on the device.
Note: If you have accidentally changed the
path and want to use the original ESX iGO
software, the path must be always „\Storage
Card\NaviOne\Navione.exe“.
NAVIGATION
Open the navigation application by tapping „Navigator“ in the main menu or by pressing the „NAVI“
button on the device.
BASIC FUNCTIONS

9
MULTIMEDIA PLAYER
Open the multimedia player (source selection via USB or SD) by tapping „Multimedia“ in the main
menu or by pressing the „MUSIC“ button on the device.
56
8
9
43
10
21
7
131211
1. Source information and track number.
2. Current time.
3. Tap here to enter the main menu without inter-
rupting the playback of the current title.
4. Tap here to exit the application, the playback
will be interrupted.
5. ID3-Tag album cover of the current audio file.
6. Title/artist/album information.
7. Progress bar of the currently playing audio file.
With the displacement of the knob you can
jump to another point in the track.
8. Elapsed time and the total time of the track.
9. Tap here to open folder list or to change the
play mode (music or video).
10. Playback controls for audio player
- Play previous track
- Start or pause playback
- Play next track
11. Tap here to open the Audio Settings
12. Repeat function
- Repeat all titles
- Repeat only the current folder
- Repeat single track
13. Tap here to start random playback.
BASIC FUNCTIONS

10
BASIC FUNCTIONS

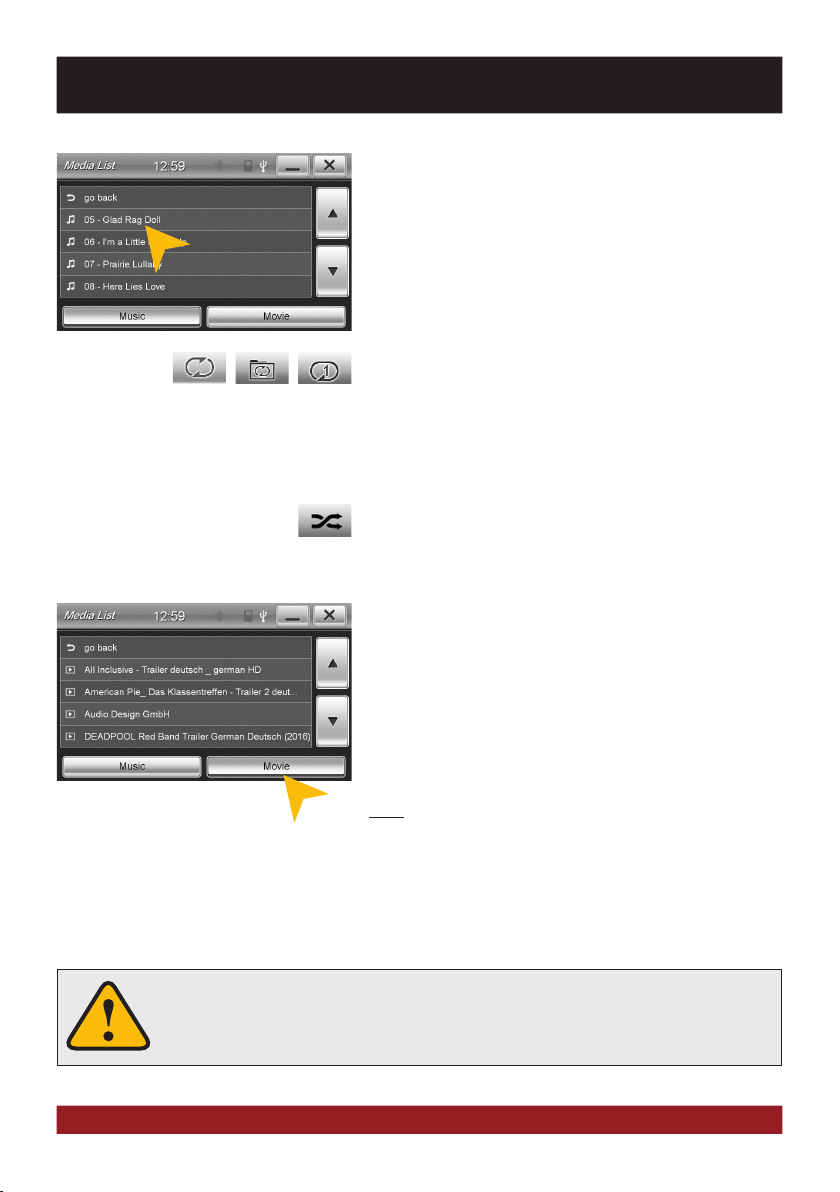

FOLDER PLAYBACK
Tap on the folder icon in the multimedia menu on the bottom left
(see page 9, #9) and the currently playing folder appears. Now
you can scroll through the list and select another song by taping
directly or with „go back“ to a higher directory level to open an-
other another folder. Tap on the desired file and its playback starts
immediately. Close this menu on the top left with „X“ to go back to
the multimedia player menu.
REPEAT FUNCTION
Symbol 1: When the last song has been played within a folder,
the playback will continue to the next folder. After the last song,
playback starts again from the beginning.
Symbol 2: The current folder is repeated
Symbol 3: A single track is repeated
RANDOM PLAY
To shuffle all tracks or all tracks within a folder (if a folder was
previously selected).
MOVIE PLAYBACK
Select the folder icon and then „Movie“ on the bottom right. Now
all movie files of the connected media are displayed. Are these
located in several folders, you can switch to a different directory
with „go back“ like in the music player. The „Repeat Function“ and
„Random Play“ have the same function as in the music player. Tap
during the full screen playback shortly at any point on the screen
to open playback options.
Note: The playback of a movie file is only possible if the hand
brake is closed.
If the playback does not start (a USB stick can not be detected or the source selec-
tion is not working as expected) close the multimedia player with „X“ top right
(page 9, # 4) and restart it.

11
RADIO
Open the radio application by tapping „Radio“ in the main menu or by pressing the „RADIO“ button
on the device.
6
11
12
4 5
14
21
15
10
3
7
8
9
13
1. Displays the current frequency band and the
current station frequency, tap here for directly
quick tuning.
2. Current time.
3. PTY category of the current station.
4. Tap here to enter the main menu without inter-
rupting the radio playback.
5. Tap here to exit the application, the playback
will be interrupted.
6. RDS name of the current station.
7. Signal strength of the current station.
8. Fine adjustment of the frequency, Arrow left for
downward, arrow right upwards.
9. RDS-Informationen des aktuellen Senders
10. With the arrows you can quick-start the search
for a station from the current frequency up or
down.
11. RDS (AF, TA, PTY) features.
12. Tap here to open the settings.
13. Station presets.
14. Tap here to the open the different preset pages,
with 8 station presets each.
15. Tap here about 2 seconds to start the au-
tomatic radio station search. Then up to 32
currently available stations will be stored in all
four the station presets.
Note: All previously stored stations will be
erased and overwrote.
A quick tap on the icon enables a jump to the
next available station.
BASIC FUNCTIONS

12

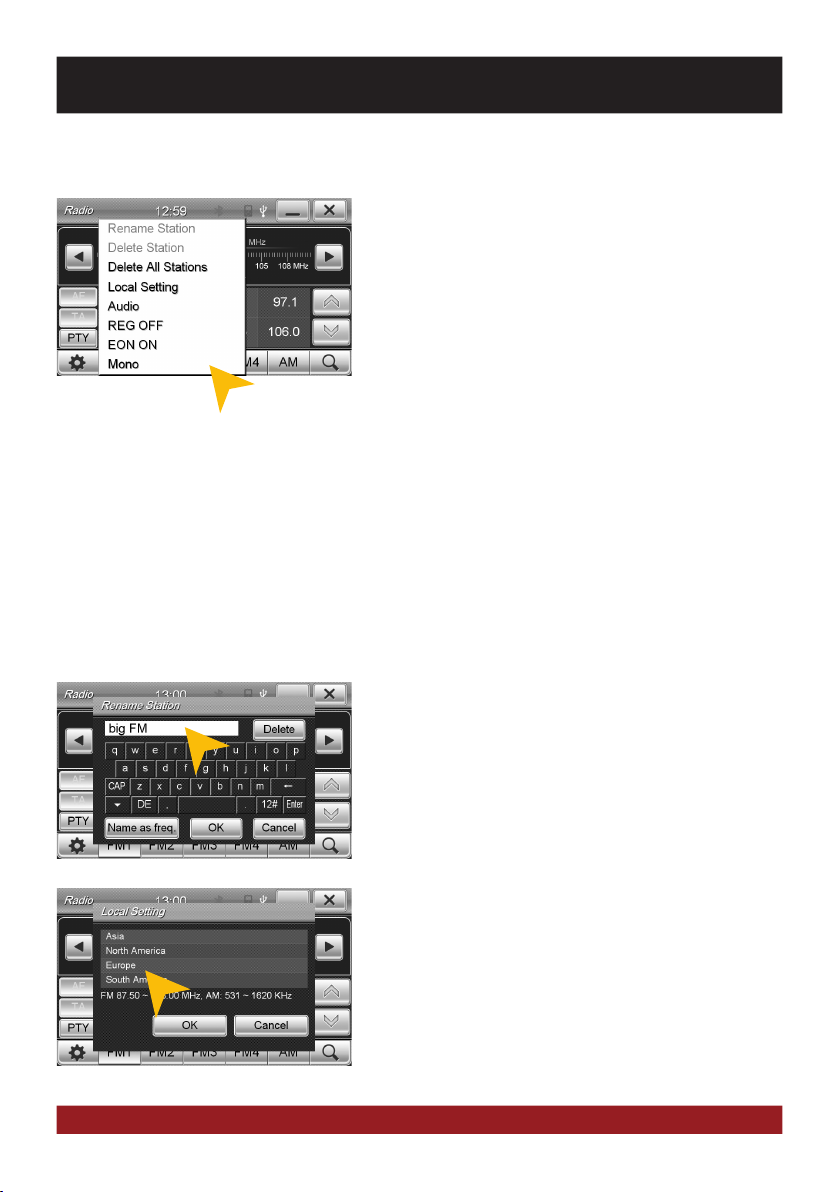

Settings and station presets
Tap on the „gear“ icon to open the settings and then:
„Rename Station“ to rename the current radio station.
„Delete Station“ to delete the current radio station from the
presets.
„Delete All Stations“ to delete all radio stations from the pre-
sets.
„Local Setting“ to open the settings for the local radio fre-
quency standards.
„Audio“ to open the audio settings. Refer to the instructions in
section „Audio“ in the „APPS“ menu.
REG OFF and REG ON switches the RDS function „REGIONAL“
on or off. If the menu shows „REG OFF“, the regional function
is activated.
“EON ON” or “EON OFF” to switch the “Enhanced Other Net-
works (EON)” on or off.This feature allows you to receive traffic
information (TA), even if the currently selected channel does
not have a TA program.
„Mono“, to switch off the „stereo“-mode manually on weak
radio stations.
Rename Station:
Tap on the white input box to change the radio station name by
using the screen keyboard.
Tap on „Name as freq.“ to set the frequency as radio station
name.
Confirm your entry with „OK“ or tap „Cancel“ to exit the menu
without changes.
Local Setting:
Choose e.g. EUROPE from the list of local radio frequency stan-
dards.
Confirm your entry with „OK“ or tap „Cancel“ to exit the menu
without changes.
After you change the settings, restart the radio application.
BASIC FUNCTIONS

13
RDS functions
This device supports RDS (Radio Data System) in the frequency range 87.5 - 107.9 MHz FM. The follow-
ing RDS functions are only available if they are supported by the selected radio station.
AF (Alternative Frequency)
The AF function enables the automatic switching of the receiv-
ing frequency when leaving the reception range of a transmitter.
The device then checks the reception quality and automatically
switches to a different frequency, when the same program in
another reception area is also available. This is done automati-
cally, without the user is notice anything.
TA (Traffic Announcement)
The TA function enables the interruption of the media playback
(audio player, CD, DVD, etc.) for traffic announcements. After
the announcement, the previous media playback starts again.
PTY (Program Type)
The PTY function is a classification of radio stations in different
categories. Each program of a RDS radio station is classified
categorically.
After you have selected a category, the unit automatically
searches for the next matching radio station in this category.
During the „Automatic scan“ only programs will be found, that
match to the chosen category. If you no longer want this func-
tion, select the category „None“.
BASIC FUNCTIONS

14
The app „Car Info.“ shows various important vehicle information. The menu consists of three sub-
menus:
To enter one of the submenus below tap the desired panels.
In the submenu „Conv.consumers“ shows how the operation
of the air conditioning has an effect on the vehicle‘s fuel con-
sumption in liters per 100 kilometers.
In the submenu „Driving data“ the already traveled kilometers
will be displayed such as the average speed, maximum speed
and the total travel time as well as the vehicle‘s fuel consump-
tion in liters per 100 kilometers.
Chose with the arrows top left and right between „Since
start“-, „Since refueling“- and „Long-term“-display.
Komfortverbraucher
Fahrdaten
IMPORTANT NOTE: The “Car Info.” menu is only available in the Skin “ESX POLO” (See pg. 30). Other, subse-
quently installed skins may not support this feature.
CAR INFORMATION
BASIC FUNCTIONS

15

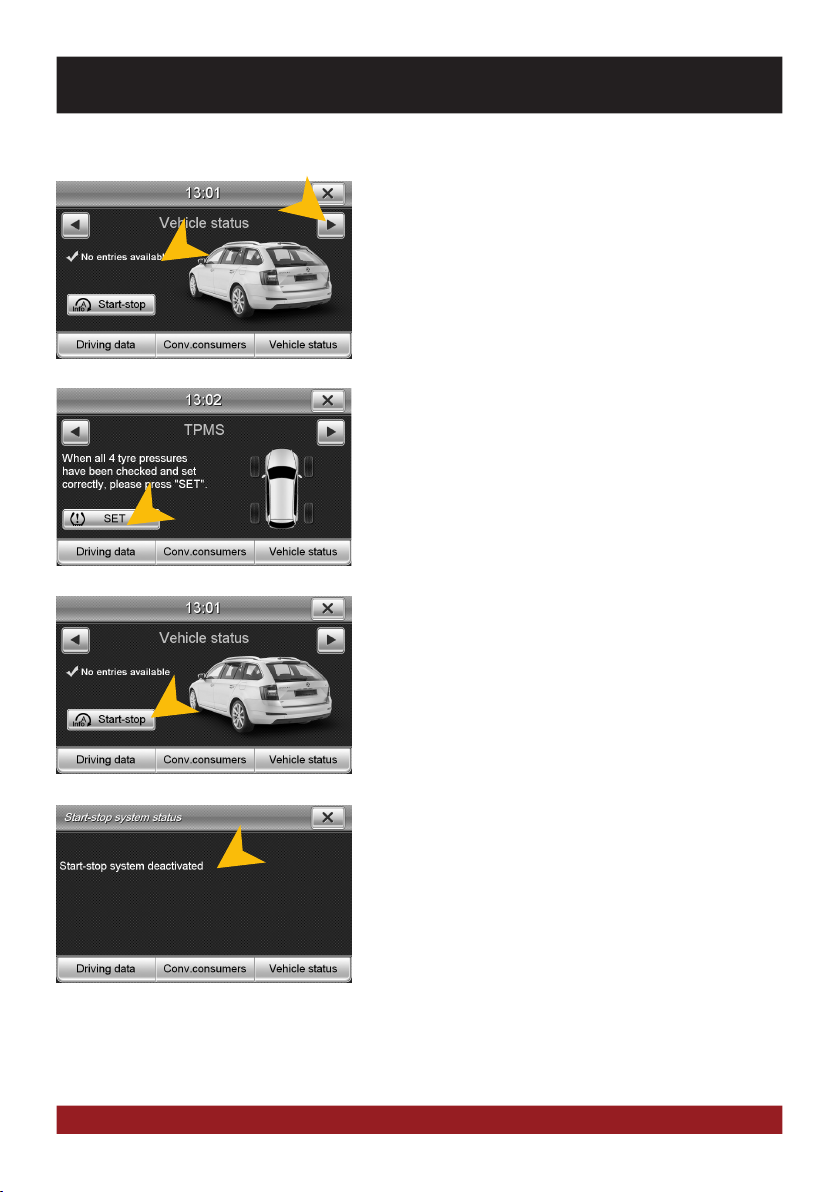

In the submenu „Vehicle status“ you can to switch between
„Vehicle Status“ and „Tire Pressure Monitoring System“ (if
present) by using the arrows on top left and right.
Both displays show vehicle-relevant information is if action is
needed.
Tap on „Start-Stop“ to open the Start-Stop menu.
Here you find information about the status of the „start-stop
system“ as well as information about the vehicle.
Here you can see the sub-menu „Tire-pressure Monitoring
System“. Press „SET“ after you have the tire pressure of all
four wheels checked and adjusted correctly.
Vehicle status
BASIC FUNCTIONS

16
Sollte ein Mobiltelefon per Bluetooth mit dem Gerät verbunden sein, hat dieses Pri-
orität sollte ein Anruf erfolgen und schaltet während des Telefonats die Medienwie-
dergabe (Radio, Audio, DVD etc.) stumm.
The paired mobile phone has always priority and a phone call mutes always the cur-
rently playback of media (navigation, radio, audio, DVD, etc.). This applies both for
incoming calls as well as outgoing calls.
Select your device from the device list in the phone and enter the PIN code 1234. Alternatively, you can also
search your mobile phone under „Devices“ and connect to the device. Once you have connected your phone
to the device, the pairing starts automatically as soon as the two devices are within range. Leave Bluetooth
activated on the mobile phone. If a mobile phone has already been added to the list of Bluetooth devices, you
can also manually pair the devices. The range for a satisfactory connection is about 10 m.
To disconnect the two Bluetooth devices,
tap on „Devices“.
At first pair the devices, if necessary refer to the manual of your
mobile phone. Open the „Settings“ menu on your mobile phone
and open the Bluetooth settings.
Turn on Bluetooth and then search for compatible devices. The
Bluetooth name of the device will be displayed.
PAIRING
Choose the mobile phone from the list and tap „Dis-
connect“ or quit the Bluetooth connection on your
phone.
Alternatively, the phone can also be deleted from the list, but after that, the automatic pairing is disabled and
the mobile phone must be re-paired with the device. To delete the mobile phone from the list, select the name
and press „Delete“. This is only possible if the devices are not currently paired.
DISCONNECT
BLUETOOTH™
Open the Bluetooth™ application by tapping „Bluetooth™“ in the main menu or by pressing the
„PHONE“ button on the device.
BASIC FUNCTIONS

17

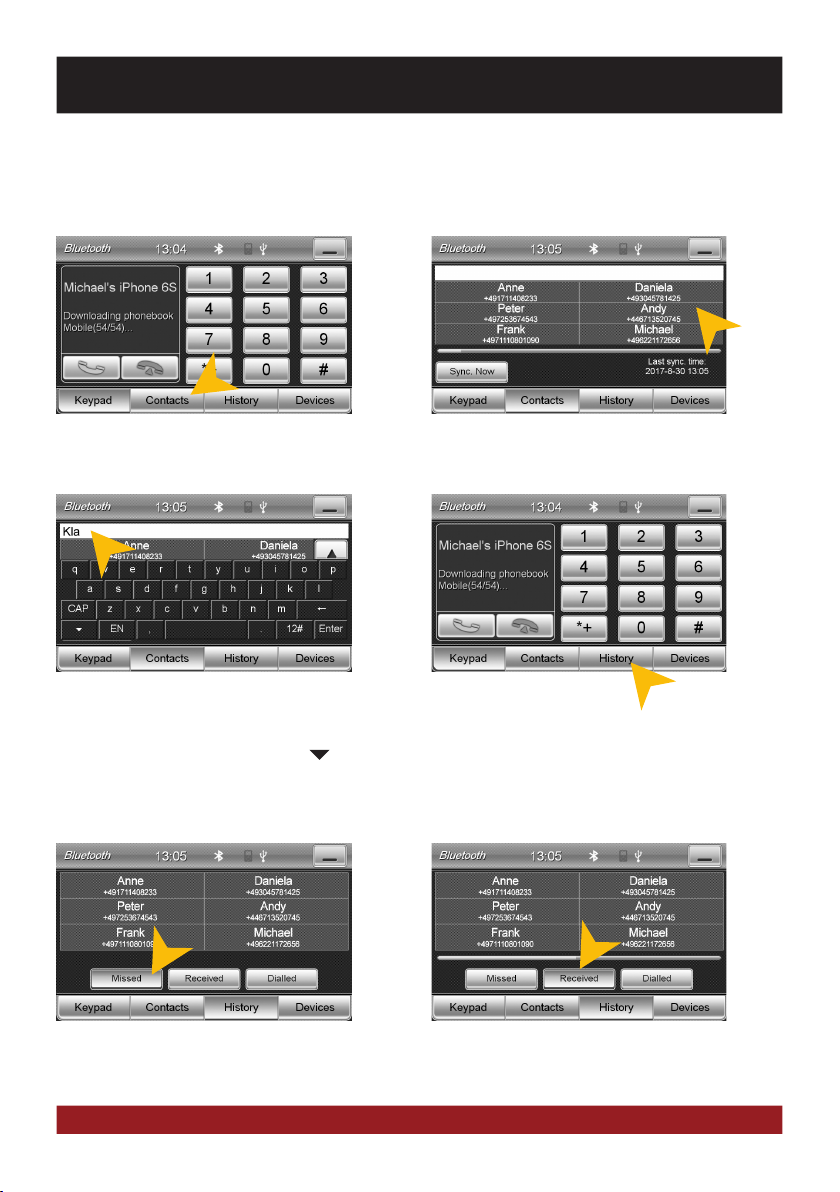

Once your mobile phone has been connected via Bluetooth to the device, the synchronization of your contacts
and call history starts automatically.
CONTACTS AND CALL HISTORY
Tap on „Contacts“.
Tap on the white search field to search for
a contact, by typing its name on the screen
keyboard. Under „DE“ or „EN“, you can
change the keyboard or close it with „ “.
Tap on „History“.
Tap on „Missed“ to display the missed
phone calls.
Tap on „Received“ to display the already re-
ceived phone calls.
Tap on a name to start a phone call. You can
scroll through your phone book by swiping
on the right / left.
BASIC FUNCTIONS

18

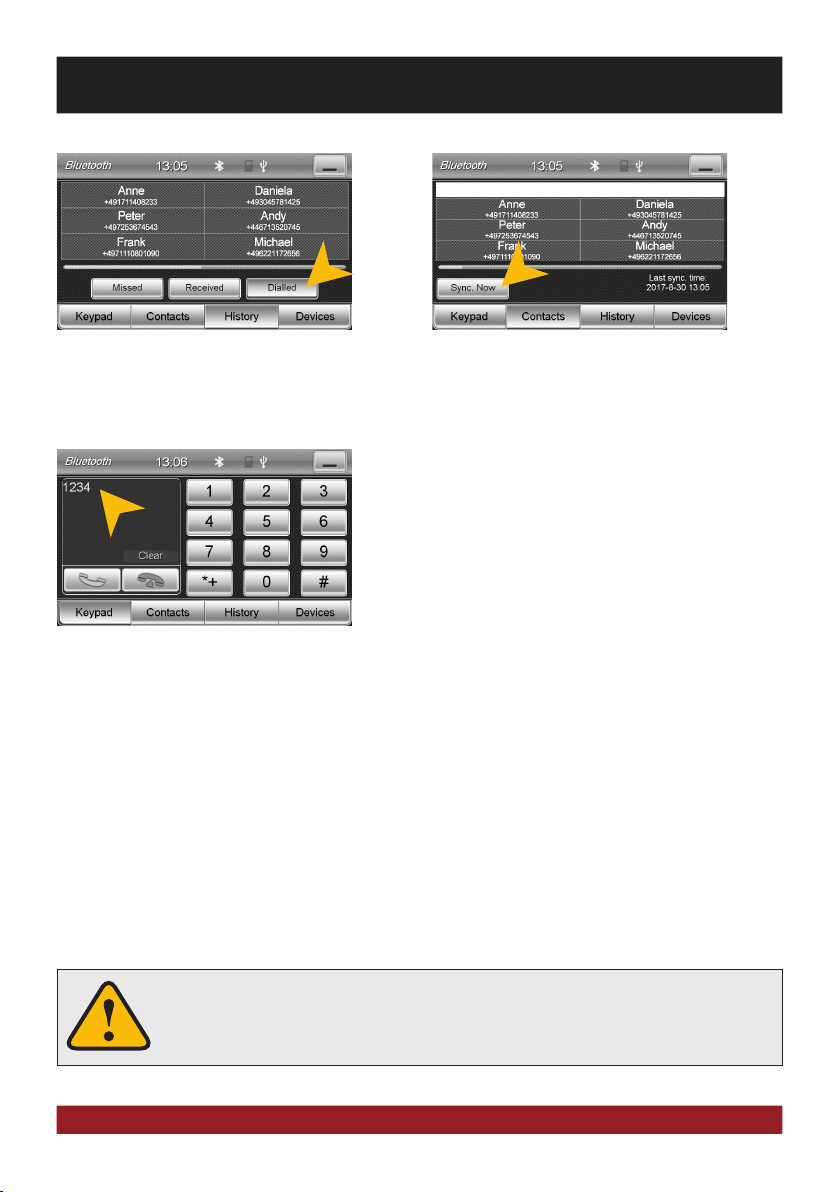

Tap on „Dialled“ to display the already trans-
acted phone calls.
KEYPAD
Tap on „Keypad“ to enter phone numbers
manually. Then enter the desired number
and then tap the green phone icon to start
dialing. Tap the red phone icon to end the
phone call.
You can dial with the paired mobile phone,
but this is not recommended while driving
and may be illegal in your country.
To synchronize your contacts and call history
tap on „Sync. Now“.
An incoming call should not be accepted automatically by the device. If the call is
accepted automatically, disconnect the mobile phone from the device and reconnect
both devices.
BASIC FUNCTIONS

19
Connect your iPod™ or iPhone™ via USB with the ESX device.
When the iPod™ icon is highlighted in white (top next to the
time display), the connection is active.
The battery charging function is carried out when the unit is
turned on. For older iPod ™ models, it may happen that these
are not recognized after the power is turned off. Pinch in this
case, the iPod ™ off and back on.
The user interface is modeled like the user interface of the
iPod™. You get access to the iPod™ its contents and playl-
ists through the lower control panels. By tapping „MENU“ you
can make the desired playback settings such as „Shuffle“ or
„Repeat“.
By tapping on „Media Library“, the library opens. There you
can select the desired criteria (artist, playlist, album, genre,
etc.) for the playback.
With „Audio“ and „Podcast“, you can access the desired media
type of the iPod™.
Please avoid disconnecting the iPod/iPhone™ during operation. This could cause a sys-
tem crash.
LinkPod (optional)
BASIC FUNCTIONS

20
APPS
Open the application menu by tapping on „Apps“ in the main menu.
The device offers a variety of applications that can be used as described below. Some of these func-
tions require the appropriate accessories.
In Chapter „CUSTOM SETTINGS“, section „Menu assignments“ (Pg. 39) shows how to customize and
arrange the key panels.
1 2
43
5
7
9
11
6
8
10
12
1. Tap here to switch off the display. To switch on
the display again, tap onto the screen.
2. Tap here to go back to the main menu.
3. Tap here to open the AV/TV menu.
4. Tap here to open the Quick Charge menu.
5. Tap here to open the Audio Settings.
6. Tap here to start the A2DP audio streaming.
7. Tap here to open the file manager.
8. Tap here to open the E-Link menu.
9. Tap here to open the Climate menu.
10. Tap here to view the rear view camera (if con-
nected / available)
11. Tap here to open the Vehicle Settings.
12. Tap here to open the option menu.
BASIC FUNCTIONS
