EtherWAN ED3501 User manual

W70G-ED3501XQ5 Page 1
Installation Guide

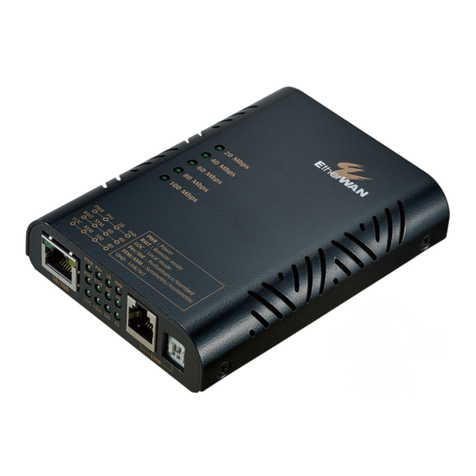

ED3501 Series | Industrial 10/100BASE-TX Ethernet Extender
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 03/29/2023
1Unpacking
Unpack the items. Your package should include:
▪One ED3501 Industrial Ethernet Extender
▪External AC to DC power adapter
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2Select a Location
▪Installations: Desktop, chassis.
▪Identify a power source within 6 feet (1.8 meters).
▪Choose a dry area with ambient temperature
between -10 and 60ºC (14 and 140ºF).
▪Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪Be sure there is adequate airflow.
▪Keep the device at least 6 ft (1.83 m) away from
the nearest source of electromagnetic noise, such
as a photocopy machine.
3LED Indicators
LED
Color
Status
PWR
Green
ON = Receiving power
OFF = Power off
Ethernet Extender Port
Link/
Activity
Green
ON=Connection is established
OFF = No connection is
established
Flashing = Port is sending or
receiving data
Per
Green
ON=Performancemode.
OFF = Standard mode.
RMT
Green
ON = Remote mode.
LOC
Green
ON = Local mode.
SYM
Green
ON = Symmetric mode.
ASM
Green
ON = Asymmetric mode.
Line
Speed
Green
ON = Displays the link speed in
Mbps
10/100TXPort
Link/
Activity
Green
ON=Valid network connection
OFF = No data transmission on
port
Flashing = Port is sending or
receiving data
Speed
Yellow
ON = Link speed at 100Mbps
OFF = Link speed at 10Mbps
4Connection
▪Insert one end of the Ethernet cable into a switch
port.
▪Connect the other end into the Ethernet port of
the device.
▪Insert the voice grade copper wire between one
pair of Ethernet Extenders via Ethernet Extender
port (RJ-11 connector or Terminal Block). One
device must be set to LOC mode and the other to
Auto mode when two devices are connected.
Distance and data rates for Ethernet Extender ports:
Distance (m)
Data Rate (Mbps)
300
100
400
80
600
60
800
40
2600
1
This distance/data rate information is measured
according to testing standards in the EtherWAN
laboratory. The actual installation and connection
speed will be affected by the quality of copper wire
and the impact of noise disturbance.

W70G-ED3501XQ5 Page 2
Installation Guide
ED3501 Series | Industrial 10/100BASE-TX Ethernet Extender
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 03/29/2023
5DIP Switch Settings
Pin
Up
Down
DIP Switch 1
Auto mode
Local mode
DIP Switch 2
Symmetric
Asymmetric
DIP Switch 2
Performance
Standard
NOTE: After making changes to the position of any DIP
switch, the Ethernet Extender must be rebooted for
the new settings to take effect.
Ethernet Extender Connection
RJ-11 and Terminal Block port pinouts
Pin 3: Tip, Pin 4: Ring.
Use a telephone line to connect two RJ-11 or Terminal
Block ports between two Ethernet Extenders.
6Apply Power
Connect the supplied AC to DC power adaptor to the
receptacle on the rear panel of the Ethernet Extender,
and then attach the plug into a standard AC outlet.
7Top Panel
Manufacturer information:
EtherWAN Systems, Inc.
33F, No. 93, Sec. 1, Xintai 5th Rd., Xizhi Dist., New
Taipei City, 221 Taiwan
The full product manual can be downloaded from:
www.etherwan.com
