Evolveo ES-LR1 User manual

ES-LR1
www.evolveo.com
Electric scooter

1. The scooter and accessories
Scooter, Headstock, Instruction manual, Power adaptor and Accessories
2. Functions

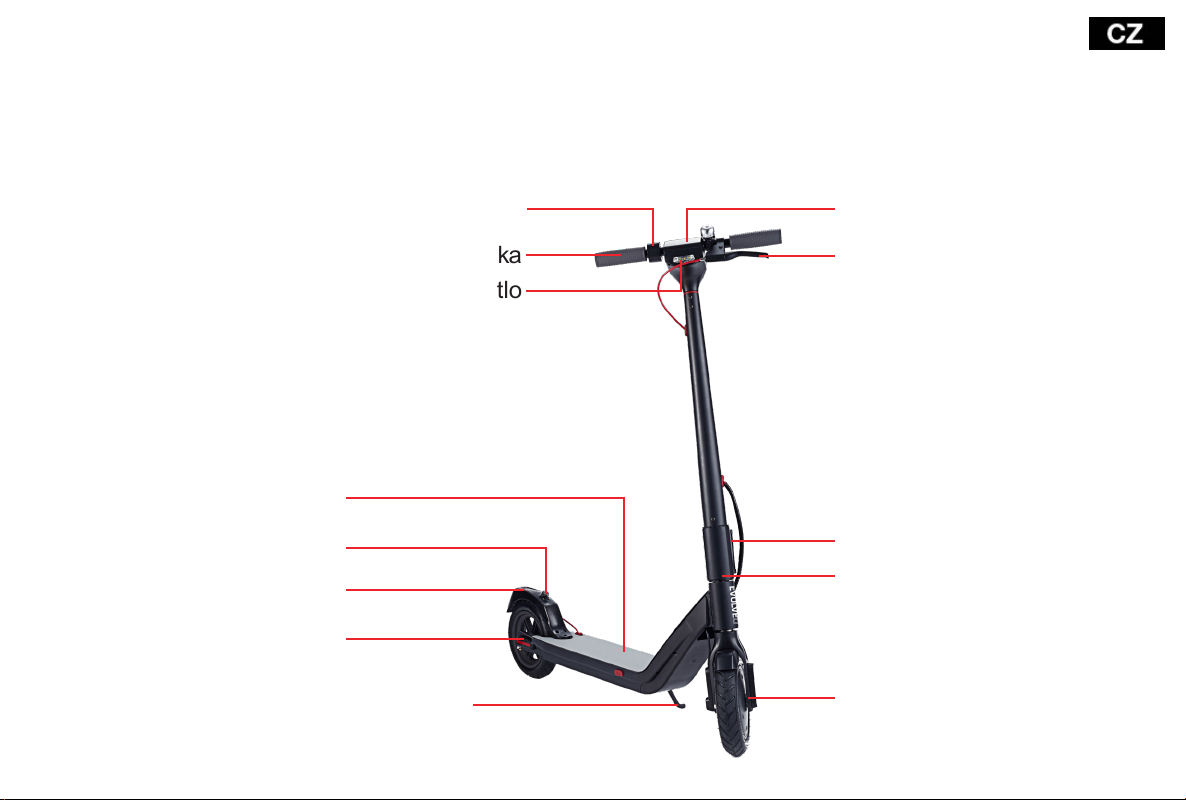

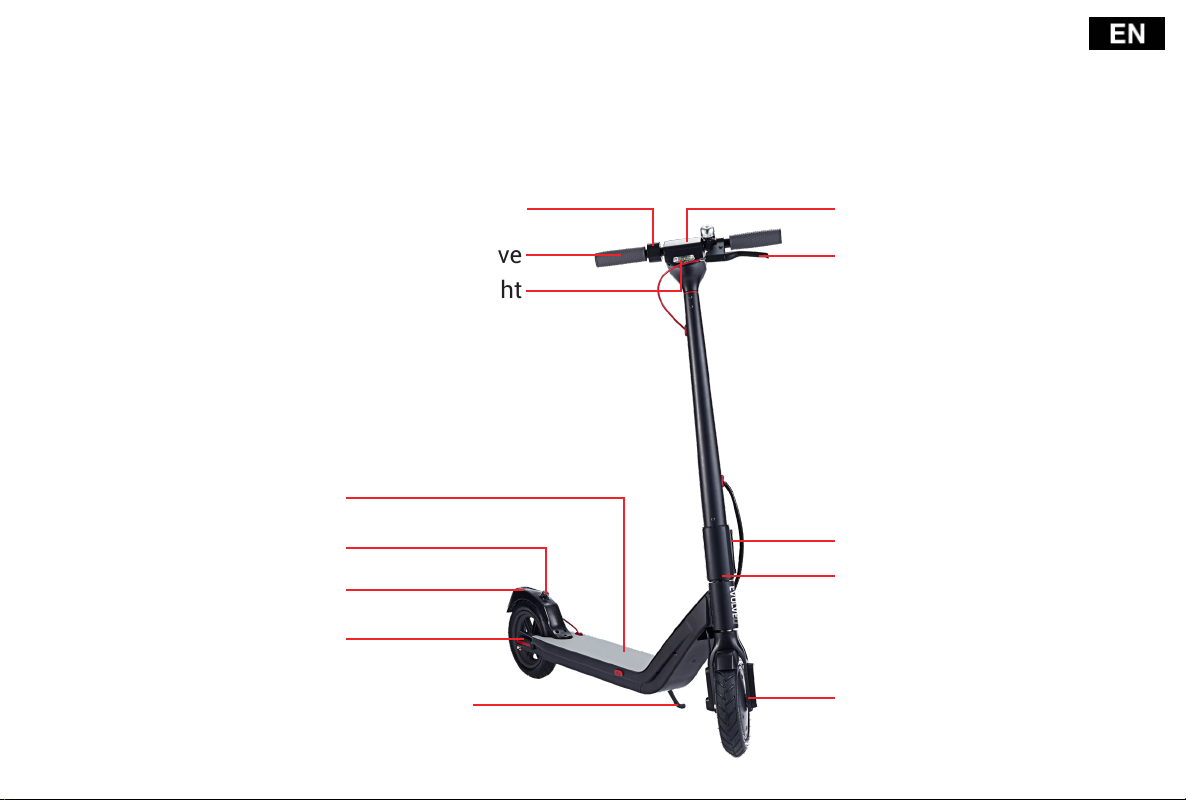

Speed lever
Silicone handle sleeve
Folding wrench
Non-slip silicone
Brake disc
Rear wheel light
Battery compartment
Kick stand Motor
Tightening sleeve
Headlight
Brake handle
LCD Display
2

3. Assembling the scooter

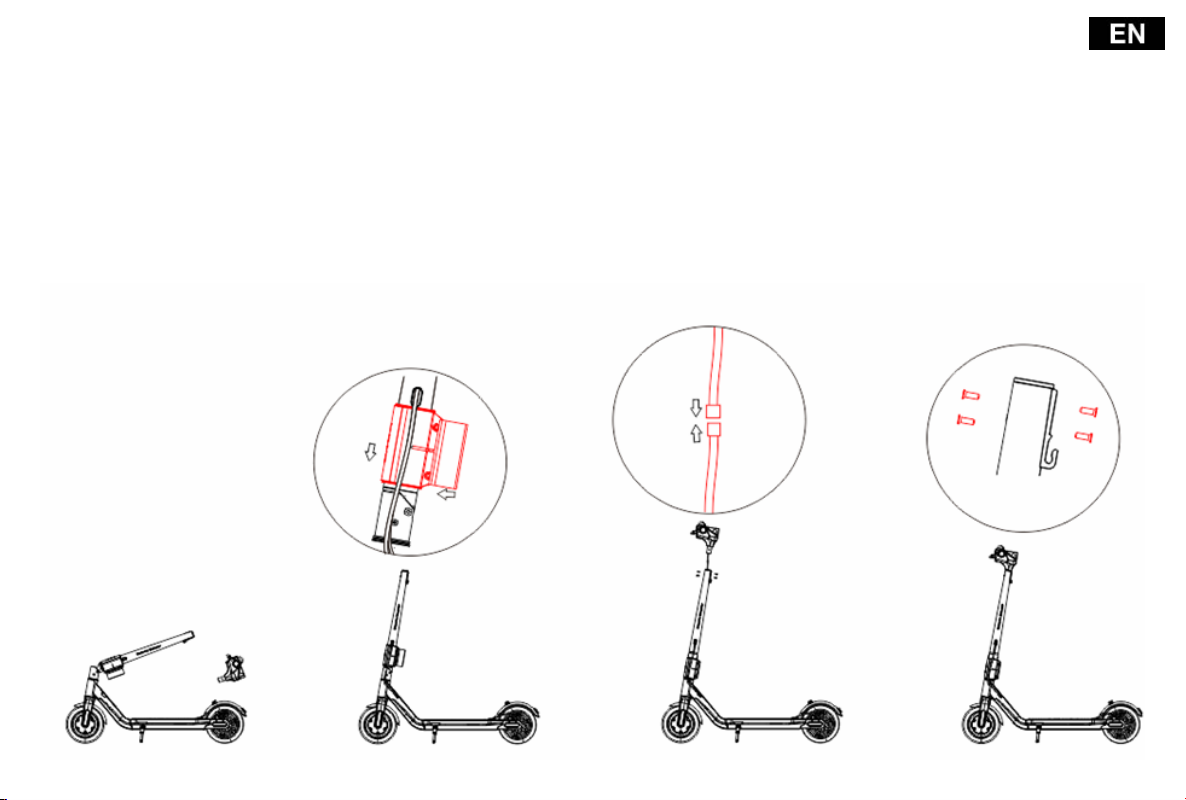

1. Place the scooter on a stand.
2. Open the wrench of the tightening device, expand the scooter pole into a vertical state.
3. Connect the data connection port of the headstock and pole, mounts the headstock to the pole by
hex wrench, then tighten the screws.
4. After assembly, check the monitor if working properly.
3

4. Charging of the scooter
1. Open the cover of the charging connector
2. Insert the power adaptor plug
3. After full charging, close the cover tightly
5. Electronics modes
- Power on: Press the power button for 1 seconds
- Power off: Press the power button for 3 seconds, release after hearing “DI”
- Switch speed modes: Quick click the power button twice
- Power on the headlight: Quick click the power button
- Power off the headlight: Quick click the power button
- Activating the Cruise Control mode: Press the speed lever and hold it at the same speed for 5
seconds
- Stop the Cruise Control mode:
1. Brake action will stop the Cruise Control mode;
2. Press the speed lever again will stop the Cruise Control mode.
4

6. Folding and unfolding
Folding: open the wrench of the tightening device, move up the tightening device, then gently lower
down the pole until it is locked at the rear fender.
5

Unfolding: Open the rear fender hook, upright the pole, move down the tightening device to
the bottom, then tighten the wrench of the tightening device.
6

7. Drive Instructions
While learning to ride a scooter you may fall and get hurt. Be sure to wear a helmet and other protective
gear.
1. Turn on the scooter and check the battery remaining.
2. Place one foot on platform of the scooter, the other must be behind.
3. To bring the scooter to move, push off from the floor by another leg, and then put it behind a leading
leg.
4. Only when both feet stand on the scooter platform, you can press the speed knob (press the knob at
minimum possible scooter speed of 5km/h).
5. To reduce a speed rate must loosen the knob, whereupon the vehicle starts to slow down
automatically. For emergency braking you must press a brake lever, which is located on the left side,
to the limit.
6. When turning corners, slightly move the body’s center of gravity in a right direction, and turn the
handle bars slowly.
7

8. Safety recommendations
1. It is not recommended driving in the rain.
2. It is recommended to slightly bend knees to better adjust to a rough road.
3. While walking with a scooter, do not press a speed knob.
4. When driving it is recommended to go around various obstacles on a road.
5. Entering into any room, elevator, etc., be careful not to be injured by a door frame.
6. If you are traveling on a rough road, stick to low speed (5-10km/h).
7. If on your way there are threshold of the elevator, potholes or other obstacles, it is not recommended
to pass through them too fast.
8. Please not add speed when descending a hill.
9. Please do not hang backpacks and other heavy objects on handlebars
10. When driving is forbidden to place one foot on the running board or on the ground.
8

9. Preventing dangerous driving
1. It is forbidden to leave a scooter on a roadway for motor vehicles or ride in a residential area with a
large flow of passers-by.
2. It is forbidden to sharply turn a scooter wheel at high speed.
3. Do not step on a mudguard.
4. Do not touch a brake disc.
5. It is forbidden to drive thought puddles, which exceeds depth of 5 cm.
6. Never ride a scooter more than one person.
7. It is forbidden to ride a scooter, not holding a handle bars
8. It is forbidden to ride a scooter on stairs or overcome other obstacles.
10. Safety recommendations
Electric Scooter – it is not only the vehicle, but also a device for entertainment. But also do not forget
about the fact, that this vehicle brings certain risks for your safety. For the sake of your safety and
safety of others, you must strictly follow the instructions, outlined in this driving manual.
9

You should understands, that if you ride a scooter in a public place, you must comply with all
recommendations for safety. Also do not forget, that there is a possibility of collision, due to violation
of pedestrians or vehicles trafc rules, there is also a risk of injury, due to improper operation of the
unit. As in other types of vehicles, the higher a speed of Electric Scooter, the greater a braking distance.
On some smooth surfaces emergency braking can cause skidding of scooter, loss of balance and even
fall. Therefore, during moving the scooter you need to be vigilant, to adhere to an appropriate speed,
keeps a safe distance from pedestrians and / or with other vehicles. Riding on unfamiliar terrain, keep
vigilance and appropriate speed.
While riding a scooter, respect rights of pedestrians. Reduce speed, passing by them.
To avoid person injury, do not pass Electric Scooter for use of others, who do not know, how to drive
such vehicles. Before you transfer your scooter to a friend, speed training for it, as well, as provide all
the information on the safe driving.
Before each use, carefully inspect the scooter and check it. If you nd shattered parts, a battery life
has decreased considerably, tires leak air or there are signs of excessive wear, uncharacteristic sounds
when turning or other abnormal symptom, immediately discontinue use of the scooter. Call technical
support and get a specialized and expert advice, and if necessary, use a warranty service.
11. Care and store
If you nd any stain on Electric Scooter housing, use a soft, damp cloth to wipe the vehicle.
Warning: Do not use alcohol, petrol kerosene or other corrosive solutions, volatile chemical solvents
to clean the vehicle. Otherwise, it will cause serious damage to the scooter body and can disrupt a
