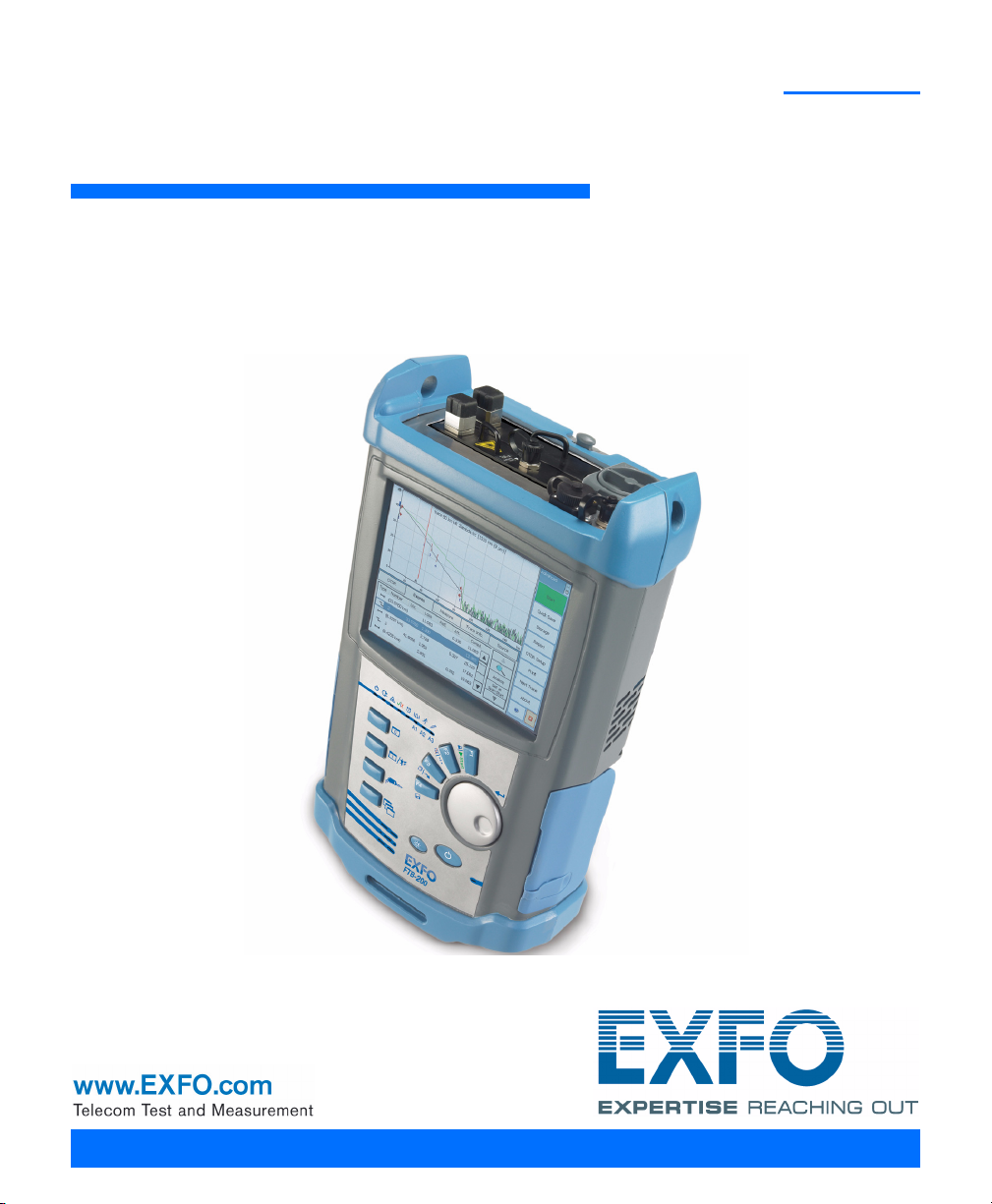

EXFO FTB-200 User manual

User Guide
Compact Modular Platform
FTB-200

ii FTB-200
Copyright © 2006–2009 EXFO Electro-Optical Engineering Inc. All rights
reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted in any form, be it electronically,
mechanically, or by any other means such as photocopying, recording or
otherwise, without the prior written permission of EXFO Electro-Optical
Engineering Inc. (EXFO).
Information provided by EXFO is believed to be accurate and reliable.
However, no responsibility is assumed by EXFO for its use nor for any
infringements of patents or other rights of third parties that may result from
its use. No license is granted by implication or otherwise under any patent
rights of EXFO.
EXFO’s Commerce And Government Entities (CAGE) code under the North
Atlantic Treaty Organization (NATO) is 0L8C3.
The information contained in this publication is subject to change without
notice.
Trademarks
EXFO’s trademarks have been identified as such. However, the presence
or absence of such identification does not affect the legal status of any
trademark.
Units of Measurement
Units of measurement in this publication conform to SI standards and
practices.
Version number: 12.0.2

Compact Modular Platform iii
End-User License Agreement
You have acquired a device ("DEVICE") that includes software licensed by EXFO Electro-Optical Engineering Inc. (EXFO)
from an affiliate of Microsoft Corporation ("MS"). Those installed software products of MS origin, as well as associated media,
printed materials, and "online" or electronic documentation ("SOFTWARE") are protected by international intellectual
property laws and treaties. Manufacturer, MS and its suppliers (including Microsoft Corporation) own the title, copyright, and
other intellectual property rights in the SOFTWARE. The SOFTWARE is licensed, not sold. All rights reserved.
This EULA is valid and grants the end-user rights ONLY if the SOFTWARE is genuine and a genuine Certificate of Authenticity
for the SOFTWARE is included. For more information on identifying whether your software is genuine, please see
http://www.microsoft.com/piracy/howtotell.
IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR COPY THE
SOFTWARE. INSTEAD, PROMPTLY CONTACT EXFO FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A
REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE
YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT).
GRANT OF SOFTWARE LICENSE. This EULA grants you the following license:
³You may use the SOFTWARE only on the DEVICE.
³Restricted Functionality. You are licensed to use the SOFTWARE to provide only the limited functionality (specific tasks
or processes) for which the DEVICE has been designed and marketed by EXFO. This license specifically prohibits any
other use of the software programs or functions, or inclusion of additional software programs or functions that do not
directly support the limited functionality on the DEVICE. Notwithstanding the foregoing, you may install or enable on a
DEVICE, systems utilities, resource management or similar software solely for the purpose of administration,
performance enhancement and/or preventive maintenance of the DEVICE.
³If you use the DEVICE to access or utilize the services or functionality of Microsoft Windows Server products (such as
Microsoft Windows Server 2003), or use the DEVICE to permit workstation or computing devices to access or utilize the
services or functionality of Microsoft Windows Server products, you may be required to obtain a Client Access License for
the DEVICE and/or each such workstation or computing device. Please refer to the end user license agreement for your
Microsoft Windows Server product for additional information.
³NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. EXFO HAS INDEPENDENTLY DETERMINED HOW TO
USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON EXFO TO CONDUCT SUFFICIENT TESTING TO
DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH USE.
³NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided "AS IS" and with all faults. THE ENTIRE RISK AS TO
SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU.
ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST
INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE SOFTWARE, THOSE
WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.
³No Liability for Certain Damages. EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO LIABILITY FOR ANY
INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE
USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS
ESSENTIAL PURPOSE. IN NO EVENT SHALL MS BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED
FIFTY DOLLARS (U.S.$250.00).
³Restricted Uses. The SOFTWARE is not designed or intended for use or resale in hazardous environments requiring
fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air
traffic control, or other devices or systems in which a malfunction of the SOFTWARE would result in foreseeable risk of
injury or death to the operator of the device or system, or to others.
³Limitations on Reverse Engineering, Decompilation, and Disassembly. You may not reverse engineer, decompile, or
disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law
notwithstanding this limitation.
³SOFTWARE as a Component of the DEVICE - Transfer. This license may not be shared, transferred to or used
concurrently on different computers. The SOFTWARE is licensed with the DEVICE as a single integrated product and may
only be used with the DEVICE. If the SOFTWARE is not accompanied by a DEVICE, you may not use the SOFTWARE. You
may permanently transfer all of your rights under this EULA only as part of a permanent sale or transfer of the DEVICE,
provided you retain no copies of the SOFTWARE. If the SOFTWARE is an upgrade, any transfer must also include all prior
versions of the SOFTWARE. This transfer must also include the Certificate of Authenticity label. The transfer may not be
an indirect transfer, such as a consignment. Prior to the transfer, the end user receiving the SOFTWARE must agree to all
the EULA terms.
³Consent to Use of Data. You agree that MS, Microsoft Corporation and their affiliates may collect and use technical
information gathered in any manner as part of product support services related to the SOFTWARE. MS, Microsoft
Corporation and their affiliates may use this information solely to improve their products or to provide customized
services or technologies to you. MS, Microsoft Corporation and their affiliates may disclose this information to others, but
not in a form that personally identifies you.

iv FTB-200
³Internet Gaming/Update Features. If the SOFTWARE provides, and you choose to utilize, the Internet gaming or update
features within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to
implement the features. By using these features, you explicitly authorize MS, Microsoft Corporation and/or their
designated agent to use this information solely to improve their products or to provide customized services or
technologies to you. MS or Microsoft Corporation may disclose this information to others, but not in a form that personally
identifies you.
³Internet-Based Services Components. The SOFTWARE may contain components that enable and facilitate the use of
certain Internet-based services. You acknowledge and agree that MS, Microsoft Corporation or their affiliates may
automatically check the version of the SOFTWARE and/or its components that you are utilizing and may provide
upgrades or supplements to the SOFTWARE that may be automatically downloaded to your DEVICE. Microsoft
Corporation or their affiliates do not use these features to collect any information that will be used to identify you or
contact you. For more information about these features, please see the privacy statement at
http://go.microsoft.com/fwlink/?LinkId=25243.
³Links to Third Party Sites. You may link to third party sites through the use of the SOFTWARE. The third party sites are
not under the control of MS or Microsoft Corporation, and MS or Microsoft are not responsible for the contents of any third
party sites, any links contained in third party sites, or any changes or updates to third party sites. MS or Microsoft
Corporation is not responsible for webcasting or any other form of transmission received from any third party sites. MS or
Microsoft Corporation are providing these links to third party sites to you only as a convenience, and the inclusion of any
link does not imply an endorsement by MS or Microsoft Corporation of the third party site.
³Notice Regarding Security. To help protect against breaches of security and malicious software, periodically back up
your data and system information, use security features such as firewalls, and install and use security updates.
³No Rental/Commercial Hosting. You may not rent, lease, lend or provide commercial hosting services with the
SOFTWARE to others.
³Separation of Components. The SOFTWARE is licensed as a single product. Its component parts may not be separated
for use on more than one computer.
³Additional Software/Services. This EULA applies to updates, supplements, add-on components, product support
services, or Internet-based services components ("Supplemental Components"), of the SOFTWARE that you may obtain
from EXFO, MS, Microsoft Corporation or their subsidiaries after the date you obtain your initial copy of the SOFTWARE,
unless you accept updated terms or another agreement governs. If other terms are not provided along with such
Supplemental Components and the Supplemental Components are provided to you by MS, Microsoft Corporation or their
subsidiaries then you will be licensed by such entity under the same terms and conditions of this EULA, except that (i)
MS, Microsoft Corporation or their subsidiaries providing the Supplemental Components will be the licensor with respect
to such Supplemental Components in lieu of the "COMPANY" for the purposes of the EULA, and (ii) TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, THE SUPPLEMENTAL COMPONENTS AND ANY (IF ANY) SUPPORT SERVICES
RELATED TO THE SUPPLEMENTAL COMPONENTS ARE PROVIDED AS IS AND WITH ALL FAULTS. ALL OTHER
DISCLAIMERS, LIMITATION OF DAMAGES, AND SPECIAL PROVISIONS PROVIDED BELOW AND/OR OTHERWISE WITH
THE SOFTWARE SHALL APPLY TO SUCH SUPPLEMENTAL COMPONENTS. MS, Microsoft Corporation or their subsidiaries
reserve the right to discontinue any Internet-based services provided to you or made available to you through the use of
the SOFTWARE.
³Recovery Media. If SOFTWARE is provided by EXFO on separate media and labeled "Recovery Media" you may use the
Recovery Media solely to restore or reinstall the SOFTWARE originally installed on the DEVICE.
³Backup Copy. You may make one (1) backup copy of the SOFTWARE. You may use this backup copy solely for your
archival purposes and to reinstall the SOFTWARE on the DEVICE. Except as expressly provided in this EULA or by local
law, you may not otherwise make copies of the SOFTWARE, including the printed materials accompanying the
SOFTWARE. You may not loan, rent, lend or otherwise transfer the backup copy to another user.
³End User Proof of License. If you acquired the SOFTWARE on a DEVICE, or on a compact disc or other media, a genuine
Microsoft "Proof of License"/Certificate of Authenticity label with a genuine copy of the SOFTWARE identifies a licensed
copy of the SOFTWARE. To be valid, the label must be affixed to the DEVICE, or appear on [COMPANY's] software
packaging. If you receive the label separately other than from EXFO, it is invalid. You should keep the label on the DEVICE
or packaging to prove that you are licensed to use the SOFTWARE.
³Product Support. Product support for the SOFTWARE is not provided by MS, Microsoft Corporation, or their affiliates or
subsidiaries. For product support, please refer to EXFO support number provided in the documentation for the DEVICE.
Should you have any questions concerning this EULA, or if you desire to contact EXFO for any other reason, please refer
to the address provided in the documentation for the DEVICE.
³Ter mi nation. Without prejudice to any other rights, EXFO may terminate this EULA if you fail to comply with the terms
and conditions of this EULA. In such event, you must destroy all copies of the SOFTWARE and all of its component parts.
³EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is subject to U.S. and European Union export jurisdiction.
You agree to comply with all applicable international and national laws that apply to the SOFTWARE, including the U.S.
Export Administration Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other
governments. For additional information see http://www.microsoft.com/exporting/.

Contents
Compact Modular Platform v
Contents
Certification Information ..................................................................................................... viii
1 Introducing the FTB-200 Compact Modular Platform ................................ 1
Main Features .........................................................................................................................1
LED Panel Description .............................................................................................................4
Keypad Description .................................................................................................................5
Card Reader and Ports ............................................................................................................6
Power Sources ........................................................................................................................7
Conventions ............................................................................................................................8
2 Safety Information ....................................................................................... 9
Laser Safety Information .........................................................................................................9
Units with Built-In VFL ..........................................................................................................10
Electrical Safety Information .................................................................................................11
3 Getting Started with Your Unit ................................................................. 13
Installing or Upgrading the Applications ..............................................................................13
Inserting and Removing Test Modules ..................................................................................15
Installing a USB Keyboard or Mouse .....................................................................................21
Configuring the Printer .........................................................................................................22
Turning On or Off the Unit ....................................................................................................24
Starting Module Applications ...............................................................................................25
Accessing Microsoft Internet Explorer ...................................................................................26
4 Setting Up Your Unit .................................................................................. 27
Recalibrating the Touchscreen ..............................................................................................27
Adjusting Microphone and Speaker ......................................................................................28
Adjusting Brightness .............................................................................................................29
Selecting the Language of Operation ...................................................................................30
Setting Date and Time Formats .............................................................................................31
Selecting the Startup Application .........................................................................................32
Configuring the Shortcut Buttons .........................................................................................34
Setting Other Parameters ......................................................................................................34

Contents
vi FTB-200
5 Using the Built-In Power Meter and VFL ...................................................35
Accessing the Built-In Power Meter ......................................................................................35
Nulling Offsets ......................................................................................................................37
Setting Thresholds and Correction Factors ............................................................................38
Setting Reference Values on Your Power Meter ....................................................................40
Measuring Power or Loss ......................................................................................................41
Reloading Power Meter Results ............................................................................................44
Clearing Power Measurements from the Display ..................................................................45
Creating and Printing a Results Report .................................................................................46
Identifying Fiber Faults Visually with the VFL ........................................................................49
6 Inspecting Fibers with a Probe ..................................................................51
Inspecting a Fiber End ..........................................................................................................51
Capturing an Image ..............................................................................................................53
7 Managing Data ...........................................................................................55
8 Testing Network Connections ....................................................................61
Performing a Ping Test ..........................................................................................................61
Performing a Trace Route Test ...............................................................................................64
Exporting the Results ............................................................................................................66
9 Maintenance ................................................................................................67
Cleaning Detector Ports ........................................................................................................68
Recharging the Main Battery ................................................................................................69
Recalibrating the Battery ......................................................................................................71
Replacing Batteries ...............................................................................................................74
Recalibrating the Unit ...........................................................................................................75
Recycling and Disposal (Applies to European Union Only) ....................................................76
10 Troubleshooting ..........................................................................................77
Solving Common Problems ...................................................................................................77
Restoring Your Unit to Normal Operation .............................................................................79
Contacting the Technical Support Group ..............................................................................82
Transportation ......................................................................................................................83
11 Warranty ......................................................................................................85
General Information .............................................................................................................85
Liability .................................................................................................................................86
Exclusions .............................................................................................................................87
Certification ..........................................................................................................................87
Service and Repairs ...............................................................................................................88
EXFO Service Centers Worldwide ..........................................................................................89

Contents
Compact Modular Platform vii
A Technical Specifications ............................................................................. 91
Index ................................................................................................................ 93

Certification Information
viii FTB-200
Certification Information
F.C.C. Information
Electronic test equipment is exempt from Part 15 compliance (FCC) in
the United States. However, compliance verification tests are
systematically performed on most EXFO equipment.
 Information
Electronic test equipment is subject to the EMC Directive in the European
Union. The EN61326 standard prescribes both emission and immunity
requirements for laboratory, measurement, and control equipment.
This unit has undergone extensive testing according to the European Union
Directive and Standards.
CSA Information
This unit is certified by the CSA (certificate number 162451) and was
evaluated according to applicable CSA and UL standards (as confirmed by
“C-US” mark) as well as applicable IEC standards for use in Canada, the
United States, and other countries.

Certification Information
Compact Modular Platform ix
Application of Council Directive(s): 2006/95/EC - The Low Voltage Directive
2004/108/EC - The EMC Directive
And their amendments
Manufacturer’s Name: EXFO Electro-Optical Engineering Inc.
Manufacturer’s Address: 400 Godin Avenue
Quebec, Quebec
Canada, G1M 2K2
[phone]
Equipment Type/Environment: Test & Measurement / Industrial
Trade Name/Model No.: FTB-150 Compact OTDR and FTB-200
Compact Modular Platform
Standard(s) to which Conformity is Declared:
EN 61010-1:2001 Safety Requirements for Electrical Equipment for Measurement,
Control, and Laboratory Use, Part 1: General Requirements.
EN 61326-1:2006 Electrical Equipment for Measurement, Control and Laboratory
Use - EMC Requirements – Part 1: General requirements
EN 60825-1:1994 +A2:2001
+A1:2002
Safety of laser products – Part 1: Equipment classification,
requirements, and user’s guide
EN 55022: 1998 +A2: 2003 Information technology equipment - Radio disturbance
characteristics - Limits and methods of measurement
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive and Standards.
Manufacturer
Signature:
Full Name: Stephen Bull, E. Eng
Position: Vice-President Research and
Development
Address: 400 Godin Avenue, Quebec (Quebec),
Canada, G1M 2K2
Date: February 03, 2009
DECLARATION OF CONFORMITY

Compact Modular Platform 1
1 Introducing the FTB-200
Compact Modular Platform
Main Features
Your unit has the following characteristics:
³2-slot platform
³Multitasking
³Touchscreen (LCD and touchscreen optimized for outdoor use
available in option)
³USB ports (host and client)
³Ethernet port
³CompactFlash card reader
³Autonomy (8 hours)
³Windows CE
³Ruggedness (GR-196-CORE)
³Possibility to connect a probe
³Optional built-in power meter and VFL

Introducing the FTB-200 Compact Modular Platform
2FTB-200
Main Features
LEDs
Keypad
Brightness button
Knob with ENTER button
On/Off button
To u c h s c r e e n
Keypad
Front panel
USB host port
RJ-45 port
DC connector
Fiber Inspection
Probe port
USB client
port
Headset/
microphone port
Left panel Right panel
Card reader

Introducing the FTB-200 Compact Modular Platform
Compact Modular Platform 3
Main Features
Built-in power meter
VFL
Battery
compartment
Module slots
Top panel
Bottom panel
Retaining screws

Introducing the FTB-200 Compact Modular Platform
4FTB-200
LED Panel Description
LED Panel Description
The LED panel located on the front of the unit provides you with the status
of your unit.
Note: The function of certain LEDs vary with the applications.
LED Status Meaning
Green Unit is on.
Off Unit is off.
Green Unit powered or not by AC and battery fully charged.
Green, flashing Battery is charging.
Yellow, flashing Unit is not powered by AC and battery is low.
Red Battery error.
Off Unit is off or unit is not powered by AC and battery level
is above the “low-battery threshold”.
Flashing
Laser status LED
At least one module emits an optical signal.
Off No modules emit signal.
Green
Result status (from application currently displayed).
Pass (result does not exceed the defined threshold)
Red Fail

Introducing the FTB-200 Compact Modular Platform
Compact Modular Platform 5
Keypad Description
Keypad Description
The keypad of your unit gives you access to various functions at all times.
The table below shows an overview of their purpose.
Note: The function of certain buttons vary with the applications.
Button Meaning
First shortcut button. Starts the associated application (see Configuring the
Shortcut Buttons on page 34).
Second shortcut button. Starts the associated application or the built-in
power meter application (see Configuring the Shortcut Buttons on
page 34).
Start fiber probe application.
Switch from one task to another.
Turn on and off your unit:
³Suspend: hold down button a few seconds until the unit beeps once.
³Shutdown: hold down button until the unit beeps twice.
For more information, see Turning On or Off the Unit on page 24.
Adjust screen brightness.
Lock/Start acquisition/F1 button (depends on application).
Mute/Move markers/F2 button (depends on application).
Report/Next λor trace/F3 button (depends on application).
Save/F4 button (depends on application).

Introducing the FTB-200 Compact Modular Platform
6FTB-200
Card Reader and Ports
Card Reader and Ports
Your unit is equipped with a card reader (for Bluetooth wireless and
CompactFlash cards) and communication ports (for probe, mouse,
keyboard, hub, etc.).
³The card reader is located on the left panel of the unit.
³There are four ports, all located on the right panel of the unit:
³8-pin connector to connect the fiber inspection probe.
³USB host port (type A connector) to connect USB memory
drives, keyboards, mouse devices, etc.
³USB client (secondary) port (type B connector) to connect a
USB cable for data transfer between your unit and a computer.
³RJ-45 port to connect your unit to an Ethernet network.

Introducing the FTB-200 Compact Modular Platform
Compact Modular Platform 7
Power Sources
Power Sources
The unit operates with the following power sources:
³AC adapter/charger (connected to a standard power outlet–indoor use
only).
³Rechargeable Lithium-Ion battery (automatically takes over if you
disconnect the AC adapter/charger).
³Possible to switch from AC adapter/charger to battery power or
vice versa without affecting operation.
³Automatic recharge when AC adapter/charger is connected.
³Rechargeable battery (for clock and RAM, used when Lithium-Ion
battery and AC power are both unavailable). The clock battery has an
autonomy of approximately 15 minutes after which the unit will restart
exactly as if you performed a shutdown (button held down until the
unit beeps twice).
IMPORTANT
The unit will function only if the battery is present and the battery
door is in place (even if you use it with the AC adapter/charger).

Introducing the FTB-200 Compact Modular Platform
8FTB-200
Conventions
Conventions
Before using the product described in this manual, you should understand
the following conventions:
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury. Do not proceed unless you
understand and meet the required conditions.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. Do not proceed unless you
understand and meet the required conditions.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in component damage. Do not proceed unless you
understand and meet the required conditions.
IMPORTANT
Refers to information about this product you should not overlook.

Compact Modular Platform 9
2 Safety Information
Laser Safety Information
The laser class of your unit depends on the modules that you use. Refer to
the user guide or the online help of the different modules for the exact
information.
WARNING
Do not install or terminate fibers while a light source is active.
Never look directly into a live fiber and ensure that your eyes are
protected at all times.
WARNING
Use of controls, adjustments and procedures for operation and
maintenance other than those specified herein may result in
hazardous radiation exposure or impair the protection provided by
this unit.

Safety Information
10 FTB-200
Units with Built-In VFL
Units with Built-In VFL
Your instrument is a Class 3R laser product in compliance with standards
IEC 60825-1 : 2007 and 21 CFR 1040.10. It is potentially harmful in direct
intrabeam viewing.
The following label(s) indicate that the product contains a Class 3R source:
If VFL option is available
QST498C
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
IEC 60825-1:1993+A2:2001
21 CFR 1040.10
λ: 650 ±10 nm
Pout maximum < 5mW (into free space)
Affixed to back of unit
(under the stand).
