Fametech TP-2515 User manual

i
TP-2515
Fanless Full-Flat POS Terminal
User Manual
Installation Guide
Ver. 1.0
© Copyright Fametech Inc. (TYSSO), 2018

i
General Information
ABOUT THIS MANUAL
The purpose of this user’s manual is to provide general information on TYSSO’s
POS Terminal and to show the users how to configure the hardware-related configurations.
The information in this manual is subject to change without notice due to rapid improvement on
IT technology. Users can get the most up to date information from our web sites:
Uhttp://www.fametech.com.twU
DISCLAIMER
This manual has been examined for accuracy. While precaution has been taken in the
preparation of this manual, neither the manufacturer takes no liability for errors or omissions nor
assume any responsibility for damage(s) incurred directly or indirectly from errors, omissions, or
discrepancies of this manual.
IN NO EVENT WILL THE VENDOR BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY
TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF THE POSSIBILITY OF SUCH
DAMAGES HAS BEENADVISED. IN PARTICULAR, THE VENDOR SHALL NOT HAVE
LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, OR RECOVERING
SUCH HARDWARE, SOFTWARE OR DATA.
WARNING
The terminal has been tested and found to comply with the limits for a Class a digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interface in a residential installation. This equipment can generate and radiate
radio frequency energy and, if not installed and used according to the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interface will
not occur under particular installation. If this equipment does cause harmful interference to radio
or television reception, which is found by turning the equipment off and on, the user is
encouraged to try to correct the interface by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment or device.
Connect the equipment to an outlet other than the receiver’s.
Consult a dealer or an experienced radio/TV technician for assistance.

ii
CAUTION
The system is provided with a battery-powered Real-Time Clock circuit. There is a danger of
exposing and personal injury if the battery is incorrectly replaced or mistreated. Do not attempt to
disassemble the battery, immerse it in the water or expose it to fire.
WARRANTY LIMITS
If the product and the parts are disassembled by any person other than the authorized
technicians, the warranty will be terminated. The users should consult his/her dealer for any
technical problems. Warranty does not cover any damage caused by improper use.
TRADE MARKS AND SERVICE MARKS
TYSSO is a registered trademark of FAMETECH INC.
Other brand and product names are trademarks and registered trademarks and service marks of
their respective owners.

iii
IMPORTANT SAFETY INFORMATION
Read following instructions carefully.
Use only parts, especially power adapter, recommended by the manufacturer; unapproved
parts may be hazardous.
Before plugging the power cord into the AC inlet of the power supply unit, make sure that the
voltage applied to the power outlet is within the specified range (100V~240V).
Improper power source voltage range will cause damage to the power supply unit.
Power off the system and remove the power adapter while cleaning the system.
Before powering on the system, make sure all the peripherals are firmly installed.
Do not use the system near water, such as a bathtub, a washbowl, a kitchen sink, a laundry
tub, and a swimming pool. Do not expose the machine under direct sunlight, and keep it
away from any heat source.
Do not place the system on an unstable cart, stand or table. If the machine falls, it may injure
a person or cause serious damage to the appliance.
The system is equipped with a three-wire grounded plug with a third (grounding) pin. This is a
safety feature. If your outlet does not accommodate the three-wire plug, have an electrician
install a correct outlet, or use an adapter to ground the appliance safely. Do not leave out the
safety purpose of the grounded plug.
Do not allow anything to rest on the power cord. Do not locate the system where people may
walk on the cord.
Do not make the power outlet and extension cords overload. Overload can result in fire or
electric shock.
Do not push any object into the computer cabinet. Dangerous voltage points may be touched
and the parts may be shorted out resulting in fire or electric shock.
Do not attempt to service the system on your own. Opening or removing cover can expose
you to dangerous voltage or other hazards.
Power off the system before installing or removing non-PNP (plug and play) devices.
If any of the following situations occurs, unplug the systems from the power outlet
immediately and consult with a qualified service person:
1. The power cord or plug is damaged or frayed.
2. Liquid is spilled into the system.
3. The system is dropped or the cabinet is damaged.
When the system is not in use, cover the system and store it with care.

iv
Contents
General Information....................................................................................................... i
ABOUT THIS MANUAL.........................................................................................................i
DISCLAIMER........................................................................................................................i
WARNING............................................................................................................................i
CAUTION ............................................................................................................................ii
WARRANTY LIMITS............................................................................................................ii
TRADE MARKS AND SERVICE MARKS ............................................................................ii
IMPORTANT SAFETY INFORMATION............................................................................... iii
1. Product Overview................................................................................................... 1
1.1. Packing.......................................................................................................................1
1.2. Specifications .............................................................................................................2
1.3. Parts Descriptions ......................................................................................................5
1.4. I/O Ports Descriptions.................................................................................................7
2. POS Installation...................................................................................................... 8
2.1. Unpack Your POS.......................................................................................................8
2.2. Install Your POS .........................................................................................................9
Appendix ......................................................................................................................11
A. Install LM-2010-X Secondary (2nd) LCD Display (Optional) .....................................11
OSD Control Button of the Secondary (2nd) LCD Display................................................12
B. Install the Modular Customer Display (Optional).......................................................13
C. Install the MSR & i-Button Module (Optional)............................................................14
D. Replace the Hard Disk Drive of Your POS Terminal..................................................16

- 1 -
1. Product Overview

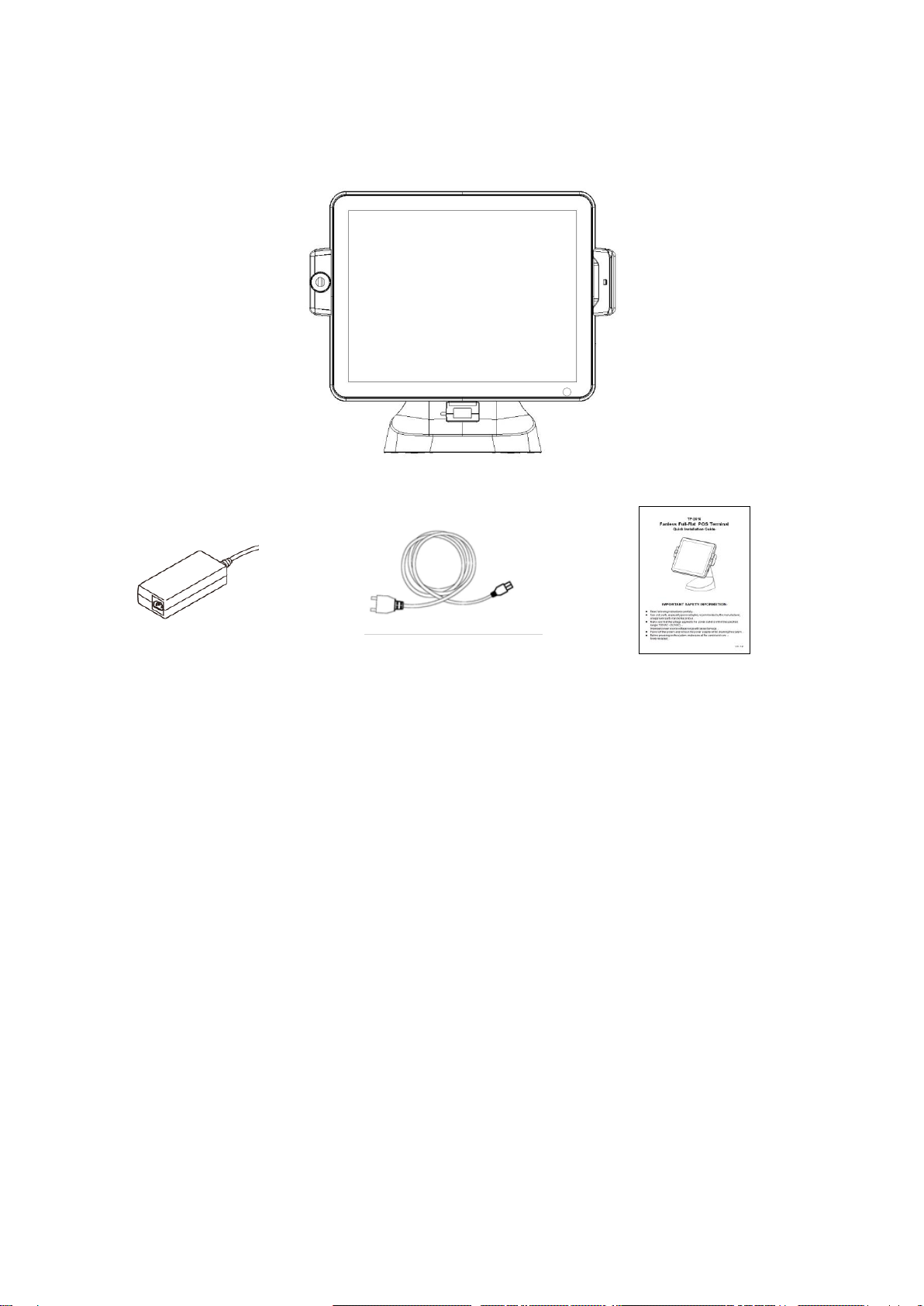

1.1. Packing
POS Terminal
Power Adapter*
(installed on the Base)
AC Power Cord
Quick Installation Guide
Contents
POS Terminal x 1
PowerAdapter (installed on the base) x 1
AC Power Cord x 1
Quick Installation Guide x 1
Optional Accessories **
Magnetic Stripe Card Reader (MSR)
i-Button Module
Modular Customer Display
2nd LCD Display
Barcode Scanner
Wi-Fi
VESA MOUNT Kit
Chip Card Reader
NFC
Finger Print
* The Power Adapter is installed on the base and need not remove generally.
** For more information relating to the other optional peripherals, please contact the local representatives
or technical support personnel of the providers.

- 2 -
1.2. Specifications
Model
TP-2515
CPU
Intel® Bay Trail-D Platform, Celeron® Processor J1900
2.0 GHz (2M Cache, up to 2.42 GHz)
System Memory
1 x DDR3L SO-DIMM Socket, up to 8GB
Graphic
Intel® HD Graphics
OS Support
POS Ready 7, Windows 7, Windows 8.1,
Windows 10 IOT Entry, Linux
Display
Screen Size
15” TFT LCD LED Backlight, (Ratio 4:3)
Resolution
1024 x 768
Touch Screen
True-Flat Projective Capacitive Touch (10 point)
True-Flat 5-wire Resistive Touch
Tilting Angle
15~85 degree
Storage
HDD
1 x 2.5” SATA II HDD or SSD or m-SATA
Interface
Serial
4x COM (DB9 with RI/+5VDC/+12VDC output by BIOS)
Parallel
1 x DB-25 Parallel Port (optional)
USB
4 x USB type A (3 x USB 2.0 and 1 x USB 3.0)
LAN
1 x RJ-45, Giga LAN Support (10/100/1000 Mbps)
VGA
1 x DB-15, Female (Max Resolution: 1920 x 1080)
Cash Drawer
1 x RJ-11, +12VDC/+24VDC by jumper select
DC Out
1 x +12VDC
DC In
1 x +12VDC
Others
Power Adapter
+12V/5A, 60W External Power Adapter
with Cable Head Lock, hide in stand
(Power Adapter: 100VAC~240VAC, 50/60Hz)
Color
Black / White
Compliance
EMI & Safety
CE EN55032/EN55024
FCC PART 15B
LVD EN60950-1
BSMI CNS14336
CB IEC60950-1
Weight
7.1 kg
Dimension (mm)
355.8 (W) x 349.7 (H) x 227.1 (D) mm
Operating Temperature
0°C~40°C
Operating Humidity
20% ~ 80% RH non-condensing
Storage Temperature
-20°C~55°C
Storage Humidity
20% ~ 85% RH non-condensing
* The specifications are subjected to change without prior notice.

- 3 -
Peripherals
Optional Peripheral
2nd Display
9.7", 350nits and resolution up to 1024 x 768
15", 300nits and resolution up to 1024 x 768
Optional PCAP Touch supported
Customer Display
VFD, 20 Columns x 2 Lines
MSR
Bi-directional, comply with ISO 7811 and Track 1/2/3 (HID USB)
3-1 Reader I
MSR
Bi-directional, comply with ISO 7811 and Track 1/2/3 (HID USB)
Chip Card
Reader
Read/write follow ISO7816 /EMV specification and
synchronous memory cards (HID USB)
NFC
Read/Write NXP, Mifare Plus, Mifare DESFire and
ISO14443 A/B-4 contactless cards (HID USB)
3-1 Reader II
MSR
Bi-directional, comply with ISO 7811 and Track 1/2/3 (HID USB)
Chip Card
Reader
Read/write follow ISO7816 /EMV specification and
synchronous memory cards (HID USB)
Optical Finger
Print
Optically scans and pixel resolution 512 dpi (HID USB)
3-1 Reader III
MSR
Bi-directional, comply with ISO 7811 and Track 1/2/3 (HID USB)
Chip Card
Reader
Read/write follow ISO7816 /EMV specification and
synchronous memory cards (HID USB)
i-Button
Dallas i-button Reader (HID USB)
Barcode Scanner
1D and 2D Barcode Scanner
Wi-Fi
Mini-PCIe interface, IEEE 802.11 a/b/g/n/ac
VESA MOUNT Kit
VESA SIZE 75 x 75 and 100 x 100 mm support
Note:
For further information relating to the other optional peripherals, please contact the local
representatives or technical support personnel of the providers.

- 4 -
Dimensions
Top View
Left View
Front View
Right View
Rear View
Bottom View
Note:
The Magnetic Stripe Card Reader (MSR) and i-Button Module are optional parts and
may not be included in the package. Please purchase the optional parts separately.

- 5 -
1.3. Parts Descriptions
Front View
Bottom View (Base, with AC Power Adapter)
LCD
Touch Screen
Power
Indicator
MSR
(Optional)
Base
i-Button
(Optional)
Base
AC Power Cord
Connector
2D Barcode
Scanner

- 6 -
Rear View
Bottom I/O Ports
MSR
(Optional)
Customer Display
(Optional)
Base
Power Switch
Cable Access
Opening
i-Button
(Optional)

- 7 -

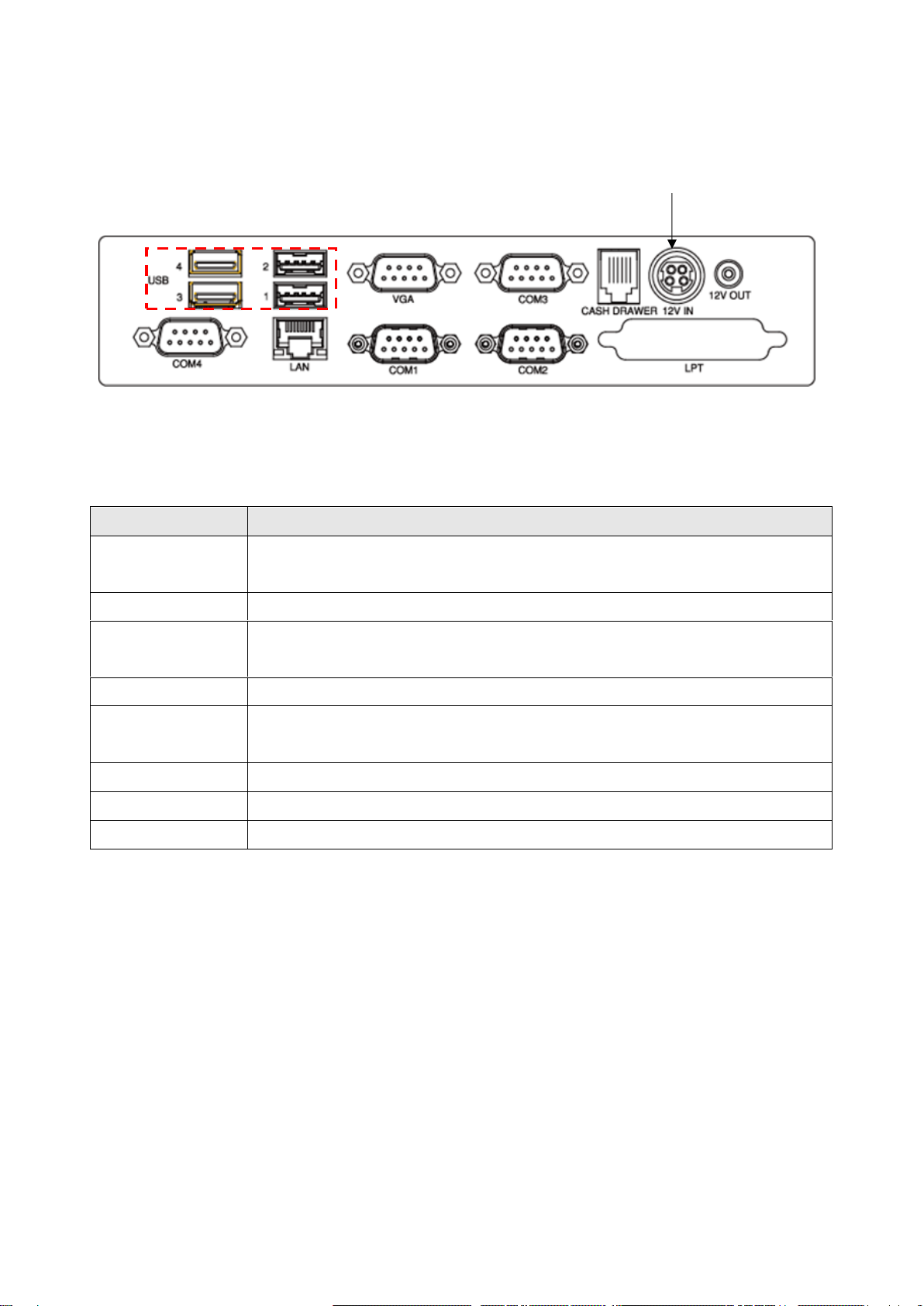

1.4. I/O Ports Descriptions
I/O Ports Descriptions:
I/O Port
Description
USB Ports
Connect devices with USB type A connectors.
(3 x USB 2.0 and 1 x USB 3.0)
VGA
1 x 15 pin D-type connector serves to transmit VGA data to the monitor
COM
The DB9 female type serial ports with power output (selectable by BIOS)
COM1 ~ COM 4: RI/+5VDC/+12VDC
CASH DRAWER
1 x RJ-11 with +12VDC/+24VDC (selectable by jumper of mainboard)
12V IN
+12VDC Main Power Jack Connector with wire mount buckle to
an AC power adapter (installed on the base)
12V OUT
+12VDC jack for 2nd LCD Display or other peripherals
LAN
1 x RJ-45 connector with link/act integrates speed LED
LPT*
1 x DB25 Parallel Port (optional)
Note:
The LPT connector is optional and sealed without connector for standard version.
Please contact the nearest local representative for further information.
VGA
USB Ports
COM 1
LAN
LPT
(Optional)
Main Power
Input
COM 4
12V DC
Out
COM 2
COM 3
Cash Drawer

- 8 -
2. POS Installation
2.1. Unpack Your POS
The contents may vary with different options. If there’s any physical damage or missing parts,
please contact your supplier immediately. Please keep all packing materials in case you need
to ship back the device for service.

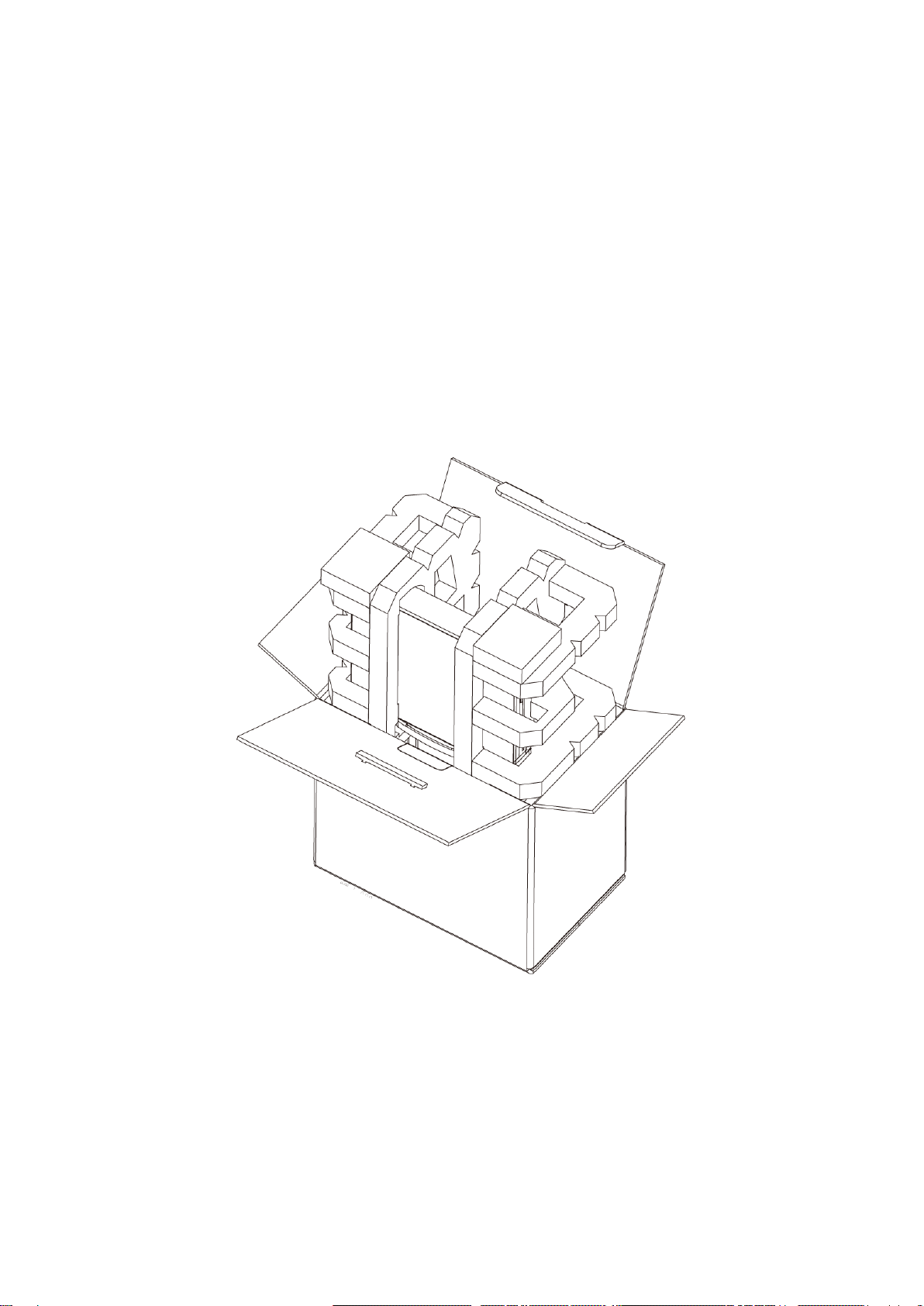

Unpacking
The product and accessories are packed in a paperboard carton. And it is wrapped by cushion
materials for protection during shipping.

- 9 -
2.2. Install Your POS
1. Place the POS terminal on the proper location.
2. Connect the power cord to the POS terminal.
(The Power Adapter is pre-installed on the Base).
3. Connect the optional peripherals to the POS
(for example: Mouse, Keyboard, and Barcode Scanner).
4. Plug the AC power cord to the power source (for example: electrical outlet).
5. Examine the Power Cord and the optional peripherals.
Make sure they are properly connected to the POS terminal, Power Adapter (on the base),
and Power Source.
6. Turn on the switches of optional peripherals (if installed).
7. Turn on the power switch of the POS terminal (on the back of the POS terminal).
Power Cord
Electrical Outlet
POS Terminal
Cable Access Opening
of the Base
Cable Access
Opening
Power Cord
Power Switch

- 10 -
Note:
Always install the POS terminal and the optional peripherals on a flat, clean and stable
location.
To prevent obstruction on the operator, reserve appropriate space for the POS terminal and
remove unnecessarily objects or items.

- 11 -
Appendix
A. Install LM-2010-X Secondary (2nd) LCD Display (Optional)
a. Remove the Protective Cover of the
POS terminal.
b. Remove the Top Cover of the
2nd LCD Display.
c. Adjust the angle of the 2nd LCD Display
horizontally.
d. Connect the connector of the
2nd LCD Display to the POS terminal.
e. Install the 2nd LCD Display to the
POS terminal.
Securing Screw Tapped Holes
of the POS Terminal
f. Tighten the securing screws and re-install
the Top Cover back to the LCD Display.
Note:
The 2nd LCD Display is an Optional Accessory and is not included in the standard package.
Please contact your local representative for further information.
2nd LCD Display
Securing
Screws
X 2
Protective Cover
Top Cover
2nd LCD Display
Top Cover

- 12 -
OSD Control Button of the Secondary (2nd) LCD Display
The Control Buttons are located in the rear of
the Secondary LCD Display.
Press and pull downward to remove the
back cover.
Control Buttons
MENU
Activate the OSD Menu
LEFT / RIGHT
These two keys are used to select the adjustment items
ENTER
Press to confirm the setting
POWER
Use the power switch to turn the power ON or OFF
Back Cover
Control
Buttons
MENU
LEFT / RIGHT
ENTER
POWER
LED Indicator

- 13 -
B. Install the Modular Customer Display (Optional)
a. Remove the Top Cover of the
Customer Display.
b. Remove the Protective Cover of the
POS terminal.
There is a connector for the
Modular Customer Display.
c. Adjust the Customer Display horizontally.
d. Connect the connector of the Modular
Customer Display to the POS terminal.
e. Install the Modular Customer Display to
the POS terminal.
Securing Screw Tapped Holes
of the POS Terminal
f. Tighten the securing screws and
re-install the Top Cover back to the
Customer Display.
Note:
The Modular Customer Display is an OptionalAccessory and is not included in the standard package.
Please contact your local representative for further information
Modular
Customer
Display
Securing
Screws
X 2
Connector
Protective Cover
Top Cover
Modular
Customer
Display
Top Cover

- 14 -
C. Install the MSR & i-Button Module (Optional)
To install the i-Button Module:
a. Turn Off the POS Terminal.
Remove the Protective Covers on the two
sides of the POS terminal.
b. Install the i-Button Module to the POS
terminal.
Note:
Connect the wired connector of i-Button to
the connector of POS terminal.
Connect the connector of i-Button
to the POS terminal
c. Secure the securing screws of i-Button.
d. Install the Back Cover of the i-Button to the
POS terminal.
Back Cover
of
i-Button
Protective
Cover
Protective
Cover
Securing
Screws
i-Button
(Back Cover Removed)

- 15 -
To Install the MSR Module:
e. Install the MSR Module to the
POS terminal.
Note:
Connect the connector of MSR to the
connector of POS terminal.
Connect the connector of MSR
to the POS terminal
f. Secure the securing screws of MSR.
g. Install the Back Cover of the MSR to the
POS terminal.
MSR Module
(Back Cover Removed)
Back Cover
of
MSR
Securing
Screws
