Federal Signal Corporation G-SND User manual

Model G-SND
Sounder for Use in Hazardous
Locations
Limited Warranty: This product’s limited warranty can be found at www.fedsig.com/SSG-Warranty.
WARNING - Failure to follow all safety precautions and instructions may result in property damage, serious injury, or
death to you or others.
MESSAGES TO INSTALLERS AND USERS People’s lives depend on your safe installation of our products. It is
important to follow all instructions shipped with the products. This device is to be installed by a trained electrician who
is thoroughly familiar with the National Electric Code and will follow the NEC guidelines as well as local codes.
The selection of the mounting location for the device, its controls and routing of the wiring is to be accomplished
under the direction of the Facilities Engineer and the Safety Engineer. Listed below are some other important safety
instructions and precautions you should follow.
• Read and understand instructions before installing or operating equipment.
• Do not connect this unit to the system when power is on.
• All effective warning speakers produce loud sounds, which may cause, in certain situations, permanent hearing
loss. You should take appropriate precautions, such as wearing hearing protection.
• After installation, test the sound system to ensure proper operation.
• The purchaser should make the manufacturer aware of any external effects or aggressive substances to which the
equipment may be exposed.
• WARNING: EXPLOSION HAZARD — Do not disconnect the equipment unless power has been switched off unless
the area is known to be non-hazardous.
• WARNING: EXPLOSION HAZARD — Do not remove or replace the fuse when energized.
Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death.
With respect to the potential electrostatic charging hazard as mentioned in the certicate “Specic Conditions of Use,”
under normal conditions of use, these devices are for xed installations and not generally in contact with people.
The risk of ignition is low. In addition, maintenance, cleaning, and extreme environmental factors (e.g., high velocity
dust-laden atmospheres or high-pressure steam) should be taken into account by the end user using local Explosive
Atmosphere (Ex) Electrical installation design, selection, inspection, and maintenance Codes and Standards. Cleaning of
the devices should be done only with a damp cloth.
25500187 Rev B11 0523

2Federal Signal signaling.fedsig.com
Certication
Certicate Nos. • IECEx Cert No.:IECEx BAS 15.0104X
• UKEX Cert No,: SGS23UKEX0086X
• ATEX Cert No.: Baseefa15ATEX0155X
• ATEX coding: II 2 G D
Protection • Ex db IIB T5 Gb or Ex db e IIB T5 Gb
• Ex tb IIIC T100°C Db IP66 (Tamb= -55°C to + 49°C)
• Ex db IIC T4 Gb or Ex db e IIC T4 Gb
• Ex tb IIIC T135°C Db IP66 (Tamb= -55°C to + 70°C)
Standards • EN60079-0:2018
• EN60079-1:2014
• EN IEC 60079-7:2015+A1:2018
• EN60079-31:2014
• IEC60079-0:2017 7th Ed
• IEC60079-1:2014-06 7th Ed I
• EC60079-7:2017 5.1 Ed
• IEC60079-31:2013 2nd Ed.
Specic Conditions of Use
• The Modular Audible Device enclosure incorporates a sinter and the volume is greater than 100 cm3; therefore, use
of the Modular Audible Device in a carbon disulphide gas atmosphere is not permitted.
• The Modular Audible Device has external non-metallic surfaces that may provide an electrostatic charging hazard.
See the manufacturer's instructions for further information.
• The Modular Audible Device has metallic components in the non-metallic walls of the enclosure that can store
electrical charge and therefore may provide a potential electrostatic discharge. The metallic brass inserts have a
capacitance of 24 pF. See the manufacturer's instructions for further information.
cULus Zone Certications
This equipment is for use in Class I, Zone 1, and Zone 21 hazardous (classied) locations. It has been investigated with
reference to risks to life and property and for conformity to the installation and use in provisions of Articles 505 and 506
of NFPA 70 (NEC).
These models use protections:
• Class I, Zone 1, AEx db IIC T4 Gb or AEx db eb IIC T4 Gb
• Zone 21, AEx tb IIIC T135°C Db IP66 (Tamb= -55°C to +70°C)
• Ex db IIC T4 Gb or Ex db eb IIC T4 Gb
• Ex tb IIIC T135°C Db IP66 (Tamb= -55°C to +70°C)
UL Fire Alarm Certications
See page 14.
Unpacking the Sounder
After unpacking the sounder, examine it for damage that may have occurred in transit. If it has been damaged, do not
attempt to install or operate it. File a claim immediately with the carrier, stating the extent of the damage. Carefully
check all envelopes, shipping labels, and tags before removing or discarding them. If any parts are missing, please call
Federal Signal Customer Support at [phone] or [phone].
Creating Combination Fixtures in the Field
The Federal Signal Global Series Ex de products can be connected together in the eld using interchangeable E-box end
caps and a proprietary coupling system. See Figure 1.

3
Federal Signal signaling.fedsig.com

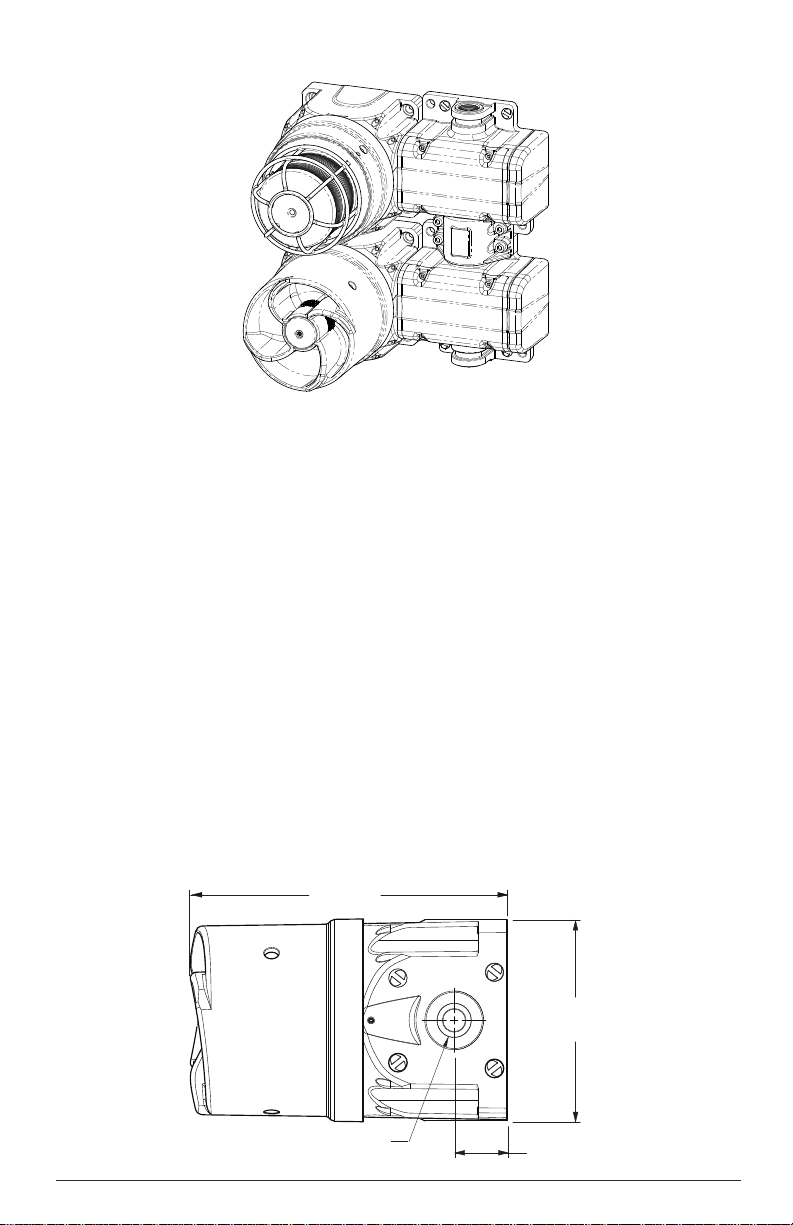

Figure 1 Sounder and sounder combination xture
The proprietary coupling system allows for simple and cost-effective wiring from product to product, often eliminating
the need for expensive Ex wiring practices and Ex rated glands. The E-box is available only when factory installed on an
Ex d unit or when used as an E-box spacer adjoining an existing E-box. Please refer to the accessories listed in Table 3
on page 13 for available options. When creating certain xture combinations, it is necessary to replace E-box end caps
before mounting the product. If you are creating combination xtures, refer to instruction manual 25500259 for specic
instructions and details.
A note about combination xtures: If the product is Exdb marked only, it is for use in gas atmospheres. If the product is
Ex db e marked, it uses the increased safety terminal enclosures and is only for gas atmospheres. If the product is Ex tb
marked, it is for installation in dust atmospheres.
Mounting the G-SND Sounder
ATTACH THE SOUNDER SECURELY - To prevent injury, this apparatus must be securely attached to the mounting surface
in accordance with the installation instructions. Use installer-supplied fasteners suitable for the mounting surface.
The mounting method and the installer-supplied mounting hardware depend on which of the two G-SND models you are
installing.
Mounting the Surface-Mount Ex d Sounder
Mount the sounder to a at surface using the four 8.5 mm mounting holes. Use installer-supplied fasteners suitable for
the surface to which the device will be mounted.
Figure 2 Side view of Ex d sounder
132.6 mm
(5.22 in)
34.9 mm
(1.38 in)
2X M20 GLAND ENTRIES
190.6 mm
(7.50 in)

4Federal Signal signaling.fedsig.com

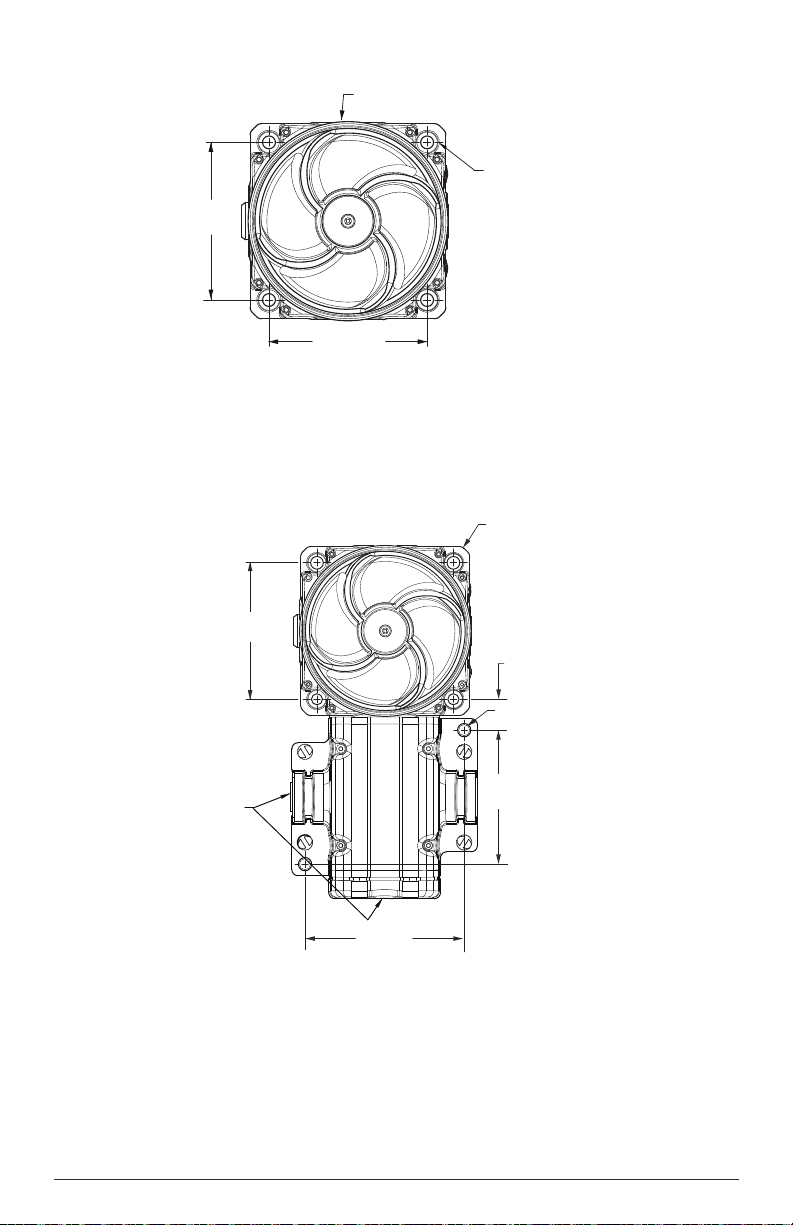

Figure 3 Front view of Ex d sounder
105.9 mm
(4.17 in
Ø133.8 mm (5.27 in)
4X COUNTER-BORED
HOLES TO FIT M8
SOCKET-HEAD
CAP SCREWS
105.9 mm
(4.17 in)
Mounting the Ex d e Surface-Mount Sounder
Mount the sounder to a at surface using the six 8.5 mm mounting holes. Use installer-supplied fasteners suitable for
the surface to which the device will be mounted.
Figure 4 Front view of Ex d e surface mount
2X Ø8.5 mm
103.2 mm
(4.06 in)
122.6 mm
(4.83 in)
3X M20
GLAND
ENTRIES
4X COUNTER-BORED
HOLES TO FIT M8
SOCKET-HEAD
CAP SCREWS
105.9 mm
(4.17 in)
23.2 mm
(0.91 in)

5
Federal Signal signaling.fedsig.com

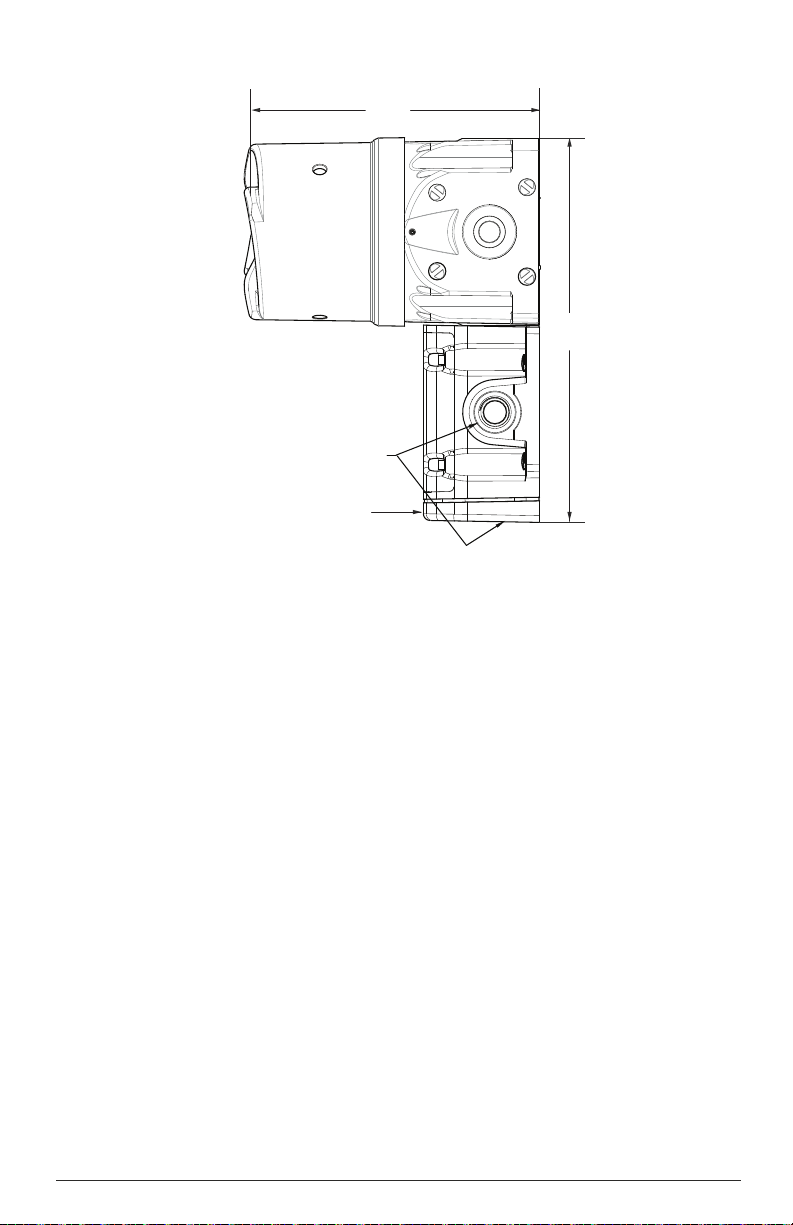

Figure 5 Side view of Ex d e surface mount
272.0 mm
(10.71 in)
190.6 mm
(7.50 in)
SEE ACCESSORIES FOR
REPLACEABLE E-BOX END CAPS
3X M20 GLAND ENTRIES
Safety Messages for Wiring
When installing and operating ameproof electrical equipment, the relevant national regulations for installation and
operation (e.g., EN60079-14, IEC Wiring Regulations, and NEC/CEC) must be observed.
• To avoid electrical shock hazards, do not connect wires when power is applied. Failure to observe this warning may
lead to serious injury or death.
• To maintain the ameproof integrity of the enclosure, DO NOT damage the cover or threads while disassembling or
reassembling the unit.
• Painting and surface nishes, other than those applied by Federal Signal Corporation, are not permitted.
• Cable termination should be in accordance with specications applying to the application. Federal Signal
recommends that all cables and cores be fully identied.
• Ensure that only the correct equipment-certied glands are used and that the assembly is shrouded and correctly
earthed. Gland entries are M20-1.5 6H with an option for the M25 entry on the end of the increased safety box
models. See Table 4 on page 13 for choosing the correct cable entry devices for Equipment in Potentially
Explosive Atmospheres.
• Because of space limitations, ensure that the cable cores within the unit are not too slack.
• In all countries, the wiring must comply with all national and local codes and standards.
• Ensure that all nuts, bolts, and xings are secure.

6Federal Signal signaling.fedsig.com
Preparing to Wire the Ex d Flameproof Models
SHOCK HAZARD - To avoid electrical shock hazards, do not connect wires when power is applied. Failure to observe this
warning may lead to serious injury or death.
CIRCUIT BOARD DAMAGE - The DC sounders are polarity sensitive and MAY BE DAMAGED by incorrect electrical
hookup. When connecting the DC sounder to the voltage supply lines, POLARITY MUST BE OBSERVED. In addition,
damage will result if the voltage rating of the particular model is exceeded by more than 10 percent.
This section has wiring instructions for the ameproof models G-SND 24 Vdc, 120 Vac, 220-240 Vac.
Ex d units are supplied with an eleven-position PCB-mounted screw terminal block. The maximum wire gauge is 4 mm
(12 AWG). The wire must be rated 85°C or higher. Use only stranded cable to terminate the sounder. The cross-sectional
area of the primary earth (ground) must equal the cross-sectional area of the phase conductor.
Cable termination for these models should be in accordance with specications applying to the application. It is
recommended that all cables and cores be fully identied. Use the appropriate cable gland for the application. Gland
entry threads are M20-1.5 x 6H.
Tools needed:
• 1.5 mm A/F hexagon key
• 2 mm at-tip screwdriver
• No. 1 Phillips®screwdriver
• Wire stripper
Figure 6 Ex d in/out PCB connections
VOLTAGE
SELECTOR
SWITCH
D8 D2
D1
D4
D3
J1
F1
S1
S2
F2
D7 D5D6 R1
DC 120
230AC
T4 T3 T2 T1 SEL EARTH L2 L2 L1 L1
Wiring the Ex d Models
To wire the Ex d ameproof sounder:
1. Unscrew the M3 hex set screw on the side of the housing one full turn.
2. Remove the cover from the housing by turning the cover counterclockwise. Three 120-degree spaced reliefs are
provided for a 3/8-inch spanner wrench if needed. If the cover will not unscrew, back out the set screw a few
additional turns.
3. Loosen the captive Phillips®screw retaining the driver/printed circuit board (PCB).
4. Slide out the PCB until the terminals clear the housing. Strip the wire insulation 6.5 mm (0.25 in). Maximum screw
tightening torque is 0.5 N•m (4.5in-lb).

7
Federal Signal signaling.fedsig.com
5. Follow the instructions starting below for your line voltage and continue to Step 6 on page 6. Refer to Figure 6 for
the voltage selector switch and Table 1 on page 9 for the tone chart. For remote tone selection, refer to Table
5 on page 14.
Figure 7 Locations of tone and volume switches
TONE
SELECTOR
SWITCH
VOLUME
CONTROL: FULL
CLOCKWISE
= MAX. VOLUME
220-240 Vac Operation (no remote switching of tones)
a. Set the voltage selector switches to 230 and AC.
b. Turn the tone selector switch to the desired tone.
c. Connect the line (hot) power source wire to the terminal block position marked L1 on the PCB.
d. Connect the neutral (common) power source wire to the terminal block position marked L2 on the PCB.
e. Connect ground wire to the terminal block position marked EARTH.
120 Vac operation (no remote switching of tones)
a. Set the voltage selector switches to 120 and AC.
b. Turn the tone selector switch to the desired tone.
c. Connect the line (hot) power source wire to the terminal block position marked L1 on the PCB.
d. Connect the neutral (common) power source wire to the terminal block position marked L2 on the PCB.
e. Connect ground wire to the terminal block position marked EARTH.
24 Vdc operation (no remote switching of tones)
a. Set the voltage selector switches to 230 and DC.
b. Turn the tone selector switch to the desired tone.
c. Connect the positive (+) power source wire to the terminal block position marked L1 on the PCB.
d. Connect the negative (–) power source wire to the terminal block position marked L2 on the PCB.
e. Connect ground wire to the terminal block position marked EARTH.
220-240 Vac operation (remote switching of tones)
a. Set the voltage selector switches to 230 and AC.
b. Set the tone selector switch to 0.
c. Connect the line (hot) power source wire to the terminal block position marked L1 on the PCB.
d. Connect the neutral (common) power source wire to the terminal block position marked L2 on the PCB.
e. Connect ground wire to the terminal block position marked EARTH.
f. Connect the common wire from the remote switching device to the terminal block position marked SEL.

8Federal Signal signaling.fedsig.com
g. Connect the tone select wires from the remote switching device to the terminal block positions marked T1,
T2, T3, and T4.
For 120 Vac operation (remote switching of tones)
a. Set the voltage selector switches to 120 and AC.
b. Set the tone selector switch to 0.
c. Connect the line (hot) power source wire to the terminal block position marked L1 on the PCB.
d. Connect the neutral (common) power source wire to the terminal block position marked L2 on the PCB.
e. Connect the ground wire to the terminal block position marked EARTH.
f. Connect the common wire from the remote switching device to the terminal block position marked SEL.
g. Connect the tone select wires from the remote switching device to the terminal block positions marked T1,
T2, T3, and T4.
For 24 Vdc operation (remote switching of tones with local power)
a. Set the voltage selector switches to 230 and DC.
b. Connect the positive (+) power-source wire to the terminal block position marked L1 on the PCB.
c. Connect the negative (–) power source wire to the terminal block position marked L2 on the PCB.
d. Connect the positive (+) power source wire to the terminal block position marked L1 on the PCB.
e. Connect the ground wire to the terminal block position marked EARTH.
f. Connect the common wire from the remote switching device to the terminal block position marked SEL.
g. Connect the tone select wires from the remote switching device to the terminal block positions marked T1,
T2, T3, and T4.
For 24 Vdc operation (remote switching of tones with remote power)
a. Set the tone selector switch to 0.
b. Connect the negative (–) power source wire to the terminal block position marked L2 on the PCB.
c. Connect the positive (+) power source/select wires to the terminal block positions marked T1, T2, T3, and
T4.
d. Connect the ground wire to the terminal block position marked EARTH.
6. Insert the PCB into the enclosure and fully tighten the PCB captive screw.
7. Place the cover on the housing and tighten it by turning it clockwise.
8. To ensure O-ring compression, the cover must be fully seated against the housing when the threads are tightened.
Turn the M3 set screw on the side of the housing until the screw contacts the housing.
9. Ensure that the unused wire entry is sealed with the provided brass M20-1.5 x 6 g stopping plug (equipment-
certied).

9
Federal Signal signaling.fedsig.com
Table 1 Tone chart
Tone
(Position)
Description Frequency Duration
0 (0) Off
1 (1) Two Tone 588 Hz
714 Hz
0.25 s
0.25 s
2 (2) Sleeping Quarters EVAC 520 Hz Three 0.5 s ON
Three 0.5 s OFF
1.5 s pause
4 s cycle
3 (3) Warble 1000 Hz/1400 Hz
Silence
Warble
Silence
0.4 s
0.25 s
0.4 s
0.2 s
4 (4) Constant 700 Hz 700 Hz
5 (5) Simulated Bell ~ 3 rings per s
6 (6) Swept 1 .6 kHz to 1.2 kHz
1.2 kHz to 2.6 kHz
6 cycles per s
7 (7) Two Tone 1 kHz
700 Hz
0.4 s
0.4 s
8 (8) 700 Hz 700 Hz
Silence
0.25 s
0.25 s
9 (9) Swept 400 Hz to 1.6 Hz
Constant 1.2 kHz
1.2 kHz to 400 kHz
Silence
1 s
2 s
1 s
5 s
10 (A) Swept 550 Hz to 735 Hz 0.5 s
11 (B) 1 KHz 1 KHz
Silence
1 s
1 s
*12 (C) Constant 1 kHz 1 kHz
13 (D) Two Tone 700 Hz
500 Hz
0.5 s
0.5 s
14 (E) Warble 1 kHz to 1.4 kHz 10 cycles per s
15 (F) Swept 1.2 kHz 400 Hz 1 s
*Factory setting
Preparing to Wire the Ex de Increased Safety Models
SHOCK HAZARD - To avoid electrical shock hazards, do not connect wires when power is applied. Failure to observe this
warning may lead to serious injury or death.
This section has wiring instructions for the three increased safety models:
• G-SND 24 Vdc
• G-SND 120 Vac
• G-SND 240 Vac
Ex de units are supplied with a six-pole, spring-tension clamp style terminal block. The maximum wire gauge is 4.0 mm
(12 AWG). The wire must be rated 85°C or higher. Use only stranded cable to terminate the sounder. The cross-sectional
area of the primary earth (ground) must equal the cross-sectional area of the phase conductor.
Cable termination should be in accordance with specications applying to the application. It is recommended that all
cables and cores be fully identied. Use the appropriate cable gland for the application. Gland entry threads are M20-1.5
6H.
Conductive metalwork, including cable glands, must be a minimum of 5 mm away from the terminals.

10 Federal Signal signaling.fedsig.com
Leads connected to the terminals shall be insulated for the appropriate voltage, and this insulation shall extend to within
1 mm of the metal of the terminal throat.
The G-SND terminal block is supplied with two conductors per pole. The terminal block allows for easy supply-in and
loop-out wiring to connect sounders in series.
Tools needed:
• 3.0 mm A/F hexagon key
• No. 1 Phillips®screwdriver
• Wire stripper
Wiring the Ex de Models
CIRCUIT BOARD DAMAGE - The DC sounders are polarity sensitive and MAY BE DAMAGED by incorrect electrical
hookup. When connecting the DC sounder to the voltage supply lines, POLARITY MUST BE OBSERVED. In addition,
damage will result if the voltage rating of the particular model is exceeded by more than 10 percent.
To wire the Ex de models:
1. Unscrew the four M4 socket-head cap screws and remove the terminal box cover.
2. Strip the wire insulation 8 mm to 9 mm (0.33 in).
NOTE: When using more than one single or multiple strand lead, the connection into either side of any terminal
must be joined in a suitable manner, e.g., two conductors into a single insulated crimped bootlace ferrule.
3. To connect wires, press the button on the terminal block with a Phillips screwdriver and insert the wire into the
round opening. Release the button to make the connection.
4. Follow the instructions starting below for your line voltage and continue to Step 5 on page 8. Refer to Figure 6 on
page 6 for the voltage selector switch and the tone chart on page 9.

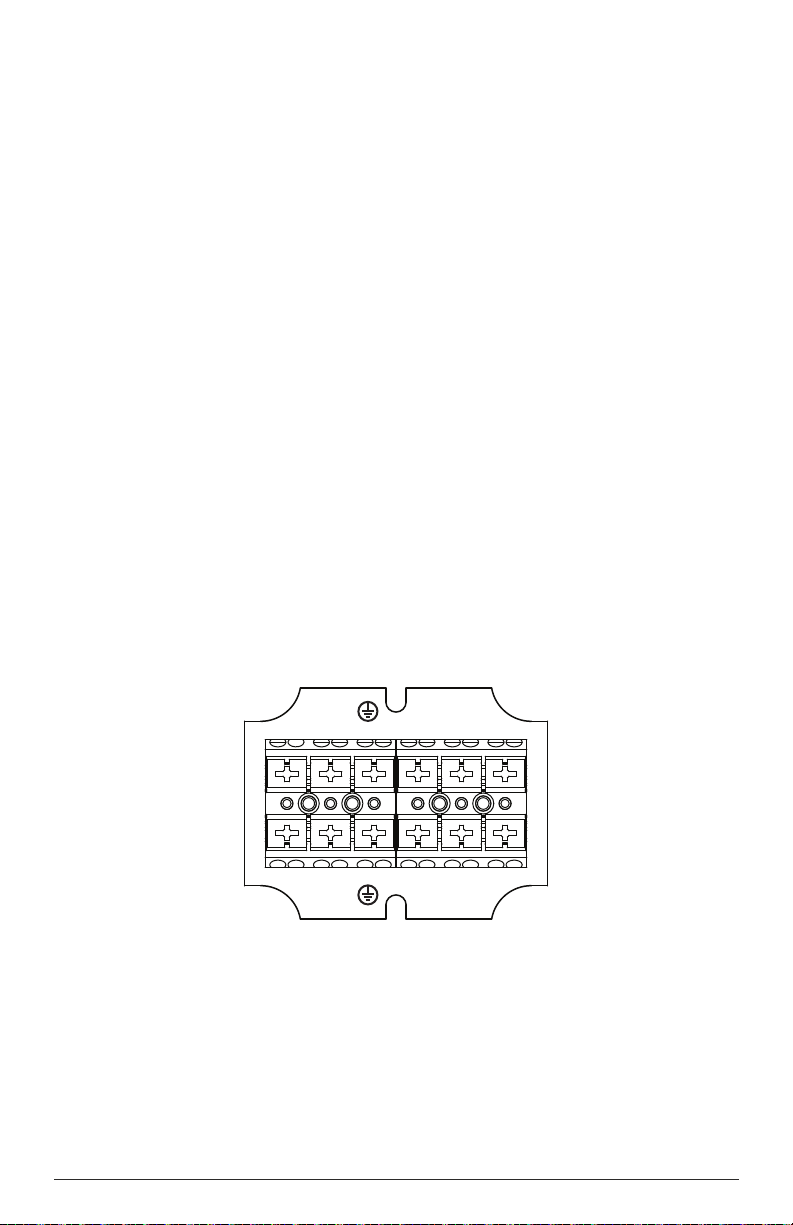

Figure 8 Connections for DC or AC Ex d e sounder
Alt04Alt03Alt01L1/+ L2/- Alt02
Alt04Alt03Alt01L1/+ L2/- Alt02
220-240 Vac operation (no remote switching of tones)
a. Connect the line (hot) power-source wire to the position marked L1/+ on the terminal block.
b. Connect the neutral (common) power-source wire to the position marked L2/- on the terminal block.
c. Connect the ground wire to the position marked Alt01 on the terminal block.
120 Vac operation (no remote switching of tones)
a. Connect the line (hot) power-source wire to the position marked L1/+ on the terminal block.
b. Connect the neutral (common) power-source wire to the position marked L2/- on the terminal block.
c. Connect the ground wire to the position marked Alt01 on the terminal block.

11
Federal Signal signaling.fedsig.com
24 Vdc operation (no remote switching of tones)
a. Connect the positive (+) power-source wire to the position marked L1/+ on the terminal block.
b. Connect the negative (–) power-source wire to the terminal block position marked L2/- on the terminal
block.
c. Connect the ground wire to the position marked Alt01 on the terminal block.
220-240 Vac operation (remote switching of tones)
a. Connect the line (hot) power-source wire to the position marked L1/+ on the terminal block.
b. Connect the neutral (common) power-source wire to the position marked L2/- on the terminal block.
c. Connect the ground wire to the position marked Alt01 on the terminal block.
d. Connect the common wire from the remote switching device to the terminal block position marked Alt02.
e. Connect the tone-select wires from the remote switching device to the terminal block positions marked
Alt03 and Alt04. Please note that only two tones are remotely selectable on Ex de 220-240 Vac units.
120 Vac operation (remote switching of tones)
a. Connect the line (hot) power source wire to the position marked L1/+ on the terminal block.
b. Connect the neutral (common) power source wire to the position marked L2/- on the terminal block.
c. Connect the ground wire to the position marked Alt01 on the terminal block.
d. Connect the common wire from the remote switching device to the terminal block position marked Alt02.
e. Connect the tone-select wires from the remote switching device to the terminal block positions marked
Alt03 and Alt04. Please note that only two tones are remotely selectable on Ex de 120 Vac units.
24 Vdc operation (remote switching of tones with remote power)
a. Connect the negative (–) power source wire to the position marked L2/- on the terminal block.
b. Connect the positive (+) power source/select wires to the terminal block positions marked Alt02, Alt03, and
Alt04. Please note that only three tones are remotely selectable on Ex de 24 Vdc units.
c. Connect the ground wire to the position marked Alt01 on the terminal block.
5. Secure the cover on the terminal box with the four M4 screws. Ensure that the gasket is properly seated to
maintain IP rating. Do not overtighten the screws.
Selecting the Tone for Ex de Models
All effective warning sounders produce loud sounds, which may cause, in certain situations, permanent hearing loss.
Take appropriate precautions such as hearing protection.
To select the tone for Ex de models:
1. Unscrew the M3 hex set screw on the side of the housing one full turn.
2. Remove the cover from the housing by turning the cover counter-clockwise. Three 120-degree spaced reliefs
are provided for a 3/8-inch spanner wrench if needed. If the cover will not unscrew, back out the set screw a few
additional turns.
3. Loosen the captive Phillips®screw retaining the driver/printed circuit board (PCB).
4. Slide out the PCB and set the tone selector switch to the desired tone.
5. Insert the driver/PCB into the enclosure, taking care not to pinch the wiring and fully tighten the PCB captive
screw.
6. Place cover on housing and tighten it by turning it clockwise.
7. To ensure O-ring compression, the cover must be fully seated against the housing when the threads are tightened.
Turn the M3 set screw on the side of the housing until the screw contacts the housing.

12 Federal Signal signaling.fedsig.com
Safety Messages to Maintenance Personnel
Listed below are some important safety instructions and precautions you should follow:
• Read and understand all instructions before operating this system.
• The repair of amepaths is not recommended.
• If you acquired a signicant quantity of units, then it is recommended that spares also be made available.
• To avoid electrical shock hazards, do not connect wires when power is applied. Failure to observe this warning may
lead to serious injury or death.
• Any maintenance to the sounder system must be performed by a trained electrician who is thoroughly familiar with
all applicable national and local codes in the country of use.
• Any maintenance to the sounder system must be done with the power turned off.
• Check the sounder periodically to ensure that the effectiveness of the device has not been reduced because it has
been clogged with a foreign substance or because objects have been placed in front of it.
• Never alter the unit in any manner. Safety of the unit may be affected if additional openings or other alterations are
made to the internal components or housing.
• The nameplate, which may contain cautionary or other information of importance to maintenance personnel, should
NOT be obscured in any way. Ensure that the nameplate remains readable.
• After performing any maintenance, test the sounder system to ensure that it is operating properly.
Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death.
Maintaining the Sounder
EXPLOSION HAZARD - To prevent ignition of hazardous atmosphere, disconnect the sounder from the supply circuit
before opening it. Do not open the sounder in the presence of explosive gases in the atmosphere. Failure to follow this
warning may result in serious injury or death.
During the working life of the sounder, it should require little or no maintenance. The non-metallic housing will resist
attack by most acids, alkalis, and chemicals and is as resistant to concentrated acids and alkalis as most metal
products. However, if abnormal or unusual environmental conditions occur due to plant damage or accident, etc., visual
inspection of the sounder is recommended.
Cleaning the Enclosure
The enclosure should be cleaned periodically with a damp cloth to maintain maximum sound output. Periodic checks
should be made to ensure that the effectiveness of this device has not been reduced because the sounder has become
clogged with a foreign substance or because objects have been placed in front of the sounder.
Lubricating the Threaded Joints
A silicone-based, non-hardening, chemically compatible grease can be applied if required.
DO NOT PAINT - Do not paint this device after installation, and do not change the factory-applied nish.

13
Federal Signal signaling.fedsig.com
Ordering Replacement Parts and Accessories
A replacement part for the driver/PCB assembly and accessories are listed in Tables 2 and 3. Due to certication, certain
component parts are not available for eld replacement. Sounders with this type of damage must be either replaced
entirely or returned to Federal Signal for service. Refer to instruction manual 25500259 for accessory and replacement
part assembly and operating instructions. To order, call Federal Signal Customer Support at 708-534-4756 or 877-289-
3246.
Table 2 Replacement parts
Description Part Number
Multi-voltage G-SND Sounder Kit (Includes PCBAs,
Bracket, Driver, & Mounting Screws)
K859501404
Table 3 Accessories
Description Part Number
Indicator Ring/Legend Kit, Black G-KIT-RP-BK
Indicator Ring/Legend Kit, Blue G-KIT-RP-B
Indicator Ring/Legend Kit, Green G-KIT-RP-G
Indicator Ring/Legend Kit, Magenta G-KIT-RP-M
Indicator Ring/Legend Kit, Red G-KIT-RP-R
Indicator Ring/Legend Kit, Yellow G-KIT-RP-Y
E-Box Endcap with M20 Opening K859500805-02
E-Box Endcap with M25 Opening K859500805-01
E-Box Cover Assembly (Includes two terminal blocks,
mounting plate, retention hardware)
K859501414
In-Line E-Box Coupler Kit G-KIT-EC180
90-Degree E-Box Coupler Kit G-KIT-EC90
Extension Box Spacer Kit G-KIT-EXTB
Single Trunnion Kit G-KIT-ST
Dual Trunnion Kit G-KIT-DT
Adapter, M20 Male to 1/2" Female NPT K231246A
Adapter, M20 Male to 3/4" Female NPT K231247
15 W Audible Acoustic Insert G-KIT-15WINSERT
Table 4 Choosing cable-entry devices for equipment in potentially explosive atmospheres
Models Ex Atmospheres Cable Entry Devices
(cable glands, stopping plugs, etc.
G-SND-XXX-D (Ex db
surface mount)
Gas Cable entry devices shall be equipment certied as ameproof. To
maintain the ingress protection of the ameproof sounder enclosure, we
recommend the cable entry device be IP66 certied.
G-SND-XXX-E Gas For the ameproof enclosure, cable entry devices shall be equipment
certied as ameproof. To maintain the ingress protection of the
ameproof enclosure, we recommend the cable entry device be IP66
certied. For the increased safety terminal enclosures (terminal boxes),
cable entry devices shall be equipment certied as increased safety and
shall maintain an IP rating of IP54.
G-SND-XXX-D (Ex db
surface mount)
G-SND-XXX-E (Ex db e
surface mount)
Dust Cable entry devices for the and terminal enclosures shall be equipment
certied as dust protected. To maintain the ingress protection of the
sounder and terminal enclosures, the cable entry devices shall be IP6X
certied.

14 Federal Signal signaling.fedsig.com
Table 5 Remote tone selection
Terminal Wiring
Tone HEX SW SEL1T4 T3 T2 T1
- 0
1 1 X X
2 2 X X
3 3 X X X
4 4 X X
5 5 X X X
6 6 X X X
7 7 X X X X
8 8 X X
9 9 X X X
10 A X X X
11 B X X X X
12 C X X X
13 D X X X X
14 E X X X X
15 F X X X X X
UL Fire Alarm Certications
The audible sounder models that are powered using 24Vdc input are Listed by Underwriters Laboratories (UL) for use
in re alarm applications. The 120 Vac and 230Vac inputs have not been evaluated. These models have the following
nomenclature: G-SND-MV-D, G-SND-MV-T, and G-SND-024-E. They have an electrical rating of 515 mA maximum at 24
regulated voltage Vdc (16 Vdc to 33 Vdc).
NOTE: UL evaluated this product only to the stated operational voltage range. It was not evaluated to 80% to 110% of the
voltage range.
The sounder is factory set with the tone selector switch set to the No. 12 setting. This is a constant 1 kHz tone. This is
the only tone setting that has been evaluated for re alarm applications. At this tone, the sounder has a sound pressure
level of 79.0 dB. See Figure 9 for the dispersion characteristics.
The units can be mounted on a wall or ceiling and have no mounting orientation restriction. For specic installation and
wiring requirements, refer to local codes such as the National Code (NFPA70) and the National Fire Alarm and Signaling
Code (NFPA72).
Figure 9 UL Fire alarm certication dispersion characteristics at 16 Vdc
AUDIBLE SIGNAL DEVICE
3 m
73 dB
79 dB
3 m
20º
73 dB
76 dB 76 dB
50º

Service
Unauthorized repair/servicing of the unit may result in degradation of performance and/or property damage, serious
injury, or death to you or others. If a malfunctioning unit is encountered, do not attempt any eld repair/retrot of parts.
Federal Signal will service your equipment or provide technical assistance with any problems that cannot be handled
locally.
Technical Assistance: Contact our Technical Support Team at [phone] or
[email protected].
Repair Service: A return authorization is required. Contact your Authorized Distributor or Federal Signal Customer
Support at [phone] or [email protected]. Defective products under warranty will be repaired or replaced at
Federal Signal’s discretion. Lamp failures excluded.
Product Returns: A return authorization is required from Federal Signal prior to returning the product. Contact your
Authorized Distributor for more information or to request a product return.

2645 Federal Signal Drive, University Park, Illinois 60484
Additional translations available at signaling.fedsig.com
Traducciones adicionales disponibles en signaling.fedsig.com
Customer Support 1-800-344-4634+1-708-534-4756, [email protected]
Technical Support 1-800-755-7621+1-708-587-3587, signalsuppor[email protected]
signaling.fedsig.com
© Copyright 2015-2023 Federal Signal Corporation
All product names or trademarks are properties of their respective owners.
