Feig Electronic ID ISC.ANT1400/760-A User manual

INSTALLATION
final
public (B)
2006-11-08
M50700-4e-ID-B.doc
OBI
D
i-scan
®
ID ISC.ANT1400/760
Type A, B and C

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 3 of 50 M50700-4e-ID-B.doc
Note
©Copyright 2006 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg-Waldhausen
Tel.: [phone]
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this manual has been done to the best of our knowledge.
FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The installation instructions given in this manual are based on advantageous boundary conditions.
FEIG ELECTRONIC GmbH does not give any guarantee promise for perfect function in cross environments.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this
manual and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.
OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.
my-d® is a registered trademark of Infineon Technologies AG
I-CODE®and mifare®are registered trademarks of Philips Electronics N.V.
Tag-itTM is a registered trademark of Texas Instruments Incorporated.

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 4 of 50 M50700-4e-ID-B.doc
Contents
1 Safety Instructions / Warning - Read before Start-Up ! 6
2 Performance Features of the ID ISC.ANT1400/760 Antennas 7
2.1 Available Antenna Types..............................................................................................7
3 Installation and Wiring 8
3.2 Mounting preparation...................................................................................................9
3.3 Installing the Antenna Base .......................................................................................11
3.3.1 Drilling the Mounting Holes ...........................................................................................11
3.3.2 Installing the Antenna Base and Antenna Body............................................................13
3.3.3 Connecting the Components.........................................................................................14
3.4 Installing the Cover Plates..........................................................................................15
4 Typical Antenna Configuration (Gate Antenna with two Antennas) 19
4.1 Project Notes ...............................................................................................................19
4.2 Configuration and Setup using Antennas Type -A and -B......................................21
4.2.1 Required Components ..................................................................................................21
4.2.2 Configuration of a Gate Antenna...................................................................................22
4.2.3 Setting the Power Splitter..............................................................................................23
4.2.4 Setting the Antenna Tuner ............................................................................................23
4.2.5 Reader Configuration ....................................................................................................24
4.2.6 Tuning the Gate Antenna ..............................................................................................26
4.3 Configuration and Setup using Antennas Type -C and -B......................................27
4.3.1 Required Components ..................................................................................................27
4.3.2 Configuration of the Gate Antenna, Antenna Type -C and -B.......................................28
4.3.3 Setting the Multiplexer...................................................................................................29
4.3.4 Setting the Antenna Tuner ............................................................................................30
4.3.5 Reader Configuration ....................................................................................................31
4.3.6 Tuning the Gate Antenna ..............................................................................................33
4.4 Testing the Gate Antenna...........................................................................................34

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 5 of 50 M50700-4e-ID-B.doc
4.4.1 Checking the Noise Level..............................................................................................34
4.4.2 Reading a Serial Number..............................................................................................35
4.4.3 Testing the performance ...............................................................................................35
4.5 Connecting and Setting the Alarm Kit (optional) .....................................................37
4.5.1 Installing the Alarm Indicators.......................................................................................37
4.5.2 Connecting the Indicators..............................................................................................39
4.5.3 Reader Setting for Indicators.........................................................................................40
4.5.4 Programming a Transponder with the AFI Byte ............................................................42
4.6 Activating Buffered Read Mode.................................................................................44
4.7 Configuring the Reader in accordance with national RF regulations....................45
5 Technical Data 47
5.1 Antenna ID ISC.ANT1400/760- Type A, B and C ......................................................47
5.2 Approval.......................................................................................................................50
5.2.1 Europe (CE) ..................................................................................................................50
5.2.2 USA (FCC) ....................................................................................................................50
5.2.3 USA (UL).......................................................................................................................51

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 6 of 50 M50700-4e-ID-B.doc
1 Safety Instructions / Warning - Read before Start-Up !
•The device may only be used for the intended purpose designed by for the manufacturer.
•The operation manual should be conveniently kept available at all times for each user.
•Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
•The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
•Repairs may only be executed by the manufacturer.
•Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
•Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
•When working on devices the valid safety regulations must be observed.
•Please observe that some parts of the device may heat severely.
•Before touching the device, the power supply must always be interrupted. Make sure that the
device is without voltage by measuring. The fading of an operation control (LED) is no indica-
tor for an interrupted power supply or the device being out of voltage!
•For installation and dismantling you should wear suitable safety gloves, because parts of an-
tenna housing could be sharp-edged.
CAUTION! The Antenna-Tuner and the Antenna conductor carry voltages up to
1000V.
Special advice for wearers of cardiac pacemakers:
•Although this device doesn't exceed the valid limits for electromagnetic fields you should keep
a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in
an immediate proximity of the reader’s antennas for any length of time.

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 7 of 50 M50700-4e-ID-B.doc
2 Performance Features of the ID ISC.ANT1400/760 Antennas
The ID ISC.ANT1400/760 Type A antenna is the version with Reader and Power-Splitter. The
ID ISC.ANT1400/760 Type C includes the Reader and Multiplexer. The Reader and Power-Splitter
or Multiplexer are mounted inside the antenna base.
The ID ISC.ANT1400/760 Type B antenna is the same antenna without Reader, Power-Splitter or
Multiplexer.
Up to
-two antennas (Qty. 1 Type A or C and Qty. 1 Type B or BL) as a single gate,
-three antennas (Qty. 1 Type A or C and Qty. 2 Type B or BL) as a double gate, or
-4 - 8 antennas (Qty. 1 Type A or C and Qty. 3 - 7 Type B or BL) as a multiple gate
can be operated.
Depending on the antenna configuration, one, two or all three read orientations of the Smart Tags
and various antenna spacing (gate widths) are possible.
The ID ISC.ANT1400/760 Type A, B and C are „figure-of-eight“ antennas with tuner and have been
optimized as transmitting and receiving antennas for the ID ISC.LR2000 Reader. It is however also
possible to operate them with other Readers at a transmission frequency of 13.56 MHz and an
output impedance of 50 Ω. The read ranges indicated in this document and the tuning procedures
may however then vary.
The antennas comprise the electrical antenna conductor, the housing, the ID ISC.DAT Dynamic
Antenna Tuner and the connection cable.The antennas are factory tuned to an impedance of 50 Ω
in a magnetically neutral environment at a distance of 95 cm. When installing in different ambient
conditions the antenna can be retuned using the “DATuningTool“ PC software. After tuning the
antennas will retain their settings as long as the ambient conditions remain unchanged.
The antennas can be used for detecting both product and persons. It is suitable for installation
indoors or outdoors if weather-protected.
2.1 Available Antenna Types
The following Antennas are currently available:
Antenna Type Description
ID ISC.ANT1400/760-A Antenna with reader ID ISC.LR2000, Power Splitter and Light bar
ID ISC.ANT1400/760-B Antenna only with Light bar dummy without LED strip
ID ISC.ANT1400/760-BL Antenna only with Light bar and LED strip
ID ISC.ANT1400/760-C Antenna with reader ID ISC.LR2000, Multiplexer and Light bar
ID ISC.ANT1400760-AK Audio Sounder with mounting accessories
Table 2-2: Available Antenna Types

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 8 of 50 M50700-4e-ID-B.doc
3 Installation and Wiring
3.1 Dimensions of antenna
The outside dimensions of the antenna are shown in Fig. 1
Fig. 1: Antenna outside dimensions
All dimensions are in mm with general tolerance to ISO 2768 m (mean).

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 9 of 50 M50700-4e-ID-B.doc
3.2 Mounting preparation
For assembly the antenna must be carefully unpacked and disassembled into its main
components. This is done as described in the following steps:
1. Place the packed antenna on the floor with the top side facing up. Carefully open the box and
remove the side cover plates. Then remove the antenna and at last the side panels.
Fig. 2: Antenna in its packaging Fig. 2a: Side panels in its packaging
2. Carefully put the antenna down again and remove the two fastening brackets in the antenna
foot (Fig. 3). Disconnect the antenna cable from the Multiplexer (Type C) or Power Splitter
(Type A) and disassemble the cable for the alarm light in the antenna foot. Then the antenna
body can be separated from the antenna foot.
Step 1 Step 2
Fig. 3: Separating antenna body from antenna foot
Fastening brackets

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 10 of 50 M50700-4e-ID-B.doc
Fig. 4: Antenna construction with frame side panels without cover plates
Additionally, at antenna Type A and Type C, some ring cores are added to mount on the cabling
(See manual reader).
dSide panels
e
Antenna body with
antenna conducto
r
fUpper frame section
(optional with LED-Strip)
cAntenna base
(hole template)

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 11 of 50 M50700-4e-ID-B.doc
3.3 Installing the Antenna Base
Notes:
Before installing the antennas please read 4.1 Project Notes .The spacing of the antennas
comprising a gate depends on the antenna configuration.
If multiple antennas or gates are connected to different Readers, a minimum separation of
8 m must be kept between the antennas or gates. For shorter distances (1 m – 8 m) the
Readers must be multiplexed. Below a distance of 1.5 m the antennas must also be shielded
from each other. Otherwise the Reader range will be significantly reduced. The antennas
must have a minimum distance of 20 cm from all larger metal parts! At a distance of less
than 50 cm between the antenna and metal parts the Reader range will be significantly
reduced.
3.3.1 Drilling the Mounting Holes
If the position of the antennas has been marked or determined, the antenna foot c, which is to be
used as a hole template, can be used to mark and drill the mounting holes and the holes for the
cable entry. The dimensions are shown in Fig. 5:

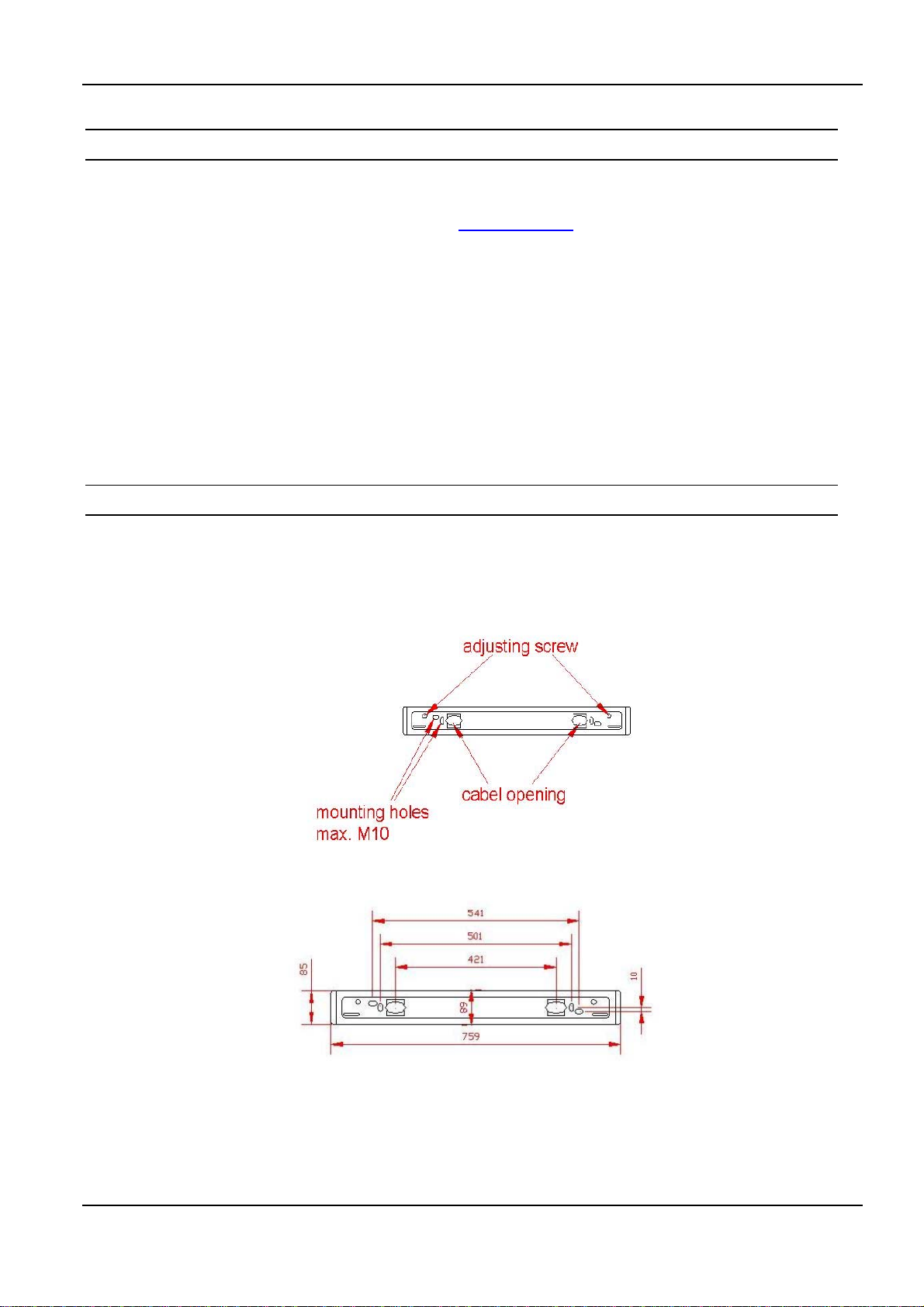

Fig. 5: Floor plate dimensions c
All dimensions are in mm with general tolerance to ISO 2768 m (middle).

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 12 of 50 M50700-4e-ID-B.doc
Cutout for cable routing
The size and type of the screw anchors depends considerably on the strength of the base or floor.
The anchors should be capable of withstanding a permissible load of at least 5 kN per anchor for
all load directions (e.g. for concrete floor Hilti HVA anchors with HAS-(E) M8 threaded rod or Hilti
HIS-N M8 (5/16”) threaded inserts). The size of the mounting holes in the antenna is 10 mm (.39”).
The length of the anchors or bolts should be selected such that they extend at least 50 mm (2.0”)
and a maximum of 65 mm (2.6”) from the floor.
Please follow the mounting instructions of the anchor manufacturer!
Two cable openings are provided for the necessary connection cable (see Fig. 5). The cable
openings are dimensioned such that up to 10 cables having a diameter of 6 mm can be passed
through each opening.
We recommend routing the antenna cables through the cable opening on the Power-Splitter or
Multiplexer side. All other cables such as the supply voltage and multiplexing cable should be
routed through the cable opening on the Reader side.
Alternatively the cables can be routed through the cutouts provided in the antenna base. The
cutouts are shown in Fig. 6
Fig. 6: Cutout for cable routing

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 13 of 50 M50700-4e-ID-B.doc
3.3.2 Installing the Antenna Base and Antenna Body
The antenna foot is screwed on the floor. Use the adjusting screws (Fig. 7) to align the antenna
foot vertically.
Adjusting screws (hexagon socket width A/F5)
Fig. 7: Attaching and aligning the antenna foot
The antenna body is connected to the antenna foot and attached to the antenna foot using the
fastening brackets as shown in (Fig. 8). The antenna body may be inserted 180° rotated (Fig. 8) .
Both antennas must installed in the same direction and parallel orientation.
Fig. 8: Connecting antenna base to antenna foot
Fastening brackets Fastening brackets
Fig. 9: Fastening antenna base to antenna foot

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 14 of 50 M50700-4e-ID-B.doc
3.3.3 Connecting the Components
The antenna is for the most part pre-wired. Only the antenna cables for the Type B or BL antennas
need to be routed to the main antenna (Type A or C). At 4.2.2.a typical configuration for Type A
and B antennas is shows (4.3.2 for Type C and B antennas). The 24V supply is brought to the
terminal (observe polarity).
Fig. 10: Terminal for 24V supply voltage
The cable routing should be as short and compact as possible regardless of the antenna
configuration. The cables are finally tied together in small loops. Tie the cables as far away from
the antenna conductor as possible. The cables should never be allowed to touch the copper tube.
The coaxial antenna cables have fixed lengths and may not be shortened. Fig. 11 shows a
corresponding cable configuration.
Fig. 11: Cable Wrapping in Antenna Base

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 15 of 50 M50700-4e-ID-B.doc
3.4 Installing the Cover Plates
Note:
We recommend installing the cover plates only after a function test of the complete antenna
configuration.
Fig. 12 shows the cover plates gand has well as the frame side sections i. The upper frame
section is already sitting on the antenna body as described in Fig. 26.
Fig. 12: Installing the cover plates
gUnpainted cover
plate
hCover plate with
painted finish
iSide panels

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 16 of 50 M50700-4e-ID-B.doc
Proceed according to the following steps to install the cover plates gand hand side panels i:
1. Fit cover plates into antenna foot and upper frame section as shown in Fig. 13. Cover plates
with the painted, non-transparent area go on the open side of the antenna body. This covers
the antenna conductor and electronics.
Fig. 13: Cover plates in antenna foot and upper frame section

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 17 of 50 M50700-4e-ID-B.doc
2. Join the sides of the side panels with the antenna body and slide down (Fig. 15). To do it, the
side panels are placed at an angle (Fig. 14). First insert the mounting slot con to the mounting
pin cand slide down approx. 3 cm until the mounting pin dfits in the mounting slot dand
slide down until the mounting pin efits in the mounting slot eand slide down until it stops.
Fig. 14: Attaching antenna body and side panels
Fig. 15: Sliding the side panels on
Mountin
g
p
in
Mountin
g
slot
e
d
c
e
d
c

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 18 of 50 M50700-4e-ID-B.doc
3. Attach the side panels using the mounting screws. The screws are placed in a plastic bag in
the antenna base. First fit the upper screws and then fit the lower screws. The locations of
these fasteners are shown in Fig. 16.
Fig. 16: Mounting screws for side panels
1x 1x
2x 2x
Step 1
Step 2

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 19 of 50 M50700-4e-ID-B.doc
4 Typical Antenna Configuration (Gate Antenna with two Antennas)
The standard configuration of a gate with three-dimensional tag orientation consists of an
ID ISC.ANT1400/760 Type A or C antenna and an ID ISC.ANT1400/760 Type B or BL antenna.
If a tag moves through the gate horizontally, it can be read at lease once. This ensures high
reliability of the antenna system.
4.1 Project Notes
The antenna configuration described allows detection of a tag moving horizontally through the
capture area of the gate. The tag orientation is non-critical. The tags are detected along a
horizontal axis of motion in certain regions within the antennas. The area of detection depends on
the tag orientation.
The size of the three-dimensional capture area of the antennas is shown in the sketch below.
Fig. 17: Capture area and tag orientation
Notes:
Note that the entire capture area of the antenna is larger than the three-dimensional area
shown in the drawing. This means there are tag orientations in which the tag can be
detected outside the capture area.
If multiple gates are arranged with short distances between each other, these will mutually
interfere with each other. The Readers for the respective gates must then be synchronized.
GD

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 20 of 50 M50700-4e-ID-B.doc
To achieve three-dimensional capture of the tag in the capture area drawn above, the following
conditions must be met:
-The gate distance GD depends on the antenna configuration (see Table 1).
-The tags should be at least ISO card size (46 mm x 75 mm).
-The activation field strength of the tags should be less than or equal to 80 mA/m.
-The distance from tag to tag should be greater than 10 cm. If the tag to tag distance is reduced,
the gate distance GD must be reduced correspondingly. This applies in particular to distances
under 5 cm.
-The maximum number of tags (serial number or data) depends on the traverse speed with
which the tags are brought through the capture area of the gate (see Table 1). The number of
tags may be increased in the gate distance GD is correspondingly reduced and the maximum
speed adjusted accordingly.
-The antenna should be at least 50 cm from metal parts.
-There should be no interference of the Reader from other electrical devices in the environment.
The Noise Level difference should be less than 30 mV.
-The ID ISC.LR2000 Reader should be set to an RF power of 8 watts.
-When using ISO 15693 transponders, the Readers should be set as described in 4.2.5 Reader
Configuration for A and B antennas or 4.3.5 Reader Configuration for B and C antennas.
-If multiple gates are operated at the same time at a distance of less than 8 m, the Readers
must by synchronized. See Application Note Synchronizing RFID LongRange Readers using
the digital in-/outputs (N11200-1e-ID-B.pdf).
Table 1: Design notes
Antenna Type A and B Antenna Type C and B
Gate distance GD ≤95 cm ≤105 cm
Number of tags at traverse
speed 1 m/s
-Read serial number
-Read data
16
8
16
8

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C
FEIG ELECTRONIC GmbH Page 21 of 50 M50700-4e-ID-B.doc
4.2 Configuration and Setup using Antennas Type -A and -B
4.2.1 Required Components
To construct the gate you need the following components:
-Qty. 1 Antenna ID ISC.ANT1400/760 Type A (with Reader and Power-Splitter)
-Qty. 1 Antenna ID ISC.ANT1400/760 Type B or BL
-Qty. 2 power supply ID ISC.NET24-A
-Power cable, interface cable and connection cable for the DC power supplies (2-wire,
twisted)
-Mounting materials (screws, anchors)
Optional:
-Qty. 1 Alarm Kit ID ISC.ANT1400/760-AK
To configure the Reader you will need the software
-ISOStart Version 7.01 or higher
and for tuning the antennas the service software
-DATuningTool Version 1.00 or higher
on a personal computer running under Microsoft®Windows®. The service software is included on
the OBIDi-scan®CD obtained from FEIG ELECTRONIC GmbH or can be downloaded on the
Download Area of the Homepage www.feig.de.
