Feig Electronic ID ISC.ANT1520/680 User manual

Test report no. 17010729 Page 1of 1
EUT: ID ISC.ANT1520/680 (RFID gate)
FCC ID:
PJMLRM2500
FCC Title 47 CFR Part 15
Date of issue: 2017-03-03
Date: 2016-08-19
Created: P9 Controlled: P4 Released: P1
Vers. no. 2.16
m. dudde hochfrequenz-technik
Rottland 5a
D-51429 Bergisch Gladbach/ Germany
Tel: [phone]
Fax [phone]
Annex acc. to FCC Title 47 CFR Part 15
relating to
Feig Electronic GmbH
ID ISC.ANT1520/680 (RFID gate)
Annex no. 5
User Manual
Functional Description
Title 47 - Telecommunication
Part 15 - Radio Frequency Devices
Subpart C – Intentional Radiators
ANSI C63.4-2014
ANSI C63.10-2013

INSTALLATION
Draft – custmized (E)
2017-03-06 –ID ISC.ANT1520680-A-B User Manual_M61112-1e-ID-E-060317.doc
ID ISC.ANT1520/680
Type A and B
/ RFID Gate
Version: Reader ID ISC.LRM2500-B

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 2 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
Note
Copyright 2017 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: [phone]
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.
OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.
my-d®is a registered trademark of Infineon Technologies AG
I-CODE®is a registered trademark of Philips Electronics N.V.
Tag-itTM is a registered trademark of Texas Instruments Incorporated.

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 3 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
General information's regarding this document
•The sign ""indicates extensions or changes of this manual compared with the former issue.
•If bits within one byte are filled with "-", these bit spaces are reserved for future extensions or
for internal testing- and manufacturing-functions. These bit spaces must not be changed, as this
may cause faulty operation of the reader.
•The following figure formats are used:
0...9: for decimal figures
0x00...0xFF: for hexadecimal figures,
b0...1 for binary figures.
•The hexadecimal value in brackets "[ ]" marks a control byte (command).

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 4 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
Contents
1 Safety Instructions / Warning - Read before Start-Up ! 6
2 Instruction on transportation and shipping of the antennas 7
3 Maintenance 8
4 Performance Features of the ID ISC.ANT15200/680 Antennas 9
4.1 Performance Features of the People Counter ID ISC.ANT.GPC............................ 10
4.2 Available Antenna Types .........................................................................................13
5 Installation and Wiring 14
5.1 Mounting Preparation..............................................................................................15
5.2 Installing the antenna...............................................................................................16
5.2.1 Dimensions of antenna...........................................................................................16
5.2.2 Drilling the Mounting Holes ....................................................................................16
5.2.3 Installing the Antenna Base and Antenna Body......................................................18
6 Typical Antenna Configuration (Gate Antenna with two Antennas) 19
6.1 Project Notes Antenna .............................................................................................19
6.2 Project Notes People Counter (GPC) ......................................................................22
6.3 Gate Configuration and Setup using Antennas...................................................... 24
6.3.1 Required Components ...........................................................................................24
6.3.2 Configuration of a Gate Antenna with Multiplexer...................................................25
6.3.3 Setting the Multiplexer............................................................................................30
6.3.4 Interface Connections ............................................................................................ 31
6.3.4.1 LAN / TCP/IP................................................................................................31
6.3.5 Reader Configuration with Multiplexer....................................................................32
6.3.6 Tuning the Gate Antenna.......................................................................................35
6.4 Testing the Gate Antenna.........................................................................................37
6.4.1 Checking the Noise Level.......................................................................................37
6.4.2 Reading a Serial Number.......................................................................................39
6.4.3 Testing the performance ........................................................................................40
6.5 Setting the Alarm indicators (Alarm Buzzer and Alarm LED´s)............................. 42
6.5.1 Setting the Buzzer..................................................................................................42

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 5 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
6.5.2 Setting the LED´s...................................................................................................43
6.5.3 Reader Setting for Alarm Indicators........................................................................44
6.5.4 Programming a Transponder with the AFI Byte......................................................46
6.6 Functions of the LCD-Display.................................................................................. 48
6.7 Activating the Automatic Mode................................................................................ 51
6.8 Installation ID ISC.ANT.GPC-E2............................................................................... 52
7 Installation of the Gate People Counter ID ISC.ANT.GPC in antenna Type B 54
7.1 Installation and Connections................................................................................... 54
7.2 Configuration and Test............................................................................................. 60
7.2.1 Connecting several People Counter.......................................................................60
7.2.2 Configuration and Test in ISO-Host or Buffered Read............................................ 61
7.2.3 Configuration and Test in Notification Mode...........................................................65
7.2.4 Using the trigger function of the Gate People Counter............................................ 67
7.2.5 Using the direction detection of transponder with the People Counter....................69
8 Configure the reader in accordance with national RF regulations 70
9 Technical Data 72
9.1 Antenna ID ISC.ANT1520/680 Type A and B ...........................................................72
9.2 People Counter ID ISC.ANT.GPC and ID ISC.ANT.GPC-E2................................... 75
9.3 Power Supply ID ISC.NET24V-B...............................................................................76
9.4 Approvals.................................................................................................................. 77
9.4.1 Europe (CE)........................................................................................................... 77
9.4.1.1 Antenne ID ISC.ANT1520/680......................................................................77
9.4.1.2 People Counter ID ISC.ANT.GPC ...............................................................77
9.4.2 USA (FCC) and Canada (IC)..................................................................................78
9.4.2.1 Antenna ID ISC.ANT1520/680......................................................................78
9.4.2.2 People Counter ID ISC.ANT.GPC ................................................................79
9.4.3 USA and Canada (UL) ...........................................................................................80
10 Annex A 81
10.1 Terminal assignment “Terminal Board”.................................................................. 81
10.2 Internal wiring...........................................................................................................82

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 6 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
1 Safety Instructions / Warning - Read before Start-Up !
•The device may only be used for the intended purpose designed by for the manufacturer.
•The operation manual should be conveniently kept available at all times for each user.
•Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
•The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
•Repairs may only be executed by the manufacturer.
•Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
•Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
•When working on devices the valid safety regulations must be observed.
•Please observe that some parts of the device may heat severely.
•Before touching the device, the power supply must always be interrupted. Make sure that the
device is without voltage by measuring. The fading of an operation control (LED) is no indicator
for an interrupted power supply or the device being out of voltage!
•For installation and dismantling you should wear suitable safety gloves, because parts of an-
tenna housing could be sharp-edged.
CAUTION! The Antenna-Tuner and the Antenna conductor carry voltages up to
1000V.
The Antenna is not water proof and should not be exposed to rain or humidity.
Under extreme circumstances water could seep into the antenna and damage the electronic
circuits.
Special advice for wearers of cardiac pacemakers:
•Although this device doesn't exceed the valid limits for electromagnetic fields you should
keep a minimum distance of 25 cm between the device and your cardiac pacemaker and
not stay in an immediate proximity of the reader’s antennas for any length of time.
•CAUTION! Do not look directly into the Alarm LED light. There is a danger of
injury of the eyes!

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 7 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 8 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
2 Instruction on transportation and shipping of the antennas
The packaging of the antennas has been designed to transport antennas vertically standing on a
pallet to the site of installation.
Attention! The antenna has be transported vertically on the base side on the pallet. A
transporting or storing in the false orientation can cause damaging at the antenna.
In case a vertically positioned transport is not possible, the antenna can be transported lying on the
narrow side. A transporting lying on its wide /flat side of the packaging can cause damage to the
device.
The pallet has to be adapted to the size and the number of antennas. In no case shall the
packaging stand out of the range. An additional protection of the edges of the pallet is recom-
mended.
The packaging mustn’t be moist at all times. When transporting overseas by ship or plane, the
packaging has to be protected against get damp at any time.
Temperatures above or below the specified temperature range may damage the antenna and / or
the packaging.
Any mechanical stress on the packaging is not permitted. Any stacking of packaging, can cause
damaging in the packaging below.
Even after the unpacking of the antennas the face of the antenna plate must be always transported
and stored vertically. A transport in horizontally oriented antenna can deform the antenna plate.

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 9 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
3 Maintenance
The antenna ID ISC.ANT1520/680 is a design product with high quality surfaces, and should al-
ways be handled with caution. The antenna was designed to work reliably and flawlessly for years
without special maintenance.
Attention! The surfaces should be cleaned with a clean, soft cloth dampened in a
dishwashing liquid – water solution. The use of alcohol, spirit, thinners, glass clean-
ers or other harsh cleaning liquids is prohibited and will damage the acrylic plate.
To improve the durability and the appearance, please follow the instructions below:
•Keep the antenna clean and take care the antenna is not scratched. Also regularly apply spe-
cific antistatic products for acrylic surfaces.
•Regularly remove dust and other impurities with a soft cloth and a solution of water with a little
dishwashing liquid.
•Keep the antenna dry. All kinds of moisture should be avoided during operation and storage.
Precipitation, humidity and liquids contain minerals that will corrode electronic circuits and
damaging transparent plastic parts.
•Protect the antenna from high temperatures. Mount the antenna away from heaters and other
heat sources. Operation under direct sunlight can cause extreme high temperatures and a fad-
ing cause of the surface.
•Avoid storing or operating the antenna at dirty or wet locations. The surfaces or electronic
components may be-damaging.
•Handle the device with care. Shocks may break internal circuit boards.
•Do not try to open the antenna during operation or outside maintenance periods. Non-
professional management can result in damage to the device.
If any device not working properly, please contact the appropriate representative.

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 10 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
4 Performance Features of the ID ISC.ANT15200/680 Antennas
The ID ISC.ANT1520/680-A antenna is a version with integrated Dynamic Antenna Tuning Board
ID ISC.DAT , Long Range Reader ID ISC.LRM2500-B, 4-times Multiplexer Module
ID ISC.ANT.MUX M4, additional Alarm LED light, Alarm buzzer and LCD Display.
Additionally, one People Counter and one radar Detector are already integrated in the antenna
ID ISC.ANT1520/680-A.
The ID ISC.ANT1520/680 Type B antenna is a version with integrated Dynamic Antenna Tuning
Board ID ISC.DAT and Alarm LED light mounted, only.
Up to
-two antennas with reader and multiplexer as a single gate,
-three to four antennas with reader and multiplexer as a double gate or triple gate
-up to 7 antennas as multiple gate with up to 6 aisle at the use of the 8-times Multiplexer
ID ISC.ANT-MUX M8.
can be operated.
Depending on the antenna configuration, one, two or all three read orientations of the Smart Tags
and various aisle widths (gate widths) are possible.
The ID ISC.ANT1520/680-A/B is a „figure-of-eight“ antenna with tuner and has been optimized as
transmitting and receiving antennas for the ID ISC.LRM2500 Reader. It is however also possible to
operate them with other readers at a transmission frequency of 13.56 MHz and an output
impedance of 50 Ω. The read ranges indicated in this document and the tuning procedures may
vary.
The antennas comprise the electrical antenna conductor, the housing, the ID ISC.DAT Dynamic
Antenna Tuner and the connection cables.The antennas are tuned to the factory default to an
impedance of 50 Ωin a magnetically neutral environment at a distance of 95 cm. When installing in
different ambient conditions the antenna can be retuned using the “DATuningTool“ PC software.
After tuning, the antennas will retain their settings as long as the ambient conditions remain
unchanged.
The antennas can be used for detecting both product and persons. It is for indoors use, only.

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 11 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
4.1 Performance Features of the People Counter ID ISC.ANT.GPC
The product ID ISC.ANT.GPC, short form “Gate People Counter” or “GPC”, are made for mount-
ing in the gate antennas ID ISC.ANT1520/680.
A Gate People Counter consist of a People Counter board (PC) and one Radar Detector! The
product ID ISC.ANT.GPC-E2 Extension Radar Detector is used to extend the People Counter to a
second gate aisles.
The People Counter has two counters per aisle. The values of the incoming and outgoing persons
will be separately captured.

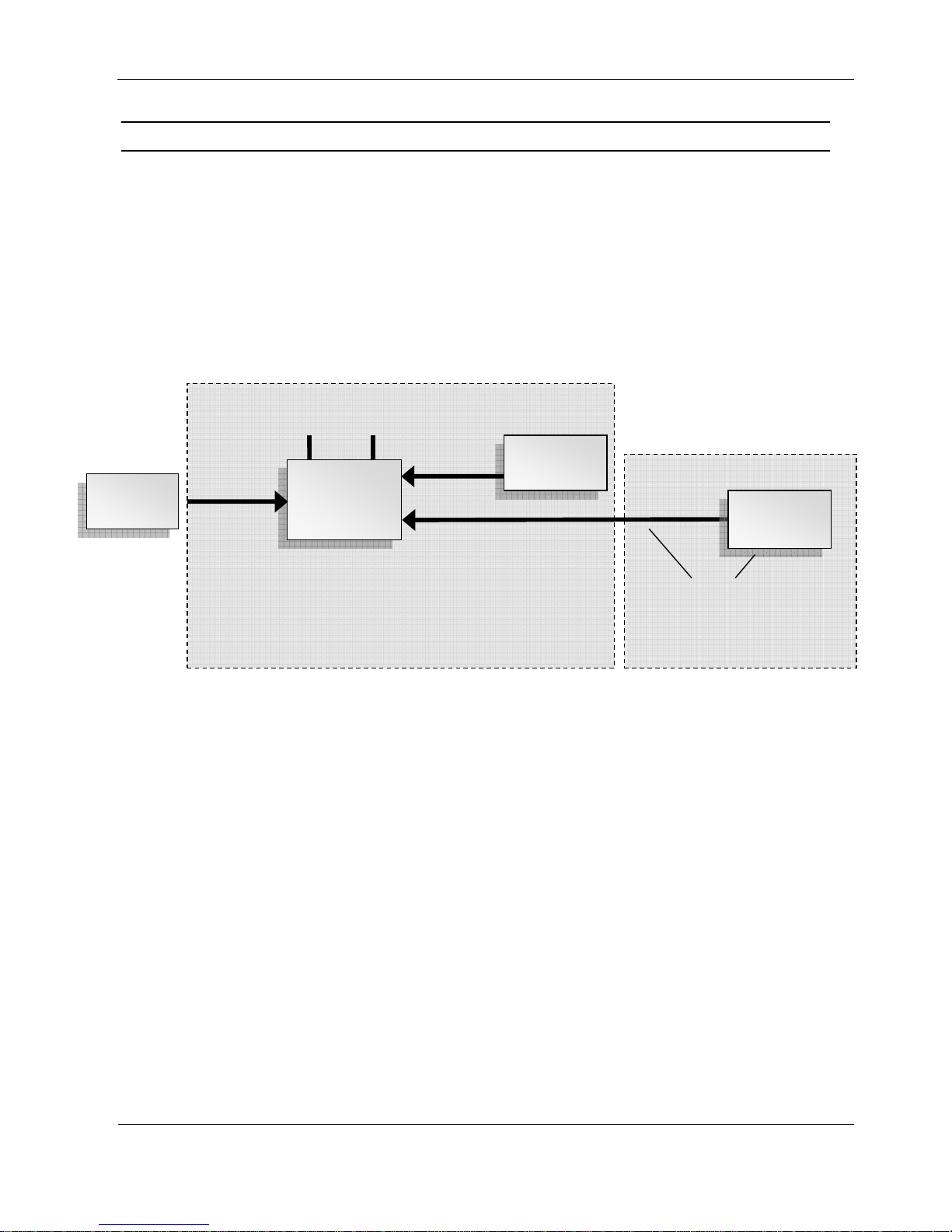

Fig. 1: Gate People Counter Structure (2-3 antennas, 1-2 gate aisles)
A change of the counter values will be stored in the EEPROM of the People Counter board. By
sending the command “0x78 Set People Counter” the values could be set/reset to the needed
value.
The counter values will be sent every 5 seconds to the LCD Display.
People
Counter 1
Radar
Detector 1
Out / LED 1
ID ISC.ANT.GPC
-
E
2
Extension Radar Detector
(e.g. 2’cd aisle of the gate)
Radar
Detector 2
Gate antenna
ID ISC.ANT1520/680.GPC
Reader
LCD Display

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 12 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
Radar detection zone of a single gate Radar detection zone with two aisles
Radar detection zone with three aisles
Radar detection zone with four aisles
Fig. 2: Top view of the detection areas (2-5 antennas, 1-4 gate aisles)
The People Counter board and the Radar detectors are mounted in the base of the antennas. Due
to the radar beam can pervade the plastic housing of the antenna, no openings a necessary.
The Connection between reader and people counter takes place through the RS485 Interface of
the reader, inside the antenna.
Counter 1 | Counter 2
In | Out Cnt. 1 | Cnt. 2 In | Out Cnt. 3 | Cnt. 4 In | Out

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 13 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
There is no need of a direct connection from the GPC to the Host. All commands from the Host to
the People Counters are embedded in the Pickyback command (see H01011-2e-ID-B.pdf).
Generally, there are two possibilities to get the actual people counter values. Either the Host poll
the People Counter periodically or in the Notification Mode of the reader, the reader send a notifi-
cation protocol at every change.
In ISO Host or Buffered Read Mode, the host poll the GPC by sending protocols. Only, in the Noti-
fication Mode, the reader poll the counter values, automatically, and send data according the read-
er configuration to the host.
See also System Manual People Counter H01011-2e-ID-B.PDF

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 14 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
4.2 Available Antenna Types
The following products are currently available:
Antenna Type Description
ID ISC.ANT1520/680-A
Crystal Gate
Antenna with Reader, Multiplexer , dynamic tuning board
ID ISC.DAT, signal light, alarm buzzer, LCD display and People
Counter Board with one radar detector.
ID ISC.ANT1520/680-B
Crystal Gate
Antenna with dynamic tuning board ID ISC.DAT and signal light
ID ISC.ANT.GPC
Gate People Counter
People Counter, one piece of radar detector for antenna ID
ISC.ANT1520/680 incl. Mounting and cabling set. (optional)
ID ISC.ANT.GPC-E2
Extension Radar Detector Second radar detector with cable for the second direct parallel aisle (optional)
ID ISC.ANT.CRG-DT Crys-
tal Gate Drilling Template Drilling Template and metal pad for soft ground. (optional)
ID ISC.ANT.CRG-MP Crys-
tal Gate Mounting Plate Mounting plate for easy installation and metal pad for soft ground. (optional)
Table 1: Available Antenna Types and Accessories
Required components to setup a gate by using the Gate People Counter:
Number of
antennas
Antenna People Counter (Optional)
ID ISC.
ANT1520/68
0
-A
ID ISC.
ANT1520/68
0
-B
ID ISC.
ANT1520/ 680-
GPC
ID ISC.ANT.
GPC-E2 Note
2 Antennas 1 1 0
3 Antennas 1 2 0 1
4 Antennas 1 3 1 1
5 Antennas 1 4 1 2 8 Chanel
Multiplexer
6 Antennas 1 5 2 2 8 Chanel
Multiplexer
7 Antennas 1 6 2 3 8 Chanel
Multiplexer
Table 2 Required components for gates with People Counter

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 15 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
5 Installation and Wiring
Notes:
Before installing the antennas please read 6.1 Project Notes Antenna.The spacing of the
antennas in a gate depends on the antenna configuration.
If multiple antennas or gates are connected to different readers, a minimum clearance of
8 m must be kept between the antennas or gates. For shorter distances (1 m – 8 m) the
readers must be synchronized. The synchronization of the readers (see application note
N10311-xe-ID-B.doc) is only possible in one of the Automatic Modes (Buffered Read,
Notification or Scan Mode). Below a distance of 1.5 m the antennas must also be shielded
from each other. Otherwise the read range will be significantly reduced. The antennas must
have a minimum distance of 20 cm to all larger metal parts! At a distance of less than 50 cm
between the antenna and metal parts the read range will be significantly reduced.

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 16 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
5.1 Mounting Preparation
For the assembly of the antenna it has to be carefully unpacked and the antenna base to be
opened. This is done as described in the following steps:
1. Place the packed antenna on the floor with the top side facing up. Carefully open the box and
then remove the antenna.
Fig. 3: Packed Antenna
2. Afterwards, the antenna has to be placed carefully on the floor again. Now, the two fastening
screws (hexagon socket width AF 2,5) have to remove of the antenna base cover. By moving
the cover upwards, carefully, remove the cover from the antenna base. Fig. 4
Step 1 Step 2
Fig. 4: Opening the antenna base

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 17 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
5.2 Installing the antenna
5.2.1Dimensions of antenna
The overall dimensions of the antenna are shown in Antenna outside dimensions
Antenna outside dimensions
All dimensions are in mm with general tolerance according to ISO 2768 m (mean).
5.2.2Drilling the Mounting Holes
If the position of the antennas has been marked or determined, the mounting holes and the holes
for the cable entry, can be marked and drilled. To make this easier the ID ISC.ANT.CRG-DT
Crystal Gate Drilling Template could be used.(optional). This Drilling template could also be used
for stabilization and weight distribution on soft grounds by mounting it additionally under the
antenna foot.The dimensions are shown in Fig. 5:
Fig. 5: Floor plate dimensions

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 18 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
All dimensions are in mm with general tolerance to ISO 2768 m (middle).
The size and type of the anchors depends considerably on the strength of the base or floor. The
anchors should be capable of withstanding a permissible load of at least 5 kN per anchor for all
load directions (e.g. for concrete floor Hilti HVA anchors with HAS-(E) M8 threaded rod or Hilti HIS-
N M8 (5/16”) threaded inserts). The size of the mounting holes in the antenna is 10 mm (.39”). The
length of the anchors or bolts should be selected such so they jut out at least 40 mm (1.6”) and
maximum of 55 mm (2.2”) of the floor.
Please follow the mounting instructions of the anchor manufacturer!
A cable opening is provided for the necessary connection cable (see Fig. 5). The cable opening is
dimensioned such as up to 10 cables having a diameter of 6 mm can be passed through the
opening.
Alternatively the cables can be routed at the sides of the antenna bas like shown in Fig. 6
Fig. 6 Cable routing at the antenna sides

IDENTIFICATION Installation ID ISC.ANT1520/680-A/-B
FEIG ELECTRONIC GmbH Page 19 of 82 ID ISC.ANT1520680-A-B User
Manual_M61112-1e-ID-E-
060317.doc
5.2.3Installing the Antenna Base and Antenna Body
The antenna will be mounted on the floor. Please note, the antenna conductors in the middle of the
antenna body have to have the same direction (Fig. 7). Afterwards, the antenna has to be aligned
the antenna vertically, by using the adjusting screws (Fig. 8). Please read also 7.2.4 Using the
trigger function of the Gate People Counter and 6.2 Project Notes People Counter (GPC).
Fig. 7 Conductors shape have to have same direction
Adjusting screws (hexagon socket width AF 4)
Fig. 8: Attaching and aligning the antenna
