Felton AXISS AX2HSKCSRB User manual

INSTALLATION GUIDE
AXISS SINGLE SPRAY SLIDE SHOWER BLACK AX2HSKCSRB

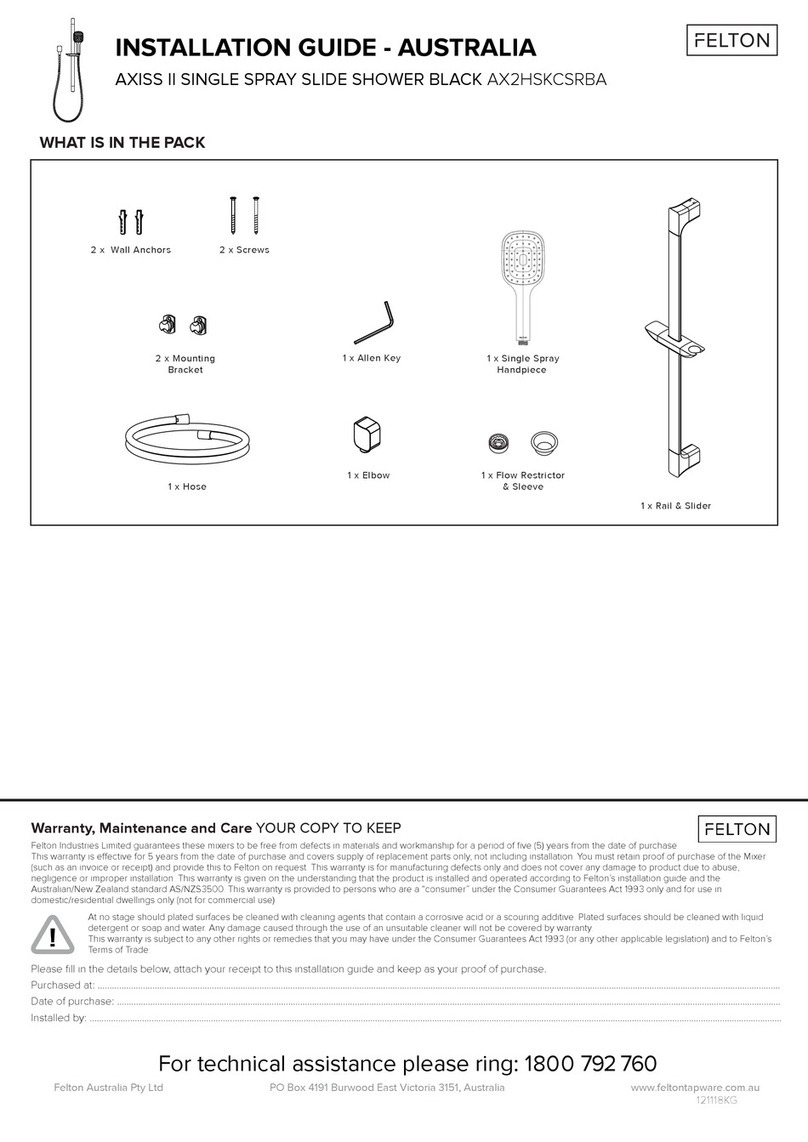

WHATS IN THE PACK
Warranty, Maintenance and Care YOUR COPY TO KEEP
Felton Industries Limited guarantees these products to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase.
This warranty is eective for 5 years from the date of purchase and covers supply of replacement parts only, not including installation. You must retain proof of purchase of the
product (such as an invoice or receipt) and provide this to Felton on request. This warranty is for manufacturing defects only and does not cover any damage to product due to abuse,
negligence or improper installation. This warranty is given on the understanding that the product is installed and operated according to Felton’s installation guide and the Australian/
New Zealand standard AS/NZS3500. This warranty is provided to persons who are a “consumer” under the Consumer Guarantees Act 1993 only and for use in domestic/residential
dwellings only (not for commercial use).
At no stage should plated surfaces be cleaned with cleaning agents that contain a corrosive acid or a scouring additive. Plated surfaces should be cleaned with liquid
detergent or soap and water. Any damage caused through the use of an unsuitable cleaner will not be covered by warranty.
This warranty is subject to any other rights or remedies that you may have under the Consumer Guarantees Act 1993 (or any other applicable legislation) and to Felton’s
Terms of Trade.
Please fill in the details below, attach your receipt to this installation guide and keep as your proof of purchase.
Purchased at:
Date of purchase:
Installed by:
1 x Rail & Slider
1 x Single Spray Handpiece
2 x Wall Anchors 2 x Screws
2 x Mounting Brackets
1 x Hose
1 x Allen key
1 x Elbow
1 x Flow restrictor
and Sleeve
For technical assistance please ring: 0800 743 358 or [phone]
Felton Industries Limited 8 Farmhouse Lane, Glen Innes, Auckland 1072 New Zealand www.felton.co.nz
011020JC

685mm C-C
685mm C-C
HOW TO INSTALL
INSTALLING INTO STUD/NOG...(RECOMMENDED)
INSTALLING INTO CONCRETE/BRICK WALL...
1.
5. 6. 7.
2. 3. 4.
Untighten the grub
screws from the rail
with an allen key.
Mount the rail onto the brackets in place.
Ensure that both rail and bracket are secured.
It is recommended that silicone sealant be used
to seal the fixing brackets.
Pre-drill holes to 685 Centre - Centre and fit the
wall anchors then follow the above instructions.
Tighten the grub screws
on rail withan allen key.
Screw the elbow into the water outlet
(wingback). Sealant required on thread
to achieve a water tight seal. For Mains
Pressure, fit flow restrictor into the
handpiece first. Screw the hose onto
the elbow and handpiece and attach the
handpiece to the slider on the rail.
Remove the
brackets from the
rail.
Mount the brackets into position
(685 Centre - Centre).
It is essential that the
mounting brackets are
installed in a vertical
position as shown.
