Felton URBAN II U2HSKCSRW User manual

For technical assistance please ring: 0800 743 358 or [phone]
Felton Industries Limited www.felton.co.nz8 Farmhouse Lane, Glen Innes, Auckland 1072 New Zealand
250915KG
Warranty, Maintenance and Care YOUR COPY TO KEEP
Felton Industries Limited guarantees these mixers to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase.
This warranty is eective for 5 years from the date of purchase and covers supply of replacement parts only, not including installation. You must retain proof of purchase of the Mixer
(such as an invoice or receipt) and provide this to Felton on request. This warranty is for manufacturing defects only and does not cover any damage to product due to abuse,
negligence or improper installation. This warranty is given on the understanding that the product is installed and operated according to Felton’s installation guide and the
Australian/New Zealand standard AS/NZS3500. This warranty is provided to persons who are a “consumer” under the Consumer Guarantees Act 1993 only and for use in
domestic/residential dwellings only (not for commercial use).
At no stage should plated surfaces be cleaned with cleaning agents that contain a corrosive acid or a scouring additive. Plated surfaces should be cleaned with liquid
detergent or soap and water. Any damage caused through the use of an unsuitable cleaner will not be covered by warranty.
This warranty is subject to any other rights or remedies that you may have under the Consumer Guarantees Act 1993 (or any other applicable legislation) and to Felton’s
Terms of Trade.
Please fill in the details below, attach your receipt to this installation guide and keep as your proof of purchase.
Purchased at: ...............................................................................................................................................................................................................................................................................................
Date of purchase: .......................................................................................................................................................................................................................................................................................
Installed by: ...................................................................................................................................................................................................................................................................................................
INSTALLATION GUIDE
URBAN II SINGLE SPRAY SLIDE SHOWER WHITE U2HSKCSRW
URBAN II SINGLE SPRAY SLIDE SHOWER GUNMETAL U2HSKCSRG

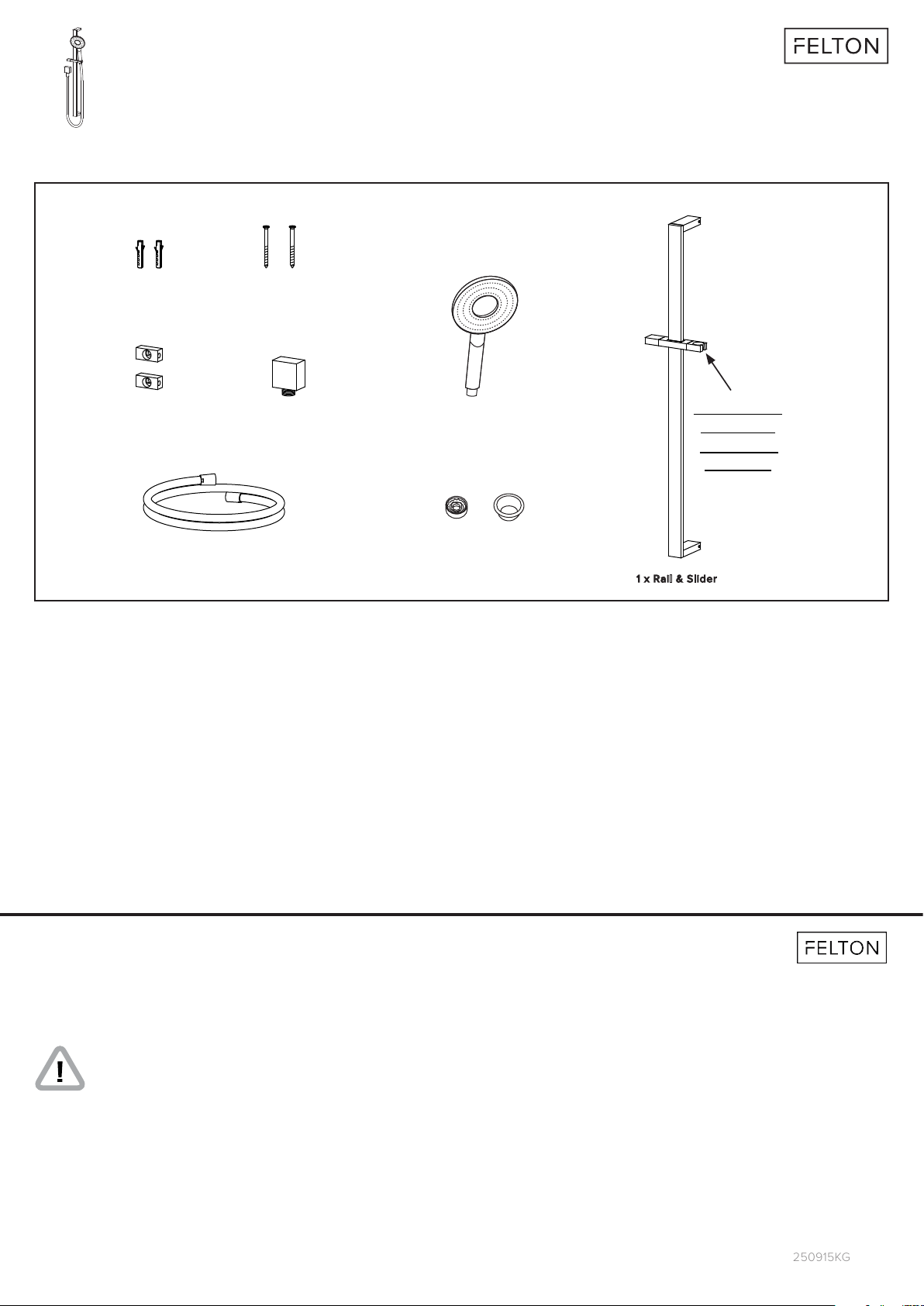

WHAT IS IN THE PACK
2 x Wall Anchors
1 x Flow Restrictor
& Sleeve1 x Hose
2 x Screws
1 x Elbow
2 x Mounting
Bracket
1 x Single Spray
Handpiece
Rail can only be
installed with
the handpiece
on the right.

It is essential that the
mounting brackets are
installed with the grub
screw hole facing the
right as shown.
Mount the rail onto the brackets in place. Ensure
that both rail and bracket are secured.
It is recommended that silicone sealant be used to
seal the fixing brackets.
Tighten the grub screw
on rail with an allen key.
Screw the elbow into the water outlet (wingback).
Sealant required on thread to achieve a water tight
seal. For Mains Pressure, fit flow restrictor into the
handpiece first. Screw the hose onto the elbow and
handpiece and attach the handpiece to the slider on
the rail.
685mm C-C
grub screw
hole
1. 3. 4.2.
HOW TO INSTALL
INSTALLING INTO STUD/NOG...(RECOMMENDED)
Untighten the grub
screw from the rail with
an allen key.
Remove the
brackets from the rail.
Mount the brackets into position (685 Centre -
Centre).
5. 8. 9.
INSTALLING INTO CONCRETE/BRICK WALL...
Pre-drill holes to 685 Centre - Centre
and fit the wall anchors then follow
the above instruction.
685mm C-C
