FIBARO FGBHDW-002 User manual

FIBARO DOOR/WINDOW SENSOR
FGBHDW-002
CONTENTS
#1: Description and features 3
#2: Powering the accessory 4
#3: Pairing the accessory 5
#4: Physical installation 6
#5: Reset 7
#6: Functionalities 8
#7: Congurable parameters 9
#8: Specications 10
#9: Regulations 11
OPERATING
MANUAL EN
v1.0

2 3
DESCRIPTION AND FEATURES
Important safety information
Read this manual before attempting to install the device!
Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manufacturer,
Fibar Group S.A. will not be held responsible for any loss or damage
resulting from not following the instructions of operating manual.
!
Main features of FIBARO Door/Window Sensor:
• compatible with Apple HomeKit technology
• Bluetooth® low energy technology for wireless communication
• detects opening/closing using Hall eect sensor
• measures ambient temperature
• detects tampering
• easily mounted on doors, windows, garage gates and roller blinds
• battery powered
• indicates state using LED diode
• 7 color variations
FIBARO Door/Window Sensor is a HomeKit-enabled Hall eect
sensor using Bluetooth® low energy technology.
Along with detecting opening/closing, the accessory measures the
ambient temperature.
Opening is detected by separating the sensor’s body and the magnet.
Tampering is detected whenever the accessory is detached from the
surface or casing is opened.
#1: Description and features
HomeKit technology
Apple HomeKit technology provides an easy, secure way to control
HomeKit-enabled accessories using Siri on your iPhone, iPad, or iPod
touch.
After installing your FIBARO Door/Window Sensor, congure it from
a compatible app with just a few simple steps.
You can even create your own custom scenes to control your home
settings. For example, you can create a scene to automatically turn
o the lights, lock your doors, close the garage door, and set the
thermostat to the desired temperature in just one step.
Controlling this HomeKit-enabled accessory requires an iPhone,
iPad, or iPod touch with iOS 9.3 or later.
Controlling this HomeKit-enabled accessory away from home
requires a third-generation Apple TV with Apple TV software
7.2.1 or later or a fourth generation AppleTV with tvOS 9.2 or
later and an iPhone, iPad, or iPod touch with iOS 9.3 or later
i

4 5
POWERING THE ACCESSORY PAIRING THE ACCESSORY
#2: Powering the accessory
1. Open the cover.
2. Remove the battery blocker.
3. The accessory will glow blue for 1.5 seconds – it is ready to be
paired.
4. Close the cover paying attention to the correct orientation of the
cover and sensor’s body.
#3: Pairing the accessory
1. Open the Settings app on your iOS device.
2. Go to the Bluetooth® section and turn the Bluetooth® on.
3. Place the accessory next to your iOS device.
4. Open a HomeKit compatible app of your choosing on your iOS
device.
5. Open pairing window in your HomeKit app to detect available
accessories.
6. Choose the Door/Window Sensor you wish to pair.
7. You can identify it - the Door/Window Sensor will triple blink blue
3 times.
8. Find HomeKit Setup Code on the last page of Quick Start Guide
included in the box that looks like this:
9. Start pairing with your HomeKit app.
10. Point your iOS device’s camera at the Setup Code to scan it or en-
ter the Setup Code manually.
11. If entered Setup Code is valid, the device will complete the setup
process.
12. Follow instructions displayed in the application.
XXX-XX-XXX
NOTE
Remember to keep
your HomeKit Setup
Code in safe place.You
may need it in case of
re-pairing.
i
NOTE
If after powering ac-
cessory blinks three
times, it is already
paired and has to be
reset to pair again.
i

6 7
PHYSICAL INSTALLATION RESET
#4: Physical installation
To install the Door/Window Sensor:
1. Peel o the protective layer from the sticker on the accessory.
2. Stick the accessory onto the door/window frame.
3. Peel o the protective layer from the sticker on the magnet.
4. Stick the magnet onto the moving part of the door/window, no
further than 5mm from the sensor.

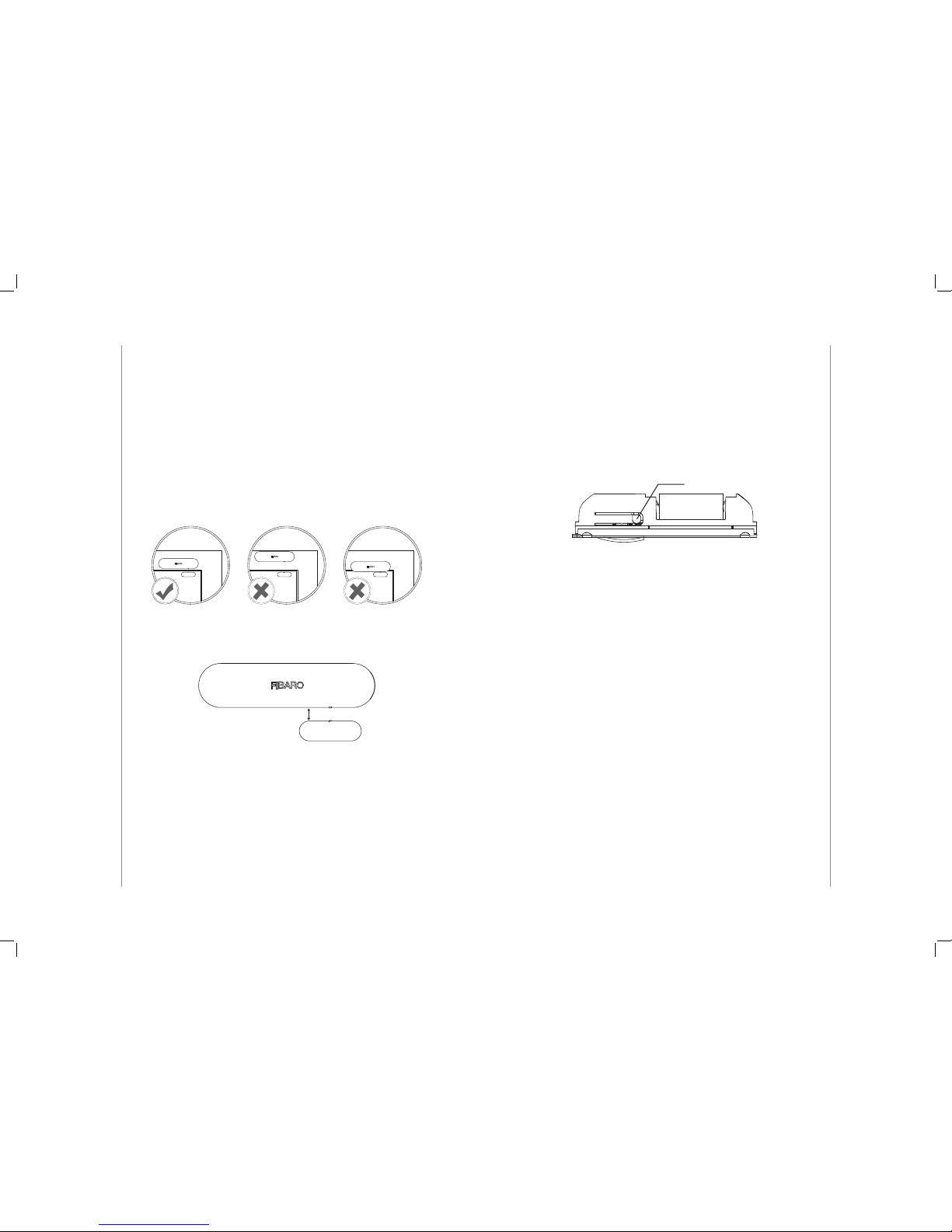

Correct positioning of the magnet in relation to the Sensor:
(vertical line marks should align)
Positioning of the Sensor and the magnet:
Resetting the Door/Window Sensor to factory defaults:
Reset procedure allows to restore the accessory back to its factory
settings including HomeKit pairing.
1. Open the cover.
2. Press the button 3 times then press and hold the button.
3. Wait for the LED indicator to glow.
4. Release the button.
5. Click the button to conrm.
6. Accessory will glow blue for 1.5 seconds to conrm reset.
7. Delete the accessory from the app before pairing it again.
#5: Reset
Button
max. 5 mm

8 9
FUNCTIONALITIES CONFIGURABLE PARAMETERS
#6: Functionalities
Opening/closing detection:
The Door/Window Sensor detects opening/closing using Hall eect
sensor and reports it to your iOS device.
Opening is detected by separating the sensor’s body and the magnet.
Changing the state is indicated with one blink.
Tamper detection:
The Door/Window Sensor detects tampering whenever the accesso-
ry is detached from the surface or casing is opened and reports it to
your iOS device. Tampering is indicated with two blinks.
Temperature measuring:
The Door/Window Sensor measures ambient temperature every 10
minutes. If the measured temperature diers from previously reported
by at least 1°C (1.8°F), accessory reports it to your iOS device.
Battery level measuring:
The Door/Window Sensor measures battery level every 24 hours and
reports it to your iOS device. Additionally, if battery level is below 15%,
the accessory will report low level battery status to your iOS device.
NOTE
Use app that allows to
congure parameters
to change the default
state of sensor and its
indications.
i
#7: Congurable parameters
1. Opening/closing detection – LED indication
This parameter allows choose if opening/closing is indicated by the
built-in LED diode.
Available settings: 0– indications disabled
1– indications enabled
Default setting: 1 (indications enabled)
2. Door/window state
This parameter allows to set in what state is door/window when the
magnet is close to the sensor.
Available settings: 0– closed when magnet near
1– opened when magnet near
Default setting: 0 (closed when magnet near)

10 11
SPECIFICATIONS REGULATIONS
#9: Regulations
Power supply:
Battery type:
EU directives compliance:
Radio protocol:
Radio frequency:
Range:
Operating temperature:
Temperature measuring
range:
Temperature measuring
accuracy:
Dimensions (L x W x H):
3.6V DC battery
ER14250 ½ AA
R&TTE 1999/5/EC
RoHS 2011/65/EU
Bluetooth® low energy
2.4 GHz
up to 50m (free range)
(164 feet)
0-40°C (32-104°F)
0-40°C (32-104°F)
±0.5°C (±0.9°F)
71 x 18 x 18 mm
(2.8 x 0.7 x 0.7 inch)
#8: Specications
CAUTION
Using batteries other
than specied may
result in explosion.
Dispose of properly,
observing environ-
mental protection
rules.
!
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including inter-
ference that may cause undesired operation. This equipment has been
tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a residen-
tial installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note
Changes and modications not expressly approved by the manufac-
turer or registrant of this equipment can void your authority to operate
this equipment under Federal Communications Commission’s rules.
Industry Canada (IC) Compliance Notice
This device complies with Industry Canada license-exempt RSSs. Oper-
ation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, in-
cluding interference that may cause undesired operation of the device.
Cet appareil est conforme aux normes d’exemption de licence RSS d’In-
dustry Canada. Son fonctionnement est soumis aux deux conditions
suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet
appareil doit accepter toute interférence, notamment les interférences
qui peuvent aecter son fonctionnement.
Radio frequency (RF) exposure statement
This equipment should be installed and operated keeping the radiator
at least 20 cm or more away from person’s body.
Cet équipement doit être installé et utilisé en gardant une distance de
20 cm ou plus entre le dispositif rayonnant et le corps.

12
SPECIFICATIONS
DGT Warning Statement
Article 12
Without permission, any company, rm or user shall not alter the fre-
quency, increase the power, or change the characteristics and func-
tions of the original design of the certied lower power frequency elec-
tric machinery.
Article 14
The application of low power frequency electric machineries shall not
aect the navigation safety nor interfere a legal communication, if an
interference is found, the service will be suspended until improvement
is made and the interference no longer exists.
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現
有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性
電機設備之干擾。
Legal Notices
All information, including, but not limited to, information regarding the
features, functionality, and/or other product specication are subject
to change without notice. Fibaro reserves all rights to revise or update
its products, software, or documentation without any obligation to no-
tify any individual or entity.
FIBARO and Fibar Group logo are trademarks of Fibar Group S.A.
The Bluetooth word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Fibar Group S.A. is
under license.
Apple, iPhone, iPad, iPad Air, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries. HomeKit is a trademark
of Apple Inc.
All other brands and product names referred to herein are trademarks
of their respective holders.
Use of the Works with Apple HomeKit logo means that an electronic
accessory has been designed to connect specically to iPod, iPhone, or
iPad, respectively, and has been certied by the developer to meet Ap-
ple performance standards. Apple is not responsible for the operation
of this device or its compliance with safety and regulatory standards.
Declaration of conformity
Hereby, Fibar Group S.A. declares that
FIBARO Door/Window Sensor is in compliance with the
essential requirements and other relevant provisions of
Directive 1999/5/EC.
