FIBARO FGWOE-011 User manual

FIBARO WALLI OUTLET
FGWOE-011 and FGWOF-011
OPERATING
MANUAL
EN
v1.0

3
Table of contents
1: Important safety information 4
2: Description and features 5
2.1: Description 5
2.2: Main features 5
3: Specications 6
4: Installation 7
4.1: Before installation 7
4.2: Preparing for installation 7
4.3: Electrical connection 8
4.4: First assembly 8
4.5: Changing covers 9
5: Adding to Z-Wave network 11
5.1: Adding manually 11
5.2: Adding using SmartStart 12
6: Removing from Z-Wave network 13
7: Operating the device 14
7.1: Controls 14

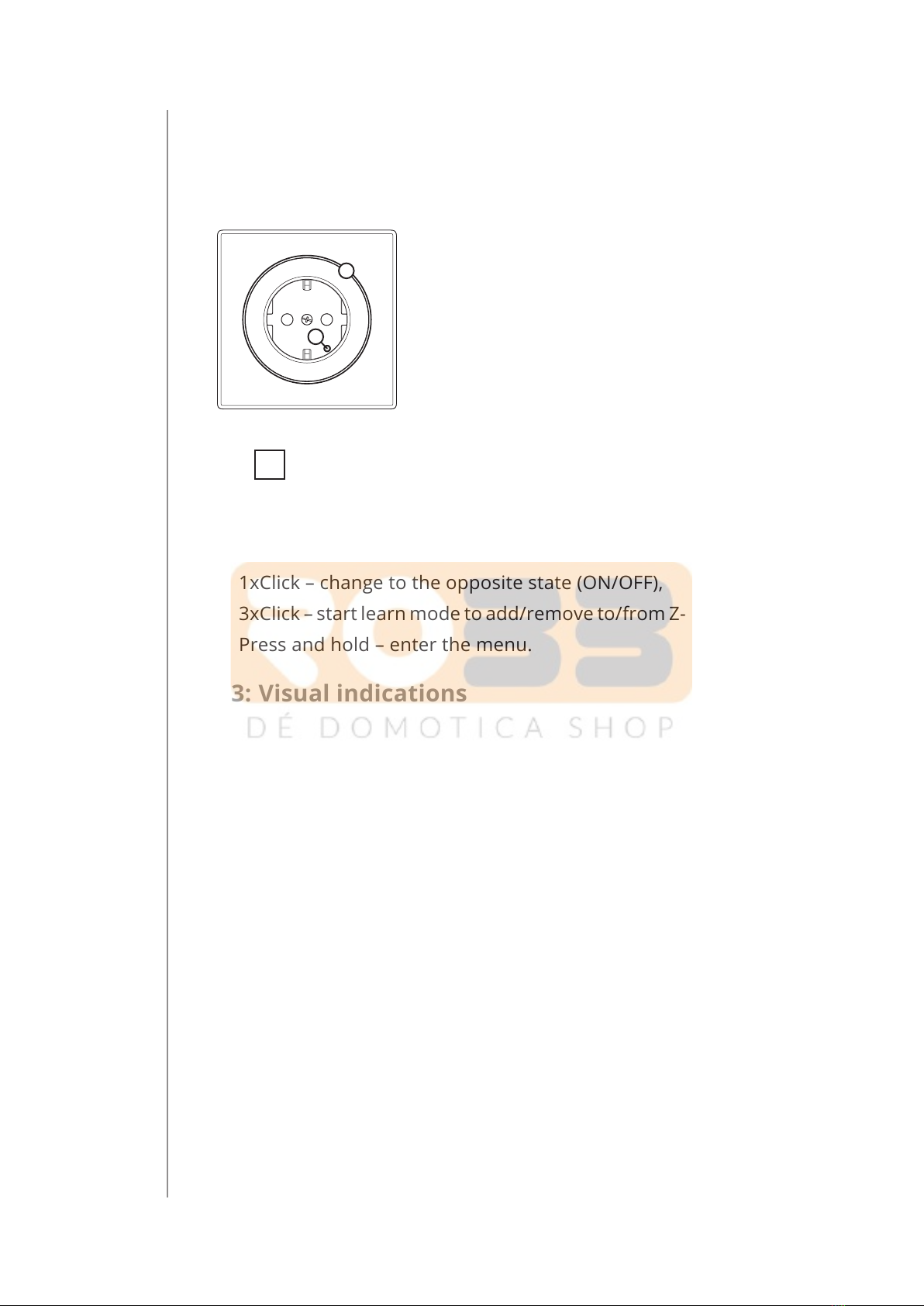

7.2: Button control 14
7.3: Visual indications 14
7.4: Menu 15
7.5: Resetting to factory defaults 15
8: Power and energy metering 16
9: Z-Wave range test 17
10: Conguration 18
10.1: Associations 18
10.2: Advanced parameters 18
11: Z-Wave specication 27
12: Parts compatibility 29
13: Regulations 31

4
IMPORTANT SAFETY INFORMATION
1: Important safety information
Read this manual before attempting to install the device!
!Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manu-
facturer, Fibar Group S.A. will not be held responsible for any loss or
damage resulting from not following the instructions of operating
manual.
DANGER OF ELECTROCUTION!
The device is designed to operate in electrical home installa-
tion. Faulty connection or use may result in re or electric
shock.
All works on the device may be performed only by a qualied
and licensed electrician. Observe national regulations.
Even when the device is turned o, voltage may be present at
its terminals. Any maintenance introducing changes into the
conguration of connections or the load must be always performed
with disabled fuse.
To avoid risk of electrical shock, do not operate the device with
wet or moist hands.
Do not modify!
!Do not modify this device in any way not included in this
manual.
Other devices
!The manufacturer, Fibar Group S.A. will not be held responsi-
ble for any damage or loss of warranty privileges for other con-
nected devices if the connection is not compliant with their
manuals.
This product is intended for indoor use only in dry locations.
!Do not use in damp or wet locations, near a bathtub, sink,
shower, swimming pool, or anywhere else where water or
moisture are present.
Not a toy!
!This product is not a toy. Keep away from children and
animals!

5
DESCRIPTION ANDFEATURES
2: Description and features
2.1: Description
FIBARO Walli Outlet is a smart electrical outlet designed to control
electrical devices via Z-Wave network.
It measures active power and energy consumed by the controlled
load.
You can install it with provided cover plate and socket cover or other
compatible.
2.2: Main features
• Can turn ON/OFF plugged device remotely.
• Available in two versions for plug types:
»Type E,
»Type F.
• Can be used with FIBARO Walli covers or other compatible (see
“Parts compatibility” on page 29):
»GIRA – System 55 (Standard 55, E2, Event, Event Clear),
»Legrand – Céliane,
»Schneider – Odace.
• Active power and energy consumption metering.
• Displays current load using multicolour LED frame (with FIBARO
cover plate).
• Supports Z-Wave network Security Modes: S0 with AES-128 en-
cryption and S2 Authenticated with PRNG-based encryption.
• Works as a Z-Wave signal repeater (all non-battery operated de-
vices within the network will act as repeaters to increase reliabili-
ty of the network).
• May be used with all devices certied with the Z-Wave Plus cer-
ticate and should be compatible with such devices produced by
other manufacturers.
i
The device is a Security Enabled Z-Wave Plus product
and a Security Enabled Z-Wave Controller must be
used in order to fully utilize the product.

6
SPECIFICATIONS
3: Specications
Power supply 110-230V~ 50/60 Hz
Rated load current 16A – resistive loads
Active element micro-gap relay μ
Recommended external
overcurrent protection
16A type B circuit breaker
For installation in boxes Ø = 60mm, depth ≥ 50mm
Recommended wires cross-section area between 1.5-4.0mm2,
stripped 15.5-16.5mm of insulation
Operating temperature 0–40°C
Ambient humidity 0–90% RH without condensation
Radio protocol Z-Wave (500 series chip)
Radio frequency band 868.0–868.6MHz; 869.7–870.0MHz
Max. transmitting power +6dBm
Range up to 50m outdoors
up to 40m indoors
(depending on terrain and building
structure)
Dimensions
(Height x Width x Depth)
FGWOE-011: 86 x 86 x 48 mm
FGWOF-011: 86 x 86 x 51 mm
Compliance with EU
directives
RoHS 2011/65/EU
RED 2014/53/EU
i
Radio frequency of individual device must be same as
your Z-Wave controller. Check information on the box
or consult your dealer if you are not sure.

7
INSTALLATION
4: Installation
4.1: Before installation
!Connecting the device in a manner inconsistent with this
manual may cause risk to health, life or material damage.
• Do not power the device before fully assembling it in the mount-
ing box,
• Connect only in accordance to the diagram,
• Install only in ush mounting boxes compliant with a relevant na-
tional safety standards and with depth no less than 50mm,
• Do not connect devices which are not compliant with the speci-
cation or relevant safety standards.
• Make sure you have all required parts when installing with covers
other than FIBARO (see “Parts compatibility” on page 29).
Device parts:
1
2
3
4
5
1 – screw, 2 – socket cover, 3 – cover plate, 4 – unit (device), 5 – mount-
ing frame
4.2: Preparing for installation
1. Remove the screw.
2. Take o the socket cover and cover plate.
3. Prepare wires by removing 15.5-16.5mm of insulation from their
ends. Groove on the back of the unit shows maximum wire length.

8
INSTALLATION
4.3: Electrical connection
1. Switch o the mains voltage (disable the fuse).
2. Connect the device according to the diagram:
PE
N
L
Notes for the diagram:
N – terminal for neutral wire
– terminal for earthing wire
L – terminal for live wire

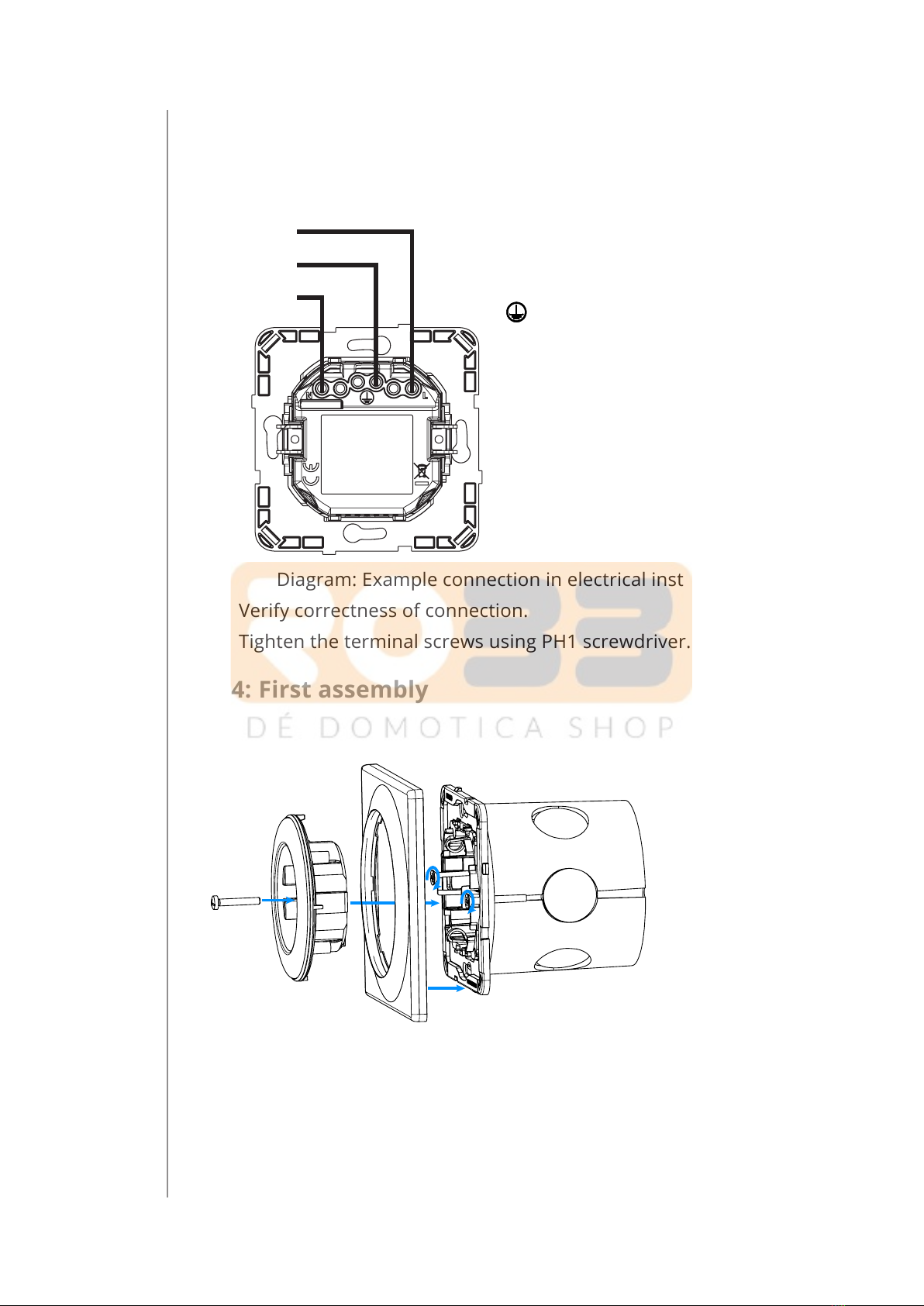

Diagram: Example connection in electrical installation
3. Verify correctness of connection.
4. Tighten the terminal screws using PH1 screwdriver.
4.4: First assembly
When installing with FIBARO covers:
1. Insert the device with mounting frame into the mounting box and
secure with mounting claws and screws.
2. Snap the cover plate to the device.
3. Snap the socket cover to the device.
4. Secure with a screw.
5. Add the device to Z-Wave network (see “Adding to Z-Wave
network” on page 11)

9
INSTALLATION
4.5: Changing covers
!For safety reasons the button should be used only
with FIBARO cover. We recommend adding the device
to Z-Wave network before changing the cover plate.
i
When installing with covers other than FIBARO, we
recommend disabling the LED by changing parameter
13 to 0.
When installing with GIRA covers:
1. Switch o the mains voltage (disable the fuse).
2. Dismount the socket cover and cover plate.
3. Dismount shutter mechanism using pliers.
4. Snap the new cover plate to the device.
5. Snap the new socket cover to the device.
6. Secure with a screw.
7. Switch on the mains voltage.
When installing with Legrand covers:
1. Switch o the mains voltage (disable the fuse).
2. Dismount the socket cover and cover plate.
3. Take the device out of the mounting box and detach the wires.

10
INSTALLATION
4. Replace FIBARO mounting frame with Legrand mounting frame
(FG-Wx-AS-4002).
5. Connect wires according to “Electrical connection” on page 8.
6. Insert the device with mounting frame into the mounting box and
secure with mounting claws and screws.
7. Snap the new cover plate to the device.
8. Snap the new socket cover to the device.
9. Switch on the mains voltage.

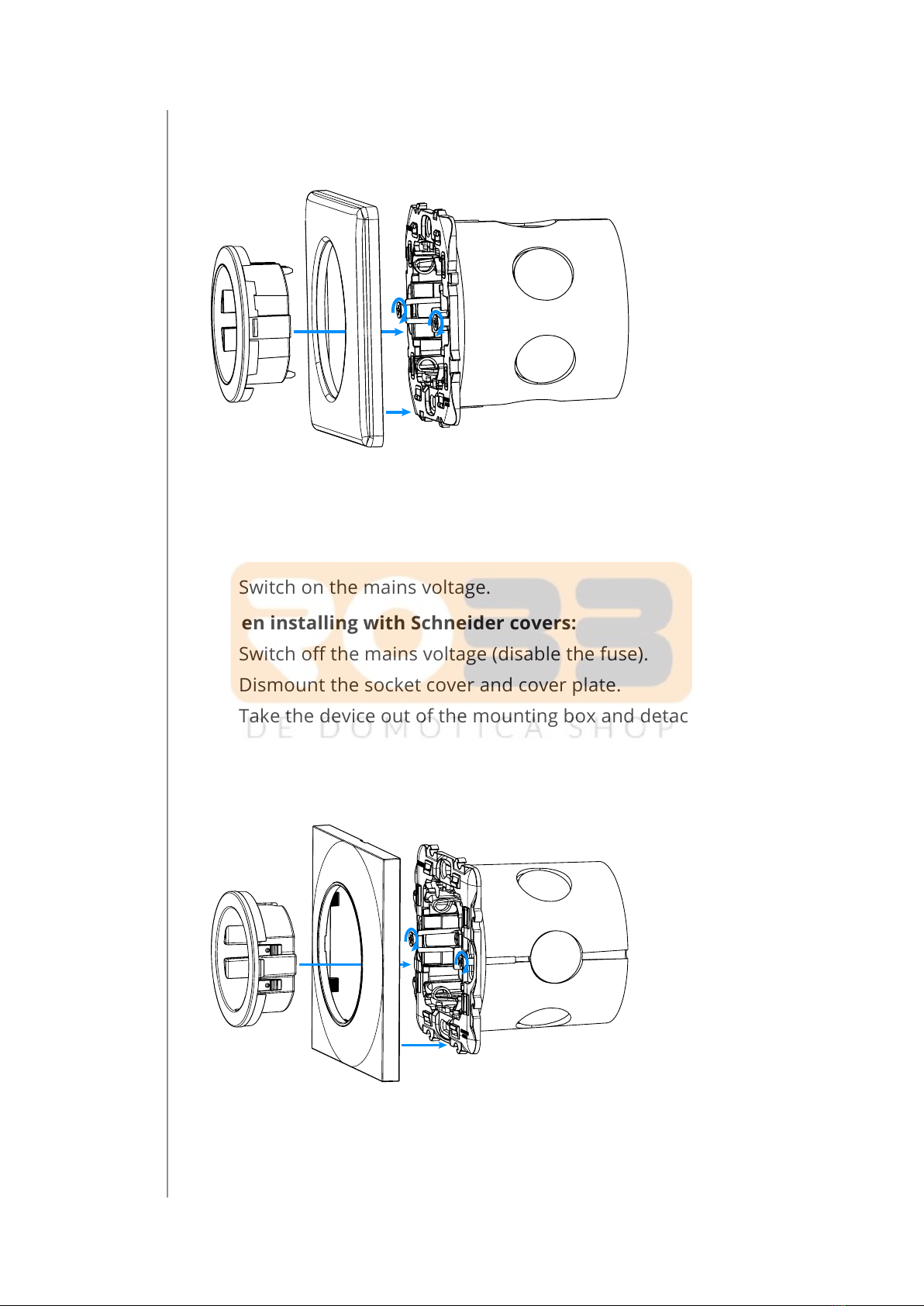

When installing with Schneider covers:
1. Switch o the mains voltage (disable the fuse).
2. Dismount the socket cover and cover plate.
3. Take the device out of the mounting box and detach the wires.
4. Replace FIBARO mounting frame with Schneider mounting frame
(FG-Wx-AS-4003).
5. Connect wires according to “Electrical connection” on page 8.
6. Insert the device with mounting frame into the mounting box and
secure with mounting claws and screws.
7. Snap the new cover plate to the device.
8. Snap the new socket cover to the device.
9. Switch on the mains voltage.

11
ADDING TO Z-WAVE NETWORK
5: Adding to Z-Wave network
Adding (Inclusion) – Z-Wave device learning mode, allowing to add
the device to existing Z-Wave network.
1
2
1. Button,
2. LED ring.
i
Full DSK code is present only on the box, make sure to
keep it or copy the code.
5.1: Adding manually
i
Use the button only with FIBARO cover to ensure
safety.
To add the device to the Z-Wave network manually:
1. Power the device.
2. Set the main controller in (Security/non-Security Mode) add mode
(see the controller’s manual).
3. Quickly, three times click the button.
4. If you are adding in Security S2 Authenticated, input the underlined
part of the DSK (label on the bottom of the box).
5. LED will start blinking yellow, wait for the adding process to end.
6. Adding result will be conrmed by the Z-Wave controller’s message
and the LED frame:
• Green – successful (non-secure, S0, S2 non-authenticated),
• Magenta – successful (Security S2 Authenticated),
• Red – not successful.

12
ADDING TO Z-WAVE NETWORK
5.2: Adding using SmartStart
SmartStart enabled products can be added into a Z-Wave network
by scanning the Z-Wave QR Code present on the product with a con-
troller providing SmartStart inclusion. SmartStart product will be
added automatically within 10 minutes of being switched on in the
network range.
To add the device to the Z-Wave network using SmartStart:
1. To use SmartStart your controller needs to support Security S2
(see the controller’s manual).
2. Enter the full DSK string code to your controller. If your controller
is capable of QR scanning, scan the QR code placed on the label
on the bottom of the box.
3. Power the device.
4. Wait for the adding process to start (up to few minutes), which is
signalled with yellow LED blinking.
5. Adding result will be conrmed by the Z-Wave controller’s message
and the LED frame:
• Green – successful (non-secure, S0, S2 non-authenticated),
• Magenta – successful (Security S2 Authenticated),
• Red – not successful.
i
In case of problems with adding the device, please re-
set the device and repeat the adding procedure.

13
REMOVING FROM Z-WAVE NETWORK
6: Removing from Z-Wave network
i
Use the button only with FIBARO cover to ensure
safety.
1
2
1. Button,
2. LED ring.
Removing (Exclusion) – Z-Wave device learning mode, allowing to
remove the device from existing Z-Wave network. Removing also re-
sults in resetting the device to factory defaults.

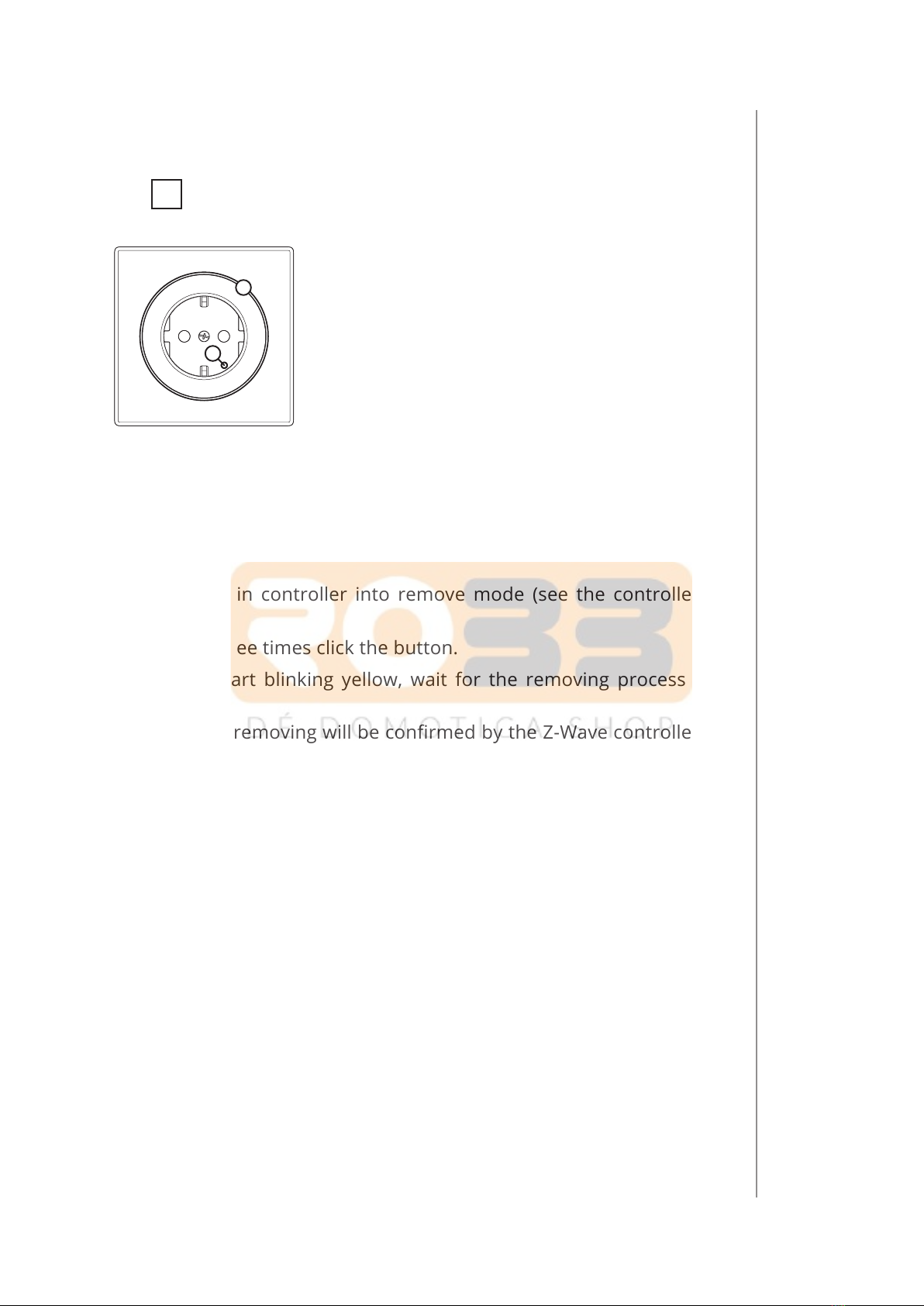

To remove the device from the Z-Wave network:
1. Power the device.
2. Set the main controller into remove mode (see the controller’s
manual).
3. Quickly, three times click the button.
4. LED will start blinking yellow, wait for the removing process to
end.
5. Successful removing will be conrmed by the Z-Wave controller’s
message and red LED colour.

14
OPERATING THE DEVICE
7: Operating the device
7.1: Controls
1
2
1. Button,
2. LED ring.
i
Use the button only with FIBARO cover to ensure
safety.
7.2: Button control
• 1xClick – change to the opposite state (ON/OFF),
• 3xClick – start learn mode to add/remove to/from Z-Wave network,
• Press and hold – enter the menu.
7.3: Visual indications
The built-in LED light shows current device status.
After powering the device:
• Green – device added to a Z-Wave network (non-secure, S0, S2
non-authenticated),
• Magenta – device added to a Z-Wave network (Security S2
Authenticated),
• Red – device not added to a Z-Wave network.
State of the device:
• Colour depending on current load – device turned ON (by default).
Update:
• Blinking cyan – update in progress,
• Green – update successful,
• Red – update not successful.
Menu:
• Blinking green – entering the menu (added as non-secure, S0, S2
non-authenticated),

15
OPERATING THE DEVICE
• Blinking magenta – entering the menu (added as Security S2
Authenticated),
• Blinking red – entering the menu (not added to a Z-Wave network),
• Green – reset energy consumption memory,
• Magenta – start Z-Wave range test,
• Yellow – reset to factory defaults,
7.4: Menu
Menu allows to perform Z-Wave network actions. In order to use the
menu:
1. Press and hold the button to enter the menu, device blinks to
signal adding status (see 7.3: Visual indications).
2. Release the button when device signals desired position with
colour:
• GREEN – reset energy consumption memory
• MAGENTA – start Z-Wave range test
• YELLOW – reset to factory defaults
3. Quickly click the button to conrm.
7.5: Resetting to factory defaults
Reset procedure allows to restore the device back to its factory set-
tings, which means all information about the Z-Wave controller and
user conguration will be deleted. Resetting to factory defaults does
not reset energy consumption memory.
i
Resetting the device is not the recommended way of
removing the device from the Z-Wave network. Use re-
set procedure only if the primary controller is missing or
inoperable. Certain device removal can be achieved by the
procedure of removing described.
i
Use the button only with FIBARO cover to ensure
safety.
1. Press and hold the button to enter the menu.
2. Release the button when the device glows yellow.
3. Quickly click the button to conrm.
4. Device will blink yellow to conrm.
5. After a few seconds the device will be restarted, which is signalled
with red LED colour.

16
POWER ANDENERGY METERING
8: Power and energy metering
The device allows for the active power and energy consumption mon-
itoring. Data is sent to the main Z-Wave controller, e.g. Home Center.
Measuring is carried out by the most advanced microcontroller tech-
nology, assuring maximum accuracy and precision (+/- 1% for loads
greater than 5W).
Electric active power – power that energy receiver is changing into
a work or a heat. The unit of active power is Watt [W].
i
Power measurement can contain mains voltage uctu-
ations within +/- 10%.
Electric energy – energy consumed by a device through a time pe-
riod. Consumers of electricity in households are billed by suppli-
ers on the basis of active power used in given unit of time. Most
commonly measured in kilowatt-hour [kWh]. One kilowatt-hour is
equal to one kilowatt of power consumed over period of one hour,
1kWh = 1000Wh.
Resetting consumption memory:
i
Use the button only with FIBARO cover to ensure
safety.
1. Press and hold the button to enter the menu.
2. Release button when the device glows green.
3. Quickly click the button to conrm.
4. Device will blink two times green to conrm.
i
The device stores periodically (every hour) the con-
sumption data in the device memory. Disconnecting
the module from the power supply will not erase stored
energy consumption data.

17
Z-WAVE RANGE TEST
9: Z-Wave range test
The device has a built in Z-Wave network main controller’s range
tester.
i
To make Z-Wave range test possible, the device must
be added to the Z-Wave controller. Testing may stress
the network, so it is recommended to perform the test only
in special cases.
To test the main controller’s range:
1. Press and hold the button to enter the menu.
2. Release button when the device glows magenta.
3. Quickly click the button to conrm.
4. Visual indicator will indicate the Z-Wave network’s range (range
signalling modes described below).
5. To exit Z-Wave range test, press the button briey.
Z-Wave range tester signalling modes:
• Visual indicator pulsing green - the device attempts to establish
a direct communication with the main controller. If a direct com-
munication attempt fails, the device will try to establish a routed
communication, through other modules, which will be signalled
by visual indicator pulsing yellow.
• Visual indicator glowing green - the device communicates with
the main controller directly.
• Visual indicator pulsing yellow - the device tries to establish a
routed communication with the main controller through other
modules (repeaters).
• Visual indicator glowing yellow - the device communicates with
the main controller through the other modules. After 2 seconds
the device will retry to establish a direct communication with the
main controller, which will be signalled with visual indicator puls-
ing green.
• Visual indicator pulsing violet - the device does communicate
at the maximum distance of the Z-Wave network. If connection
proves successful it will be conrmed with a yellow glow. It’s not
recommended to use the device at the range limit.
• Visual indicator glowing red - the device is not able to connect
to the main controller directly or through another Z-Wave net-
work device (repeater).
i
Communication mode of the device may switch be-
tween direct and one using routing, especially if the
device is on the limit of the direct range.

18
CONFIGURATION
10: Conguration
10.1: Associations
Association (linking devices) – direct control of other devices with-
in the Z-Wave system network.
Associations allow:
• reporting the device status to the Z-Wave controller (using Lifeline
group),
• creating simple automations by controlling other devices without
participation of the main controller (using groups assigned to ac-
tions on the device).
The device provides the association of 2 groups:
1st association group – “Lifeline” reports the device status and al-
lows for assigning single device only (main controller by default).
2nd association group – “Power” devices in this group will be
switched on or o depending on the current load of plugged device
(uses Basic command class). Power thresholds and behaviour are
congured using parameters 45-49. Allows to control 5 regular or
multichannel devices.
10.2: Advanced parameters
The device allows customizing its operation to user’s needs using
congurable parameters.
The settings can be adjusted via the Z-Wave controller to which the
device is added. The way of adjusting them might dier depending
on the controller.
In the FIBARO interface parameters are presented as simple options
in the Advanced Settings of the device.
Available parameters:
1. Remember device state
This parameter determines how the device will react in the event
of power supply failure (e.g. power outage).
Parameter size 1B
Default value 1 (restores the state)
Available
values
0 – remains switched o after restoring power
1 – restores remembered state after restoring
power

19
CONFIGURATION
2. Overload safety switch
This function allows to turn o the controlled device in case of ex-
ceeding the dened power. Controlled device can be turned back
on via button or sending a control frame.
Parameter size 4B
Default value 0 (disabled)
Available
values
0 – function disabled
10-36800 (1.0-3680.0W, step 0.1W) – power
threshold
10. LED frame – power limit
This parameter determines maximum active power. Exceeding
it results in the LED frame ashing violet. Function is active only
when parameter 11 is set to 8 or 9.
Parameter size 4B
Default value 36800 (3680W)
Available
values
500-36800 (50.0-3680.0W, step 0.1W) – power
threshold
11. LED frame – colour when ON
This parameter denes the LED colour when the device is ON.
When set to 8 or 9, LED frame colour will change depending on the
measured power and parameter 10. Other colours are set perma-
nently and do not depend on power consumption.
Parameter size 1B
Default value 8 (depending on measured power)
Available
values
0 – LED disabled
1 – White
2 – Red
3 – Green
4 – Blue
5 – Yellow
6 – Cyan
7 – Magenta
8 – colour changes smoothly depending on mea-
sured power
9 – colour changes in steps depending on mea-
sured power

20
CONFIGURATION
12. LED frame – colour when OFF
This parameter denes the LED colour when the device is OFF.
Parameter size 1B
Default value 0 (disabled)
Available
values
0 – LED disabled
1 – White
2 – Red
3 – Green
4 – Blue
5 – Yellow
6 – Cyan
7 – Magenta
13. LED frame – brightness
This parameter allows to adjust the LED frame brightness.
Parameter size 1B
Default value 100 (100%)
Available
values
0 – LED disabled
1-100 (1-100% brightness)
101 – brightness directly proportional to mea-
sured power
102 – brightness inversely proportional to mea-
sured power
