FIBARO FGFS-001 User manual

CONTENTS
#1: Description and features 4
#2: Basic activation 5
#3: Adding/removing the device 6
#4: Diagrams and connection 7
#5: Powering modes 9
#6: Operating the device 10
#7: Association 12
#8: Z-Wave range test 13
#9: Advanced parameters 14
#10: Specications 19
#11: Regulations 20
FIBARO FLOOD SENSOR
FGFS-101
OPERATING
MANUAL EN
v2.1

3
Important safety information
Read this manual before attempting to install the device!
Failure to observe recommendations included in this manual
may be dangerous or cause a violation of the law. The manufacturer,
Fibar Group S.A. will not be held responsible for any loss or damage
resulting from not following the instructions of operating manual.
The alarm functionality of devices is an additional feature increasing
the comfort level of your home automation system. If you want to
use professional security service, please contact them to determine
what systems can provide a protection of your estate.
Compliance with safety standards:
The device is designed to be used in Z-wave home automation sys-
tems (e.g. FIBARO) and is complaint with IEC/UL/CSA 60950-1. In case
of the integration with another system, e.g. alarm system, it is re-
quired to verify the compliance with additional standards.
!
General information about
the FIBARO System
FIBARO is a wireless smart home automation system, based on the
Z-Wave protocol. All of available devices can be controlled through
a computer (PC or Mac), smartphone or tablet. Z-Wave devices are
not only receivers, but can also repeat the signal, increasing the
Z-Wave network’s range. It gives advantage over traditional wireless
systems that require direct link between transmitter and receiver, as
a result the construction of the building could aect network’s range
negatively.
Every Z-Wave network has its unique identication number (home
ID). Multiple independent networks can exist in the building without
interfering. Transmission security of FIBARO System is comparable to
wired systems.
Z-Wave technology is the leading solution in smart home automation.
There is a wide range of Z-Wave devices that are mutually
compatible, independently of manufacturer. It gives the system the
ability to evolve and expand over time. For more information visit
www.baro.com.

4
DESCRIPTION AND FEATURES
Main features of FIBARO Flood Sensor:
• compatible with any Z-Wave or Z-Wave+ Controller,
• supports protected mode (Z-Wave network security mode) with AES-
128 encryption,
• may be connected to any external system (potential free output
terminal),
• extremely easy installation - simply put on a surface prone to ooding,
• may be installed anywhere - ood sensor’s contacts extended
with a wire,
• battery or VDC powered. When connected to an external 12/24V DC
power source, the battery serves as an emergency power source,
• theft protection - tilt or moving is reported to the Z-Wave network or
external system’s controller,
• two operating modes - ood/temperature sensor or just a
temperature sensor,
• alarm is signalled by sound, visual indicator (LED diode) and Z-Wave.
FIBARO Flood Sensor is a universal, Z-Wave Plus compatible, ood
and temperature sensor. The device can be powered using battery,
12/24V DC power supply or both. Flood alarm is sent to the Z-Wave
network devices or additionally to any external system through
opening a NC contact using the external power supply.
The device has built in temperature sensor that allows to monitor
ambient temperature. FIBARO Flood Sensor is designed to be placed
on the oor or mounted on a wall (in this case Flood Sensor probes
should be extended using addition wire). The device has a built-in
visual LED indicator and an acoustic alarm.
In addition, the sensor is equipped with a tilt sensor reporting tilt or
movement to the main controller e.g. when someone has taken the
Sensor from its original location.
FIBARO Flood Sensor is sink-proof, which means it drifts on the water
surface and keeps on sending alarm signal in case of substantial
inundation of water.
#1: Description and features
FIBARO Flood Sensor is a fully
compatible Z-Wave PLUS device.
NOTE
This device may be
used with all de-
vices certied with
the Z-Wave Plus cer-
ticate and should be
compatible with such
devices produced by
other manufacturers.
i
NOTE
FIBARO Flood Sensor
is a Security Enabled
Z-Wave Plus product
and a Security Ena-
bled Z-Wave Control-
ler must be used in or-
der to fully utilize the
product.
i

5
BASIC ACTIVATION
#2: Basic activation
1. Turn the cover counter-clockwise and open it.
2. Remove the battery blocker.
3. Flood Sensor will conrm being powered with a short beep and a
LED blink.
4. Add the device (see “Adding/removing the device” on page 6).
5. Close the cover and turn it clockwise.
6. Place the sensor on a surface prone to ooding. Three electrodes
underneath the device should evenly touch the surface.
Beep!
NOTE
After completing
installation it is rec-
ommended to test
sensor’s operation
by placing the entire
sensor or its probes’
extension wire onto
water surface.
i
NOTE
When changing the
Sensor’s location, it’s
recommended to wake
up the device and re-
congure the Z-Wave
network by triple click-
ing the TMP button or
removing and insert-
ing the battery.
i
NOTE
When powered, the
device will indicate
Z-Wave status with
colour of LED:
• Green - the device is
already added to the
Z-Wave network.
• Red - the device is
not added to any
Z-Wave network.
i

6
ADDING/REMOVING THE DEVICE
#3: Adding/removing the device
NOTE
Adding in security
mode must be per-
formed up to 2 meters
from the controller.
i
NOTE
Removing FloodSensor
from the Z-Wave net-
work restores all the
default parameters of
the device.
i
NOTE
In case the Sensor is
not added, please re-
set the Sensor and re-
peat the adding pro-
cedure.
i

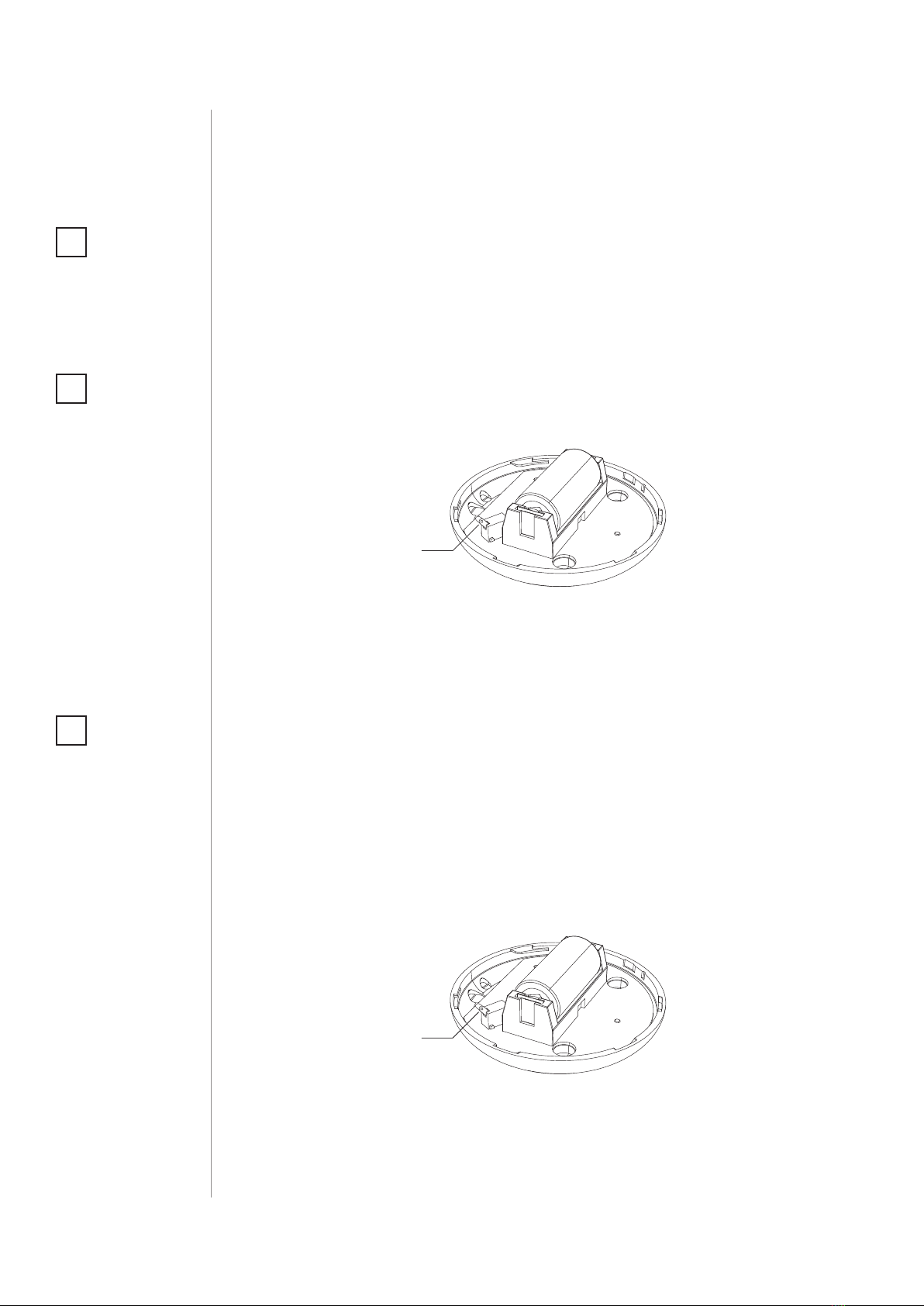

Adding (Inclusion) - Z-Wave device learning mode, allowing to add
the device to existing Z-Wave network.
To add the device to the Z-Wave network:
1. Open the cover.
2. Place the Sensor within the direct range of your Z-Wave controller.
3. Set the main controller in (security/non-security) add mode (see
the controller’s manual).
4. Quickly, three times press the TMP button.
5. Wait for the adding process to end.
6. Successful adding will be conrmed by the Z-Wave controller’s
message.
Removing (Exclusion) - Z-Wave device learning mode, allowing to
remove the device from existing Z-Wave network.
To remove the device from the Z-Wave network:
1. Open the cover.
2. Place the Sensor within the direct range of your Z-Wave controller.
3. Set the main controller into remove mode (see the controller’s
manual).
4. Quickly, three times press the TMP button.
5. Wait for the removing process to end.
6. Successful removing will be conrmed by the Z-Wave controller’s
message.
TMP
button
TMP
button

7
DIAGRAMS AND CONNECTION
Connecting the FIBARO Flood Sensor in a manner
inconsistent with manual may cause risk to health, life or
material damage.
!
Notes for the diagrams and probes marking:
+12V - 12 / 24 VDC positive terminal
GND - negative (ground) terminal
ALARM NC - potential-free ood sensor terminals (for wired systems)
TAMP NC - potential-free tamper terminals (for wired systems)
SENS1, SENS2 - ood sensor electrodes’ terminals
TMP - tamper button (used to add/remove the device)
ALARM
NC
TAMP
NC
SENS 1 SENS 2 + 12 GND
TMP
#4: Diagrams and connection
1 2
3
12/24 VDC
ADAPTER
ALARM
NC
TAMP
NC
SENS 1 SENS 2 + 12 GND
+
-
TMP
Connection to a constant power source:
NOTE
The TMP button has
two functions:
1. Adding / Removing
the device to / from
the Z-Wave network,
2. Tamper contact
for 4th Association
Group. When a sen-
sor is added to the
Z-Wave network, cov-
er open alarm may be
activated (according
to parameter 74 set-
tings).
i
CAUTION
Connect while observ-
ing wiring diagram
shown in this manual
only. Incorrect wiring
may be dangerous or
result in the device
breakdown.
Remember to keep
the device away from
water or protect holes
for wires from water to
avoid destroying the
device.
!
CAUTION
To prevent accidental
pulling out make cer-
tain that cables are
rmly attached to the
wire connectors and
screws are properly
tightened.
Make sure to secure
the power cord after
connecting it to the
terminal.
!

8
DIAGRAMS AND CONNECTION
TAMP
NC
SENS 1
SENS 2
Extending Flood Sensor contacts with a wired probe:
AUX COM Z1 Z2
EXTERNAL
SYSTEM HUB
ALARM
NC
TAMP
NC
SENS 1 SENS 2 + 12 GND
TMP
Connection with external wired system:
NOTE
Mounting screws
shown in a diagram
are not included in
the package. Choose
a screw type depend-
ing on the building
material it is being at-
tached to.
i
CAUTION
Contacts SENS1 and
SENS2 are dedicat-
ed to ood detection
only. Do not connect
external voltage!
!
NOTE
ALARM NC and TAMP
NC connectors may
be used as end-of-line
protective loop’s ter-
minals.
i
NOTE
The Sensor detects
electrical conductivity
between electrodes
1 and 3, 1 and 2 and
electrodes connect-
ed to contacts (SENS1
and SENS2).
i
If you want the device to be mounted on a wall or in a distance from
ooding source, sensor should be extended using an external probe
(not included).
We recommend using extension probes or cables designed to detect
water. Probes ends should be coated with non-corrosive metal.
Connection wires should not be longer than 3m with 18-26AWG
(0.14 - 0.82mm2). It applies also to VDC power source wires.

9
POWERING MODES
#5: Powering modes
There are two powering modes for the Flood Sensor. By default it is
powered by a factory included battery. In addition it can work with a
constant voltage, after connecting a 12/24V DC power supply to +12
and GND terminals (see„Diagrams and connection” on page 7).
Powering mode conguration is carried out automatically, while the
device is being added into the Z-Wave network.
When battery powered, the Flood Sensor communicates with the
main Z-Wave controller periodically. Detected alarms are sent imme-
diately, but the conguration parameters and associations settings
will only be updated at specied wake up intervals or at manual wake
up (single TMP button click).
When added to the network as a DC powered device, the device will
update its associations and congurations immediately. It will also
allow it to serve as a signal repeater in the Z-Wave network, which
increases the chance of successful communication among devices in
the same network.
Switching to constant voltage powering mode:
1. Remove the sensor from the Z-Wave network.
2. Connect constant voltage power source (12/24 VDC) to +12 and
GND terminals in accordance with „Diagrams and connection” on
page 7.
3. Add the sensor to the Z-Wave network.
The Flood Sensor may operate without a battery if 12/24V power sup-
ply is connected. Installing a battery is recommended though, as it
will serve as an emergency power source. When constant power fails,
sensor will automatically shift to backup power mode. All reports, in-
cluding ood and temperature, will be sent immediately, but it will
not be possible to modify the conguration or association settings
until constant power returns. In this mode Z-Wave signal repeating is
not possible.
FIBARO Flood Sensor’s battery life is estimated at about 2 years at
factory default settings. Current battery level is displayed in a Z-Wave
controller interface. Red battery icon means the battery needs re-
placement. In order to avoid triggering a tamper alarm while replac-
ing the battery, 4th association group’s associations must be deleted
and conguration parameters should be restored back to default set-
tings.
NOTE
The Flood Sensor will
automatically exit
emergency mode
once 12/24 VDC at
+12 and GND termi-
nals is detected
i
CAUTION
Using batteries other
than specied may
result in explosion.
Dispose of properly,
observing environ-
mental protection
rules.
!

10
OPERATING THE DEVICE
#6: Operating the device

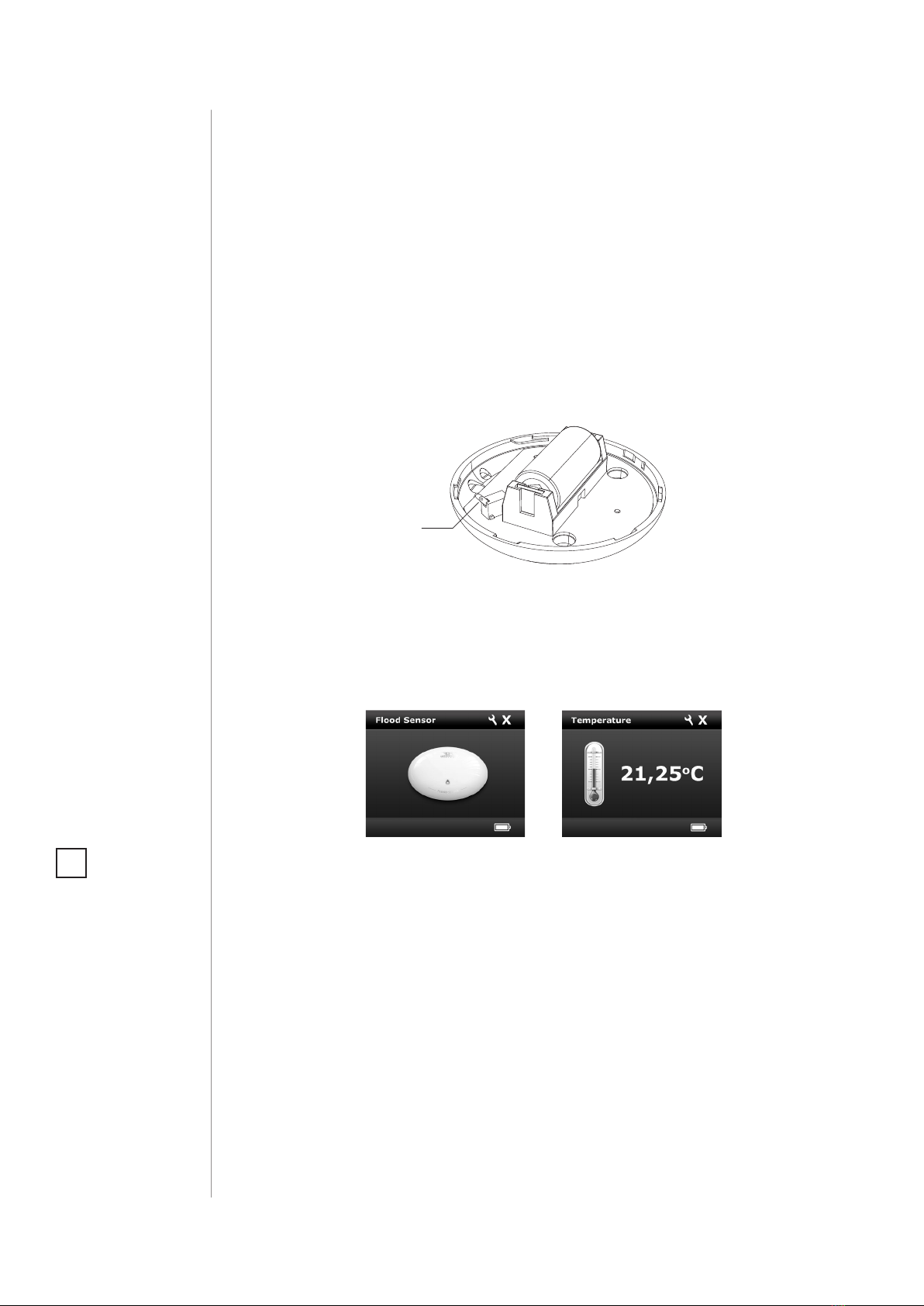

Controlling the Flood Sensor using the TMP button:
The Flood Sensor is equipped with the TMP button, which allows to
perform the following actions:
1x click: send Wake Up notication (in battery mode), conrm select-
ed menu option (if menu is active)
3x click: add/remove the device to/from a Z-Wave network
Holding: enter/navigate through menu
Visual indications:
The Flood Sensor is equipped with a LED diode, signalling sensor’s
operating modes and alarms. In addition the visual indicator may in-
form of the Z-Wave network range and the current temperature.
Visual indicator signalling modes:
1. Flood alarm is signalled with alternating white and blue light.
2. In battery powering mode, with parameter no. 63 set to 1, visual
indicator will periodically show temperature readouts (depend-
ing on parameter 50, 51, 61 and 62 settings).
3. In constant powering mode, the current temperature readouts
will be continuously signalled with a colour depending on param-
eter 50, 51, 61 and 62 settings.
4. Currently selected menu position is signalled with an illumination
colour.
TMP
button
NOTE
By default, ood sen-
sor’s insensitivity is
set to 1 second, which
means ooding will
be reported one sec-
ond after it’s been de-
tected.
Tilt tamper is insensi-
tive to little vibrations
and turns. After its ac-
tivation, insensitivity
is turned o for 15 sec-
onds. After that, each
Sensor’s movement
will trigger audible
alarm, consisting of 3,
brief acoustic signals.
i
Controlling theFloodSensorwithFIBARO HomeCenter controller:
The Flood Sensor has two built-in sensors – ood and temperature
sensors. In the Home Center controller the Sensor will be shown as
two devices.

11
OPERATING THE DEVICE
NOTE
Resetting the device is
not the recommend-
ed way of removing
the device from the
Z-Wave network. Use
reset procedure only
if the primary con-
troller is missing or
inoperable. Certain
device removal can be
achieved by the pro-
cedure of removing
described in “Adding/
removing the device”
on page 6.
i
Resetting the Flood Sensor:
Reset procedure allows to restore the device back to its factory set-
tings, which means all information about the Z-Wave controller and
user conguration will be deleted.
1. Make sure the sensor is powered.
2. Press and hold the TMP button.
3. Wait for the visual LED indicator to glow yellow (4th position of
the MENU).
4. Release the TMP button.
5. Click the TMP button once to conrm selection.
6. After few seconds the device will restart with factory settings,
which is signalled with the red visual indicator colour and
an acoustic signal.
Waking up the Flood Sensor:
When in battery mode the Flood Sensor needs to be woken up to
receive information about the new conguration from the controller,
like parameters and associations.
To wake up the sensor manually, click the TMP button located inside
the housing.
The device will also wake up and update its data upon startup when
added in battery mode.
Menu allows to perform Z-Wave network actions. In order to use the
menu:
1. Press and hold the TMP button.
2. Wait for the device to indicate desired position with a colour:
• WHITE - conrmation of entering the menu
• GREEN - cancel alarm for associated devices and the control-
ler (only if the device is no longer ooded)
• VIOLET - Z-Wave network’s range test
• YELLOW - full reset
3. Release the TMP button.
4. Click the TMP button to conrm selection.

12
ASSOCIATION
#7: Association
NOTE
Association ensures
direct transfer of
control commands
between devices, is
performed without
participation of the
main controller and
requires associated
device to be in the di-
rect range.
i
Association (linking devices) - direct control of other devices within
the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter
or scene (may be controlled only through a Z-Wave controller).
The Flood Sensor provides the association of four groups:
1st Association Group – “Lifeline” reports the device status and al-
lows for assigning single device only (main controller by default).
2nd Association Group – “Flood Control” devices in this group will
be switched on or o when ood status changes (done via BASIC SET
command frames).
3rd Association Group – “Flood Alarm” is assigned to the device
status - devices in this group will receive notication about ood de-
tection or cancellation. Useful for devices that can trigger alarms.
4th Association Group – “Tamper Alarm” is assigned to the TMP
button and tilt sensor - devices in this group will receive a notication
when the sensor is moved or the cover is taken o (which normally
holds the button). Useful for devices that can trigger alarms. Func-
tionality can be altered by parameter 74.
To add an association (using the FIBARO Home Center controller):
1. Go to device options by clicking the icon:
2. Select the„Advanced” tab.
3. Specify to which group and what devices are to be associated.
4. Wait for the conguration process to end. Sending relevant infor-
mation to devices added to associated groups may take even a
few minutes.
5. Wake up the device by clicking the TMP button to speed up the
conguration process.
The Flood Sensor in 2nd to 4th group allows to control
up to 5 regular and 5 multichannel devices per an association group,
with the exception of “LifeLine” that is reserved solely for the controller
and hence only 1 node can be assigned.
It is not recommended to associate more than 10 devices in general,
as the response time to control commands depends on the number
of associated devices. In extreme cases, system response may be de-
layed.

13
ZWAVE RANGE TEST
#8: Z-Wave range test
Z-Wave range tester signalling modes:
Visual indicator pulsing green - the Flood Sensor attempts to es-
tablish a direct communication with the main controller. If a direct
communication attempt fails, the device will try to establish a routed
communication, through other modules, which will be signalled by
visual indicator pulsing yellow.
Visual indicator glowing green - the Flood Sensor communicates
with the main controller directly.
Visual indicator pulsing yellow - the Flood Sensor tries to estab-
lish a routed communication with the main controller through other
modules (repeaters).
Visual indicator glowing yellow - the Flood Sensor communicates
with the main controller through the other modules. After 2 seconds
the device will retry to establish a direct communication with the
main controller, which will be signalled with visual indicator pulsing
green.
Visual indicator pulsing violet - the Flood Sensor does communi-
cate at the maximum distance of the Z-Wave network. If connection
proves successful it will be conrmed with a yellow glow. It’s not rec-
ommended to use the device at the range limit.
Visual indicator glowing red - the Flood Sensor is not able to con-
nect to the main controller directly or through another Z-Wave net-
work device (repeater).
CAUTION
To make Z-Wave range
test possible, the de-
vice must be added
to the Z-Wave control-
ler. Testing may stress
the network, so it is
recommended to per-
form the test only in
special cases.
!
NOTE
Communication mode
of the Flood Sensor
may switch between
direct and one using
routing, especially if
the device is on the
limit of the direct
range.
i
The Flood Sensor has a built in Z-Wave network main controller’s
range tester.
Follow the below instructions to test the main controller’s range:
1. Press and hold the TMP button until the visual indicator glows
violet.
2. Release the TMP button.
3. Click the TMP button once to conrm selection.
4. Visual indicator will indicate the Z-Wave network’s range (range
signalling modes described below).
5. To exit Z-Wave range test, press the TMP button briey.

14
ADVANCED PARAMETERS
#9: Advanced parameters
1. Alarm cancellation delay
Determines time period (in seconds) by which a Flood Sensor will re-
tain the ood state after the ooding itself has ceased. The sensor
will keep on reporting ooding to the main controller. This parameter
setting does not aect acoustic and visual alarms, which turn o im-
mediately after ooding ceases.
Available settings: 0-3600 (in seconds, each 1s)
Default setting: 0Parameter size: 2[bytes]
2. Acoustic and visual signals On / O in case of ooding
The parameter allows for deactivation visual and acoustic alarm.
Parameter allows for increasing a battery life. Setting changes will not
aect the sensor’s communication with the main controller - com-
mands to association groups, alarms and reports will still be sent.
The Flood Sensor allows to customize its operation to user’s needs.
The settings are available in the FIBARO interface as simple options
that may be chosen by selecting the appropriate box.
In order to congure the Flood Sensor (using the FIBARO Home
Center controller):
1. Go to the device options by clicking the icon:
2. Select the„Advanced” tab.
Wake up interval (battery mode)
Available settings: 0or 60-86400 (in seconds, 1min - 24h)
Default setting: 21 600 (every 6 hours)
The Flood Sensor will wake up at each dened time interval and al-
ways try to connect with the main controller. After successful com-
munication attempt, the sensor will update conguration parame-
ters, associations and settings and then will go into standby mode.
After failed communication attempt (eg. no Z-Wave range) the device
will go into standby mode and retry to establish connection with the
main controller after the next time interval.
Setting wake up interval to 0 disables sending Wake Up notication
to the controller automatically. Wake up may be still performed man-
ually by a single TMP button click.
Longer time interval means less frequent communication and thus a
longer battery life

15
ADVANCED PARAMETERS
Available settings: 0- acoustic and visual alarms inactive
1- acoustic alarm inactive, visual alarm active
2- acoustic alarm active, visual alarm inactive
3- acoustic and visual alarms active
Default setting: 3Parameter size: 1[byte]
7. Requested dimming level / roller blind opening level when send-
ing turn on / open command to 2nd association group devices
Determines the requested “on” level to be sent to devices from 2nd
association group upon ood event.
Available settings: 1-99 - requested level
255 - turn a device on
Default setting: 255 Parameter size: 2[bytes]
9. Deactivate turning o devices in 2nd association group & alarm
cancellation in 3rd group
This setting decides whether device turn o commands and alarm
cancellation notications will be sent to devices in 2nd and 3rd asso-
ciation groups (respectively)
Setting the parameter’s value to 0 disables sending these two com-
mands to associated devices. This means that these devices WILL NOT
be informed when the ooding has ceased. It is still possible to cancel
alarms in 3rd association group by choosing second (green) menu
position (see “Menu & visual indications” on page 10).
Available settings: 0- alarm (ooding) cancellation inactive
1- alarm (ooding) cancellation active
Default setting: 1Parameter size: 1[byte]
10. Temperature measurement interval
Time interval (in seconds) between consecutive measurements of
battery level and temperature (done by built-in temperature sensor).
If the temperature diers from previously reported by a value deter-
mined in parameter 12, it will be reported to the Z-Wave controller.
In battery mode more signicant battery level changes will be report-
ed. Short time intervals mean more frequent communication, which
results in shortened battery life.
After consecutive FAILED and SUCCESSFUL communication attempts,
the Sensor will go to standby mode.
Available settings: 1-65535 (in seconds)
Default setting: 300 (5min) Parameter size: 4[bytes]
12. Temperature measurement hysteresis
Determines a minimum temperature change value (insensitivity lev-
el), resulting in a temperature report being sent to the main control-

16
ADVANCED PARAMETERS
ler, according to the parameter 10 settings.
Available settings: 1-1000 (each 0.01°C)
Default setting: 50 (0.5°C) Parameter size: 2[bytes]
50. Low temperature alarm threshold
The parameter stores a temperature value, below which visual indi-
cator blinks with a colour determined by a parameter 61 settings. By
default the visual indicator blinks blue.
Available settings: - 10000 to +10000 (each 0.01°C)
Default setting: 1500 (15°C) Parameter size: 2[bytes]
51. High temperature alarm threshold
The parameter stores a temperature value, above which visual indica-
tor blinks with a colour determined by the parameter 62 settings. By
default the visual indicator blinks red.
Available settings: - 10000 to +10000 (each 0.01°C)
Default setting: 3500 (35°C) Parameter size: 2[bytes]
61. Low temperature alarm indicator colour
Parameter stores RGB colour value (see the note below for details).
Available settings: 0-16777215
Default setting: 255 Parameter size: 4[bytes]
62. High temperature alarm indicator colour
Parameter stores RGB colour value (see the note below for details).
Available settings: 0-16777215
Default setting: 16711680 Parameter size: 4[bytes]
i
NOTE
The main controller interprets colours as a sum of its component col-
ours value. Each colours value is a number from 0 to 255.
Indicated colour = 65536 * RED + 256 * GREEN + BLUE
Colour Decimal value
Red 16711680
Green 65280
Blue 255
Yellow 16776960
Turquoise 65535
Orange 16750848
White 16777215
Indicator turned o 0

17
ADVANCED PARAMETERS
63. Temperature indication using LED visual indicator
Parameter determines visual indicator’s operation. Setting to 0 turns
the temperature LED indication o, saving battery life.
Available settings: 0- visual indicator does not indicate the
temperature
1- visual indicator indicates the temperature
(blink) every Temperature Measurement Inter-
val (parameter 10, constant current and bat-
tery) and Wake Up Interval (battery mode)
2- visual indicator indicates the temperature
continuously, only in constant power mode
Default setting: 2Parameter size: 1[byte]
73. Temperature measurement compensation
Parameter stores a temperature value to be added to or deducted
from the current temperature measured by internal temperature sen-
sor in order to compensate the dierence between air temperature
and temperature at the oor level.
Available settings: -10 000 to +10 000
Default setting: 0(0.00°C) Parameter size: 2[bytes]
74. Alarm frame sent to 1st and 4th Association Group activation
(MOVEMENT_TAMPER / BUTTON_TAMPER)
The device is able to report tamper alarms resulting from sensor’s
tilt/movement or TMP button state change (e.g. taking o the top
cover).
Available settings: 0- tamper alarms inactive
1- button tamper alarm active
2- movement tamper alarm active
3- button and movement tampers alarm active
Default setting: 2Parameter size: 1[byte]
75. Alarms signalization duration
The device is capable of automatically turning o alarm signalization
after a certain amount of time. Long lasting alarm may reduce battery
life, when constantly signalized.
The parameter determines time after which alarm will become “quiet”
- still active but the device will go into battery saving mode. Visual or
acoustic alarm will be reactivated after time specied in the parameter
76. When alarm status ceases, alarm will be turned o immediately.
Available settings: 0- alarms active indenitely
1-65535 - time in seconds
Default setting: 0Parameter size: 4[bytes]
NOTE
Parameter 75 is ig-
nored when parame-
ter 2 is set to 0.
i

18
ADVANCED PARAMETERS
76. Alarm signalization reactivation period
Parameter determines a time period after which an alarm will be turned
back on (in case it was turned o by parameter 75 setting). It will also
resend commands to 2nd and 3rd association groups as if the alarm
was detected again.
Available settings: 0- alarm reactivation inactive
1-65535 - time in seconds
Default setting: 0Parameter size: 4[bytes]
77. Flood sensor functionality turned o
Allows to turn o the internal ood sensor. Tamper and built in tem-
perature sensor will remain active.
Available settings: 0- Default ood sensor operation (ood detec-
tion, reactions)
1- Built-in ood sensor TURNED OFF (does not
change its state in the main controller, does
not send alarm notications nor turn on/o
commands to 2nd/3rd association groups with
ood state changes. Always visible in the main
controller as turned o)
Default setting: 0Parameter size: 1[byte]
78. Associations in Z-Wave network security mode
This parameter denes how commands are sent in specied associa-
tion groups: as secure or non-secure. Parameter is active only in Z-Wave
network security mode. It does not apply to 1st “Lifeline“group.
Available settings: 0- none of the groups sent as secure
1- 2nd group ”Control” sent as secure
2- 3rd group ”Alarm” sent as secure
4- 4th group„Tamper” sent as secure
Default setting: 7Parameter size: 1[byte]
NOTE
In case a time period
set in parameter 76 is
shorter than the one
specied in parameter
75, the device will not
quiet the alarm, it will
remain active.
i

19
SPECIFICATIONS
Power supply:
Battery type:
Supply type:
Power consumption
(at DC operation):
Maximum voltage at out-
put terminals (ALARM NC,
TAMP NC):
Output terminals max-
imum current carrying
capacity:
EU standards compliance:
Radio protocol:
Radio frequency:
Range:
Operating temperature:
Measured temperature
range:
Temperature measuring
accuracy:
Dimensions (Diameter x
Height):
Battery and/or power supply unit
3V, CR123A
12–24V DC, LPS or NEC class 2
0.4W
24V DC / 20V AC
25mA
RoHS 2011/65/EU
RED 2014/53/EU
Z-Wave (500 series chip)
868.4 or 869.8 MHz EU;
908.4, 908.42 or 916.0 MHz US;
921.4 or 919.8 MHz ANZ;
869.0 MHz RU;
up to 50m outdoors
up to 40m indoors
(depending on terrain and building
structure)
0–40°C
-20–100°C
0.5°C (within 0–40°C range)
72 x 28 mm
#10: Specications
NOTE
Radio frequency of
individual device
must be same as your
Z-Wave controller.
Check information
on the box or consult
your dealer if you are
not sure.
i
NOTE
This product is
intended to be
supplied by a certied
Power Supply Unit
marked “Class 2” or
“LPS” and rated from
12V DC to 24V DC.
i
CAUTION
Using batteries other
than specied may
result in explosion.
Dispose of properly,
observing environ-
mental protection
rules.
!

20
REGULATIONS
#11: Regulations
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interfe-
rence that may cause undesired operation. This equipment has been
tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a residen-
tial installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes and modications not expressly approved by the manufactu-
rer or registrant of this equipment can void your authority to operate
this equipment under Federal Communications Commission’s rules.
Industry Canada (IC) Compliance Notice
This device complies with Industry Canada license-exempt RSSs. Ope-
ration is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interferen-
ce, including interference that may cause undesired operation of the
device.
Cet appareil est conforme aux normes d’exemption de licence RSS d’In-
dustry Canada. Son fonctionnement est soumis aux deux conditions
suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet
appareil doit accepter toute interférence, notamment les interférences
qui peuvent aecter son fonctionnement.
Legal Notices
All information, including, but not limited to, information regarding the
features, functionality, and/or other product specication are subject
to change without notice. Fibaro reserves all rights to revise or upda-
te its products, software, or documentation without any obligation to
notify any individual or entity.
FIBARO and Fibar Group logo are trademarks of Fibar Group S.A. All
other brands and product names referred to herein are trademarks of
their respective holders.
