Invacare® Comet | Information
User Manuals Comet
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
DE SP1550400 User Manual Country 1
CZ 1514593 User Manual Comet Czech 1
D
A
1514594 User Manual Comet Danish 1
DE 1514596 User Manual Comet German 1
EN 1514597 User Manual Comet English 1
ES 1514598 User Manual Comet Spanish 1
ET 1514599 User Manual Comet Estonian 1
FR 1514600 User Manual Comet French 1
IT 1514601 User Manual Comet Italian 1
LT 1514602 User Manual Comet Lithuanian 1
NL 1514603 User Manual Comet Dutch 1
NO 1514604 User Manual Comet Norwegian 1
PL 1514605 User Manual Comet Polish 1
PT 1514606 User Manual Comet Portuguese 1
SK 1514607 User Manual Comet Slovenian 1
SV 1514608 User Manual Comet Swedish 1
FI 1527700 User Manual Comet Finsk 1
5 / 36

Invacare® Comet | Information
Colours
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1523462 Tuch Up Paint Onyx Blue 1
2 SP1523450 Tuch Up Paint Moonstone Silver 1
3 SP1537798 Tuch Up Paint Slate Grey 1
6 / 36

Invacare® Comet | Information
Accessory Compatibility
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
- - For further information please contact your customer service. 1
7 / 36

Invacare® Comet | Information

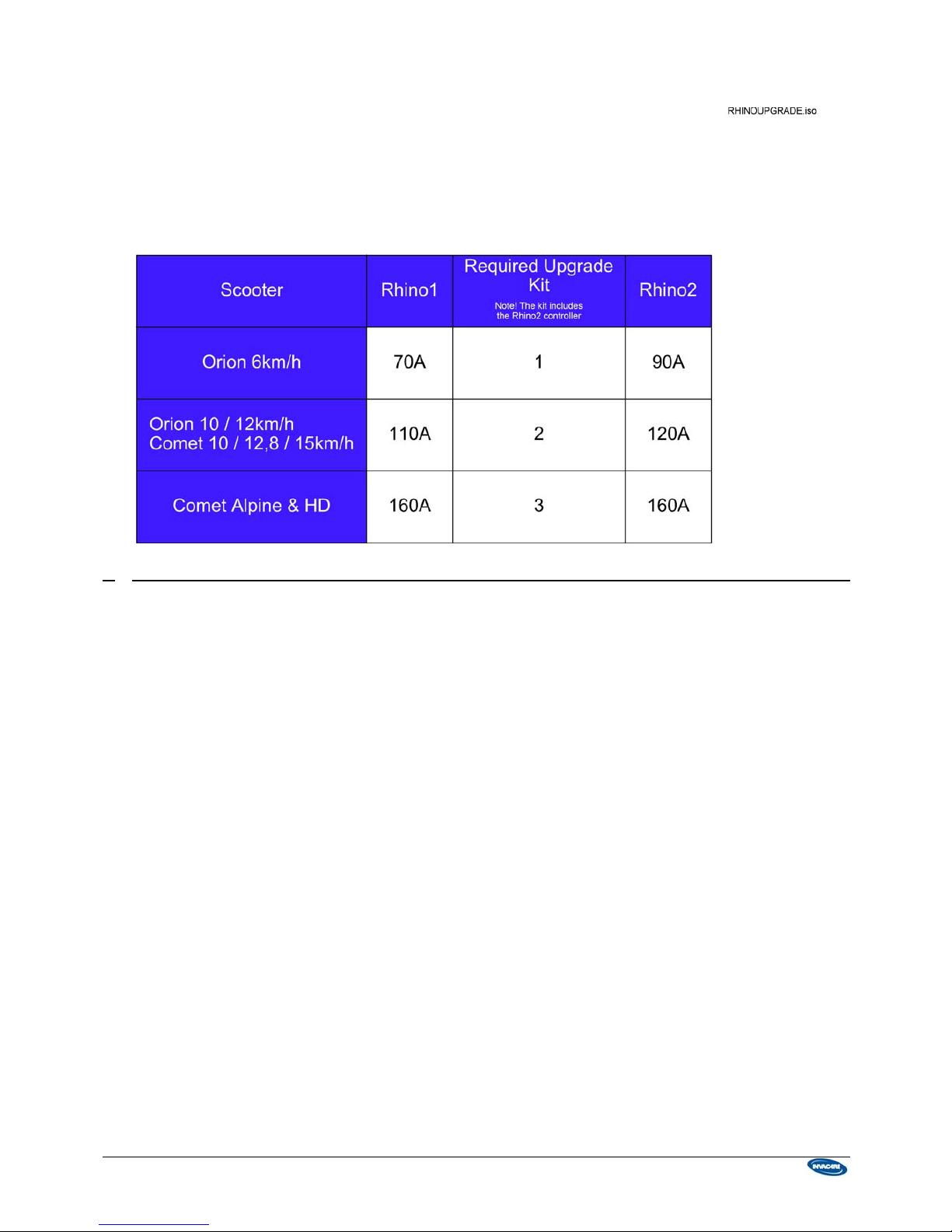

Upgrade kits Rhino1 ==> Rhino2
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1553627 Upgrade Kit Rhino1 - 70A to Rhino2 - 90A 1
2 SP1553628 Upgrade Kit Rhino1 - 110A to Rhino2 - 120A 1
3 SP1553665 Upgrade Kit Rhino1 - 160A to Rhino2 - 160A 1
8 / 36

Invacare® Comet | Chassis

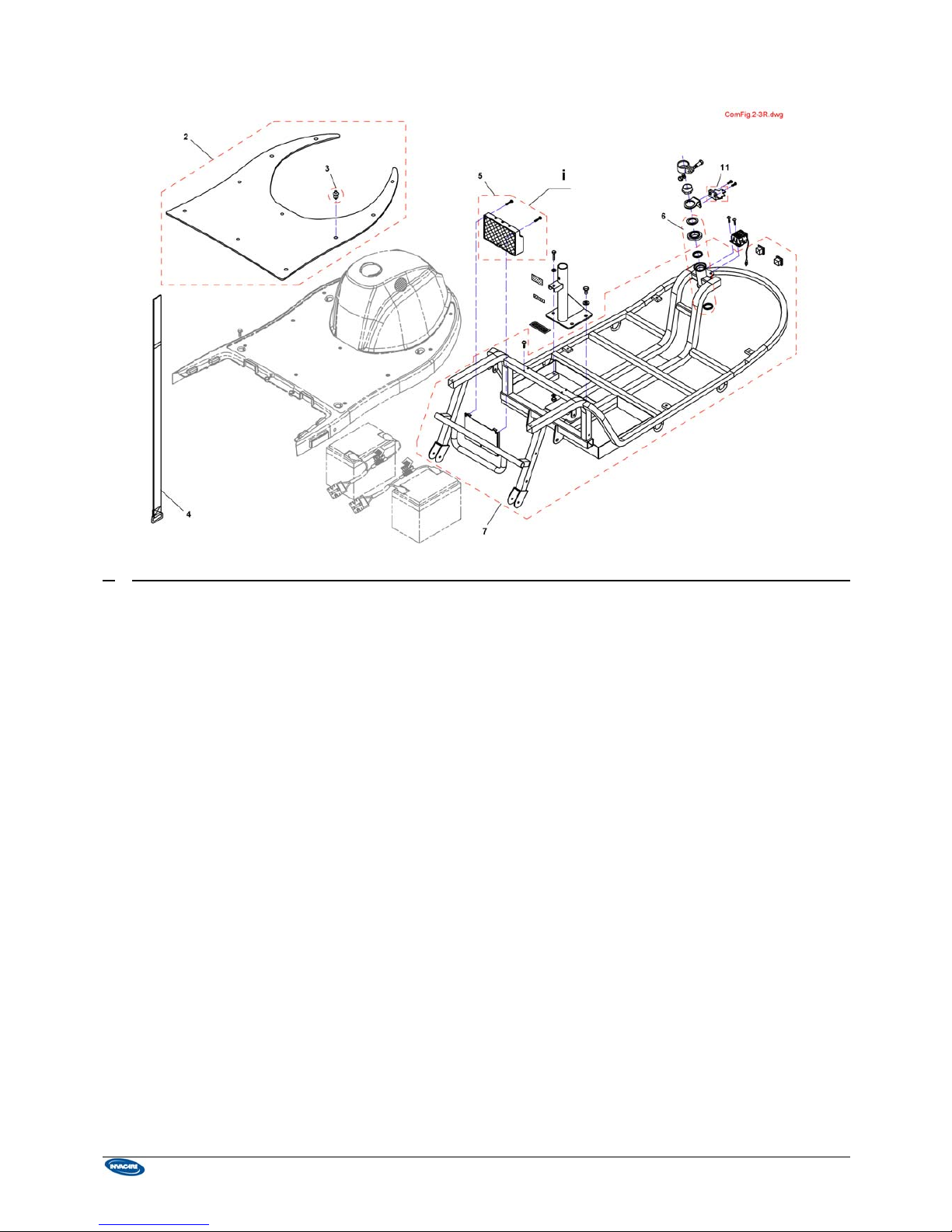

Front Frame 4-Wheele
r
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
i - Upgrade kits Rhino1 ==> Rhino2 1
2 SP1521755 Pad, Leg Shield 1
3 SP1521756 Pad Front RH/LH 1
4 SP1505476 Push Rivet 1
5 SP1505479 Tree Rivet (6 Pieces) 1
6 SP1521758 Band, Battery Comp. 1
7
A
T1517317 Powermodule, Rhino, 110A, DS112KB02 1
7 SP1553399 Powermodule, Rhino2, 120A, DS120 1
For scooter with Rhino, please order Rhino2 upgrade-kit
7 1492574 Powermodule, Rhino, 160A, DS162KD01 1
7 SP1553400 Powermodule, Rhino2, 160A, DS160 1
For scooter with Rhino, please order Rhino2 upgrade-kit
8 SP1505487 Bearing 1
9 SP1521760 Front 1
10 SP1553401 Wire Harness, 120A, Rhino2 1
9 / 36

Invacare® Comet | Chassis
Front Shroud 4-Wheeler
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1521732 Front Shroud, silver 1
1 SP1521733 Front Shroud, blue 1
1 SP1537792 Front Shroud, slate grey 1
1 SP1551635 Front Shroud, red (UK only) 1
2 SP1517733 Turn Signal LH 1
3 SP1517734 Turn Signal RH 1
4 SP1517878 Head Light, cmpl. →2008-08-18 1
4 SP1527473 Head Light, cmpl. 2008-08-19 →1
5 SP1521762 Cover Bumper Front 1
7 SP1521735 Moulding LH 1
8 SP1521734 Moulding RH 1
9 SP1521754 Moulding 1
10 SP1517331 Reflector 1
11 SP1522030 Bulb Turn Signal 24V/10W 1
12 SP1522029 Bulb Head Light 24V/21W →2008-08-18 1
12 SP1527474 Bulb Head Light 12V/15W 2008-08-19 →1
10 / 36

Invacare® Comet | Chassis
Front Frame 3-Wheele
r
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
i - Upgrade kits Rhino1 ==> Rhino2 1
2 SP1521765 Pad, Leg Shield 1
3 SP1505476 Push Rivet 1
4 SP1521758 Band, Battery Comp. 1
5
A
T1517317 Powermodule, Rhino, 110A, DS112KB02 1
5 SP1553399 Powermodule, Rhino2, 120A, DS120 1
For scooter with Rhino, please order Rhino2 upgrade-kit
5 1492574 Powermodule, Rhino, 160A, DS162KD01 1
5 SP1553400 Powermodule, Rhino2, 160A, DS160 1
For scooter with Rhino, please order Rhino2 upgrade-kit
6 SP1505487 Bearing 1
7 SP1521729 Frame 3-Wheeler 1
11 SP1536164 Trigger limit switch 1
11 / 36

Invacare® Comet | Chassis
Front Shroud 3-Wheeler
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1517331 Reflector 1
2 SP1521730 Shroud, silver 1
2 SP1521731 Shroud, blue 1
3 SP1518016 Turn Signal LH 1
4 SP1518017 Turn Signal RH 1
5 SP1557367 Moulding 1
6 SP1517878 Head Light, cmpl. →2008-08-18 1
6 SP1527473 Head Light, cmpl. 2008-08-19 →1
7 SP1522030 Bulb Turn Signal 24V/10W 1
8 SP1522029 Bulb Head Light 24V/21W →2008-08-18 1
8 SP1527474 Bulb Head Light 12V/15W 2008-08-19 →1
12 / 36

Invacare® Comet | Chassis

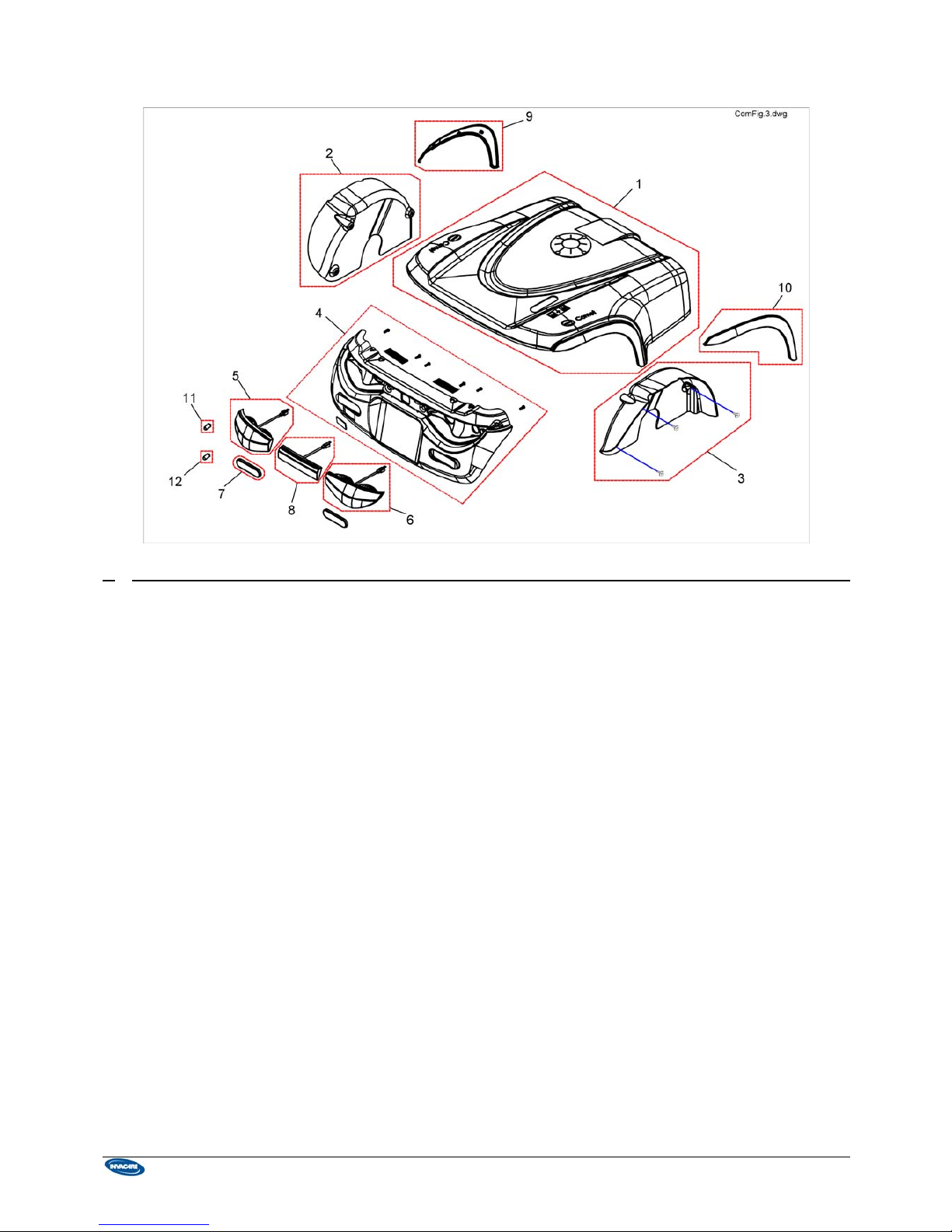

Rear Shroud
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1521837 Rear Shroud, silver 1
1 SP1521838 Rear Shroud, blue 1
1 SP1537793 Rear Shroud, slate grey, (Comet HD) 1
1 SP1537794 Rear Shroud, slate grey, (Comet Alpine) 1
1 SP1551636 Rear Shroud, red (UK only) 1
2 SP1521862 Fender, left 1
3 SP1521839 Fender, right 1
4 SP1521683 Cover Bumper Rear 1
5 SP1518034 Turn Signal Rear LH 1
6 SP1518033 Turn Signal Rear RH 1
7 SP1518036 Reflector-R, E-Mark 1
8 SP1518035 Brake Light, cmpl. 1
9 SP1521882 Rear Cover, LH 1
10 SP1521883 Rear Cover, RH 1
11 SP1522030 Bulb Turn Signal 24V/10W 1
12 SP1522034 Bulb Rear Light 24V/5W 1
13 / 36

Invacare® Comet | Chassis
Rear Frame
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1521888 Holder Differenzial 1
1 SP1533846 Holder Differenzial Comet HD / Alpine 1
2 SP1521886 Shock Absorber (350lbs) 1
2 SP1533847 Shock Absorber Comet HD (165mm, 550lbs) 1
2 SP1533848 Shock Absorber Comet Alpine (150mm, 550lbs) 1
3 SP1521597 Plug, Cane Bracket 1
4 SP1541614 Mounting-kit rear frame 1
5 SP1541615 Rear frame, Comet standard 1
5 SP1541616 Rear frame, Comet HD 1
14 / 36

Invacare® Comet | Seat
Seat & Seatoptions
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1521890 Standard Seat (20") 1
1 SP1533705 Seat Comet HD (26'') 1
2 SP1521693 Seat (22") 1
3 SP1521689
A
rmrest LH 1
3 SP1533706
A
rmrest LH, Comet HD 1
4 SP1521688
A
rmrest RH 1
4 SP1533707
A
rmrest RH, Comet HD 1
5 SP1521690 Slide Assembl
y
1
6 1505533 Seatbracket Assembly 1
6 SP1533708 Seatbracket Assembly, Comet HD 1
7 SP1521691 Seatbracket Standart 1
8 SP1528986 Seat Suspension 508,5mm up to 100kg 1
not available for Comet HD
8 SP1528987 Seat Suspension 533,5mm up to 100kg 1
not available for Comet HD
8 SP1528988 Seat Suspension 558,5mm up to 100kg 1
not available for Comet HD
8 SP1522459 Seat Suspension 508,5mm up to 160kg 1
8 SP1522460 Seat Suspension 533,5mm up to 160kg 1
8 SP1522461 Seat Suspension 558,5mm up to 160kg 1
10 SP1521979 Seatlifter 1
11 SP1521986 Controller Seatlifter 1
12 SP1521980 Seatlifter, cmpl. 1
When retrofitting a seatlifter to a scooter ==> 18/08/08 remember to order the main
cable-loom - not available for Comet H
D
13 SP1522037 Switch Seatlifte
r
1
14 SP1529380 Headrest 1
15 / 36

Invacare® Comet | Front / Rear Wheel

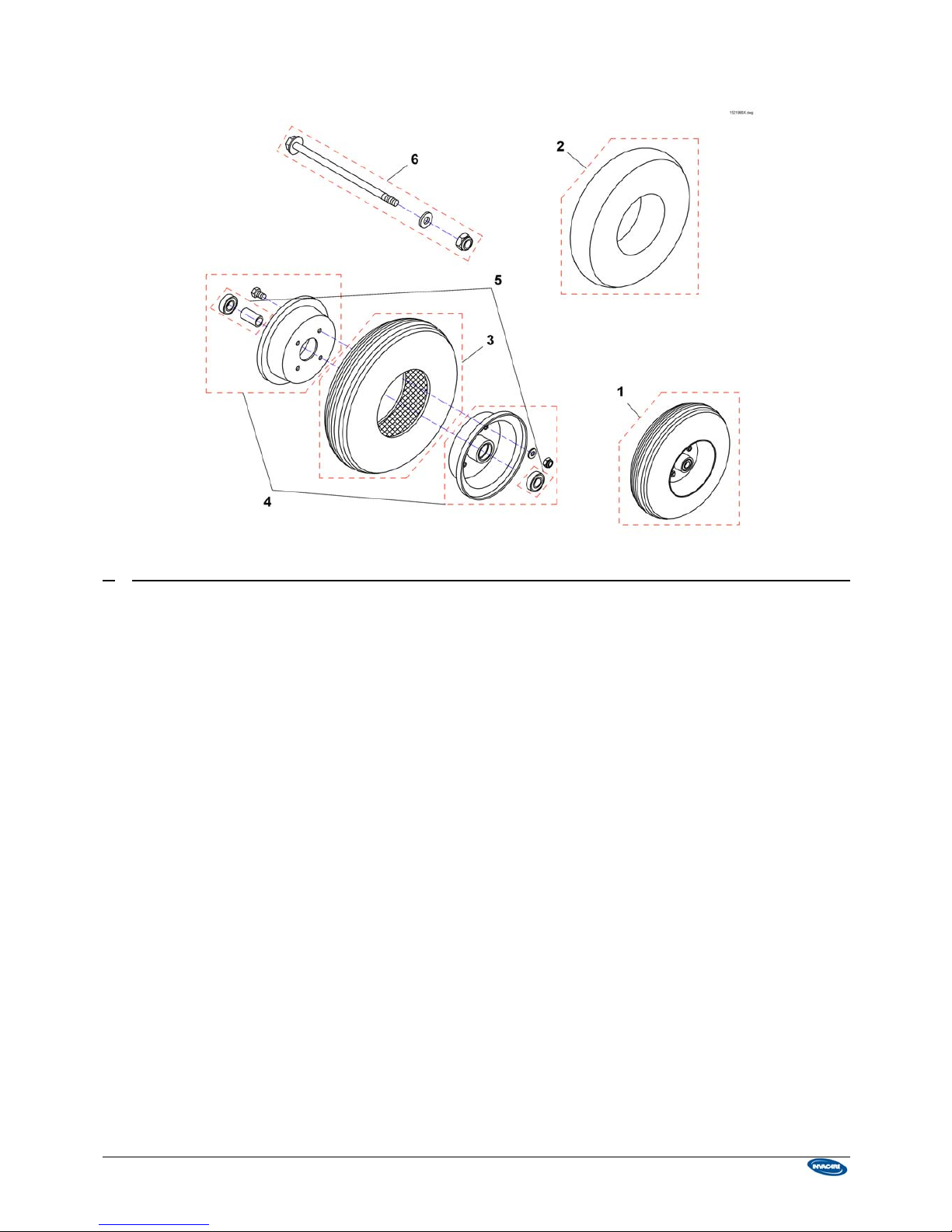

Front wheel 3-Wheeler
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1521998 Frontwheel 1
2 SP1527714 Tube 1
3 SP1527750 Tire with Tube 1
3 SP1543159 PU tyre 13 inch 1
4 SP1527754 Wheel Rim-Kit 1
5 SP1527747 Bearing-Kit 1
6 SP1557458 Front axle, cpl. 1
16 / 36

Invacare® Comet | Front / Rear Wheel
Front wheel 4-Wheele
r
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1521999 Frontwheel 1
2 SP1527714 Tube 1
3 SP1527750 Tire with Tube 1
3 SP1543159 PU tyre 13 inch 1
4 SP1527751 Bearing-Kit 1
5 SP1527752 Wheel Rim-Kit 1
6 SP1557460 Mounting kit 1
17 / 36

Invacare® Comet | Front / Rear Wheel
Rear wheel
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1522020 Rear Wheel Assembl
y
1
2 SP1527714 Tube 1
3 SP1527750 Tire with Tube 1
3 SP1543159 PU tyre 13 inch 1
4 SP1527749 Wheel Rim-Kit 1
5 SP1557459 Mounting kit 1
18 / 36

Invacare® Comet | Front / Rear Wheel

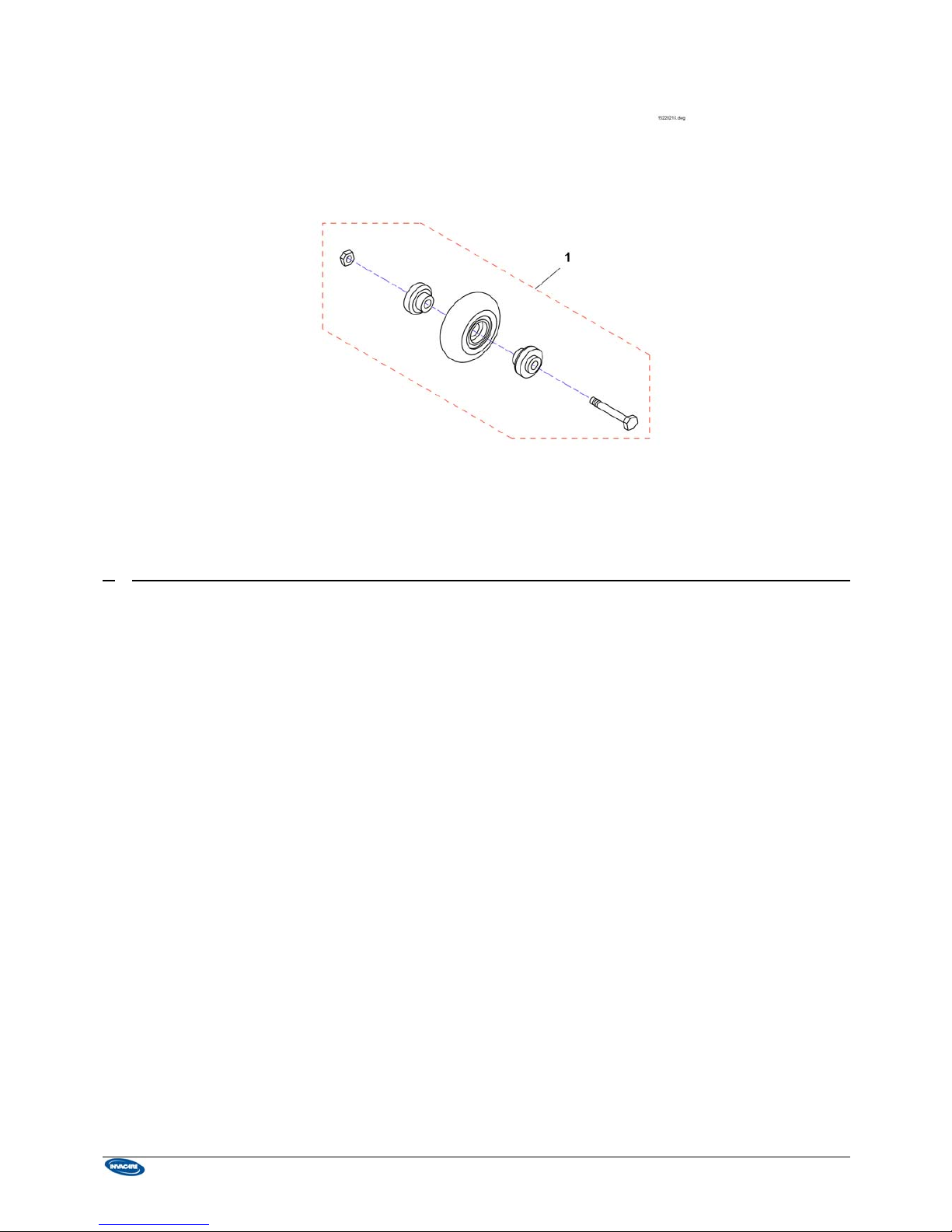

Anti-tipp-wheel
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1522021 Wheel, Anti-Tipper 1
19 / 36

Invacare® Comet | Propulsion

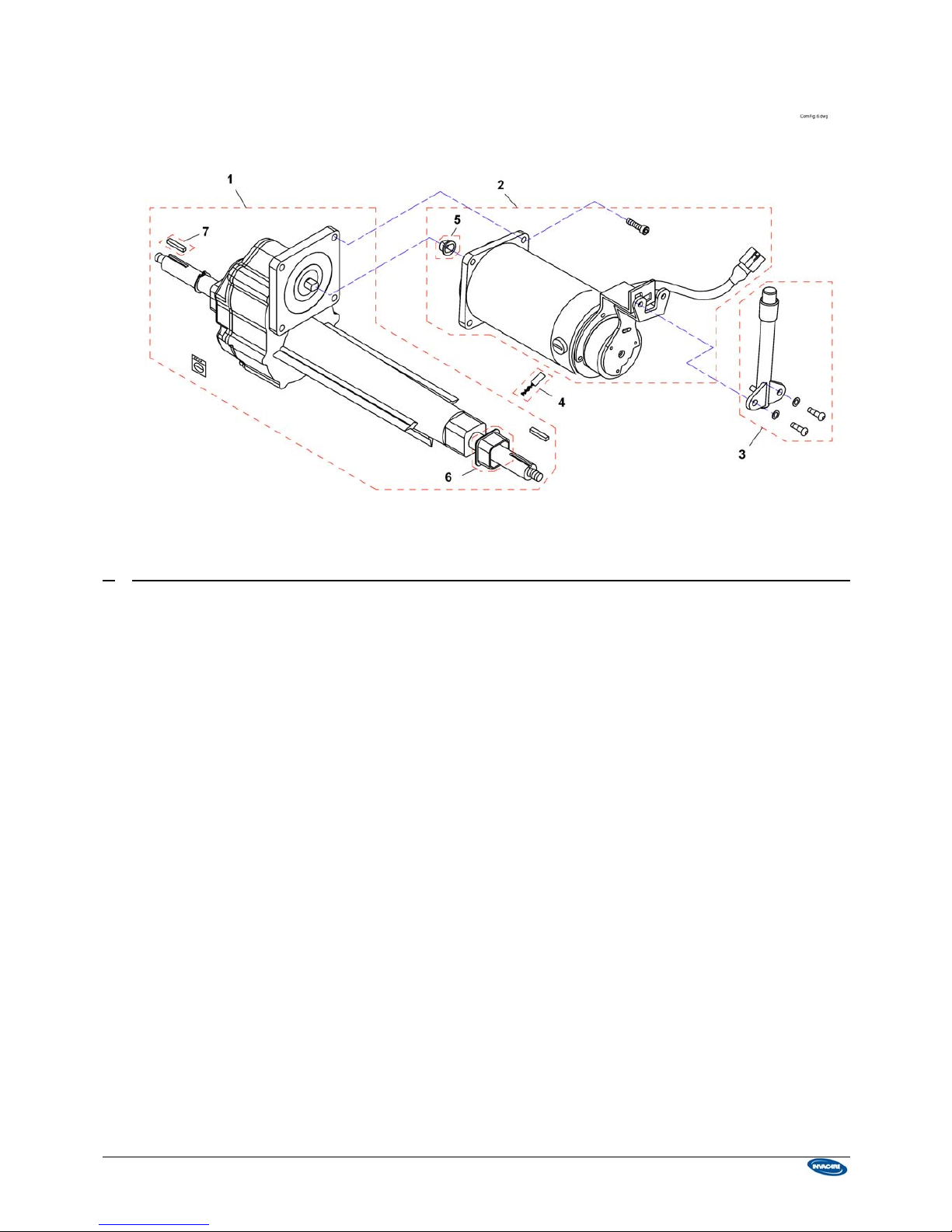

Propulsion 10/15 km/h
Version: 2012/01/30a EN
Pos. Part number Description Valid from →until Qty
1 SP1522011 Differential 10 km/h 1
1 SP1522013 Differential 12,8 km/h & 15 km/h 1
1 SP1533710 Differenzial Comet HD / Alpine 10km/h 1
2 SP1518390 Motor Orion 12 km/h & Comet 10 km/h, Rhino 1
2 SP1553428 Motor Orion 12 km/h & Comet 10 km/h, Rhino2 1
2 SP1522017 Motor 12,8 km/h & 15 km/h, Rhino 1
2 SP1553429 Motor 12,8 km/h & 15 km/h, Rhino2 1
2 SP1533850 Motor 10km/h Comet HD, Rhino 1
2 SP1553426 Motor 10 km/h Comet HD, Rhino2 1
2 SP1533851 Motor 10 km/h Comet Alpine, Rhino 1
2 SP1553427 Motor, 10 km/h Comet Alpine, Rhino2 1
3 SP1505672 Disclutching Lever 113,2 mm 1
4 SP1527845 Carbon Brush (4 Pieces) 1
4 SP1533853 Carbon Brush Comet HD/Alpine (4 Pieces) 1
5 1505667 Guide 1
5 SP1533842 Guide Comet HD / Alpine 1
6 SP1533852 Rubber Pad 1
7 1505669 Key 5x30 1
7 SP1553438 Key 5x35 1
Comet HD/Alpine
20 / 36
