Fortis 700C BAFANG User manual

700C BAFANG MID-DRIVE
ELECTRIC BIKE
FS7MDSTBBMA

Electric Assisted Bike Regulations
The EN 15194 EU standard or EPAC (Electric Power Assisted Cycle) conforms to the following
characteristics for electric power assisted bikes:
• Motor assistance only starts when the cyclist pedals.
• The assistance cuts out as soon as the cyclist stops pedalling.
• The assistance cuts out as soon as the speed exceeds 25km/h.
Adherence to this standard enables the use of the electric bikes in the same conditions as
any other bicycle, particularly on bicycle paths and bicycle-specific lanes.
Recommendation before First Ride
1. Before first use, double-check the function of all the parts of your electric bike. If you
have any doubts or if you detect a problem, contact Kogan.com for further support
assistance.
2. If you lend your bicycle to a third party, give them this user guide with the bicycle
and ensure that they read it before the first ride.
3. Respect local, state and national road traffic regulations.
4. For your safety, it is highly recommended that you wear a certified helmet. Ensure
you are always following local helmet laws while operating the bicycle.
5. When used during heavy rain, snow, in slippery conditions or in the case of low
visibility, be careful and adjust your speed.
6. At night, ensure the bicycle headlights are activated while operating.
7. Tr y i n g t o r e p a i r a n y t h i n g t h a t involves removing technical or electrical components
is strongly advised against. If maintenance or repair is necessary, contact
Kogan.com for support assistance.
8. The manufacturer declines any responsibility due to overloading or items that are
not correctly attached to the baggage rack.
9. Using high pressured water jets to clean the bike is strongly advised against.
10. Check the battery level before each use. Ensure the battery is fully charged prior to
first use.
11. In order to extend battery performance and lifespan, do not commence operation
when the battery is only half-charged.
12. The battery life will vary depending on where you ride it (inclines will reduce power
rapidly) and how you ride (assistance mode chosen). The greater the assistance
used, the more you'll use the battery and the shorter it will last. This bike is fitted
with gears; remember to use them accordingly relative to riding conditions in order
to extend battery life. The amount of weight carried will also have an impact on
battery lifespan. Extreme low temperatures can also impact battery lifespan.
13. It is recommended that you charge the battery at least every 2 months when the
bike is not used; during winter, for example.
SAFETY & WARNINGS

14. Store the battery in a dry place after having completely recharged it. Avoid extreme
temperatures (both low and high) as they can damage the battery. Optimal
operating range: -10°C to 35°C.
Cleaning and Maintenance
• Use a damp cloth with neutral detergent to clean the bike frame. Do not use any
detergents or cleaning liquids liable to deteriorate the frame or components.
• Use a dedicated bicycle cleaner or hot soapy water to clean your bike and its
components, such as wheels, hubs, rims, brakes and pedals. Rinse well with clean
water before use.
• Do not use high pressure water jets to clean your bike, especially on the electrical
components (such as the battery), as this may result in short circuiting or system
malfunctions.
• All the components and parts of your bicycle are subject to normal wear and fatigue.
• Keep a close eye on any change in the shape or colour of a component or traces of
oxidation (rust) on your bicycle. If this occurs, do not use the product until the
component has been replaced.
Warning
• Do not ride after consuming alcohol or drugs (prescribed or not), or while under the
affects of medication which might make you drowsy.
• Do not ride while you feel unwell, nor after consuming alcohol or drugs. This product has
the potential to endanger yourself and others if not operated responsibly.
• Pedal-assisted bicycles are not designed for 2 or more people. Do not ride carry
passengers as these bicycles are not designed to carry the additional load of a second
rider.
• Do not put batteries in normal waste bins. Dispose of used batteries in a certified
recycling facility.
• Do not over-lubricate; if oil contacts the wheel rim, brake pads or brake disks, this will
result in loss of braking performance and an increase in stopping distances. This could
potentially cause loss of control, accidents, and injury.
Transport
It is highly recommended that you do not overload your pedal-assisted bicycle, as this may
damage the electrical components or cause malfunctions, such as overheating of the
battery or the motor. Do not store the battery in excessively hot or cold places.
• Maximum transport weight on the bicycle must not exceed 75kg.
• Regularly check battery brackets and mountings.
• Always wear a helmet when riding your pedal-assisted bicycle.
• If a rack is not already fitted to your bicycle, please do not attempt to fit one yourself.
• Do not carry anything on the rack that might hide lights or reflectors.

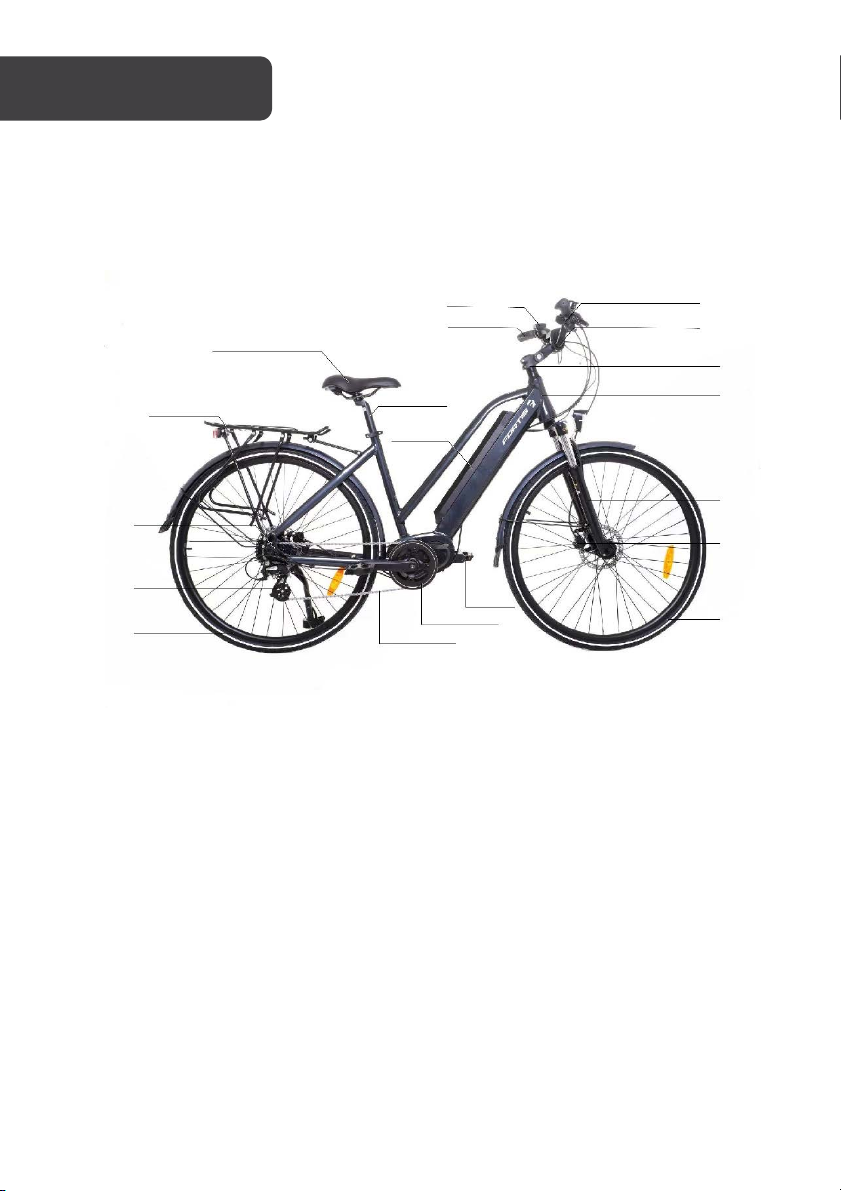

Basic overview
OVERVIEW
Headlight
Front wheel
Pedals
Crankset
Chain
Rack
Seat
Seat post
Bike frame
Handlebar stem
Fork
Rear wheel
Front
brakes
Handlebars
Battery
Rear derailleur
Control pad
Handle grips
Brake lever
Rear sprocket

Stem Assembly
Stem fitted in the head tube with an expanding bolt (Figure 1). Insert the stem into the head
tube, respecting the minimum insertion limit as indicated on the stem and tighten the
expanding bolt to 18Nm.
Before tightening the stem, make sure that it is in-line with the front wheel.
Figure 1

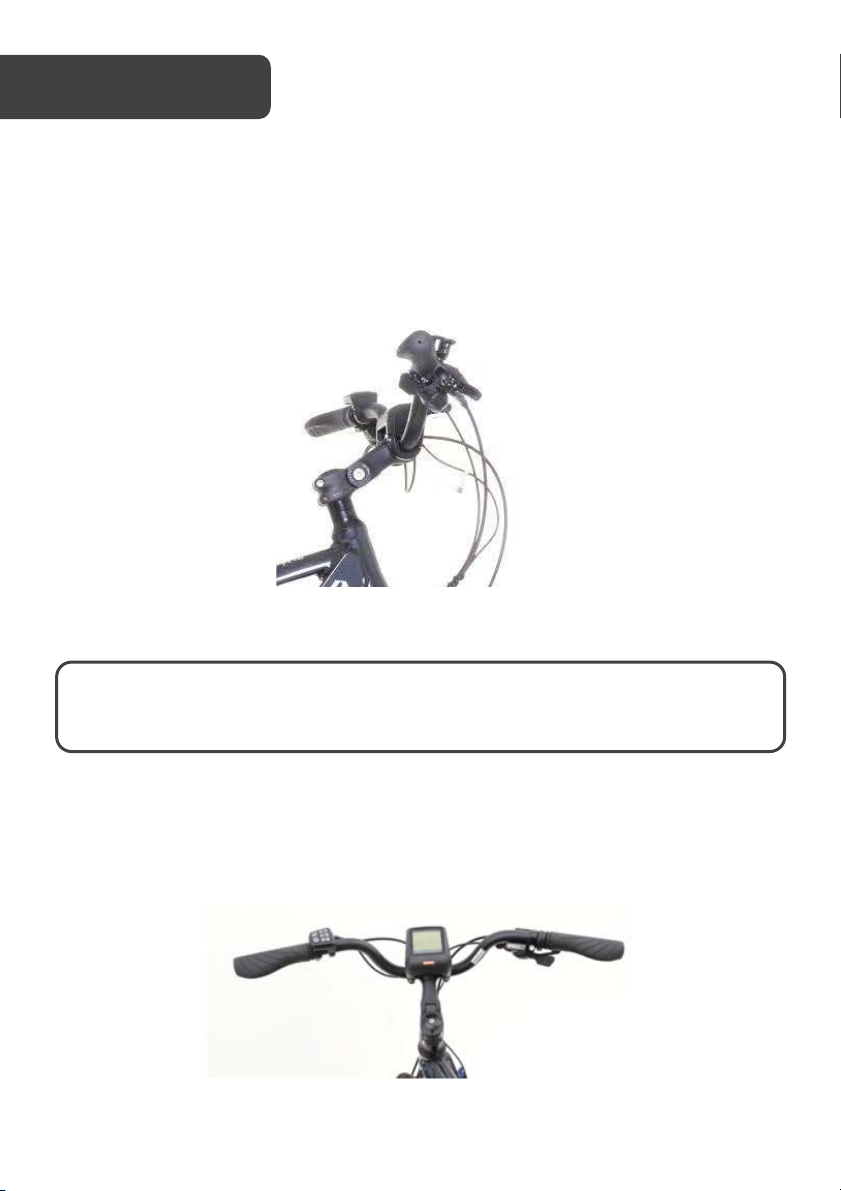

Handlebar Assembly
Position the handlebar inside the stem (Figure 2). Respecting assembly indications on the
handlebar, tighten screw to 18Nm. Before completely tightening, check that the handlebar,
the brake levers and shifter are correctly positioned.
Figure 2
ASSEMBLY
WARNING:To p r ev e n t s te e r i n g s y s te m d a m a g e a n d p o s s i b l e l o s s of
control, the stem must be inserted enough so that the minimum
insertion marks are completely covered.

Wheel Mounting
Insert the maximum length of the skewer into the wheel hub, tighten locknut and tighten the
whole system with the quick release lever (Figure 3). Make sure that the wheel is correctly
fitted.
Figure 3
Brake Adjustment
After installing the front wheel, re-connect the front brake by squeezing the arms together
and sliding the cable guide back into the carrier. The wheel should not rub on the brake
pads. Next, squeeze the brake lever and take note of the brake pads contacting the side of
the wheel. The pads should contact the rim on both sides at the same time. Finally, hold the
brake lever firm and try to move the bike forward. The brake should hold well enough to keep
the wheel from moving. Repeat these steps for the rear wheel.
Seat Assembly
Insert the seat stem into the frame (Figure 4), you can use grease to help assembly. Insert at
least to the minimal indication on the seat stem using rotary movements. Pull the quick-
release lever free and insert the seat-post to the minimal insertion marker indicated on the
seat-post. Tighten the quick-release clamp and then fold the lever to closed position.
Minimal torque specifications are 19.5Nm.
Figure 4

Recommendations and Component Control before Use
Before using your bicycle for the first time, you must check that all adjustments have been
correctly made.
• Check that the front and rear brakes work, check brake pads for wear.
• Check the cables and sheaths and that the hydraulic system functions correctly.
Wheels and Tires
• Check tires are inflated to the pressure indicated (either in Bar or Psi) on the tire
sidewall.
• Check that the tires are in good condition and are free from cuts or bulges.
• Check the state of wheel rims and ensure that spokes are correctly tightened.
• Check that the wheels are correctly fitted to the bicycle, either by a quick-release
system or nuts.
Steering
• Check that the handlebar and stem are correctly tightened and that they are in line
with the wheel and the fork.
• Check that the steering clamp is correctly tightened and adjusted in the right
direction.
Frame and Fork
• Check that the frame shows no signs of fatigue or damage and that the fork works
correctly.
Chain
• Make sure that the chain is at the correct tension.
• Make sure that it is clean, rust free and properly oiled. Use adapted lubrication for
use in extreme weather conditions.
Seat and Seat-post
Make sure that seat and seat-post are correctly tightened and positioned.
BEFORE FIRST USE
WARNING: If a wheel rim or spokes are damaged, immediately
replace the wheel.

Bearings
Check that all bearings are properly adjusted and lubricate if needed. Make sure that they
are not too loose or that they have seized up. Check steering bearings, wheel bearings,
pedal bearings and bottom bracket bearings.
Crank set and Pedals
Make sure that the pedals are correctly tightened and that the teeth of the crank set do not
show any unusual wear.
Accessories
• Check front and rear lights; also check that horn/bell work.
• Make sure that the reflectors are not hidden.
• Check that the battery is correctly fitted and secured.
• Make sure that the rider wears a helmet.
To r qu e S p e c i f i c a t i o ns
• The handlebar is fitted to a stem. The height of some stems can be adjusted. If you
must dismantle the handlebar or turn it to transport the bicycle, please make sure
that you correctly reassemble and centre the handlebars; check the position by
placing your hands on the grips to find the best position. Make sure all bolts are
correctly tightened. Once handlebar and stem are assembled, make sure that the
brake and derailleur sheaths are free. Recommended torque specification: 13-
14Nm. Recommended torque specification for the rear rack is 16Nm.
• You ca n adjust th e angle of th e stem by adjust i n g the bol t l o cated un d e r the ste m
using an Allen key. Once you have found the desired angle, tighten the stem to the
headset. Recommended torque specifications are 18-20Nm.
• If you remove nut fitted wheels, make sure that when you replace them you respect
a minimal recommended torque specification of 30Nm for the rear wheel and
25Nm for the front wheel.

1. Battery
1.1. Use the Battery Properly
• The battery can always be charged at any time no matter how much power is left.
However, in the following cases, you should have the battery fully charged. Make
sure to use the specified charger to charge the battery.
• The battery is usually not fully charged for the convenience of transport. Make sure
the battery is fully charged before using the battery.
• If the battery is not intended for use in a long time, make sure the e-bike battery is
charged before storage and is afterwards charged at least once every six months.
Do not leave the battery completely discharged.
• Once you have begun to use the battery, please have it charged at least once
every two weeks.
1.2. Charge the Battery
• When using the battery for the first time, check whether the battery has not run low
due to transportation or storage.
• When the battery is not intended for use in a long time, charge the battery regularly
to avoid excessive battery discharge.
• Please charge the battery as soon as possible before it runs out; over-discharge can
cause permanent damage to the battery.
• No matter how much power is left, the battery can be charged at any time.
However, the specified charger must be used to avoid overcharge of the battery.
• To m a i n t a i n t h e p r o p e r u s e o f t h e b a t t e r y, do not subject the battery to heavy
shocks or a heat source or disfeature the battery or short circuit its terminals.
OPERATION
Note:
If the battery is completely discharged, charge it as soon as possible. If you do not
charge the battery, it will be damaged.

2. Display
2.1 Appearance and Dimensions
The shell is made of PC (poly carbonate). The liquid crystal interface is made of hard
hardness acrylic.
94mm
ø31.80mm/25.4mm/22.2mm
82mm
22.20mm
44mm
41mm

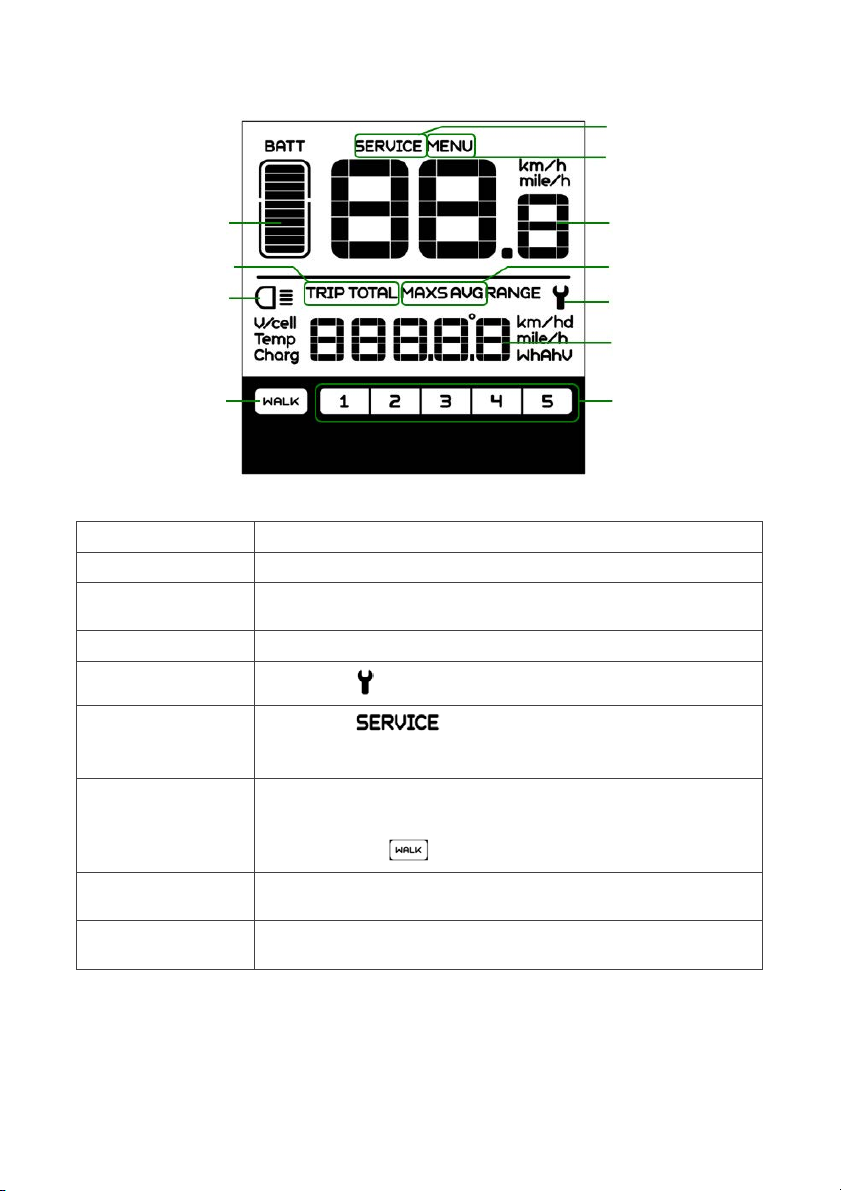

2.2 Function Overview and Key Definitions
Function Overview
• The display adopts a two-way serial communication protocol. The external five-key
keypad enables users to operate the display conveniently.

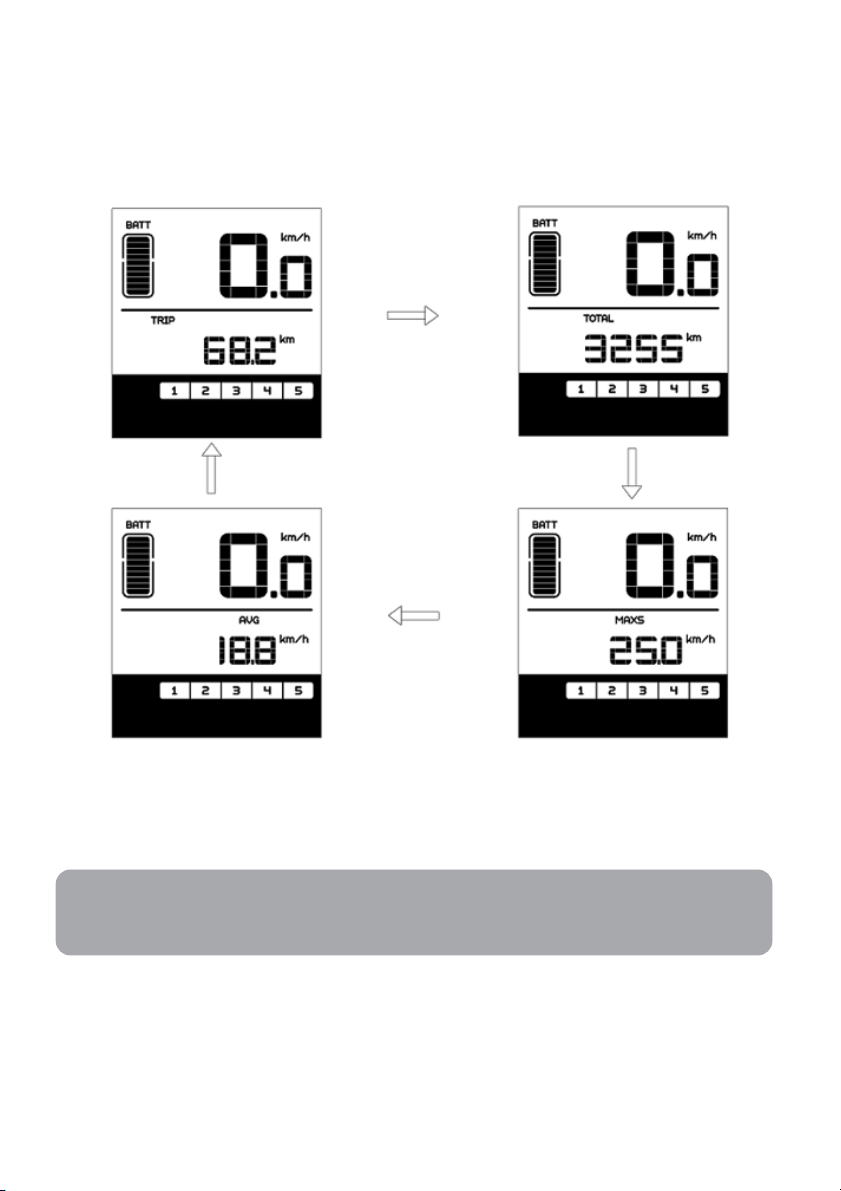

• Speed display: displaying the real-time SPEED, the max speed MAXS and the
average speed AVG.
• Km or mile: the user can set the unit of distance as km or mile according to
personal habit.
• Intelligent battery level indication: with an optimisation algorithm, a stable display
of the battery level is ensured and the problem of fluctuant battery level indication
common with an average display is avoided.
• Automatic light-sensitive headlight/taillight: as the outside light changes, the
headlight and taillight will be automatically turned on/ off.
• Backlight brightness: there are 5 levels of brightness for the display backlight, of
which Level 1 indicates the darkest backlight while Level 5 indicates the brightest
backlight.
• Mode indication: it displays the current assist mode (Mode 1 to Mode 5);
• Tr i p d i s t a n c e i n d i c a t i o n : t h e r e a r e t w o d i s t a n c e m o d e s , s i n g l e -trip distance TRIP
and accumulated distance, TOTAL. The displayable max distance is 99999.
• Fault code prompt.
• Walk assistance.
• Parameter settings: various parameters, including mode, wheel diameter, speed
limit, etc. can be set on the computer via a communication cable. See the
parameter setting instruction document for details.
• Maintenance warning (this function is inactive by default): there prompts, on the
display, maintenance warning information based on battery charge/discharge
cycles and riding distance. The display automatically estimates the battery life and
gives battery maintenance warnings when the number of charge/discharge cycles
exceeds the set value. When the accumulated riding distance exceeds the set
value, the display will also prompt bicycle maintenance necessity.

Items to be Shown on the Display:
Speed mode:
Average speed (AVG km/h), maximum speed (MAXS km/h)
Speed display:
Display of the speed, km/h or mile/h
Battery level:
10-segment battery indication; the voltage that each segment
represents can be customised.
Headlight indication:
Only active when the headlight and backlight are on.
Fault prompt:
The symbol will be displayed when a fault is detected.
Maintenance
warning (inactive by
default):
The symbol is displayed when there is a need for
maintenance (the riding distance or the number of battery
charge/discharge cycles exceeds the set value)
Mode indication:
It displays the current assistance mode (mode 1 to mode 5); if
there is no numeric display, it means that there is no
assistance. If the rider is walking and pushing his/her bicycle,
only the symbol will be displayed.
Distance mode:
There are two distance modes, single-trip range TRIP and
accumulated distance, TOTAL.
Distance indication:
It displays the information on distance according to the
settings.
Headlight
Battery level
Distance mode
Walk assistance
Speed display
Speed mode
Fault prompt
Riding distance display
Assist mode
Maintenance warning
Menu

Button overview
3. Normal Operation
3.1. Turning on
• Tu r n o n t h e p o w e r. P r e s s a n d h o l d t h e Power button for 2 seconds to power on the
display.
• To t u r n t h e d i s p l a y o f f , p r e s s a n d h o l d the Power button for another 2 seconds
• If the bike is left unused and the display is left un-operated for 5 minutes (the time
can be adjusted by the user), the display will be automatically turned off.
3.2. Assist Mode Selection
In the manual gearshift mode, press the Increase "+" or Decrease "–" buttons to switch the
assist mode to change the motor assist power. The lowest mode is Mode 1 and the highest
mode is Mode 5. When the display is on, the default mode is Mode 1. It indicates no power
assist when there is no numeric mode display.
Assist Mode Selection Interface
Headlight
Power
Mode (i)
Decrease (–)
Increase (+)

3.3. Distance Mode and Speed Mode Switch
Press the Mode (i) button to switch distance/speed display information, giving a display of
single-trip distance (TRIP km), accumulated distance (TOTAL km), maximum riding speed
(MAXS km/h), average riding speed (AVG km/h), Range and OC sequentially.
Mode Switch Interface
Note:
Range and OC settings are displayed in the menu but are non-functioning for this
model. This does not affect the bike’s operation.

3.4. Headlight/ Backlight Switch
• After pressing and holding the Headlight button for 2 seconds, both the backlight
of the display and the headlight (needing the support of the controller) will be
turned on.
• Hold and press the Headlight button again for 2 seconds to power off the headlight
and the display backlight.
Note: If the display is turned on in a dark environment, the backlight/ headlight will be
automatically turned on. But if the backlight/ headlight is then manually turned off, they
have to be manually turned on afterwards.
Headlight/Backlight On/off Interface
• This model features front and rear battery lights. You can turn the lights on/off with
the button on the lights.
3.5. Walk Assistance Mode
After pressing and holding the Decrease (–) button for 2 seconds, the electric bicycle enters
the state of walk assistance and the symbol WALK is displayed in the field of assistance
mode.
Once the Decrease (–) button is released, the electric bicycle will exit the mode of walk
assistance.
Walk Assistance Mode Switch Interface

3.6. Battery Level Indication
When the battery voltage is normal, the battery is indicated by a certain number of
segments with the border lighted according to the actual quantity of electricity. It the
battery is under-voltage, all of the 10 segments will black out with the border blinking,
indicating that the battery needs to be charged immediately.

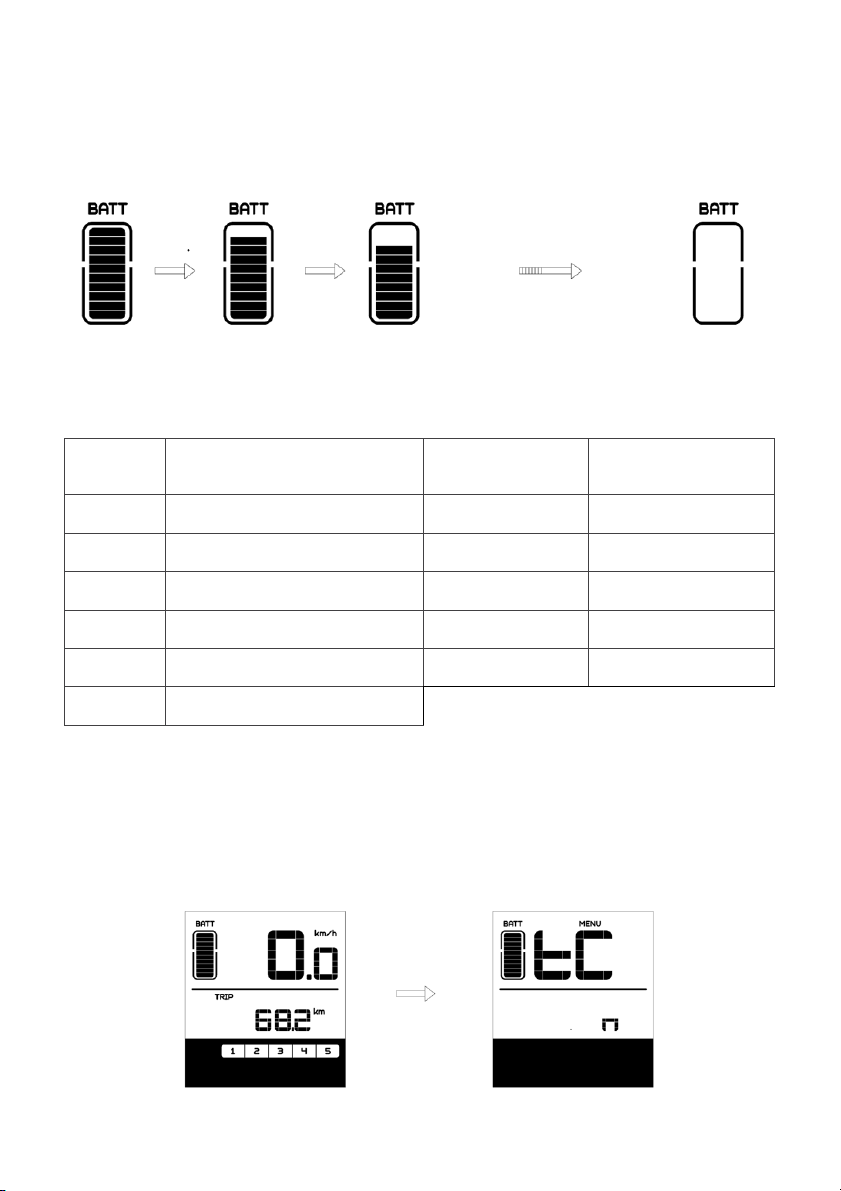

Battery Level Indication
Ta b l e f o r B a t t e r y L e ve l C h e c k :
Number of
Segments
Battery status
Number of
Segments
Battery status
10
≥90%
4
35%≤C<45%
9
80%≤C<90%
3
25%≤C<35%
8
70%≤C<80%
2
15%≤C<25%
7
60%≤C<70%
1
5%≤C<15%
6
50%≤C<60%
Border blinking
C<5%
5
45%≤C<50%
4. Parameter Setting
Setting Preparation
When the display is active, pressing the Mode (i) button twice (the interval between the two
pressing actions should be shorter than 0.3 seconds), the system will enter the MENU
parameter setting state, in which the display parameters can be set. Press the Mode (i)
button twice again to exit the parameter setting state.
Enter the Parameter Setting Interface

In the parameter setting state, when the parameter to be set begins to flash, press the
Increase (+) or Decrease (–) buttons to adjust the parameter value. Press the Mode (i) button
to switch among the to-be-set parameters. Press the Mode (i) button twice (the interval
between the two pressing actions should be shorter than 0.3 seconds) to exit the parameter
setting state.
In the parameter setting state, if no operation is performed to the display for 10 seconds, the
display will return to the normal riding state.

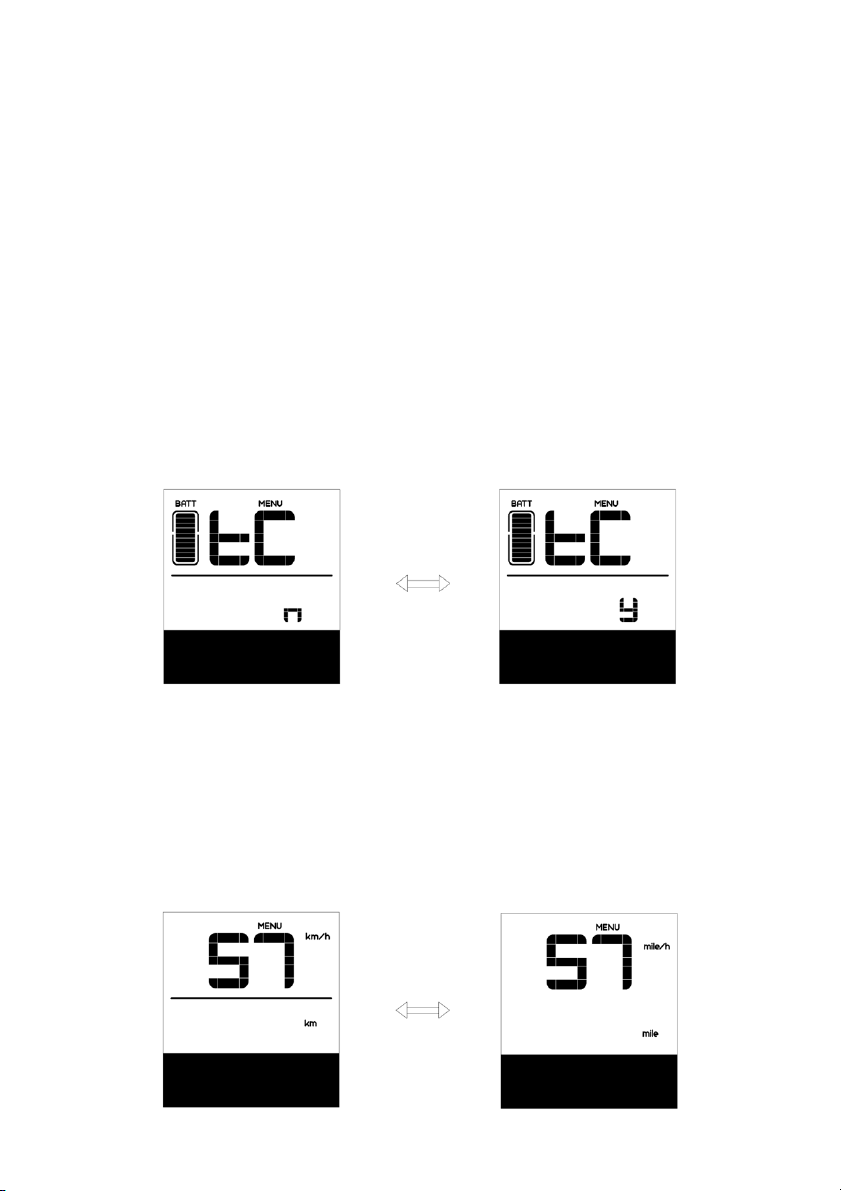

Data Reset:
After pressing the Mode (i) button (the interval between the two pressing actions should be
shorter than 0.3 seconds), the display enters the MENU state. In this state, the speed field
displays ‘tC’ and then also displays ‘y’ after pressing the Increase (+) button.
At this moment, the temporary data, including maximum speed (MAXS), average speed
(AVG) and single-trip distance (TRIP) can be cleared. After this setting, press the Mode (i)
button for shorter than 0.3 seconds to enter the km/mile setting interface.
If the user has never made any reset operation, the single trip distance and the accumulated
riding time will be automatically cleared when the accumulated riding time exceeds 99
hours and 59 minutes.
Note: When the display or the bicycle powers off, the above settings will not be cleared.
Km/mile:
When the speed field displays S7, press the Increase (+) or Decrease (–) buttons to switch
between km/h and mile/h or km and mile.
After this setting, press the Mode (i) button for shorter than 0.3 seconds to enter the setting
interface of light sensitivity.

Light Sensitivity:
When the speed field displays bL0, press the Increase (+) or Decrease (–) buttons to display
a figure between 0 to 5.
0 represents the shutdown of light-sensing function. As the figure increases, light sensitivity
gradually increases.
After this setting, press the Mode (i) button for shorter than 0.3 seconds to enter the setting
interface of backlight brightness.
Backlight Brightness:
When the speed field displays bL1, press the Increase (+) or Decrease (–) buttons to display a
figure between 1 to 5. The figure 1 represents the lowest backlight brightness while 5
indicates the highest backlight brightness.
After this setting, press the Mode (i) button for shorter than 0.3 seconds to enter the setting
interface of automatic off time.

Automatic Off Time:
When the speed field displays OFF, press the Increase (+) or Decrease (–) buttons to display
a figure between 1 to 9. This figure indicates the minute that it takes to automatically shut
down the display.
After this setting, press the Mode (i) button for shorter than 0.3 seconds to enter the setting
interface of maintenance warning.
Maintenance Warning (inactive by default):
When the speed field displays nnA, press the up or down to display 0 or 1. 0 disables the
maintenance warning function while 1 enables the maintenance warning function.
After this setting, press the Mode (i) button for shorter than 0.3 seconds to enter the setting
interface of password input.

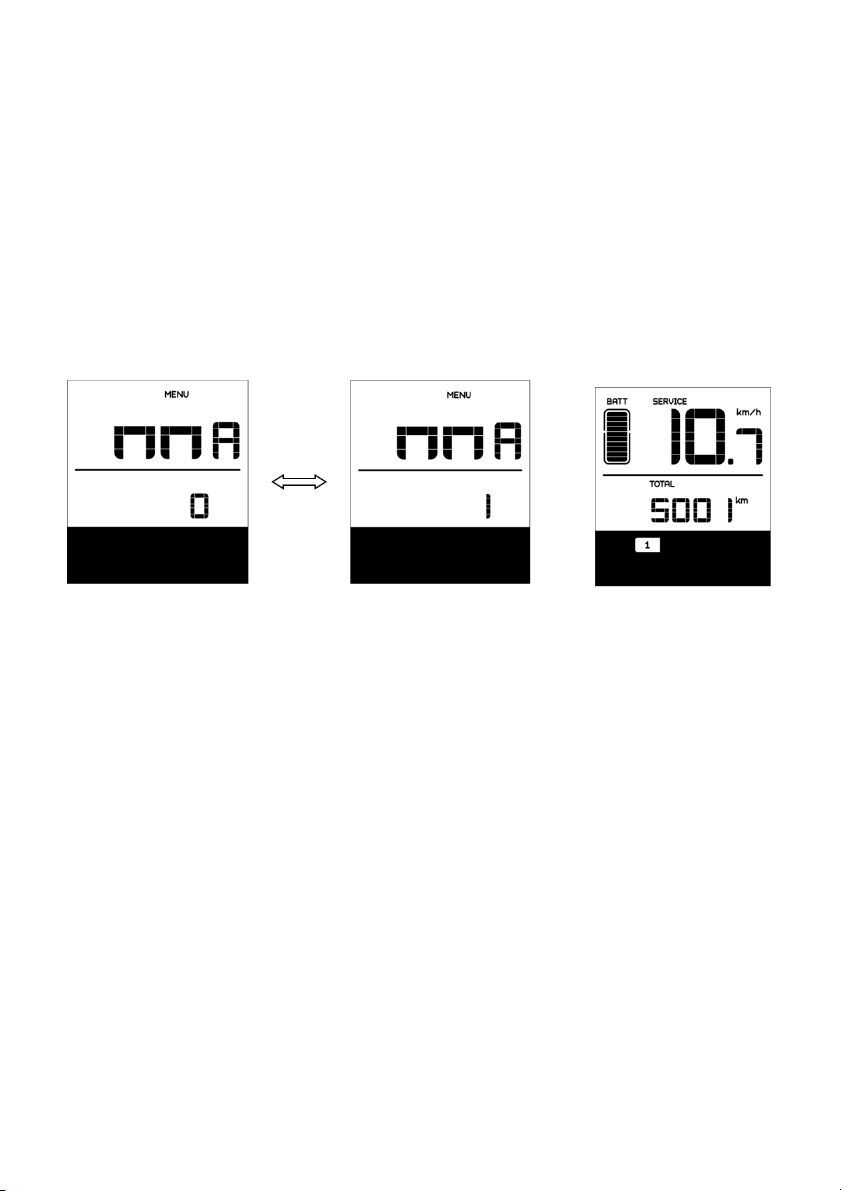

Maintenance Warning Interface
The display will prompt maintenance necessity based on such information as the
accumulated riding distance and the battery charge/discharge cycles.
• When the accumulated riding distance exceeds 5,000 km (can be customised by
the bicycle manufacturer), there will prompt, on the display, the symbol SERVICE
and the sign of accumulated riding distance will flash for 4 seconds when the
display is started up, indicating the bicycle needs maintenance.
• When the number of battery charge/discharge cycles exceeds 100 (can be
customised by the bicycle manufacturer), there will prompt, on the display, the
symbol SERVICE and the sign of battery will flash for 4 seconds when the display is
started up, indicating the battery needs maintenance.
• Proceed in order parameter setting -> maintenance alert (MA) -> 0 to disable the
maintenance alert function.
