Page 1
5301335

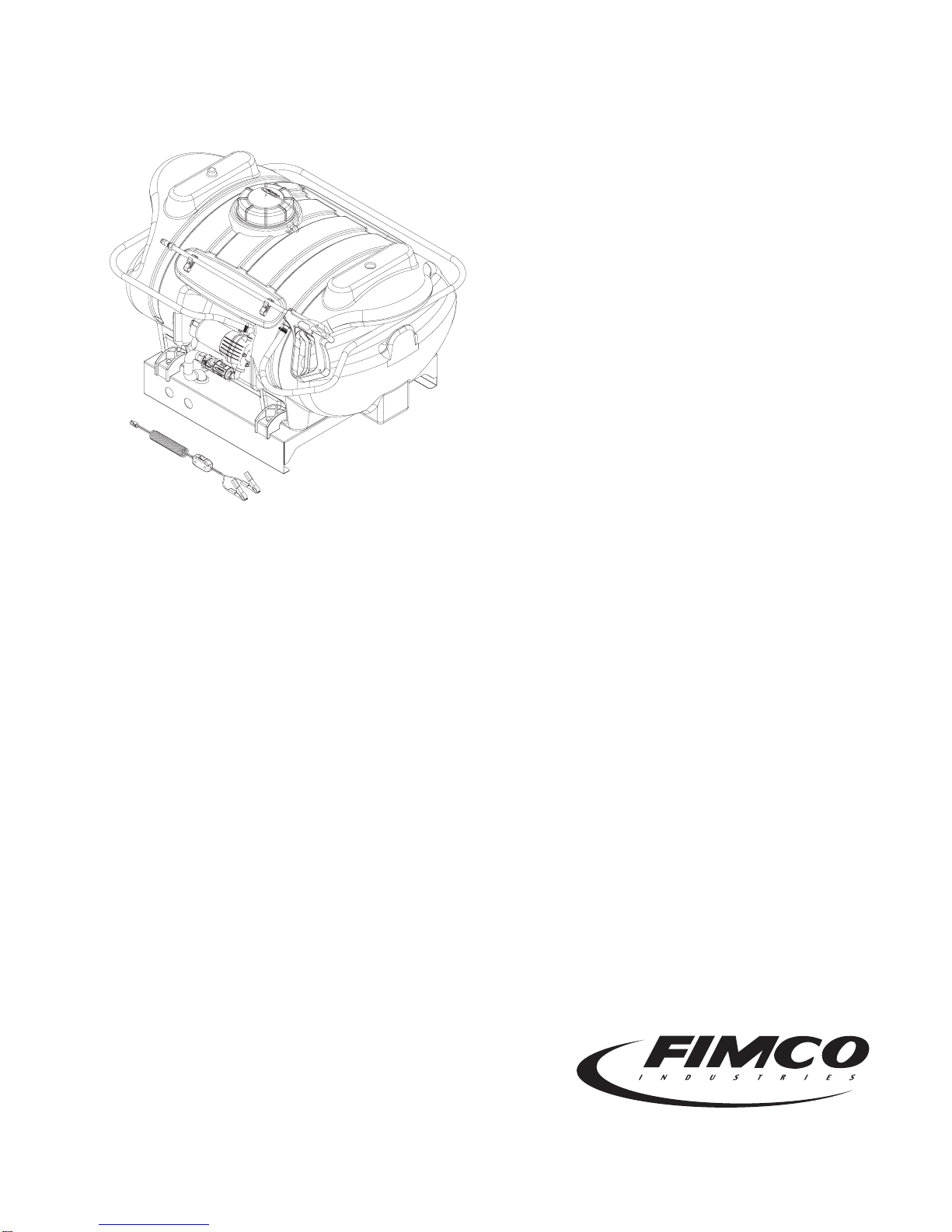

MODEL NO. LG-40-SS
ASSEMBLY / OPERATION INSTRUCTIONS / PARTS
GENERAL INFORMATION
Thepurposeofthismanualistoassistyouinoperatingyour
sprayer. Please read it carefully as it furnishes information
which will help you operate and maintain your sprayer.
WARRANTY / PARTS / SERVICE
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Your authorized dealer is the best source of replacement
parts and service. To obtain prompt, efficient service,
always remember to give the following information.
1. Correct part description and part number.
2. Model number of your sprayer.
3. Serial number of your sprayer.
Part number and descriptions can be obtained from the
illustrated parts list section of this manual. Whenever you
needpartsorrepair service, contactyourdistributor/ dealer
first. For warranty work always take your original sales slip,
or other evidence of purchase date, to your distributor /
dealer.
TECHNICAL SPECIFICATIONS
• 40 Gallon Polyethylene Tank
• 12 Volt Diaphragm Pump - 3.8 G.P.M.
• Adjustable Pressure Range 0 - 45 P.S.I.
• 25 Foot Handgun Hose
• Pistol Grip Handgun
• Suction Line Filter
ASSEMBLY
The sprayer is fully assembled at the factory. Hook up the
wiring to an existing 12 volt power source. The red wire of
thetwowiresetmustbeconnectedtothepositivepostonthe
batteryorthe“Hot”connectiononaswitchortotheammeter.
The brown wire may be grounded or connected to the
negative battery post.
OPERATION
The pump on the sprayer is factory set to shut off automati-
cally at a maximum of 45 PSI. The handgun may be shut off
atanytimewhenthepumpisrunning.Thepumpwillshutoff
when there is no discharge from the handgun.
Thepumpingsystemdrawssolutionfromthetankandtothe
pump. The pump forces the solution under pressure to the
handgun.
It is important to test the sprayer with plain water before
attemptingactualspraying.Thiswillenableyoutocheckthe
sprayer for leaks in the plumbing system.
1. Open tank lid and be sure the tank is clean and free of
foreign material. Fill the tank about half full with plain water.
WARNING: Some chemicals will damage the pump valves
ifallowedtosoakuntreatedforalengthoftime.Alwaysflush
thepumpafteruse.Donotallowchemicalstositinpumpfor
extendedtimes ofidleness. Follow chemicalmanufacturers
instructions on disposal of all waste water from the sprayer.
AFTER SPRAYING
After use, fill the sprayer part way with water, start the
sprayer and allow clear water to be pumped through the
plumbing system and out through the handgun. Use the
handgun to thoroughly wash all internal parts of tank and
tank cover.
1000 FIMCO LANE • P.O. BOX 1700 • NO. SIOUX CITY, SD 57049
TOLL FREE: 800-831-0027 • TOLL FREE FAX: [phone]
Form No. 5004623 (850 11/05) Printed In U.S.A.
WWW.FIMCOINDUSTRIES.COM

Page 2
Refill the tank about half full with plain water and use a
chemicalneutralizersuchasNUTRA-SOLorequivalentand
repeatcleaninginstructionsabove. Flushtheentiresprayer
withtheneutralizingagent. Followthechemicalmanufactur-
ers disposal instructions of all wash and rinsing water.
WINTER STORAGE
Drain all water out of the sprayer paying special attention to
pump, valves, and spray gun. These items are especially
prone to damage from chemicals and freezing weather.
The sprayer should be winterized before storage by pump-
ingasolutionofRVanti-freezethroughtheentireplumbing.
Proper care and maintenance will prolong the life of the
sprayer.
