Firegear LOF-3012HTMSI-N User manual

REV. B Page 1
Linear Thermocouple Manual Safety (TMSI) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
Warning: For Outdoor Use Only
INSTALLATION PRECAUTION:
This re pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Model Description
LOF-3012HTMSI-N 30” x 12” Fire Pit with H-Burner
LOF-3614HTMSI-N 36” x 14” Fire Pit with H-Burner
LOF-4814HTMSI-N 48” x 14” Fire Pit with H-Burner
LOF-6016HTMSI-N 60” x 16” Fire Pit with H-Burner
MODELS
H-Burner T-Burner
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
PN#90135
Model Description
LOF-3006TTMSI-N 30” x 6” Fire Pit with T-Burner
LOF-3606TTMSI-N 36” x 6” Fire Pit with T-Burner
LOF-4806TTMSI-N 48” x 6” Fire Pit with T-Burner
LOF-6006TTMSI-N 60” x 6” Fire Pit with T-Burner
These re pits are manufactured from the factory for Natural gas only. If you intend using LP gas then you
must purchase a LP conversion kit. See Table of Contents for LP converstion kit information.

REV. B Page 2
Drop in Pan - TMSI Fire Pits
Fuels used in gas red appliances, and the products of combustion such as fuels, contain
chemicals known to cause cancer, birth defects and/or other reproductive harm.
This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed area can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or re department.
DANGER WARNING
Do not store or us gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliances.
Any LP cylinder not connected for use
shall not be stored in the vicinity of this
or other appliances.
WARNING
Do not leave unattended during use.
Do not use for cooking.
Follow all gas leak procedures in this
manual prior to operation.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing this
equipment.
WARNING
If the information in these instructions is not followed exactly, a re or explosion
may result causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable vapors and liquids in the vicinity
of this or other appliances.

REV. B Page 3
Drop in Pan - TMSI Fire Pits
Specications 4-5
Preparation for Non-Combustible Structure 6-7
Hard Piping to Fire Pit 6
Cross Ventilation Requirements 7
High Elevation 7
Installation into an Approved Enclosure 7
Gas Pipe Sizing Chart 8
Preparing Burner Pan For Installation 9
Installing Key Valve 9
Typical Installation Drawings 10

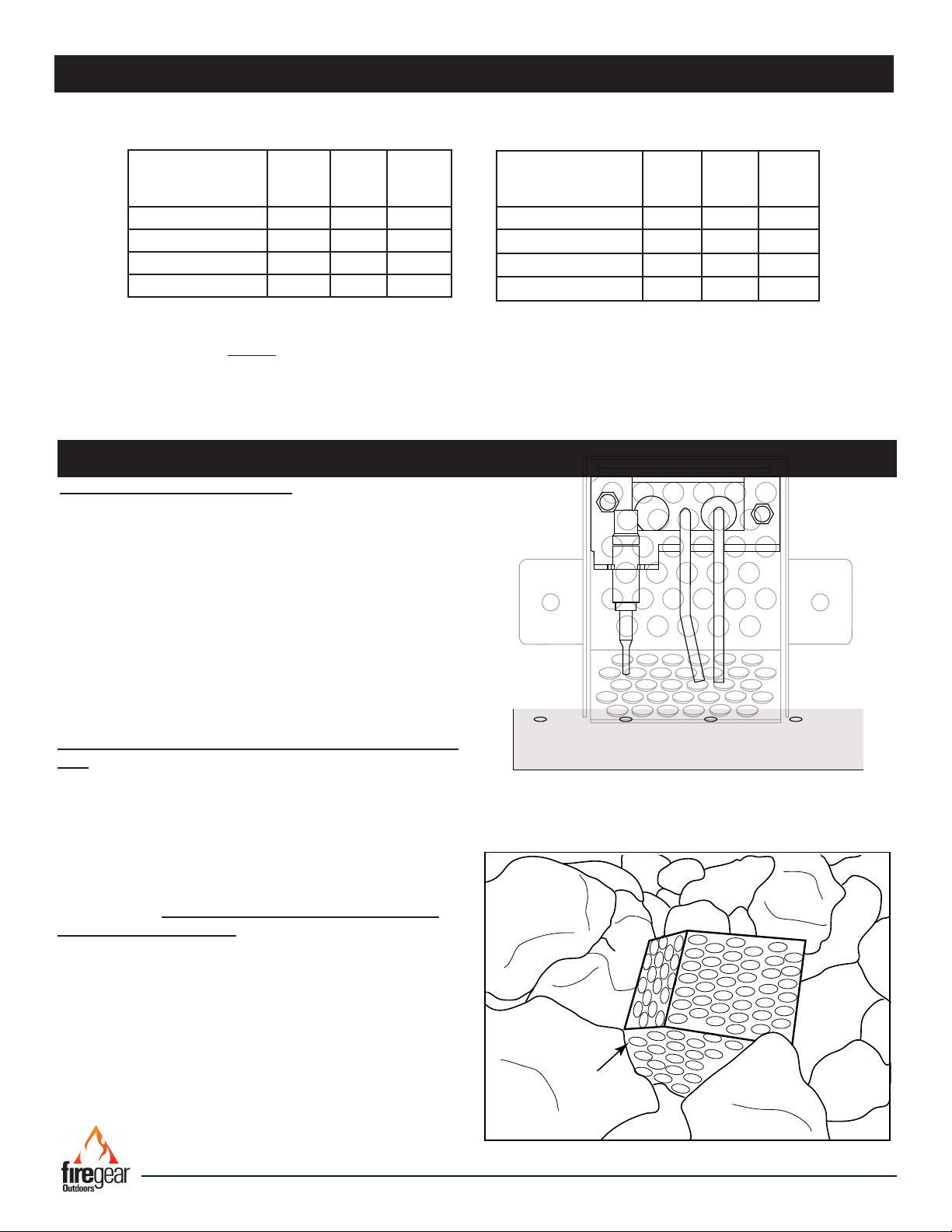

Media Requirements & Final Checks Before Operation 11
Operation 12

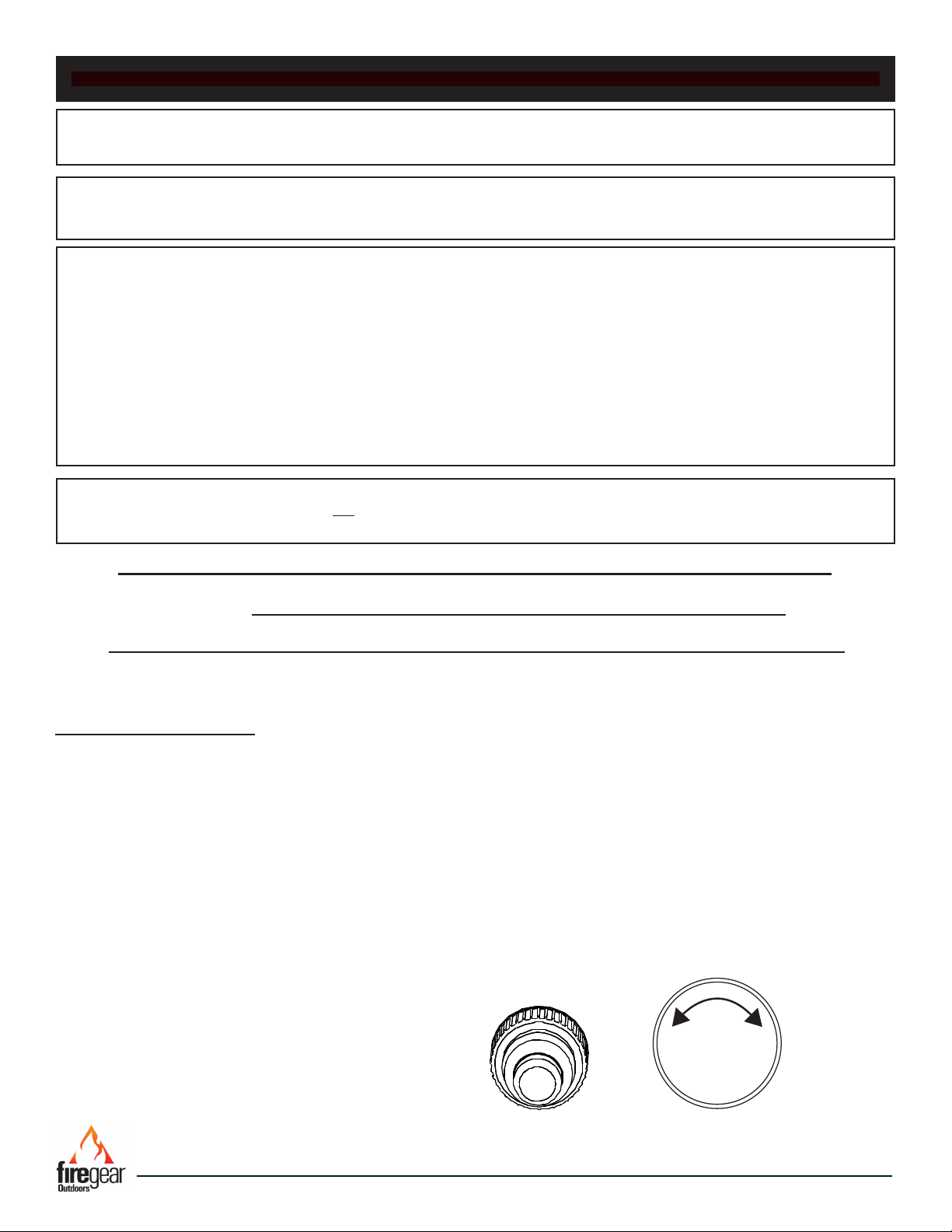

Lighting Instructions 12

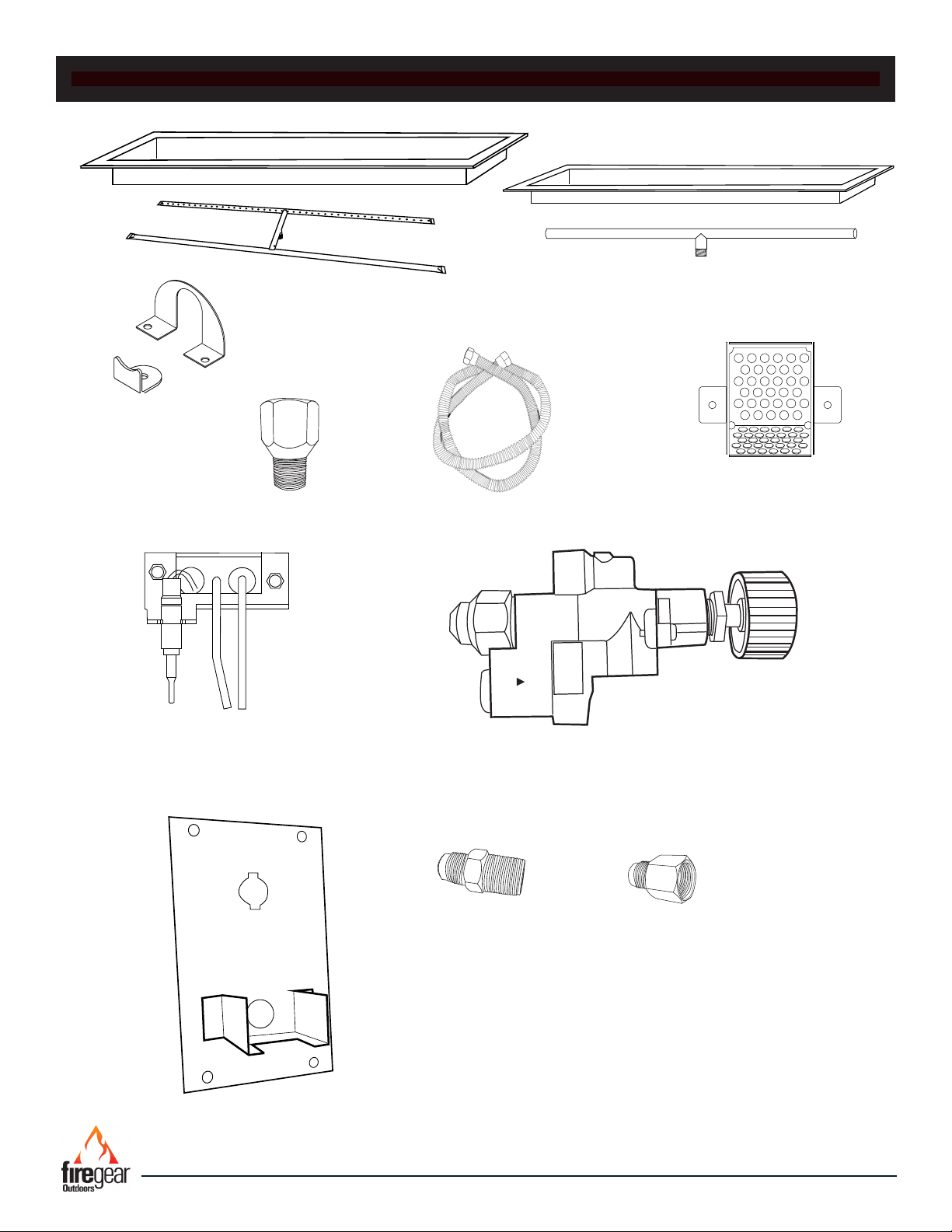

Replacement Parts 13
Replacement Parts List 14-15
Fire Pit Maintenance/Trouble Shooting 15

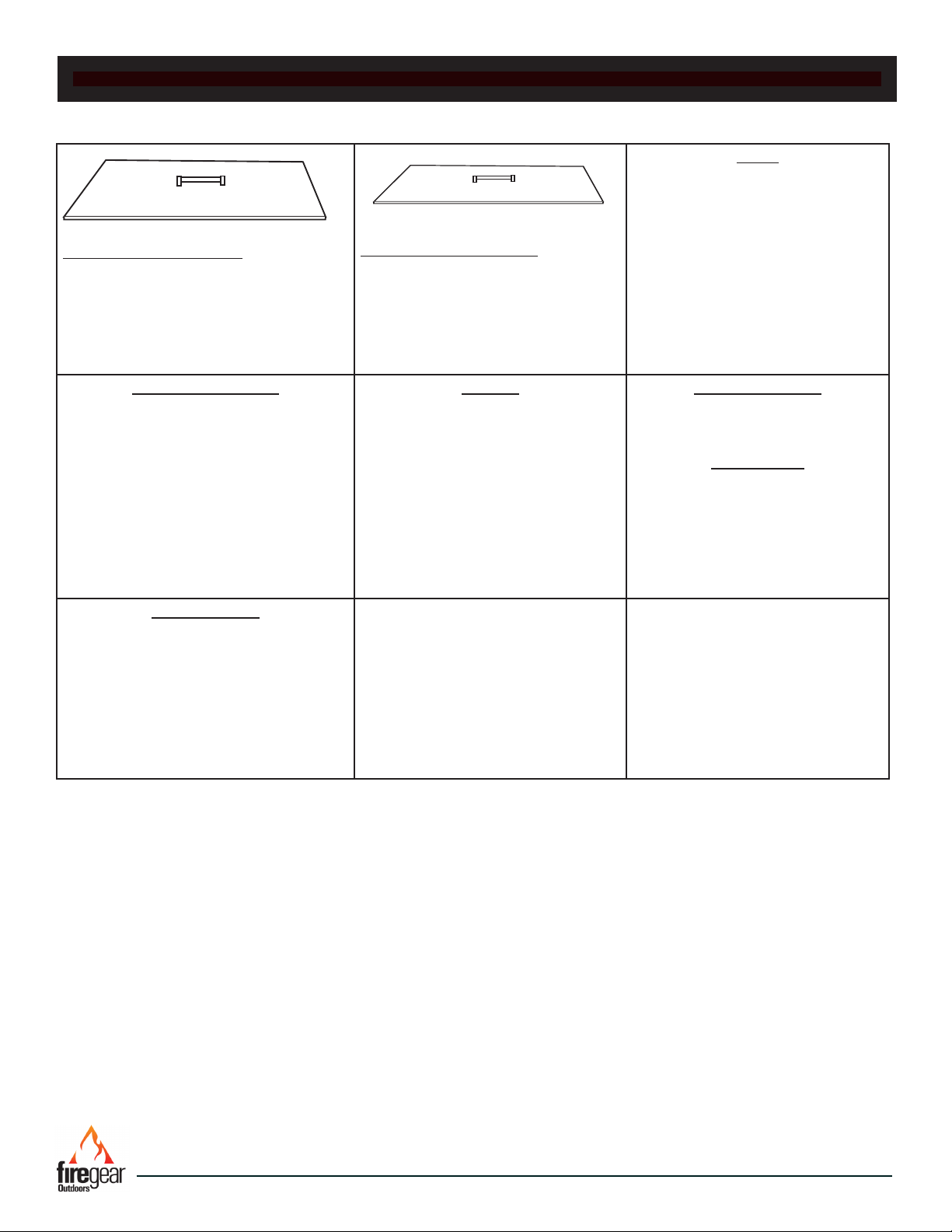

Optional Accessories 16
Liquid Propane (LP) Conversions 17
TABLE OF CONTENTS
NOTE: An exterior lid/cover is not required but highly recommended when the re pit is not in use. Even though re
pits are designed for outdoors they are not impervious to all weather conditions if not protected. See the accessory
page for information and sizes.
All media (i.e. lava rock, lava stones, lava boulders and re glass) has the potential of thermal
spalling. This is a process that may occur when media is wet and moisture gets trapped inside of
the material due to rapid temperature differences. When this happens the media has the potential
to crack or “pop” outside the replace.
WE HIGHLY RECOMMEND COVERING ALL FIRE FEATURES WHEN NOT IN USE
The use of a cover can lessen the impact of thermal spalling; however, heavy rains, high
humidity and the presence of moisture may still cause the media to pop.
ALWAYS USE CAUTION WHEN USING THE FIRE FEATURE
Extra caution should be taken when lighting a replace when heavy rains, high humidity and
moisture are present. Light the replace; leave the area allowing any moisture in the media to
dissipate. We strongly recommend that during this drying out time that you monitor the re feature
from a distance. This drying out period should be no less than 30 minutes. Continue monitoring
the ame from distance to ensure that all popping has ceased before fully enjoying the re.
CALIFORNIA PROPOSITION 65
WARNING
This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel
used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including
Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and
Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm.
(For more information go to: www.p65Warnings.ca.gov.)

REV. B Page 4
Drop in Pan - TMSI Fire Pits

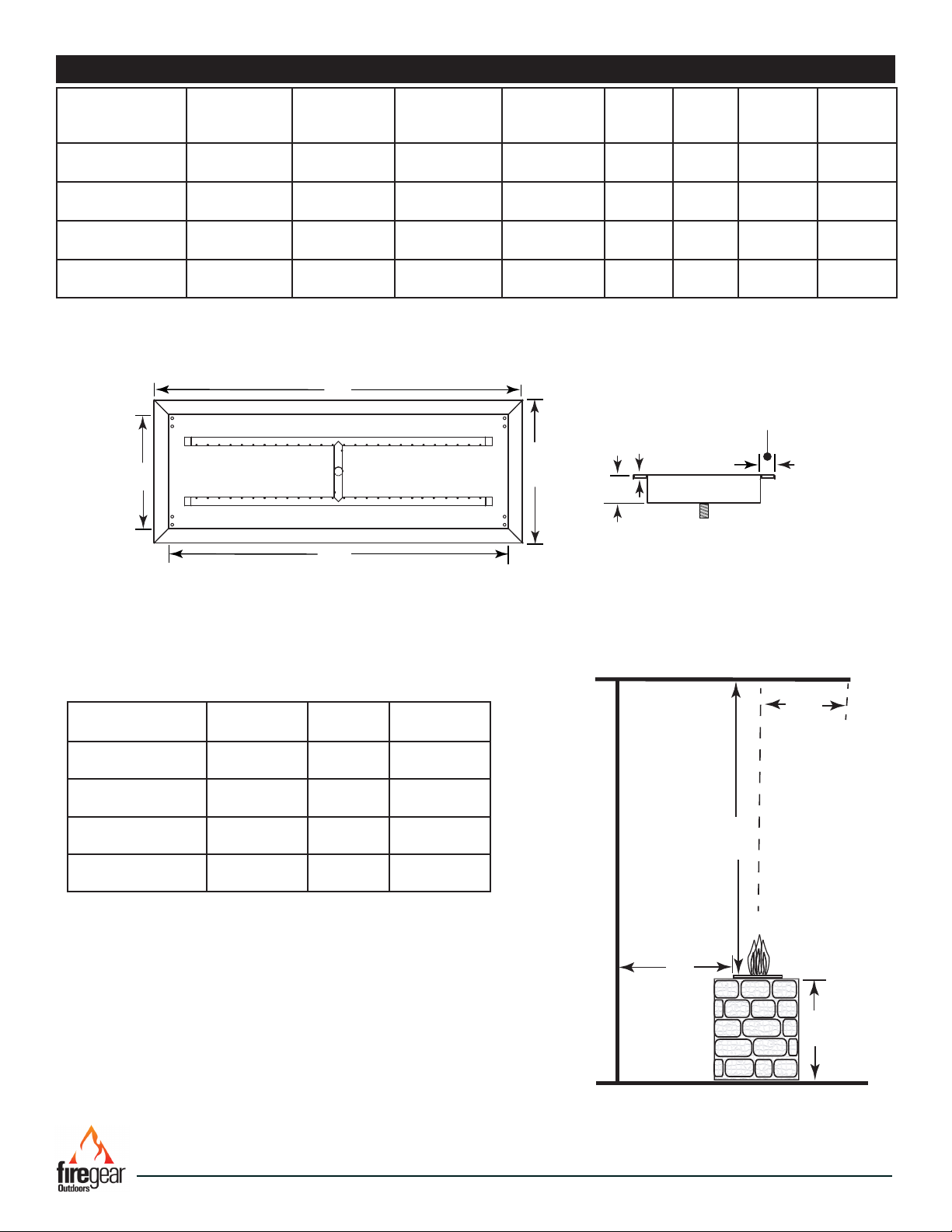

Table 1 Fire Pit Dimensions
A
A
B
B2½”
3/8” 1¼”
END VIEW
MODELS INSIDE PAN
DIMENSIONS
A
OUTSIDE PAN
DIMENSIONS
B
BURNER
DIMENSIONS
CUTOUT
DIMENSIONS
GROUND
LEVEL
SIDE
WALL
COMBUSTILE
CEILING
COMBUSTIBLE
FLOOR
LOF-3012HTMSI-N 30” x 12”
(762 x 304mm)
32½” x 14½”
(825 x 368mm)
27” x 10”
(658 x 254mm)
31” x 13”
(787 x 279mm)
8”
(203mm)
36”
(914mm)
96”
(2438mm)
18”
(457mm)
LOF-3614HTMSI-N 36” x 14”
(914 x 355mm)
38½” x 16½”
(977 x 419mm)
33” x 10”
(813mm)
37” x 15”
(940 x 330mm)
8”
(203mm)
36”
(914mm)
120”
(3048mm)
18”
(457mm)
LOF-4814HTMSI-N 48” x 14”
(1219 X 355mm)
50½” x 16½”
(1228 x 419mm)
45” x 10”
(838 x 254mm)
49” x 15”
(1244 x 330mm)
8”
(203mm)
36”
(914mm)
120”
(3048mm)
18”
(457mm)
LOF-6016HTMSI-N 60” x 16”
(1524 x 406mm)
62½” x 18½”
(1582 x 469mm)
57” x 10”
(1477 x 254mm)
61” x 17”
(1549 x 330mm)
8”
(203mm)
36”
(914mm)
120”
(3048mm)
18”
(457mm)
Fig. 1 H-style burner pan specications.
SPECIFICATIONS
TMSI Model: NG
Orice
Btu
Ratings
LP
Orice
LOF-3012HTMSI-NOAS-NG29 75,000
(21.98kW)
OAS-LP41
LOF-3614HTMSI-N OAS-NG29 75,000
(21.98kW)
OAS-LP41
LOF-4814HTMSI-N OAS-NG22 100,000
(29.30kW)
OAS-LP29
LOF-6016HTMSI-N OAS-NG22 100,000
(29.30kW)
OAS-LP29
Disclaimer: Btu listings are based on 7.0”WC for
Natural Gas and 11.0”WC for Liquid Propane (LP) at
the burner orice. Flex line size and proper gas pipe
sizing will also affect Btu’s. As a result your Btu’s may
vary slightly from Table 2 specications.
96”/120”
18”
Combustible Side Wall
Combustible Ceiling
Combustible Floor
C
L
36”
Max
Overhang
36”
Fig. 2 Clearance to Combustibles for
models. (Not to be used in an enclosed
space)
Table 2 H-burner specications.

REV. B Page 5
Drop in Pan - TMSI Fire Pits
Fig. 3 T-style burner pan specications.
MODELS INSIDE PAN
DIMENSIONS
A
OUTSIDE PAN
DIMENSIONS
B
BURNER
LENGTH
CUTOUT
DIMENSIONS
GROUND
LEVEL
SIDE
WALL
COMBUSTILE
CEILING
COMBUSTIBLE
FLOOR
LOF-3006TTMSI-N 30” x 6”
(762 x 152mm)
32½” x 8½”
(825 x 215mm)
27”
(686mm)
31” x 7”
(787 x 178mm)
8”
(203mm)
36”
(914mm)
96”
(2438mm)
18”
(457mm)
LOF-3606TTMSI-N 36” x 6”
(914 x 152mm)
38½” x 8½”
(977 x 215mm)
33”
(838mm)
37” x 7”
(787 x 178mm)
8”
(203mm)
36”
(914mm)
96”
(2438mm)
18”
(457mm)
LOF-4806TTMSI-N 48” x 6”
(1219 X 152mm)
50½” x 8½”
(1280 x 215mm)
45”
(1143mm)
49” x 7”
(1244 x178mm)
8”
(203mm)
36”
(914mm)
96”
(2438mm)
18”
(457mm)
LOF-6006TTMSI-N 60” x 6”
(1524 x 152mm)
62½” x 8½”
(1587 x 215mm)
57”
(1448mm)
61” x 7”
(1549 x 178mm)
8”
(203mm)
36”
(914mm)
96”
(2438mm)
18”
(457mm)
SPECIFICATIONS
TMSI Model: NG
Orice
Btu
Ratings
LP
Orice
LOF-3006TTMSI-N OAS-NG29 75,000
(21.98kW)
OAS-LP41
LOF-3606TTMSI-N OAS-NG29 75,000
(21.98kW)
OAS-LP41
LOF-4806TTMSI-N OAS-NG22 100,000
(29.30kW)
OAS-LP29
LOF-6006TTMSI-N OAS-NG22 100,000
(29.30kW)
OAS-LP29
Table 3 Fire Pit Dimensions
Pressure NG LP
Min. Inlet 5.0” WC
(1.24kPa)
10.5” WC
(2.61kPa)
Max. Inlet 10.5” WC
(2.61kPa)
13.0” WC
(3.23kPa)
Normal Inlet 7.0” WC
(1.74kPa)
11.0” WC
(2.73kPa)
Table 4 T-burner specications. Table 5 Gas pressures.
A
B
A
2½”
3/8” 1¼”
END VIEW
B
Disclaimer: Btu listings are based on 7.0”WC for
Natural Gas and 11.0”WC for Liquid Propane (LP) at
the burner orice. Flex line size and proper gas pipe
sizing will also affect Btu’s. As a result your Btu’s may
vary slightly from Table 2 specications.

REV. B Page 6
Drop in Pan - TMSI Fire Pits
IMPORTANT
Installation of Natural or LP gas should be done by a qualied installer, service agency or gas supplier.
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than ½” psig (3.5kPa)
Description: These re pits are designed to be installed into a non-combustible enclosure. They are a “drop-in” style
system to make installation quick and convenient. Media (not supplied) is required inside the burner pan for operation
(See page 9).
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this
appliance. Use the specications listed on pages 4 and 5 for proper clearance to combustibles.
Firegear Outdoors re pits are constructed and tested to follow the rigid ANSI standards for gas appliances and
manufactured safely providing dependable and certied products. If these re pits are not installed according to the
installation manual (i.e. not providing ventilation, not providing proper drainage, installing re pits below grade or
modifying the existing products from a normal installation) Firegear Outdoors cannot be responsible if the product does
not operate as designed.
Modifying the re pit directly out of the carton will void the warranty and nullify the product listing it was certied for.
Before you consider creating your own custom design with a certied product ensure you contact Firegear Outdoors to
consult the installation before proceeding. If you move forward and modify a product without consulting, Firegear
Outdoors cannot be responsible if the product does not operate as designed.
PREPARING A NON-COMBUSTIBLE STRUCTURE
The re pit can be installed on a at, stable surface, away from any combustible materials. Install re pit on any level,
outdoor non-combustible, at stable surface or a combustible oor according to the clearances specied in this manual.
NOTE: Do not place re pit directly on grass, dirt, or rocks this may prevent proper ventilation. Ensure proper water
drainage is also incorporated into the re pit enclosure.
HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. See gas line sizing chart on page 8 as a
reference.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
BE CAREFUL! Ensure all gas connections are snug, but do not over tighten!
2. Extend the gas supply system using minimum of ¾” black iron pipe or an approved exible gas line from existing
house supply. This can be accomplished by teeing off or tapping into a gas line connection. Install necessary pipe for the
distance required and then install a manual shut-off valve at the exterior house wall. If pipe is to pass through a foundation
or house wall, make sure to re-seal the area around the pipe with weather sealant.
3. The primary gas shut-off (not supplied) will require a ⅜” male ared tting to enable connection of the stainless steel
ex gas line supplied with the re pit (see Fig. 7 page 10).

REV. B Page 7
Drop in Pan - TMSI Fire Pits
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as rain,
snow, wind, heat or cold. A minimum of 18 square inches
(two opposite sides) of cross ventilation is required to
keep the components in good working order. Use Fig. 4 as
guide to assist to incorporate proper ventilation.
HIGH ELEVATION INSTALLATION
This appliance is listed for elevations from 0- 4500 feet in
Canada and the U.S. If elevation exceeds 4500 feet it may be
necessary to decrease the input rating by changing the
existing burner orice to a smaller size. Input should be
reduced 4% for each 1000 feet beyond the 4500 feet above
sea level. Check with your local gas utility for assistance in
determining the proper orice in your location. In some cases
the heating value may already be reduced and downsizing the
orice may not be necessary.
Fire Pit
Enclousure
(2) 6”x12”
Vents
Examples of Cross Ventilation
2- Firegear 6 x12 vents
(Model # VENT-KIT-6X12)
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)
Fig. 4 Cross ventilation example
PREPARING A NON-COMBUSTIBLE STRUCTURE
REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should
be non-combustible or a at level combustible surface according to the clearances specied in this manual.
2. Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. Determine the size of the re pit you are
preparing to install (Refer to page 8).
3. You must provide a rectangular opening cutout to place the re pit into the non-combustible enclosure. Refer to
Table 1, dimension A.
4. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
5. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance.
6. CAUTION: A minimum of 18 square inches of cross ventilation (opposite side) is required to keep the
enclosure dry. See Fig. 4.
7. These products are designed for outdoor use only. Not approved for any indoor use.
8. This re pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube,
so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”
diameter as a base to ll the burner pan. DO NOT USE STONE OR RIVER ROCK.
9. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
10. Do not use media that will absorb moisture over time and will not release this moisture quickly. Moisture can boil in
this material and can rapidly break apart and cause damage or personal injury. See Caution on bottom of page 3.
11. Never leave any combustible material on top of the re pit. This could cause unsafe operation of this system and
damage to the component that will not be covered under our warranty.
13. Ensure proper water drainage is also incorporated into the re pit enclosure.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE

REV. B Page 8
Drop in Pan - TMSI Fire Pits
REFERENCE
GAS PIPE SIZING
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710
20 189 393 732 1496 2299 4331 7046 12510 25520
30 152 315 590 1212 1858 3465 5695 10110 20620
40 129 267 504 1039 1559 2992 4778 8481 17300
50 114 237 448 913 1417 2646 4343 7708 15730
60 103 217 409 834 1275 2394 3908 6936 14150
70 89 185 346 724 1086 2047 3329 5908 12050
80 78 162 307 630 976 1811 2991 5309 10830
90 69 146 275 567 866 1606 2654 4711 9613
100 63 132 252 511 787 1496 2412 4281 8736
125 54 112 209 439 665 1282 2083 3618 7382
150 48 100 185 390 590 1138 1808 3210 6549
175 43 90 168 353 534 1030 1637 2905 5927
200 40 83 155 325 491 947 1505 2671 5450
300 37 77 144 303 458 887 1404 2492 5084
NATURAL GAS : PIPE SIZING CHART
•Natural Gas (NG) flow is given in
thousands of BTU/hr. = 1cubic
foot of NG gas - 1000 BTU
•Nominal pressure at the burner
for Natural Gas is 3.5” of water
column. (Typical machine supply
5”-7”)
•Pipe length must include
additional length for all fittings.
Add approximately 5 feet of pipe
per fitting.
•Natural Gas Example: A machine
with a burner that requires
440,000 BTU would need a 1 -1/4”
pipe for a 20” long run.
LIQUID PROPANE : PIPE SIZING CHART
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you
are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper
pressure. This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel
Gas Code - current edition) for more details.
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2936 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 117 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 196 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539
•Liquid Propane (LP) Gas flow is
given in thousands of BTU/hr. =
1cubic foot of LP gas - 2500 BTU.
•This chart refers to low pressure LP,
after regulation, Standard nominal
pressure at the burner for Liquid
Propane Gas is 11” of water column.
•Pipe length must include additional
length for all fittings. Add
approximately 5 feet of pipe per
fitting.
•LP Example: A machine with a
burner that requires 440,000 BTU
would need a 1” pipefor a 20’ long
run.
GAS PIPE SIZING CHART
Table 4 Gas pipe sizing.

REV. B Page 9
Drop in Pan - TMSI Fire Pits
INSTALLING BURNER ORIFICE (OAS)
Locate the burner nipple underneath the burner pan.
Ensure the nipple from on the spur burner has gas rated
Teon tape wrapped around the threads. Thread the OAS
(orice air shutter) on to the nipple of the burner clockwise
manner. Secure into position. See Fig. 5.
GAS FLOW
Burner Pan
OAS#
U3-8D-S
Lock Nut
Fig. 5 Installling OAS (orice) to burner tube.
PREPARING BURNER PAN FOR INSTALLATION
Fig. 6 TMSI typical installation.
Gas Outlet
to Fire Pit
Gas Inlet
Thermocouple
Lead
PIEZO48WH
PIEZO25WH
(Connects to ignitor)
(Connects to ground tab)
+-
AAA
Plastic Nut
Red Button Cap
Mounting Plate
Illustration shows side view of valve and
Piezo ignitor.
Remove red button cap and install battery into Piezo
ignitor module.
Illustration above shows ground tab
connection underneath the burner pan.
R
a
t
i
n
g
P
l
a
t
e
Bottom of Burner Pan
PIEZO48WH
Piezo Ground Tab
The valve mounting plate will be located in the side of the enclosure. Select a location and ensure the mounting plate is
located close enough to the burner to enable connection to the thermocouple lead to the gas valve. This will allow enough
length for the Piezo wires to also be connected to the Piezo ignitor and ground tab. Refer to Fig. 6. Note: A template for
hole mounting location for the TMSI mounting plate is located on page 23.

REV. B Page 10
Drop in Pan - TMSI Fire Pits
Fig. 7 Typical installation.
Ensure you determine how to mount valve
bracket into place before completing re pit.
Gas Outlet
to Fire Pit
Gas Inlet
Thermocouple
Lead
PIEZO48WH
PIEZO25WH
(Connects to ignitor)
(Connects to ground tab)
D
e
t
a
i
l
V
i
e
w
o
f
T
M
S
I
V
a
l
v
e
A
s
s
e
m
b
l
y
Gas Supply
Burner Pan
Non-Combustible Enclosure
Shut-O
Spur Burner
OFF
Gas Valve
Thermocouple
Piezo
Steel Studs
Steel Studs
Steel Studs
Steel Studs
RATING
PLATE
Piezo Wire
48”
Piezo Wire
25”
Gas valve and exible gas lines are supplied; E-Stop shut-off is not supplied, but available in accessories
page. Flex lines with ared ttings do not require Teon tape or pipe compound. Ensure not to “kink” the ex
lines to allow better gas ow of gas. The illustration above is only a guide for the gas connection. Local
codes may require different methods to connect the gas supply. Note: See optional mounting method of
TMSI face plate on back of this manual on page 23.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE

REV. B Page 11
Drop in Pan - TMSI Fire Pits
INSTALLATION OF LAVA ROCK/MEDIA INTO BURNER
PAN
Install lava rock into the burner pan. Ensure the lava rock
is a 1 to 2-inch diameter for proper operation. Note: Do
not pour Lava Rock directly from bag. It should be placed
naturally and NOT packed in tight. Loose tting is
important to ensure robust ames. Be sure rocks are free
of any excessive dust. This prevents the burner pan weep
holes from being plugged and holding water.
IMPORTANT: Do not place media directly on top or
under the screen cover. The screen must be free of any
debris to ensure proper lighting of burner and good ame
sense (See Fig. 9).
Cover the burner completely with media but do not make
the depth greater than 1-inch overtop of the burner port-
holes.
Do NOT cover the top of the screen hood with any rock or
glass. It must be free an any debris to operate properly.
Fig. 9 Keep screen cover exposed
THERMOCOUPLE ALIGNMENT
It is to important check the thermocouple to enure it is
properly aligned under the screen cover and that it did not
move during shipping. Before lighting visually look at the
thermocouple tip. The tip must be aligned with a port hole
of the burner to ensure proper operation. In addition, the
ignitor tips must be aligned with a port hole for proper
ignition of the gas. See Fig. 8. Note: If the thermocouple is
misaligned remove the screen cover and carefully correct.
Fig. 8 Proper alignment of probes and
thermocouple.
FINAL CHECKS BEFORE OPERATION
Burner Tube Port Holes
Lava Rock Lava Rock
Lava Rock
Ignition
Hood
Screen Cover
Media Required
Per H-Burner
Models
Lava
Rock
Only
Glass
Only
Lava
Stones
Only
LOF-3012HTMSIN 15lbs 20lbs 15lbs
LOF-3614HTMSI-N 20lbs 25lbs 20lbs
LOF-4814HTMSI-N 30lbs 35lbs 30lbs
LOF-6016HTMSI-N 45lbs 50lbs 45lbs
Media Required
Per T-Burner
Models
Lava
Rock
Only
Glass
Only
Lava
Stones
Only
LOF-3006TTMSI-N 10lbs 10lbs 10lbs
LOF-3606TTMSI-N 10lbs 15lbs 10lbs
LOF-4806TTMSI-N 10lbs 15lbs 10lbs
LOF-6006TTMSI-N 15lbs 20lbs 15lbs
Table 5 H-Burner Media requirements Table 6 T-Burner Media requirements
MEDIA REQUIREMENTS
Disclaimer: The media listed in Tables 5 and 6 may vary slightly depending on your application.
Ensure the media does not cover the burner more than 1-inch for best ame appearance.

REV. B Page 12
Drop in Pan - TMSI Fire Pits
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the re pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause severe burns if contacted.
2. Do not burn any solid fuels in this appliance.
Fig. 10 Gas Valve Knob
TURNING OFF FIRE PIT
1. Slight push inward on control knob and turn clock wise until it stops. Fire pit
will turn OFF.
2. After cooling off install cover.
READ ALL LIGHTING INSTRUCTIONS BEFORE ATTEMPTING TO LIGHT FIRE PIT
CAUTION: ENSURE YOU HAVE LEAK TESTED THE FIRE PIT BEFORE OPERATING.
WARNING: Do not stand over re pit during ignition or operation due to high surface temperatures.
LIGHTING INSTRUCTIONS
TURNING ON FIRE PIT
1. Depress and hold the red Piezo ignitor button and ensure sparking is occurring at the probes inside ignition hood.
2. Rotate control knob on gas valve counter clockwise to the ON position.
3. Depress control knob inward to light the burner.
4. After the re pit lights release the Piezo button but continue to depress the control knob for at least 30 seconds then
release knob. If re pit does not light within 30 seconds, release control knob, turn knob clockwise to turn OFF and
wait 5 minutes before trying again. Turn gas supply OFF to check probe spacing and Piezo battery if re pit does not
light.
5. Repeat steps 1-4.
ON OFF
AT ON POSITION
SLIGHT PUSH TO
TURN OFF
FULL PUSH TO
LIGHT
Red Piezo Button Control Knob

REV. B Page 13
Drop in Pan - TMSI Fire Pits
TMSI REPLACEMENT PARTS
1
2
6
7
5
Drawings not to scale.
4
3
8
14
9
Burner Tube Port Holes
11
10
12
13 15
10a

REV. B Page 14
Drop in Pan - TMSI Fire Pits
REPLACEMENT PARTS
1 30” x 12” LH-Burner Pan Only (used with 27” x 10” burner) 1 78041
1 36”x 14” LH-Burner Pan Only (used with 33” x 10” burner) 1 78042
1 48” x 14” LH-Burner Pan Only (used with 45” x 10” burner) 1 78043
1 60” x 16” LH-Burner Pan Only (used with 57” x 10” burners) 1 78044
2 27” x 10” H-Burner only (used with 30” x 12” LH-burner pan) 1 10604
2 33” x 10” H-Burner only (used with 36” x 14” LH-burner pan) 1 10605
2 45” x 10” H-Burner only (used with 48” x 14” LH-burner pan) 1 10616
2 57” x 10” H-Burner only (used with 60” x 16” LH-burner pan) 1 10610
3 30” x 6” LT-Burner Pan Only ((use with 27” T-burner) 1 78033
3 36” x 6” LT-Burner Pan Only (use with 33” T-burner) 1 78034
3 48” x 6” LT-Burner Pan Only (use with 45” T-burner) 1 78035
3 60” x 6” LT-Burner Pan Only (use with 57” T-burner) 1 78036
4 27” T- Burner Only (used with 30” x 6” T-burner pan) 1 10600
4 33” T- Burner Only (used with 36” x 6” T-burner pan) 1 10601
4 45” T-Burner Only (used with 48” x 6” T-burner pan) 1 10602
4 57” T-Burner Only (used with 60” x 6” T-burner pan) 1 10603
5 Burner Tube Support Bracket 1 78019
6 Burner Tube Hook Bracket 1 78020
7 OAS# (Orice air shutter) for Natural Gas or LP Gas Fire Pits Refer to
pages 4 (H-burners) and page 5 (T-burners) for specic orice sizes/
model numbers.
1 Refer to pages 4 & 5
8 ½” Flex Gas Line (46-inch Length) T-200-9898-46
9 Screen Hood for H-Burner Only 78015
9a Screen Hood for T-Burner Only 78026
10 LOF TMSI Ignition Assembly for H-Burner Only 78080
10a LOF TMSI Ignition Assembly for T-Burner Only 78039
11 TMSI Thermocouple Only ST3-040-1025
12 Copreci gas valve ST3-080-1009
13 TMS Face Plate TMSFACEPLATE
14 ½” OD Flare to 3/8” MIP Fitting U1-8C-S
15 ½” NPT Female to ½” Male Flare Fitting 1 U3-8D-S
16 Manual Spark Ignitor Module (not shown) 1 3042-RB
17 Spark Ignitor for 3042-RB (not shown) 1 3042-RB -IGNITOR
18 Plastic Nut for 3042-RB (not shown) 1 3042-RB-NUT
19 Copreci Valve Knob Label Sticker (not shown) 1 VALVEKNOBLABEL
20 Mounting Nut for Copreci Valve (not shown) 1 ST3-110-1005
21 Gas Valve Control Knob (not shown) 1 ST3-050-1024
22 25” Piezo Extension wire - See page 16 (not shown) 1 PIEZO25WH
23 48” Piezo Extension wire - See page 16 (not shown) 1 PIEZO48WH
24 Ground tab for Piezo ignition (not shown) 1 GROUNDTAB
Item Description Qty. Part Number

REV. B Page 15
Drop in Pan - TMSI Fire Pits
FIRE PIT MAINTENANCE
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a cover/lid overtop of your re pit to protect it from humid/rainy weather
conditions when not in use. Heavy rains/downpours could affect the re pit operation if not covered; if this
occurs ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is
used over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Carbon (soot) may build up on the surface of logs (if installed) during heavy use. Sooting may also occur periodically
on the screen of the ignitor hood. To clean, brush off with a dry bristle brush or cloth. Keep soot away from clothing or
furniture.
6. Over time stainless steel parts can discolor when heated, usually a golden or brown hue. This discoloration is normal
and does not affect the performance of the appliance.
TROUBLE SHOOTING
Symptom Remedy
Fire pit won’t light 1. Bleed gas line.
2. Ensure all gas supply lines are turned ON.
3. Ensure there is not too much media overtop of burner; it can inhibit gas from owing.
Low Flame 1. Ensure the base media is at least 1-inch in diameter and top media is no more than 1-inch over
top of burner.
2. Ensure all shut-off valves and valve is fully open.
3. Check for spider webs inside burner orice.
Water in my re pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
2. Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
3. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.
4. Recommend to purchase a cover/lid to keep excessive water out of the re pit.
Whistling Noises 1. Check media to ensure it is not too tightly packed around the burner tube.
2. Ensure a non-whistling ex connector is being used.
Fire pit won’t stay lit 1. Check alignment of thermocouple over burner tube hole; tip should be overtop of hole.
2. Ensure thermocouple is not screwed too tight into gas valve. It should be nger tight plus a
quarter turn with a wrench.
3. Ensure thermocouple is clean and free of any debris. Excessive soot can be an issue.

REV. B Page 16
Drop in Pan - TMSI Fire Pits
FOR TECHNICAL SERVICE, CALL: [phone]
Firegear Outdoors
17322 Gothard St.
Huntington Beach, CA 92647
Web Site: www.regearoutdoors.com
OPTIONAL ACCESSORIES
The following accessories are available from your local Firegear Outdoors dealer/distributor.
Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing.
Lids for H-Burner Fire Pits
Models: LID-LOF3012, LID-LOF3614,
LID-LOF4214, LID-LOF4814,
LID-LOF6016
Lids for T-Burner Fire Pits
Models: LID-LOF3006,
LID-LOF3606, LID-LOF4806,
LID-LOF6006
Media
Lava Stones 1” to 2” size (50lbs.)
Models: FG-LS50 (Bag)
Lava Rock 1” to 2” size
Models: FG-LAVA-40 (Bag)
FG-LAVA-10 (Bag)
See catalog for various colors.
Paver Control Panels
PAVER-CO-TMSI TMSI systems
Vent Kits
Provide 18 sq. in of ventilation per side of
enclosure)
Model: VENT-KIT-6X12SS
Model: PAVER-VENT-4-LNTS
Model: PAVER-VENT-6-LNTS
E-STOP
Mechanical gas timer valve with
emergency shut-off.
Model: ESTOP1-0H 1hr. timer
Model: ESTOP2-5H 2.5hr. timer
Glass Windshields
See catalog for a windshield to t
your application.
FLEXFRAME
Universal brackets to support re pit
when using paver blocks or other
non-combustible enclosures.
Model: FLEXFRAME-SS (2 piece)
Model: FLEXFRAME-SS3 (3 piece)
Shut-Off Valves
Model: 01-387 ⅜” OD Flare x ½” FIP
Model: 01-487 ½” OD Flare x ½” FIP
Model: 01-266
⅜” OD Flare x ⅜” OD Flare
Model: 01-288
½” OD Flare x ½” OD Flare
NOTE: See the Firegear Outdoors catalogue for other accessories also available.

REV. B Page 17
Drop in Pan - TMSI Fire Pits
When converting Burners to LP gas the main burner orice must be kept a minimum of 6-inches away from the burner
connection (nipple) to prevent any back pressure at the LP orice. See Fig. 14 below for details. Note: It is acceptable to
install a 90° elbow, if necessary, to run the gas line the opposite direction (see Fig 15 or 16). A 90° elbow is not provided
with the kit.
All NPT pipe threads must be sealed with approved gas Teon tape or pipe compound.
Check for any gas leaks before presuming normal operation after conversion is complete.
CAUTION: Ensure there is ventilation under the burner to provide fresh air for air shutter/orice.
CONVERTING TO LP GAS
Burner Pan
GAS FLOW
½” x 5-inch Nipple
(113SS4-D5)
½” OAS-LP Orifice
½” Flared Fitting
(U3-8D-S)
½” x ½” Coupling
(SS499-8)
Fig. 14 LP conversion illustration.
Fig. 15 Optional LP conversion illustration shows a 90º
elbow (not supplied).
Burner Pan
½” x 5-inch Nipple
(113SS4-D5)
½” OAS-LP Orifice
½” Flared Fitting
(U3-8D-S)
½” x ½” Coupling
(SS499-8)
GAS FLOW
½” 90º Elbow
(not supplied)
Converstion Kit Common Parts Btu Ratings LP Orice Models
OAS-LPK41 S499-8; 113-SS4-D5;
U3-8D-S
75,000
(21.98kW)
OAS-LP41 LOF-3006TTMSI-N
LOF-3012HTMSI-N
LOF-3606TTMSI-N
LOF-3614HTMSI-N
OAS-LPK29 S499-8; 113-SS4-D5;
U3-8D-S
100,000
(29.30kW)
OAS-LP35 LOF-4806TTMSI-N
LOF-4814HTMSI-N
LOF-6006TTMSI-N
LOF-6016TTMSI-N
Table 6 LP conversion chart
Burner Pan
½” x 5-inch Nipple
(113SS4-D5)
½” OAS-LP Orifice
½” Flared Fitting
(U3-8D-S)
½” x ½” Coupling
(SS499-8)
GAS FLOW
½” 90º Elbow
(not supplied)
½” Close Nipple
(not supplied)
Fig. 16 Optional LP conversion illustration shows a 90º
elbow and close nipple (not supplied).

REV. B Page 18
Drop in Pan - TMSI Fire Pits
FIREGEAR LIMITED WARRANTY - 2020
Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship
defects that prevent safe and correct operation of the product. The warranty commences from date of sale to
the end user for the following period:
CONSUMER RESIDENTIAL APPLICATIONS –MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL BURNERS AND PANS
• LIFETIME WARRANTY - BRASS BURNERS
• FIVE (5) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• FIVE (5) YEAR WARRANTY - AWS ELECONITC IGNITION SYSTEMS (24VAC, 30 VDC)
• FIVE (5) YEAR WARRANTY - TFS/TMSI ELECTRONIC COMPONENTS
• FIVE (5) YEAR WARRANTY –MT COMPONENTS (KEY VALVE)
• FIVE (5) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• FIVE (5) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE –KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• FIVE (5) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• FIVE (5) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
SANCTUARY SERIES –GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS AND SURFACE
CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME –LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY –ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

REV. B Page 19
Drop in Pan - TMSI Fire Pits
COMMERCIAL APPLICATIONS –MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS
• TWO (2) YEAR WARRANTY - BRASS BURNERS
• TWO (2) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• TWO (2) YEAR WARRANTY - AWS ELECONITC IGNITION SYSTEMS (24VAC, 30 VDC)
• TWO (2) YEAR WARRANTY –MT COMPONENTS (KEY VALVE)
• TWO (2) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• TWO (2) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE –KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• TWO (2) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• TWO (2) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
SANCTUARY SERIES –GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS AND SURFACE
CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME –LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY –ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

REV. B Page 20
Drop in Pan - TMSI Fire Pits
The end-user must provide a bill of sale, canceled check, or payment record to verify the purchase date and to
establish the warranty period. This Limited Warranty shall be valid and limited to the original purchaser only.
WARNING Any modification to the product will void the warranty.
This Limited Warranty shall be limited to the repair and/or replacement of parts that have been proven to be
defective under normal use and service. All warranty claims must be made by the OEM/Distributor/Dealer
account on behalf of the end-user. You may contact Technical Support at 800-966-8126.
Our Technical Service Department must confirm all approved defects. If a defect is confirmed and we approve
the claim, we will replace such parts without charge. This warranty gives you specific legal rights, and you may
also have other rights, which vary from state to state.
The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization)
issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or
warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date
issued. The RMA must be clearly marked on the outside of the package.
Please check with your local building code department or governing agency for proper approvals before
purchasing. Firegear Outdoors is not responsible for any violation of local codes.
Travel, diagnostic cost, service labor to repair the defect on warranty parts to and from the factory will be the
responsibility of the owner. We will not be responsible for labor charges and/or damage incurred in
installation, repair, and replacement. Firegear is not responsible for Issues related to gas or electrical
installation.
The Limited Warranty is voided if not assembled, installed, and operated as intended. This Limited Warranty
does not cover any defects due to accident, abuse, misuse, alteration, misapplication, vandalism, improper
installation or improper maintenance or service, removal from the original location, or re-installation into
another location, or failure to perform normal and routine maintenance.
Damage due to severe weather conditions such as hail, hurricanes, earthquakes, tornadoes, discoloration due
to overheating, exposure to chemicals (including chlorine and salt), either directly or in the atmosphere, or
very high humidity, is not covered by this Limited Warranty. Costal, humid and/or salt environments are
subject to manufacturer review. All out-of-box claims must be made within 30 days of purchase and must be
made prior to installation. Any product installed damaged will be considered damaged during installation and
not covered under warranty.
There are no other express warranties except as set forth herein. For consumer applications, any applicable
implied warranties of merchantability and fitness are limited induration to the period of coverage of this
Limited Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this limitation
may not apply to you.
For Commercial Applications, the liability of Firegear Outdoors is limited to the express terms of this warranty.
We expressly disclaim any and all implied warranties, including any warranties of fitness for a particular
purpose or merchantability.
