Fisher & Paykel ELBA CG604 Series Wiring diagram

Gas cooktop
CG604 & CG905
models
NZ AU
INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
Safety and warnings 2
Installation instructions 6

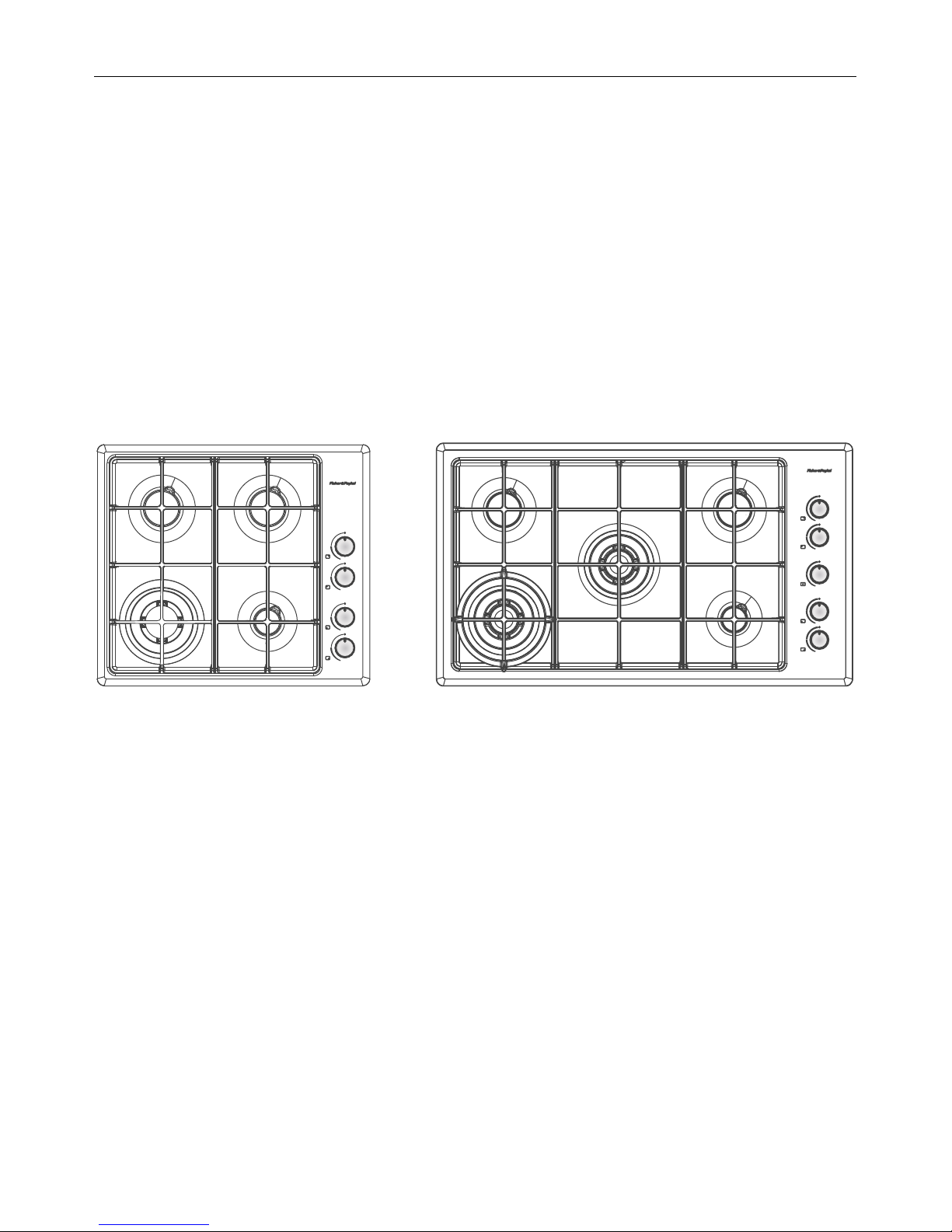

Introduction 16

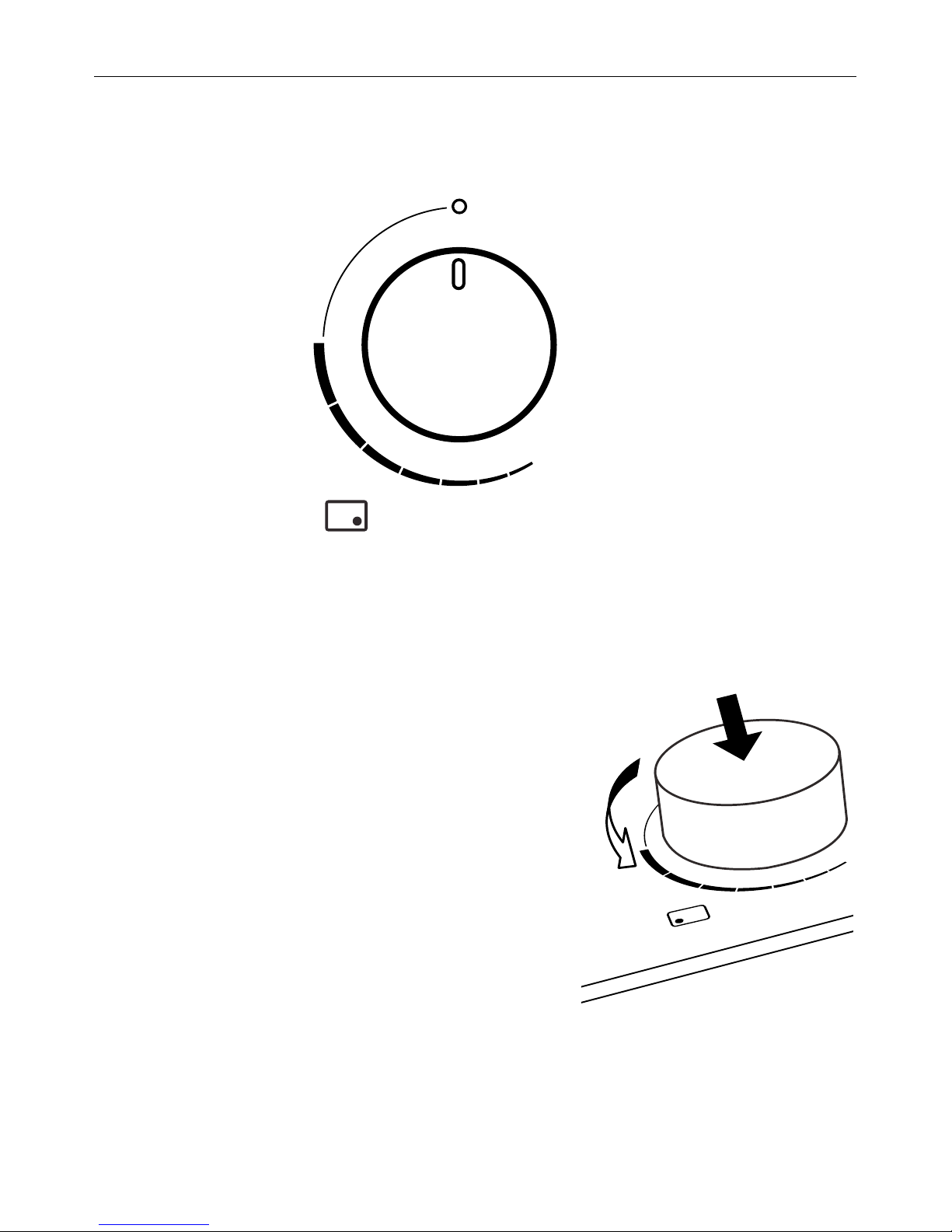

Using your cooktop 17
Cooking guidelines and cookware 20
Care and cleaning 22
Troubleshooting 26
Warranty and service 28
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject
to change at any time. For current details about model and specification availability in
your country, please go to our website www.fisherpaykel.com or contact your local
Fisher & Paykel dealer.

2
SAFETY AND WARNINGS
Your safety is important to us. Please read this information before using your cooktop.
Installation
WARNING!
Electrical Shock Hazard
Before carrying out any work on the electrical section of the appliance, it
must be disconnected from the mains electricity supply.
Connection to a good earth wiring system is absolutely essential and
mandatory.
Alterations to the domestic wiring system must only be made by a
qualified electrician.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut Hazard
Beware of sharp edges when handling stainless steel appliances.
Failure to use caution could result in injury or cuts.
!
!

3
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
Installation
● Read these instructions carefully before installing or using this product.
● Please make this information available to the person responsible for installing the
product as it could reduce your installation costs.
● Particular attention shall be given to the relevant requirements regarding ventilation.
● This appliance is to be installed and serviced only by an authorised person.
● Installation must comply with your local building and local gas authority codes and
● electricity regulations.
● Incorrect installation, for which the manufacturer accepts no responsibility, may cause
personal injury or damage and could invalidate any warranty or liability claims.
● These appliances are registered in: (New Zealand) at www.energysafety.govt.nz and
(Australia) with SAI Global at www.saiglobal.com.
● Appliances are factory set for Natural gas but are convertible to LPG. If in doubt, refer
to the local gas network operator or gas supplier to confirm gas type at installation
site.
● This appliance must be installed in accordance with these installation instructions
and in compliance with local gas fitting regulations, municipal building codes,
water supply regulations, electrical regulations, AS5601/AG601 and NZS5261 – Gas
installations and any other relevant statutory regulations.
● Do not modify this appliance.
● When this appliance is installed, it shall not be used as a space heater.
● Do not use or store flammable materials on or near this appliance.
● Do not spray aerosols in the vicinity of this appliance while it is in operation.
● This appliance should not be sealed into the bench with silicone or glue. Doing so
will make future servicing difficult. Fisher & Paykel will not be liable for any costs
associated with removing or replacing a sealed-in product, nor for repairing any
damage that may be incurred by doing this. Fisher & Paykel does not exclude any
statutory liability it may have and which by law cannot be excluded, because of the
giving of this notice.
● If the appliance is connected to the gas supply with a flexible hose, make sure that
the hose cannot come in contact with the bottom of the appliance or any sharp edges.
● Ensure that the electrical connection plug is accessible after installation.
● Packing elements (eg plastic bags, polystyrene foam, staples, packing straps etc) and
tools should not be left around during and after installation, especially if they are
within easy reach of children, as these may cause serious injuries.

4
SAFETY AND WARNINGS
Operation and maintenance
WARNING!
Fire Hazard
Never leave the appliance unattended when in use. Boilover causes
smoking and greasy spillovers that may ignite.
Never use your appliance for warming or heating the room.
Failure to follow this advice may result in serious injury.
WARNING!
Explosion Hazard
Do not use or store flammable materials such as gasoline near this
appliance. Do not spray aerosols in the vicinity of this appliance while it is
in operation.
Failure to follow this advice may result in death or serious injury.
WARNING!
Hot Surface Hazard
This appliance becomes hot during use.
Do not touch the cooktop components, burners, trivets, pan supports or
the base when hot.
Before cleaning, turn the burners off and make sure the whole cooktop is
cool.
Failure to follow this advice may result in serious injury.
WARNING!
Electrical Shock Hazard
Switch the power to the cooktop off at the wall before cleaning or
maintenance.
Failure to follow this advice may result in death or electrical shock.
WARNING!
Poisoning Hazard
Never use this appliance as a space heater to heat or warm the room.
Doing so may result in carbon monoxide poisoning and overheating of the
appliance.
Failure to follow this advice may result in poisoning or death.
!
!
!
!
!

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
Operation and maintenance
● Keep children away from the cooktop when it is in use.
● Household appliances are not intended to be played with by children.
● Children of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge, if they have been given supervision or instruction
concerning the use of the appliance in a safe way and they understand the hazards
involved. Cleaning and user maintenance shall not be done by children without
supervision.
● If the electrical supply cord is damaged, it must only be replaced by an authorised
person. Ensure that the electrical connection plug is accessible after installation.
● This appliance should be connected to a circuit that incorporates an isolating switch
providing full disconnection from the electricity supply.
● Do not use an asbestos mat or decorative covers between the flame and the saucepan
as this may cause serious damage to your cooktop.
● Do not place aluminium foil or plastic dishes on the cooktop burners.
● Do not let large saucepans or frying pans overlap the bench as this can deflect heat
onto your benchtop and damage the surface.
● Do not let large saucepans, frying pans or woks push any other pans aside. This could
make them unstable or deflect heat onto your benchtop and damage the surface.
● Do not use a steam cleaner for cleaning this cooktop.
● Saucepan handles may be hot to touch. Ensure saucepan handles do not overhang
other gas burners that are on. Keep handles out of reach of children.
● Do not stand or place heavy objects on this appliance.
● After use, ensure that the control dials are in the ‘OFF’ position.
● This appliance shall not be used as a space heater, especially if installed in marine
craft or caravans.
● The use of a gas cooking appliance results in the production of heat and moisture in
the room in which it is installed. Ensure the kitchen is well ventilated. Keep natural
ventilation holes open or install a mechanical ventilation device (mechanical extractor
hood). Prolonged intensive use of the appliance may call for additional ventilation,
for example opening of a window, or more effective ventilation, for example
increasing the level of mechanical ventilation where present.
● After having unpacked the appliance, check to ensure that it is not damaged.
● In case of doubt, do not use it and consult your supplier or a professionally qualified
technician.
● Packing elements (eg plastic bags, polystyrene foam, nails, packing straps, etc.)
should not be left around within easy reach of children, as these may cause serious
injuries.
● Some appliances are supplied with a protective film on steel and aluminium parts.
This film must be removed before using the appliance.

6
INSTALLATION INSTRUCTIONS
Cooktop and cutout dimensions
A
E
B
C
DH
J
I
G
F
Drawings for illustration purposes only
PRODUCT AND CUTOUT DIMENSIONS
CG604DWFC
CG905DWFC
MM MM
AOverall width of cooktop 578 914
BOverall depth of cooktop 511 533
CHeight of chassis (below top of bench) 52 52
DWidth of chassis 554 840
EDepth of chassis 480 480
FOverall width of cutout 560 870
GOverall depth of cutout 490 494
HCorner radius of cutout max. 10 max. 10
IDistance from right edge of cutout to
manifold centre line
30 30
JDistance from rear edge of cutout
to gas inlet
40 47

7
INSTALLATION INSTRUCTIONS
A
E
C
D
FB
GH
Drawings for illustration purposes only
CLEARANCE DIMENSIONS
CG604DWFC
CG905DWFC
MM MM
AMinimum clearance from left edge of cutout to:
nearest combustible surface
140 140
BMinimum clearance from right edge of cutout to:
nearest combustible surface
140 140
CMinimum clearance from rear edge of cutout to:
nearest combustible surface
nearest non-combustible surface
112
20
112
30
DMinimum height of non-combustible material when used on adjacent
walls (See section ‘Standards requirements’ following)
150 150
EMinimum clearance from pan supports to:
rangehood
any other overhead exhaust fan
downward-facing combustible surface (overhead cabinetry)
downward-facing tiled or fire-resistant surface
650
800
650
500
650
800
650
500
FMinimum clearance below top of benchtop to:
nearest combustible surface
F&P oven or nearest non-combustible surface
60
60
60
60
GEnsure there is an earthed power outlet within 900mm of the rear right-
hand corner of the cooktop. The outlet should be accessible with the
cooktop installed.
HIf connecting the cooktop to the gas supply with a flexible hose, the
connector on the wall should be between 800-850mm above the floor
and to a distance of at least 250mm outside the width of the cooktop.
The connector should be accessible with the cooktop installed.
Clearances

8
INSTALLATION INSTRUCTIONS
Before you start
Before starting to install the cooktop, make sure that:
● the cooktop has not been damaged during transport. In case of doubt after unpacking
and checking it, contact the retailer
● the local distribution conditions (nature of gas and pressure) and the adjustment of the
cooktop (as detailed on the appliance data label and in the ‘Gas rate and injector size
table’ further below) are compatible
● the cooktop will be connected to a 220-240 V 50 Hz power supply and earthed via the
power supply cable
● there is an earthed power outlet within the reach of the cooktop’s power supply cable
(within 900mm from the rear right of the cooktop, see dimension G in ‘Clearances’)
● the power outlet will be accessible after installation
● the power supply cable will not touch any hot or metal parts
● a suitable isolating switch providing full disconnection from the mains power supply
is incorporated in the permanent wiring, mounted and positioned to comply with
local wiring rules and regulations. The isolating switch must be of an approved type
and provide a 3mm air gap contact separation in all poles (or in all active [phase]
conductors if the local wiring rules allow for this variation of the requirements)
● the isolating switch will be accessible after installation
● the benchtop is made of a heat-resistant material
● exposed bare edges of the cutout are sealed with an oil-based paint or moistureproof
polyurethane to prevent possible damage from moisture creeping between the cooktop
trim and the benchtop.
Standards requirements
Temperature of nearby surfaces. Australian and New Zealand Gas Installation Standards
(AS/NZS 5601.1 current edition) require a cooktop to be installed so that the surface
temperature of any nearby combustible surface will not exceed 65oC above ambient.
This is typically achieved by:
● having the cooktop spaced away from the wall (see dimensions A, B, and C in
‘Clearances’) OR
● protecting the wall to a height of at least 150 mm along its length (see dimension D in
‘Clearances’) with non-combustible surface materials such as:
● 5 mm-thick ceramic tiles—these alone are adequate
● tempered glass or sheetmetal (minimum thickness 0.4mm)—acceptable when used
in front of a fire resistant material
● F&P splashback (not available in Australia) when used with a 10mm clearance from
the rear edge of the cooktop to the front of the splashback (SB90 and SB1216
splashback models only).
Note: these cooktops have been tested by an independent testing lab and meet
standards requirements when installed to the dimensions in these instructions.

9
INSTALLATION INSTRUCTIONS
Fastening the cooktop to the bench
This cooktop is suppled with fastening brackets (and screws) that will cope with a
bench thickness of 20-50mm. For benches thicker than 50mm, recess the underside
to a thickness of 20-50mm.
Connecting the cooktop to the gas supply
IMPORTANT!
● This cooktop is supplied factory-set for Natural Gas, but is suitable for installation
with either Natural Gas or LPG, provided the injectors appropriate for the gas type
are installed. Refer to the ‘Gas rate and injector size table’ for nominal ratings and
appropriate injector sizes, and to section ‘Converting to a different gas type’.
● The gas connection must be carried out by a suitably qualified person according to
the relevant standards.
● For Natural Gas, connect the gas supply to the gas pressure regulator supplied with the
cooktop. Adjust the regulator to obtain a test point pressure of 1 kPa (4”W.C.) with the
three largest burners operating at the highest setting.
● For LPG, connect the the gas supply to the test point adaptor supplied with the
cooktop. Ensure that the supply pressure is regulated to 2.75 kPa (11” W.C.) See section
‘Converting to a different gas type’.
● Make sure the connection point will be accessible with the cooktop installed.
● To enable the gas supply to be readily shut off, make sure the connection is fitted with
an isolating valve close to the cooktop.
● Attach the duplicate appliance data label on a surface adjacent to the cooktop, so that
it will be easily read with the cooktop installed.
● For instructions on converting the cooktop for use with a different gas type, see section
‘Converting to a different gas type’.
● Gas connection to these cooktops MUST use the elbow supplied. The regulator will not
seal if installed without it.
● Ensure the fibre washer (supplied) is located between the elbow (supplied) and
cooktop gas inlet. Failure to use this washer will cause the connection to leak. Tighten
the floating nut to firm finger tight, plus an additional 1/4 turn (90o).

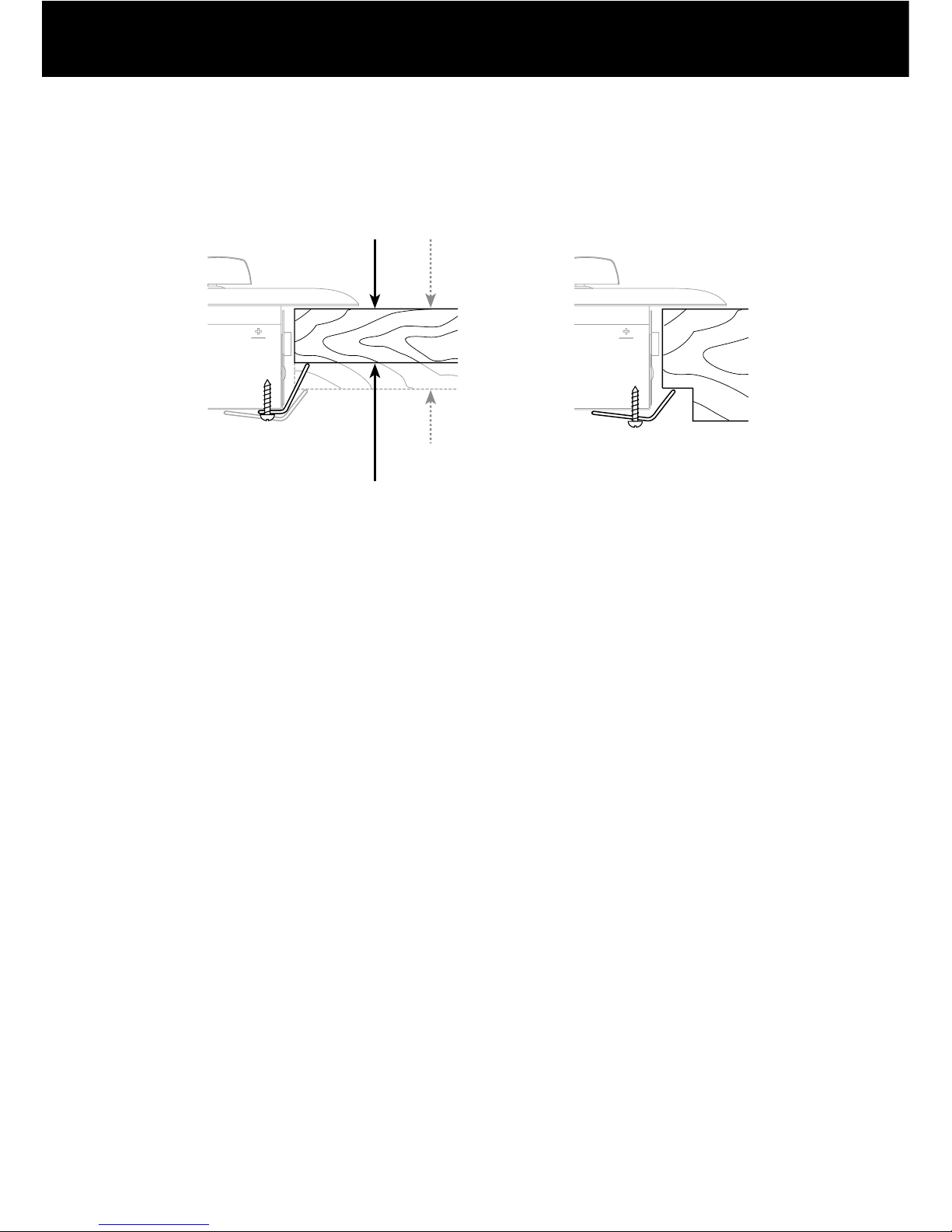

20mm
50mm
recessed to
50mm
Fastening the cooktop to the bench

10
INSTALLATION INSTRUCTIONS
Gas connection with a flexible hose
● If the gas is connected with a flexible hose, the connector on the wall should be
between 800-850mm above the floor and to a distance of at least 250mm outside the
width of the cooktop. The connector should be accessible with the cooktop installed.
● Flexible hose assemblies should be AS/NZS 1869 Class B or Class D certified. The
thread connection shall be Rp ½” (ISO 7-1) female.
● The hose assembly must be as short as practicable and comply with relevant AS 5601/
NZS 5261 requirements.
● The hose must not be kinked, subjected to abrasion or permanently deformed.
● The hose must not be near or in contact with any hot surfaces (eg base of metal
hotplate, flue or chassis of underbench oven etc).

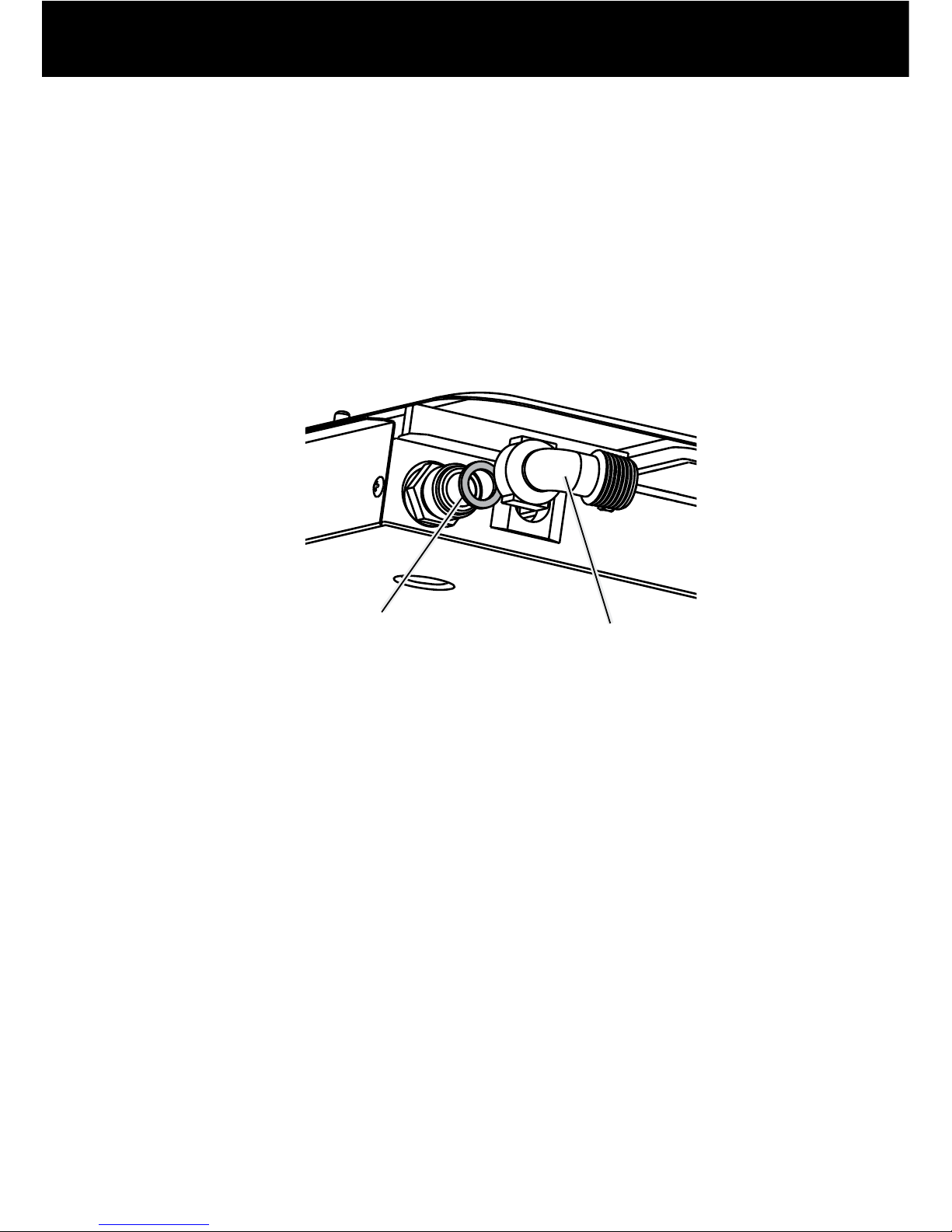

Fibre washer Elbow (1/2” BSP external thread)
Gas connection to the cooktop

11
INSTALLATION INSTRUCTIONS
Leak-testing and flame-testing the cooktop
IMPORTANT!
The operation of the cooktop, including the ignition system, must be tested before
installation is complete. If, after following the instructions below, satisfactory
performance cannot be obtained, contact the local gas authority or your local
Authorised Repairer for advice and assistance.
Checking the connections for leaks
After installation and making all connections, check thoroughly for possible leaks and
make sure all connections are gas-tight.
1Turn all control dials to O (OFF).
2Open the valve on the gas supply.
3Check each connection one at a time by brushing a soap and water solution or a
suitable leak detection fluid over it.
IMPORTANT!
Do not use any naked flames to check for leaks.
● The presence of bubbles indicates a leak. Tighten or replace connections as
appropriate, then leak-test all connections again. Ensure the fibre washer (supplied) is
located between the elbow and the cooktop’s gas inlet.
Checkng the burner flames
1Light each burner.
2Check for a well-defined blue flame without any yellow tipping.
● If any abnormality is evident, check that:
● the burner cap is located properly
● the injector nipple is correctly aligned
● the correct size injectors are installed.
Incorrect: flame
‘lifting off’ the burner
Incorrect:
yellow tipping
Good flame: well-defined blue
flame without yellow tipping
Incorrect and good flame patterns

12
INSTALLATION INSTRUCTIONS
Converting to a different gas type
IMPORTANT!
Gas conversion may only be carried out by a suitably qualified person.
● To convert from one gas type to another, you need to replace the injectors and adjust
the minimum burner setting.
● To replace the injectors, you will need a 7mm box spanner. This is not supplied.
1Switch the power supply to the cooktop off at at the wall.
IMPORTANT!
Disconnect cooktop from the power supply before continuing.
2Make sure each control dial is turned to O (OFF).
3Remove all the pan supports and burner heads.
4Pull off the control dials.
5Using a 7mm box spanner, remove the injectors and replace them with the correct ones
(size numbers are stamped on the inside, eg 70=0.70mm). Hold on to the card housing
the replacement injectors for later use.
6Check insulation resistance and earth continuity.
7Switch the power supply to the cooktop back on at the wall.
8Refit the control dials.
9Adjust the minimum burner setting.
See section ‘Adjusting the minimum burner setting’ following.
!0 Check that all burners have a good flame.
!1 To indicate the gas type change, peel the adhesive label off the replacement injector
card and stick it into the framed ‘gas type’ area on the appliance data label (on the
underside of the cooktop). A second conversion label should also be affixed to the
duplicate appliance data label.

13
INSTALLATION INSTRUCTIONS
Adjusting the minimum burner setting
● This has been adjusted at the factory for Natural Gas but may need adjusting for local
conditions.
● When converting to LPG, the minimum setting MUST be re-adjusted for each burner.
● To adjust the minimum setting, you will need a Ø 3 X 75mm screwdriver.
1Light the burner and set the control dial to its minimum.
2Remove the dial and the plastic cover over the valve.
3Slowly turn the adjustment screw on the valve until a minimum regular flame is
achieved. Note:
● The flame will diminish when the screw is turned clockwise, and increase when turned
anti-clockwise.
4Refit the plastic cover and dial.
5Check the minimum burner setting: quickly turn the dial from maximum to minimum.
The flame must not go out. If it does, repeat the steps above.
Repeat the steps above for each burner.
Adjusting the minimum burner setting

14
INSTALLATION INSTRUCTIONS
Gas rate and injector size table
NATURAL GAS LPG
Test point pressure (kPa) 1.0 2.75
Burners Injector
orifice size
(mm)
Nominal
gas rate
(MJ/h@1kPa)
Injector
orifice size
(mm)
Nominal
gas rate
(MJ/[email protected]5kPa)
CG604DWFC, CG905DWFC
Auxiliary
right front
0.85 3.6 0.55 4.0
Semi-rapid
left & right rear
1.30 8.5 0.80 8.5
Wok
CG604DWFC:
left front
CG905DWFC:
left front & centre
1.75 15.0 1.00 13.5

15
INSTALLATION INSTRUCTIONS
TO BE COMPLETED BY THE INSTALLER
Have you securely fastened the cooktop to the bench with the supplied brackets?
Have you used the supplied elbow and fibre washer to connect the gas to the inlet
on the cooktop?
Have you leak-tested all connections?
Are the injector sizes correct for the gas type?
Is the shut-off valve on the gas supply accessible to the customer?
Is the power supply isolating switch accessible to the customer?
Is the cooktop power supply cable plugged into an earthed outlet?
Check the entire length of the power supply cable: it should not touch any hot metal
parts.
Have you removed all protective film from the stainless steel surfaces?
Have you disposed of all packaging elements?
OPERATION:
Do all burners light individually and in combination?
Do the burners remain lit when turned quickly from maximum to minimum?
Are the flames consistent, free from any yellow tipping and appropriately sized?
Have you demonstrated the basic operation to the customer?
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date

16
INTRODUCTION
About your new cooktop
Thank you for buying a Fisher & Paykel gas cooktop. Once it is installed and ready to
use, you will want to know everything about it to make sure you get excellent results
right from the start.
We recommend you read the whole guide before using your new cooktop, for both
safety and cooking success.
For more information, visit our local website listed on the back cover.
Before using your new cooktop
● Read this user guide, taking special note of the ‘Safety and warnings’ section.
● Ensure the power supply to the cooktop is turned on.
1Semi-rapid burner
2Wok burner
3Auxiliary burner
4Control dials
Cooktop layout - CG905DWFC
Cooktop layout - CG604DWFC
11
3
11
22
2
3
4
4

17
USING YOUR COOKTOP
Control dials
The dials control the flow of gas through the valve.
Using the burners
1Press the selected burner’s dial down gently and turn it anti-clockwise to HIGH.
● The ignitors on all the burners will spark.
2Hold down the dial for about 5 seconds after the burner
has lit. Releasing the dial too soon will extinguish the flame.
3Adjust the flame anywhere between HIGH and LOW.
Do not adjust between HIGH and O (OFF).
4After use, always turn the dials to O (OFF).
Pressing down then
turning the control dial
Control dial
NEVER cook or
leave the dial
between HIGH
and O (OFF)
LOW
OFF (closed valve)
HIGH
Burner
indicator

18
USING YOUR COOKTOP
If a burner does not light
Turn the control dial to O (OFF) and wait at least 1 minute before trying again. This
is to allow the gas to disperse. If after trying again the burner still does not light, check
that:
● the cooktop is plugged in and the power supply is switched on
● there is no power failure in your home or neighborhood
● the gas is turned on
● the gas bottle is not empty (if you use bottled gas)
● the ignitors are sparking. If they are not sparking, they may be dirty or wet. Clean them
with a toothbrush and methylated spirits, as shown in below. See ‘Care and cleaning’ for
instructions on removing and replacing the burner parts.
If the flame is irregular
Check that the burner parts (flame spreader and burner cap) are:
● clean and dry
● positioned correctly, as shown below.
● For further advice, see sections ‘Care and cleaning’ and ‘Troubleshooting’.
Cleaning the ignitor and probe
Ignitor
Flame failure probe
Ignitor Flame spreader
Burner cap
Burner parts Correct assembly
of burner parts
Incorrect assembly of
burner parts, resulting in
irregular flames
