Fisher-Price Smart Response B8870 User manual

Model Number: B8870
PLEASE KEEP FOR FUTURE REFERENCE.
Please read these instructions before assembly and use of this product.
Adult assembly is required.
Tool needed for assembly: Phillips Screwdriver (not included).
Requires four “D” (LR20) alkaline batteries for operation.
Product features and decorations may vary from picture above.
Accessories sold separately.
Smart Response™Swing
w
w
w.
fi
s
he
r
-p
r
i
c
e
.
c
o
m

Consumer InformationWarnings and Caution
2
Occasionally a consumer may experience a problem with one
of our products. If this should happen, please call us, rather
than return this product to the store. Usually, we can solve the
problem over the telephone or send you replacement parts.
Please call 01628 500303 or write to:
Mattel UK Limited
Mattel House
Vanwall Business Park
Vanwall Road
Maidenhead,Berkshire SL6 4UB
• To prevent serious injury or death
from falls and being strangled in
the restraint system:
- Always use the restraint sys-
tem. Never rely on the tray to
restrain child.
- Never use with an active child
who may be able to climb out of
the seat.
- Not recommended for children
who can sit up by themselves
(6 months approximately, until
9 kg/20 lbs).
• Never leave child unattended.
• It is dangerous to use this reclined
cradle on an elevated surface.
WARNING
This product contains small parts
in its unassembled state.
Adult assembly is required.
CAUTION

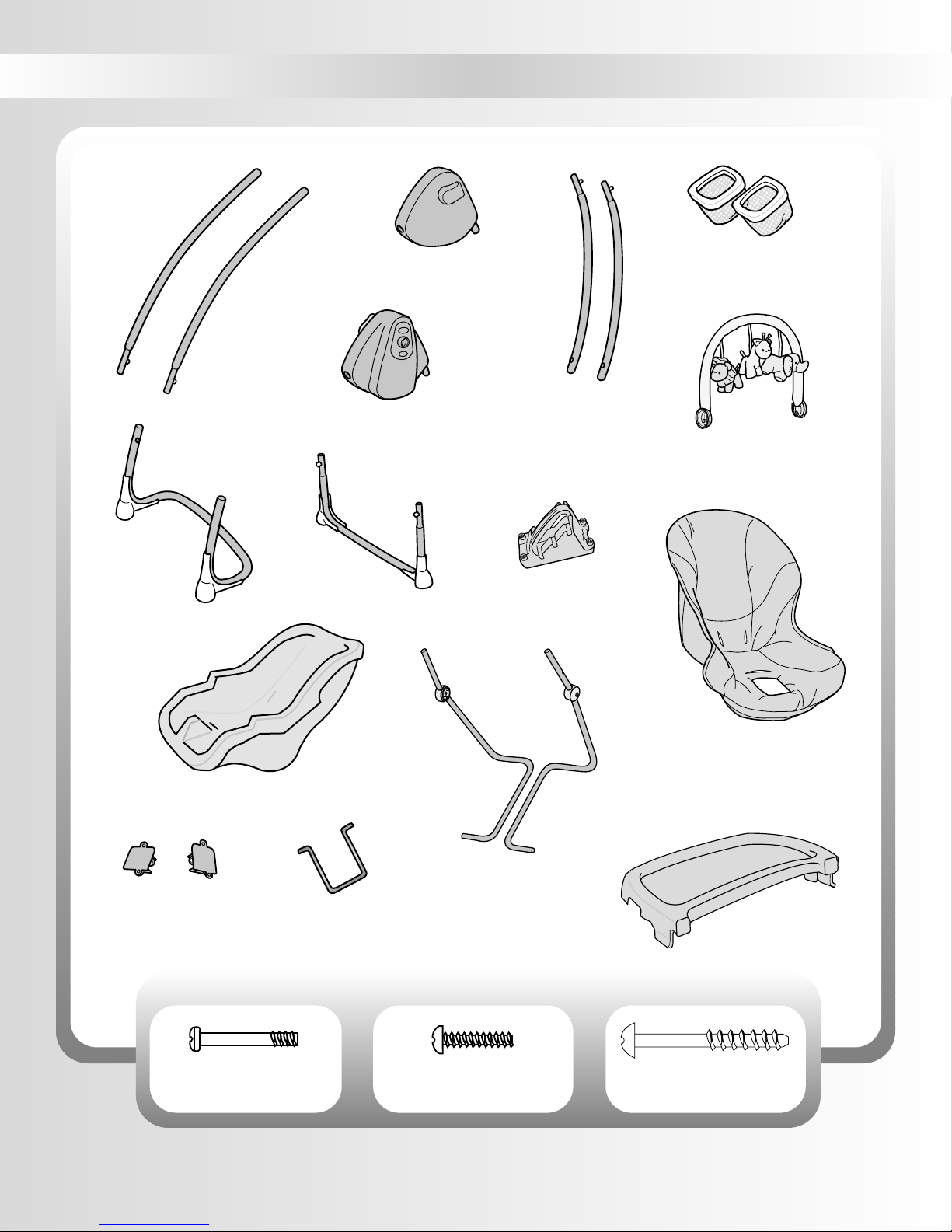

Parts
3
Front Base Rear Base
Seat with Restraint
2 Seat Tubes
Seat Wire
2 Seat Wire
Caps
2 Accessory Bins
Pad
Toybar
(Toys may be different)
Tray
2 Front Legs
(Longer)
M4 Screw - 4
Shown Actual Size
#6 x 1.59 cm (5/8") Screw - 8
Shown Actual Size #8 x 3.49 cm (13/8") Screw - 6
Shown Actual Size
2 Rear Legs
(Shorter)
Bracket
(with M4 Lock Nuts)
Housing
Motor Housing
Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten screws.

• Place the front base on a flat surface.
• Position a front leg (longer) so that the tapered end is
downward, as shown.
• While pressing the button on one of the front legs, insert it
into the front base. Push down on the front leg until the
button “snaps” into the hole in the front base.
• Repeat this procedure to assemble the other front leg to
the front base.
Front Base
Tapered End
Tapered End
Front Legs
(Longer)
IMPORTANT! Before assembly, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. DO NOT
use if any parts are missing, damaged or broken. Contact Fisher-Price® for replacement parts and instructions if needed. Never
substitute parts.
Assembly
• While standing on the front base, pull the front legs up.
The front legs should remain secured to the front base.
If you can remove the front legs, you have not assembled
them correctly to the front base. Reread and repeat
assembly step 1.
4
Press
Button
Press
Button
Front Legs Pull Up
Pull Up
Front Base
1
2
• Position the housing so that the hub is inward.
• While pressing the button on the top of front leg, insert it
into the housing slot, as shown. Push the front leg until the
button “snaps” into the hole in the housing.
• Repeat this procedure to assemble the motor housing to
the other front leg.
• Pull the front legs down to be sure they are secure in the
housings. If you can remove them, you have not assembled
them correctly. Please re-read and repeat this assembly step.
Hub
Housing
Slot Motor
Housing
Front
Legs
Press
Buttons
3
• Position a rear leg so that the tapered end is upright.
• While pressing the button on the top of the rear leg, insert it
into the housing short tube, as shown. Push the rear leg
until the button “snaps” into the hole in the short tube.
• Repeat this procedure to assemble the other rear leg to the
motor housing short tube.
• Pull the rear legs down to be sure they are secure in the
housings. If you can remove them, you have not assembled
them correctly. Please re-read and repeat this assembly step.
Button
Rear Legs
4
Motor Housing
Short Tube
Tapered
End

Assembly
5
• Place the rear base on a flat surface so that the buttons
face the front base.
• While pressing the buttons on each side of the rear base,
fit the rear legs onto the rear base. Push the rear legs
down until the buttons on the rear base “snap” into the
holes in each rear leg.
Rear Base
Front
Base
Rear
Legs
• Position the seat face down, with the top of the seat
facing you.
• Position a seat tube so that the long end is upright and
toward you and the curved end is toward the outside edge
of the seat.
• Insert the curved end of the seat tube through the holes in
the ridges on the seat back.
• Repeat this procedure to assemble the other seat tube to
the seat.
Press
Button
Press
Button
6
• While standing on the rear base, pull the rear legs up.
They should remain secured to the rear base. If you can
remove the rear legs, you have not assembled them cor-
rectly to the rear base. Reread and repeat assembly step 6.
• Set the frame assembly aside for Assembly step 17.
Rear Legs
Pull Up
Pull Up
Rear Base
7
8
Top of Seat
Seat Tube
Long Ends
Ridges
• Pull both rear legs out until they “snap” into place.
Pull
Rear
Leg Pull
Rear
Leg
5
Curved
End

Assembly
6
• Insert four M4 screws through the seat tubes, bracket and
into the lock nuts.Tighten the screws.
• Rotate the seat tubes down.
Seat
Tubes
10
Bracket
Seat
Tubes
11
• Position the bracket so that the tall end is toward the
bottom edge of the seat.
Hint: The M4 lock nuts have been assembled to the bracket at
the factory. During shipment of this product, they may have
fallen out. Check to be sure there is a lock nut in each hexagonal
opening on the bracket. If one (or more) has fallen out, fit the lock
nut into a hexagonal opening in the bracket. Make sure the
rounded side of the lock nut is facing up.
• Fit the grooves on the bracket to the seat tubes, as shown.
Seat
Tubes
Bracket
Grooves
Tall
End
Bottom
Edge of
Seat
9
M4 Screw - 4
Shown Actual Size
Lock Nut
Hexagonal
Opening
Shown Actual Size
M4 Lock Nut
Rounded Side
• Fit the seat wire through the slot in the bracket as shown.
Bracket
Slot
Seat Wire
12

Assembly
7
• While holding the seat wire in place, carefully turn the
seat around so that the front faces you.
• Position the seat wire cap so that the rounded edge
is upright.
• Fit each end of the seat wire through the hole in each
seat wire cap.
Ends of
Seat Wire
• Press the seat wire caps into place.
• Insert two #6 x 1.59 cm (5/8") screws through each seat wire
cap and tighten.
• Turn the seat face down.
• Fit an accessory bin into the groove on each side of the
seat, as shown.
• Insert two #8 x 3.49 cm (13/8") screws into each accessory
bin and tighten.
Seat Wire Cap
Seat Wire
Cap
Grooves
Seat
Accessory Bin
Accessory Bin
Seat Wire Caps
14
15
16
• Lift the seat tubes slightly.
• With the seat wire hanging down, insert the ends of the seat
wire through the slots in the seat, as shown.
Slots
Seat Wire
13
#8 x 3.49 cm (1
3/8
”) Screw - 4
Shown Actual Size
#6 x 1.59 cm (5/8") Screw - 4
Shown Actual Size
Seat Wire
Cap Hole
Rounded Edge Up
Seat Wire is
Through Hole in
Seat Wire Cap
“Press” in Place
Hint: The seat wire caps are designed to fit into the seat only
one way. If the screw holes in the seat wire cap does not align
with the holes in the seat, try switching the seat wire cap onto
the opposite ends of the seat wire.

Assembly
8
• Fit the pocket on the back of the pad onto the seat back.
• Fit the waist belts through the smaller slots in the pad.
Crotch Belt
Waist Belts
Pad
19
• Lift the bottom of the pad.
• Insert the pad elastic loops through the holes in the
seat bottom.
• Insert the crotch belt through the slot in the pad.
• From under the seat, fit the elastic loops onto the tabs on
the seat bottom.
20
• Insert a #8 x 3.49 cm (13/8") screw into each frame hub
and tighten.
• Again, push down on the seat to be sure the seat is secured
to both frame hubs.
Frame
Hubs
18
Pad
Elastic
Loops
Holes
Crotch
Belt
Seat Bottom
#8 x 3.49cm (13/8") Screw - 2
Shown Actual Size
• Position the seat assembly so that the front of the seat is
toward the curved front base.
• While pressing the buttons on the swing tubes, insert
them into the frame hubs. Push the swing tubes up until
the buttons “snap” into the hole in the frame hubs.
• Push down on the seat to be sure the seat is secured in
both frame hubs.
Swing
Tube
Front
of Seat
Curved
Front
Base
Push
Button
Frame Hub
17

9
Assembly Battery Installation
Installation
• Locate the battery compartment door on the swing frame.
• Insert a coin into the battery compartment door and pry the
battery compartment door off of the swing frame.
• Insert four “D” (LR20) alkaline batteries as indicated inside
the battery compartment.
• Replace the battery compartment door.
Battery
Compartment
Door
Hint: When swinging, sound or power L.E.D. slows/dims/stops,
it’s time to replace the batteries! We recommend using alkaline
batteries for longer battery life.
Battery Safety Information
Batteries may leak fluids that can cause a chemical burn
injury or ruin your product. To avoid battery leakage:
• Do not mix old and new batteries or batteries of different
types: alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Remove batteries during long periods of non-use. Always
remove exhausted batteries from the product. Dispose
of batteries safely. Do not dispose of batteries in a fire.
The batteries may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type,
as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product
before charging.
• If removable, rechargeable batteries are used, they are only
to be charged under adult supervision.
1.5V x 4
“D” (LR20)
SHOWN ACTUAL SIZE
• Fit the toy bar plugs into the sockets on the swing tubes.
Hint: If the toybar plugs do not fit into the sockets, turn the
toybar around.Now, fit the plugs into the sockets.
• Insert two #6 x 1.59 cm (15/8") screws through each plug
and into each socket. Tighten the screws.
22
Plug
Toybar
(Toys may
be different)
Plug
Socket
Plug
Hub
#6 x 1.59 cm (5/8") Screw - 4
Shown Actual Size
• Fit the bottom edge of the pad around the bottom edge
of the seat.
• Hook the elastic loops on each side of the pad to the peg on
the back of the accessory bins.
21
Elastic
Loop
Elastic
Loop

IMPORTANT! Before each use, inspect this product for
damaged hardware, loose joints, missing parts or sharp
edges. DO NOT use if any parts are missing, damaged
or broken. Contact Mattel for replacement parts and
instructions if needed. Never substitute parts.
Securing Your Child
• Place your child in the seat. Position the crotch belt between
your child’s legs.
• Fasten both waist belts to each side of the crotch belt.
Make sure you hear a “click” on both sides.
10
Crotch
Belt
Waist
Belt
Waist
Belt
1
•To prevent serious injury or death
from falls and being strangled in
the restraint system:
- Always use the restraint system.
Never rely on the tray to restrain child.
- Never use with an active child who
may be able to climb out of the seat.
- Not recommended for children who
can sit up by themselves (6 months
approximately, until 9 kg/20 lbs).
•Never leave child unattended.
•It is dangerous to use this reclined
cradle on an elevated surface.
WARNING
B
2
Tighten
B
Loosen

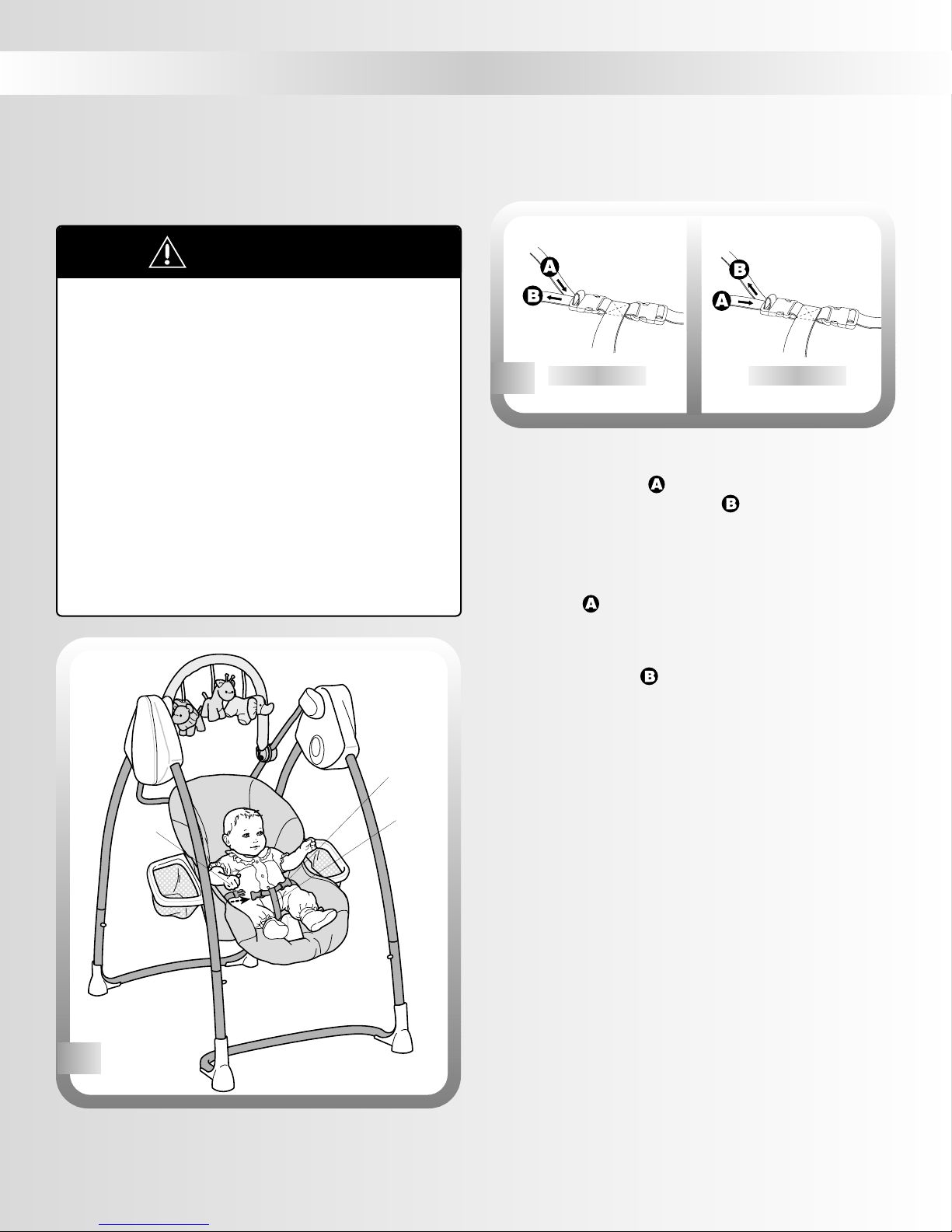

To tighten the restraint:
• Feed the anchored end of the waist belt up through the
buckle to form a loop .
• Pull the free end of the waist belt .
• Repeat this procedure to tighten the other waist belt.
To loosen the restraint:
• Feed the free end of the waist belt up through the buckle to
form a loop .
• Enlarge the loop by pulling on the end of the loop toward
the buckle.
• Pull the anchored end of the waist belt to shorten the free
end of the waist belt .
• Repeat this procedure to loosen the other restraint strap.
Note: After adjusting the restraint to fit your child, make sure
you pull on it to be sure it is securely fastened.
B
B
• Check to be sure the restraint system is securely attached by
pulling it away from your child.The restraint system should
remain attached.

Adjusting the Seat
Using the Tray
Using the Toybar
• Lift or lower the toybar for baby's enjoyment.
11
Toybar
Adjust the seat angle in any of three positions:
Upright,Semi-Recline or Recline.
To adjust the seat angle: Push down on the seat back to
position the seat wire in the desired groove in the bracket
for Upright, Semi-Recline or Recline.
5
• Fit the tray onto the seat arm rests.
Tray
4
3
Upright Semi-Recline
Recline

Swing Modes
12
The Smart Response Swing has two modes: Baby Sounds Activated and Parent Activated .
Parent Activated
Baby Sounds Activated

Baby Sounds Activated
13
Sound Sensitivity Dial
• Slide the switch to high sensitivity for incoming
sounds (listens for shallow sounds).
• Slide the switch to low sensitivity for incoming sounds
(listens only for loud sounds).
Music/Volume Switch
• Select for music highest volume.
• Select for music high volume.
• Select for music low volume.
• Select to turn music off.
Speed Dial
• Select any of five speed settings.
Swing Mode Switch
• Slide the switch to baby sounds activated. The
power L.E.D. lights. The swing begins swinging for about
15-20 minutes and if you have selected music, five songs
play (about 15-20 minutes). After swinging (and music) stop,
the swing is ready to listen for your baby’s sounds for about
two hours.
• When baby cries, the swing (and music, if selected) auto-
matically turns on to soothe baby.
• If the swing is not activated (from baby’s sounds) within two
hours of selection, the power L.E.D. flashes to tell you that it
going to turn off. Once it has turned off (and the power
L.E.D. is not lit), you will need to slide the switch to the off
position and back to baby sounds activated. The
swing is now re-set to listen for your baby’s sounds for
another two hours.
• Be sure to turn the product off when not in use.
Hint: You may want to start with the high sensitivity setting
at first.
Hint: As with most battery-powered swings, a heavier
child will reduce the amount of swinging motion on all set-
tings. In most cases, the low setting works best for a smaller
child while the high setting works best for a larger child.
Speed Dial
Swing Mode Switch
Power
L.E.D.
Sound Sensitivity Dial
Music/Volume Switch

Parent Activated
14
Swing Mode Switch
• Slide the switch to parent activated. The power L.E.D.
lights and the swing begins swinging.
• Be sure to turn the product off when not in use.
Speed Dial
• Select any of five speed settings.
Music/Volume Switch
• Select for music highest volume.
• Select for music high volume.
• Select for music low volume.
• Select to turn music off.
Hint: As with most battery-powered swings, a heavier
child will reduce the amount of swinging motion on all set-
tings. In most cases, the low setting works best for a smaller
child while the high setting works best for a larger child.
Power
L.E.D.
Swing Mode Switch
Speed Dial
Music/Volume Switch

Care
Storage
• Turn the toybar back to it's storage position.
• Press the button on the inside of each housing and push the
rear legs toward the front legs. Stand the frame against a
wall for storage.
To remove the pad:
• Unhook the four elastic hooks from the pegs on the seat
back and bottom.
• Push the restraint belts back through the slots in the pad.
• Slide the upper pad pocket off of the seat back.
• Slide the lower pad pocket off of the seat bottom.
To replace the pad:
• Refer to Assembly steps 19 - 21.
Note: This product has no consumer serviceable parts. Do not
take this product apart.
The pad is machine washable.Wash the pad separately in
cold water on the gentle cycle. Do not use bleach.Tumble
dry separately on low heat and remove promptly. The frame,
tray, and toybar may be wiped clean using a mild cleaning
solution and a damp cloth.
15
Restraint
Belts
Upper
Pad
Pocket
Lower
Pad
Pocket
Elastic
Loops
Elastic
Loops
Press
Buttons
Toybar

One (1) Year Limited Warranty
Mattel UK Limited guarantees to the original consumer
purchaser that this product will be free of defects in material
and workmanship when used under normal conditions for a
period one (1) year from the date of purchase. In the event
of a defect covered by this guarantee Mattel will repair or
replace the product at its sole option.
To claim under this guarantee the original consumer pur-
chaser must telephone Mattel UK Limited at the number
detailed below to arrange for the return of the product to
its Service Department. Mattel UK Limited will need your
name, address, contact number, original dated sales receipt
for this product and a brief explanation of the defect.The
repaired or replaced items will be returned to you free
of charge.
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. Printed in China
©2003 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. B8870pr-0726
This guarantee does not cover damage resulting from
unauthorized repair, or modification, accident, misuse or
abuse of the product and excludes any liability, other than
that expressly stated above, including but not limited to any
incidental or consequential damages.This guarantee is only
valid in the UK.This guarantee does not affect your statutory
rights as a consumer.
Telephone and Address for returns: Tel: [phone].
Mattel UK Limited, Mattel House, Vanwall Business Park,
Vanwall Road,Maidenhead,Berkshire SL6 4UB.
