Fisher-Price DELUXE SMART RESPONSE 79644 User manual

w
w
w.
fi
s
he
r
-p
r
i
c
e
.
c
o
m
Model Numbers: 79644, B2388
PLEASE KEEP FOR FUTURE REFERENCE.
Please read these instructions before assembly and use of this product, as they contain important information.
Adult assembly is required.
Tool needed for assembly: Phillips Screwdriver (not included).
Requires four “D” (LR20) alkaline batteries for swinging and sound operation;
three “AA” (LR6) alkaline batteries for sound ‘n lights tray operation (batteries not included).
Maximum Weight Limit: 24 lbs. (10.9 kg).
IMPORTANT! The maximum weight limit for this product is 24 lbs. If your child weighs
less than 24 lbs., but is really active and appears to be able to climb
out of the swing, immediately discontinue its use.

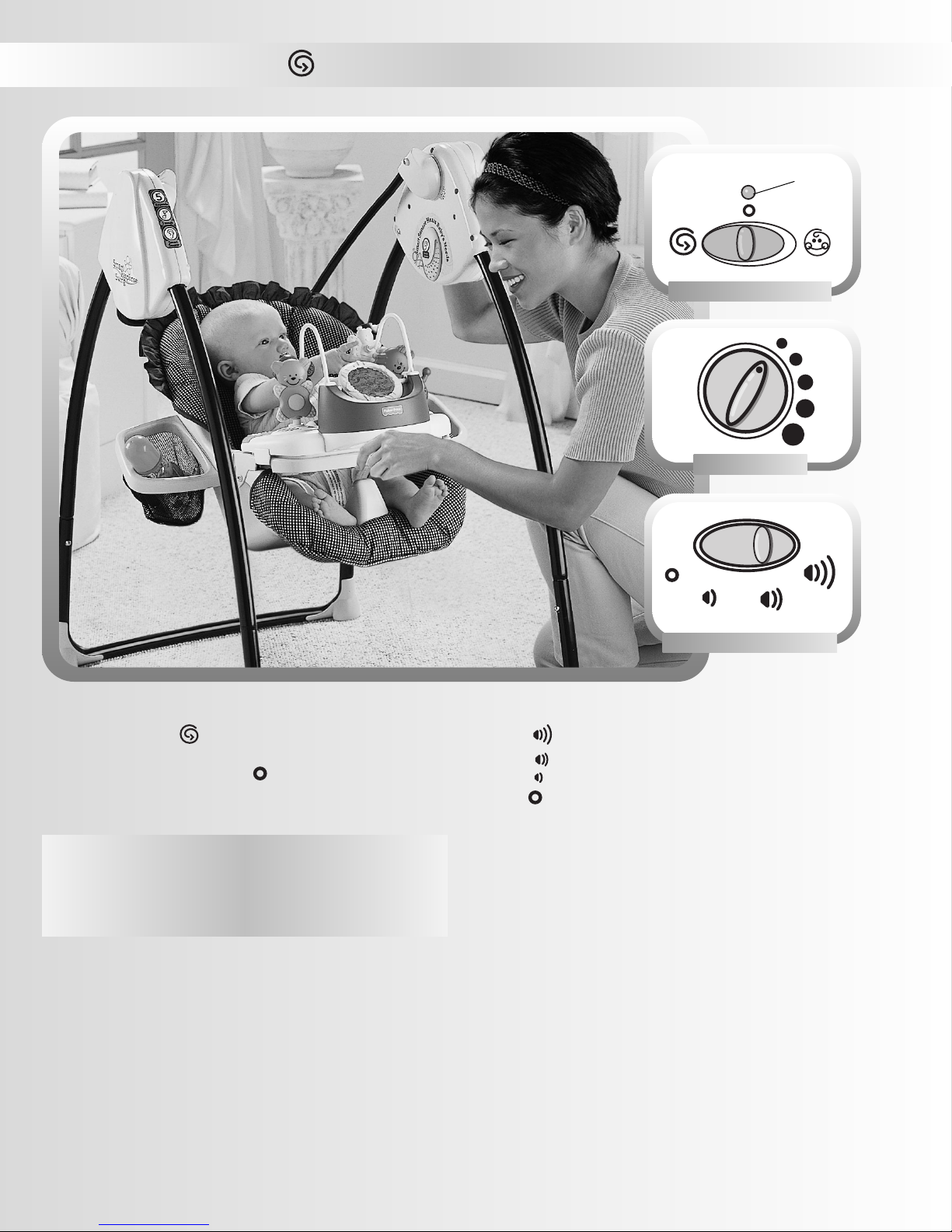

Deluxe Smart Response™Swing
Product features and decorations may vary from picture above.
Accessories sold separately.

2
Warnings and Caution
•To prevent serious injury or death
from falls and being strangled in the
restraint system:
- Always use the restraint sys-
tem. Never rely on the tray to
restrain child.
- Never use with an active child
who may be able to climb out of
the seat.
•Never leave child unattended.
WARNING
This product contains small parts
in its unassembled state.
Adult assembly is required.
CAUTION
Consumer Information
Occasionally a consumer may experience a problem with
one of our products. If this should happen, please call us
toll-free, rather than return this product to the store.
Usually, we can solve the problem over the telephone
or send you replacement parts.
Please call Fisher-Price® Consumer Relations, toll-free at
1-800-432-5437, 8 AM - 6 PM EST Monday through Friday.
Hearing-impaired consumers using TTY/TDD equipment,
please call 1-800-382-7470.
Or, write to:
Fisher-Price® Consumer Relations
636 Girard Avenue
East Aurora, New York 14052
For other countries outside the United States:
Canada: call 1-800-567-7724, or write to: Mattel Canada Inc., 6155 Freemont
Blvd., Mississauga, Ontario L5R 3W2.
Great Britain: telephone [phone].
Australia: Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870,
Richmond,Victoria 3121 Australia. Consumer Advisory Service 1300 135 312.
New Zealand: 16-18 William Pickering Drive, Albany 1331, Auckland.
Asia: Mattel East Asia Ltd, Room 1106, South Tower,World Finance Centre,
Harbour City, Tsimshatsui, HK, China.

3
Parts
Front Base
Rear Base
Housing
2 Rear Legs
(Shorter)
Motor Housing
Seat with Restraint
2 Seat Tubes
Bracket
(with M4 Lock Nuts)
Seat Wire
2 Seat Wire
Caps
2 Accessory Bins
Pad
Sound ‘n
Lights Tray
Mirror Base
Tray
2 Front Legs
(Longer)
M4 Screw - 4
Shown Actual Size
Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.
#8 x 13/8" Screw - 10
Shown Actual Size
#6 x 5/8" Screw - 4
Shown Actual Size

Assembly
4
1
2
4
IMPORTANT! Before assembly, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use
if any parts are missing or broken. Contact Fisher-Price® for replacement parts and instructions if needed. Never substitute parts.
Front Base
Tapered End
Tapered End
Front Legs
(Longer)
Press
Button
Press
Button
•Place the front base on a flat surface.
•Position a front leg (longer) so that the tapered end is
downward, as shown.
•While pressing the button on one of the front legs, insert it
into the front base. Push down on the front leg until the
button “snaps” into the hole in the front base.
•Repeat this procedure to assemble the other front leg to
the front base.
•While standing on the front base, pull the front legs up.
The front legs should remain secured to the front base.
If you can remove the front legs, you have not assembled
them correctly to the front base. Reread and repeat
assembly step 1.
Front Legs Pull Up
Pull Up
Front Base
Hub
Housing
Slot
Hole
Motor
Housing
Front
Legs
Press
Buttons
3
•Position the housing so that the hub is inward.
•While pressing the button on the top of a front leg, insert it
into the housing slot, as shown. Push the front leg until the
button “snaps” into the hole in the housing.
•Repeat this procedure to assemble the motor housing to
the other front leg.
•Pull the front legs down to be sure they are secure in the
housings. If you can remove them, you have not assembled
them correctly. Please re-read and repeat this assembly step.
• Position a rear leg so that the tapered end is upright.
•While pressing the button on the top of the rear leg, insert it
into the housing short tube, as shown. Push the rear leg until
the button “snaps” into the hole in the short tube.
•Repeat this procedure to assemble the other rear leg to the
motor housing short tube.
•Pull the rear legs down to be sure they are secure in the
housings. If you can remove them, you have not assembled
them correctly. Please re-read and repeat this assembly step.
Button
Rear Legs
Tapered
End
Motor Housing
Short Tube

Assembly
5
6
57
8
•Pull both rear legs out until they “snap” into place.
Pull
Rear
Leg Pull
Rear
Leg
•Place the rear base on a flat surface so that the buttons
face the front base.
•While pressing the buttons on each side of the rear base,
fit the rear legs onto the rear base. Push the rear legs down
until the buttons on the rear base “snap” into the holes
in each rear leg.
Rear Base
Front
Base
Rear
Legs
Press
Button Press
Button
•While standing on the rear base, pull the rear legs up.They
should remain secured to the rear base. If you can remove
the rear legs, you have not assembled them correctly to the
rear base. Reread and repeat assembly step 6.
•Set the frame assembly aside for Assembly step 17.
Rear Legs
Pull Up
Pull Up
Rear Base
•Position the seat face down, with
the top of the seat facing you.
•Position a seat tube so that the long end is upright and
toward you and the curved end is toward the outside edge
of the seat.
•Insert the curved end of the seat tube through the holes in
the ridges on the seat back.
•Repeat this procedure to assemble the other seat tube to
the seat.
Top of Seat
Seat Tube
Long Ends
Ridges
Curved
End

Assembly
6
10
9
12
11
•Position the bracket so that the tall end is toward the
bottom edge of the seat.
•Fit the grooves on the bracket to the seat tubes, as shown.
Seat
Tubes
Bracket
Grooves
Tall
End
Lock Nut
Hexagonal
Opening
Shown Actual Size
M4 Lock Nut
Rounded Side
•Insert four M4 screws into the seat tubes
and tighten.
Bracket
Seat Tubes
M4 Screw - 4
Shown Actual Size
•Rotate the seat tubes down.
Seat
Tubes
•Fit the seat wire through the slot in the bracket as shown.
Seat Wire
Bracket Slot
Bottom
Edge of
Seat
Hint: The M4 lock nuts have been assembled to the bracket at the
factory. During shipment of this product, they may have fallen out.
Check to be sure there is a lock nut in each hexagonal opening on
the bracket. If one (or more) has fallen out, fit the lock nut into a
hexagonal opening in the bracket. Make sure the rounded side of
the lock nut is facing up.

Assembly
7
13
14
15
16
•Lift the seat tubes slightly.
•With the seat wire hanging down, insert the ends of the seat
wire through the slots in the seat, as shown.
Slots
Seat Wire
•While holding the seat wire in place, carefully turn the
seat around so that the front faces you.
•Position the seat wire cap so that the rounded edge
is upright.
•Fit each end of the seat wire through the hole in each
seat wire cap.
Ends of
Seat Wire
Seat Wire
Cap
Seat Wire
Cap
Seat Wire
Cap Hole
Rounded Edge Up
•Press to the seat wire caps
into place.
•Insert two #6 x
5/8"
screws
through each seat wire cap
and tighten.
Seat Wire
Caps
Seat Wire is
Through Hole in
Seat Wire Cap
Press in Place
•Turn the seat face down.
•Fit an accessory bin into the groove on each side of the
seat, as shown.
•Insert two #8 x 13/8" screws into each accessory bin
and tighten.
Grooves
Seat
Accessory Bin
Accessory Bin
#8 x 1
3/8
”Screw - 4
Shown Actual Size
#6 x 5/8" Screw - 4
Shown Actual Size
Hint: The seat wire caps are designed to fit into the seat only one
way. If the screw holes in the seat wire caps do not align with the
holes in the seat, try switching the seat wire caps onto the opposite
ends of the seat wire.

8
Assembly
17
•Position the seat assembly so that the front of the seat is
toward the curved front base.
•While pressing the buttons on the swing tubes, insert them
into the frame hubs. Push the swing tubes up until the
buttons “snap” into the hole in the frame hubs.
•Push down on the seat to be sure the seat is secured in both
frame hubs.
Swing
Tube
Front
of Seat
Curved
Front
Base
Push
Button
Frame Hub
18
•Insert a #8 x 13/8" screw into
each frame hub and tighten.
•Again, push down on the seat to be sure the seat is secured
to both frame hubs.
Frame
Hubs
#8 x 1
3/8
”Screw - 2
Shown Actual Size
19
•Fit the pocket on the back of the pad onto the seat back.
•Fit the waist belts through the smaller slots in the pad.
Waist Belts
Pad
20
•Lift the bottom of the pad.
•Insert the pad elastic loops through the holes in the
seat bottom.
•Insert the crotch belt through the slot in the pad.
•From under the seat, fit the elastic loops onto the tabs
on the seat bottom.
Pad
Elastic
Loops
Holes
Crotch
Belt
Seat Bottom
8

9
Assembly
21
•Fit the bottom edge of the pad around the bottom edge
of the seat.
•Hook the elastic loops on each side of the pad to the peg
on the back of the accessory bins.
Elastic
Loop
Elastic
Loop
22
•Position the lights ‘n sounds tray on a flat surface, with the
roller facing you.
•Position the mirror base, with the scooped area toward you.
•Fit the four mirror base pegs into the four holes in the
lights ‘n sounds tray.
Mirror Base
Lights ‘n
Sounds Tray
9
23
•Turn the assembly over. Insert four
#8 x 13/8" screws into the bottom of the lights ‘n sounds tray
and tighten.
Assembly is now complete.
#8 x 1
3/8
”Screw - 4
Shown Actual Size

10

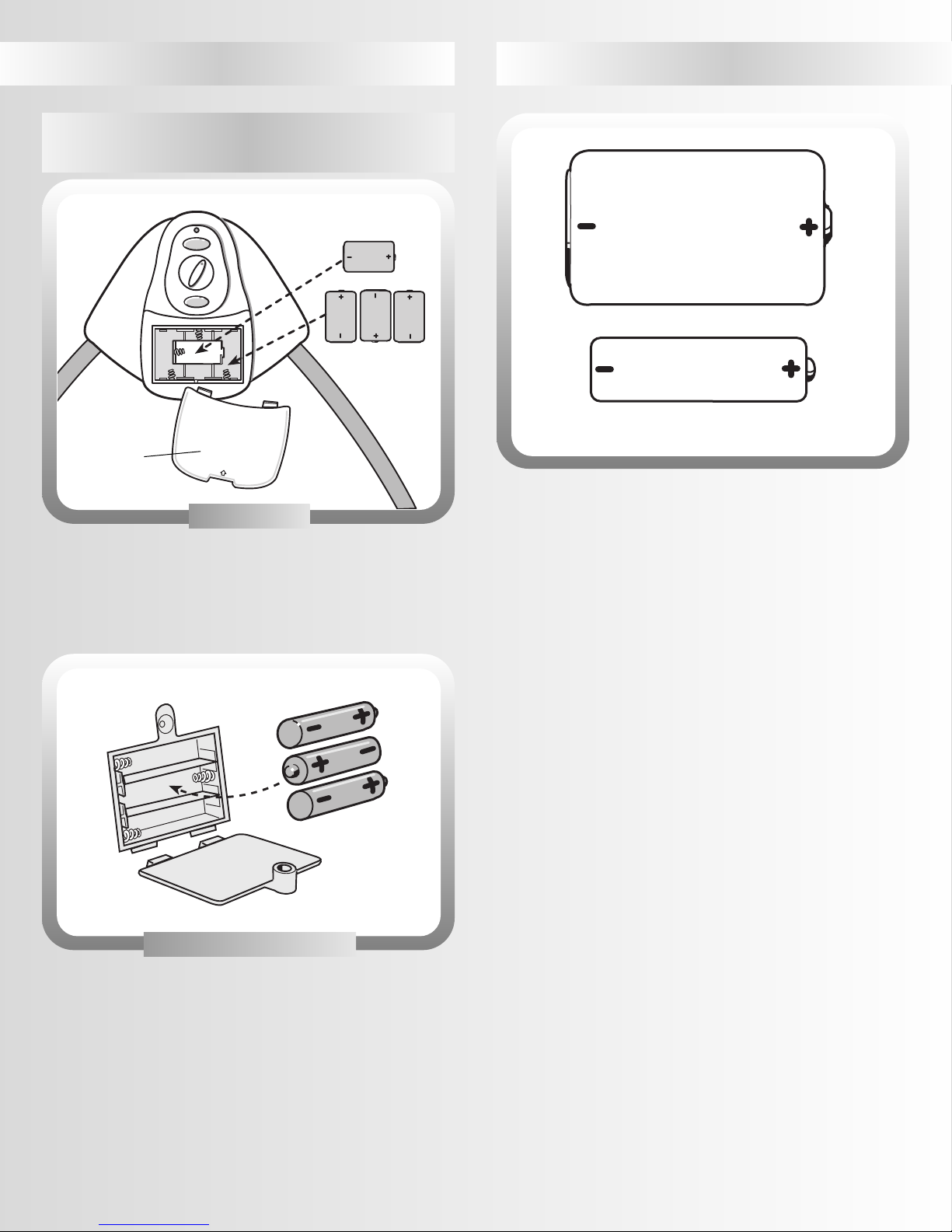

Battery Installation Battery Safety Information
•Locate the battery compartment door on the swing frame.
•Insert a coin into the battery compartment door and pry the
battery compartment door off of the swing frame.
•Insert four “D” (LR20) alkaline batteries.
•Replace the battery compartment door.
Hint: When swinging, sound or power L.E.D. slows/dims/stops,
it’s time to replace the batteries! We recommend using alkaline
batteries for longer battery life.
Battery
Compartment
Door
•Locate the battery compartment door on the bottom
of the lights ‘n sounds tray.
•Loosen the screw in the battery compartment door.
Lift to remove the battery compartment door.
•Insert three “AA” (LR6) alkaline batteries.
•Replace the battery compartment door and tighten
the screw.
Lights ‘n Sounds Tray
Batteries may leak fluids that can cause a chemical burn
injury or ruin your product. To avoid battery leakage:
•Do not mix old and new batteries or batteries of different
types: alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium).
•Insert batteries as indicated inside the compartment.
•Remove batteries during long periods of non-use. Always
remove exhausted batteries from the product. Dispose of
batteries safely. Do not dispose of batteries in a fire.
The batteries may explode or leak.
•Never short-circuit the battery terminals.
•Use only batteries of the same or equivalent type,
as recommended.
•Do not charge non-rechargeable batteries.
•Remove rechargeable batteries from the product
before charging.
•If removable, rechargeable batteries are used, they are only
to be charged under adult supervision.
1.5V x 4
“D” (LR20)
1.5V x 3
“AA” (LR6)
BOTH SHOWN ACTUAL SIZE
Swing

Securing Your Child
11
To tighten the restraint:
•Feed the anchored end of the waist belt up through the
buckle to form a loop .Pull the free end of the waist
belt .
To loosen the restraint:
•Feed the free end of the waist belt up through the buckle
to form a loop . Enlarge the loop by pulling on the end
of the loop toward the buckle. Pull the anchored end of
the waist belt to shorten the free end of the waist belt .
Note: After adjusting the restraint to fit your child, make
sure you pull on it to be sure it is securely fastened.
B
A
B
A
Anchored End
Free End
B
A
To Tighten
Buckle
Anchored End
Free End
A
B
To Loosen
2
IMPORTANT! Before each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use
if any parts are missing or broken. Contact Fisher-Price® for replacement parts and instructions if needed. Never substitute parts.
1
•To prevent serious injury or death
from falls and being strangled in the
restraint system:
- Always use the restraint sys-
tem. Never rely on the tray to
restrain child.
- Never use with an active child
who may be able to climb out of
the seat.
•Never leave child unattended.
WARNING
•Place your child in the seat. Position the crotch belt between
your child’s legs.
•Fasten both waist belts to each side of the crotch belt. Make
sure you hear a “click” on both sides.
•Check to be sure the restraint system is securely attached by
pulling it away from your child. The restraint system should
remain attached.
Crotch
Belt
Waist
Belt
Waist
Belt

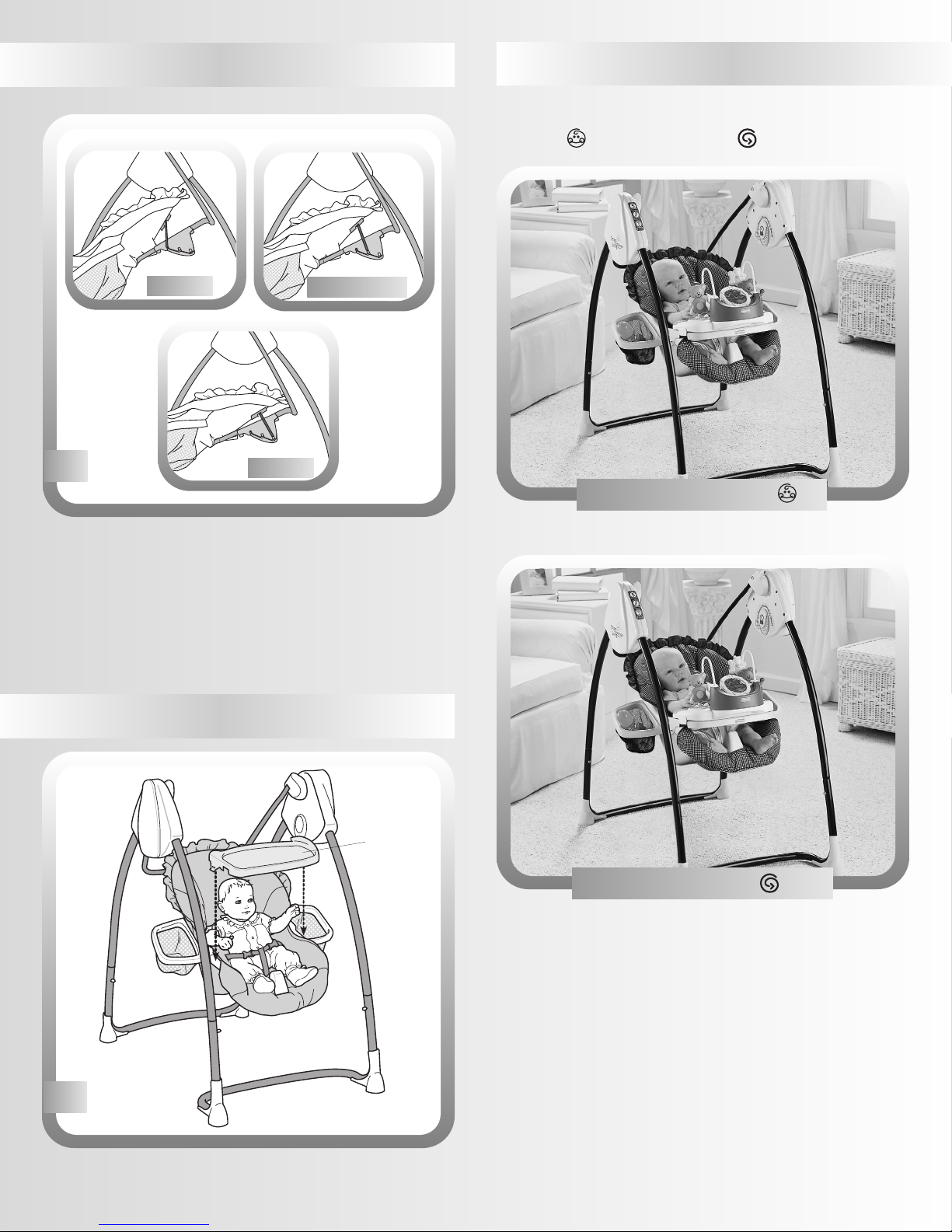

Adjusting the Seat
12
3
Upright
Recline
Adjust the seat angle in any of three positions:
Upright,Semi-Recline or Recline.
To adjust the seat angle: Push down on the seat back to
position the seat wire in the desired groove in the bracket
for Upright, Semi-Recline or Recline.
Using the Tray
4
•Fit the tray onto the seat arm rests.
Tray
Swing Modes
The Smart Response Swing has two modes: Baby Sounds
Activated and Parent Activated .
Baby Sounds Activated
Parent Activated
IMPORTANT! The maximum weight limit for this product is
24 lbs. If your child weighs less than 24 lbs., but is really active
and appears to be able to climb out of the swing, immediately
discontinue its use.
Semi-Recline

13

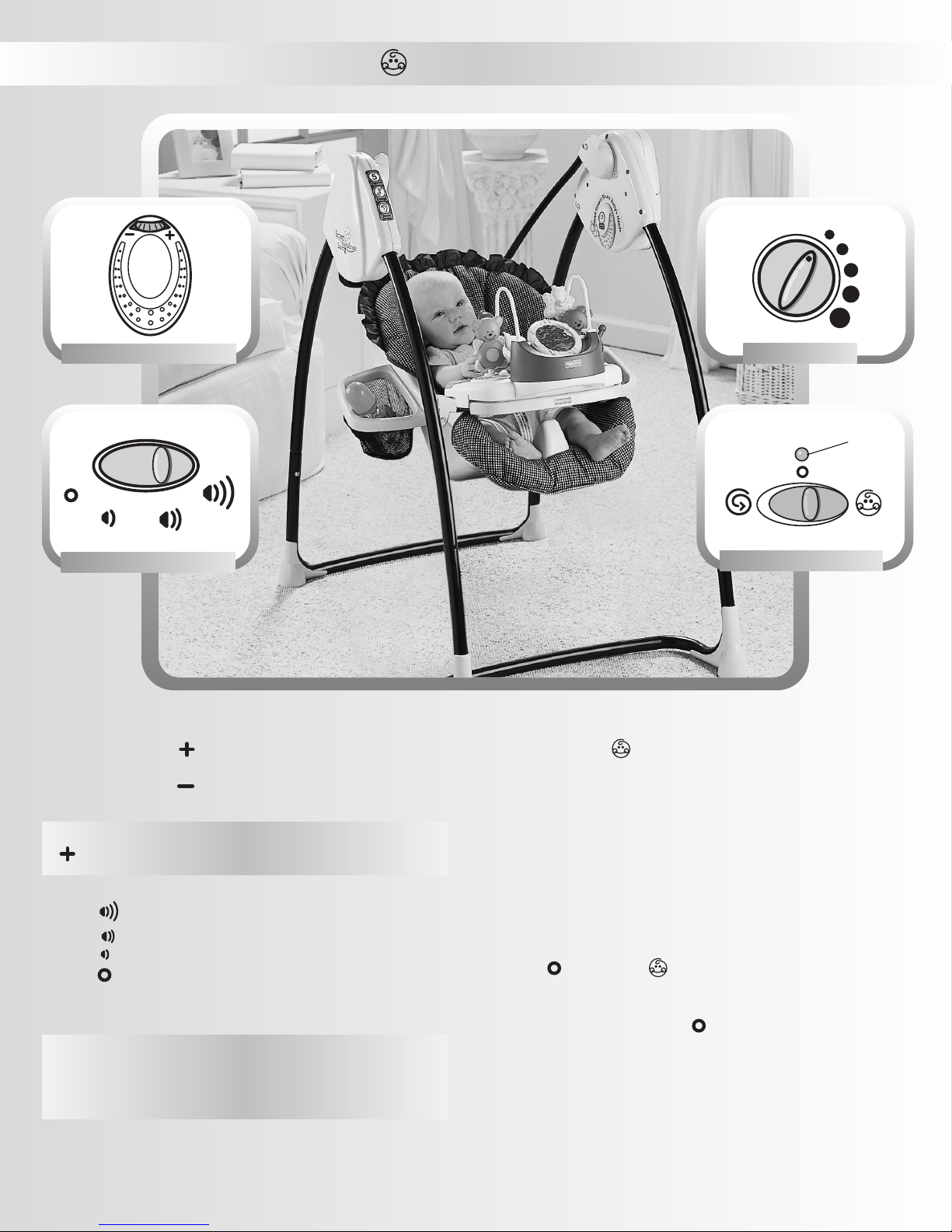

Baby Sounds Activated
Speed Dial
Swing Mode Switch
Power
L.E.D.
Sound Sensitivity Dial
Music/Volume Switch
Sound Sensitivity Dial
•Slide the switch to high sensitivity for incoming
sounds (listens for shallow sounds).
•Slide the switch to low sensitivity for incoming sounds
(listens only for loud sounds).
Music/Volume Switch
•Select for music highest volume.
•Select for music high volume.
•Select for music low volume.
•Select to turn music off.
Speed Dial
•Select any of five speed settings.
Swing Mode Switch
•Slide the switch to baby sounds activated.The
power L.E.D. lights. The swing begins swinging for about
15-20 minutes and if you have selected music, five songs
play (about 15-20 minutes). After swinging (and music) stop,
the swing is ready to listen for your baby’s sounds for about
two hours.
•When baby cries, the swing (and music, if selected)
automatically turns on to soothe baby.
•If the swing is not activated (from baby’s sounds) within two
hours of selection, the power L.E.D. flashes to tell you that it
going to turn off. Once it has turned off (and the power
L.E.D. is not lit), you will need to slide the switch to the off
position and back to baby sounds activated. The
swing is now re-set to listen for your baby’s sounds for
another two hours.
•Be sure to turn the product off when not in use.
Hint: You may want to start with the high sensitivity setting
at first.
Hint: As with most battery-powered swings, a heavier child
will reduce the amount of swinging motion on all settings.
In most cases, the low setting works best for a smaller child
while the high setting works best for a larger child.

14
Parent Activated
Power
L.E.D.
Swing Mode Switch
Speed Dial
Music/Volume Switch
14
Swing Mode Switch
•Slide the switch to parent activated.The power L.E.D.
lights and the swing begins swinging.
•Be sure to turn the product off when not in use.
Speed Dial
•Select any of five speed settings.
Music/Volume Switch
•Select for music highest volume.
•Select for music high volume.
•Select for music low volume.
•Select to turn music off.
Hint: As with most battery-powered swings, a heavier child
will reduce the amount of swinging motion on all settings.
In most cases, the low setting works best for a smaller child
while the high setting works best for a larger child.

Sound ‘n Lights Tray
•Fit the sound ‘n lights tray to the tray, as shown.
•Baby activates sounds and lights by pulling on the dog or
cat; or rolling the bar.
Sound ‘n
Lights Tray
Tray
Cat
Bar
Dog
Storage
Press
Buttons
•Press the button on the inside of each housing and push
the rear legs toward the front legs. Stand the frame against
a wall for storage.
Care
To remove the pad:
•Unhook the four elastic hooks from the pegs on the seat
back and bottom.
•Push the restraint belts back through the slots in the pad.
•Slide the upper pad pocket off of the seat back.
•Slide the lower pad pocket off of the seat bottom.
To replace the pad:
•Refer to Assembly steps 19 - 21.
Note: This product has no consumer serviceable parts. Do not
take this product apart.
The pad is machine washable.Wash the pad separately in cold
water on the gentle cycle. Do not use bleach. Tumble dry
separately on low heat and remove promptly.The frame, tray
and sound ‘n lights tray may be wiped clean using a mild
cleaning solution and a damp cloth. Do not immerse the
sound ‘n lights tray.
Restraint
Belts
Upper
Pad
Pocket
Lower
Pad
Pocket
Elastic
Loops
Elastic
Loops
15

One (1) Year Limited Warranty FCC Statement (United States Only)
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, New York
14052 warrants that Deluxe Smart Response™ Swing is free
from all defects in material and workmanship when used
under normal conditions for a period of one (1) year from the
date of purchase.
Should the product fail to perform properly, we will repair or
replace it at our option, free of charge. Purchaser is
responsible for shipping the product to Consumer Relations
at the address indicated above and for all associated freight
and insurance cost. Fisher-Price, Inc. will bear the cost of
shipping the repaired or replaced item to you.This warranty is
void if the owner repairs or modifies the product. This
warranty excludes any liability other than that expressly
stated above including but not limited to any incidental or
consequential damages.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM
STATE TO STATE.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC rules.These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Note: Changes or modifications not expressly approved by
the manufacturer responsible for compliance could void the
user's authority to operate the equipment.
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. Printed in China
©2003 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. 79644e-0920
