Fisher-Price POWER WHEELS 78475 Use and care manual

®
Owner’s Manual with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 78475
Tools needed for assembly: Phillips Screwdriver, Slotted Screwdriver and Hammer (not included).
Use only with a Power Wheels®6 Volt Battery with A-Style Connector and Built-In Thermal Fuse
and a Power Wheels®Super 6 Volt™Charger with A-Style Connector (both included).
Product features may vary from the picture below.

CAUTION
• This product contains small parts.
Adult assembly is required.
• Use the charger in dry locations only.
2
Table of Contents
Important Information
AImportant Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BWarnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CParts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
DParts Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
EBattery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
FAssembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
GLabel Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HBattery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
IBattery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
JRules for Safe Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
KHow to OperateYour Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
LCaring forYour Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
MProblems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
NLimited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
OAuthorized Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
• Your new vehicle requires adult assembly. Please set
aside at least 45 minutes for assembly.
• You must charge your battery for 18 - 30 hours before
you use your vehicle for the first time. We recommend
that you start charging your battery before beginning
assembly. Please see “Battery Charging” on page 7 for
detailed instructions.
• Read this manual carefully for important safety informa-
tion and operating instructions before using your vehicle.
• This vehicle is designed for use on grass, asphalt or other
hard surfaces, on flat terrain or hills, by children 3 - 6
years of age.
• To prevent damaging the motors and gears, do not tow
anything behind the vehicle or overload it. Do not exceed
the maximum weight capacity of 65 lbs. (30 kg).
• If you have any questions about your Power Wheels®
vehicle, please call our toll-free service lines at
1-800-348-0751 from 8 AM to 5 PM (EST) Monday
through Friday.Trained customer service representatives
are available to take your call in English or French.
Habla Español? Si usted tiene alguna pregunta ó necesi-
ta asistencia llame gratis 1-800-348-0755 para los
Estados Unidos.Tenemos representantes que hablan
español para atender su llamada.
A
• For your convenience, Power Wheels maintains an
Authorized Service Center Network with more than 400
Authorized Service Centers nationwide. Our Authorized
Service Centers will repair or replace parts under war-
ranty at no extra charge, and can perform non-warranty
repairs for a minimal charge. Please see the Authorized
Service Center list beginning on page 23 to find the
Authorized Service Center nearest to you, or call
1-800-348-0751.
• Please complete and return the enclosed Registration
Card today, or call 1-800-348-0751 to register your
vehicle by phone.

WARNING
• Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s
unassembled state, or by electrical items. Care should be taken in unpacking and assembly
of the vehicle. Children should not handle parts, including the battery, or help in assembly of
the vehicle.
• Keep small parts and plastic bags out of children’s reach. Dispose of plastic bags properly.
• Adult supervision is required. Children do not have the judgement necessary to avoid many
accidents. Be sure that children operating this vehicle can do so safely and that they are
supervised at all times.
• Never use near steps, driveways, steep inclines, roadways, alleys, swimming pool areas or
other bodies of water.
• Always wear shoes or sneakers when operating this vehicle.
• Never allow more than one rider.
• The rider should sit on the seat when the vehicle is in operation.
•Hot motor cover. Handle carefully.
• Never alter this vehicle or its electrical system in any way. Alterations could cause a fire
resulting in injury and could also ruin the electrical system.
• Use of the wrong type battery or charger could cause a fire or explosion, resulting in
serious injury.
• Use of Power Wheels®components in products other than Power Wheels®vehicles could
cause overheating, fire or explosion.
• The battery must be handled by adults only.The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.
• Never lift or carry the battery by the wires or connector.This can damage the battery and
possibly cause a fire resulting in injury. Lift and carry the battery by the case only.
• Read the cautions on the back panel of the battery.
• Never allow children to charge the battery. Battery charging must be done by adults only.
A child could be injured by the electricity involved in charging the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each
time you charge the battery. If damage or excessive wear is detected, do not use the vehicle
until you have replaced the worn or damaged part as it could possibly cause a fire resulting
in injury.
Warnings
B
3

Rear Wheel – 2
Parts
C
4
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return
this product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no
parts are discarded.
• Metal parts have been coated with a lubricant to protect them during shipment.Wipe all metal parts with a paper towel to
remove any excess lubricant.
Shock Set – 2
(4 pieces)
Front Wheel – 2
Rear Hubcap – 2
Rear Axle Cover
(2 pieces)
Vehicle Body
Front Hubcap – 2
Steering Bushing Steering Spacer

All Shown Actual Size
*For your convenience, an extra cap nut has been included.
#8 x 1/2" Screw – 2
#8 x 2" Screw – 2
Cap Nut – 6*
7/16" Washer – 10
Hex Bushing – 6
Wing Nut
#6 x 1/2" Screw – 5
Carriage Bolt
Parts
Microphone Super 6™Volt Charger
5
Battery Retainer
Handlebar Neck
Cover Plate
Hand Grip - 2
Handlebar
Steering Column
Console/Headlight
Assembly
WARNING
PREVENT FIRE
• Do not bypass a Power Wheel
• Use only a Red Power Wheels
• Never modify the electrical
OR OPERATE
6 Volt Battery
Part not shown: Label Sheet
#10 Washer
#8 x 1" Screw – 2
Axle Spacer - 4

Parts Diagram
1. Vehicle Body
2. Steering Column
3. Front Wheel – 2
4. Rear Wheel – 2
5. Front Hubcap – 2
6. Rear Hubcap – 2
7. Small Shock Half – 2
8. Large Shock Half – 2
9. Seat
10. 6 Volt Battery
11. Battery Retainer
12. #10 Washer
13
14
15
31 16
22
17 18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
23
24
12
29
28
32
29
D
32
6
23
23
32
27
30
13. Steering Spacer
14. Rear Axle Cover – Short Half
15. Rear Axle Cover – Long Half
16. Steering Bushing
17. Microphone
18. Console/Headlight Assembly
(3 pieces)
19. Hand Grip – 2
20. Cover Plate
21. Handlebar
22. Handlebar Neck
23. Hex Bushing – 6
24. Wing Nut
25. Axle Spacer - 4
26. #8 x 1" Screw – 2
27. #6 x 1/2" Screw – 5
28. #8 x 1/2" Screw – 2
29. 7/16" Washer – 10
30. Carriage Bolt
31. #8 x 2" Screw – 2
32. Cap Nut – 5
Not Shown
Super 6™Volt Charger
Label Sheet
26
27
25

Important Notes:
•Your new battery must be charged for at least
18 hours before you use it in your vehicle for the
first time.
• We recommend that you start charging your battery before
beginning assembly of your new vehicle.
• Use only a Power Wheels®Super 6™volt charger with
A-style connector (120 VAC 60 Hz 15W with an output
of 6 VDC 7.2W (1200mA) to charge your Power Wheels®
6 volt battery with A-style connector and built-in
thermal fuse.
• The charger is not a toy.
• Before charging the battery, examine the battery case for
cracks or other damage which may allow sulfuric acid
(electrolyte) to leak during the charging process. Never
attempt to charge a damaged battery. If damage is detect-
ed, do not charge the battery or use it in your vehicle.
Battery acid is very corrosive and can cause severe dam-
age to surfaces it contacts.Take precautions to protect any
surface on which you charge the battery.
• The battery must be upright while charging.
• Do not short circuit the battery.
• You do not need to remove the battery from your vehicle to
recharge it.
• If your battery is old and will not accept a charge, do
not leave it in the vehicle.Always remove a dead battery
from the vehicle. Replace the battery with a Power Wheels®
6 volt battery with A-style connector and built-in
thermal fuse.
CAUTION
Use the charger indoors only.

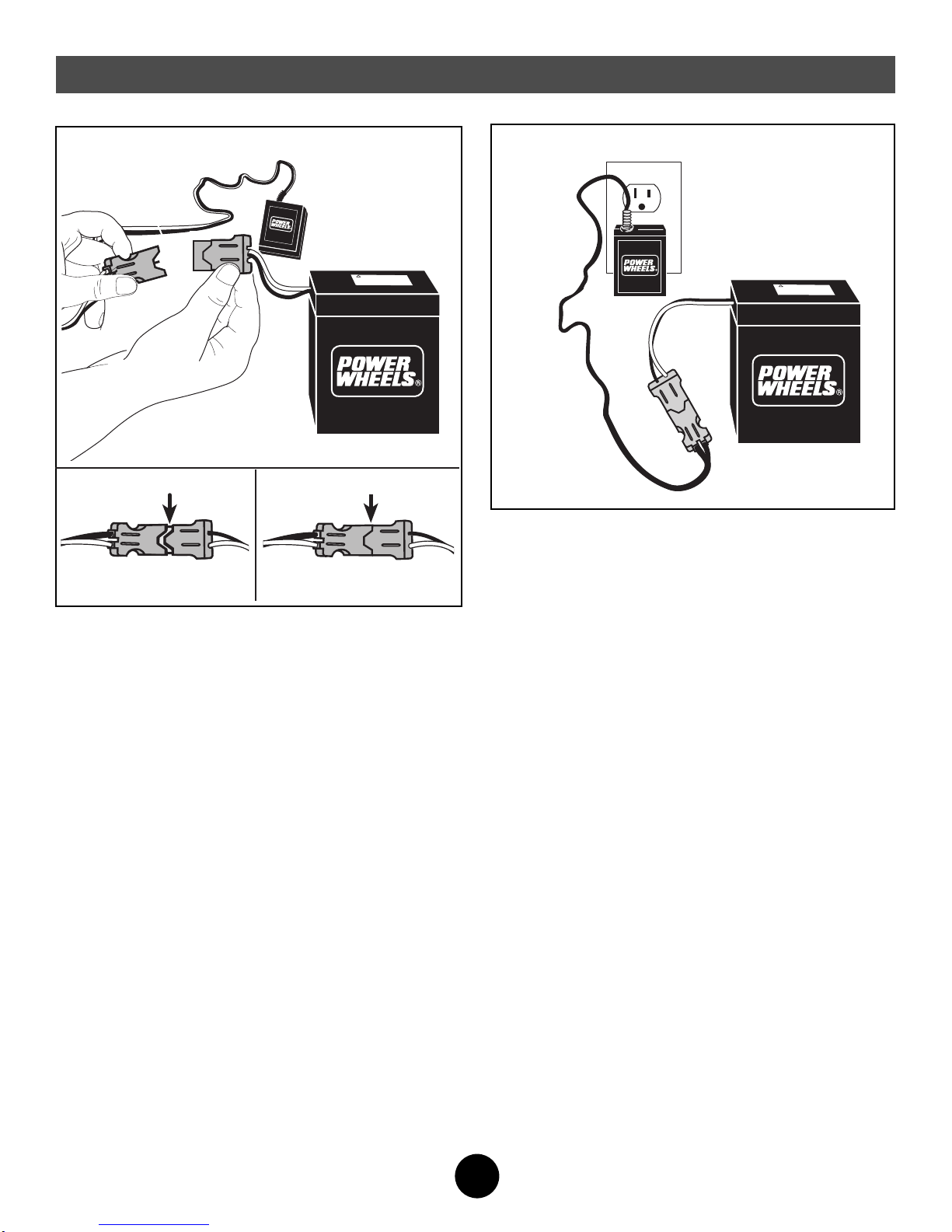

Battery Charging
E
WARNING
• The battery must be handled by adults only.
The battery is heavy and contains sulfuric
acid (electrolyte). Dropping the battery
could result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the electri-
city involved in charging the battery.
• Use of the wrong type battery or charger
could cause a fire or explosion, resulting in
serious injury.
• Use of Power Wheels®components in prod-
ucts other than Power Wheels®vehicles
could cause overheating, fire or explosion.
• Read the cautions on the back panel of
the battery.
• Never lift or carry the battery by the wires
or connectors.This can damage the battery
and possibly cause a fire. Lift and carry the
battery by the case only.
• Examine the battery, charger and their con-
nectors for excessive wear or damage each
time you charge the battery. If damage or
excessive wear is detected, do not use the
charger or the vehicle until you have
replaced the worn or damaged part.
• Never alter this vehicle or its electrical sys-
tem in any way. Alterations could cause a
fire resulting in injury and could also ruin
the electrical system.
7
AboutThermal Fuses
Your Power Wheels®6 volt battery is equipped with a built-in
thermal fuse.The thermal fuse is a self-resetting safety
device which automatically “trips” and shuts down operation
of the vehicle if the vehicle is overloaded or the driving con-
ditions too severe. Once a fuse has “tripped”, it will automat-
ically reset itself after approximately 25 seconds and allow
the vehicle to resume normal operations.To avoid repeated
automatic shutdowns, do not overload the vehicle by
exceeding the 65 lb. maximum weight capacity or by towing
anything behind the vehicle. Avoid severe driving conditions,
such as driving up very steep slopes or running into fixed
objects, which can cause the wheels to stop spinning while
power is still being supplied to the motors. Make sure your
child stops the vehicle before switching direction.
If a thermal fuse in the battery continually trips under nor-
mal driving conditions, please contact your local Power
Wheels®Authorized Service Center. Please see page 23 for
the location of the authorized service center nearest to you.

Battery Charging
8
®
WARNING
PREVENT FIRE
• Do not bypass a Power Wheel
• Use only a Red Power Wheels
• Never modify the electrical
OR OPERATE
1
• Plug the charger and battery connectors together.
Push firmly to snap the two connectors together.
Incorrect Correct
GAP
• Plug the charger into a standard 120 volt wall outlet.
Note: If power flow to the wall outlet is controlled by a
switch, make sure the switch is “ON”.
•Before first time use, charge the battery for
at least 18 hours. Never charge the battery longer than
30 hours.
•Recharge the battery for at least 14 hours after each
use of your vehicle. Do not charge the battery longer
than 30 hours.
• Once the battery is charged, disconnect the charger
connector from the battery connector. Unplug the charg-
er from the wall outlet.The battery is now charged and
is ready to be installed in your vehicle.
2
WARNING
PREVENT FIRE
• Do not bypass a Power Wheel
• Use only a Red Power Wheels
• Never modify the electrical
NO GAP

Assembly
F
1
• Fit the cover plate over the opening above the louvers in
the front of the vehicle body.
• Insert two # 8 x 1/2" screws through the cover plate and
into the vehicle body.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Cover Plate Vehicle
Body
• Fit a hubcap on the rear axle and slide it into the center
of the rear wheel.
• Position the vehicle body upside down. Make sure that
the tabs on the gearboxes rest against the rear axle
support bars so the gearboxes and motors do not
hang down.
• Slide two 7/16" washers onto one of the rear axles.
• Slide a rear wheel, driver side first, onto the rear axle.
• Fit the teeth on the gearbox into the notches in the driver.
7/16" Washers
Tabs
Rear Axle
Support Bar
Rear Wheel
Rear Axle
Gearbox
Driver
Teeth
Rear Axle
Hubcap
2
3
4
• Slide a hex bushing onto the rear axle.The ring side of
the hex bushing should face out.
• Press firmly to fit all but the ring on the end of the hex
bushing into the rear wheel.
Hex
Bushing
Rear Axle
Ring Side
9
Louvers

5
• Fit a cap nut on the end of the rear axle.
• Tap the cap nut with a hammer to secure it on the end of
the rear axle.
• Pull on the wheel to make sure the cap nut is securely
fastened.
• Repeat this procedure to assemble the other rear wheel
to the other rear axle.
Cap Nut
Front Axle
Ring Side
7/16" Washers
Hex Bushing
Front Wheel
Front Axle
Important Note: Please attach the hardware in this step in
the proper sequence, as shown in the illustration and
explained below.
• Slide three 7/16" washers onto the front axle.
• Slide two axle spacers onto the front axle.
• Slide a hex bushing onto the front axle, ring side first.
6
• Slide a front wheel onto the front axle.
7
Assembly
Axle Spacers
• Fit a hubcap on the front axle and into the center of the
front wheel.
Front Hubcap
Front Axle
8
10

• Slide a hex bushing onto the front axle.The ring side of
the hex bushing should face out.
• Press firmly to fit all but the ring on the end of the hex
bushing into the front wheel.
Front Axle Hex Bushing
Ring Side
9
• Fit a cap nut on the end of the front axle.
• Tap the cap nut with a hammer to secure it on the end of
the front axle.
• Pull on the wheel to make sure the cap nut is securely
fastened.
• Repeat this procedure to assemble the other front wheel
to the other front axle.
• Set the vehicle body aside.
Cap Nut
• Position the handlebar with the grip area up.
• Fit the neck against the bottom of the handlebar, with the
holes in the handlebar and neck aligned.
• Position the handlebar so the grip area points away
from you.
• While holding the neck to the handlebar, fit the lower
console, with the open end toward you, onto the handlebar.
• Insert two 2" screws up through the neck, handlebar and
into the lower console.
• Tighten each screw with a slotted screwdriver. Do not
over-tighten.
Handlebar
Neck
Assembly
10 12
11
Lower Console
11
Note: For packaging reasons, the console/headlight has
been pre-assembled at the factory.You will need to disassem-
ble the console/headlight to assemble it to the handlebar.
• Loosen and remove the #6 x 1/2" screw in the headlight
with a Phillips screwdriver. Remove the headlight by first
pulling the bottom out slightly and then pushing the
headlight up.
• Loosen and remove the two #8 x 1" screws in the upper
console with a Phillips screwdriver.
• Set the screws, upper console, lower console and
headlight aside for assembly steps 12-20.
Upper Console
Headlight
#8 x 1"
Screws
#6 x 1/2" Screw
Lower Console
Grip Area Up
and Pointed
Away
Grip Area Up
and Pointed
Away
Open End

TM
15
• Wipe the steering column with a paper towel to remove
excess lubricant.
• Slide the straight end of the steering column through the
hole in the lower steering linkage and out through the
hole in the vehicle body.
• Insert the curved end of the steering column into the hole
in the upper steering linkage.
Helpful Hint: If it is difficult to complete this assembly step,
you can reverse it. Slide the straight end of the steering col-
umn through the hole in the upper steering linkage and fit
the curved end into the hole in the lower steering linkage.
• Position the vehicle body upright.
Steering Column
Helpful Hint: You may want the help of another adult to
support the steering column near the steering linkage while
assembling the handlebar to the vehicle body.
• Slide the steering bushing, narrow side down, onto the
steering column and into the neck of the vehicle body.
• Slide a steering spacer onto the steering column and
inside the steering bushing.
Assembly
13
• Fit a hand grip onto each end of the handlebar. If it is
difficult to slide the hand grips onto the handlebar, moist-
en the hand grips with warm water first.
14
Lower
Steering
Linkage
Upper Steering Linkage Hole
Steering
Column
Bottom View
• Slide the handlebar assembly onto the steering column,
with the open end of the lower console facing out.
TM
16
12
Handlebar
Hand Grip
Steering Spacer
Steering Bushing
Steering Column
Lower Console
Hole in
Vehicle
Body
Neck of
Vehicle Body
Open
End
(Narrow Side)

Assembly
TM
17
Handlebar
Steering Column Cap Nut
• Fit a cap nut on the end of the steering column.
• Tap the cap nut with a hammer to secure it on the end of
the steering column.
• Pull up on the handlebar to make sure the assembly is
secure.
TM
• Fit the tab on the headlight into the slot in the top of
the upper console. Lower the headlight down into position.
• Insert a #6 x 1/2" screw through the bottom of the head-
light and into the lower console.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
18
• Apply labels 5 and 10 to the console, as shown.
• Bend the plastic tip at the end of the microphone cord so
that it forms a “T”.
• Insert the plastic tip through the hole in the top side of the
upper console.
• Turn the upper console over and pull gently on the
microphone cord to make sure the “T” end of the cord is
secure against the upper console.
13
Microphone
Headlight
TM
Upper
Console
• Fit the upper console over the handlebar and onto the
lower console.
• Insert two #8 x 1" screws through the upper console and
into the lower console.
• Tighten the screw with a Phillips screwdriver. Do not
over-tighten.
19
Lower
Console
Upper
Console
“T” End Slot Tab
20
Label #10
Label #5

Assembly
21
Rear View
Shock Half -
Small Shock
Half -
Large
Rear
Support
End
Cap
• Fit the large half of one shock set against one of the rear
supports. Make sure the end of the large shock half fits
into the end cap at the bottom of the support.
• Fit the small half of the shock set against the other side
of the rear support. Make sure the end of the small shock
half also fits into the end cap at the bottom of the support.
• Make sure the screw holes in the two shock halves are
aligned.
Rear View
• Insert two #6 x 1/2" screws through the holes in the shock
set halves.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure to assemble the other shock set to
the other rear support.
22
Rear View
Rear Axle Cover -
Long Half
Rear Axle Cover -
Short Half
• Position the short half of the rear axle cover behind the
rear axle and snap it onto the rear axle.
• Position the long half of the rear axle cover in front of the
rear axle and snap it into place.
23
14
Rear Axle

Label Decoration
Proper label application will help to keep the labels looking their best! When applying labels, keep the following
guidelines in mind:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has been applied to the vehicle.
•After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your
vehicle. Start at the center of a label, and smooth towards the outer edges to remove air bubbles.
G
15
Left View
Right View
1
2
3
411
11
12
13
14
9
8
7
7
6
8

Battery Installation
Important Note: Use only a Power Wheels®6 volt battery
with an A-style connector and built-in thermal fuse. Use of
any other battery may damage your vehicle. Make sure that
you charge the battery for at least 18 hours using the
enclosed Power Wheels®Super 6™Volt charger with A-style
connector before operating your vehicle for the first time.
Charge the battery for at least 14 hours after each use of
the vehicle. Never charge the battery longer than 30 hours.
Failure to follow these instructions may damage your battery
and will void your warranty.
1
H
• Press in on each side of the seat (near each tab) and lift
the front of the seat.
• Remove the seat.
• Place the battery upright in the battery compartment.
• Plug the battery and motor harness connectors together.
Push firmly to plug the two connectors together.
• Lower the battery retainer over the batteries.
• Fit the carriage bolt up through the hole in the underside
of the vehicle body and through the end loop in the
battery retainer.
• Fit the #10 washer onto the carriage bolt.
• Fit the wing nut onto the carriage bolt.
• Tighten the wing nut. Do not over-tighten.
• Insert the ends of the battery retainer into the holes in the
front of the battery compartment.
• Fit the hooked tabs on the back of the seat into the slots
in the back of the vehicle body.
• Press in on the sides of the seat and lower the seat
to insert the tabs on each side of the seat into the
vehicle body.
Vehicle
Body
Seat
Battery
Connector Motor Harness
Connector Battery
Holes
Battery Retainer
Carriage Bolt
Wing Nut
#10 Washer
Battery Retainer
2
3
5
4
16
PUSH HERE
Tabs
Seat
Vehicle Body
PUSH HERE

17
Battery Care and Disposal
I
Care
If a battery leak develops, avoid contact with the leaking
acid and place the damaged battery in a plastic bag. See
information below for proper disposal.
If acid comes in contact with skin or eyes, flush with cool
water for at least 15 minutes and call a physician.
If acid is internally ingested, give water, milk of magnesia
or egg whites immediately. Never give emetics or induce
vomiting.Call a physician.
• Charge a new battery for at least 18 hours before first use.
Never charge the battery longer than 30 hours.
Overcharging or undercharging the battery may shorten
battery life and decrease vehicle running time.
• After the first charge, recharge the battery for at least
14 hours after each use. Never charge the battery longer
than 30 hours. Charge the battery after each use, regard-
less of how long the vehicle was used.
• The battery must be upright while charging.
• Do not allow the battery to run down completely
before charging.
• Charge the battery before storing the vehicle.
• Charge the battery at least once per month, even if the
vehicle has not been used.
• Leaving the battery in a discharged condition will ruin it.
• Always remove an exhausted battery from the vehicle.
Battery leakage and corrosion can damage your vehicle.
• Do not store the battery in temperatures above 75° F or
below -10° F.
• Prevent the battery from moving freely inside the battery
compartment. Always use the battery retainer to secure
the battery in the battery compartment.
• Examine the battery, charger and their connectors for
excessive wear or damage each time you charge the bat-
tery. If damage is detected, do not use the charger or the
battery until you have replaced the worn or damaged part.
Disposal
• Your Power Wheels®battery is a sealed lead-acid
battery. It must be recycled or disposed of in an environ-
mentally sound manner.
• Do not dispose of the lead-acid battery in your regular,
household trash.The incineration, landfilling or mixing of
sealed lead-acid batteries with household trash is
prohibited by law in most areas.
• Return the battery to a federal or state approved
lead-acid battery recycler, such as a Power Wheels®
Authorized Service Center or a local seller of automotive
batteries. In Minnesota, call Power Wheels®Consumer
Affairs at 1-800-348-0751 if further disposal information is
required. Contact your local waste management officials
for other information regarding the environmentally sound
collection, recycling and disposal of lead-acid batteries.

Rules for Safe Driving
10°
Incline should never be
more than 10°
5. Do not operate this vehicle with more than one rider,
seated on the seating area. A child who is not sitting on
the seat or who is standing on the vehicle could fall off,
cause a tip-over or block the driver’s view. A child could
be seriously injured.
6. Always wear shoes or sneakers when operating
this vehicle.
7. Never put anything near any moving parts. Rotating parts
such as motors, gear boxes and wheels can snag fingers,
hair, etc., causing serious injury. Do not allow operation
of the vehicle when it is on its side or in an upside
down position.
8. Do not operate the vehicle near flammable vapors
(gasoline, paint thinner, acetone, liquid wax, etc.).The
vehicle’s electrical switches, like most electrical switches,
emit an internal spark when first turned on or turned off.
The presence of flammable liquids or vapors could cause
an explosion or a fire. Keep all flammable products in tight-
ly sealed containers and away from the vehicle.
9. Do not allow a child to operate the vehicle without proper
adult supervision.To prevent unsupervised use of the vehi-
cle, disconnect the motor harness from the battery when
the vehicle is not in use.
18
Teach Safety Rules to Children
While children can quickly develop the skill necessary to
drive this vehicle, it is important to remember that their
judgment skills are still very immature. Unsupervised driving
by children can lead to serious injury. Before children use this
vehicle, an adult should carefully evaluate the driving area as
well as the children’s skill level and ability to drive this vehicle
safely. Children are not always able to recognize or anticipate
hazards, even when they have been taught about them.
There is no acceptable substitute for adult supervision.
Teach appropriate safety rules to your child before allowing
operation of this vehicle.These rules should also be
reviewed with neighborhood children or other playmates who
want to drive this vehicle.
1. Do not allow any child to drive the vehicle in the street or
near moving (motorized) vehicles.
2. Do not allow any child to drive near bodies of water (such
as pools or creeks), obstructions (such as furniture, low
tree limbs or play equipment), or drop-offs (such as stairs
or decks).
3. Do not allow any child to drive the vehicle in the dark.
A child could encounter unexpected obstacles and
have an accident. Operate the vehicle only in the
daytime or in a well-lit area.
4. Teach your child to avoid driving on steep inclines or
slopes. Restrict your child’s driving to areas that are fairly
level with gentle inclines or slopes of no more than 10°.
• While driving down a steep slope, the vehicle may gain
unsafe speed, even if the foot pedal is released to stop.
• While driving across a steep slope, the vehicle may
tilt and tip over.The wheels could lose traction,
causing the vehicle to slip.
• While driving up a steep incline, the motor may stop and
the vehicle could roll backwards at an unsafe speed.
WARNING
• Adult supervision is required. Children
do not have the judgement necessary to
avoid many accidents. Be sure that
children operating this vehicle can do so
safely and that they are supervised at all
times.
• Never use near steps, driveways, steep
inclines, roadways, alleys, swimming
pool areas or other bodies of water.
• Always wear shoes or sneakers when
operating this vehicle.
• Never allow more than one rider.
• The rider should sit on the seat when
the vehicle is in operation.
J
To disconnect the motor harness connector and
battery connector:
• Remove the seat.
• Unplug the motor harness connector from the
battery connector.
• Re-assemble the seat.
IMPORTANT NOTE: Always remember to re-assemble the
seat to prevent children from accessing the battery.

FWD
REV
As assembled, your vehicle is ready to roll (31/2mph,
maximum).
• Push the top button on the FORWARD/REVERSE switch to
set the vehicle to drive forward.
• Push down on the foot pedal.The vehicle will drive forward.
• Your vehicle has a patented braking system that automati-
cally stops the vehicle when your child’s foot is lifted from
the pedal.
19
To Go Forward
To Stop
IMPORTANT NOTE: Always stop the vehicle before switching
between FORWARD and REVERSE.
• Push the bottom button on the FORWARD/REVERSE
switch to set the vehicle to drive in reverse.
• Push down on the foot pedal.The vehicle will back up at a
maximum of 31/2mph.
• Help your child practice steering to learn how far and how
quickly to turn the handlebar when driving in reverse.
FWD
REV
To Back Up
FORWARD/REVERSE
Switch
FORWARD/REVERSE
Switch
Caring For
Your Vehicle
• Check all nuts, bolts, screws, retainers and their protective
coverings regularly and tighten as required. Check plastic
parts on a regular basis for cracks or broken pieces.
• During snowy or rainy weather, the vehicle should be
stored inside or under a protective cover. Remember to
charge the battery at least once per month while your
vehicle is not in regular use.
• Avoid operating the vehicle in wet or snowy conditions,
and do not spray the vehicle with a hose. Do not wash the
vehicle with soap and water. Water or moisture in the
motors or electrical switches can cause them to corrode,
and could cause switch or motor failure.
• Avoid operating the vehicle on sand, loose dirt or gravel.
Sand, loose dirt or gravel in the motors or electrical
switches can cause them to jam, and could cause switch
or motor failure.
• The vehicle can be wiped down with a soft, dry cloth. For
a shiny finish, you can wipe plastic parts with a non-wax
furniture polish applied to a soft-cloth. Do not use automo-
tive wax. Do not use soap and water or spray the vehicle
with a hose.
• To ensure that your vehicle stays in good operating order,
we recommend that you periodically have your vehicle
checked by a Power Wheels®Authorized Service Center.
See page 23 for the list of Authorized Service Centers or
call 1-800-348-0751 for the location of the Authorized
Service Center nearest you.
L
How to Operate
Your Vehicle
K

Problem Possible Cause Solution
Vehicle does not run Undercharged battery Charge the battery. A new battery should have been
charged for at least 18 hours before using the vehicle for
the first time. After first-time use, recharge the battery for at
least 14 hours after each use. Never charge the battery
longer than 30 hours.
Check all connectors. Make sure the battery connector is
tightly plugged into the charger connector, and that the
charger is plugged into the wall.
Make sure power flow to the wall outlet is ON.
Charger is not working There is no sure way to tell if your charger is working unless
you have a volt meter. If you suspect there is a problem with
your charger, contact your local Power Wheels®Authorized
Service Center. They can test your charger for you.
Tripped thermal fuse The thermal fuse may "trip" and shut down operation of the
vehicle if the vehicle is overloaded or the driving conditions
too severe. The fuse will automatically reset itself after
approximately 25 seconds, allowing the vehicle to resume
normal operation. To avoid repeated automatic shutdowns,
do not overload the vehicle by exceeding the 65 lb. maxi-
mum weight capacity or by towing anything behind the
vehicle. Avoid severe driving conditions, such as driving up
very steep hills or running into fixed objects which can
cause the wheels to stop spinning while power is still being
supplied to the motors. If a thermal fuse continually trips,
contact your local Power Wheels®authorized service center.
Loose wire or loose connectors Check all wires and connectors. Make sure the battery
connector is tightly plugged into the motor harness
connector, and that there are no loose wires around
the motors.
Dead battery If your battery is old or if you have not followed Battery
Care instructions, your battery may be dead. If you are
unsure whether or not the battery is dead, you can have
it tested at your local Power Wheels®Authorized
Service Center. Always remove a dead battery from
your vehicle.
Electrical switch damage The electrical switches can become corroded due to
exposure to water or moisture, or can jam due to loose dirt,
sand or gravel. Contact your local Power Wheels®
Authorized Service Center for diagnosis and repair.
Motor damage Contact your local Power Wheels®Authorized Service Center
for diagnosis and repair.
IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions
Guide below. If you still experience a problem, please contact Power Wheels®Consumer Affairs,
toll-free at 1-800-348-0751 between 8 AM and 5 PM (EST) Monday through Friday. Or, contact
your local Power Wheels®Authorized Service Center. For the location nearest you, please refer to
the Authorized Service Center list beginning on page 23.
20
Problems and Solutions Guide
M
