Owner’s Manual
with Assembly
Instructions
For Model Y2189
Please read this manual and save it with your original sales receipt.
Tools need
ed
ed
for assembly: assembly wrench
(
included
)
, Phillips Screwdriver and Adjustable Wrench
(
both not included
).
Ul ith P Wh l
®
12 V lt L d A id R h bl B
t
t
ith B il
t
iTh lF
Owner’s Manual
with Assembl
y
Instructi
o
ns
F
o
r M
o
del Y
2
1
8
9

Y2189pr-0729
2Troubleshooting Îservice.sher-price.com
ELECTRICAL HAZARD
WARNING
• Battery can fall out and injure a child if vehicle
tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations
could cause a fire resulting in serious injury and
could also ruin the electrical system.
- Use of the wrong type battery or charger could
cause a fire or explosion resulting in serious injury.
- Use of Power Wheels®components in products
other than Power Wheels®vehicles could cause
overheating, fire or explosion.
• The battery must be handled by adults only.
The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in
serious injury.
• Never allow children to charge the battery. Battery
charging must be done by adults only. A child
could be injured by the electricity involved in
charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors
for excessive wear or damage each time you
charge the battery. If damage or excessive wear
is detected, do not use the charger or the battery
until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
IMPORTANT INFORMATION
• Read this manual carefully for important safety information
and operating instructions before using your vehicle. Keep
this manual for future reference, as it contains
important information.
• The vehicle is designed for use on grass, asphalt, and other
hard surfaces; on generally level terrain; and by children 3
years of age and older. Do not exceed the maximum weight
capacity of 130 lbs (59 kg).
• Your new vehicle requires adult assembly. Please set aside
at least 60 minutes for assembly.
• Use this vehicle ONLY outdoors. Most interior flooring can be
damaged by riding this vehicle indoors. Fisher-Price®will
not be responsible for damage to the floor if the vehicle is
used indoors.
• You must charge your battery for 18-30 hours before
you use your vehicle for the first time. We recommend
charging your battery before beginning assembly. Please
see the Battery Charging section for detailed instructions.
• The battery charger is not a toy.
• Do not short circuit the battery.
• Your Power Wheels®12 volt battery is equipped with
a built-in thermal fuse. The thermal fuse is a self-resetting
safety device which automatically “trips” and shuts down
operation of the vehicle if the vehicle is overloaded or the
driving conditions too severe. Once a fuse has “tripped”,
remove your foot from the pedal and wait approximately
25 seconds before operating the vehicle again. To avoid
repeated automatic shut-downs, avoid severe
driving conditions.
• Adults Note: Regularly examine the charger for damage to
the cord, plug, housing or other parts that may result in
the risk of fire, electric shock or injury. In the event of any
damage, do not use the charger until the damage has been
properly repaired.
• If a thermal fuse in a battery continually trips under normal
driving conditions, please call us at 1300 135 312.
• This vehicle has adjustable play seat belts. Please note that
the adjustable seat belts are designed to be a play feature
and do not function as protective safety restraints.
RIDING HAZARD
• Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies
of water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars, roads
and alleys.
• Riding Rules
Make sure children know and follow these rules
for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 2 (two) riders at a time.
WARNING

Troubleshooting Îservice.sher-price.com 3
Y2189pr-0729
PARTS
• If you experience a problem with this product, or are missing a part, please call us at 1300 135 312 rather than return this
product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts
are discarded.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove
any excess lubricant.
Vehicle Frame 2 Valve Covers Seat
2 Front Wheels (Left and Right) 2 Rear Wheels (Left and Right) Steering Post Steering Column
2 Rims Bumper Rear Axle Steering Wheel
2 Front Fenders (Left and Right) 2 Rear Fenders (Left and Right) 2 Sidebars (Left and Right)
Hood
2 Short Seat Belts Steering Wheel CapLong Seat Belt 2 Sidebar Covers (Left and Right)

Y2189pr-0729
4Troubleshooting Îservice.sher-price.com
PARTS
Fasteners Shown Actual Size
For your convenience, we included extra fasteners!
Note: Tighten and loosen all screws with a Phillips
screwdriver. Do not over-tighten the screws.
2 Front Hubcaps 2 Rear Hubcaps
2 Bushings 2 Front Axle Fastener Caps
2 Rear Axle Caps Assembly Wrench
12V Battery 12V Charger
Part Not Shown: Label Sheet
#8 x 1,9 cm Screw – 34
1 cm Lock Nut – 4
#8-32 Acorn Nut – 2
#8 x 1,3 cm Screw – 2

Troubleshooting Îservice.sher-price.com 5
Y2189pr-0729
ELECTRICAL HAZARD
WARNING
• Battery can fall out and injure a child if vehicle tips over.
Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could
cause a fire resulting in serious injury and could also ruin
the electrical system.
- Use of the wrong type battery or charger could cause
a fire or explosion resulting in serious injury.
- Use of Power Wheels®components in products other
than Power Wheels®vehicles could cause overheating,
fire or explosion.
• The battery must be handled by adults only. The battery is
heavy and contains sulfuric acid (electrolyte). Dropping the
battery could result in serious injury.
• Never allow children to charge the battery. Battery charging
must be done by adults only. A child could be injured by
the electricity involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for
excessive wear or damage each time you charge the
battery. If damage or excessive wear is detected, do not
use the charger or the battery until you have replaced the
worn or damaged part.

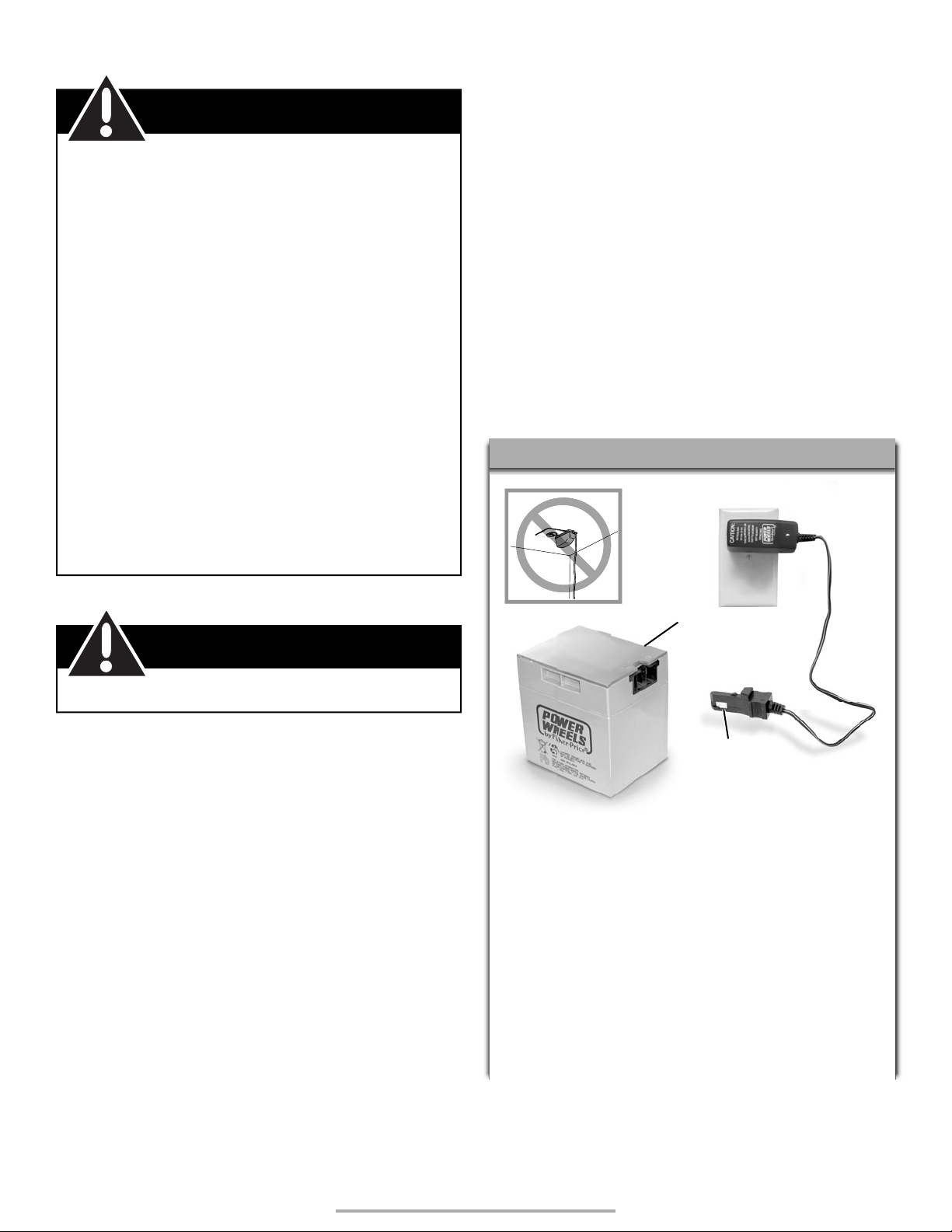

BATTERY CHARGING
• Make sure you charge the battery for at least 18 hours using the
enclosed Power Wheels®12 volt charger before operating your
vehicle for the first time. Charge the battery for at least 14 hours
after each use of the vehicle. Never charge the battery longer
than 30 hours. Failure to follow these instructions may damage
your battery and will void your warranty.
• Use only a Power Wheels®12 volt charger with “12V” connector
(input 220 VAC, 50 Hz, with an output of 12 VDC) to charge your
Power Wheels®12 volt battery.
• Before charging the battery, examine the battery case for cracks
and other damage which may cause sulfuric acid (electrolyte) to
leak during the charging process. If damage is detected, do not
charge the battery or use it in your vehicle. Battery acid is very
corrosive and can cause severe damage to surfaces it contacts.
• Do not place the battery on a surface (such as kitchen counter
tops) which could be damaged by the acid contained inside the
battery. Take precautions to protect the surface on which you
place your battery.
• Charge the battery in a well ventilated area.
Use the charger in dry locations only.
CAUTION
• Plug the charger connector into the battery socket.
• Plug the charger into a standard wall outlet.
• Notes:
- If power flow to the wall outlet is controlled by a switch,
make sure the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the
charger into a ceiling outlet.
• Once the battery is charged, disconnect the battery
connector from the charger connector. Unplug the charger
from the wall outlet. Refer to the Battery Installation section
for instructions on installing your battery. If your battery
is already installed in your vehicle, simply re-connect the
motor harness connector to the battery.
• You do not need to remove the battery from your vehicle to
recharge it.
Plug the charger connector into the battery socket
Battery must be upright
Battery must be upright
while charging.
while charging.
Charger Connector

Y2189pr-0729
6Troubleshooting Îservice.sher-price.com
ASSEMBLY
Children can be harmed by small parts, sharp
edges and sharp points in the vehicle’s
unassembled state, or by electrical items. Care
should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, including
the battery, or help in assembly of the vehicle.
WARNING
Rear Wheel
• Slide a rear wheel onto the end of the rear axle.
Motor
Rear Axle
SIDE VIEW
• Slide the rear axle through the hole in the motor in the back
end of the vehicle.
• Insert a #8 x 1,9 cm screw into the hole in the rear axle
and tighten.
x1
• Fit a rear axle cap onto the end of the rear axle.
Rear Axle Cap

Troubleshooting Îservice.sher-price.com 7
Y2189pr-0729
ASSEMBLY
Rear Hubcap
• Fit the tabs on the rear hubcap into the slots in the rear
wheel. Push to “snap” into place.
• Repeat steps 2-5 to assemble the other rear wheel, rear
axle cap and rear hubcap to the rear axle.
• Pull to rotate the front axles completely towards the front of
the vehicle.
Front Axle
Front Axle
Front Axle
Front Axle Fastener Cap
Front Axle Fastener Cap
• Fit a front axle fastener cap onto the upper portion of
a front axle.
• Align the hole in the axle fastener cap with the hole in the
front axle.
Hint: You may need to push the front axle towards the front of
the vehicle while you insert the screw.
• Insert a #8 x 1,9 cm screw into the large opening in the
front axle fastener cap and tighten.
• Repeat steps 7 and 8 to assemble the other front axle
fastener cap.
x2
x
Bushing
• Remove the cap on the end of the front axle. Dispose of the
cap in the trash.
• Slide a bushing, ring end first, onto a front axle.

Y2189pr-0729
8Troubleshooting Îservice.sher-price.com
ASSEMBLY
• Slide a front wheel, flat side first, onto the front axle.
Front Wheel
• Slide a rim, indented side out, onto the front axle.
• Fit a 1 cm lock nut onto the end of the front axle and
tighten with the assembly wrench.
IMPORTANT! Fully tighten the lock nut with the included
assembly wrench.
• Test to be sure the wheel spins. Lift the front end of the
vehicle up slightly and turn the wheel. It should spin freely.
• If the wheel does not spin freely, use the assembly wrench
to loosen the lock nut a ¼ turn. Spin the wheel again and
loosen more, if necessary.
Rim
Lock Nut
Assembly Wrench
x1

Troubleshooting Îservice.sher-price.com 9
Y2189pr-0729
ASSEMBLY
• Fit the tabs on the front hubcap into the slots in the front
wheel. Push to “snap” into place.
• Repeat steps 9-14 to assemble the remaining bushing, front
wheel, rim and front hubcap to the other front axle.
Front Hubcap
• Fit each valve cover onto the back end of the vehicle frame,
as shown.
Hint: Each valve cover is designed to fit one way. If the valve
cover does not seem to fit, try the other valve cover.
Valve Covers
FRONT VIEW
•
I
nser
t
th
ree
#8
x
1,9
cm screws
i
n
t
o eac
h
va
l
ve cover
I t th #8 1 9 i t h l
and tighten
.
x6
Note: Make sure the fasteners on both short seat belts face
each other.
• Fit the folded end of each short seat belt down through the
outer slots in the seat. Do not insert the folded tab into the
slot. Pull up on each seat belt to make sure it is secure.
Short Seat Belts
Folded Tab
Folded End

Y2189pr-0729
10 Troubleshooting Îservice.sher-price.com
ASSEMBLY
Note: Make sure the fasteners on the long seat belt are facing
the fasteners on the short seat belts.
• Insert the ends of the long seat belt up through the slots in
the centre of the seat.
• Fit the folded tabs on the belt up through the slots in the
centre of the seat to keep the long seat belt in place. Make
sure the folded tabs are on visible on the top side of
the seat.
Folded Tab
Fastener Side
Fastener Side
Long Seat Belt
• Fit the rear fenders under the tabs the sides of the seat,
as shown.
Rear Fenders
• Insert two #8 x 1,9 cm screws into the upper hole in each
side of the seat and tighten.
Note: Do not insert screws into the lower holes on the seat
in this step. These screws will be assembled in this location in
step 24.
DO NOT insert screws here.
x2
• Insert a #8 x 1,3 cm screw into a hole in the front of the
seat back.
x2
x

Troubleshooting Îservice.sher-price.com 11
Y2189pr-0729
ASSEMBLY
• Fit the seat onto the vehicle frame.
• From behind the seat back, fit a #8-32 acorn nut onto the
end of the screw.
• While holding the acorn nut in place with the adjustable
wrench, tighten the screw with a Phillips screwdriver.
• Repeat assembly steps 21 and 22 to assemble the remaining
#8 x 1,3 cm screw and #8-32 acorn nut to the seat back.
x2
BACK VIEW
FRONT VIEW
Vehicle Frame
Seat
• Insert six #8 x 1,9 cm screws into the seat and tighten.
x6
x
• Fit the sidebars into the slots in the vehicle frame and
rear fenders.
Hint: Each sidebar is designed to fit one way. Make sure the
sidebar curves outward and the tabs on the ends fit into the
slots in the vehicle and fenders.
Tabs
Sidebar with
Curve Out
Sidebar with
Curve Out

Y2189pr-0729
12 Troubleshooting Îservice.sher-price.com 12
26
ASSEMBLY
x2
• Fit the front fenders onto the front of the vehicle, as shown.
Hint: The front fenders are designed to fit one way. If a front
fender does not seem to fit, try the other one!
• Fit the sidebar covers onto the sidebars, as shown.
Hint: The sidebar covers are designed to fit one way. If a sidebar
cover does not seem to fit, try the other one!
• Insert a #8 x 1,9 cm screw into each sidebar cover
and tighten.
x
Sidebar Cover Sidebar Cover
Front Fenders
x6
• Insert six #8 x 1,9 cm screws into the fenders and tighten.
x
TOP SIDE VIEW
x4
•
Fit the bum
p
er onto the front end of the vehicle.
•
I
nsert four #8 x 1,9 cm screws into the bumper and tighten
.
FRONT VIEW
Bumper

Troubleshooting Îservice.sher-price.com 13
Y2189pr-0729
13
ASSEMBLY
• Fit the tabs on the hood onto the pegs on the front fenders.
Hood
Pegs
• Fit the folded end of the strap attached to the hood up into
the slot in the front end of the vehicle.
• Insert the straight end of the steering column up through
the bottom of the steering post, as shown.
Steering Post
Steering Column
• Pull the straight end of the steering column up so that only
the bend is visible (out from the bottom of the steering
column post).
• Hold the steering column in place and lower the assembly
to fit both the steering column post into the hole in the floor
of the vehicle and the steering column into the slot in the
front end of the vehicle.
TOP SIDE VIEW
Steering Column Post
Bend in Steering Column
Slot
Hole

Y2189pr-0729
14 Troubleshooting Îservice.sher-price.com
ASSEMBLY
• Push the steering column down (so that it inserts into the
slot in the steering linkage underneath the vehicle).
Steering Column
x1

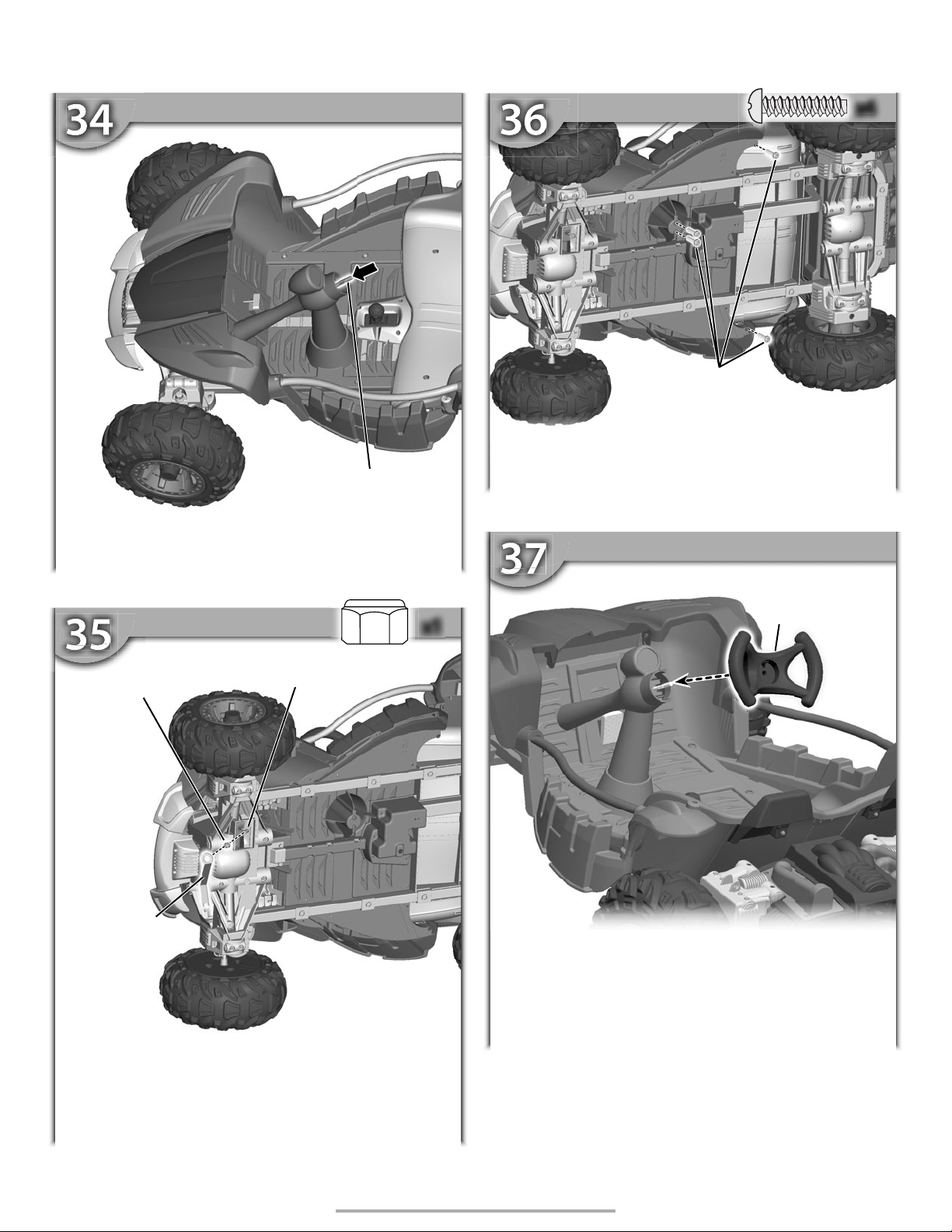

• Carefully turn the vehicle on its side.
• Fit the steering column through the hole in the steering linkage.
• Fit a 1 cm lock nut onto the end of the steering column and
tighten with the assembly wrench.
Lock Nut Steering Column
Assembly Wrench
BOTTOM VIEW
x4
• Insert four #8 x 1,9 cm screws into the holes in the bottom
of the vehicle (to hold the steering column post and seat)
and tighten.
x
Screws
• Turn the vehicle upright.
• Fit the steering wheel onto the steering column assembly.
Hint: The steering wheel is designed to fit the steering column
one way. If it does not seem to fit, turn it around and try again!
Steering Wheel
INSIDE VIEW

Troubleshooting Îservice.sher-price.com 15
Y2189pr-0729
ASSEMBLY
x1
• Fit a 1 cm lock nut onto the end of the steering column and
tighten with the assembly wrench.

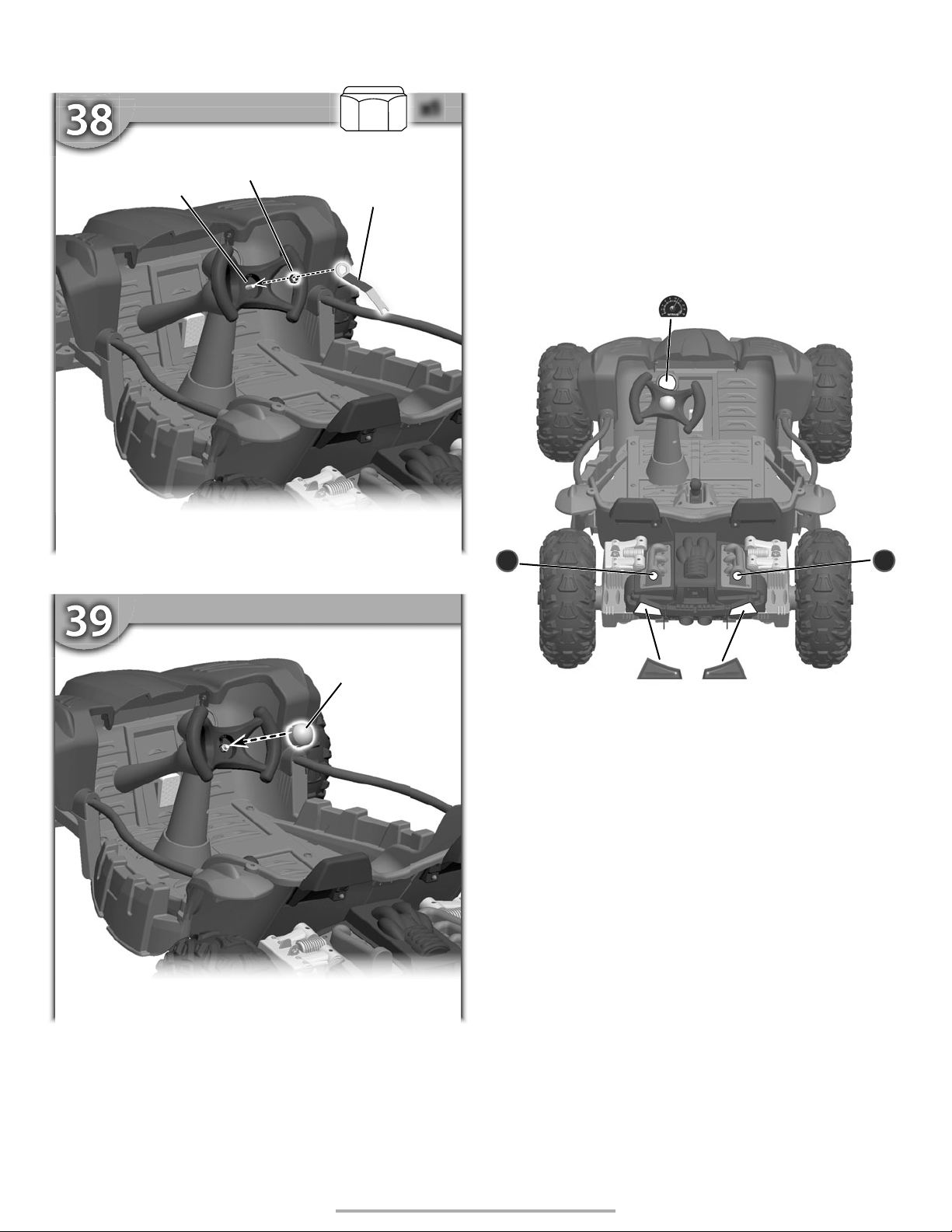

• Fit the steering wheel cap to the centre of the steering
wheel. Push to “snap” into place.
Steering Column
Lock Nut
Assembly Wrench
Steering Wheel Cap
• Before applying the labels, wipe the surface of the vehicle
with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has been
applied to the vehicle.
• After applying a label, rub the label firmly with a clean, dry
cloth to make sure the label is adhered to your vehicle.
Start at the center of a label, and smooth towards the outer
edges to remove air bubbles.
DECORATION
5
18 18
24 23
BACK VIEW

Y2189pr-0729
16 Troubleshooting Îservice.sher-price.com
DECORATION
1
2
13
19
7
6
9
8
11
10
12 12
21 22
20
4
TOP VIEW
17
3
3
14
RIGHT SIDE VIEW
3
3
15 16
LEFT SIDE VIEW

Troubleshooting Îservice.sher-price.com 17
Y2189pr-0729
BATTERY INSTALLATION
IMPORTANT! Use only a Power Wheels®12 volt lead-acid
rechargeable battery. Use of any other battery will damage
your vehicle.
• Press the battery door button on the back end of the vehicle.
• Lower the battery door.
• Carefully fit the battery into the battery compartment.
Battery Door
Power Wheels®12 Volt Battery
• Plug the motor harness connector into the battery.
Push firmly.
• Lift the battery door and “snap” into place.
Motor Harness
Battery Door

Y2189pr-0729
18 Troubleshooting Îservice.sher-price.com
RIDING HAZARD
Use vehicle on generally level ground ONLY!
• Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies of
water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars, roads
and alleys.
• Riding Rules
Make sure children know and follow these rules
for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 2 (two) riders at a time.
WARNING
SAFE DRIVING RULES
Before children use this vehicle, an adult should carefully
evaluate the driving area as well as the child’s skill level and
ability to drive the vehicle safely. Teach appropriate safety
rules to your child before allowing operation of this vehicle.
These rules should also be reviewed with other playmates
who want to drive the vehicle.
• A child who is not sitting on the seat could fall off, cause
a tip over or block the driver’s view.
• Only operate the vehicle in the daytime in a well-lit area.
• Driving near steep inclines can cause:
- The vehicle to gain unsafe speed, even if the pedal is
released to stop.
- The vehicle to tilt and tip over
- The wheels to lose traction, causing the vehicle to slip.
- The vehicle could roll backwards at an unsafe speed.
• Never put anything near any moving parts. Rotating parts,
such as motors, gear boxes and wheels, can snag fingers,
hair, etc., causing serious injury.
• Do not allow operation of the vehicle when it is on its side
or in an upside-down position.
• Do not operate the vehicle near flammable vapors (gasoline,
paint thinner, acetone, liquid wax, etc.). The vehicle’s
electrical switches, like most electrical switches,emit an
internal spark when first turned on or turned off, which
could cause an explosion or fire.
• To prevent unsupervised use of the vehicle, disconnect the
motor harness from the battery when the vehicle is not in use.

Troubleshooting Îservice.sher-price.com 19
Y2189pr-0729
VEHICLE OPERATION
• Help your child practice steering to learn how far and
how quickly to turn the steering wheel when driving, and
automatically knows how to stop.
Beginner Use – Low Speed
• As assembled, your vehicle is ready to roll in low speed
4 km/h maximum.
STOP
• Make sure the shifter is in the low speed position.
• Press down on the foot pedal.
IMPORTANT! To avoid damaging the motors and gears, stop
the vehicle before shifting from forward to reverse.
• Once your child is completely comfortable with operating
the vehicle forward, introduce reverse .
• Make sure the shifter is in the reverse position.
• Press down on the foot pedal. The vehicle is designed to
operate in low speed only in reverse.
• Remove your foot from the pedal to stop!
Advanced Use – High Speed
• Before you disconnect the high speed lock-out, make sure
your child knows how to steer, how to start and stop the
vehicle and knows the rules for safe driving. When the high
speed lock-out is disconnected, the vehicle can be driven
forward in low speed 4 km/h maximum or high speed
8 km/h maximum.
• Make sure the shifter is in the reverse position.
• Loosen and remove the screw in the shifter box.
• Place the lock-out screw into the hole in the vehicle for
future use. It can be re-inserted into the shifter box to lock-
out high speed.
• Make sure the shifter is in the high speed position.
• Press down on the foot pedal.
Remove lock-out screw
for high speed.
Place lock-out screw
here for storage.

BATTERY CARE
• If a battery leak develops, avoid contact with the leaking
acid and place the damaged battery in a plastic bag. See
next section for proper disposal.
• If acid comes in contact with skin or eyes, flush with cool
water for at least 15 minutes and call a physician.
• If acid is internally ingested, give water, milk of magnesia
or egg whites immediately. Never give emetics or induce
vomiting. Call a physician.
• Do not allow the battery to run down completely
before charging.
• Charge the battery before storing the vehicle, and at least
once per month, even if the vehicle has not been used.
• Charge the battery after each use, regardless of how long
the vehicle was used.
• Leaving the battery in a discharged condition will ruin it.
• Always remove an exhausted battery from the vehicle.
Battery leakage and corrosion can damage the vehicle.
• Do not store the battery in temperatures above 24° C or
below -23° C.
BATTERY DISPOSAL
• Your Power Wheels®battery is a non-spillable sealed
lead-acid battery. It must be recycled or disposed of in an
environmentally sound manner.
• Do not dispose of a lead-acid battery in a fire. The battery
may explode or leak.
• Do not dispose of a lead-acid battery in your regular,
household trash. The incineration, landfilling or mixing of
sealed lead-acid batteries with household trash is prohibited
by law in most areas.
• Return an exhausted battery to a federal or state approved
lead-acid battery recycler, such as a local seller of
automotive batteries. Contact your local waste management
officials for other information regarding the environmentally
sound collection, recycling and disposal of lead-acid batteries.
• Protect the environment by not disposing of this product with
household waste (2002/96/EC). Check your local authority
for recycling advice and facilities
BATTERY CARE AND DISPOSAL VEHICLE CARE
CONSUMER INFORMATION
• Check all screws, cap nuts and their protective
coverings regularly and tighten as required. Check plastic
parts on a regular basis for cracks or broken pieces.
• During snowy or rainy weather, the vehicle should be stored
inside or under a protective cover. Remember to charge the
battery at least once per month while your vehicle is not in
regular use.
• Avoid operating the vehicle in wet or snowy conditions,
and do not spray the vehicle with a hose. Do not wash
the vehicle with soap and water. Water or moisture in the
motors or electrical switches can cause them to corrode,
and could cause switch or motor failure.
• Avoid operating the vehicle on sand, loose dirt or gravel.
Sand, loose dirt or gravel in the motors or electrical
switches can cause them to jam, and could cause switch or
motor failure.
• The vehicle can be wiped down with a soft, dry cloth.
For a shiny finish, you can wipe plastic parts with
a non-wax furniture polish applied to a soft-cloth. Do not
use automotive wax. Do not use soap and water or spray
the vehicle with a hose.
AUSTRALIA: Mattel Australia Pty. Ltd., 658 Church Street,
Locked Bag #870, Richmond, Victoria 3121 Australia.
Consumer Advisory Service 1300 135 312.
NEW ZEALAND: 16-18 William Pickering Drive, Albany 1331,
Auckland.
• Before first-time use, you must charge the battery 18 hours!
• Charge the battery immediately after each use. Charge the
battery once a month, even if the vehicle is not used or stored.
• Visit us online for our Troubleshooting Guide -
service.fisher-price.com
PRINTED IN MEXICO Y2189pr-0729
©2012 Mattel. All Rights Reserved. Tous droits réservés.
