Fisher Scientific 88861049 User manual

Multi-Purpose Tube RotatorOperations Manual
V1 12/05/17

This manual covers the model shown below
1
NA Model Voltage Description
88861049
88861050 100~240V
100~240V Multi-Purpose Tube Rotator 5 - 80 rpm,
100 - 240V, US plugs
Multi-Purpose Tube Rotator 5 - 80 rpm,
100 - 240V, EU ANZ(CN) UK plugs
EU Model
N/A
15524080

2
Caution all internal adjustments and maintenance must be performed by qualified
service personnel.
Material in this manual is for information purposes only. Fisher Scientific is
committed to a continuing program of product development and improvement, and
reserves the right to change information, such as specifications, appearance, and
dimensions, described in this document without notice. Fisher Scientific makes no
representations or warranties with respect to this manual. In no event shall Fisher
Scientific be held liable for any damages, direct or incidental, arising out of or
related to the use of this manual.
No part of this manual may be reproduced or transmitted in any form or by any
means, including photocopying, recording, or using information storage and
retrieval systems, for any purpose other than the purchaser's own use, without the
express written permission of the manufacturer.
Any other product names and services identified in this manual are trademarks or
registered trademarks of their respective owners. No such use, or the use of any
trade name, is intended to convey endorsement or other affiliation with Fisher
Scientific.
2017 Fisher Scientific. All rights reserved.
Before using this product, read this entire operation manual
carefully. Users should follow all of the operational guidelines
contained in this manual and take all necessary safety
precautions while using this product. Failure to follow these
guidelines could result in potentially irreparable bodily harm
and/or property damage.

3
Contents
Section 1 Inspection and Installation
Packing List
Connections
Structure Diagram
Section Overview
Specifications
Environmental Conditions
Safety Instructions
Section 3 Operation
Control Panel
Settings
Section 4 Safety Tips and Maintenance
Section 5 Troubleshooting
Section 6 Optional Accessories/Spare Parts
Section 7 Warranty
2
Installation
Tray Installation and Tilt Angle Adjustment
4
4
4
4
5
5
5
5
6
6
6
6
7
9
10
11
12

Section 1 Inspection and Installation
1. Inspect package and contents upon receipt of the instruments.
If the package is severely damaged or if there are any missing
pieces, please contact the manufacturer immediately.
2. Unpack the instrument, ensure all parts of the instrument and
accessories are not missing or damaged. Make sure to take out
General Power Adaptor
US Plug
CN Plug
EU Plug
UK Plug
Screw Driver
1.1 Packing List
Table -1 Packing List
88861049
US plug
1
N/A
N/A
N/A
Multi-Purpose
Tube Rotator
1
1
1
88861050
/15524080
Intl plug
1
N/A
1
1
1
1
1
1.2 Connections
Main Body
Power Cable
all the components before discarding the packing. If there are
any missing or damaged pieces, please contact the
manufacturer immediately.
3. Place the instrument on a level and firm surface to avoid
vibration and noise.
Power Adaptor
1.3 Structure Diagram
4
15×50ml Rotator Drum
Foot(4)
Control Panel
Rotary
Plate
Fixed
Handle
Test Tube Holder
Motor
House
Stand
Top Plate
House
Bolt
Gasket
Description NA Cat. No. NA/EU Cat. No.

2.1 Specifications
Section 2 Overview
2.2 Environmental Conditions
Voltage Fluctuation
Altitude
Humidity
Temperature 5 to 40℃(41 to 104 ℉)
±10% of the nominal voltage
≤2,000 m
Temperature
Humidity 20％ to 90％, non-condensing
WARNING DO NOT use the
in a hazardous atmosphere or
with hazardous materials for which the unit
was not designed. Also, the user should be
aware that the protection provided by the
equipment may be impaired if accessories
used are no provided or recommended by
the manufacturer, or are used in a manner
not specified by the manufacturer.
CAUTION ! To avoid electrical shock,
completely cut off power to the unit by
disconnecting the power cord from the unit
or unplug from the wall outlet. Disconnect
unit from the power supply prior to
maintenance and service. Any spills should
be removed promptly. Bio hazard spills
should be cleaned using approved liquid
promptly. Solvent spills are a fire hazard.
Stop the unit immediately, and DO NOT
operate until clean up is complete and
vapors have dissipated.
Multi-Purpose
Tube Rotator
DO NOT immerse the unit for cleaning.
DO NOT operate the unit if it shows signs of
electrical or mechanical damage.
Please read the entire instruction manual before
operating the .Multi-Purpose Tube Rotator
2.3 Safety Instructions
5
1min 99h59min~
LED
Timing Range
Display
Time
64×Φ18.5mm culture tubes (drum rotor)
5 kg (Contain rotator drum weight)
Maximum Capacity
Maximum Load
(Centered on tray)
Load
95°~180°
17°
Manual Adjustment
Angle Adjustment Range
Step Angle
Adjustment Method
Angle
Net Weight 9.3Kg(20.5lb)
11.8Kg(26.0lbs)Gross Weight
Weight
Application Environmental Conditions: indoor use
Storage Environmental Conditions
AC100-240V, 50Hz/60Hz, 0.2A
Requirement
Power Supply
Certification ROHS, WEEE, cCSAus, CE Mark
Others
415×293×464mm(16.3×11.5×18.3in)
15×50ml rotary plate
(Diameter Φ290mm/11.4 in)
486×381×470mm(19.1×15.0×18.5in)
Overall Dimensions
Packaging Dimensions
Size
Standard Match
Dimensions
20% to 85%,
Various independent clamps are available with this
Multi-Purpose Tube Rotator for convenient
combination use. It is applicable for 1.5 to 50ml
microtubes to mix liquid efficiently and gently. It has
an angle range of 95 to 180 degrees and can
maintain suspension state of biological samples
such as blood mixing. Applications include blood
coagulation prevention, emulsion diagnosis,
immunoprecipitation, and other related areas.
Note: The rotary plate maybe have a little vibration
below 11 rpm, but the vibration will relieve or
disapear when add some loads.
Note: Maximum speed may vary with heavy or unbalanced loads.
±1rpm
Speed Accuracy
LED
Display
Speed
Description NA Cat. No. NA/EU Cat. No.
Multi-Purpose
Tube Rotator
88861050
/15524080
Intl plug
88861049
US plug
Category Number

The front panel of the contains all the controls needed to operate the unit.Multi-Purpose Tube Rotator
TIME
①
②
③④
⑤⑥
This chapter covers the control panel and its operation.
Section 3 Operation
3.1 Control Panel
6
1. Start/Stop button: Start or stop the instrument.
2. RUN indicator light: The light is on when the instrument is
running and off when the instrument is in standby.
3. TIME display window: The window shows cumulative time
(in continuous mode) or remaining time (in timer mode). The
range of time displayed is 0 to 99 hours and 59 minutes. The
accuracy is 1 minute.
4. SPEED display window: The window shows set speed
(when the instrument is in standby) or current speed (when the
instrument is running).
5. Set Time Buttons: UP/DOWN Arrow buttons are used to
increase/decrease the set time of the instrument.
. Set Speed Buttons: UP/DOWN Arrow buttons are used to
increase/ decrease the set speed of the instrument.
6
1. Connect all the components according to the figures shown
on page 4 of this manual. Use grounded power outlet.
2. Press down the power switch on the back right side of the
instrument and put it to the “|” state and then the instrument is
in standby.
3.2 Installation
3.3 Settings
Time Settings
1. Continuous mode
Press the “ ” or “ ” arrow button below the TIME display
window. When the number shown on the display window starts
flashing, press “ ” arrow button to decrease the time to 00:00
and then release the button. The time setting is finished after the
number shown on the display window has flashed twice.
2. Timer mode
window. When the number shown on the display window starts
flashing, press “ ” or “ ” arrow button to increase or
decrease the time value. Release the button when the time
shown on the display window reaches the set value. The time
setting is finished after the number shown on the display window
has flashed twice.
Speed Settings
Press the “ ” or “ ” arrow button below the SPEED display
window. When the number shown on the display window starts
flashing, press “ ” or “ ” arrow button to increase or
decrease the speed value. Release the button when the speed
shown on the display window reaches the set value. The speed
setting is finished after the number shown on the display window
has flashed twice
Note: press the “ ” or “ ” arrow button for a longer time to
accelerate the setting.
Run and Stop
1. Continuous Mode
Press button and the instrument will start running with the
specified settings and the RUN indicator light will be on. The
TIME display window will show the cumulative time and the
SPEED display window will show the current speed. Press “ ”
button again and the instrument will slow down until it stops.
The instrument will then be in standby and the two display
windows will show the set values.
“ ”
2. Timer Mode
Press button and the instrumentwill
The
TIME display window will show the remaining time and the
SPEED display window will show the current speed. Press
button again and the instrument will slow down until it stops.
The instrument will then be in standby and the two display
windows will show the set values.
“ ”
“ ”
start running with the
specified settings and the RUN indicator light will be on.
Press the “ ” or “ ” arrow button below the TIME display

In Timer mode, the instrument will stop operation
automatically and the alarm will sound when the timer
goes off.
Alarm Instructions
3.4 Tray Installation and Tilt Angle Adjustment
Power Recovery
If the power supply is cut off suddenly while the
instrument is in operation, the unit will automatically run
at the previously set parameter upon power restoration.
The display window will flash. Press any button to stop
flashing.
Finish Operation
Note:
To ensure shaking operation smooth and steady, it may
take 1minute for the microprocessor control system to
accelerate the tray to the set speed.
After the operation is finished, press the power switch at
the back right side the instrument and put it into the “O”
state. Unplug the instrument and store the instrument
according to the storage guide.

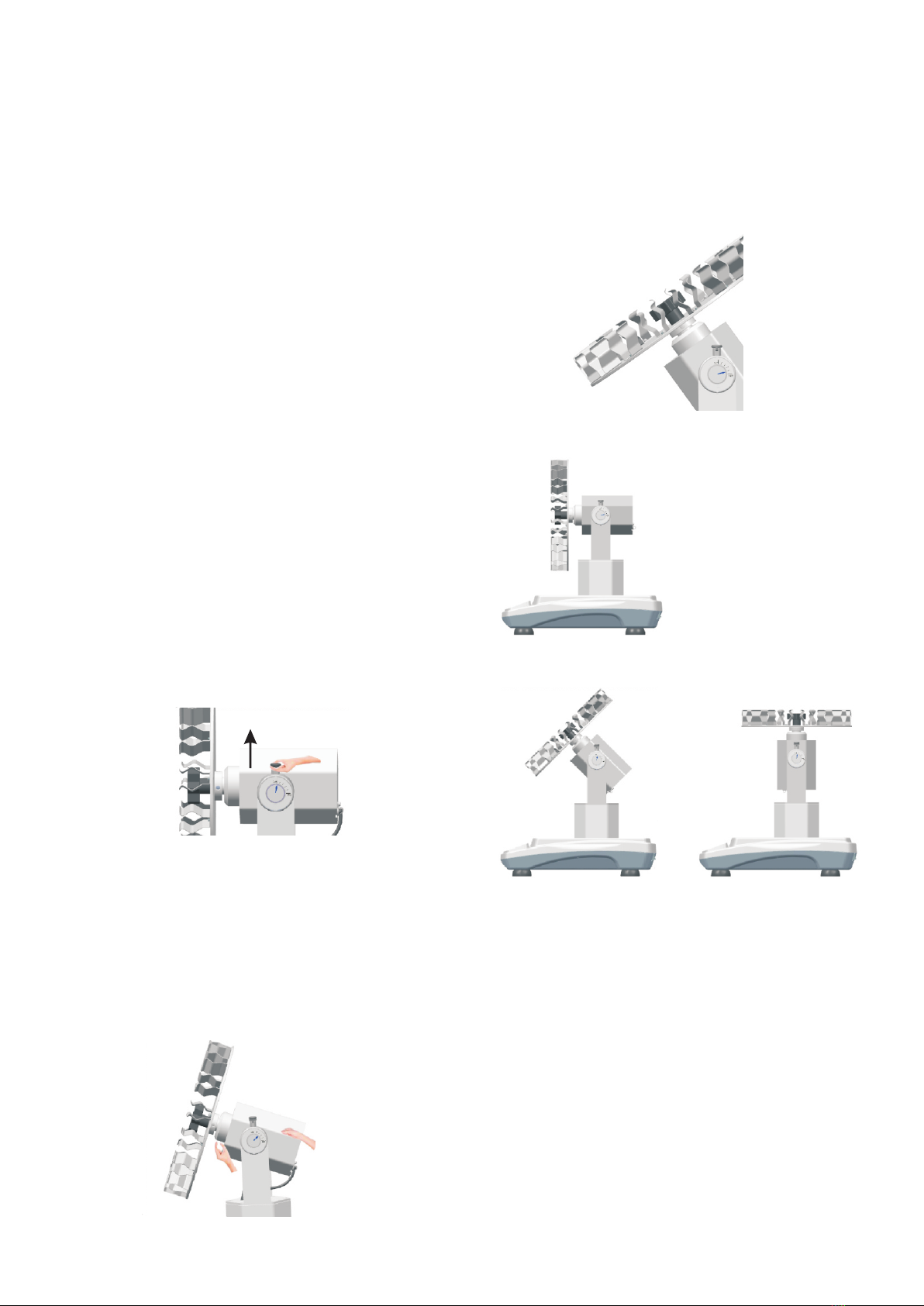

Angle Adjustment Method
1. Pull out the black bolt.
Mixing angle 95°
Note: If please operate according
to the following instructions
1) Turn motor houseback and forth gently by hand and pull
bolt upward at the same time.
2) If still cannot pull out bolt, please use vise grip plier to
pull bolt upward and turn motor houseat the same time.
3) Please contact us immediately if the problem still exists.
bolt does not pull out,
Pull bolt upward
Mixing angle 135°Mixing angle 180°
7
2. Rotate the motor house gently by hand to adjust the angle.
3. Pull out bolt and turn 90 degrees and insert the top of
the bolt into the long slot of the hexagon block. Push the
motor house gently until the bolt fits well.
4. Angle adjustment range is shown in the figures.

1. Insert the stud on the rotation shaft into the center hole of
the tray and make sure the tray is firmly touching the fixing
block of the rotary plate, as shown in figure 1.
2. Screw in the fixed handle until the tray fastens, as shown
in figure 2 .
3. Align the tip of the screw driver with the hole at the side of
the fixing block of the rotary plate. Make sure the fixing block
of the rotary plate is not moving and continue screwing the
fixing handle until the tray is fastened tightly, as shown in
figure 3.
Single Tray Installation
figure 1
figure 2
1. Insert the stud on the rotation shaft into the center hole
of the tray and make sure the tray is firmly touching the
fixing block of the rotary plate, as shown in figure 4.
2. Insert the special-purpose handle into the center hole
and screw in the stud until the tray is fastened (shown in
figure 5).
Double Tray Installation
figure 5figure 4
figure 3
Note:
After continued and extended
operation, it is possible for the
tray to exhibit uneven or erratic
rotation. This does not
necessarilyindicate equipment
malfunction and a cause for
returning the unit to the
manufacturer.
Caution:
Failure to load or
unload the tray as
listed above may
result in uneven
tray rotation or
possible stalling
of the tray
4. Insert the test tube into the hole. Make sure to place
the test tubes close to the center or symmetric around
the axis.
Loading and Unloading the Tray:
Maintaining Tray Balance
Because the rotator is a finely
balance unit, loading and
unloading the tray with culture
tubes or other containers needs to
maintain the overall balance of the
tray, especially when it is moving.
Starting from the center and
working to the outside edge of the
tray, insert or remove tubes that
are diametrically opposed-that is,
from the top, bottom, left, right.
container weight is
distributed evenly, allowing
optimum tray rotation.
This way the
Tray, Front Facing
figure 6
4. Insert the test tube from the outside of the tube holder
until it reaches the appropriate position.
8
3. Fasten the screw on the tray with the screw driver to
keep the tray is fixed well, as shown in figure 6.

Section 4 Safety Tips and Maintenance
Safety Tips
1. Use independent power supply.
2. Check if the local power supply voltage is suitable for use.
3. Do not drag the power supply cable when unplugging.
4. Do not use non-specified power cable or damage cable.
5. Service should only be performed by a qualified
professional.
6. The power supply must be unplugged under the following
situations:
a. When the unit is moved
b. When the electrical cabinet or the moving component is
opened
c. When the equipment is malfunctioning
d. When the equipment is not in use
7. Wear appropriate protective equipment during operation
to prevent spillage of liquid or leakage of flammable or
poisonous gas.
If accidental spillage of liquids caused by mishandling
or contained breakage occurs on the surface of the
instrument, please shut down the instrument and clean
up the liquid immediately.
If the liquid has already spilled into the unit, cut off the
power supply first and immediately clean up the liquid
at the surface of the instrument. Place the instrument in
a ventilated and dry environment for 24 hours before
reuse. If the instrument is not functioning after drying
for 24 hours, please contact the manufacturer.
Warning: Disassembling/Assembling without a
qualified professional's guidance may cause
malfunctioning of the instrument.
Clean Spill
● Reagent must be sealed inside the test tube during
operation to avoid spillage while rotating.
● Avoid vibration ensure precise operation of the instrument.
● Balance loads if possible to improve service life of the
instrument. (It is recommended to reduce load or rotation
speed if the loads are unbalanced.)
● Make sure to pull out the test tube horizontally from the
holder to avoid side flip of the instrument.
● Fixed handle must be fastened to prevent rotary plate from
falling during operation.
a. This instrument uses a high-accuracy motor. It is
maintenance free and has a long service time, high
quality, and low noise level.
b. Surfaces can be cleaned with a mild detergent and
water.
Maintenance
Warning: Avoid dripping detergent or water into the
inside of the instrument during cleaning.
9

Please refer to the following table to troubleshoot if any malfunction occurs. If the problem still exists, contact your local
sales representative.
Error
Cannot start machine,
LED display window off
No shaking of the tray
Loud noise
Other
Cause
Power disconnected
Power switch off
Power adaptor failure
Over-weighted or unbalanced load
Electrical malfunction
Mechanical malfunction
Rotary plate loose
Keep record for maintenance
Solution
Connect the power
Turn power switch on
Replace power adaptor
Adjust the weight and position of load,
decrease rotation speed
Contact Fisher Scientific
Contact Fisher Scientific
Fasten fixed handle
Component loose
Uneven or resonant surface Place instrument at a level and firm surface
Fasten screws
Section 5 Troubleshooting
10

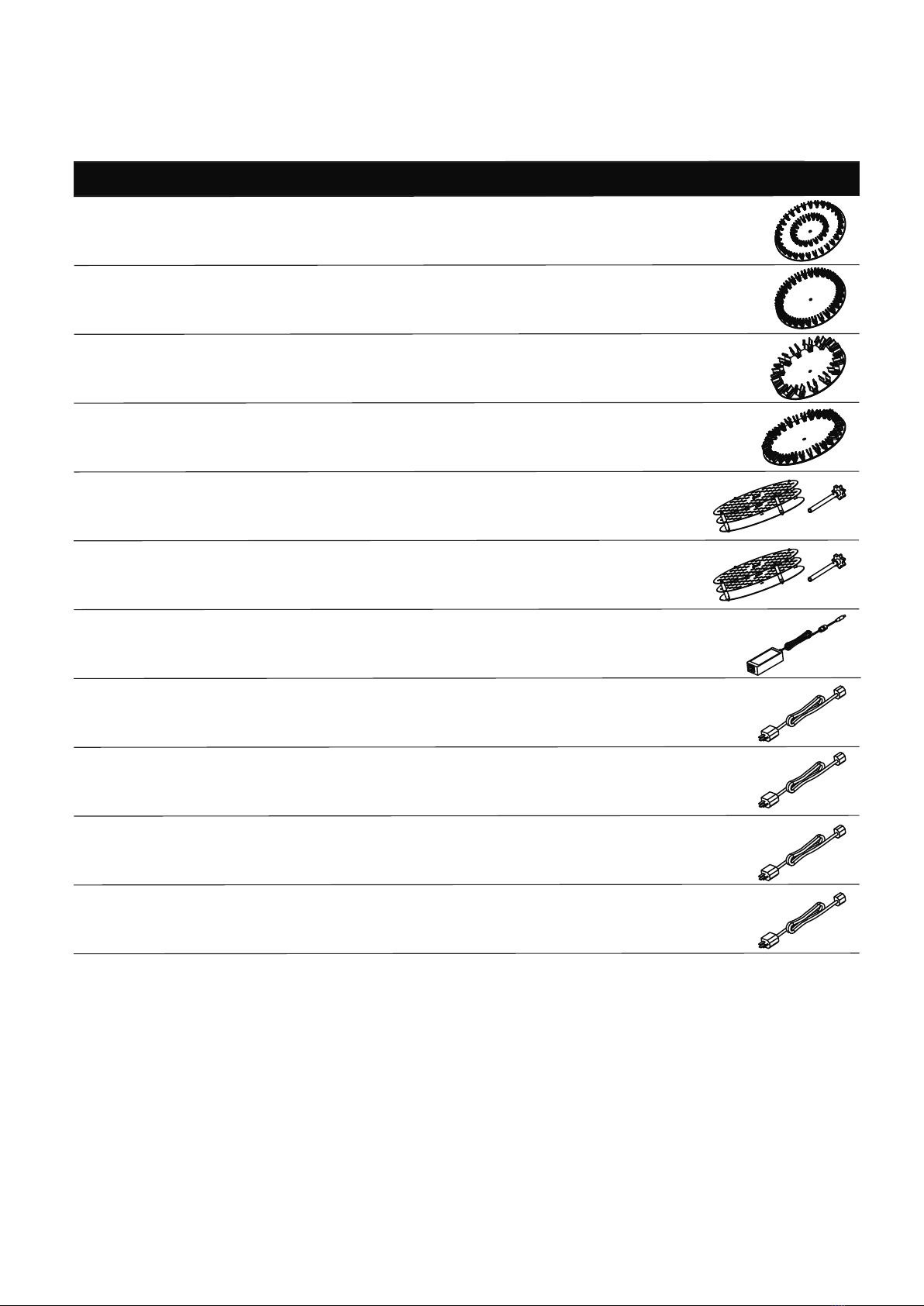

Section 6 Optional Accessories/Spare Parts
General Power Adaptor
(Spare Part)
Φ290×24mm
50x1.5/2.0ml rotator drum
AC 100 240V, 50/60HZ~
125VAC, 10A, 1.8m
250VAC, 10A, 1.8m
250VAC, 16A, 1.8m
250VAC,13A, 1.8m
88861158
88861157
88861156
88861155
88861154
88861121
30x15ml rotator drum 88861122
88861123
88861124
88861125
88861126
Φ290×31mm
Power Cable US Plug
(Spare Part)
Power Cable CN Plug
(Spare Part)
Power Cable EU Plug
(Spare Part)
Power Cable UK Plug
(Spare Part)
Description NA Cat. No. EU Cat. No. Dimensions Figure
Max. Qty
1
1
1
1
1
1
1
1
1
1
1
Φ290×48mm
Φ×75310 mm
Φ290×31mm
Φ×115310 mm
10x10/15ml + 20x5/7ml drum
15x5 ml rotator drum0
64x14mm rotator drum
64x18.5mm rotator drum
11
15584130
15594130
15574090
15584090
15594090
15504100
15554120
N/A
N/A
15564120
15574120

When used in laboratory conditions and according to these operation instructions and maintenance, this product is
warranted for 24 months against defective materials or workmanship. The 24 month warranty period begins from the
delivery date of this product.
For product quality or performance issues, contact Fisher Scientific Customer Service.
Section 7 Warranty
12

United States
1-800-766-7000
fishersci.com
Austria:
[phone]
at.fishersci.com
Belgium:
[phone]
be.fishersci.com
Denmark:
[phone]
fishersci.dk
Germany:
[phone]
de.fishersci.com
Ireland:
[phone]
ie.fishersci.com
Italy:
[phone]
it.fishersci.com
Finland:
[phone]
fishersci.fi
France:
[phone]
fishersci.fr
North America
Canada
1-800-234-7437
fishersci.ca
Netherlands:
[phone]
nl.fishersci.com
Norway:
[phone]
fishersci.no
Portugal:
[phone]
pt.fishersci.com
Spain:
[phone]
es.fishersci.com
Sweden:
[phone]
fishersci.se
Switzerland:
[phone]
ch.fishersci.com
UK:
[phone]
fisher.co.uk
Europe
Find out more at
fishersci.com
